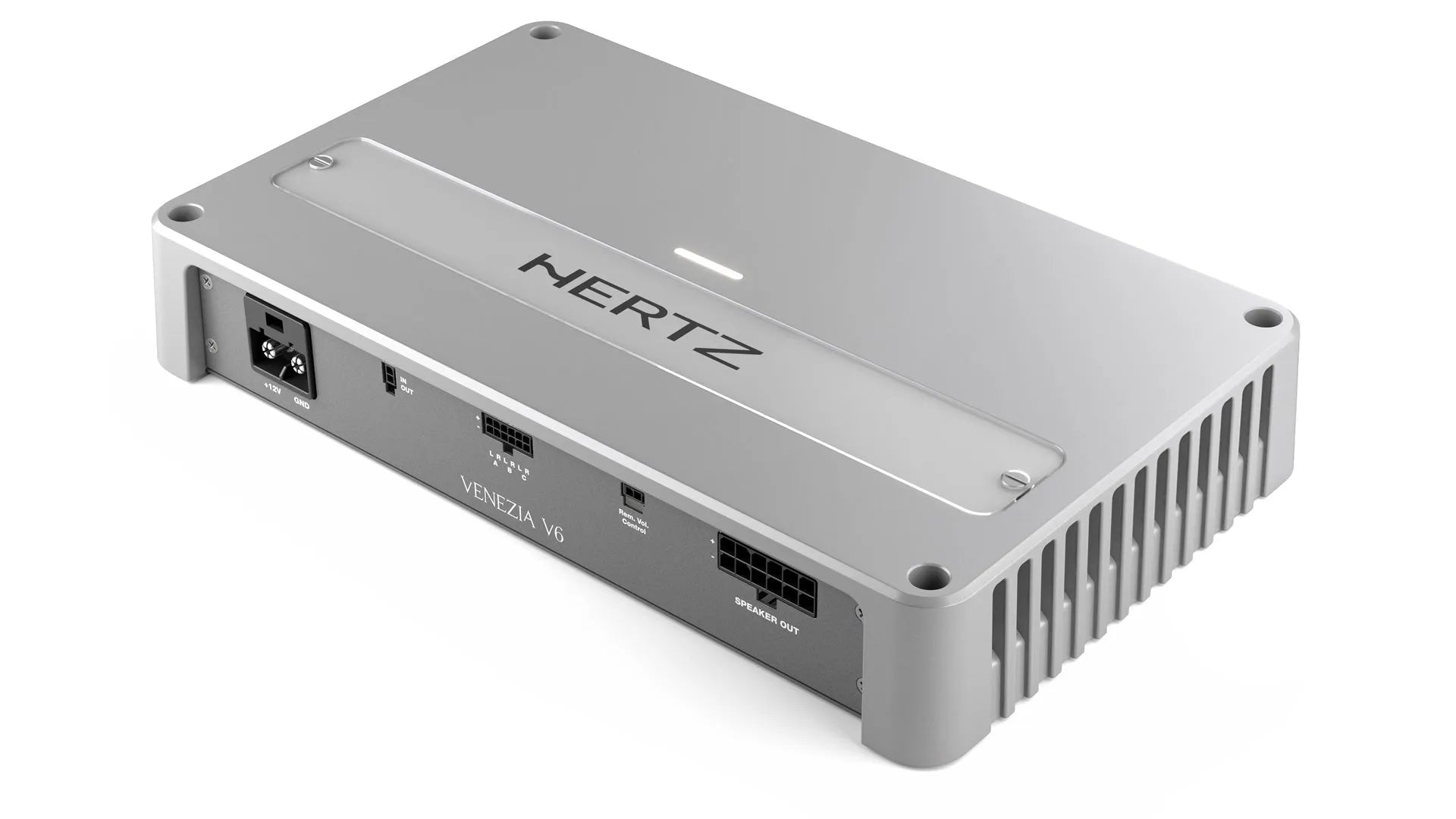

Hertz VENEZIA V6 24V, garso stiprintuvas skirtas vandens transportui

"Venezia V6 24V" yra pirmasis šešių kanalų "Hertz" jūrinis stiprintuvas, pasižymintis įspūdinga 160 W x 6 (4 Ω) galia, užtikrinančia jūrinėje aplinkoje reikalingą išėjimo lygį!

check_circle_outline highlight_off
Yra prekyboje Išparduota
Translation missing: lt.product.general.sku_html
Nuolaida: 882.00 €
Kaina: 882.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Hertz VENEZIA V6 24V, garso stiprintuvas skirtas vandens transportui

"Venezia V6 24V" yra pirmasis šešių kanalų "Hertz" jūrinis stiprintuvas, pasižymintis įspūdinga 160 W x 6 (4 Ω) galia, užtikrinančia jūrinėje aplinkoje reikalingą išėjimo lygį!

  • Galia: 6 x 160W prie 4 omų.
  • ADC (Advanced) D klasės garso stiprintuvas.
  • Hi-Pass: 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct.





Venezia V6 is the first six-channel Hertz marine amplifier, featuring the impressive power of 160 W x 6 (4Ω), delivering the output levels needed in the marine environment! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability. Venezia V6 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V6 is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.

VENEZIA V6

  • Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
  • ADC (Advanced D-Class) Technology 2Ω stable output stage providing Hi-Res certified audio performance with superior efficiency.
  • Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
  • Balanced fully-differential input circuitry to reject electromagnetic disturbances.
  • Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.
  • Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
  • Short-circuit, overload, and thermal protections with auto-resetting.
  • Plug&Play Input and Output connections with safe-lock.
  • Proprietary Plug&Play Power Supply Connector with safe-lock.
Technologies VENEZIA V6 ADC

Hertz Advanced Class D architecture maximizes efficiency and power while minimizing heat and electromagnetic radiation – without penalizing sound quality! High-powered channels with bridging capability deliver the output levels needed in the marine environment.

VENEZIA V6 Hi-Res

Hi-Res certified performance, with an extended audio band up to 40 kHz.

VENEZIA V6 CORROSION RESISTANT

Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marinegrade (epoxy coated) PCB boards.

VENEZIA V6 SALT FOG TESTED

To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.

VENEZIA V6 WATER JET TESTED

The protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.

Designed to be the new reference, the Venezia line reaches an unmatched power/size ratio thanks to Hertz ADC (Advance D-Class), maximizing efficiency that reach 85% while enhancing sound quality that obtains the Hi-Res certification by JAS. Hertz ADC high efficiency design reduces battery consumption featuring a higher power than Class-AB traditional layout. ADC provides cleaner output to speaker system, especially when driving subwoofers.

KEY FEATURES

  • Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
  • ADC (Advanced D-Class) Technology 2Ω(1Ω for mono models) stable output stage providing Hi-Res certified audio performance with a superior efficiency.
  • Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
  • Balancedfully-differential input circuitry to reject electro-magnetic disturbances.
  • Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.
  • Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
  • Short-circuit,overload and thermal protections with auto resetting.
  • Plug&Play Input and Output connections with safe-lock.
  • Proprietary Plug&Play Power Supply Connector with safe-lock.

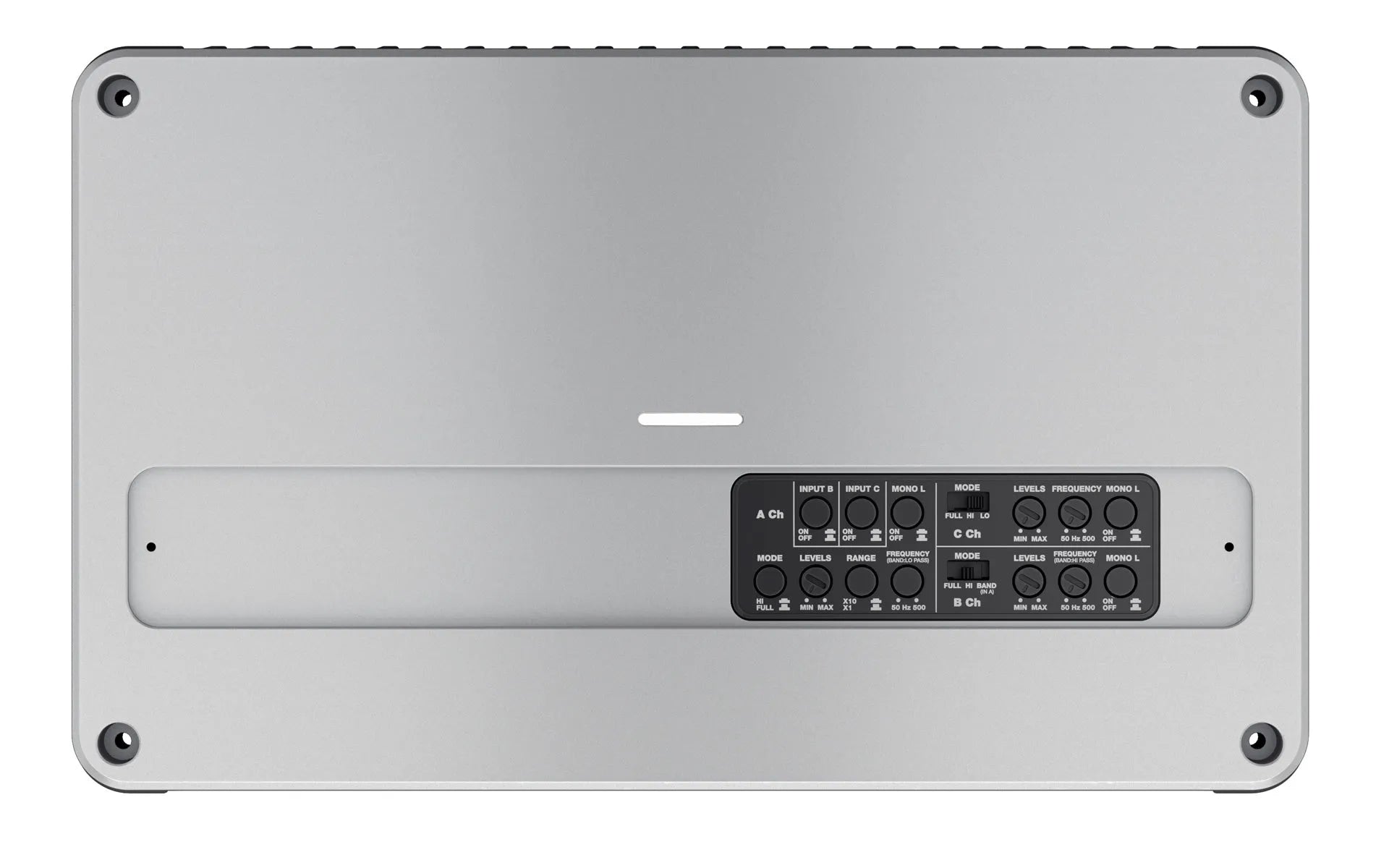

Venezia amplifiers feature variable low/ high pass crossover filters, adjustable bass boost and a subsonic filter for an optimal tuning in every boat. The controls are protected by a polycarbonate panel located on the  upper side, to be easily reached from above even after the product has been installed. When the system includes a processor like S8 DSP, the filter section can be totally excluded.

Venezia amplifiers heat sink has been crafted from extruded aluminum, a material unmatched for lightness, robustness and heat dissipation. The oversized fin layout maximizes the surface area for optimal heat dissipation.

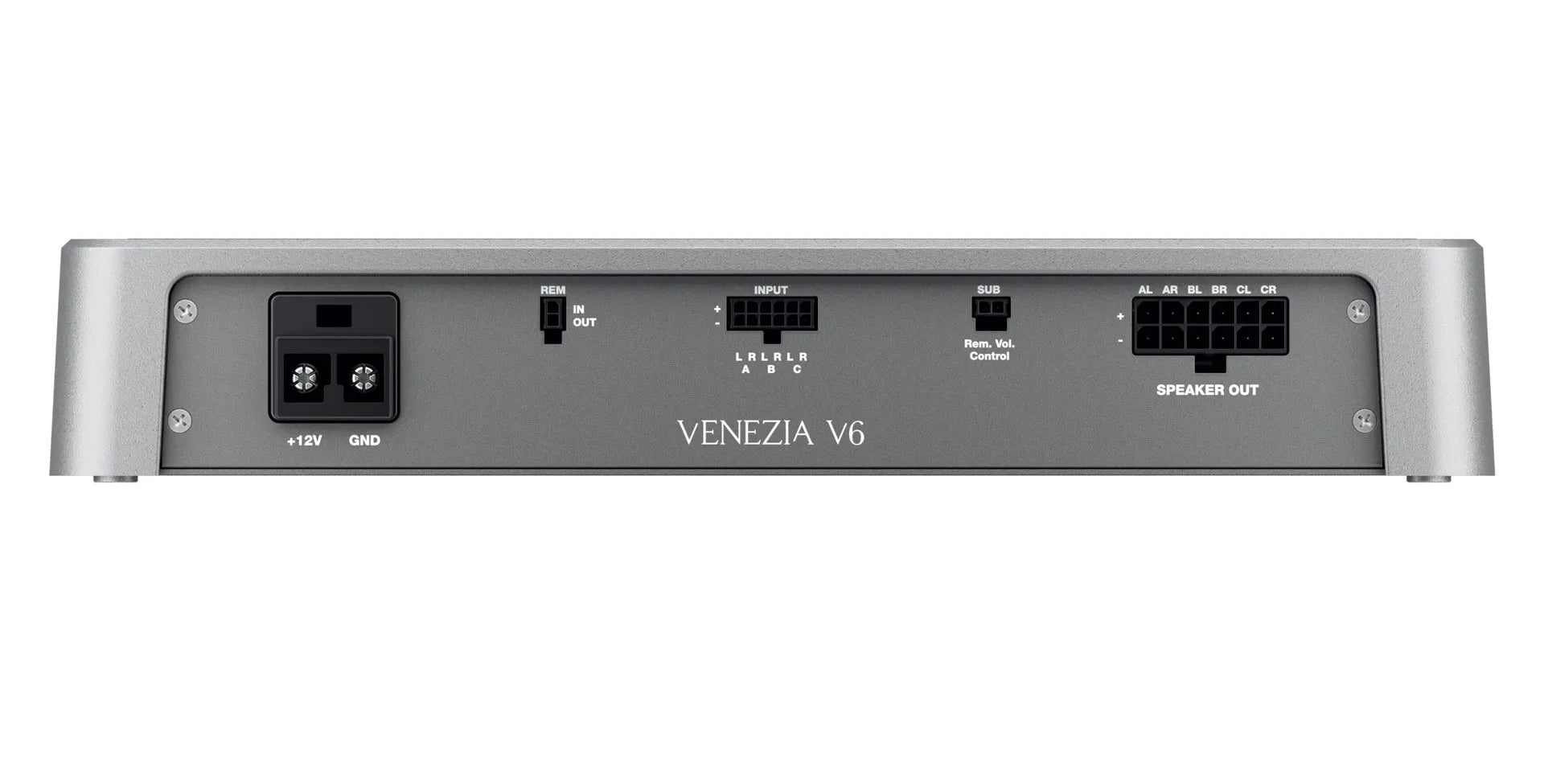

The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. Not availabe for compact models.

The conformal coated PCBs provides superior protection against corrosion agents.



HERTZ_Marine_Amplifier_VENEZIA-V6_Panel




SPECIFIKACIJOS


Channels 6 - 5 - 4 - 3
POWER SUPPLY
Power supply voltage 9 ÷ 16 VDC
ldling current (power ON/OFF): 1.8 A / 0.04 mA
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 75 A
Remote In: 7 ÷ 15 VDC - 1 mA
AMPLIFIER STAGE
Distorsion - THD (100Hz @ 4Ω): <0,06%
Bandwidth: 10 ÷ 42 kHz
S/N Ratlo (A welghted @ 1 V): 100 dB
Damping factor (100Hz @ 4Ω) 130
Pre-ln sensitivity: 0.2 ÷ 5 VRMS
Pre-ln impedance: 10 kΩ
Load impedance (MIN)
@6Ch:
@5Ch:
@4Ch:
@3Ch:


2Ω + 2Ω + 2Ω +2Ω + 4Ω
2Ω + 2Ω +4Ω + 4Ω
Adjustable Crossovers yes
Output Power
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
6Ch 160 W x 6 (4Ω)
6Ch 290 W x 6 (2Ω)
5Ch 160 x 4 (4Ω) + 580 x 1 (4Ω)
5Ch 290 x 4 (2Ω) + 580 x 1 (4Ω)
4Ch 160 x 2 (4Ω) + 580 x 2 (4Ω)
4Ch 290 x 2 (2Ω) + 580 x 2 (4Ω)
3Ch 580 x 3 (4Ω)
Total Power RMS 1740 W



NPUTS / FILTERS
lnputs: A Ch. Pre in
B Ch. Pre in
C Ch. Pre in
Pre Out: No
Ch. A filters:
MONO IN (on/off) Yes
By-pass Yes
Hi-pass: 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
Ch. B filters:
MONO IN (on/off) Yes
By-pass Yes
Hi-pass: 50 ÷ 500 Hz @ 12 dB/Oct
Band-pass: 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
Ch. C filters:
MONO IN (on-off) Yes
By-pass Yes
Hi-pass: 50 ÷ 500 Hz @ 12 dB/Oct
Lo-pass: 50 ÷ 500 Hz @ 12 dB/Oct



INSTRUKCIJOS

User Manual (EN).
