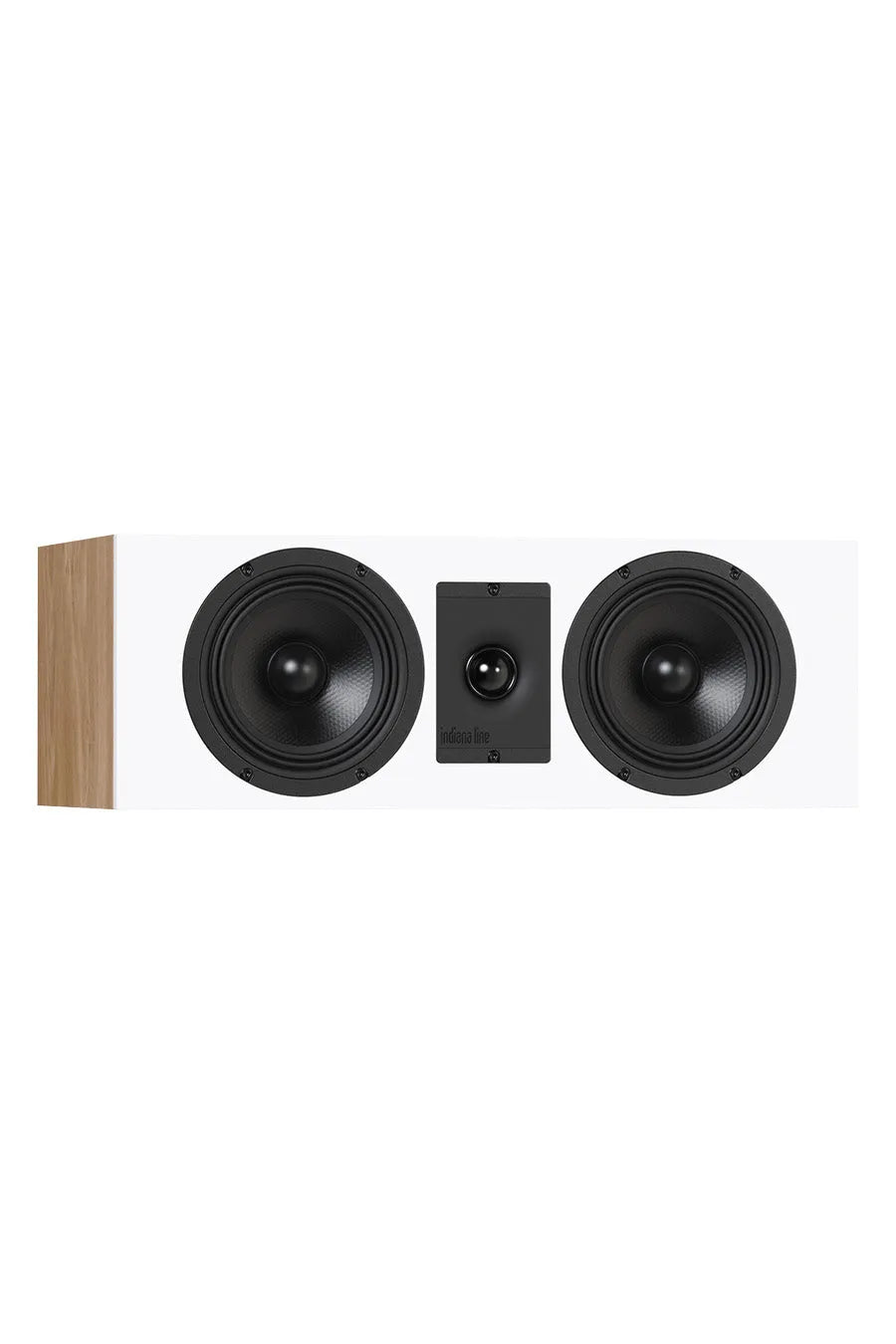

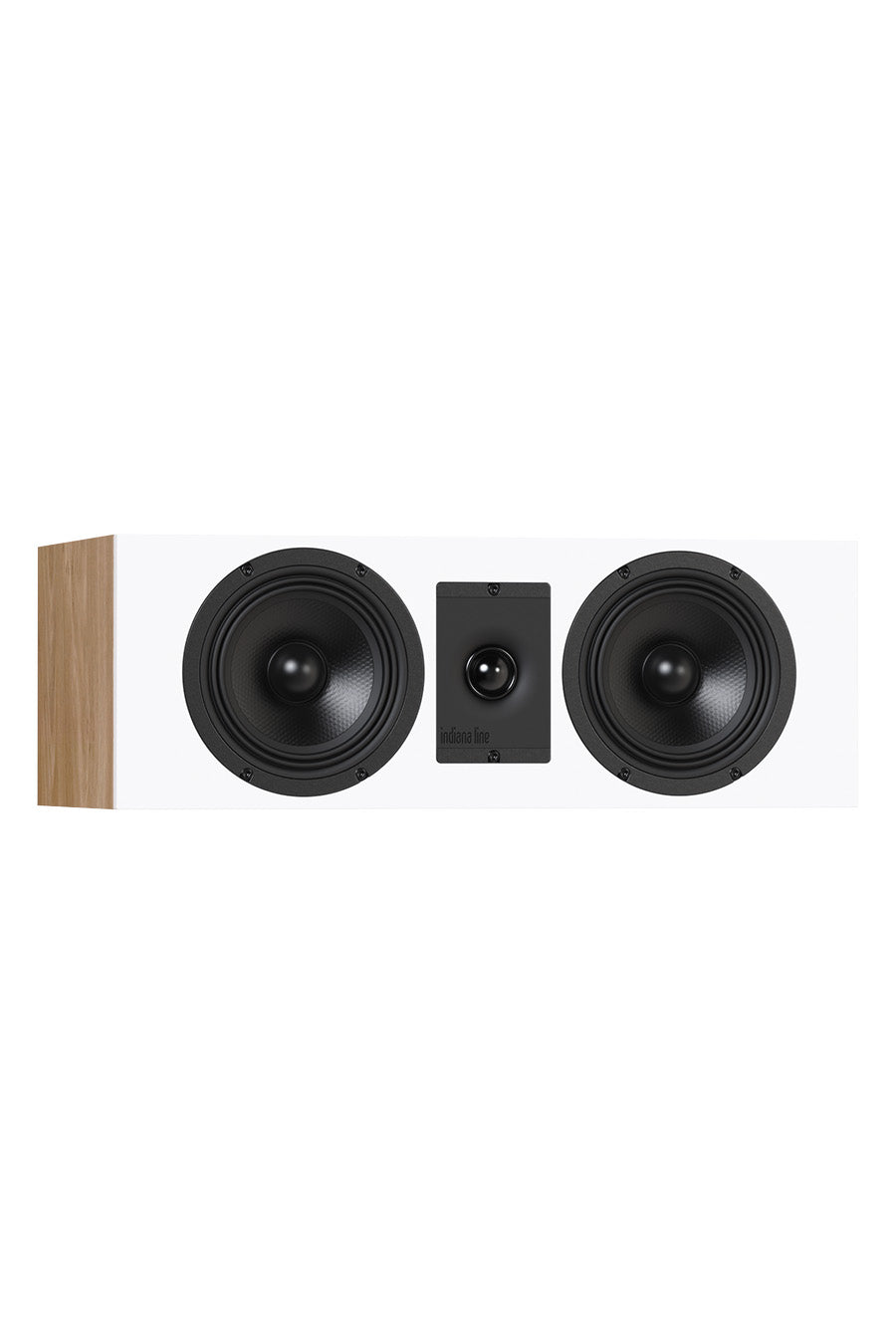

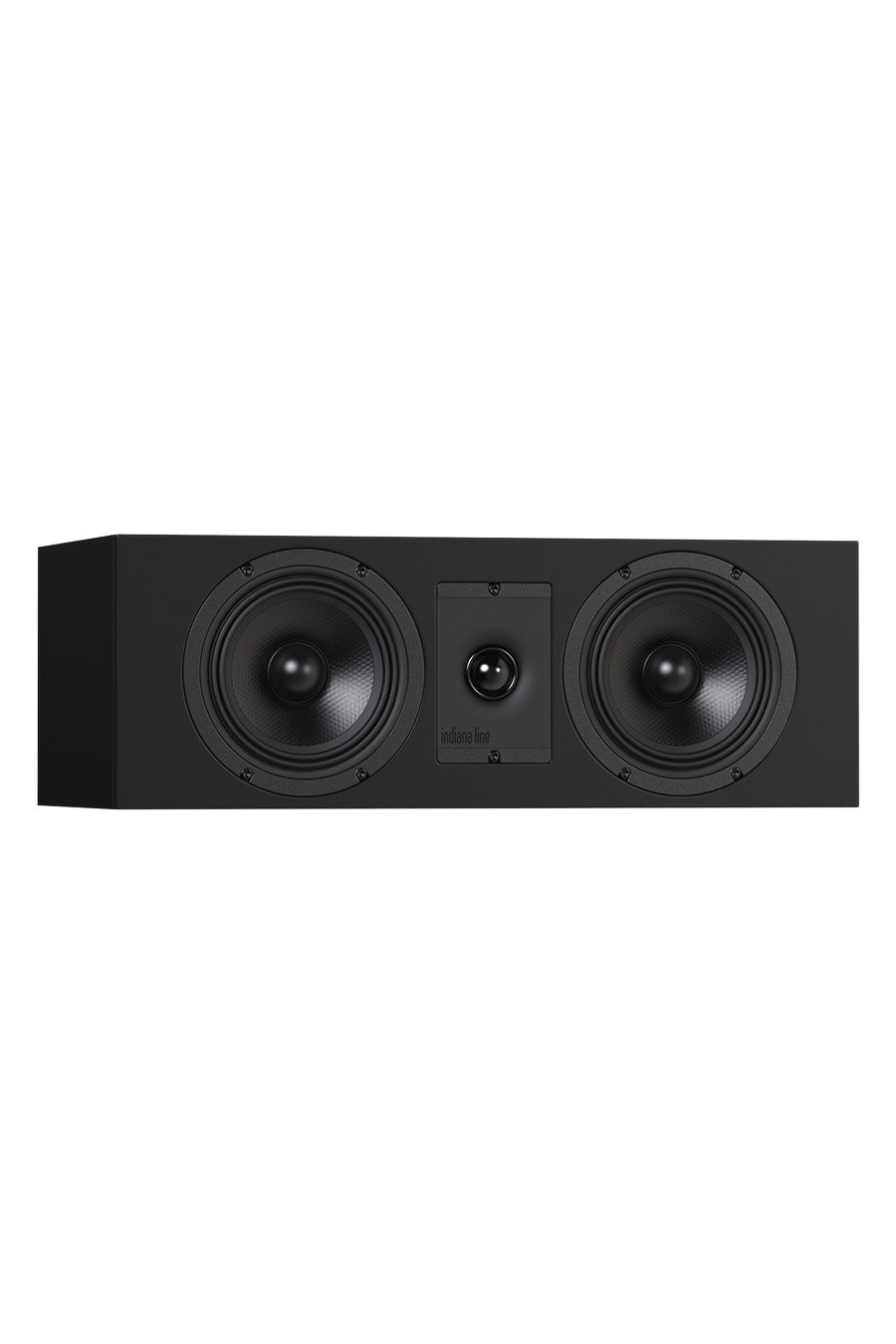

Indiana Line DIVA 7, centrinė garso kolonėlė

INFORMACIJA

Indiana Line Diva 7 – tai 2 juostų centrinis kolonėlės modelis, pritaikytas „Diva“ linijai, kuris kartu su kitomis šios serijos kolonėlėmis leidžia sukurti aukštos kokybės namų kino sistemą. Nors modelis yra kompaktiškas, jis nustebina savo garso galimybėmis, ypač žemų dažnių dinamika.

APRAŠYMAS

Stylish enclosure

The Diva 7 column has a two-part enclosure made of MDF board. The front part consists of a lacquered panel, which is 18 mm thick and helps prevent unwanted resonances, significantly improving sound clarity. The attractive design of the Diva 7 model is emphasized by the magnetically mounted, acoustically transparent grille.

Low-midrange transducers with Curv membrane

In the Diva 7 column, both low-midrange transducers feature membranes made of Curv material (polypropylene composite). Its use ensures neutral and precise processing of low tones. Compared to older generation Diva columns, the Diva 7 model also features improved speaker baskets. They have smoother ribbing, reducing air resistance behind the membrane and minimising unwanted resonances. The baskets have been specifically designed to work well with the Dual-Wave suspension. This ensures that the entire component not only functions properly but also looks attractive.

Proprietary upper suspension design

The low-midrange transducers use the Dual-Wave upper suspension. This precisely designed rubber surround prevents resonance of the suspension-membrane system during midrange playback and expands the linear operating range of the speaker. It also reduces distortions, especially in the low bass registers, and improves articulation of the midrange. This has a particularly positive impact on the sound of percussion, string, and acoustic instruments. The visually pleasing external appearance of the Dual-Wave transducers is reminiscent of professional stage constructions with so-called accordion suspensions.

High-frequency transducer

The Indiana Line Diva 7 features a centrally located tweeter with a diameter of 26 mm, equipped with a radial damping chamber and a powerful, dual-ferrite magnet. The high-frequency transducer has a rectangular, precisely profiled faceplate, characteristic of other models in the Diva series. It is cast from aluminium and has a rubber waveguide – surface, contributing to widening the soundstage and better filling the room with high frequencies. It visually complements the symmetrically placed low-midrange transducers on either side.

Optimized crossover

The Diva 7 has a newly designed and optimized crossover that allows this model to work with practically any amplifier. The circuit topology, the number of components used, and their parameters have been precisely selected based on hours of listening tests. As a result, the frequency response is balanced. Refined filtering along with appropriately chosen characteristics of individual electroacoustic transducers ensure balanced frequency response and low distortion levels. This results in deep and incredibly natural sound.

Bass-reflex enclosure with rear port

The Diva 7 features a bass reflex enclosure with a port located at the rear of the column. This setup handles a wide frequency range with unrestricted dynamics and proper extension in the low-frequency range. Combined with Curv membranes and Dual-Wave suspension, this solution guarantees a clear midrange and delivers open and clear high tones from the tweeter.

TECHNINIAI DUOMENYS

Speaker alignment / type 2-way / center

Box aligment / port placement bass-reflex / back

Driver diameter midwoofer: 2 x 150 mm, Curv polipropylene; tweeter: 26 mm, silk dome

Frequency response 45 – 23000 Hz

Sensitivity (2,8 V/1 m) 92 dB

Crossover 3500 Hz

Bi-wiring / bi-amping no

Amplifier loading impedance 4 – 8 ohm

Suggested amplifier power 30 – 140 W

Dimensions (H x W x D) 166 x 470 x 260

Color black, white oak

Weight 8,3 kg

DOKUMENTAI

Vartotojo vadovas (EN)
