IPTV Formuler Z NANO

IPTV Formuler Z NANO

Tai nebrangus IPTV sprendimas su Android 7 Nougat.
Formuler Z Nano suteikia galimybę mėgautis įvairiausiu turiniu per įvairias programas,
įskaitant "MYTVOnline".

Itin kompaktiškas dizainas,mažas ir tylus.

Supaprastinta sąsaja.Paprasta naudoti bet kokio amžiaus žmonėms.

Reguliarus programinės įrangos atnaujinimas.

• Quad-core Cortex A7 1.5Ghz Quad-core Mali 450
• 1080P HEVC
• 512MB DDR3
• 4GB eMMC
• H.265
• Main Profile@L5.0 High-tier
• Full HD 60 FPS H.264 BP/MP/HP@L5.0
• Full-HD 3D videos (MVC)
• AVS baseline profile @ L6.0, AVS-P16 (AVS +)
• Android 4.4

A/V

• H.265 Main Profile@L5.0 High-tier
• H.264 BP / MP / HP @ level 5.0
• Full-HD 3D videos (MVC), blu-ray navigation
• AVS baseline @ level 6.0 and AVS-P16 (AVS +)
• MPEG1, MPEG2 SP® ML, MP® HL MPEG4 SP @ L0-3, ASP @ L0-5, GMC
• MPEG4 short header format (H.263 baseline)
• VC-1 SP® ML, MP®HL, and AP® L0-3
• VP6 / 8
• MJPEG decoding, maximum 1080p @ 30 fps
• Low delay decoding

Image Decoding

• Full HD JPEG hardware decoding, max 64 megapixels
• MJPEG decoding, maximum 1080p @ 40 fps
• PNG hardware decoding, max 64 megapixels

Video Formats

• 4: 3 Letter Box, 4: 3 PanScan, 16: 9 Video Resolution
• 1080p50, 1080p30, 1080p24, 1080i60, 1080i50 720p, 576p, 576i, 480p, 480i

Audio Decoding

• MPEG L1 / L2 - AAC-LC and HE AAC V1 / V2 decoding
• G.711 (u / a) audio decoding

Sistema

• Main Processor - Hisilicon chipset
• Memory - eMMC: 4 GBytes - SDRAM: 512 MBytes (DDR3)

Audio / Video & Data IN / OUT TV OUT

• Video & Audio Output

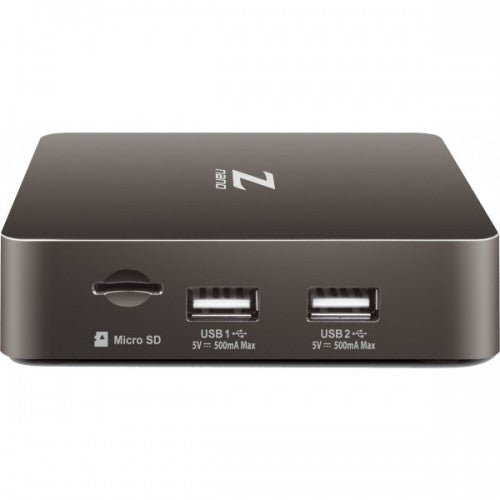

• USB - USB2.0 x 2
• A/V Out - CVBS Video, Audio L, R mini jack
• WiFi - 802.11 b/g/n / with internal antenna
• Ethernet - RJ45 connector, 10 / 100M Base
• Micro SD Card - Micro SD Card Slot
• S/PDIF - Optical

Priekinė panelė

• Indicators - 2 Colour LED (Standby, Remote)

Maitinimas

• Input Voltage - AC 100 ~ 240V, 50 / 60Hz
• Type - Adapter
• Power Consumption - Max. 15W
• Standby Power - Max. 0.5W (Ultra low power)

Komplektacija

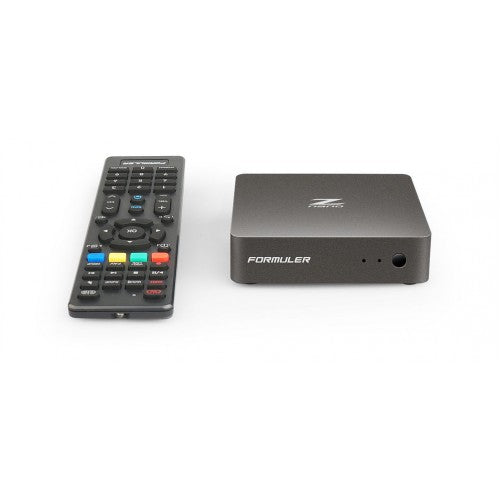

• Formuler Z Nano

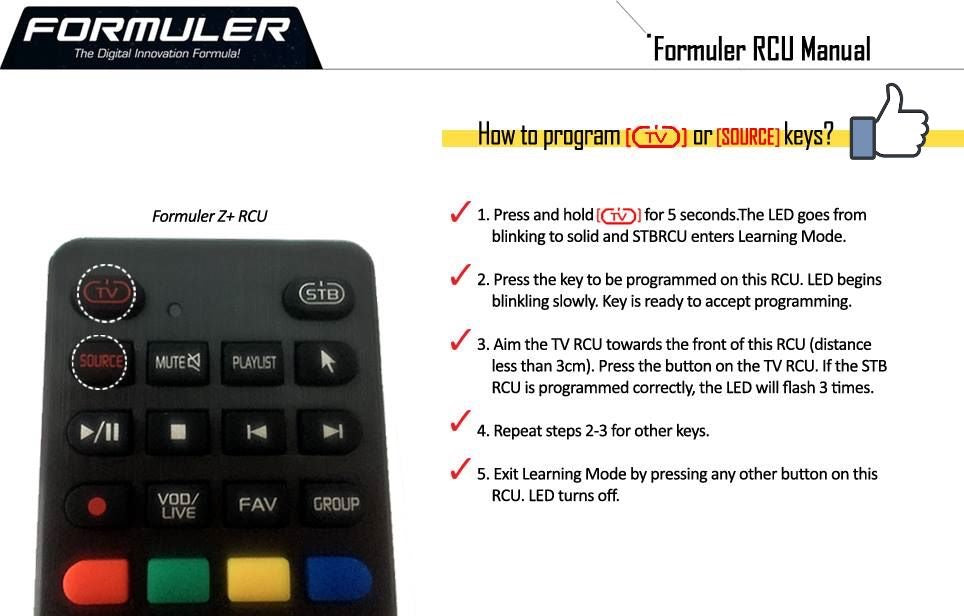

• Remote control
• Two AAA batteries (for the remote)
• Power adapter
• HDMI Cable
• Quick Installation

Formuler Z Nano instrukcija
