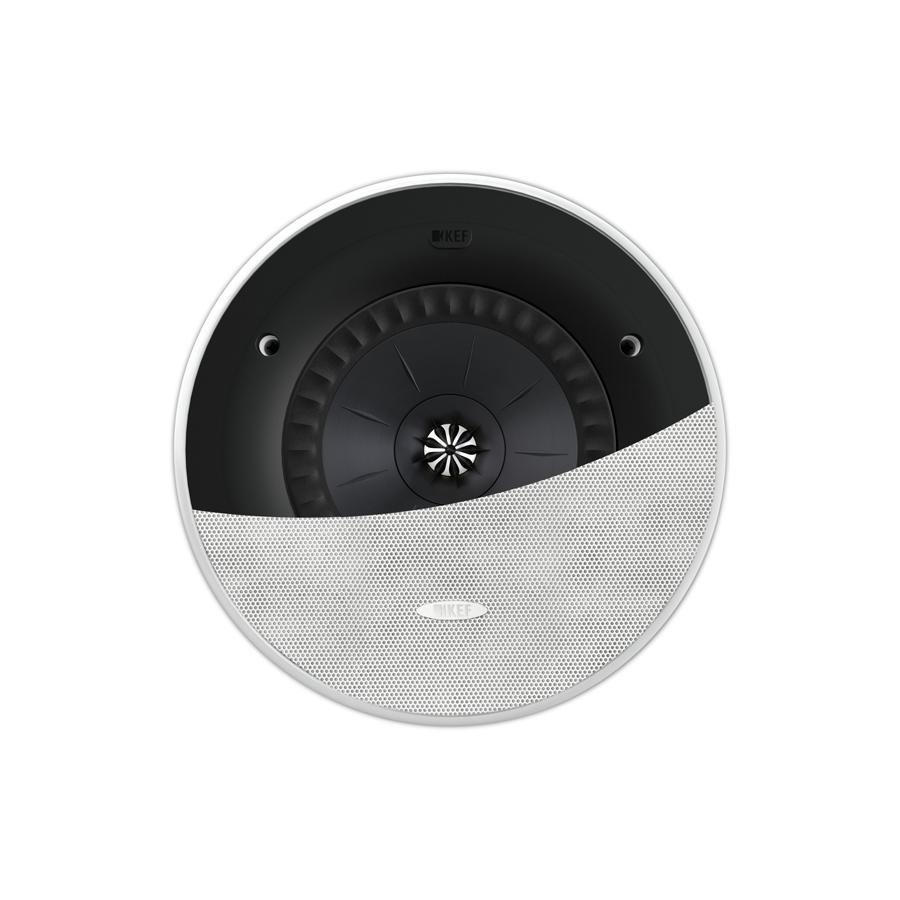

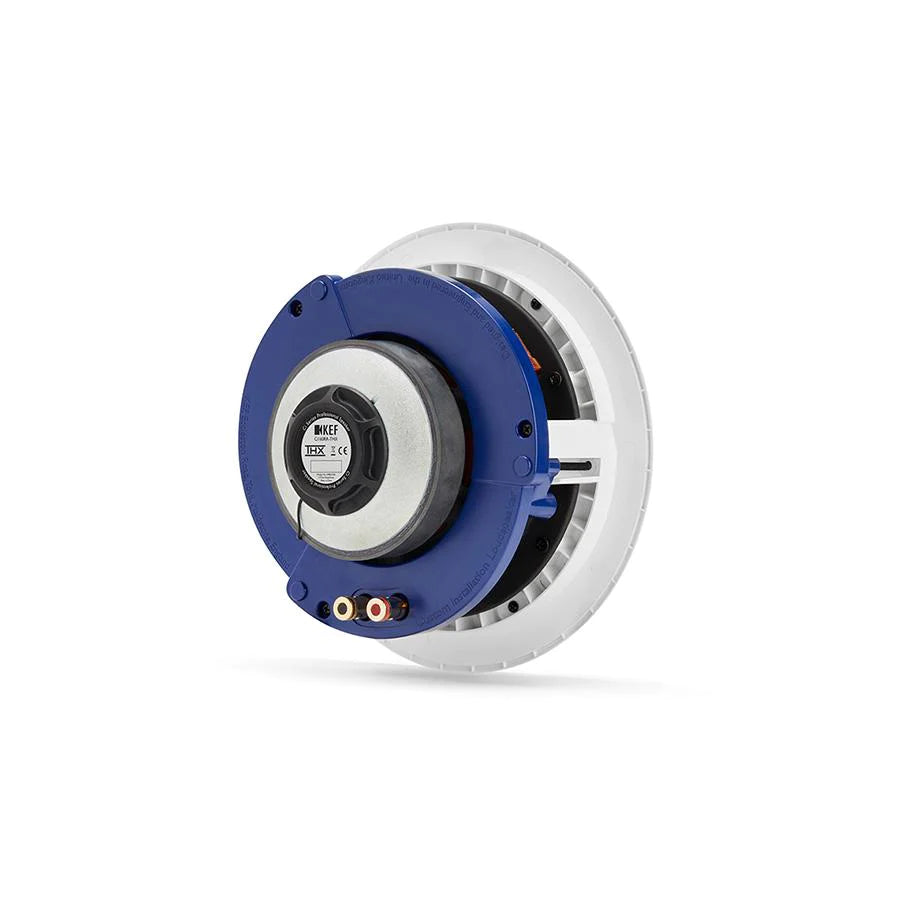

KEF Ci160RR-THX, architektūrinis garsiakalbis (montavimo gylis: 110mm)
"Ci160RR-THX" yra itin aukštos kokybės garsiakalbis su firmine KEF "Uni-Q" technologija, skirtas diskretiškam montavimui lubose arba sienoje.
- Rekomend. stiprintuvo galia: 10 - 190 W.
- Dažnių juosta: 52Hz - 24kHz.
- Jautrumas: 90dB (2.83V/ 1m).
- Varža: 4 omai.
Ci160RR-THX
Ci160RR-THX’s Uni-Q® array boasts a 25mm high frequency tweeter mounted in the acoustic centre of a 165mm woofer, delivering the same, natural performance across the entire listening area. Plus, a Universal Cut-out system means its opening is the same as any 160mm KEF speaker for ease of installation and component selection.
#To meet THX Certified Ultra distortion specifications, install with 3 litre rear enclosure and set the A/V processor speaker size to small.
SPECIFIKACIJOS
Nominal Impedance
4 Ohms
Sensitivity
90dB (2.83V/ 1m)
Frequency Response (±6DB)
Open-Backed
52Hz - 24kHz
Frequency Range (-10DB)
38Hz-30kHz
Nominal Coverage (Degrees)
130
Optional Rough In Frame
RIF160R
Optional Rear Enclosure
NA
Ideal Rear Volume (L)
20
Minumum Rear Volume(L)
10
Recommended Amplifier Power
10-190W
Recommended High-Pass Filter (HZ)
38Hz
Product External Dimension (H X W X D)
Diameter Ø: 234.6mm (9.24in.)
Depth :115mm (4.53in)
Cut-Out Dimensions(H X W)
Diameter Ø: 196mm (7.71in.)
Mounting Thickness
Ceiling Thickness (Maximum): 37mm (1.460in.)
Ceiling Thickness (Minimum): 4mm (0.160in.)
Mounting Depth From Surface
110mm (4.33in.)
MAX SPL (DB)
105
Crossover Frequency
2.1kHz
Driver Unit
LF: 165mm (6.5in.) Uni-Q
HF: 25mm (1in.)
Net Weight
2.94kg (6.48Ibs.)
Certification
THX ULTRA
Safety And Regulatory Compliance
IP64
