Kenwood CMOS-740HD, universali Priekinė / Galinė HD kamera

INFORMACIJA

 Universali priekinė / galinė HD vaizdo kamera pasižyminti išskirtine vaizdo raiška.

-Galinė / priekinė kamera, skirta DMX9720XDS multimedijai
-Didelės raiškos vaizdas (1280 x 720 px)
-HDR (didelis dinaminis diapazonas)
-IP67 Atsparumas vandeniui ir dulkėms
-Plataus matymo kampo objektyvas, židinio nuotolis: 1,86 mm F:2,0
-Horizontalūs 180° / vertikalūs 103° matymo kampai
-HD-TVI išvesties signalas

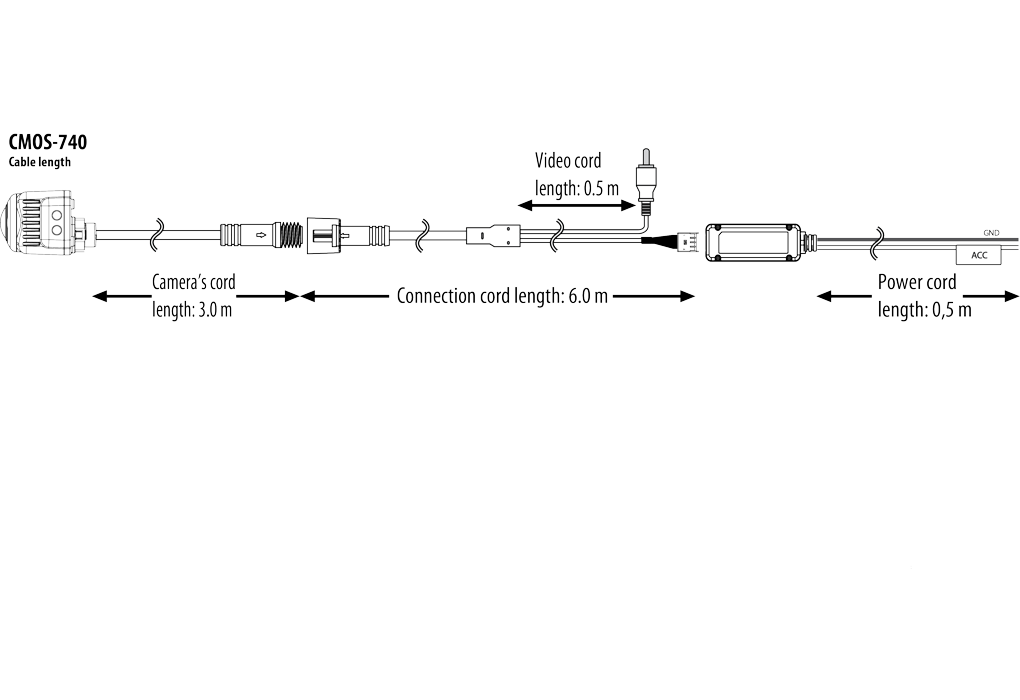

-Bendras kabelio ilgis: 9 metrai

APRAŠYMAS

This HD camera realizes a High-Definition image and is displayed on the receiver large screen in HD image quality. With this camera, you can park safely with an easy view of the front or rear. Thanks to HD-TVI technology, HD videos can be transmitted and displayed on the HD display of the receivers using an analog RCA cable. The camera’s built in High Dynamic Range (HDR) technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front or rear camera option available. This HD camera can only be connected to a compatible KENWOOD AV-receivers with a HD camera input.

HD Rear / Front Camera for DMX9720XDS

HD Rear Camera Realizing High-Definition Imaging:
The 180° horizontal wide-angle image is displayed on the receiver in HD image quality. With this camera, you can park safely with an easy view of the rear. CMOS-740HD can be connected to the DMX9720XDS. Thanks to HD-TVI technology, HD videos can be transmitted and displayed on the HD display of the receivers using an analog RCA cable.

HDR (High Dynamic Range)

— Reducing “Blown out Highlights” and “Crushed Blacks” —
HDR helps to reduce “blown out highlights” and “crushed blacks” and ensure clear images in challenging environments, including backlit scenes in daylight, streetlight scenes at night and places where light-dark contrast is particularly severe.

Protection Against Both Dust and Water

Rest assured with the IP67 certified protection that allows the camera to be installed safely outside of the vehicle, even in wet or dusty environments.

TECHNINIAI DUOMENYS

Camera Unit

Camera Type    1/3.8-inch colour CMOS sensor
Number of pixels    1280 (Vertical) x 720 (Horizontal)
Effective number of pixels roughly    1300000
High sensitivity Pixels    Yes
Output video    HD-TVI
Waterproof chassis    Yes
Mounting system    Fix mount base
Installation positions    Front or rear
Rear view switching    Reverse line
High voltage protection    Yes
Wide angle lens    Yes
Focal length    f: 1.86mm, F value 2
Field of View (Horizontal)    +/- 180°
Field of View (Vertical)    +/- 103°
Illumination range    approx. 1 to 100 lux
White balance    HDR
Video signal format    HD-TVI
Camera cable to power supply box    3 meter
DC cord    6 meter

General Specifications

Operating voltage    12V (12 ~ 24V Allowable)
Dimensions Hideaway Unit (WxHxD)    69.2 x 23.6 x 15.5mm
Dimensions (WxHxD)    31.1 x 23 x 25.2mm
Weight    33.2 gr.
Operation Temperature Range    --30°C ~ 85°C
Instruction Manuals    Multi-language quick Guide

DOKUMENTAI

User Manual (EN).
