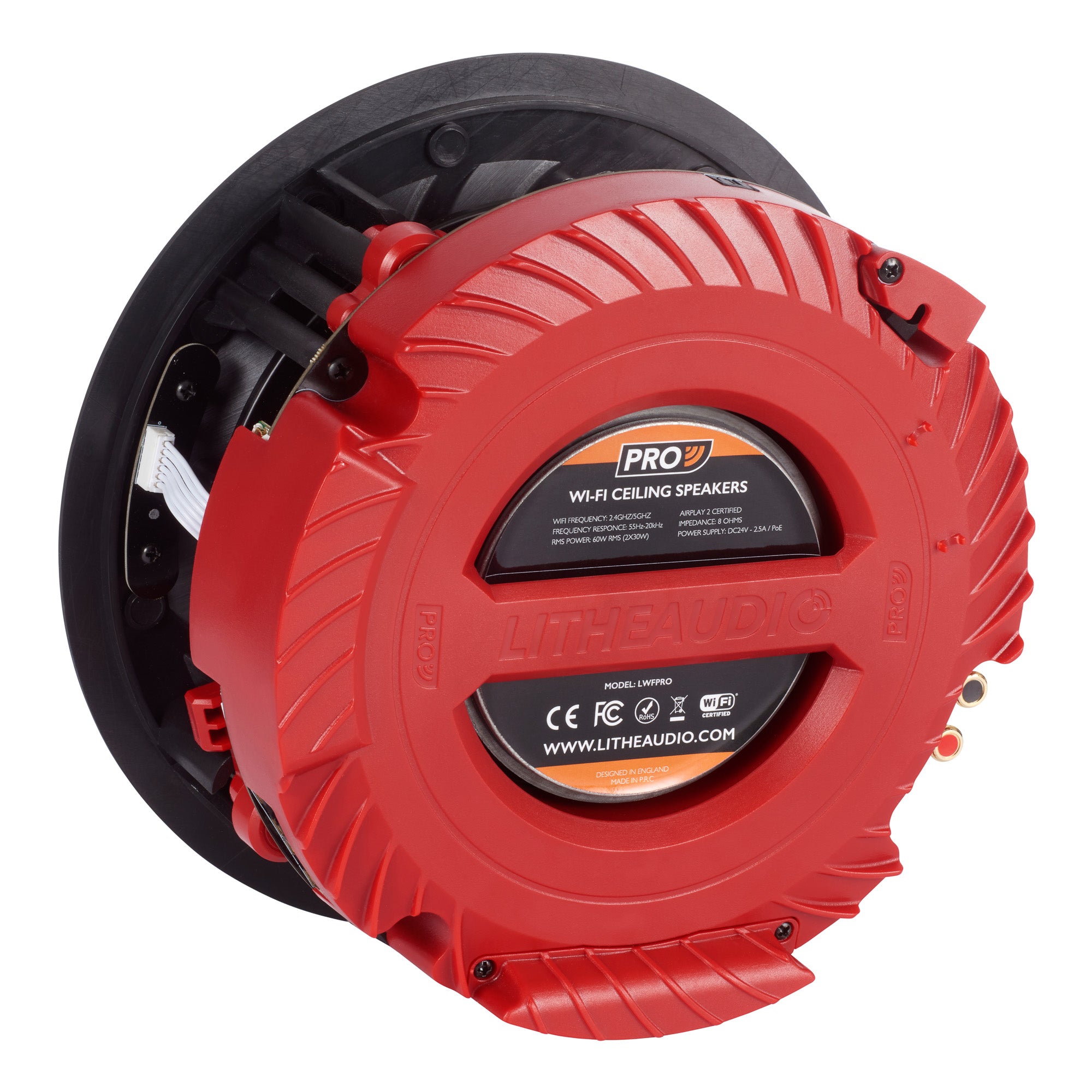

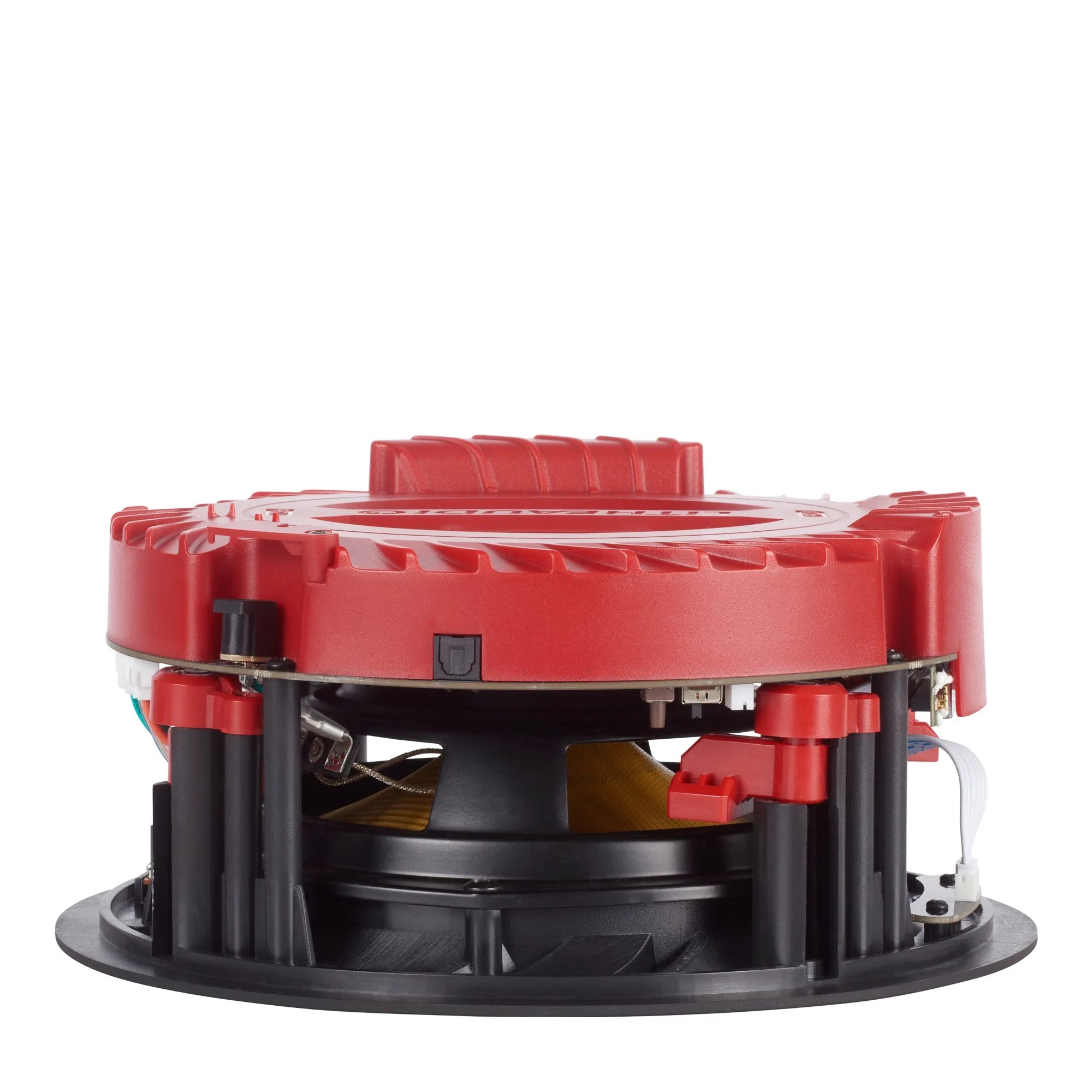

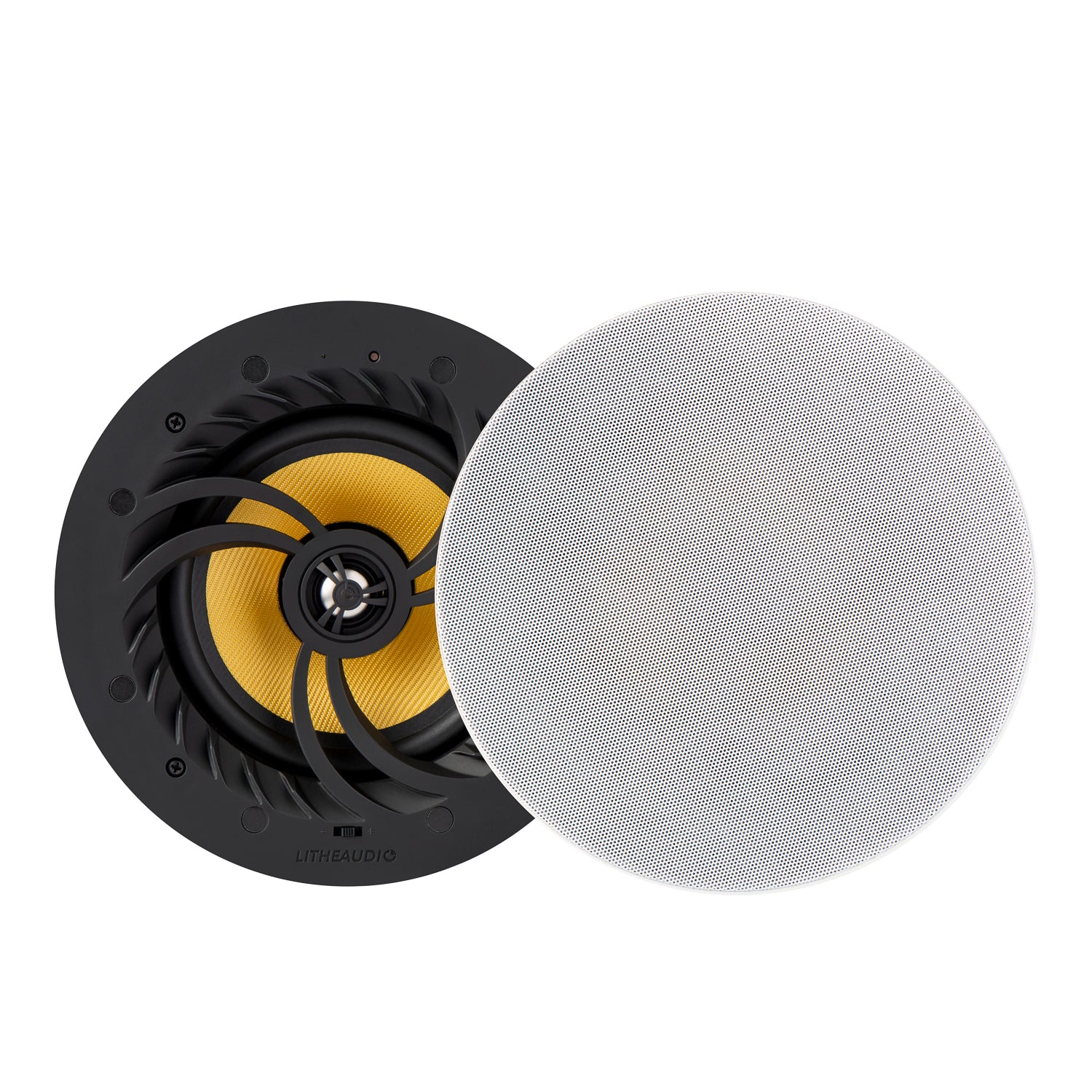

Lithe Audio Pro Wi-Fi, belaidžiai lubiniai garsiakalbiai

INFORMACIJA

• Į lubas montuojama kolonėlė su įmontuotu stiprintuvu ir tinklo grotuvu
• Spotify Connect, Tidal, TuneIn servisai
• Airplay 2, Google Chromecast, Bluetooth sąsajos
• Google Home bei Amazon Alexa valdymo balsu funkcijos
• Analoginis (RCA) ir optinis (TOSLINK) įėjimai išoriniams įrenginiams prijungti su automatinio įsijungimo funkcija
• Stiprintuvo galia: 60W
• Titaninis 2 cm aukštų ir 16.5 cm stiklo pluošto žemų dažnių garsiakalbiai
• Varža: 8Ω
• Jautrumas: 90dB

Galimi komplektai:
-Viena aktyvi kolonėlė
-Kolonėlių pora (1 aktyvi + 1 pasyvi)

Galima itin patogiai apjungti į funkcionalią daugiakambarinę sistemą su kitais Lithe Audio produktais.

APRAŠYMAS

THE ULTIMATE INSTALLATION SPEAKER

Designed explicitly to be top of the Lithe Audio integrated speaker range. This award-winning in-ceiling active offering delivers many leading features, including the optional bolt-ons for WiSA integration to create a 7.1 surround sound system, PoE power delivery for the convenience of easy installation and the most comprehensive set of wireless & wired connectivity options.

ALL-IN-ONE
SOLUTION

Amplifier, Wi-Fi, Bluetooth and ceiling speaker built-in, so all you need is power

MULTI-ROOM
AUDIO

Group zones and stream high-quality audio from your phone or tablet throughout your home

AMPLIFIER
BUILT-IN

Powerful high efficiency 60W RMS Class D amplifier

OPTICAL INPUT

Connect to your AV equipment, using the high-speed digital optical cable for a high quality audio signal

APP-BASED DSP

Calibrate and adjust the Treble, Mid and Bass individually, all from your phone.

WIRELESS & WIRED

Dual-band Wi-Fi 5GHz / 2.4GHz or via ethernet cable (Daisy-chain to reduce cable runs)

AIRPLAY 2 & CHROMECAST BUILT-IN

Fully certified, wirelessly stream from any mobile or tablet directly to the speaker

HIGH RESOLUTION
AUDIO

Delivering audio steaming at 192kHz / 24bits your music has never sounded soo clear.

VOICE
CONTROL

Connect to your Google Home or Alexa devices for groupable voice control

OPTIONAL BOLT-ONS

Wireless technology is the future, but hardwired solutions are still essential in larger or commercial projects. The Pro Series Wi-Fi Ceiling Speaker allows you to choose between a number of high speed wireless connections, or a hardwired data connection using a CAT5 or CAT6e cabled connection.



POE MODULE
(OPTIONAL BOLT-ON)

Power the speakers via the PoE for wiring convenience through the networking infrastructure.

WISA MODULE FOR HOME CINEMA
(OPTIONAL BOLT-ON)

The Dolby Atmos in-ceiling solution for any Wisa home cinema setup.

TECHNINIAI DUOMENYS

SPECIFIKACIJOS

THE TECHNICAL BIT

Experience quick and effortless installation using the included power driver, allowing you to power it through your lighting circuit, or you can opt for a plug with exposed ends (available separately) or PoE Addon. Showing connections to Computers, Phones and smart home systems such as Control4, Loxone and Fibaro

FEATURES

• Multi-room Ceiling Speaker
• All-in-one solution - Amplifier and Wi-Fi all built in, just add power.
• Power via lighting circuit or opt for a plug with exposed ends (sold separately)
• Built-In AirPlay 2 and Google Chromecast
• DLNA and UPnP
• Connect up to 30 master speakers (30 zones)
• App control via IOS or Android, full control with easy drag and drop zoning
• Wireless and Wired Connection
• High Res Audio
• Expandable Hardware
• WiSA Certified

CONNECTIVITY

• Wi-Fi certified 2.4Ghz / 5Ghz (802.11a/b/g/n/ac)
• Apple AirPlay 2 certified
• Google ChromeCast built-in certified
• Spotify connect certified
• Bluetooth
• Optical
• Ethernet Connection In / Out
• DLNA/uPnP connections
• Works with Alexa
• Works with OK Google
• WiSA with optional bolt-on
• Control4, Elan, KNX, Fibaro & Loxone Drivers
• Recommended Routers: Archer MR600 (TP-Link), UDM (Ubiquiti) and 2866AC-K (Draytek)

AUDIO SPEC

• Woofer: 6.5" Woven Glass Fiber Cone
• Tweeter: 0.75" Titanium Cone
• Mono/Stereo Switch
• RMS Power: 60W RMS (2x 30W)
• Impedance: 8 Ohms nominal
• Sound Quality THD+N 0.009%, 55Hz-20kHz (+/- 3dB)
• Sensitivity (1W/1m): 90dB
• Line In (Optical), auto-detecting
• Type: Class D (Digital)
• Audio Compression: 192Khz/24bits
• Woofer: 6.5” Woven Glass Fiber cone
• Tweeter: 0.75” Titanium Cone

MULTI ROOM AUDIO

• Connect up to 30 master speakers (30 zones)
• Spotify Connect (Premium Users Only)
• Play audio from Spotify, Deezer, Tidal, Tune in, Napster, Qobuz, Palco MP3 and SoundMachine
• Play music to a group or individual rooms
• Group, mix and match multi-branded speakers with AirPlay 2 and Chromecast

SPEAKER SPEC

• 210mm cut-out diameter
• Weight: 3.7kg
• Dimensions: (W x D) 230 x 110 mm
• Power Input Supply : 100 - 240V, 50/60Hz / 2A
• Transformer Output Supply : DC24V / 2.5A
• Standby power: 1.3W / 0.02A
• Connected power: 1.5W / 0.03A
• Playing Music: 2.8W - 10.5W / 0.03A - 0.09A
• Operating Temperature 0º to 40ºC (32º to 104ºF)
• Storage Temperature -20º to 70ºC (4º to 158ºF)

WHAT'S IN THE BOX

• Pro Series WiFi Ceiling Speaker
• Power Supply
• Cutting template
• Instruction manual

OPTIONAL BOLT-ONS

• Lithe Audio PoE Module Bolt-On
• Lithe Audio Pro WiSA Bolt-On
• Lithe Audio WiSA SoundSend Transmitter

DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).
