Magnat Signature ICT 62, įmontuojamas garsiakalbis (montavimo gylis: 130 mm)

Magnat Signature ICT 62, įmontuojamas garsiakalbis (montavimo gylis: 130 mm)

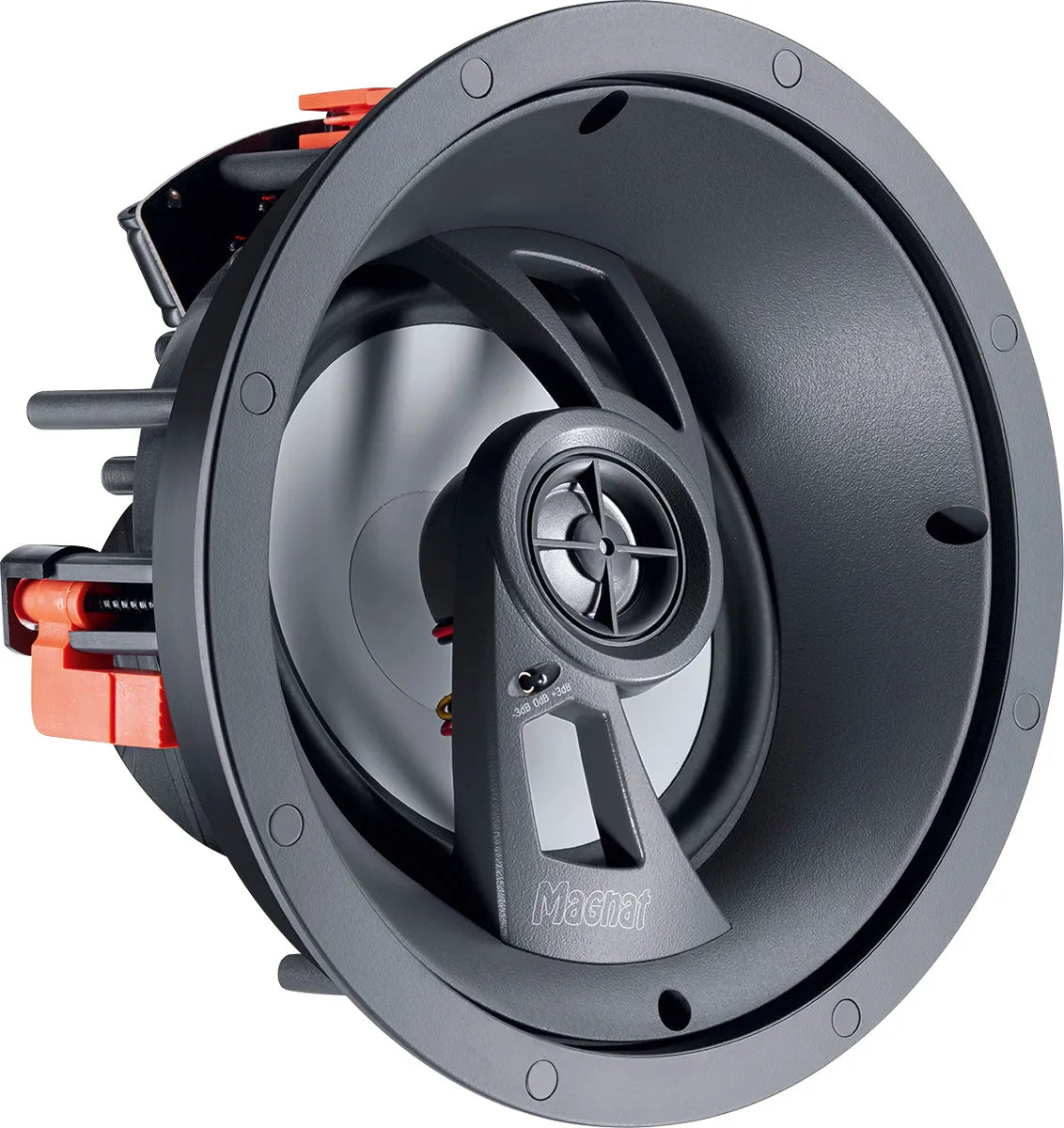

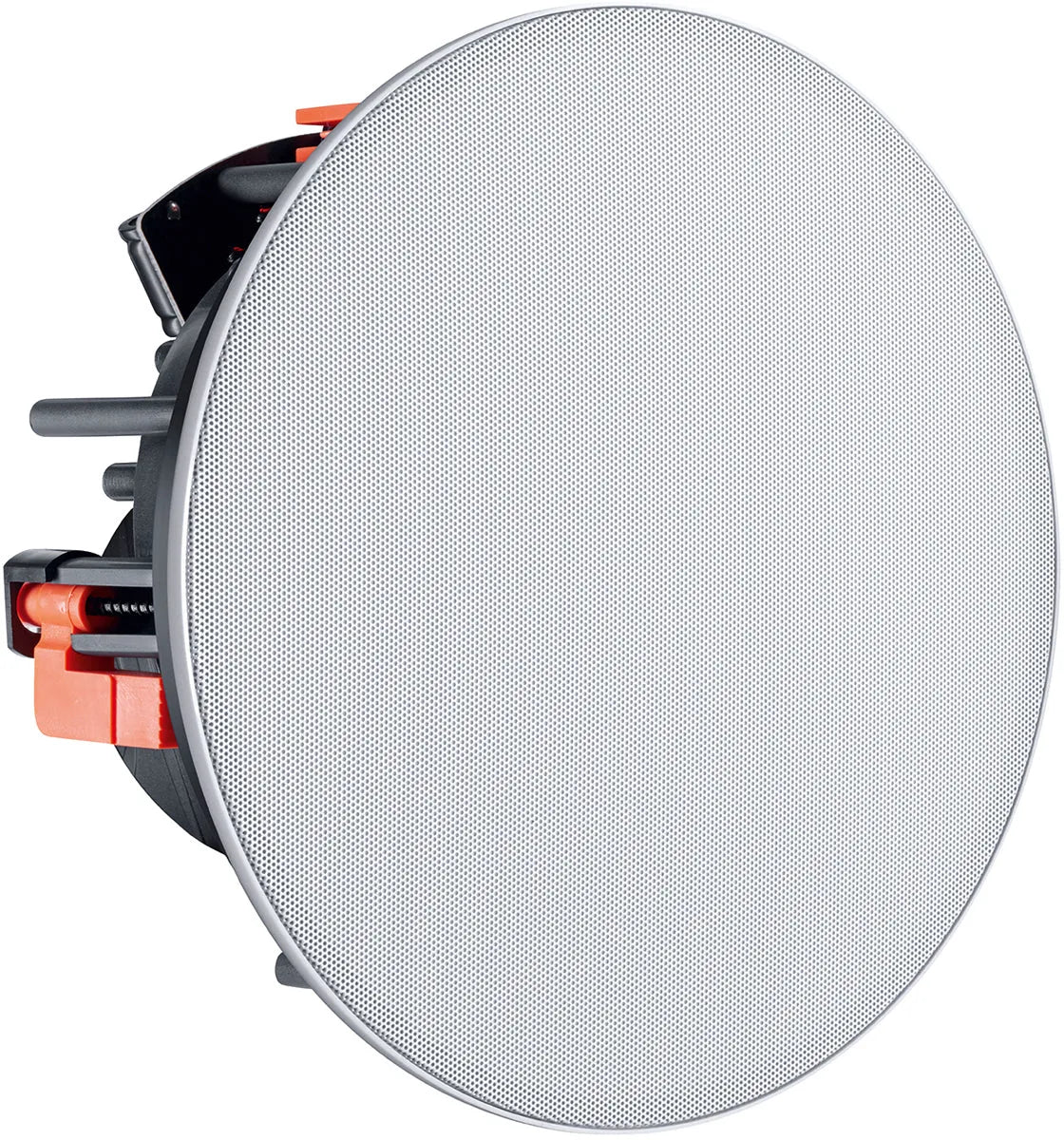

ICT 62 į lubas montuojamas garsiakalbis. Jame sujungtas 160 mm žemų dažnių garsiakalbis ir 25 mm aukštų dažnių garsiakalbio kupolas, o jo kampinė konstrukcija leidžia jį puikiai priderinti prie klausymosi vietos.

• Rekomend. stiprintuvo galia: 110W (RMS).
• Dažnių juosta: 32 - 28000 Hz.
• Jautrumas: 91 dB.
• Varža: 4 Omai.
• Montavimo gylis: 130 mm.
• Galimybė montuoti tiek į sieną, tiek į lubas.

The round ICT 62 in-ceiling speaker completes the product range. It combines a 160 mm woofer with a 25 mm tweeter dome, and its angled design allows perfect alignment to the listening position, meaning that even if a mounting position is only available in the ceiling, an appealing, spatial representation is still produced. In addition, the ICT 62 is also perfectly suited for use with Dolby Atmos configurations in a direct sound mode. Thanks to the acoustic coordination that is compatible with the rest of the Signature series, all imaginable setups and configurations can be realized. With an outer diameter of 238 mm and an installation depth of 130 mm, it is extremely compact despite its high performance.

• High-end chassis technology with ceramic/aluminum bass-midrange drivers and a coated fabric dome
• High load capacity with compact dimensions
• Uncomplicated installation thanks to a sophisticated mounting system
• Tonal structure perfectly coordinated with the Signature series, therefore can be individually combined
• Angled alignment to the listening position

SPECIFIKACIJOS

PRINCIPLE

• 2-way in-wall/in-ceiling loudspeaker

DRIVERS

• 1 x 6.5“ woofer-midrange

• 1 x 1” dome tweeter

POWER HANDLING (RMS/MAX.)

• 110 / 180 watts

SENSITIVITY (2.8V/1M)

• 91 dB

IMPEDANCE

• 4 Ohms

FREQUENCY RESPONSE

• 32 - 28000 Hz

CROSSOVER FREQUENCIES

• 3.100 Hz

RECOMMENDED AMPLIFIER OUTPUT

• 20 - 180 Watts

OUTER DIMENSIONS Ø

• 238 mm

CUTTING OUT Ø

• 206 mm

MOUNTING DEPTH

• 130 mm

WEIGHT

• 1,82 kg

INSTRUKCIJOS

User Manual (EN).
