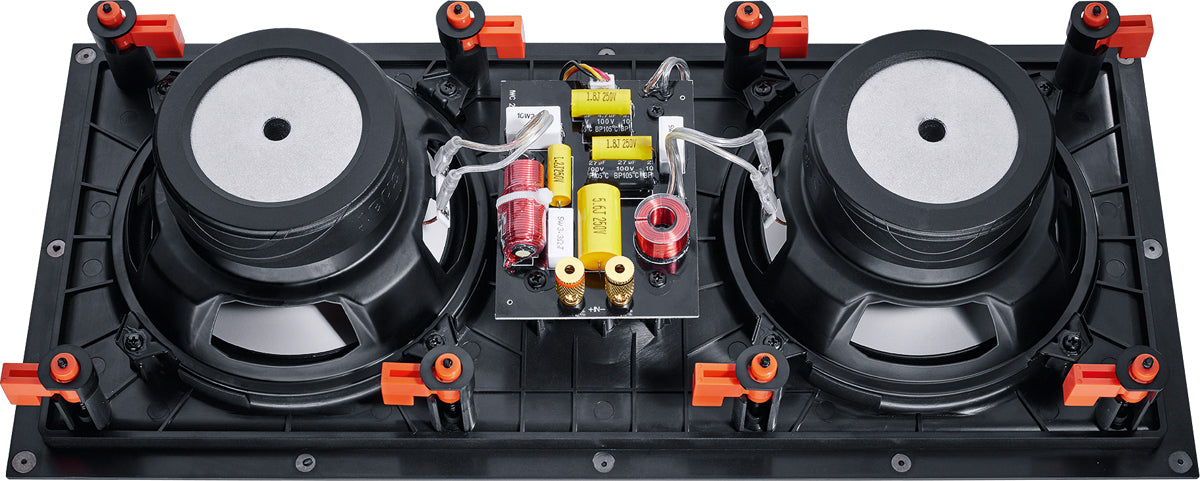

Magnat Signature IWT 262, įmontuojamas garsiakalbis (montavimo gylis: 100 mm)

Magnat Signature IWT 262, įmontuojamas garsiakalbis (montavimo gylis: 100 mm)

Didžiausias modelis, skirtas montuoti ant sienos ar lubų, yra "Signature IWT 262", turintis du 16 cm ilgio žemų dažnių garsiakalbius ir aukštų dažnių garsiakalbį.

• Rekomend. stiprintuvo galia: 30-200W.
• Dažnių juosta: 30 - 28000 Hz.
• Jautrumas: 91 dB.
• Varža: 4 Omai.
• Montavimo gylis: 100 mm.
• Galimybė montuoti tiek į sieną, tiek į lubas.

The largest model for wall installation is the Signature IWT 262, which features two 16 cm woofers and a tweeter. The heavy-duty built-in speaker is ideal for use in a demanding stereo environment or as a front speaker (L/C/R) in a home cinema setup. Thanks to its balanced dispersion properties, it can be used in both a vertical and horizontal configuration. The latter version makes it perfect for installation underneath projector screens and flat screen TVs. A rather low installation depth of just 100 mm ensures an uncomplicated installation process, even in rooms where space is at a premium. The treble level can be adjusted in three stages, which allows the sound to be adapted to different room acoustics.

• High-end chassis technology with ceramic/aluminum bass-midrange drivers and a coated fabric dome
• High load capacity with compact dimensions
• Uncomplicated installation thanks to a sophisticated mounting system
• Tonal structure perfectly coordinated with the Signature series, therefore can be individually combined
• Treble level can be adjusted in 3 stages

SPECIFIKACIJOS

PRINCIPLE

• 2-way in-wall loudspeaker, double woofer

DRIVERS

• 2 x 6.5“ woofer-midrange

POWER HANDLING (RMS/MAX.)

• 30 / 200 Watts

SENSITIVITY (2.8V/1M)

• 91 dB

IMPEDANCE

• 4 Ohms

FREQUENCY RESPONSE

• 30 - 28000 Hz

CROSSOVER FREQUENCIES

• 2900 Hz

OUTER DIMENSIONS Ø

• 220 x 491 mm

MOUNTING DEPTH

• 100 mm

CUTTING OUT (WXH)

• 186 x 456 mm

WEIGHT

• 3.42 kg

INSTRUKCIJOS

User Manual (EN).
