Name: McIntosh C22 Mk V, 2-jų kanalų lempinis pradinis stiprintuvas
Brand: McIntosh
SKU: C22 Mk V
Price: 8850.00 EUR
Availability: InStock

€8,850.00 EUR

McIntosh C22 Mk V, 2-jų kanalų lempinis pradinis stiprintuvas - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Pristatymas

Lietuvoje siuntas pristatome iki durų DPD kurjeriu per 1-2 darbo dienas, už 4.99€. Užsisakius virš 100€ - pristatymas nemokamas.

Siuntų pristatymas už Lietuvos ribų per 4-10 darbo dienų. Pristatymo kainos nuo 15.00€.

Prekių atsiėmimas parduotuvėje

Užsakytas prekes internetu galite atsiimti mūsų parduotuvėje adresu Armatūrininkų g. 1, Kaunas. Turėkite su savimi užsakymo nr.

Prieš atvykstant rekomenduojame pasiskambinti +370 683 90000

Darbo laikas: I-V 9:00-18:00

INFORMACIJA
APRAŠYMAS
TECHNINIAI DUOMENYS
DOKUMENTAI

INFORMACIJA

McIntosh C22 - yra aukštos klasės dviejų kanalų lempinis stiprintuvas, sukurtas kaip legendinio C70 modelio įpėdinis, bet su ikonišku C22 dizainu. Jame naudojamos 6 vakuuminės lempos (1x 12AT7 ir 5x 12AX7A), matomos pro stiklinį viršų.

Kanalų skaičius: 2
Harmoninis iškraipymas (THD): 0,08%
Dažnių diapazonas: 20Hz–20kHz ±0.5dB, 15Hz–100kHz ±3dB
Maksimali išėjimo įtampa (balans./nebalans.): 16V / 8V RMS
Signalo ir triukšmo santykis (High Level): 100dB
Signalo ir triukšmo santykis (MM / MC): 75dB / 75dB

APRAŠYMAS

This newest version of our C22 Vacuum Tube Preamplifier – the Mk V – is the direct replacement to our highly regarded C70 Limited Edition 70th Anniversary Vacuum Tube Preamplifier, which commemorated our 70th Anniversary that took place in 2019. The new C22 Mk V is the latest McIntosh vacuum tube preamplifier to carry the cherished C22 model number. It has all the performance of the acclaimed C70 but with the hallowed C22 moniker and its signature glass and aluminum front panel design.

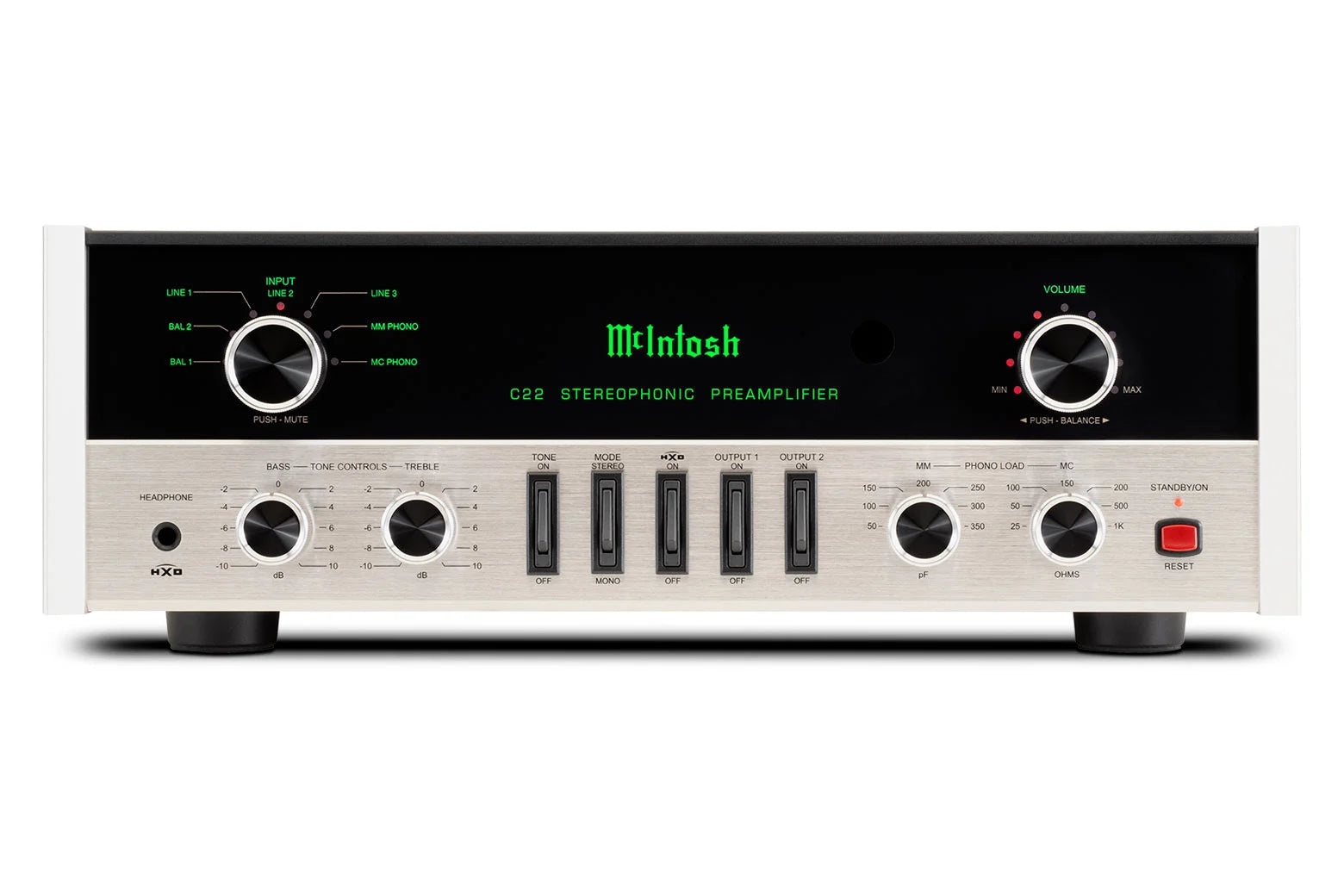

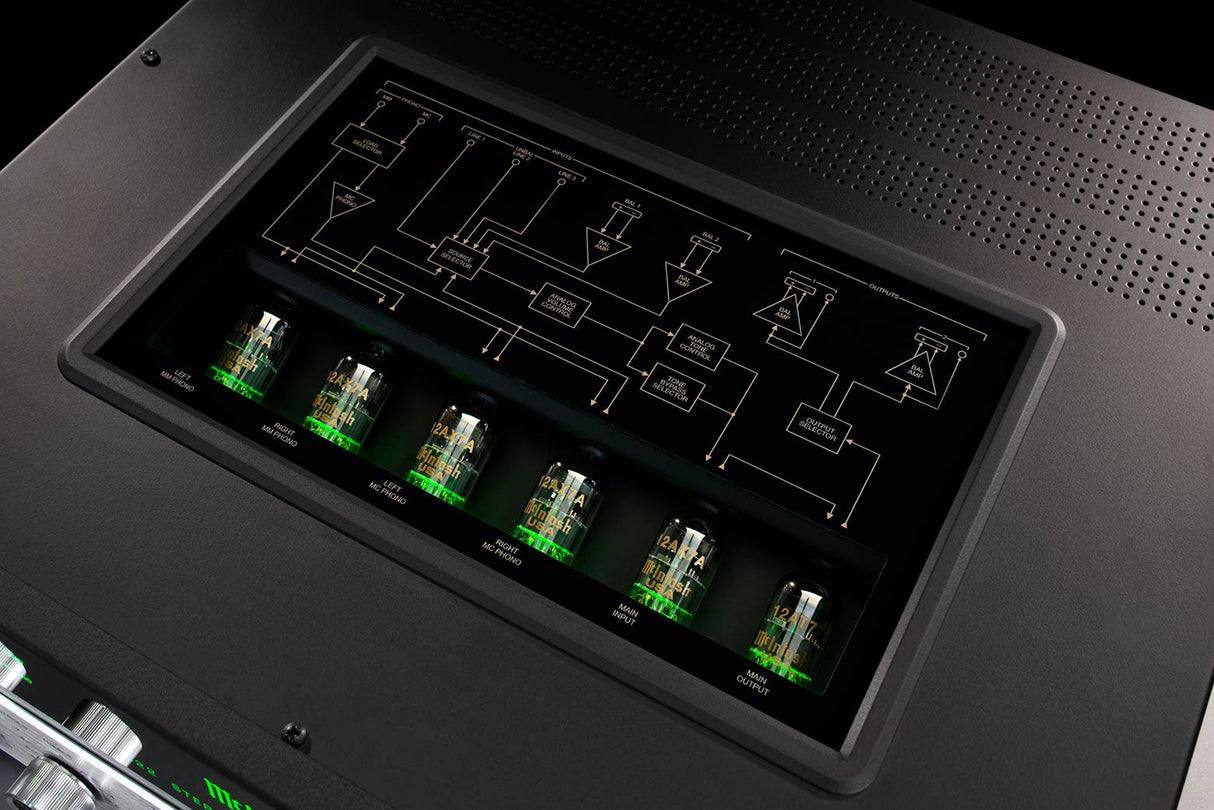

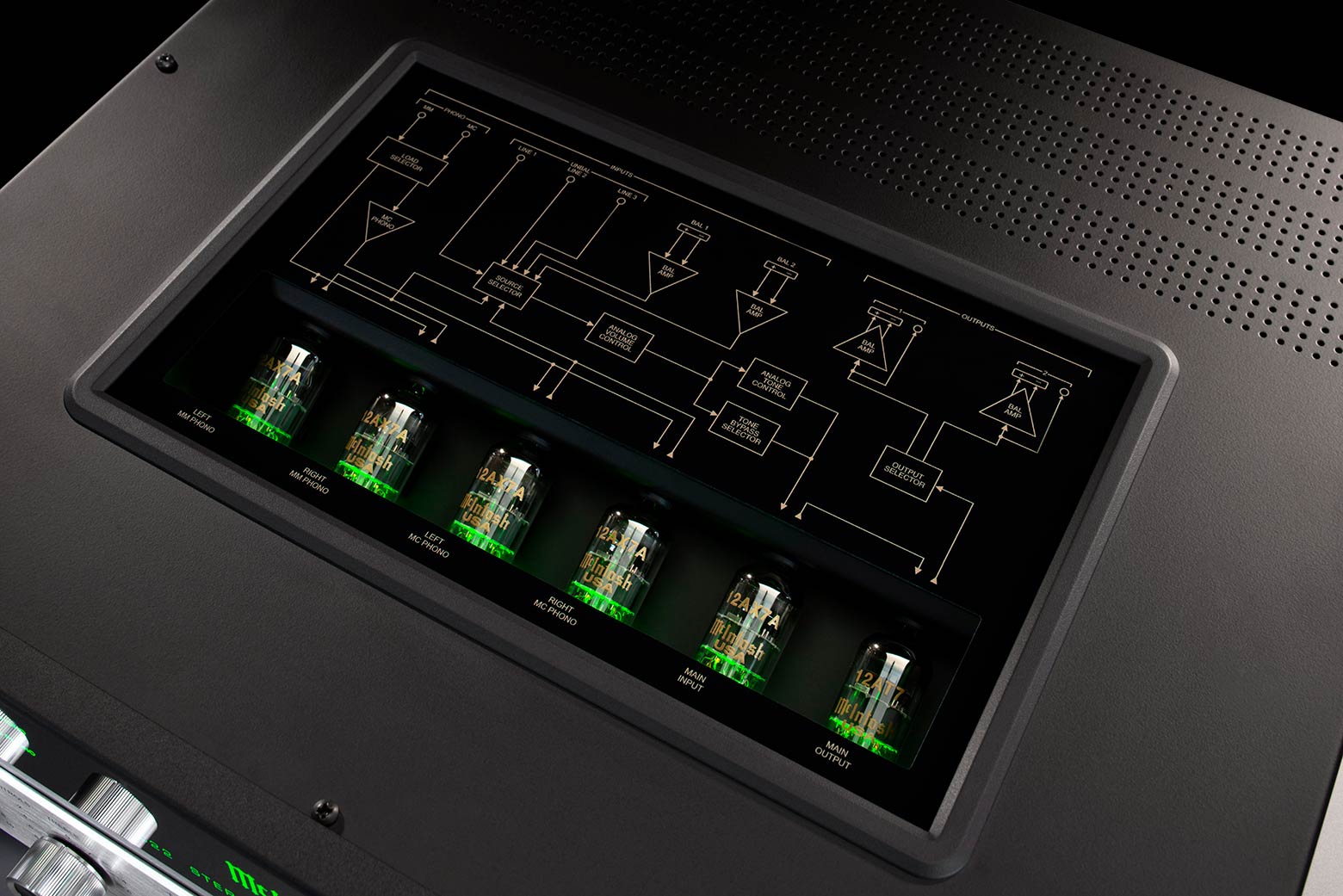

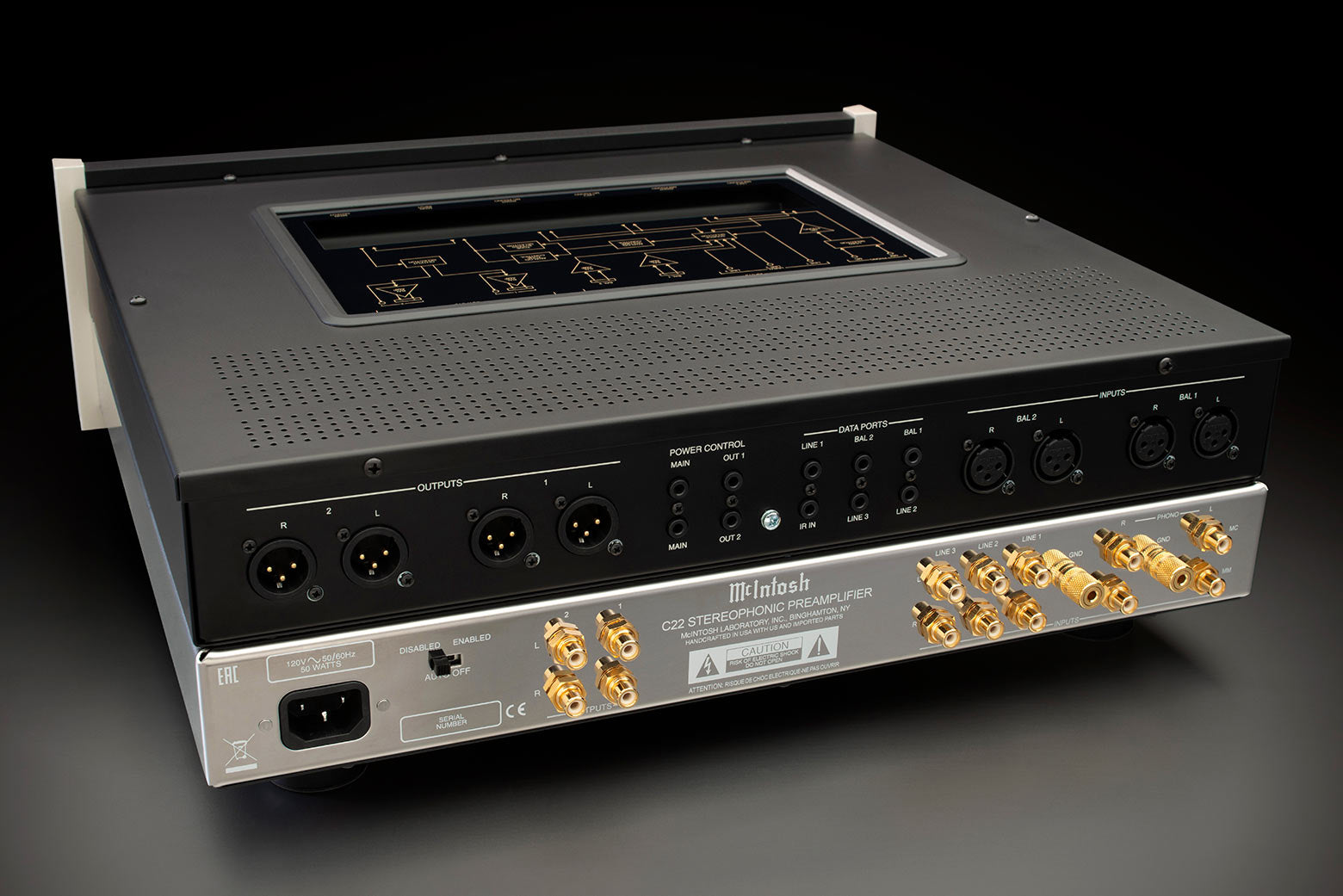

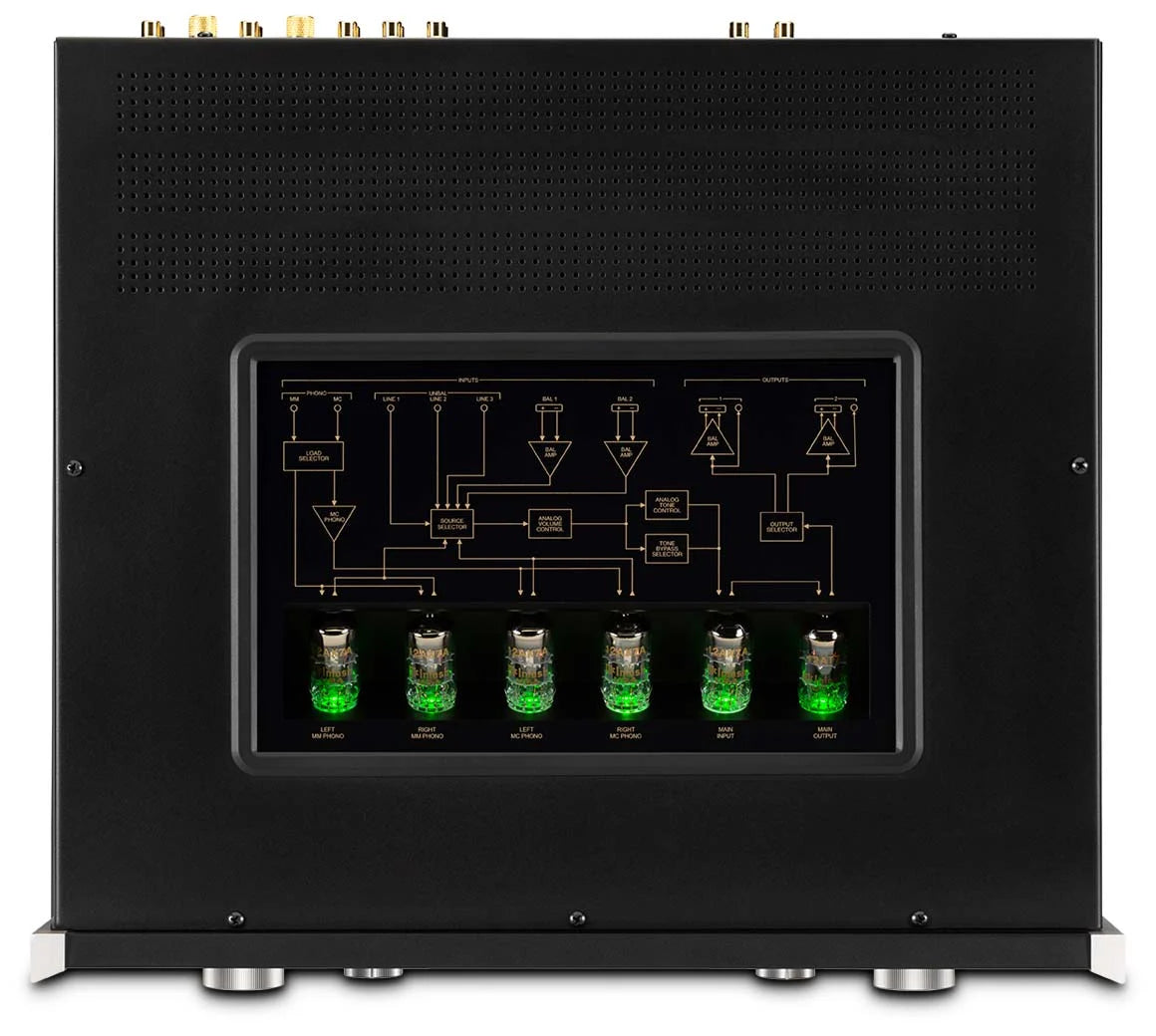

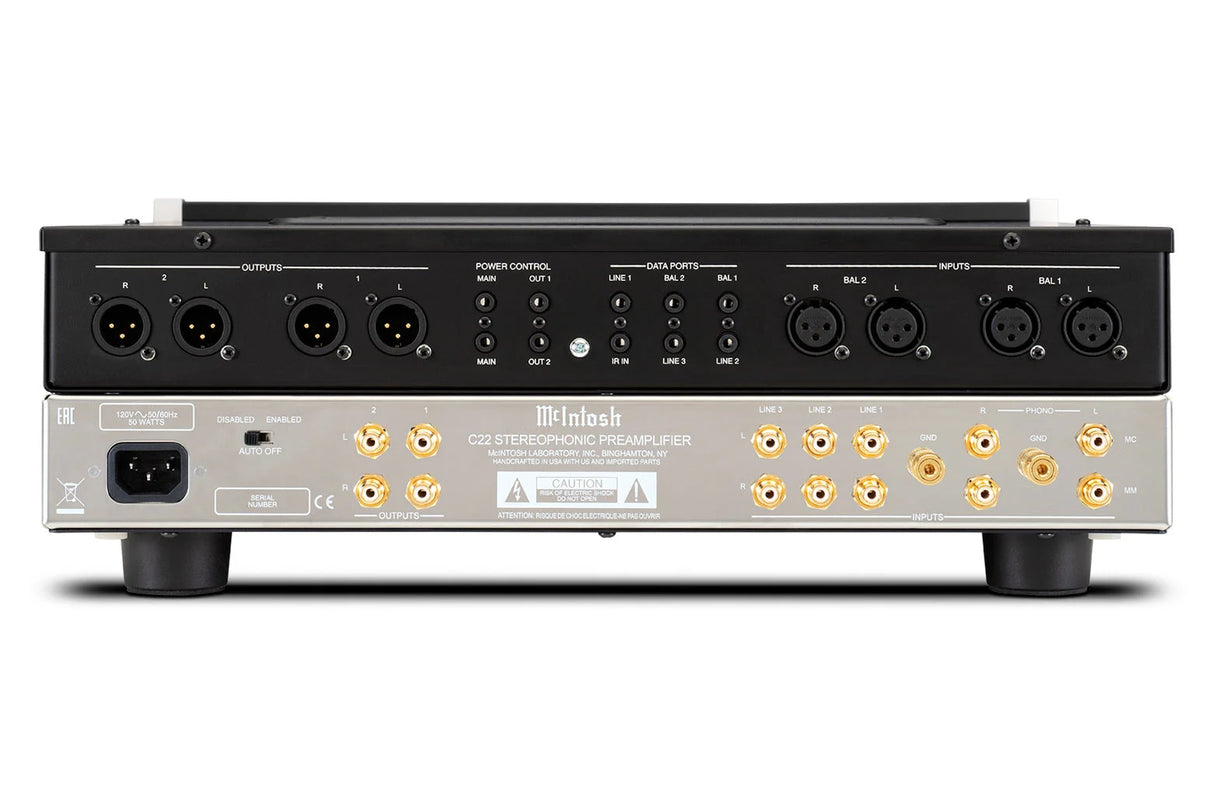

The C22 Mk V uses one 12AT7 and five 12AX7A vacuum tubes which can be seen through a glass panel located on the top of the preamp. Knobs and rocker switches operate all control functions while modern LED lights indicate input selection and volume level. The C22 Mk V has two balanced inputs, three unbalanced inputs, one Moving Coil and one Moving Magnet phono inputs, for a total of seven inputs. There are two pairs each of balanced and unbalanced output connections; the two outputs allow sending signals to two separate power amplifiers.

The MC1502 Vacuum Tube Amplifier and C22 Vacuum Tube Preamplifier Mk V represents McIntosh’s traditional heritage sound and with the added modern McIntosh technology, another masterpiece is born. – HiFi & Home Theater Audio

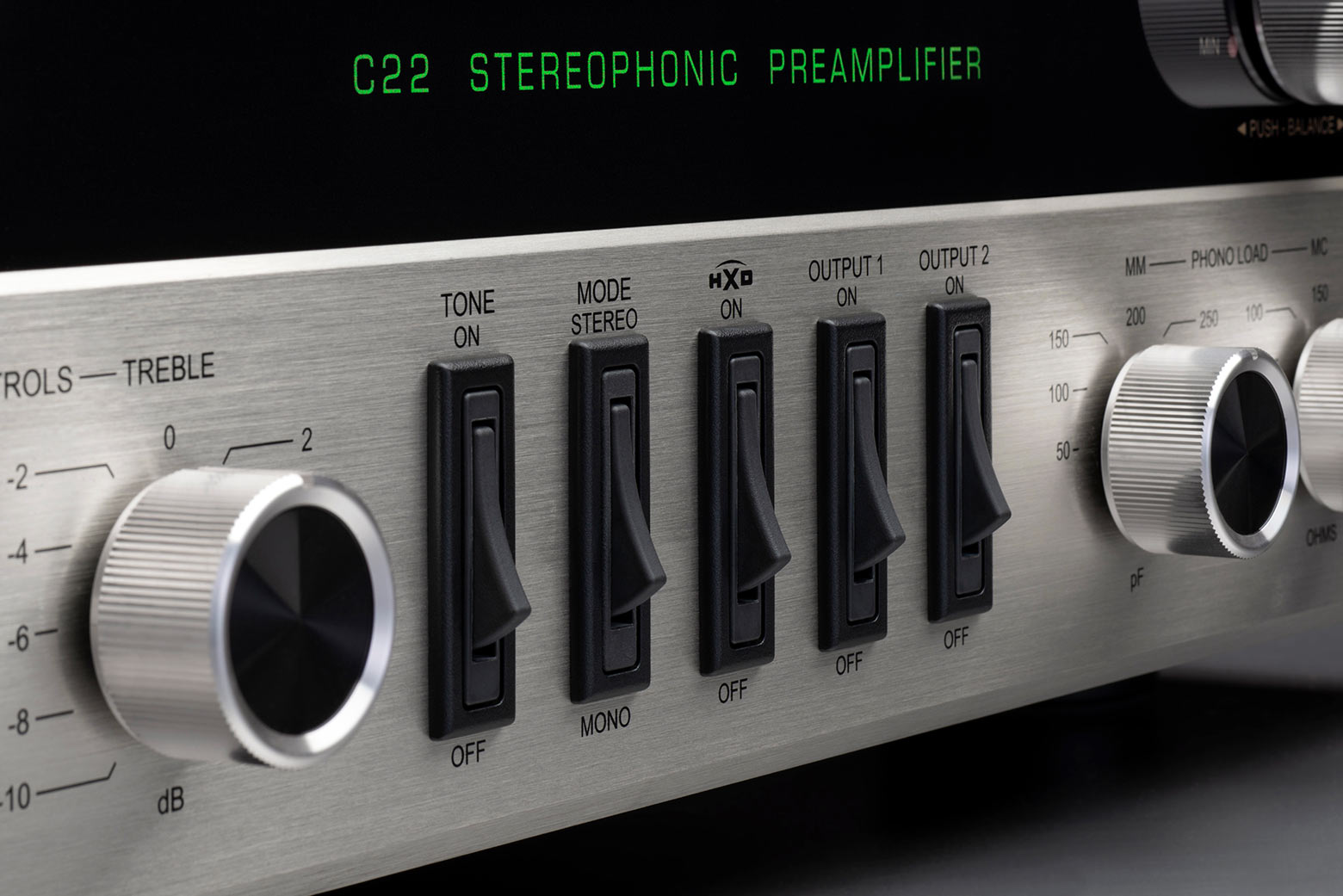

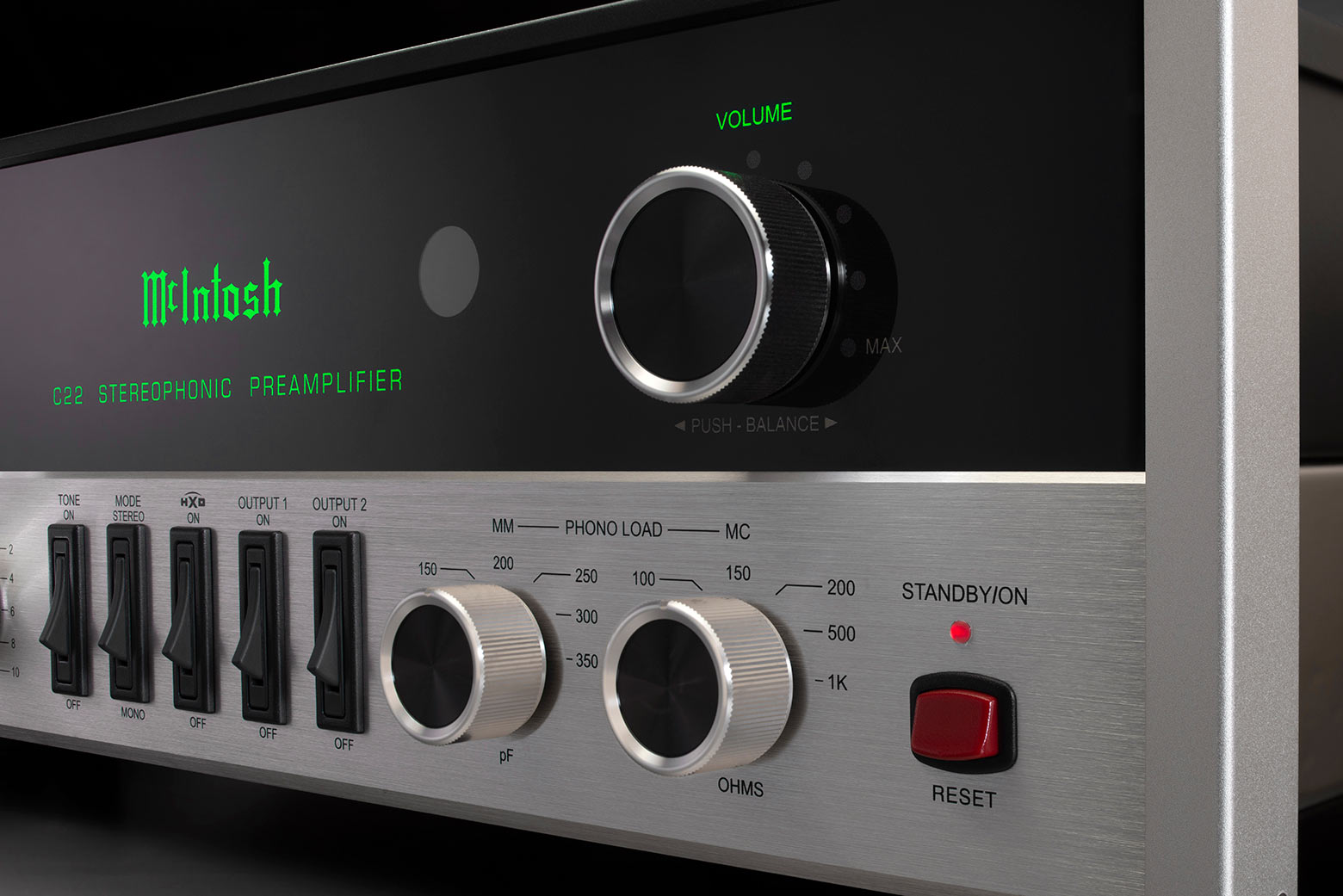

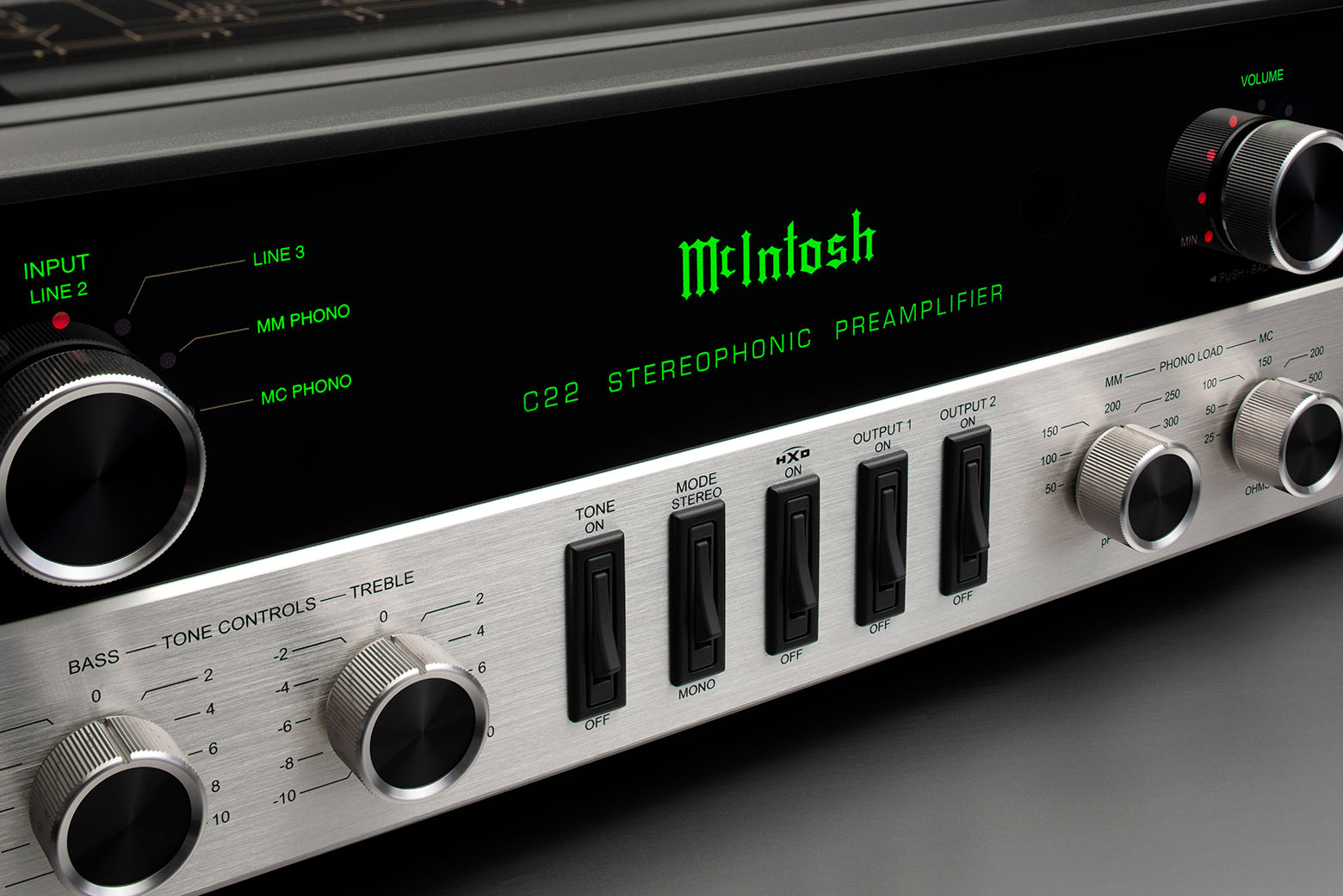

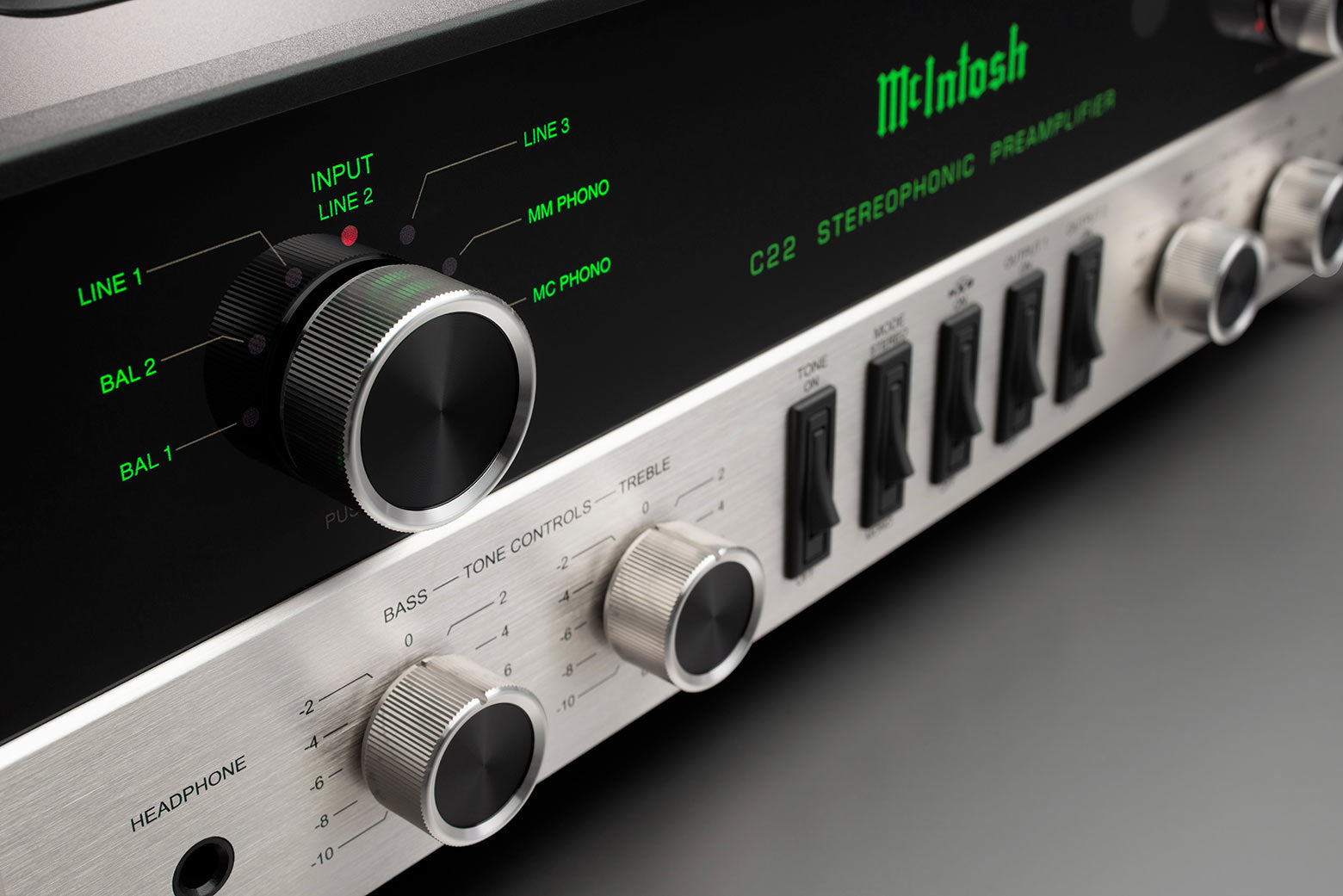

Bypassable bass and treble tone controls are located on the front panel and can be adjusted in 2dB increments via rotary knobs. Impedance and capacitance for the phono inputs can also be adjusted via separate rotary knobs. In addition to setting the listening level, the volume knob can also be used to adjust the relative volume balance between the left and right audio channels. The ¼” headphone jack is powered by our High Drive headphone amplifier and features our Headphone Crossfeed Director (HXD^®) technology. HXD improves the sound localization for headphone listening by restoring the directionality component of the sound stage that's normally only heard from loudspeakers.

The MC1502 Vacuum Tube Amplifier and C22 Vacuum Tube Preamplifier Mk V is "outstanding equipment" and "is rich with an uncommon magic and will provide precious pleasure. Moreover it will fit most loudspeakers nicely, even the most demanding ones." C22 Mk V named Winner of Reference Award. - Haute Fidélité

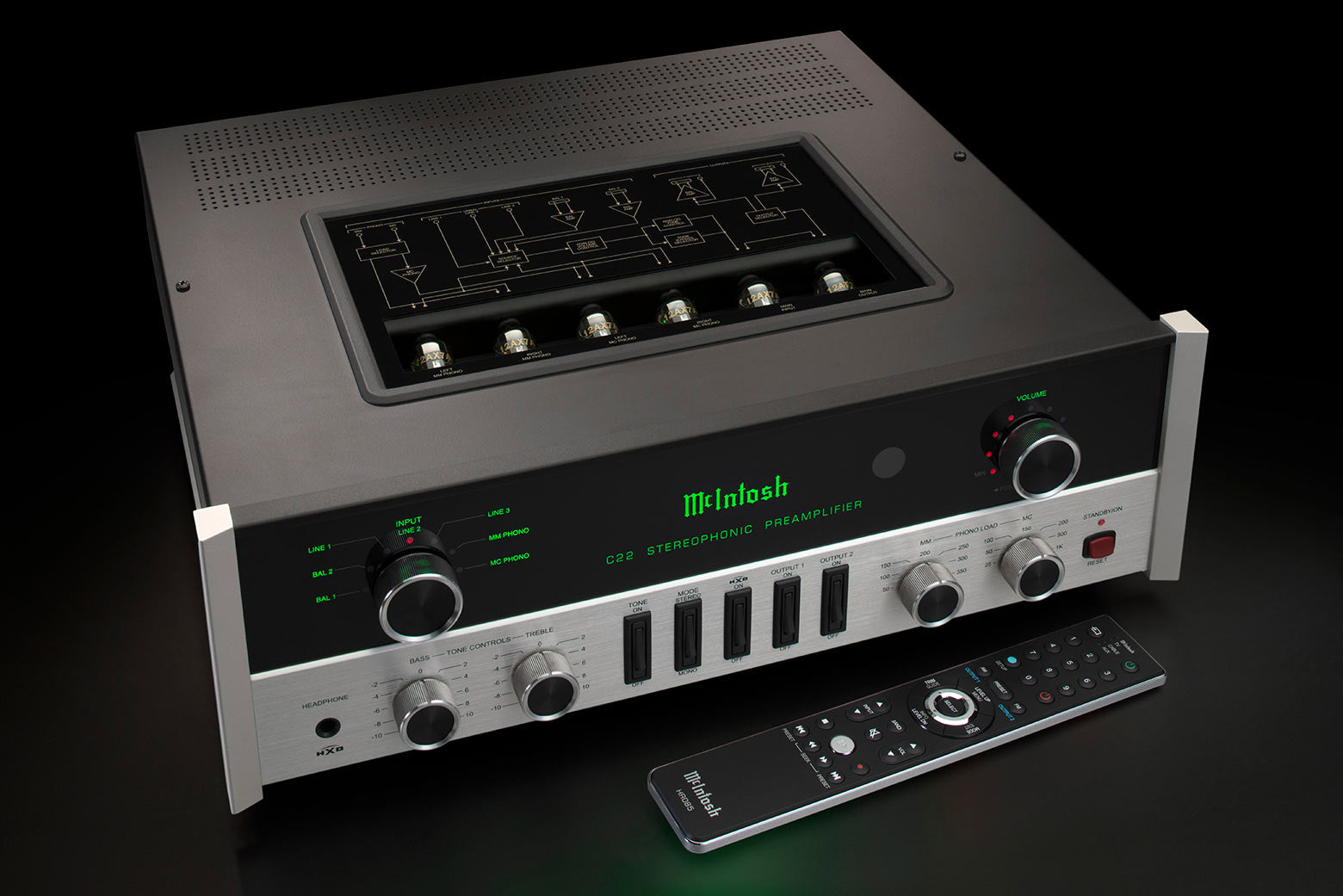

Our Power Control technology is included with four ports that can automatically turn other connected McIntosh components such as amplifiers, CD players or turntables, on and off. Data ports are also present and can control basic functions of connected McIntosh source components via the included remote control.

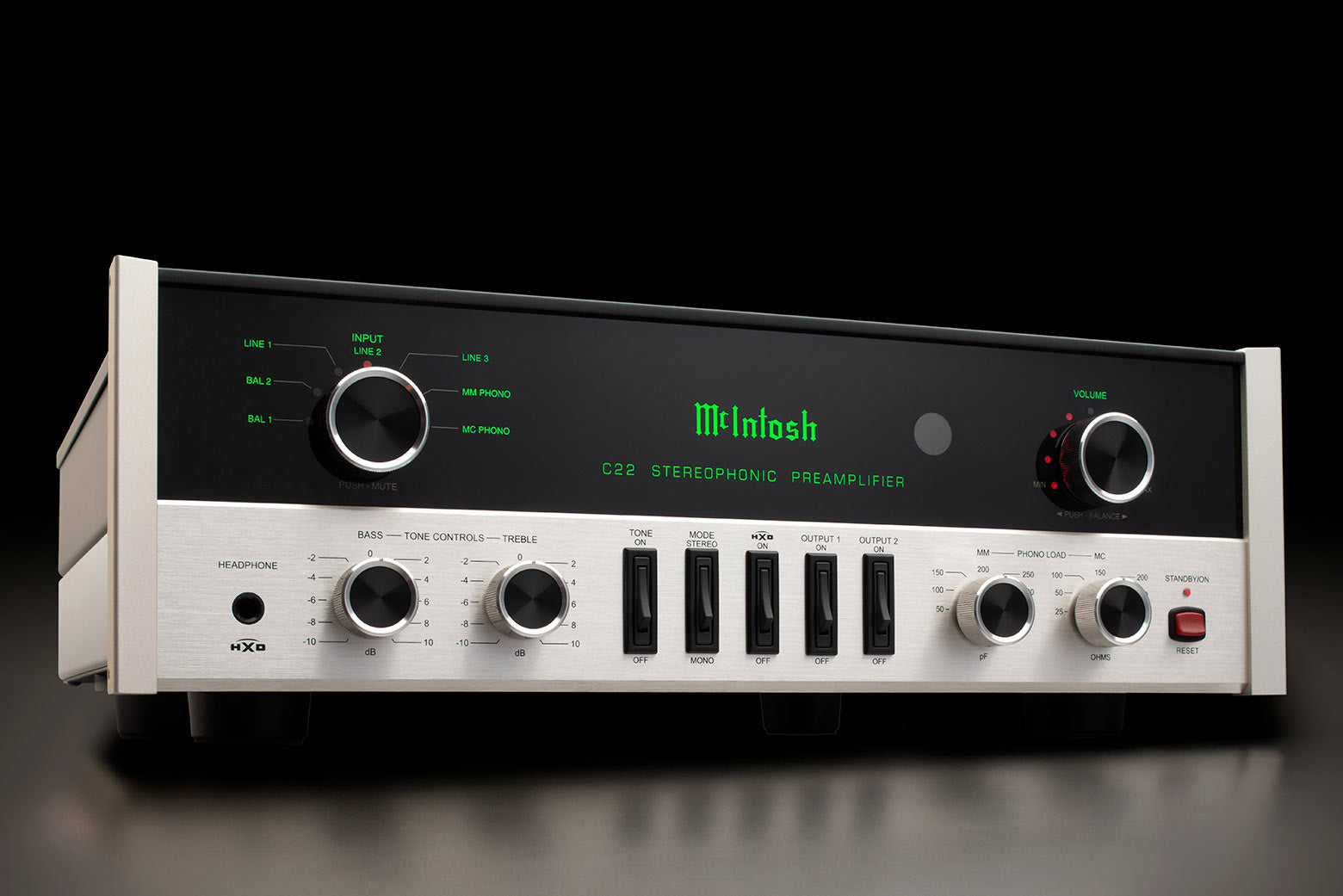

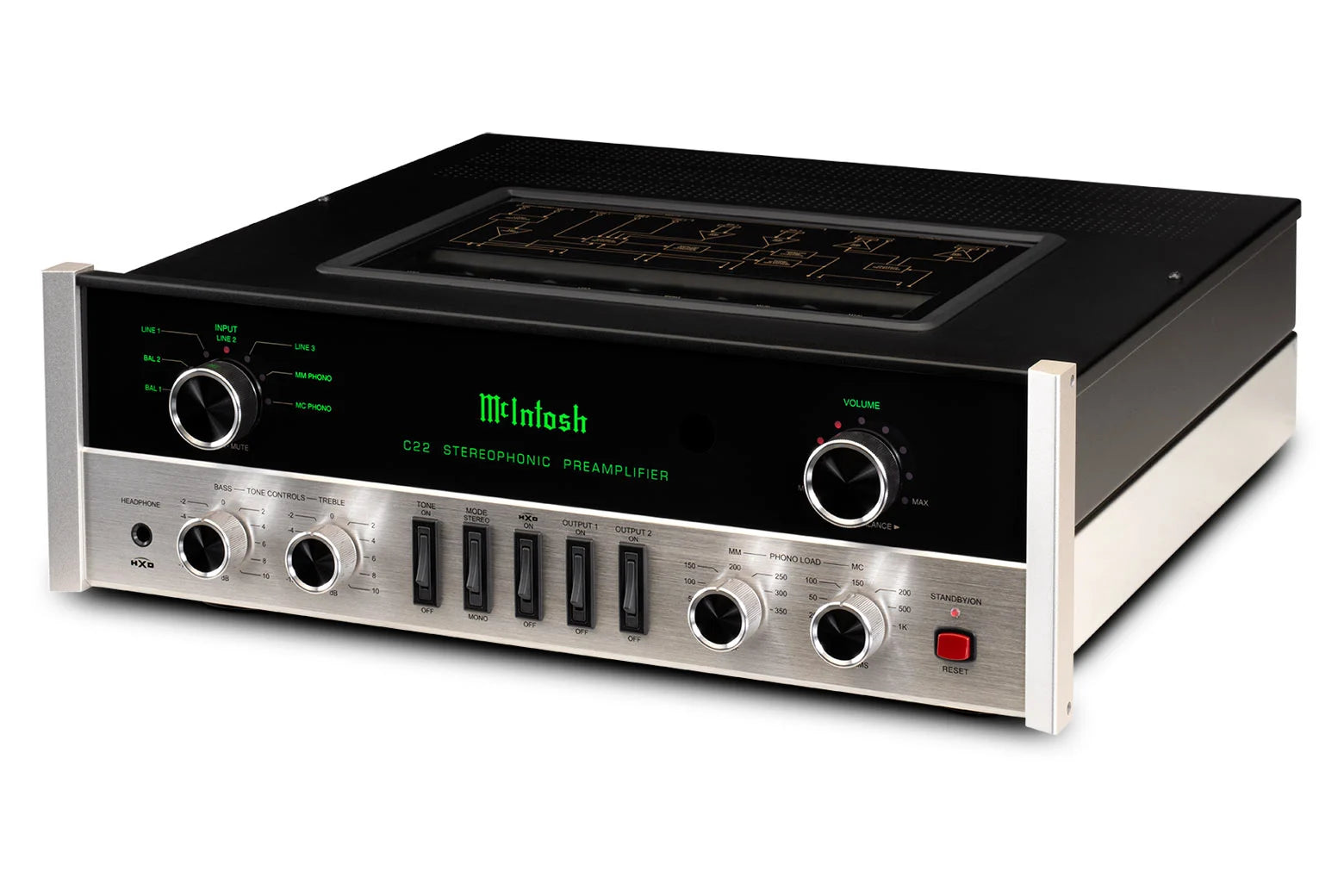

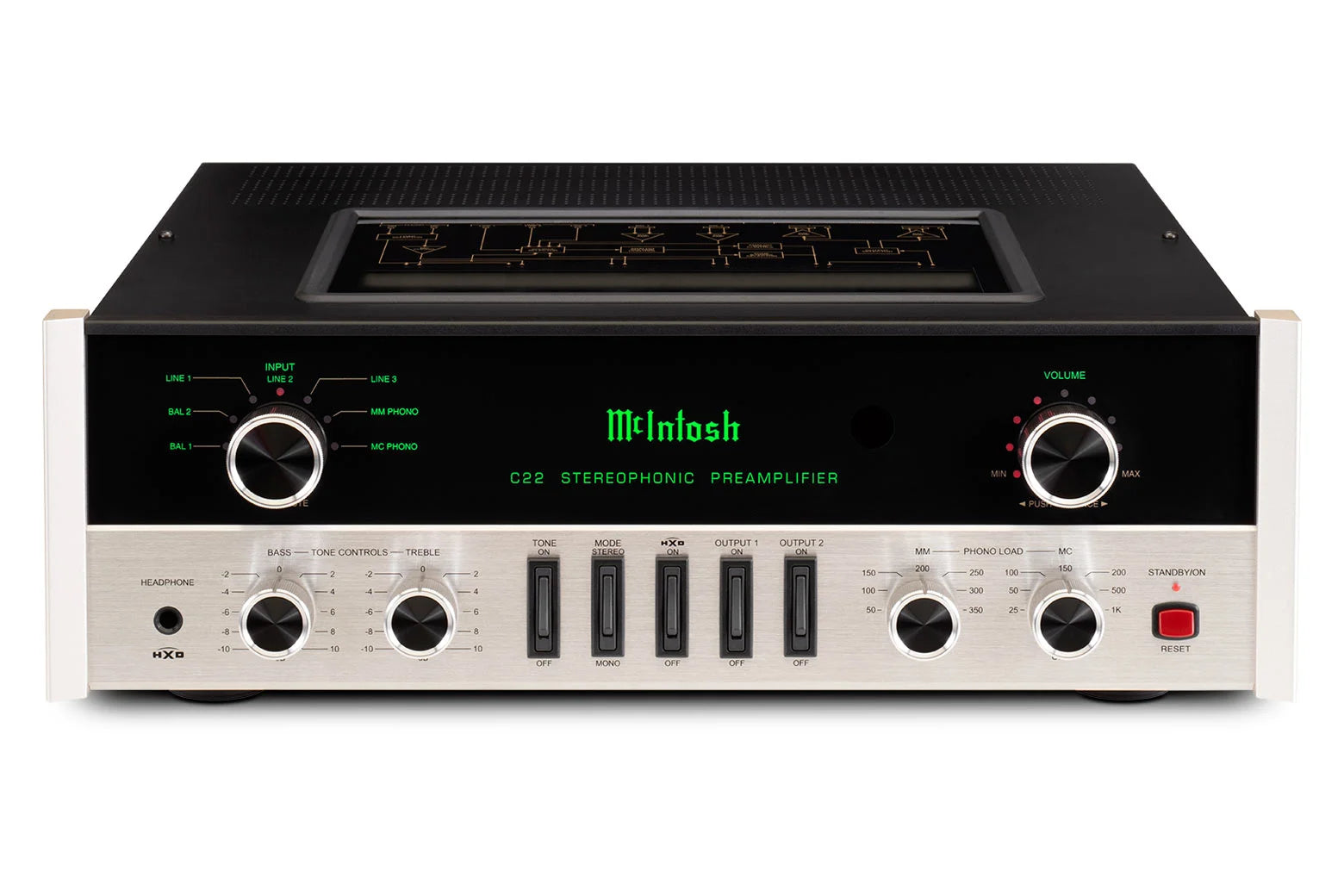

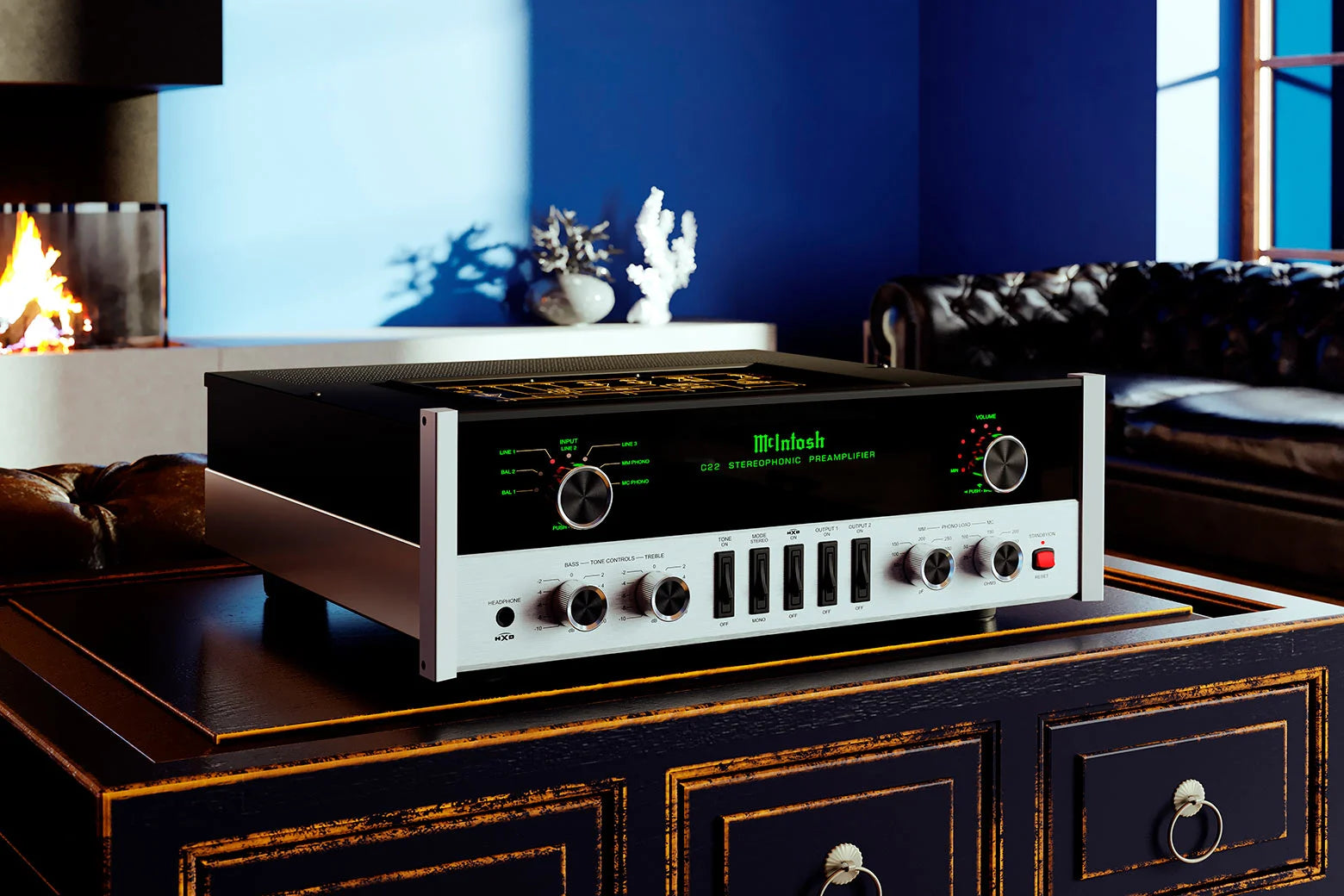

The C22 Mk V sits atop a stunning polished stainless steel chassis and features the timeless McIntosh illuminated logo, control knobs, and aluminum end caps. With its retro black glass and aluminum front panel design, the C22 Mk V will fit right in with McIntosh home audio systems of any era – from the 1950s to current day. Contact your local dealer to learn more.

TECHNINIAI DUOMENYS

Electronic Specifications

Number of Channels

2
Total Harmonic Distortion

0.08%
Frequency Response

+0, -0.5dB from 20Hz to 20kHz
+0, -3dB from 15Hz to 100kHz
Maximum Volts Out (Balanced / Unbalanced)

16V RMS / 8V RMS
Sensitivity High Level (Balanced / Unbalanced)

900mV / 450mV
Sensitivity Phono (Moving Coil)

0.45mV
Sensitivity Phono (Moving Magnet)

4.5mV
Signal To Noise Ratio (High Level)

100dB
Signal To Noise Ratio (Moving Coil)

75dB
Signal To Noise Ratio (Moving Magnet)

75dB
Voltage Gain (High Level)

15dB
Voltage Gain (Moving Coil)

60dB
Voltage Gain (Moving Magnet)

40dB
Input Impedance (Balanced / Unbalanced)

44K ohm, 22K ohm

Connectivity

Balanced Input

2
Unbalanced Input

3
Phono Input Moving Coil

1 (adjustable)
Phono Input Moving Magnet

1 (adjustable)
Upgradeable Digital Audio Module

No
Digital Coaxial Input

0
Digital Optical Input

0
Digital MCT Input

0
Digital USB Input

0
HDMI (ARC) Input

0
Digital AES/EBU Input

0
Balanced Fixed Output

0
Balanced Variable Output

2
Unbalanced Fixed Output

0
Unbalanced Variable Output

2
Headphone Output

1/4" High Drive with Headphone Crossfeed Director (HXD^®)
Input Level Match

No
Home Theater PassThru

No
Unbalanced Analog Connector Type

Premium gold-plated solid brass
Service Port

0
Network Connection

0

Control

Tone Controls

Bass and Treble
Tone Bypass and Input Assign

Tone Bypass: Yes
Input Assign: No
RS232 Control Input

No
Power Control Output

2 Main, 2 Switched
Rear Panel Data Port

5
Rear Panel IR Sensor Input

Yes

General Specifications

Multi-Chassis or Single

Single, two layer
Output Meters

No
Vacuum Tube or Solid State

Vacuum Tube: (5) 12AX7A and (1) 12AT7
Power Consumption (On)

50 Watts

Weights & Dimensions

Unit Dimensions (W x H x D)

17.5" (44.45cm) x 6" (15.24cm) x 18" (45.72cm)
Unit Weight

25 lbs (11.3kg)
Shipping Weight

41.4 lbs (18.8kg)
