McIntosh MC8207 - tai aukštos klasės septynių kanalų galios stiprintuvas, sukurtas tikriems namų kino entuziastams, vertinantiems ne tik nepriekaištingą garso kokybę, bet ir elegantišką dizainą. Šis stiprintuvas sujungia galingą 200 vatų kiekvienam kanalui galią, pažangias technologijas, tokias kaip Dynamic Power Manager® bei Power Guard®, ir tylų veikimą be ventiliatorių, todėl tampa idealiu pasirinkimu tiek 7.1, tiek 5.1 sistemoms su antrąja garso zona. Dėl savo patikimumo, inžinerinės precizikos ir rafinuotos estetikos, MC8207 sklandžiai įsilieja į bet kokią prabangią namų kino aplinką, suteikdamas nepakartojamą garsinę patirtį.
Galia: 200 W į 4 arba 8 omus
Kanalų skaičius: 7 (taip pat gali būti naudojamas kaip 2 zonų stiprintuvas su 5 kanalais A zonoje ir 2 kanalais B zonoje)
Dažnių diapazonas: +0, -0,25 dB nuo 20 Hz iki 20 kHz; +0, -3dB nuo 10Hz iki 100kHz
Signalo ir triukšmo santykis (prie vardinės galios): 112 dB
Slopinimo faktorius (Damping): >140
APRAŠYMAS
At 200 Watts per channel, the 7-channel MC8207 home theater amplifier is perfectly capable of powering all the speakers in a 7.1 channel home theater to McIntosh’s legendary standards. It features LED power output indicators instead of our traditional blue meters. These indicators will display the amplifier’s power output just as the blue meters do but in a more understated way – making the MC8207 a perfect choice for darkened home theaters where the screen is the focal point. In addition to 7.1 theater systems, it can also be used in 5.1 home theaters with 2 channels used to power a second zone in stereo mode.
The McIntosh exclusive Dynamic Power Manager® (DPM) technology enables the MC8207 to deliver its full power into both 4 and 8 Ohm speakers, meaning it’s compatible with a wide variety of home theater speakers – unlike many other high current amplifiers. Just like our other home theater amplifiers, the MC8207 does not need cooling fans, eliminating fan noise that can interfere with the delicate nuances of a movie’s soundtrack. Power Guard® will prevent potential speaker damage caused by clipping and over-driving of the amplifier. Short-circuit protection is provided by Sentry Monitor™ that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal.

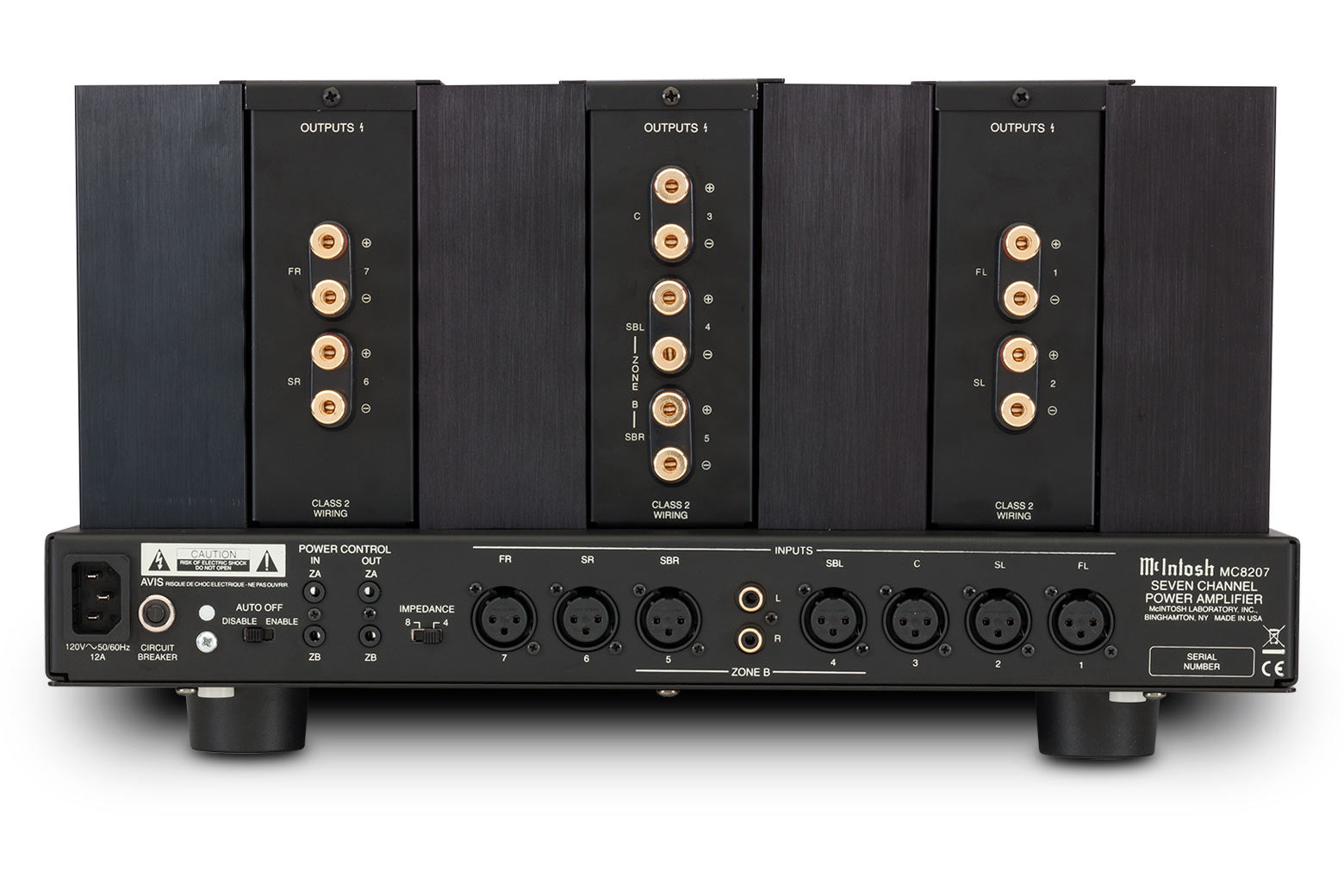

For the utmost in sound quality, inputs for balanced audio cables are included for all 7 channels. When used in a dual zone configuration, for your convenience there are also unbalanced inputs for the two channels used in the secondary zone.
The classic black glass front panel and custom machined brushed aluminum end caps make the MC8207 a welcome addition to any home theater. Combine it with a home theater processor for the ultimate in home entertainment. Contact your local dealer to learn more.
TECHNINIAI DUOMENYS
Electronic Specifications
-
- FTC Power Output Rating
- 200 W
-
- Power Output per Channel
- 200 W into 4 or 8 ohms
-
- Number of Channels
- 7 (can also be used as a 2-zone amplifier with 5 channels in zone A and 2 channels in zone B)
-
- Total Harmonic Distortion
- 0.005%
-
- S/N below rated output
- 112dB
-
- Dynamic Headroom
- 1.7dB
-
- Damping Factor
- >140
-
- Rated Power Band
- 20Hz to 20kHz
-
- Frequency Response
- +0, -0.25dB from 20Hz to 20kHz
+0, -3dB from 10Hz to 100kHz
Control
-
- Remote Power Control
- Yes, 7 or 5 + 2 Channel
-
- Multi-Channel DB25 Cable
- N/A
General Specifications
-
- Circuit Configuration
- Push-Pull Complementary
-
- Circuit Design
- Solid State
-
- Mono Bridge
- No
-
- Mono Parallel
- No
-
- Output Type
- Direct Coupled with Dynamic Power Manager®
-
- Meters
- Yes, new style LED
-
- Meter Light Switch
- No
-
- Balanced Input
- Yes
-
- Front Panel
- Glass
-
- Illumination
- LED Fiber Optic
-
- Chassis Style
- Inverted
Connectivity
-
- Speaker Binding Post Type
- Yes
Weights & Dimensions
-
- Unit Dimensions (W x H x D)
- 17-1/2" (44.5cm) x 9-7/16" (23.9cm) (including feet) x 21" (53.3cm) (including front panel and cables)
-
- Unit Weight
- 83 lbs (37.6 kg)
-
- Shipping Weight
- 116 lbs (52.6 kg)
DOKUMENTAI
Vartotojo vadovas (EN)
