McIntosh WS500, į sieną montuojama garso kolonėlė

McIntosh WS500 - tai išskirtinė, trijų juostų sieninė kolonėlė, sukurta reikliems muzikos ir namų kino entuziastams. Pilnai uždara konstrukcija užtikrina nepriekaištingą garso kokybę net ir sudėtingose erdvėse, o pažangūs titano ir stiklo pluošto garsiakalbiai leidžia mėgautis detaliu, aiškiu ir galingu skambesiu.

Nominali varža: 4 Omai
Galingumo diapazonas: iki 250 W
Dažnių diapazonas: 80Hz to 20kHz
Jautrumas (2,8 V/1 m): 86 dB

The WS500 In-Wall Loudspeaker is a versatile speaker suited for custom install applications for both 2-channel home audio and in home theaters as front, center or surround sound speakers. It is an ideal speaker to use with our MI128 or MI254 distribution amplifiers, or with our WS300 in-wall speaker and CS200 in-ceiling speaker – both of which it is voice matched to for a seamless and cohesive aural experience. In home theaters, it works great with any of our A/V processors and multi-channel amplifiers

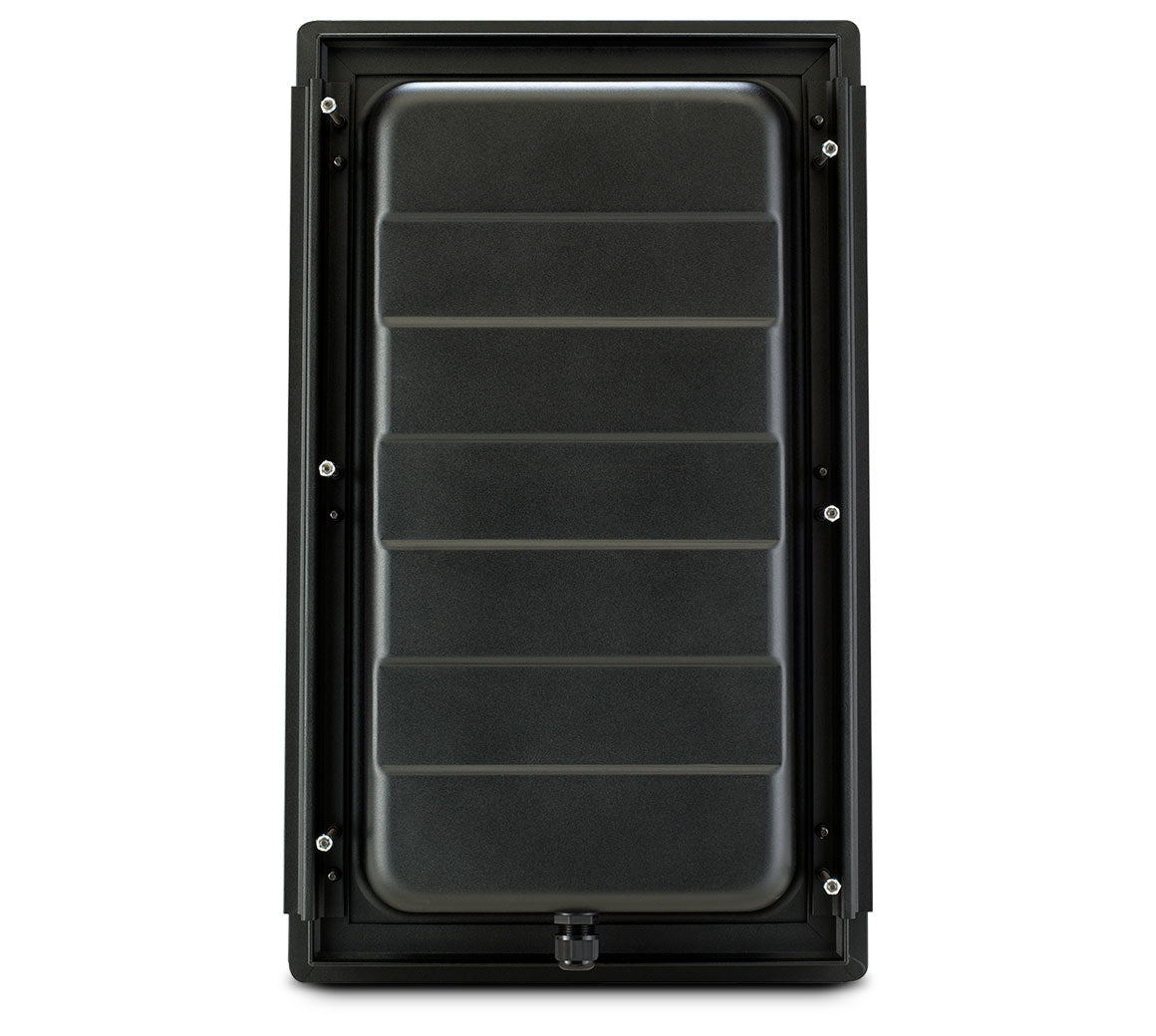

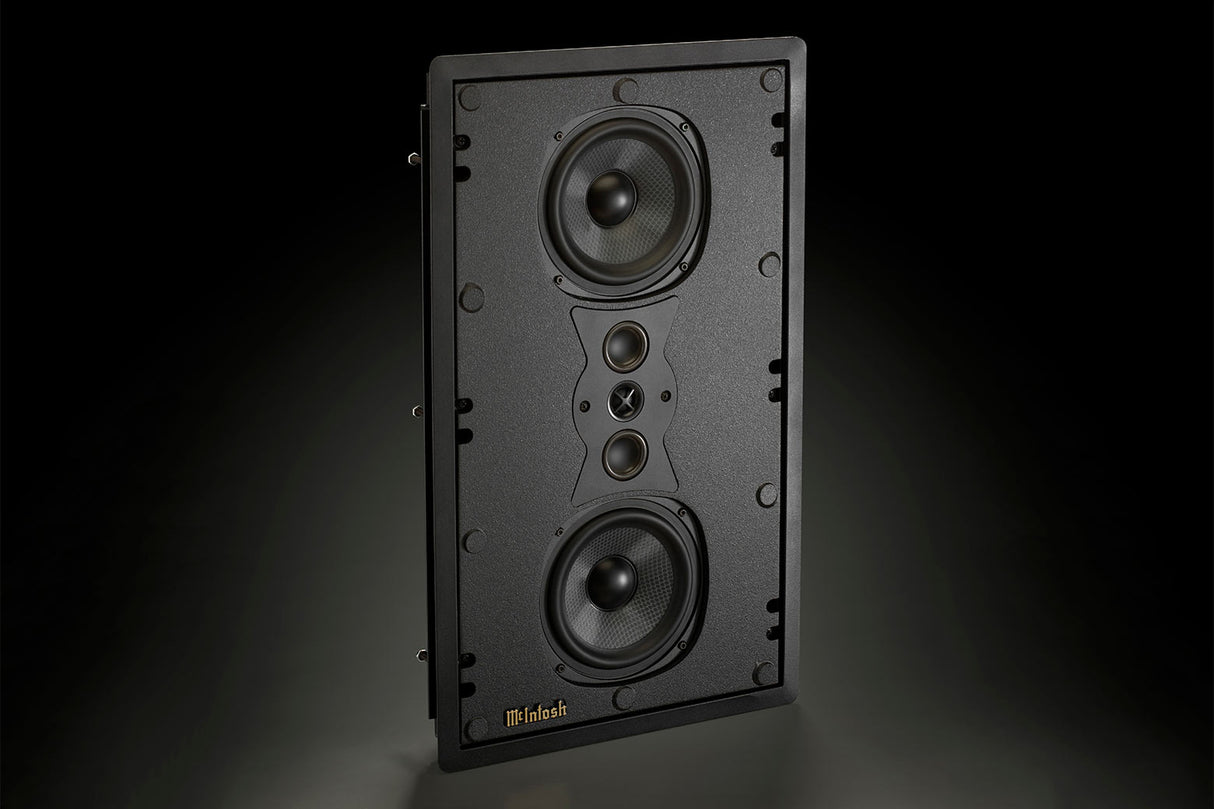

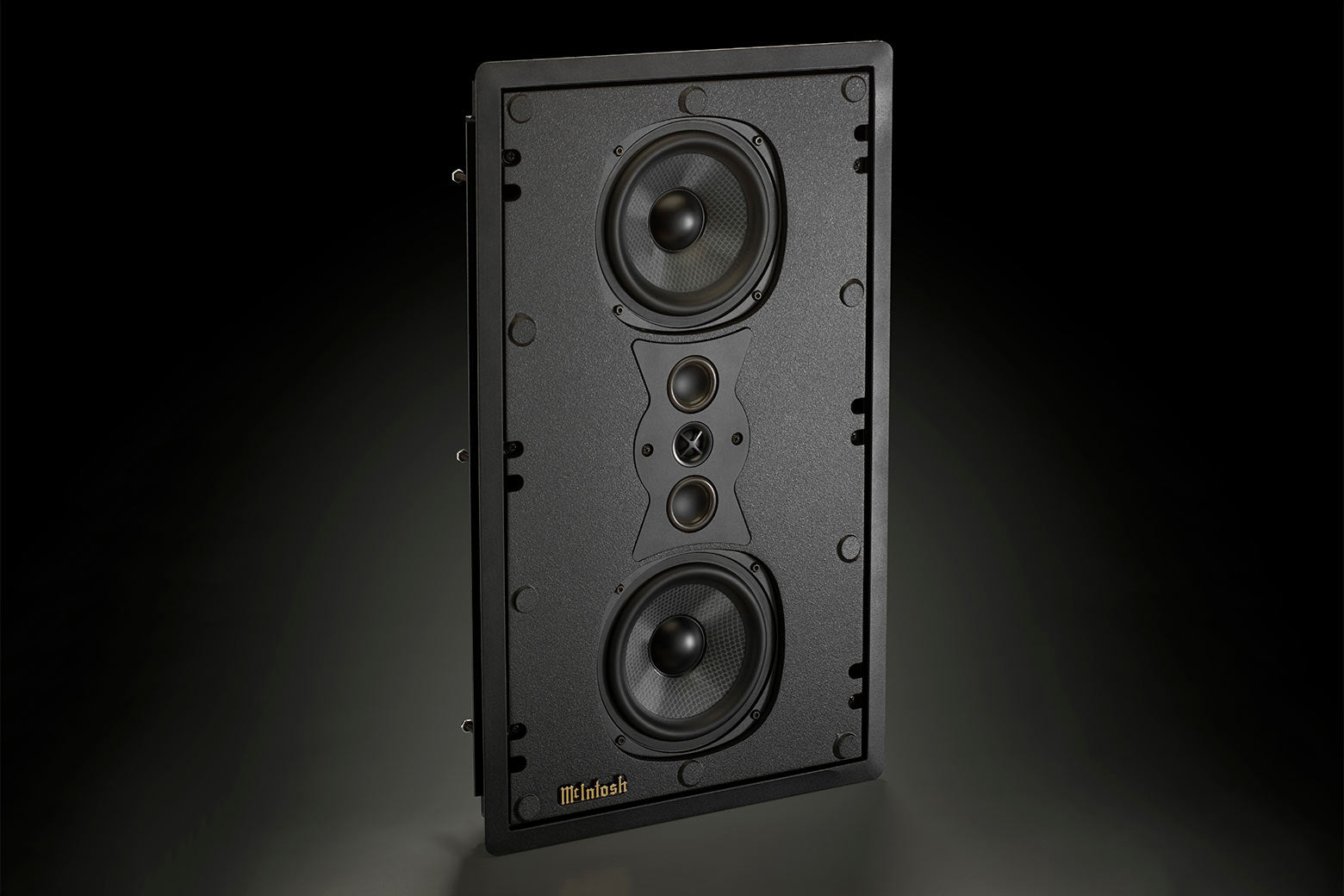

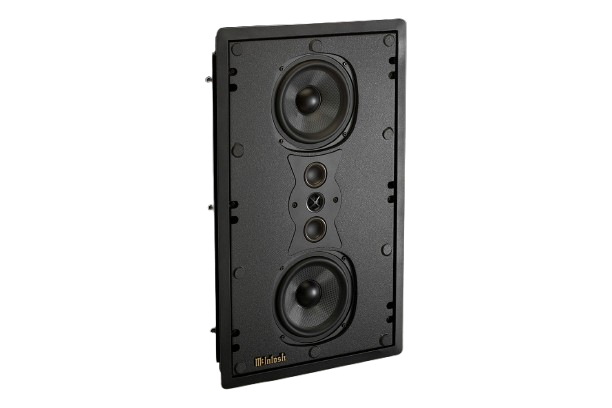

The 3-way WS500 is fully enclosed to deliver incredible performance in any environment plus a controlled air chamber minimizes distortion and response irregularities. It features two 6.5" woofers, two 2" inverted Titanium dome midranges and one 3/4" Titanium dome tweeter. The woofer is a new shallow design that fits in standard 2x4 wall construction for easy installation. The woofer utilizes a long throw, high power design with molded carbon reinforced cones with molded elastomeric surrounds for high linearity. The midranges and tweeters are the same drivers used in our XR50 and XR100 home audio speakers and deliver the same level of performance.

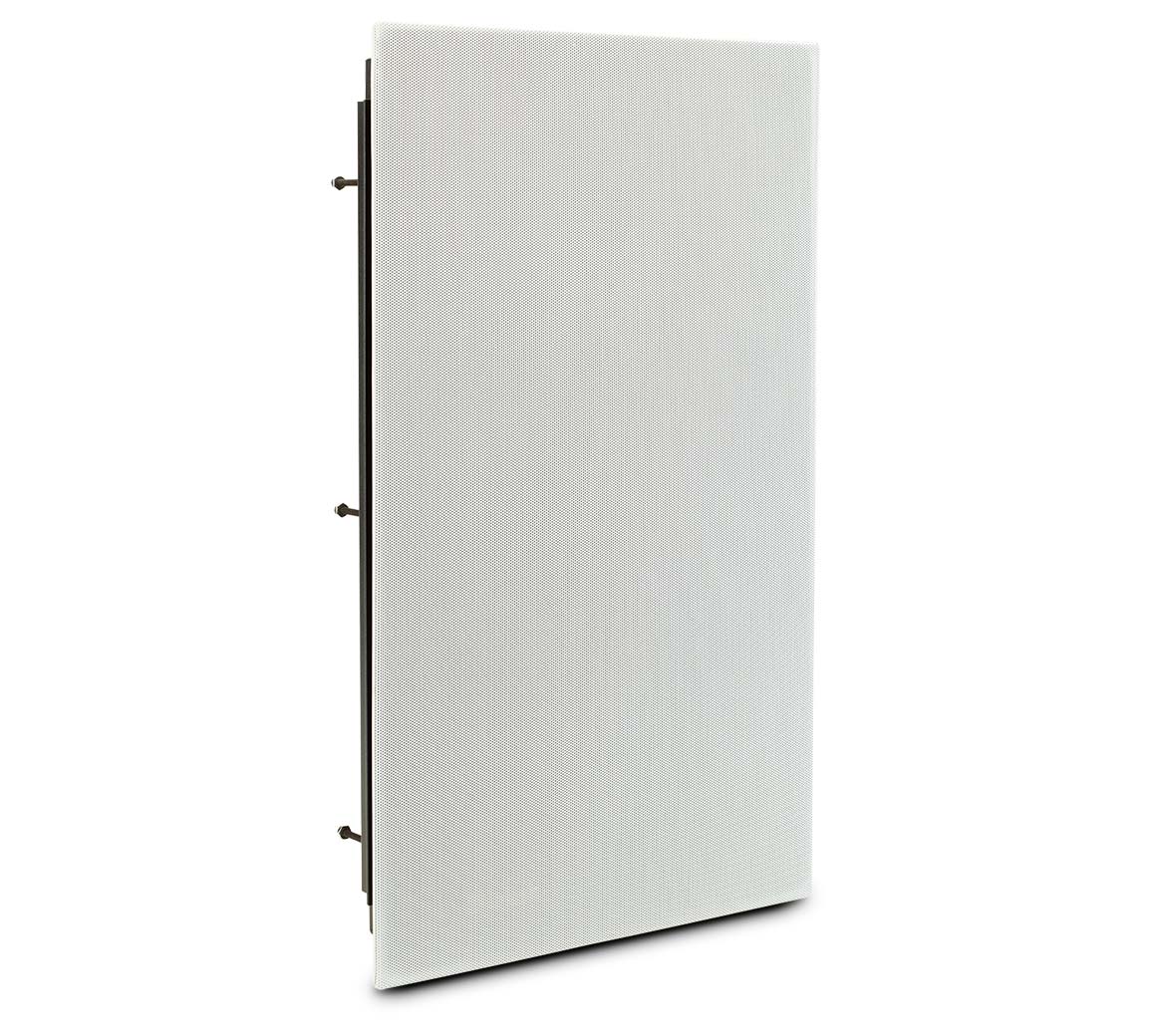

The grille magnetically attaches for easy removal. The grille is also paintable and will leave little to no visible edge of the mounting flange so the speaker can virtually disappear into its surroundings. It comes with all required hardware and mounting mechanisms for post construction installations. An optional rough-in kit (#RK500) is available if needed.

Electronic Specifications
Impedance Nominal
4 Ohms
Power Rating
Up to 250 Watts
Frequency Response
80Hz to 20kHz
Sound Pressure Level, 2.8V/1m
86dB
Crossover
350Hz, 2,500Hz
Driver Specifications
Number of Woofers
2
Woofer Size
6.5"
Woofer Type
Woven Glass Fiber
Number of Midranges
2
Midrange Size
2"
Midrange Type
Inverted Titanium Dome
Number of Tweeters
1
Tweeter Size
3/4"
Tweeter Type
Titanium Dome
General Specifications
System Type
3-Way In-Wall
Grille
Magnetic metal mesh
Available Finishes
Black chassis with white paintable grille

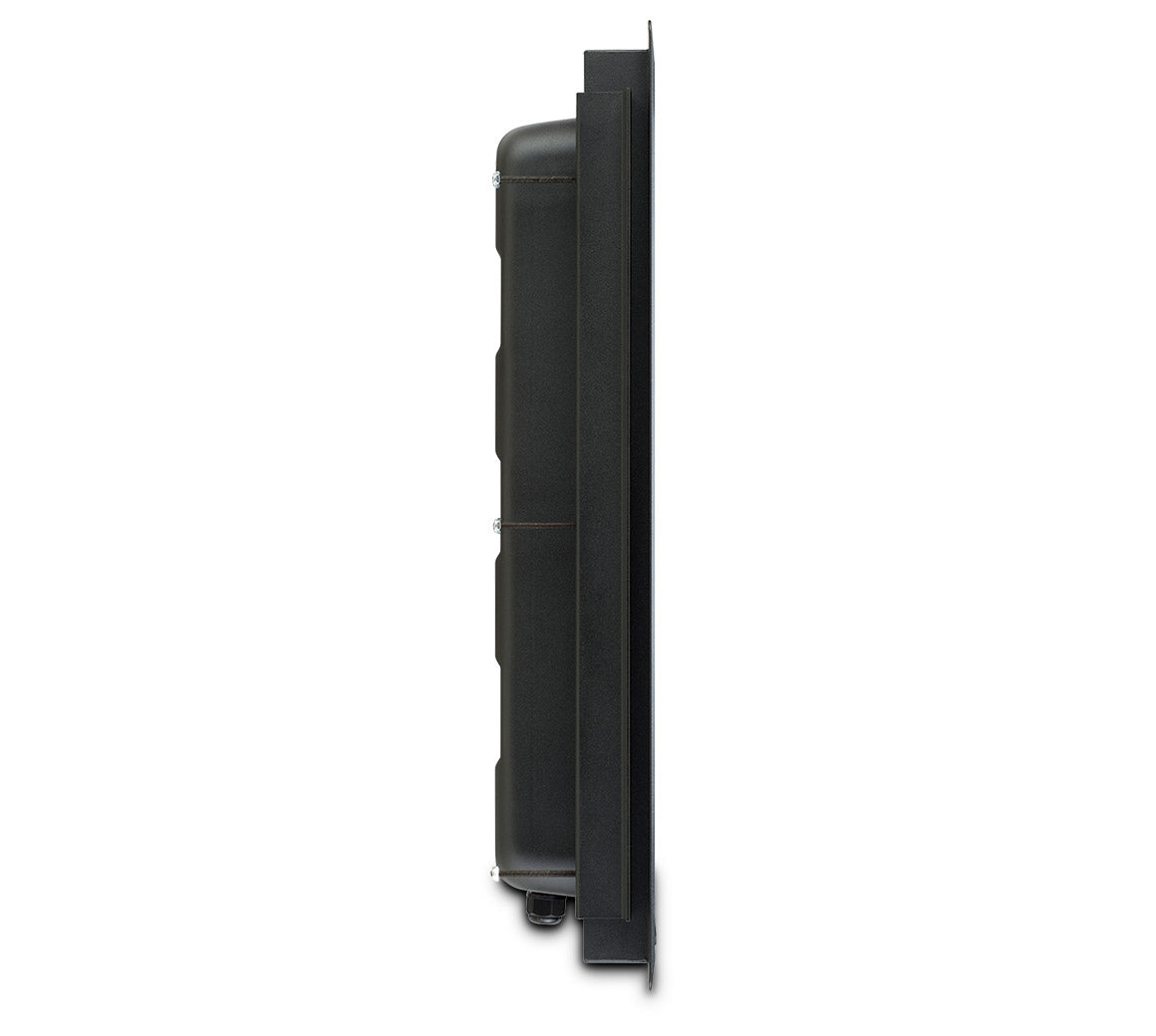

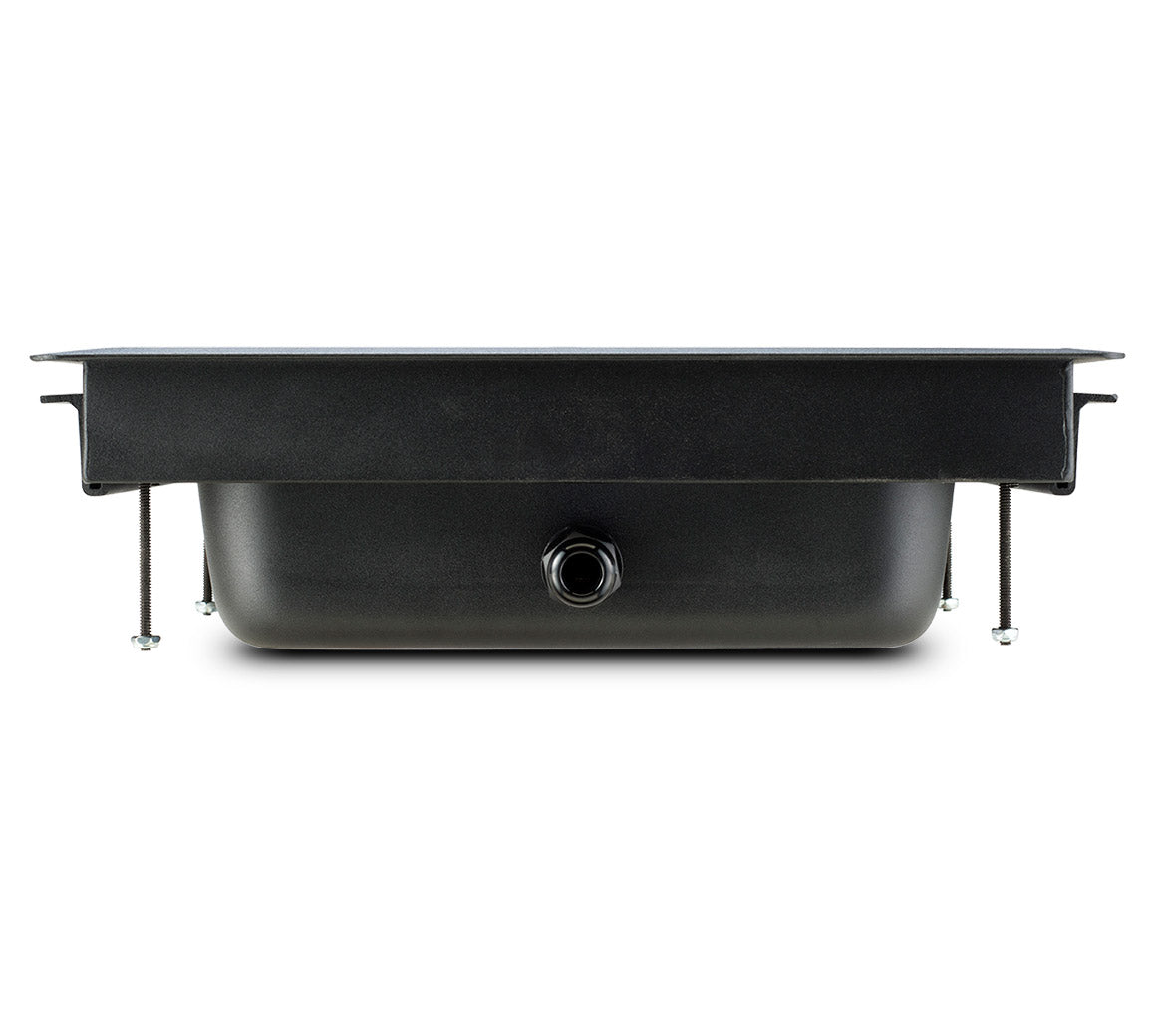

Weights & Dimensions
Unit Dimensions (W x H x D)
14" (35.5cm) x 23-1/2" (59.7cm) x 3-5/8" (9.3cm)
Unit Weight
24 lbs (10.9 kg)
Shipping Weight
29 lbs (14.1 kg)
