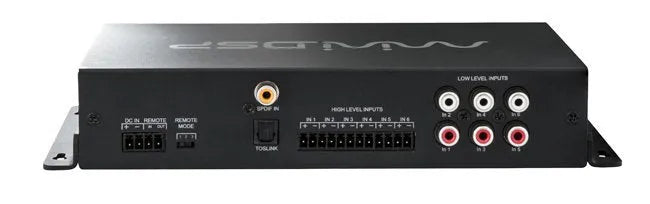

miniDSP C-DSP 8×12, automobilinis audio procesorius

Aukščiausios klasės skaitmeninis garso procesorius, skirtas mobiliesiems įrenginiams ir automobiliniams garso įrenginiams.

check_circle_outline
Užsakoma prekė
Nuolaida: 689.50 €
Kaina: 689.50 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

miniDSP C-DSP 8×12, automobilinis audio procesorius

Aukščiausios klasės skaitmeninis garso procesorius, skirtas mobiliesiems įrenginiams ir automobiliniams garso įrenginiams.

  • 400 MHz 32 bitų "Sharc" slankiojo kablelio procesorius, iki 192 kHz dažnio apdorojimas.
  • Skaitmeninės ir analoginės įvestys (žemas / aukštas lygis), 12 analoginių išėjimų.
  • Lankstūs DSP apdorojimo blokai, galinio užpildymo apdorojimas (L-R, L+R..) dėl vidinės matricos.
  • Su "Windows/Mac" suderinama grafinė vartotojo sąsaja.
  • Nuotolinis valdymas arba iš anksto nustatyto / pagrindinio ir papildomo garsumo valdymas.

miniDSP C-DSP 8×12 Digital Signal Processor for Mobile/Car audio

The C-DSP 8×12 is miniDSP’s next-generation processor for high-end mobile/car audio. The powerful 400 MHz SHARC floating-point processor provides pristine high-resolution audio at internal sample rates up to 192 kHz. With a wealth of inputs and outputs in a compact, rugged enclosure, the C-DSP 8×12 is suitable for installations from simple stereo, through surround systems with subwoofer integration, up to advanced multichannel active systems.



The driverless USB interface is used to configure miniDSP’s powerful but easy-to-use audio processing: parametric EQ on all inputs and outputs, compressors and adjustable time delay on all outputs, crossovers up to 48 dB/octave, and an advanced matrix mixer. Four complete processing configurations are stored in flash memory for instant recall with a wired or infrared remote.



Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, a wired remote for dash or console mounting, and a microSD card slot for offline configuration and firmware updates.

What’s in the box?

  • 1 x C-DSP 8×12 DSP processor
  • 1 x 1m USB cable
  • 1 x 5m remote cable + Remote module
  • 1 x C-DSP 8×12 plugin license





SPECIFIKACIJOS

Item Description
Digital Signal Processor 400 MHz, 32-bit floating-point SHARC Digital Signal Processor (ADSP21489)
ADC/DAC Resolution 24-bit, up to 192 kHz native – check plugin for details
Control Driverless USB 2.0 control interface for control from Windows or Mac
Digital audio inputs Software selectable SPDIF (RCA) or TOSLINK (Optical) / 44.1–192 kHz
Analog audio inputs













6 x high-level differential inputs (terminal block) · Selectable max level: 8 or 12 V rms



· Zin: 68 Ω

6 x low-level differential inputs (on RCA)

· Selectable max level via DIP switches: 2 or 4 V rms

· Zin: 10 kΩ (at 4 V rms setting)

Analog audio outputs







12 x outputs on RCA connector with anti-pop mute circuit



· Max output signal 6 V rms @ 0 dB FS

· Zout = 560Ω

DSP processing Full suite of miniDSP processing (see the User Manual for specific plugins)
Wired external remote







External wired remote (RJ11 cable for power and data) selects active preset, master volume and master mute; LED indication of master volume and active preset.
microSD Card Allows setup and firmware upgrade of the unit offline without a laptop.
Power supply / REM in&out











Isolated DC–DC conversion / 10–14 V DC compliant



REM in (4 V DC trigger level)

REM out / 12 V DC @ 100mA max current out

Remote modes (1: Disabled 2: REM in trigger)

Dimensions (W x D x H) 41 x 205 x 122 mm
Enclosure Powder-coated steel with removable brackets

INSTRUKCIJOS

User Manual (EN).
