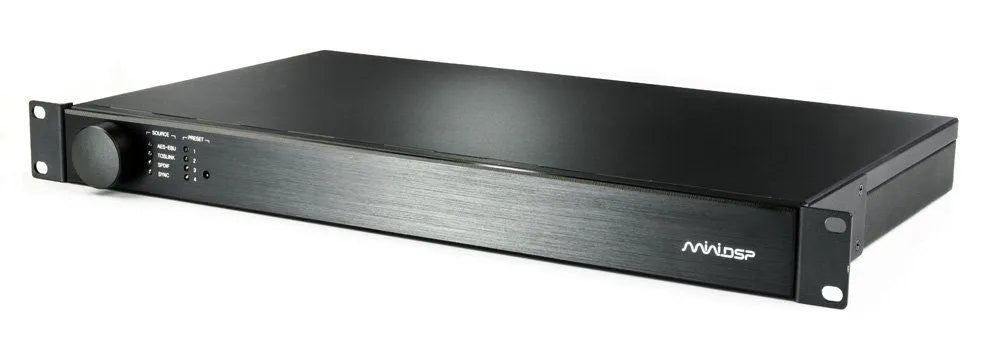

miniDSP 4×10 HD, skaitmeninis signalų procesorius

"miniDSP 4×10 Hd" yra universalus daugiakanalis skaitmeninis signalų procesorius (DSP), skirtas analoginiams ir skaitmeniniams garso šaltiniams. Šioje platformoje suderinti aukštos kokybės garso algoritmai ir lanksti programinės įrangos konfigūracija, todėl ši platforma seka mūsų sėkmingos procesorių linijos pėdomis.

check_circle_outline
Užsakoma prekė
Nuolaida: 665.50 €
Kaina: 665.50 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

miniDSP 4×10 HD, skaitmeninis signalų procesorius

"miniDSP 4×10 Hd" yra universalus daugiakanalis skaitmeninis signalų procesorius (DSP), skirtas analoginiams ir skaitmeniniams garso šaltiniams. Šioje platformoje suderinti aukštos kokybės garso algoritmai ir lanksti programinės įrangos konfigūracija, todėl ši platforma seka mūsų sėkmingos procesorių linijos pėdomis.

  • 28/56 bitų DSP variklis.
  • 24 bitų ADC/DAC IC su 114 dB SNR.
  • 48/96 kHz diskretizavimo dažnis, priklausomai nuo papildinio.
  • Skaitmeninis (2 x IN, 2 x OUT per SPDIF/Toslink/AES-EBU) ir analoginis (2 x IN,
  • 8xOUT subalansuotas ir nesubalansuotas) ryšys.
  • Priekinio skydelio sukamasis valdiklis ir mokomasis IR valdymas.
  • Plug&Play USB tvarkyklė ir programinė įranga, kurią galima konfigūruoti realiuoju laiku naudojant miniDSP įskiepius iš "Mac/Windows.
  • Sukonfigūravus nereikia kompiuterio.


4×10 HD Multi-Channel Digital Signal Processor

miniDSP 4×10 Hd is a versatile multi-channel Digital Signal Processor (DSP) for analog and digital audio sources. Combining high quality audio algorithms along with a flexible software configuration, this platform follows the footsteps of our successful line of processors. With its balanced & un-balanced analog & digital audio I/O, the platform easily fits in the audio chain of most systems. Engineered for durability, the platform is packaged in a sturdy powder coated steel enclosure. The removable rack ears and thick brushed aluminum front panel match the needs of consumer (Home AV) or commercial (ProAV) installs.



Finally, miniDSP 4×10 ranks high on versatility thanks to our unique product concept of audio plug-ins: ‘a single hardware platform for many applications’. From a multi-way speaker crossover unit to multi-channel equalizer, the unit is easily configured real time from the Mac/Windows control interface. Once the unit configured, no computer is required anymore and the control of presets, master volume and digital source selection is available from the front panel encoder or Infrared (I.R) receiver.

What’s in the box?

  • 1 x MiniDSP 4×10 HD processor with removeable rackmount ears
  • 1 x 12VDC universal power supply. IEC type removable plug
  • 1 x Shielded USB cable (1.5m)
  • 1 x Toslink audio cable



SPECIFIKACIJOS

Item Description
Digital Signal Processor 172MHz, 28/56bit Digital Signal Processor
Control Driverless USB 2.0 control interface for Windows/Mac OS x environments

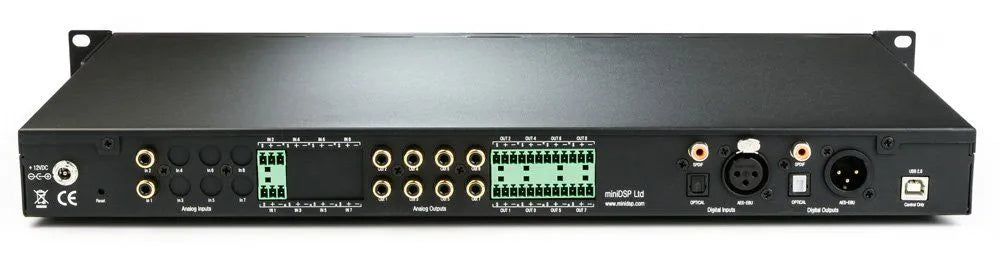

Audio inputs





2 x Balanced (Phoenix Terminal Block) or 2 x Unbalanced (RCA) inputs 114dB ADC IC / Measured SNR 105dB
Audio outputs





8 x Balanced (Terminal Block) and 8 Unbalanced (RCA) outputs 114dB DAC IC / Measured SNR 105dB
ADC/DAC Resolution 24bits – Available in 48kHz or 96kHz version depending on plug-in
Maximum Input signal







Unbalanced Input ( RCA): 2Vrms (+8 dBu) or 0.9Vrms (see input jumpers)



Balanced Input (Terminal block): 4Vrms (+14 dBu)

Maximum Output signal











Dip switch on motherboard attenuates outputs by 6dB (RCA & Terminal blocks)



Unbalanced outputs (RCA): 2Vrms (+8 dBu) or 0.9Vrms

Balanced outputs (Terminal block): 4Vrms (+14 dBu) or 8Vrms (20dBu)

Digital Audio inputs









1 x SPDIF on RCA connector, transformer isolated



1 x Optical input on Toslink connector

1 x AES-EBU on balanced XLR Neutrik connector, transformer isolated

Digital Audio outputs (all active)









1 x SPDIF on RCA connector, transformer isolated



1 x Optical input on Toslink connector

1 x AES-EBU on balanced XLR Neutrik connector, transformer isolated

Sample rate converter







Up/Down sample digital audio input signal to the correct plug-in sample rate (48/96kHz) based on the loaded plug-in. Up to 216kHz sample rate.
Rotary Encoder Front Panel rotary encoder for Master volume control (all output channels)
Infrared Red (I.R) receiver Front panel I.R. receiver controls volume, mute, source selection and preset recall
USB Control USB type B connector
Rack mounting Removable rack mount ears pre-installed
Power supply External 12VDC universal power supply (25W)
Dimensions (H x W x D) mm 41.5 x 429 x 252 mm – 1RU height





INSTRUKCIJOS

User Manual (EN).
