MoFi Electronics StudioDeck, patefonas

INFORMACIJA

MoFi Electronics StudioDeck - aukštos kokybės patefonas, sukurtas tiems, kurie vertina tikslų ir skaidrų garso atkūrimą. Šis modelis pasižymi pritaikytomis technologijomis, kurios užtikrina nepriekaištingą garso kokybę. Jo išskirtinės savybės apima specialiai sukurtą Delrin® plokštę, 300 RPM AC sinchroninį variklį, 10 colių MoFi Studio tonu ir HRS anti-vibracijos kojas, kurios apsaugo nuo netinkamų vibracijų. Tai puikus pasirinkimas vidutinio lygio audiofilams.

33-1/3 ir 45.0 RPM diržo pavara.
Specialiai sukurtas ir pagamintas JAV.
10 colių MoFi Studio tonarmas, užtikrinantis tikslią sekimą ir mažą klaidą.
3/4 colio Delrin® plokštė, kuri sumažina foninį triukšmą ir pagerina garso kokybę.
Izoliuotas 300 RPM AC sinchroninis variklis, užtikrinantis stabilumą ir tikslumą.
Anti-vibracijos kojos, sukurtos HRS, kad apsaugotų nuo nereikalingų vibracijų, gerinant atkūrimo kokybę.

APRAŠYMAS

STUDIODECK
It’s only natural to use the word “Studio” in the name of one of our turntables, as doing so brings together MoFi’s software and hardware sides. And while it’s our entry-level offering, StudioDeck produces high-caliber sound at a value price. Designed in collaboration with some of the world's finest audio designers, StudioDeck features an incredible amount of ingenuity and technology usually reserved for much more expensive products.

METICULOUS DESIGN AND EVALUATION
Advanced technology, user-friendly features, and unflappable design elements ensure phenomenal playback—ultimately bringing the sound of Mobile Fidelity’s famous studio into your home.

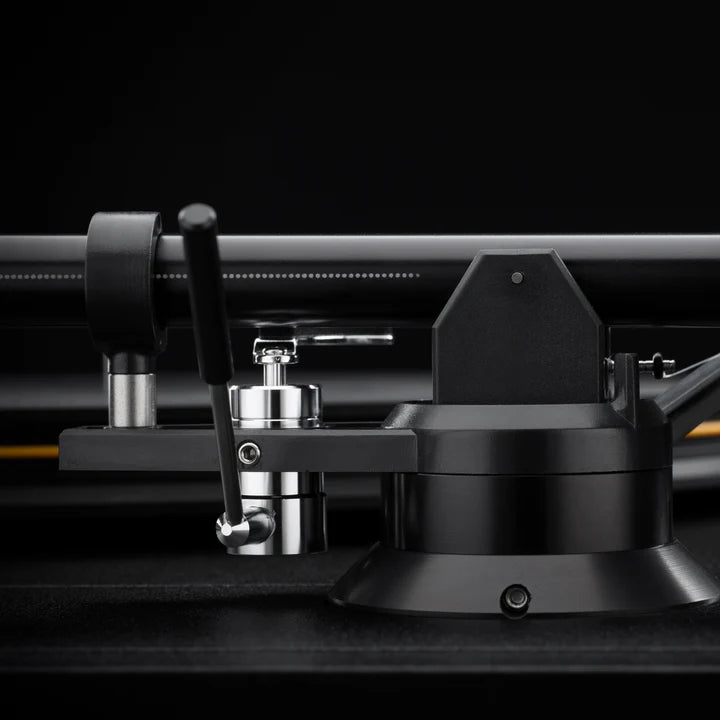

STUDIO TONEARM
Custom developed and manufactured in the USA, this 10-inch straight aluminum gimbaled bearing tonearm delivers the ideal balanced of rigidity and low tracking error, so all you hear is what is in the grooves. Tweak to your heart's delight with provisions for adjustable tracking force, VTA, azimuth, and anti-skate.

ISOLATED AC SYNCHRONOUS MOTOR
Our 300 RPM stepped-pulley AC motor provides excellent speed stability for pitch accuracy and rhythmic drive. The Delrin® pulley has two positions for 33 1/3 and 45 RPM speed selection. Motor vibrations are kept away from the platter and stylus by using advanced dampening materials that decouple the motor from the rest of the turntable.

CONSTRAINED LAYER DAMPENING
StudioDeck features an aluminum plate carefully bonded to an MDF body to add mass and eliminate tonal coloration, maintaining the true sound found on the record.

ANTI-VIBRATION FEET BY HRS

Any vibration of the stylus that is not created by the grooves in the record is a distortion that will mask musical detail. Developed in conjunction with the engineering team at Harmonic Resolution Systems, the world leader in vibration isolation for audio equipment, the included MoFi anti-vibration feet isolate your turntable from bad vibrations.

3/4-INCH DELRIN® PLATTER

Some descriptionDelrin® is a next-generation polymer developed by Dupont. In the world of audio, Delrin's® highly crystalline structure presents a wonderful impedance match to vinyl records, effectively grounding unwanted noise and keeping it away from the stylus.

STEEL AND TEFLON INVERTED BEARING

Our steel inverted bearing system is designed for smooth, quiet rotational stability. The extremely low tolerance combination of steel, bronze, and teflon—found in much more expensive turntables—will provide you many years of high-performance playback.

TECHNINIAI DUOMENYS

Motor: 300 RPM AC Synchronous
Speed: 33 1/3 RPM, 45.0 RPM
Platter: 3.88 lb Delrin®
Wow & Flutter: 0.017% – 0.025%
Signal-To-Noise Ratio: 72dB
Power Supply Requirements: 120V 60Hz, 220-230V 50Hz, 100V 50Hz
Power Consumption: < 5W
Dimensions: 19.69" x 5.375" x 14.25"
Weight: 19.1 lb.

TONEARM SPECIFICATIONS
Type: 10" straight aluminum, gimbaled bearing
Overhang: 0.71" (18mm)
Offset Angle: 22.8˚ (+/- 2˚ adjustable)
Cartridge Weight Range: 5g – 10g

DOKUMENTAI

Vartotojo vadovas (EN)
