Monitor Audio CP-CT380IDC, lubinė garso kolonėlė

50 Hz – 30 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

89 dB

Maximum SPL

109.6 dBA

Power Handling (RMS)

120 W

Recommended Amplifier Requirements

30 – 120 W

Crossover Frequency

Bass low pass: 300 Hz @ 6 dB / Octave
Mid: 300 Hz @ 6 dB / Octave
& 3 kHz @ 12 dB / Octave

Drive Unit Complement

3-Way

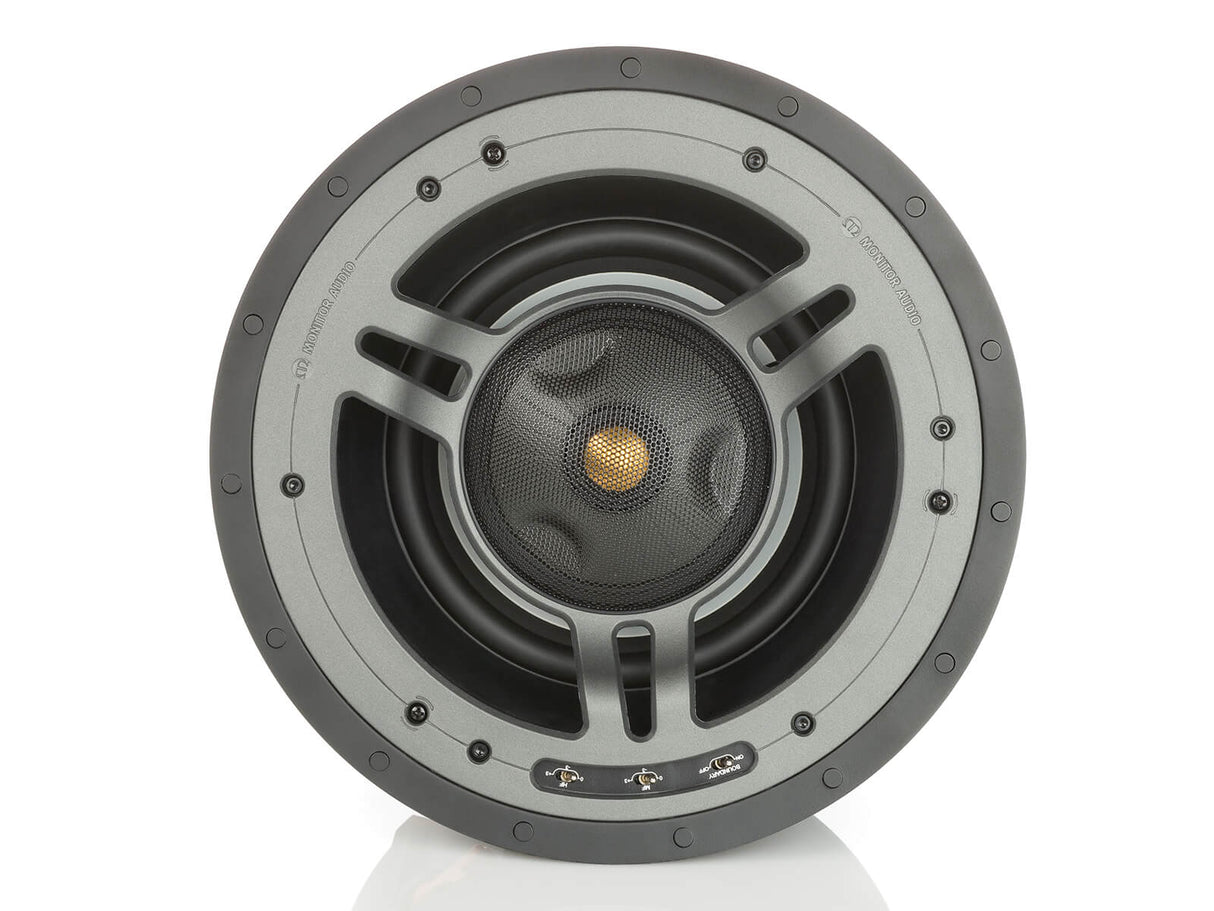

8" C-CAM RST cone bass driver
4" C-CAM IDC cone mid range driver
1" C-CAM Gold Dome tweeter
(tweeter & midrange driver combined in a pivoting module)

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB)
MF Level Switch (+ 3dB/ 0 dB/ -3 dB)
Boundary Compensation Switch

Overall Diameter (Including Grille)

309 mm (12^3/16")

Overall Depth (Including Grille)

187 mm (7^3/8")

Cut-Out Hole Diameter

274 mm (10^13/16")

Mounting Depth

181 mm (7^1/8")

Optional Square Grille - Outer Dimensions

309 x 309 mm (12^3/16")

Fixing Type

3 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled ABS Plastic (RoHS2 Compliant)

Connection

Gold plated 'push' type terminals

Weight

4.3 kg (9 lb 8 oz)

Pre-Construction Bracket

CB10 Pre-Construction Bracket (Light Brown)

Sold As

Single Unit
