Monitor Audio IA150-8C, instaliacinis garso stiprintuvas

3,630.00 €

Monitor Audio IA150-8C, instaliacinis garso stiprintuvas yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Diskretiško dizaino, 8-nių kanalų instaliacinis garso stiprintuvas pasižymi puikiu technologiniu funkcionalumu. Tai vienas geriausių stiprintuvų savo klasėje.

  • Galia: 8 x 150 W.
  • Varža: 4 omai.
  • Palaikomas IP Valdymas.
  • SN:R dažnis: -100 dB (20 Hz – 20 kHz).

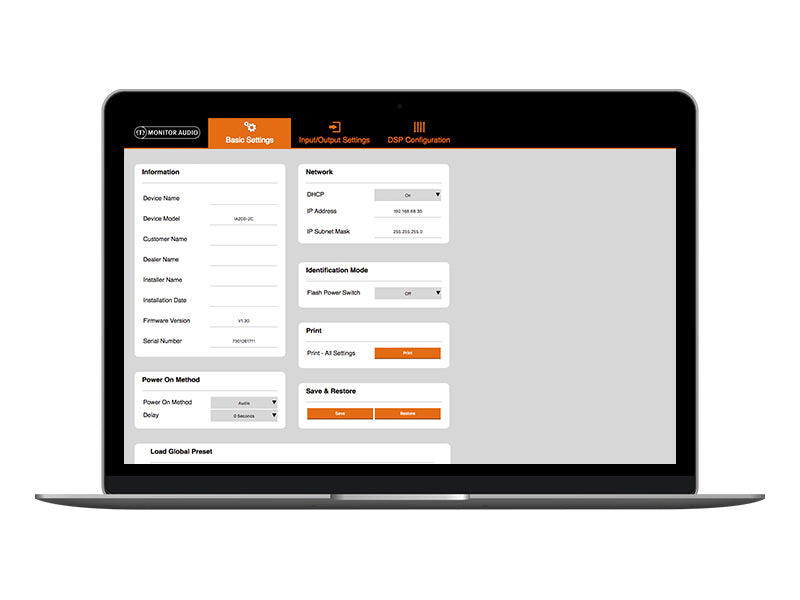

The Monitor Audio Installation Amplifiers are configurable to 1, 2, 3, 4, 5, 6, or 12 channels. The IA150-8C enables up to eight (four stereo pairs) channels of 150 watts of power at four ohms. It’ll fit 1U rack height and, as a member of the Monitor Audio ‘Connect’ division, it employs our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.

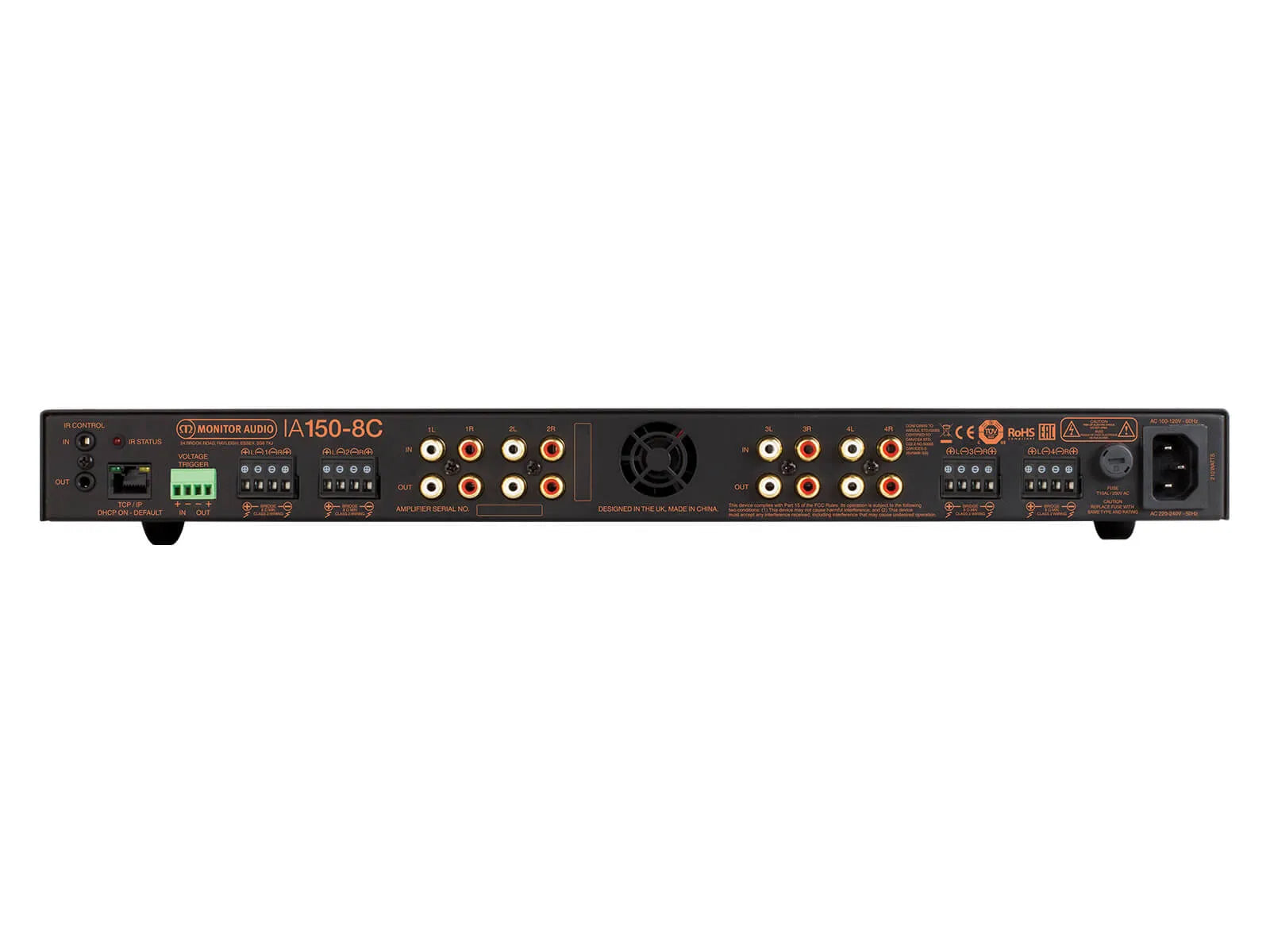

The IP control is via the RJ-45 input, controlling power On/Off, volume, muting, and input source selections. Perfectly prepared for any project, the IA150-8C’s industry standard removable block connectors accept up to 12-gauge (3.5 mm2) cable. Together with the rest of the Installation Amplifier range, the IA150-8C provides the brain as well as the brawn for the mightiest of projects.

Works with –


SPECIFIKACIJOS

'Connect' IP Control

Yes

Channel Number

8 (4 Stereo Pairs)

Power (W / Channel) | 4 ohms

150 W

Power (W / Channel) | 8 ohms

140 W

Power (W / Channel) | Bridge (8 ohms)

300 W (4CH)

Power (W / Channel) | 70V

N/A

Input Impedance

20 K ohms

Output Impedance (Loop RCA)

600 ohms

Input Sensitivity

100 mV / 1 W, 1140 mV – Full power

Maximum Input Voltage

2.9 V

Signal to Noise (SN:R)

-100 dB (20 Hz – 20 kHz)

Frequency Response

5 Hz – 50 kHz

Total Harmonic Distortion THD + N@1 KHz

0.03%

Rack Height

1U

Dimensions (Excluding Feet (H x W x D))

42.4 x 438 x 427 mm (111/16 x 171/4 x 1613/16")

Dimensions (Including Feet (H x W x D))

52.8 x 438 x 427 mm (21/16 x 171/4 x 1613/16")

Width (including rack brackets)

482 mm (19")

IP Communication

TCP/IP (RJ-45 10/100 Base T)

Mains Operating Voltage

100 –120 V @ 60 Hz
220 – 240 V @ 50 Hz

Fuse Rating

10 A (T10AL ~ 250VAC)

Standby Power Consumption

<0.5 W (green mode)

Networked Standby Power Consumption

<2 W

Weight

7.45 kg (16 lb 6 oz)

Sold As

Single Unit


INSTRUKCIJOS

User Manual (EN). Geram stiprintuvo veikimui užtiktrinti reikalingos naujausios tvarkyklės. Jas galite atsisiųsti iš čia: NAUJAUSIOS TVARKYKLĖS.
