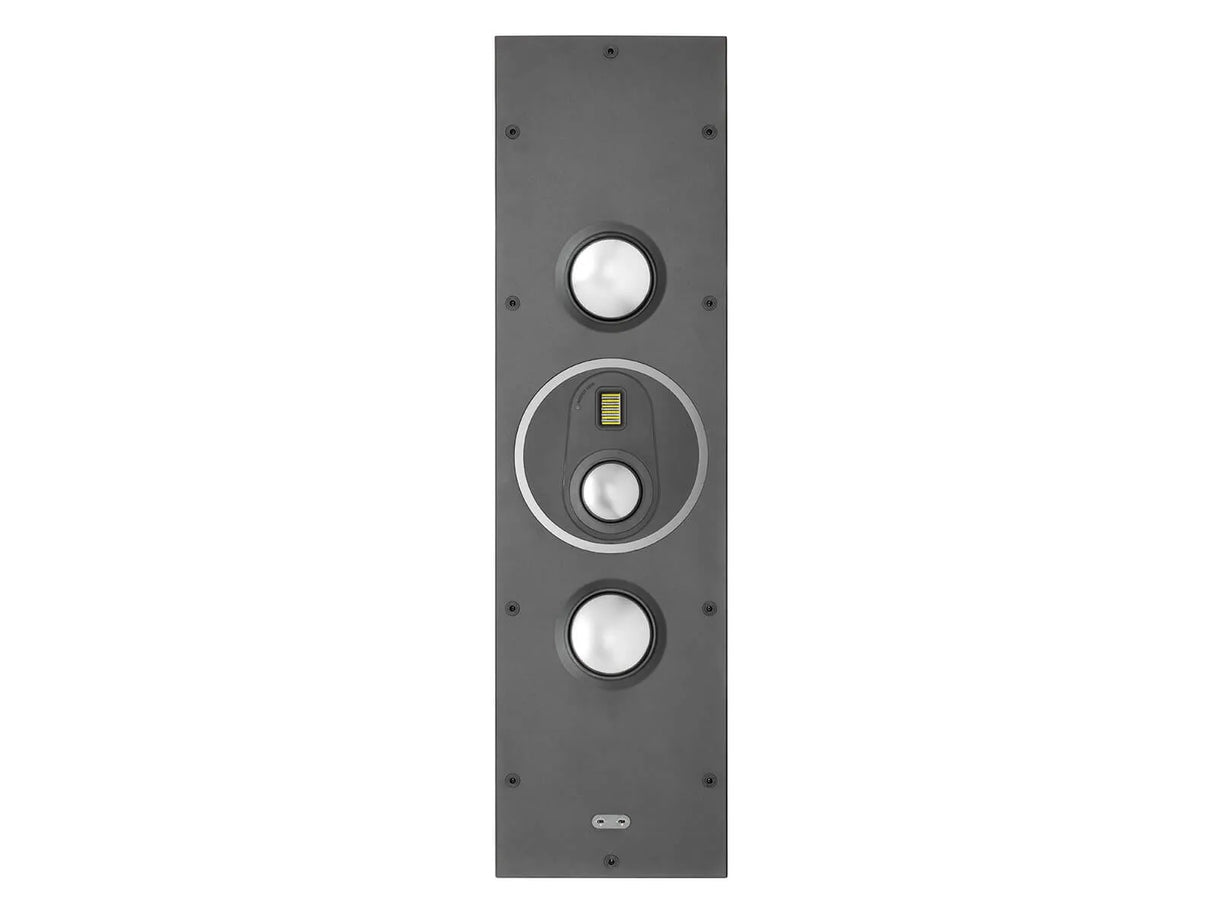

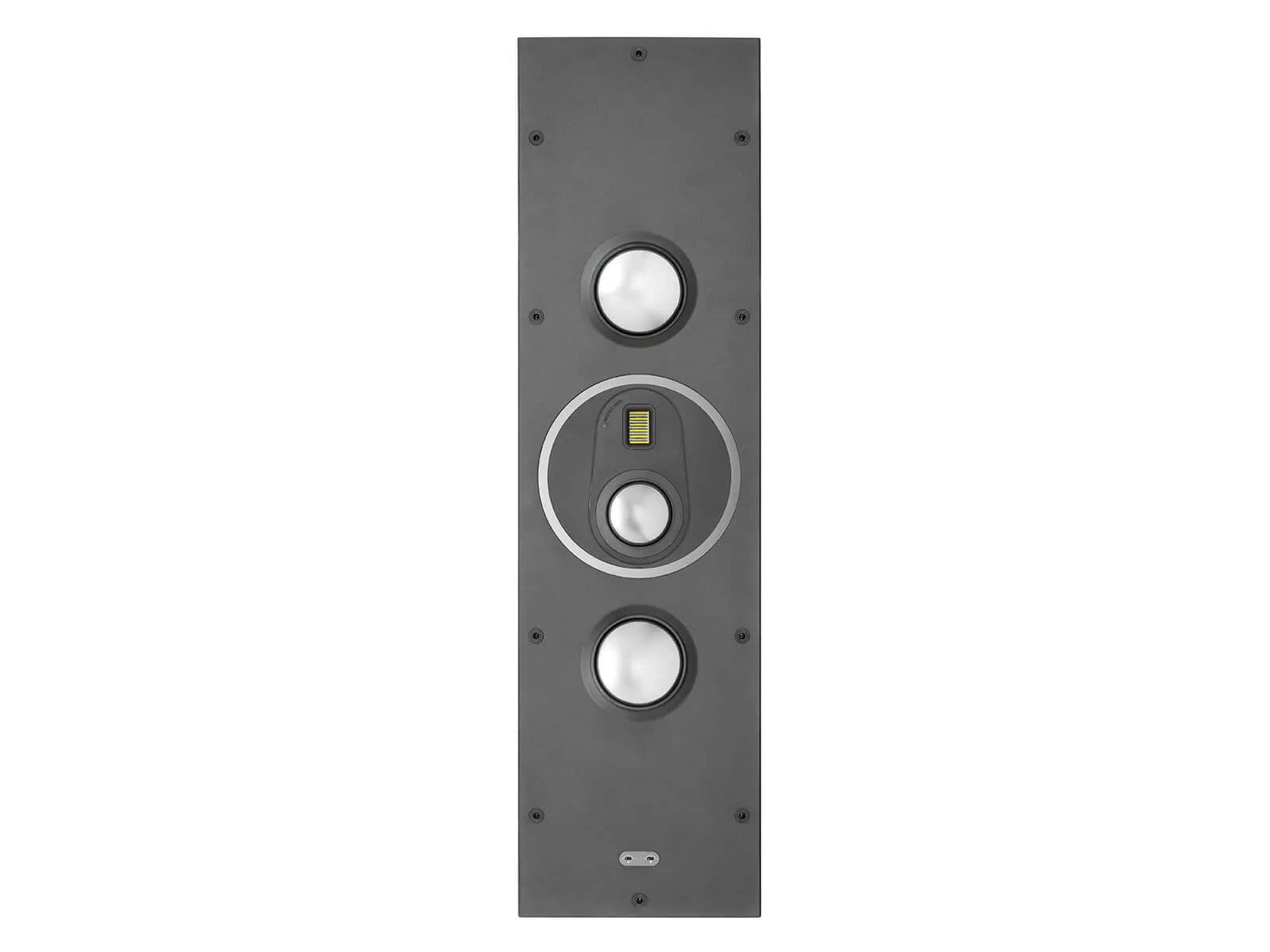

Monitor Audio Platinum In-Wall II, į sieną montuojamas garsiakalbis

€4,840.00 EUR

Monitor Audio Platinum In-Wall II, į sieną montuojamas garsiakalbis - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

Neišsirenkate garso kolonėlių namams? Turime Jums sprendimą!
Kviečiame atvykti garso aparatūros perklausai.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

 Platinum II inžinerijos kokybė yra tokia, kad garso pobūdis išlieka labai nuoseklus ir išraiškingas, tačiau tuo pat metu nepakartojamas. Būtent tokiomis savybėmis pasižymi montuojami į seiną Monitor Audio Platinum II serijos garsiakalbiai.

  • Galia iki 200 W.
  • Dažnių juosta: 52 Hz — 100 kHz.
  • Jautrumas: 90 dB.
  • Maksimalus SPL: 117 dBA (Porai).




 

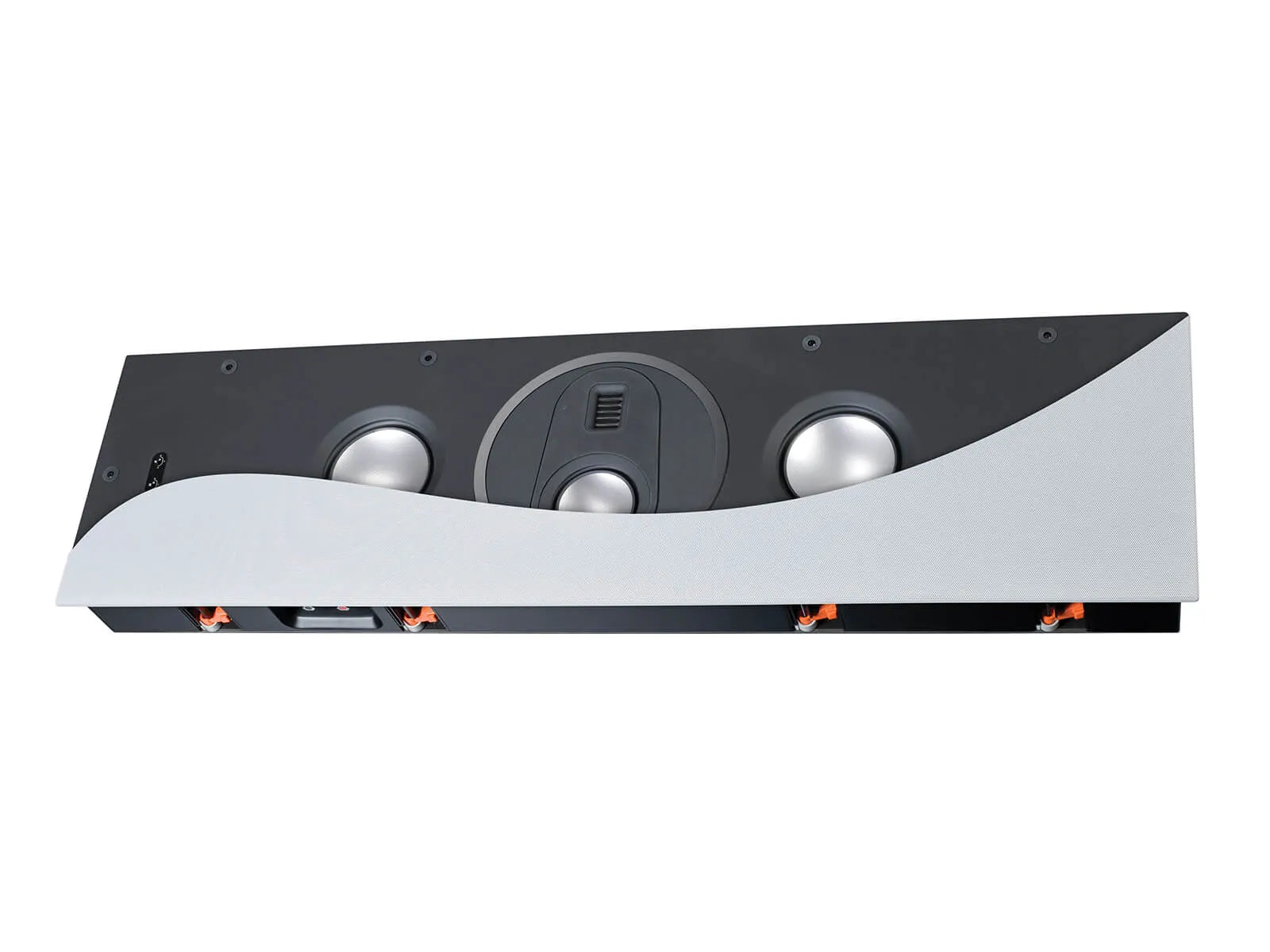

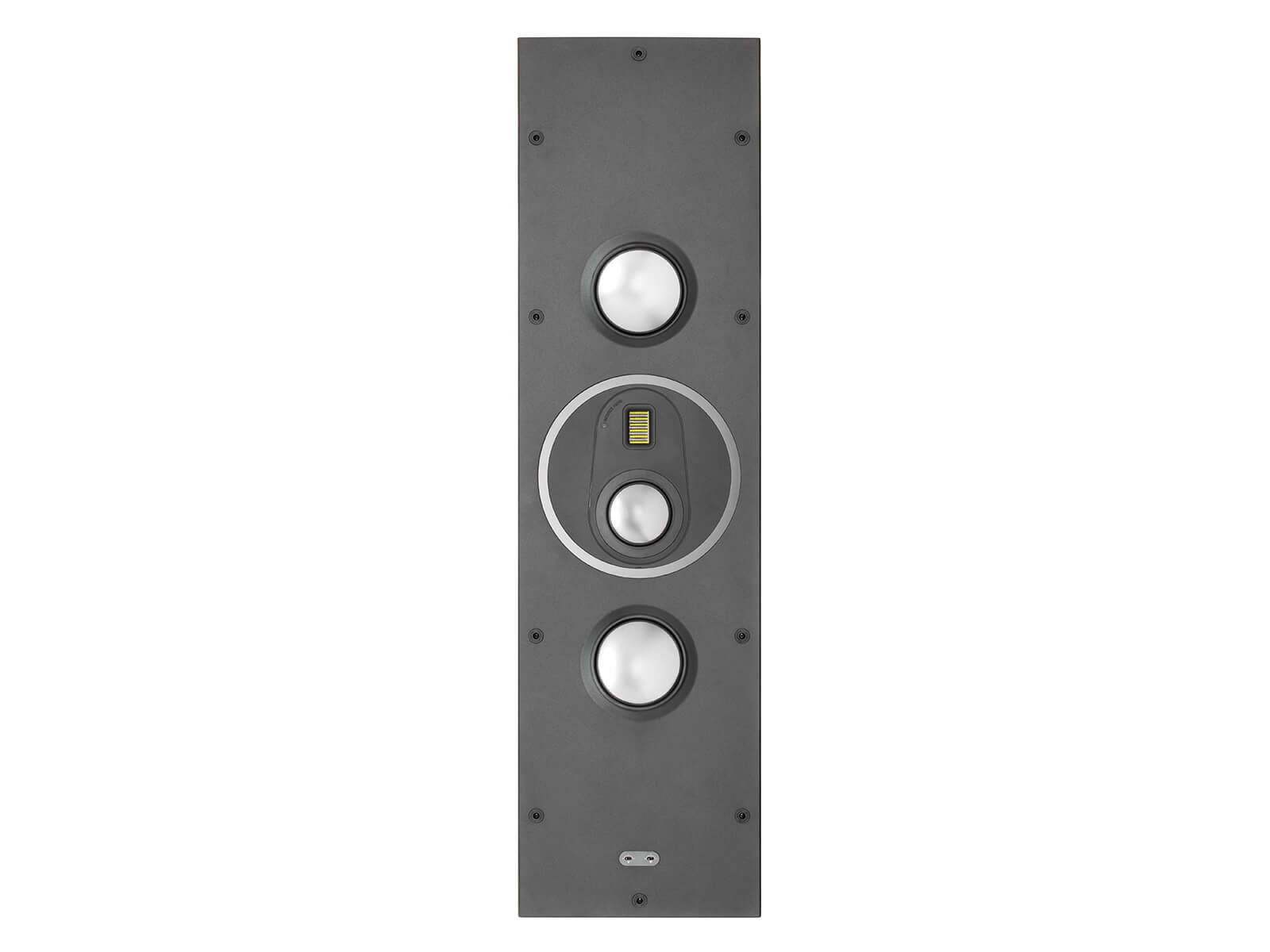

Equipped with an adjustable mid/high frequency driver array, the In-Wall is able to deliver pin-point audio imaging and consistency from both vertical or horizontal positions.

By rotating the array though 90 degrees at the centre of a LCR configuration for instance, a soundstage of three Platinum In-Wall IIs will generate the seamless tonal integrity of the finest boxed systems from a stealthy in-wall location.



This product is now available to use with home theatre design software, The CEDIA Designer. Read more.



Technology
  • 2 x 61/2" RDT II bass drivers
  • 4" RDT II mid-range driver
  • MPD (Micro Pleated Diaphragm) high frequency transducer designed specifically for Platinum II
  • Patented 'DCF' (Dynamic Coupling Filter) mechanism for more natural sound

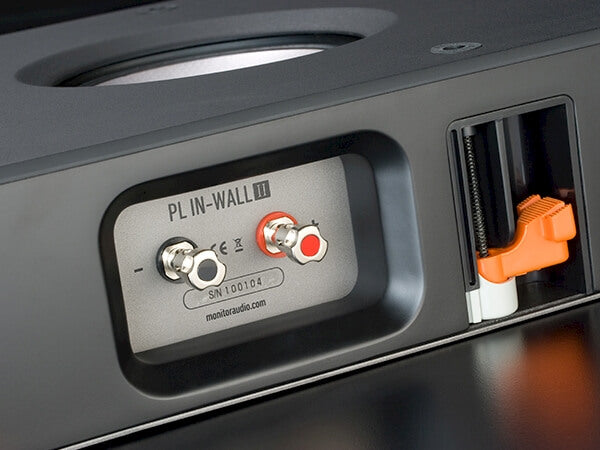

  • Bespoke speaker terminals and footings
  • Underhung, edge-wound voice coils: greater driver efficiency and lifelike dynamics, less distortion
  • Bolt through drivers: clearer sound and cleaner aesthetics
  • Rigid cabinet construction made from 25 mm MDF with steel back
  • Extensive internal bracing using thick MDF cross bracing techniques

SPECIFIKACIJOS
System Format

3 Way — 4 Driver
Frequency Response (-6 dB - IEC 268-13)

52 Hz — 100 kHz
Sensitivity (1W@1M)

90 dB
Maximum SPL

117 dBA (pair)
Nominal Impedance

4 ohms (3.7 ohms min. @ 2.8 KHz)
Power Handling (RMS)

200 W
Recommended Amplifier Requirements

100 — 200 W
Cabinet Design

Sealed Cabinet
Drive Unit Complement

2 x 61/2" RDT II bass drivers
1 x 4" RDT II mid-range driver
1 x MPD high frequency transducer
Mid / H.F Crossover Frequency

4.1 kHz 3rd Order (18 dB/Octave)
Bass / Midrange Crossover Frequency (Hz)

700 Hz/ 2nd Order (12 dB/Octave)
Fixing Type

10 x Tri-Grip dog leg type fixing system
Overall Dimensions (Including Grille (H x W x D))

1207 x 332 x 105.5 mm (47 9/16 x 13 1/16 x 4 4/16")
Cut-Out Dimensions

1179 x 302 mm (467/16 x 117/8")
Mounting Depth

97.5 mm (313/16")
Weight (each)

27 kg (59.4 lb)
Sold As

Single Unit

Kategorijos

Monitor Audio Platinum In-Wall II, į sieną montuojamas garsiakalbis -Priekis
Monitor Audio

Monitor Audio Platinum In-Wall II, į sieną montuojamas garsiakalbis

€4,840.00 EUR

 Platinum II inžinerijos kokybė yra tokia, kad garso pobūdis išlieka labai nuoseklus ir išraiškingas, tačiau tuo pat metu nepakartojamas. Būtent tokiomis savybėmis pasižymi montuojami į seiną Monitor Audio Platinum II serijos garsiakalbiai.


VIDEO



APRAŠYMAS



Equipped with an adjustable mid/high frequency driver array, the In-Wall is able to deliver pin-point audio imaging and consistency from both vertical or horizontal positions.

By rotating the array though 90 degrees at the centre of a LCR configuration for instance, a soundstage of three Platinum In-Wall IIs will generate the seamless tonal integrity of the finest boxed systems from a stealthy in-wall location.



This product is now available to use with home theatre design software, The CEDIA Designer. Read more.



Technology

  • 2 x 61/2" RDT II bass drivers
  • 4" RDT II mid-range driver
  • MPD (Micro Pleated Diaphragm) high frequency transducer designed specifically for Platinum II
  • Patented 'DCF' (Dynamic Coupling Filter) mechanism for more natural sound
  • Bespoke speaker terminals and footings
  • Underhung, edge-wound voice coils: greater driver efficiency and lifelike dynamics, less distortion
  • Bolt through drivers: clearer sound and cleaner aesthetics
  • Rigid cabinet construction made from 25 mm MDF with steel back
  • Extensive internal bracing using thick MDF cross bracing techniques

TECHNINIAI DUOMENYS

SPECIFIKACIJOS

System Format

3 Way — 4 Driver

Frequency Response (-6 dB - IEC 268-13)

52 Hz — 100 kHz

Sensitivity (1W@1M)

90 dB

Maximum SPL

117 dBA (pair)

Nominal Impedance

4 ohms (3.7 ohms min. @ 2.8 KHz)

Power Handling (RMS)

200 W

Recommended Amplifier Requirements

100 — 200 W

Cabinet Design

Sealed Cabinet

Drive Unit Complement

2 x 61/2" RDT II bass drivers
1 x 4" RDT II mid-range driver
1 x MPD high frequency transducer

Mid / H.F Crossover Frequency

4.1 kHz 3rd Order (18 dB/Octave)

Bass / Midrange Crossover Frequency (Hz)

700 Hz/ 2nd Order (12 dB/Octave)

Fixing Type

10 x Tri-Grip dog leg type fixing system

Overall Dimensions (Including Grille (H x W x D))

1207 x 332 x 105.5 mm (47 9/16 x 13 1/16 x 4 4/16")

Cut-Out Dimensions

1179 x 302 mm (467/16 x 117/8")

Mounting Depth

97.5 mm (313/16")

Weight (each)

27 kg (59.4 lb)

Sold As

Single Unit
