Monitor Audio Pro-80LV, lubinis garsiakalbis

275.00 €

Monitor Audio Pro-80LV, lubinis garsiakalbis - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.


Neišsirenkate garso kolonėlių namams? Turime Jums sprendimą!
Kviečiame atvykti garso aparatūros perklausai.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Lubinis garsiakalbis, kuris pasižymi puikiomis garso savybėmis ir yra idealus kainos ir kokybės santykis.

  • Galia: 40 W.
  • Dažnių juosta: 65 Hz – 25 kHz.
  • Jautrumas: 87 dB.
  • Varža: 16 Omų.

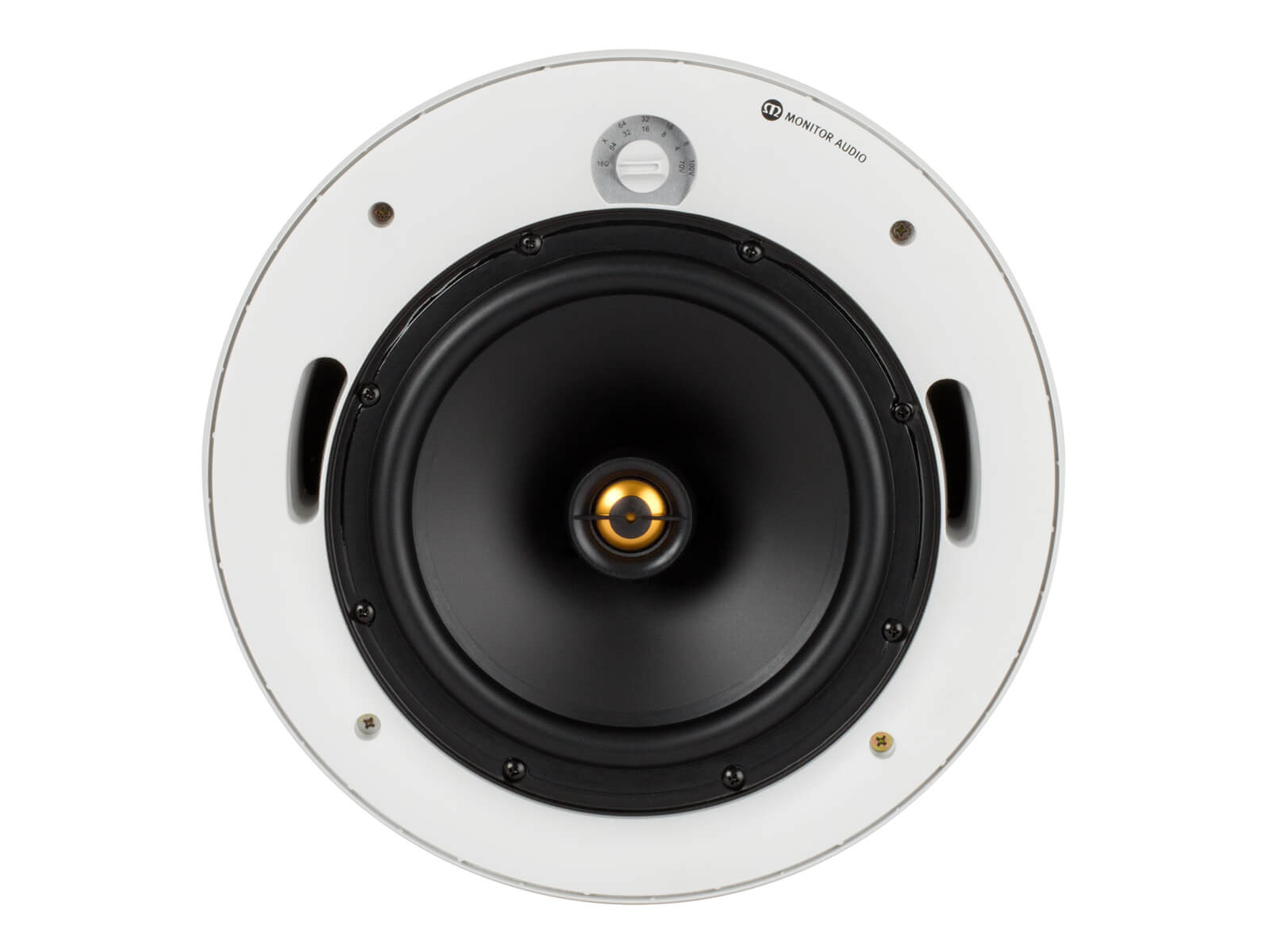

Reprising many of Monitor Audio’s most acclaimed hi fi design configurations, its 8" MMP II bass driver and signature 1" Gold Dome tweeter deliver high audio quality with excellent speech intelligibility for public address and distributed music applications. The Pro-80LV features an internal matching transformer, providing a 70 V or 100 V input for powering multiple speakers on a single amplifier channel. A 16 ohm switch position offers the flexibility to wire one, two, three or four speakers in parallel per channel. Power taps allow system designers to set maximum SPL in areas such as restrooms and foyers.

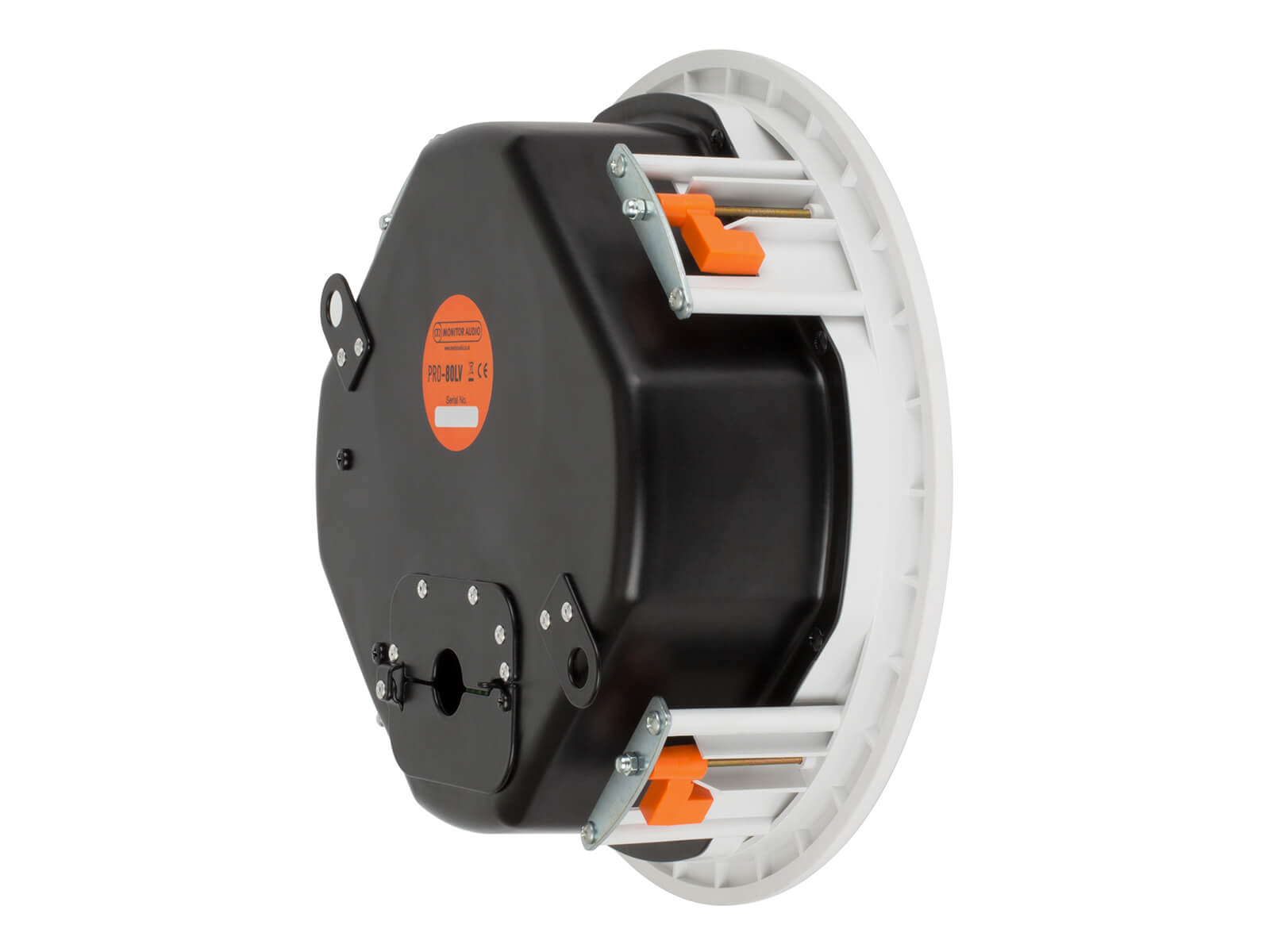

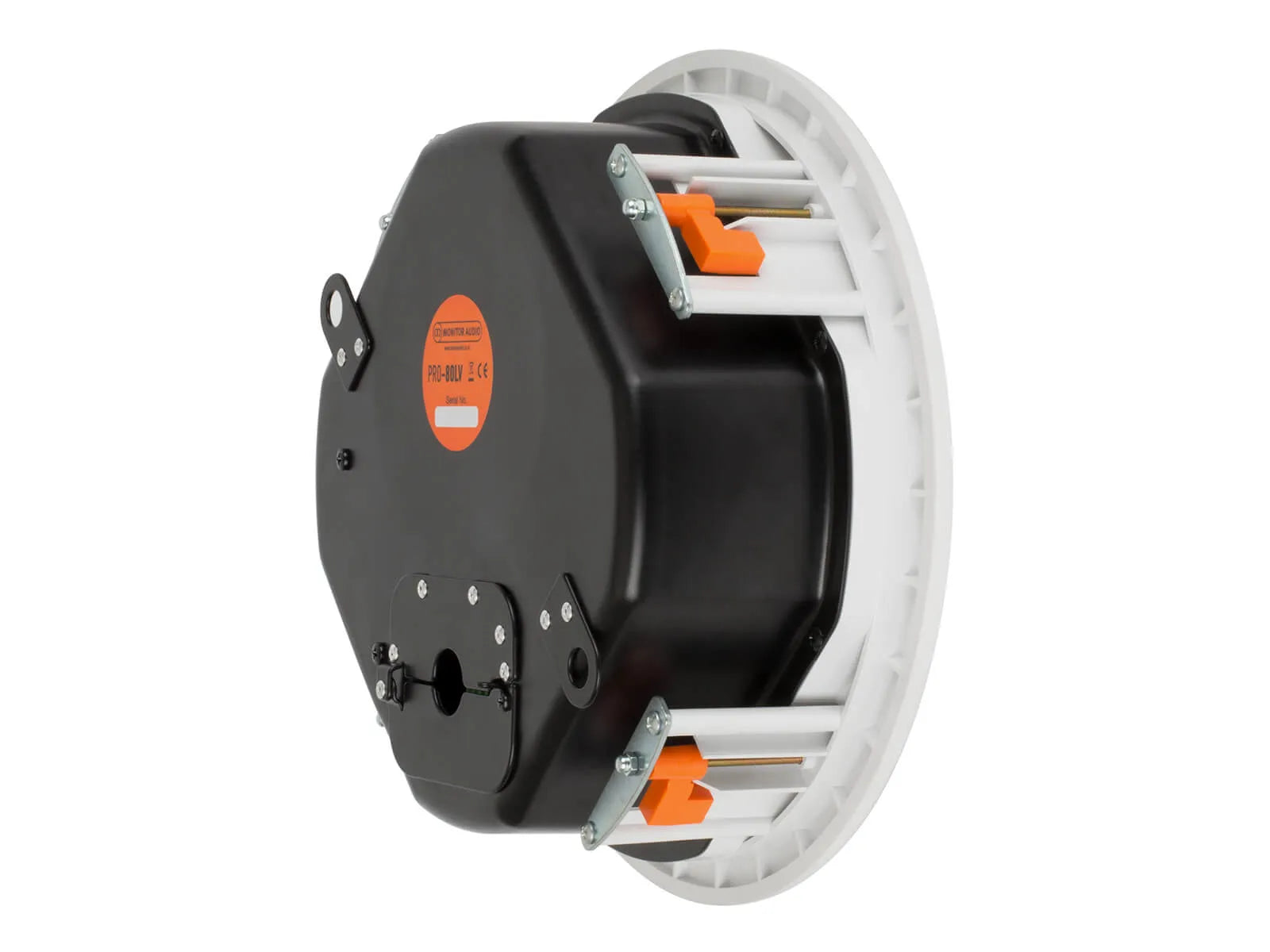

Building regulations are satisfied by the Pro-80LV’s fireproof steel back box and secure anchor points while a plug-type connection block ensures easy and reliable system integration with a link out option for ‘daisy chain’ wiring. Combining installation versatility with Monitor Audio’s robust build quality and hi-fi clarity, the slender new Pro-80LV offers the added advantage of trimless aesthetics for an optimum blend of design, performance and value.



SPECIFIKACIJOS

Frequency Response

65 Hz – 25 kHz

Nominal Impedance

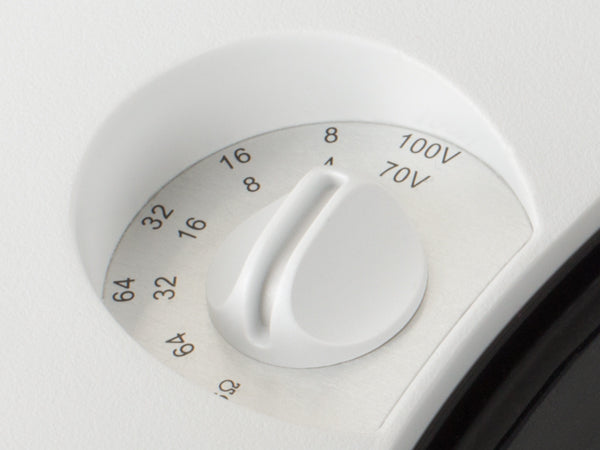

16Ω 70V (4,8, 16,32,64 W) 100V (8,16,32,64 W) power selection

Sensitivity (1W@1M)

87 dB

Maximum SPL

103.8 dBA

Power Handling (RMS)

40 W

Recommended Amplifier Requirements

10 — 40 W

Drive Unit Complement

8" MMP II cone bass-mid driver
1 x 25 mm (1") fabric soft dome tweeter

Connection

Screw type plug termination

Overall Diameter (Including Grille)

294 mm (119/16")

Overall Depth (Including Grille)

114 mm (41/2")

Cut-Out Hole Diameter

266 mm (101/2")

Mounting Depth

101.4 mm (4")

Fixing Type

4 position dog leg fixings

Construction Material

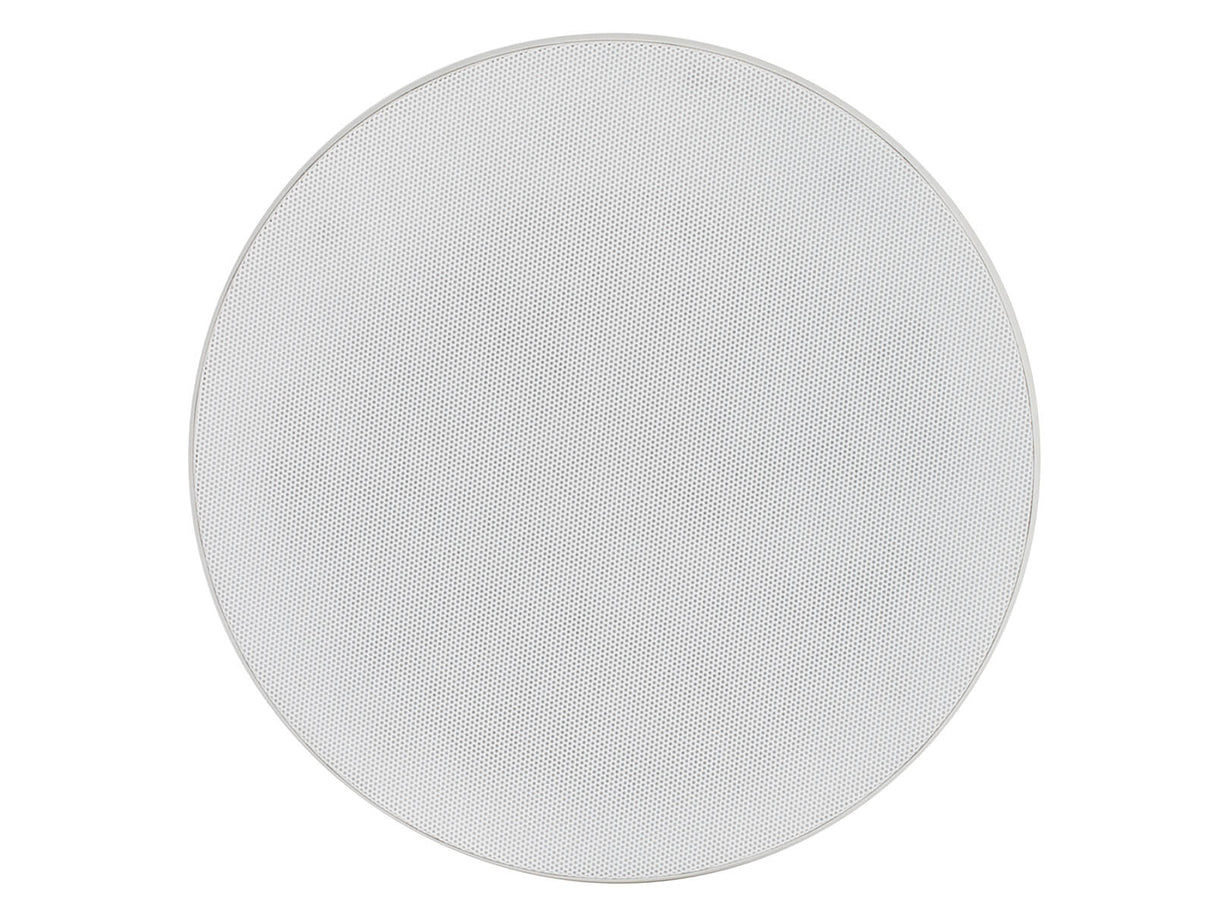

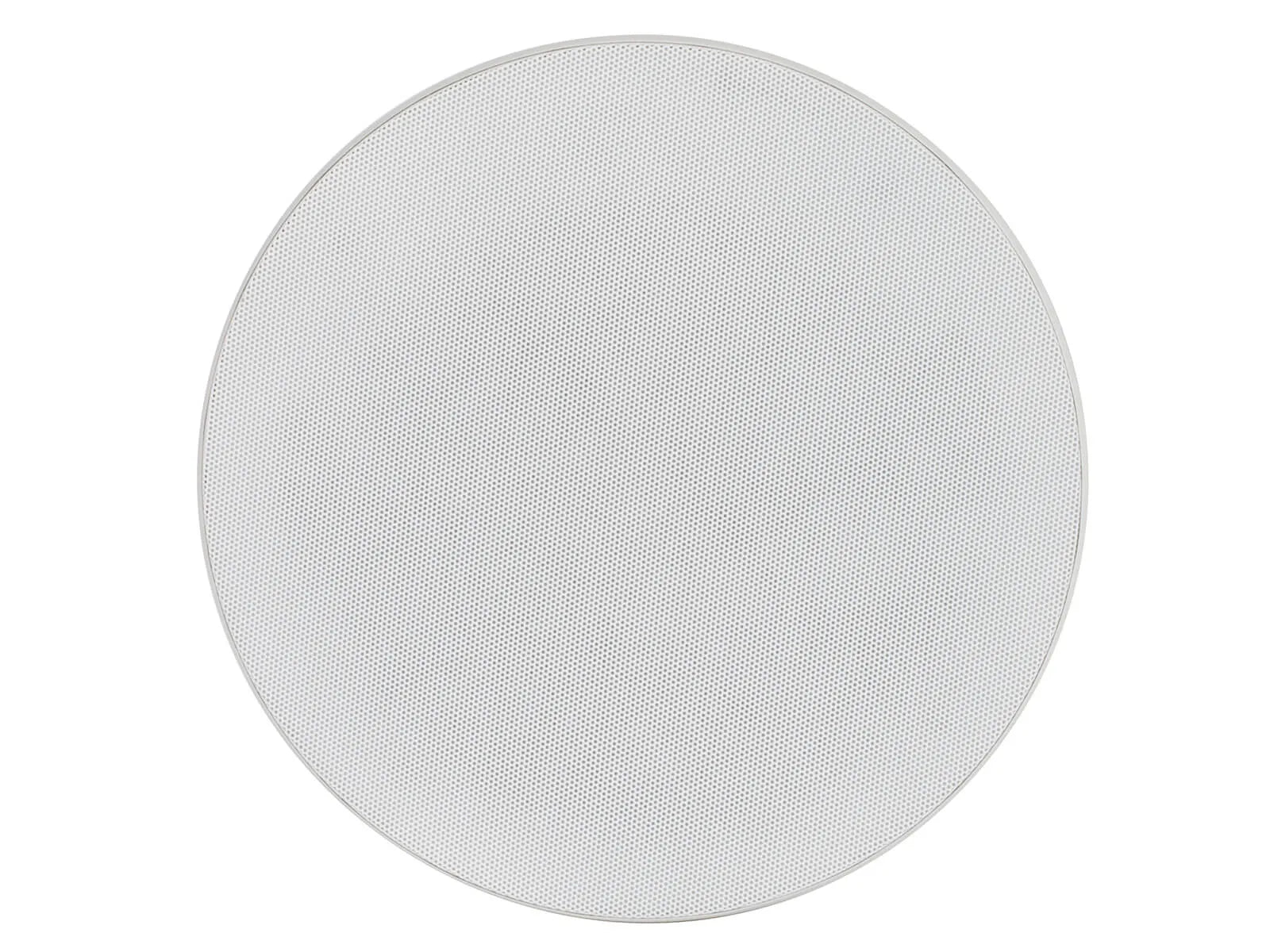

ABS (UL94 rated, RoHS2 Compliant) Painted steel grille, Steel rear enclosure

Other

Fire Rating: UL1480 & UL2043

Weight

3.76 kg (8 lb 4 oz)

Pre-Construction Bracket

CB8-LV Pre-Construction Bracket



INSTRUKCIJOS

User Manual (EN).
Monitor Audio Pro-80LV, lubinis garsiakalbis
Monitor Audio

Monitor Audio Pro-80LV, lubinis garsiakalbis

275.00 €

Lubinis garsiakalbis, kuris pasižymi puikiomis garso savybėmis ir yra idealus kainos ir kokybės santykis.



APRAŠYMAS

Reprising many of Monitor Audio’s most acclaimed hi fi design configurations, its 8" MMP II bass driver and signature 1" Gold Dome tweeter deliver high audio quality with excellent speech intelligibility for public address and distributed music applications. The Pro-80LV features an internal matching transformer, providing a 70 V or 100 V input for powering multiple speakers on a single amplifier channel. A 16 ohm switch position offers the flexibility to wire one, two, three or four speakers in parallel per channel. Power taps allow system designers to set maximum SPL in areas such as restrooms and foyers.

Building regulations are satisfied by the Pro-80LV’s fireproof steel back box and secure anchor points while a plug-type connection block ensures easy and reliable system integration with a link out option for ‘daisy chain’ wiring. Combining installation versatility with Monitor Audio’s robust build quality and hi-fi clarity, the slender new Pro-80LV offers the added advantage of trimless aesthetics for an optimum blend of design, performance and value.



TECHNINIAI DUOMENYS

SPECIFIKACIJOS

Frequency Response

65 Hz – 25 kHz

Nominal Impedance

16Ω 70V (4,8, 16,32,64 W) 100V (8,16,32,64 W) power selection

Sensitivity (1W@1M)

87 dB

Maximum SPL

103.8 dBA

Power Handling (RMS)

40 W

Recommended Amplifier Requirements

10 — 40 W

Drive Unit Complement

8" MMP II cone bass-mid driver
1 x 25 mm (1") fabric soft dome tweeter

Connection

Screw type plug termination

Overall Diameter (Including Grille)

294 mm (119/16")

Overall Depth (Including Grille)

114 mm (41/2")

Cut-Out Hole Diameter

266 mm (101/2")

Mounting Depth

101.4 mm (4")

Fixing Type

4 position dog leg fixings

Construction Material

ABS (UL94 rated, RoHS2 Compliant) Painted steel grille, Steel rear enclosure

Other

Fire Rating: UL1480 & UL2043

Weight

3.76 kg (8 lb 4 oz)

Pre-Construction Bracket

CB8-LV Pre-Construction Bracket



DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).
Žiūrėti produktą

Lubinis garsiakalbis, kuris pasižymi puikiomis garso savybėmis ir yra idealus kainos ir kokybės santykis.

  • Galia: 40 W.
  • Dažnių juosta: 65 Hz – 25 kHz.
  • Jautrumas: 87 dB.
  • Varža: 16 Omų.



Reprising many of Monitor Audio’s most acclaimed hi fi design configurations, its 8" MMP II bass driver and signature 1" Gold Dome tweeter deliver high audio quality with excellent speech intelligibility for public address and distributed music applications. The Pro-80LV features an internal matching transformer, providing a 70 V or 100 V input for powering multiple speakers on a single amplifier channel. A 16 ohm switch position offers the flexibility to wire one, two, three or four speakers in parallel per channel. Power taps allow system designers to set maximum SPL in areas such as restrooms and foyers.

Building regulations are satisfied by the Pro-80LV’s fireproof steel back box and secure anchor points while a plug-type connection block ensures easy and reliable system integration with a link out option for ‘daisy chain’ wiring. Combining installation versatility with Monitor Audio’s robust build quality and hi-fi clarity, the slender new Pro-80LV offers the added advantage of trimless aesthetics for an optimum blend of design, performance and value.



SPECIFIKACIJOS

Frequency Response

65 Hz – 25 kHz

Nominal Impedance

16Ω 70V (4,8, 16,32,64 W) 100V (8,16,32,64 W) power selection

Sensitivity (1W@1M)

87 dB

Maximum SPL

103.8 dBA

Power Handling (RMS)

40 W

Recommended Amplifier Requirements

10 — 40 W

Drive Unit Complement

8" MMP II cone bass-mid driver
1 x 25 mm (1") fabric soft dome tweeter

Connection

Screw type plug termination

Overall Diameter (Including Grille)

294 mm (119/16")

Overall Depth (Including Grille)

114 mm (41/2")

Cut-Out Hole Diameter

266 mm (101/2")

Mounting Depth

101.4 mm (4")

Fixing Type

4 position dog leg fixings

Construction Material

ABS (UL94 rated, RoHS2 Compliant) Painted steel grille, Steel rear enclosure

Other

Fire Rating: UL1480 & UL2043

Weight

3.76 kg (8 lb 4 oz)

Pre-Construction Bracket

CB8-LV Pre-Construction Bracket



INSTRUKCIJOS

User Manual (EN).
