NAD C368, Stereo stiprintuvas su DAC funkcija

1,349.00 €

NAD C368, Stereo stiprintuvas su DAC funkcija - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

C368 skirtas pagyvinti Jūsų namų garso sistemą. Šis stiprintuvas pakels Jūsų garso potyrius į kitą lygį. Puikus funkcionalumas, didelė galia ir ypatingai gera kainą daro šį stiprintuvą "Must Have" produktu!

  • Galia: 560W (4 Omai).
  • Dažnių juosta: ±0.3dB (20Hz-20kHz).
  • Bluetooth A2DP su aptX palaikymas.
  • Sumontuotas BluOS®papildomas modulis.



    With the C 368 Hybrid Digital DAC Amplifier, your home audio system will never fall behind the pack. Thanks to our MDC technology, the C 368 is easily customisable and ready for all future features and upgrades. With the optional BluOS® module, the C 368 can connect to your network and be controlled through a smartphone, tablet, or desktop, and connect wirelessly to any other BluOS Enabled device to create a multi-room High Resolution Audio system. You can also instantly connect to the C 368 through Bluetooth, giving you the ability to stream wirelessly from any Bluetooth Enabled device, and if you’re a vinyl fan, you can also add a turntable. Enjoying music has never been so easy. A totally modern approach to amplification, the C 368 is the ultimate amp for any music lover’s system.

    SPECIFIKACIJOS

    • 80W x 2 Continuous power into 8 or 4 Ohms
    • Bluetooth A2DP with aptX supported
    • MM Phono inputAnalogue line inputsS
    • PDIF coax and optical inputs
    • Speaker A, Speaker B
    • Stereo or Bridge mode configuration
    • Preamp/Subwoofer out
    • Headphone amplifier
    • MDC Slots for future upgrades
    • IR RemoteSmartphone Control App
    • 12V Trigger in/outIR in/outRS-232 Serial port for control
    • Control4, Crestron, RTI, URC, AMX, Savant, Elan certified

    Preamplifier

    • Line Input, Pre Out
    • THD (20Hz-20kHz)<0.005% at 2V out
    • Signal/Noise Ratio>106dB (IHF; A-weighted, ref. 500mV out, unity gain)
    • Channel Separation>80dB (1kHz); >70dB (10kHz)
    • Input Impedance (R and C) 22 kilohm + 100pF
    • Maximum Input Signal>4.5Vrms (ref. 0.1% THD)
    • Output ImpedanceSource Z + 240 OhmInput
    • Sensitivity 93mV (ref. 500mV out, Volume maximum)
    • Frequency Response±0.03dB (20Hz-20kHz)
    • Maximum voltage output – IHF load>4.5V (ref. 0.1% THD)Tone Controls
    • Treble: ±7.0dB at 20kHz
    • Bass: ±7.0dB at 60Hz
    • Balance: -10dB
    • Phono Input, Pre Out
    • THD (20Hz-20kHz)<0.01% at 2V out
    • Signal to Noise Ratio>84dB (200 Ohm source; A-weighted, ref. 500mV out)
    • >76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)
    • Input Sensitivity1.44mV (ref. 500mV out, Volume maximum)
    • Frequency Response±0.3dB (20Hz-20kHz)
    • Maximum Input Signal at 1kHz>80mVrms (ref. 0.1% THD)
    • Line Input, Headphone Out
    • THD (20Hz-20kHz)<0.005% at 1V out
    • Signal/Noise Ratio>110dB (32 Ohm loads; A-weighted, ref. 2V out, unity gain)
    • Frequency Response±0.3dB (20Hz-20kHz)
    • Channel Separation>60dB at 1kHz
    • Output Impedance6 Ohms



    Power Consumption

    • at Auto Standby ON and Network Standby OFF
    • 0.5 Watts*at Auto Standby ON and Network Standby ON
    • 1.2 Watts**OFF mode (Power switched OFF)0.1 Watts




    Weight & Dimensions

    • Gross Dimensions (W x H x D)*435 x 100 x 390mm (17 1/8 x 3 15/16 x 15 3/8)”Net Weight7.8kg (17.2lb)
    • Shipping Weight10.1kg (22.3lb)

    *Gross dimensions include feet, extended buttons and rear panel terminals


    INSTRUKCIJOS

    User Manual (EN).

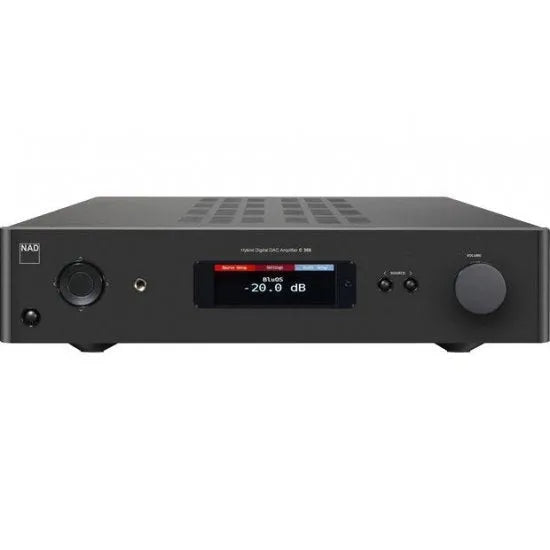

      NAD C368, Stereo stiprintuvas su DAC funkcija- priekis
