Navigacinė sistema Alpine INE-W997E46, skirta 3 serijos E46 BMW
Navigacinė sistema Alpine INE-W997E46, skirta 3 serijos E46 BMW - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.
Pristatymas į namus nuo 4.99 €
Pristatymas į namus nuo 4.99 €
Venipak kurjeriu per 1-2 darbo dienas.
Atsiimkite parduotuvėje 0 €
Atsiimkite parduotuvėje 0 €
Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00
- INFORMACIJA
- VIDEO
- FUNKCIJOS
- NAVIGACIJA
- SĄVYBĖS
- TECHNINIAI DUOMENYS
- DOKUMENTAI
Alpine sistema skirta tik 3 serijos BMW E46 (1998 - 2007) metų modeliams. Pažangi navigacijos ir garso technologija, spartus maršruto apskaičiavimas. Aukštos raiškos jutiklinis ekranas, daugybė garso ir navigacijos funkcijų. Integruotas Bluetooth ryšys, laisvų rankų funkcija bei DAB/DAB+. Galimybė naudotis TuneIt app programėle su Facebook funkcija.
- Galia: 4x50W
- Jutiklinis 7" WVGA aukštos raiškos ekranas
- AUX-In: 1 A/V AUX įėjimas
- Nuotolinio valdymo funkcija ant Vairo
- Vaizdo kamerų kontrolė
- Pritaikytas automobiliams su variklio Start-Stop sistema
- Apsaugos kodas nuo vagysčių
- CAN ryšio sąsaja
- DAB skaitmeninė radija
- Matmenys: 178 x 50 x 164 mm

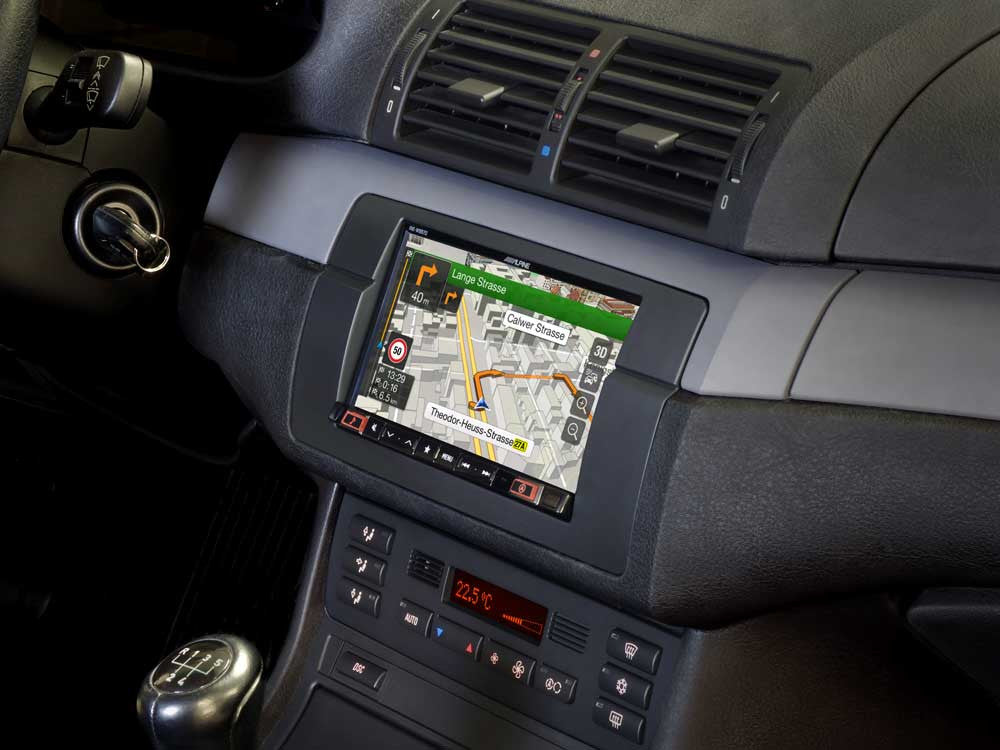

Designed for BMW E46
The 7-inch (17.8cm) high-resolution display smoothly integrates into your BMW E46 dashboard and allows full operation of the system via touch-screen technology and features the latest video technology for outstanding picture clarity, contrast and resolution. This allows navigation maps to be displayed in stunning detail, while movies or video clips become a real cinematic experience. The user interface is very intuitive and is designed to perfectly integrate into your vehicle. You’ll soon appreciate the ease of use and convenience of direct touch operation.
Big Screen Entertainment
The Alpine system allows you to enjoy movies, music videos or TV shows from many different sources, such as DVDs from the optional optical drive, USB sticks, the latest smartphones with HDMI output or portable video devices (optional cables or adapters are required). You can also connect your iPod or iPhone to enjoy your video content on the high-resolution 7-inch display. For driving safety the video playback feature is only available if the vehicle is not in motion.
Special configuration for BMW E46
The INE-W997E46 uses a special configuration in which the 7” display is attached at an angle to a 1 DIN media box. This allows for perfect integration into the BMW E46. The unit comes fully assembled and includes all needed installation accessories for E46s with prior OEM navigation radio (Navigation Business). If the navigation computer is located in the trunk (Navigation Professional), several radio cables need to be extended to the dashboard. If your car is equipped with an original BMW cassette tape or CD radio, a few additional components are required to move the air condition control panel. All details can be found in the installation manual. If you car is equipped with an original Harman Kardon sound system, an additional 3rd party interface adapter is required.

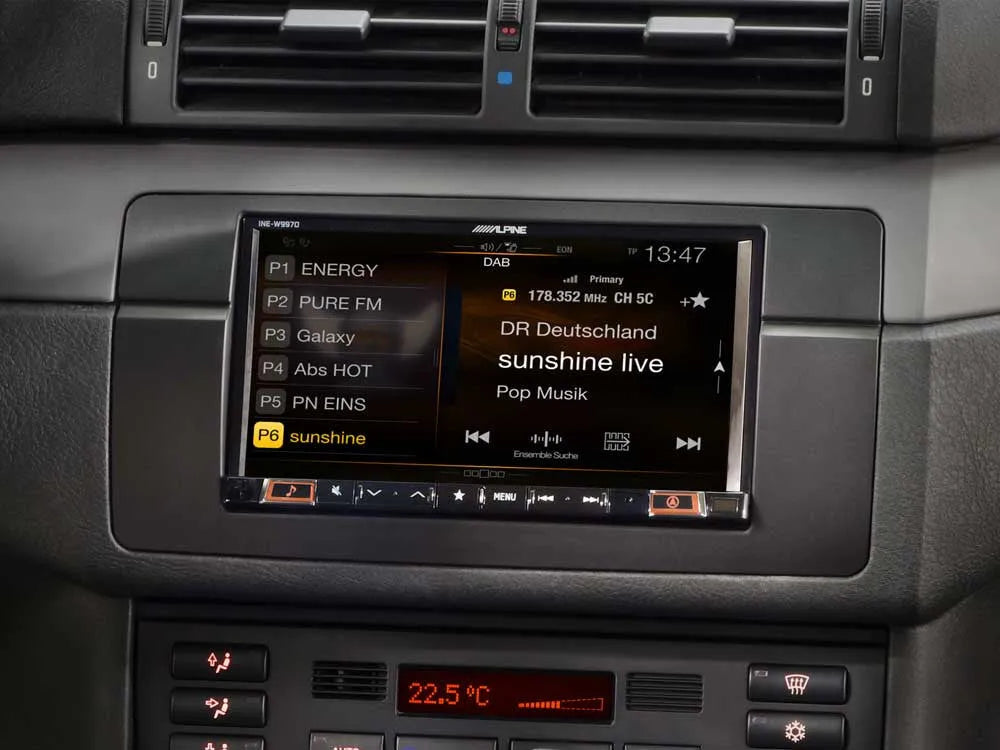

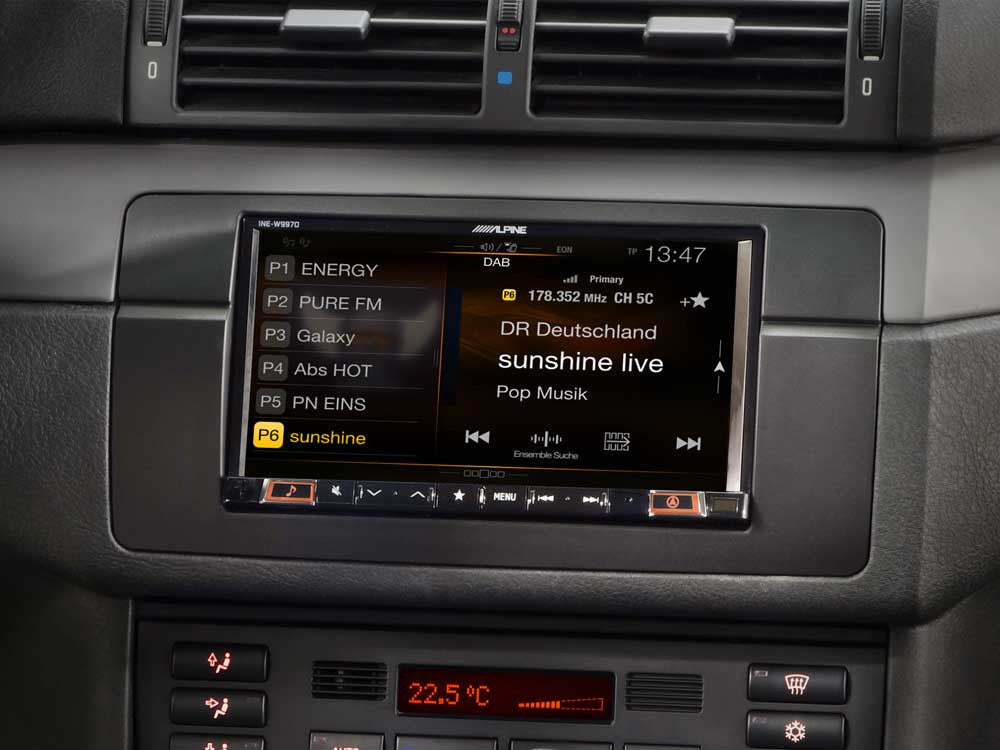

DAB Digital Radio
The built-in DAB/DAB+/DMB tuner uses the most advanced digital technology to deliver radio reception in outstanding, noise-free sound quality. DAB+ also offers many other advantages over traditional FM radio: select from a much wider range of radio stations and after an initial station scan you can easily select your desired channels from an alphabetic and genre list of available stations.

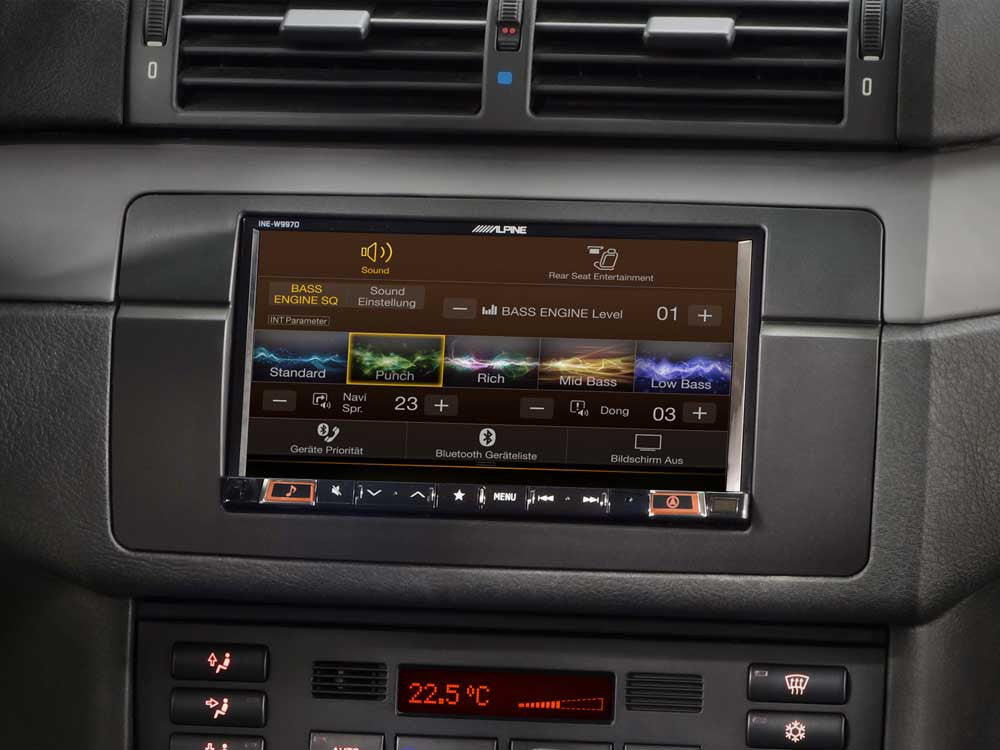

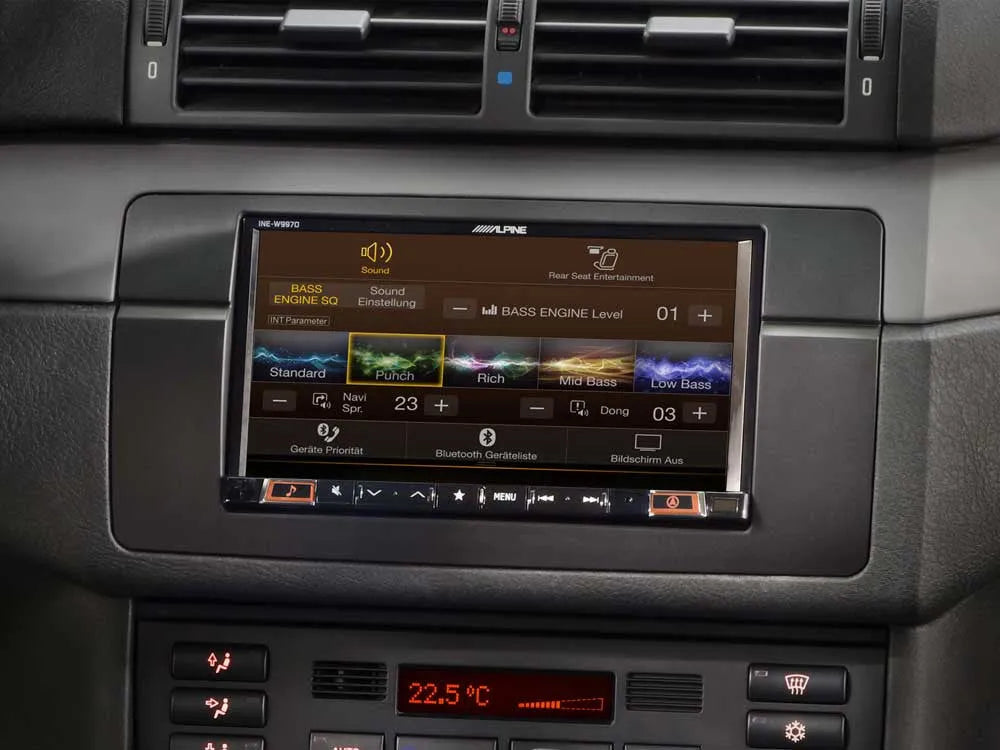

High Quality Sound, Tuned for BMW 3-series E46 and Your Ear
The INE-W997E46 puts the power of advanced sound processing in your car with BASS ENGINE SQ to maximise bass sound and overall tone balance, plus lots of custom tuning functions like Digital Time Correction and Dual HD EQ. Best of all, you can control them easily from your smartphone with the Alpine TuneIt App. 24-Bit DAC and 4-volt PreOuts, too!

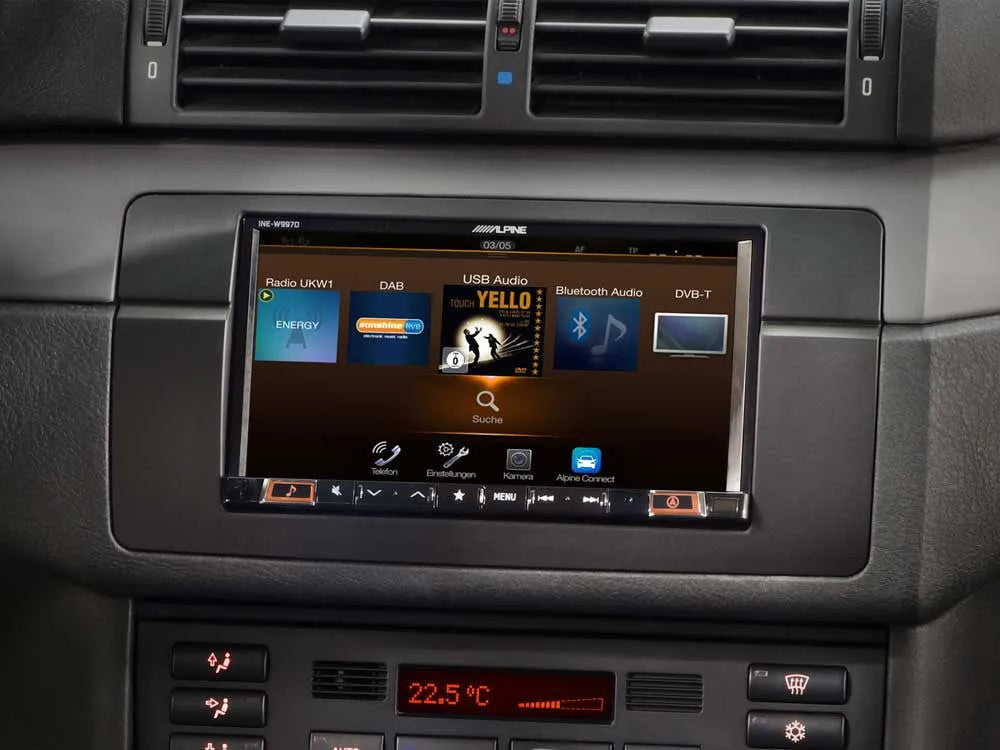

All New User Interface
We redesigned the user interface to allow fast switching of applications with a single swipe of a finger. If you for example view and iPod playlist on your screen, all you have to do is swipe your finger from right to left to view the navigation map and iPod screen in a convenient split screen arrangement. Another swipe will show you the navigation map in full screen. This operation methodology works in all four directions to quickly and easily reach the most often used functions. You will especially like this functionality while driving since it eliminates to look for specific buttons.
Connect HDMI Sources
The INE-W997E46 is equipped with an HDMI port. Using an optional HDMI cable you can connect any smartphone or media device with an HDMI output to see the content on the INE-W997E46 screen. You can even use and iPhone 5 or 6 and connect it via the lightning plug to enjoy the iPhone video or photo content on the Alpine screen (requires additional cables and adapters). The INE-W997E46 also includes an HDMI output to connect a rear monitor system with HDMI.
Built-in Bluetooth® Technology
The built-in Bluetooth® module allows wireless connection of a mobile phone for hands-free communication, while frequent software updates ensure full compatibility with the latest phones. A very intuitive user interface makes it very easy to operate and also includes a speed dial function for the most frequently called numbers. Bluetooth® also enables audio streaming from the phone: audio content or even internet radio can be wirelessly transferred to the unit. Featuring Bluetooth Hands Free Transfer multi point implementation.
Alpine TuneIt App for Tuning and Keeping in Touch
The INE-W997E46 works with Alpine’s cool and convenient Alpine TuneIt App to bring you custom sound tuning features right from your smartphone.
You can upload your sound settings to the Alpine Cloud Server to share them with other Alpine fans, and see their settings. The app also displays Facebook messages, lets you “Like” them and even reads them to you!
Download Alpine TuneIt App with TTS from the Apple App Store or Google Play.
Sound Pre-sets
10 pre-defined EQ settings allow for fast changing to different sound modes, such as Rock, Pop and Jazz.

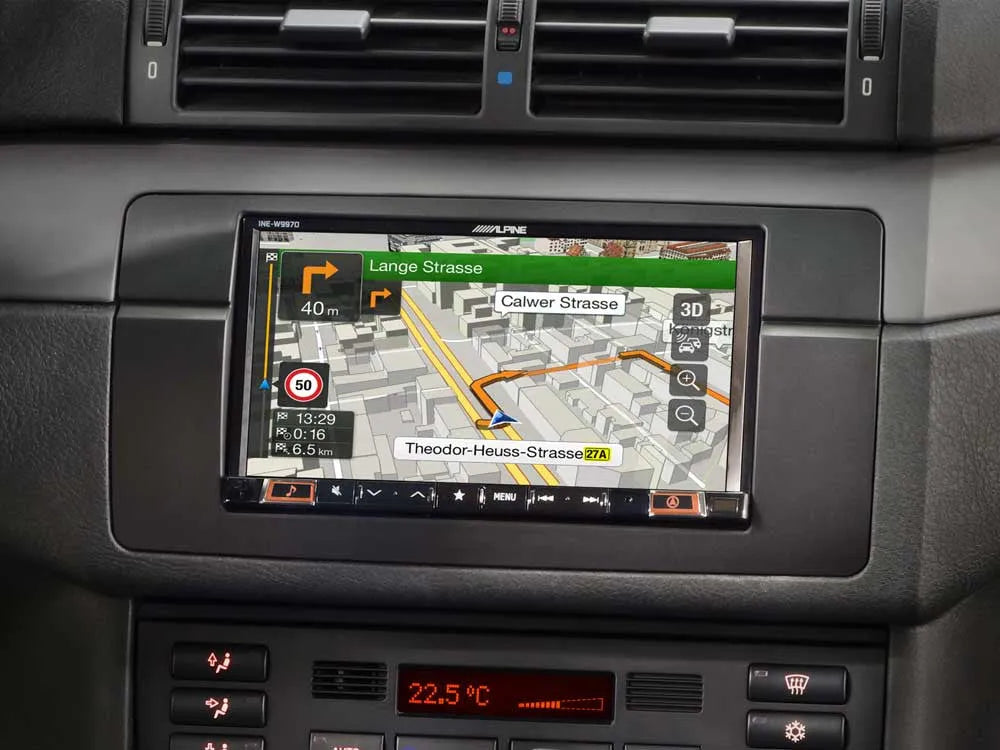

Navigation with One Look Display for BMW 3 ( E46 )

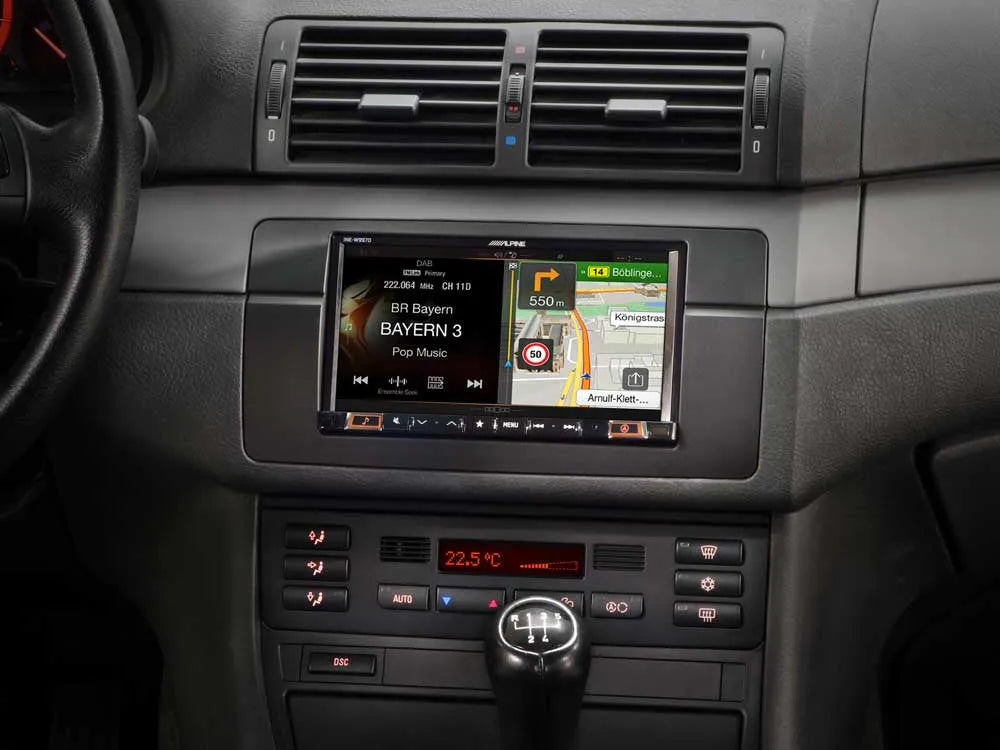

Our innovative “One Look” split-screen technology allows the driver to view the navigation map and audio playback information at one glance. This eliminates the need to switch between different applications. You can switch from full screen to One Look view with just a swipe on the display. This function is especially useful on long highway trips.
3D Maps
View maps in 3D with detailed buildings and landmarks. This feature helps you to better orientate yourself in big cities. Speed restriction display and speed camera warnings (not available in France) give you further driving assistance.
Points of Interest
You can easily search for POIs by category, name, distance and other criteria. This is very helpful when looking for a specific restaurant franchise or a specific gas station brand nearby. Restaurant information includes the phone number next to the address and food type – with a quick tap on the screen you can call ahead and reserve a table.
TMC Route Guidance
Lane Guidance lets the driver know which is the best lane to be in, while Dynamic TMC Route Guidance provides live traffic information for avoiding traffic jams and recalculates the route if necessary.
Important Navigation Features
- Extensive map database of 48 European countries
- Map updates can be purchased at any time online through naviextras.com
- Updates can be purchased by country and by region.
- This saves cost by updating only what is necessary.
- Address search with postcode input (including 7-digit UK postcodes)
- Smart routes: the system database stores historic traffic patterns and uses them to choose the best route depending on the time of day and day of week
- High-resolution maps
Advanced Address Input
You can input postal codes for all European countries, including 7-digit UK codes, which makes searching for addresses quicker. The system even reads partial addresses. Select your own language from 33 different keypads, including Cyrillic and Greek.
Free map update within 30 days after first usage
Within 30 days after the installed unit’s first GPS fix, you can go to www.naviextras.com to check if there is a map update available and download it free of charge. This ensures that you have the latest map data after purchase.
Parking Assistance Technology for BMW 3 ( E46 )
The optional rear-view camera system provides parking safety with cutting-edge camera technology. The rear-view camera automatically activates when reversing and also mutes the audio so you can hear the parking sensor signals. You not only have a clear view to the rear, you can also see useful distance guides for easier parking. You can even activate a trailer hitch ball guide to make hooking up your trailer much easier.
- Preset Stations (FM: 24 / MW: 6 / LW: 6)
- Memory: Auto Memory
- Seek Mode: Local / DX Selection
- RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
- DAB+ Tuner Built-in
- DAB+/DMB Supported
- DAB+ Slideshow Service
- DLS (Dynamic Label Service)
- DAB Service Following
- RDS Fallback (where available)
- Service Preset: 18 Preset Memory
- Auto Ensemble/Service Memory
- Service Search Function
- PTY Search Function
- Alphabet Search Function
- Antenna Power Supply Selection
- Built-in BLUETOOTH® Module
- Wide Band Speech Technology
- HFT (Hands Free Transfer) multi point implementation.
- HFP (Hands-Free Profile) Compatible
- Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
- Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
- Advanced BLUETOOTH® Technology
- Connection: SSP (Simple Secure Pairing) Supported
- Individual Profile Connection Hands Free Phone and Music Streaming
- Phone Book: Phone Book Synchronization
- Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
- Device Name Display
- Auto Answer
- Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
- Redial Function
- Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
- DTMF (Touch-Tone) Function
- Signal Strength Indicator
- Battery Level Indicator
- Menu Language Selection: 24 Languages
- Firmware Updatable
- Microphone Included
- Compatibility for iPod/iPhone: Made for iPod touch 5th/4th/3rd/2nd/1st Gen., iPod nano 7th/6th/5th/4th/3rd/ Gen., iPod classic 160GB/120GB/80GB, iPod with video, iPhone 6 and 6 Plus, iPhone5S,iPhone5C, iPhone5, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G
- Connection: KCU-461iV / KCU-471i Required (Sold separately)
- Music & Video Playback Compatible with KCU-461iV only
- Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
- Alphabet Search
- Artwork Display
- Direct Up / Down: Playlist / Artist / Album / Genre / Composer
- M.I.X. (Shuffle) Play: Song, Albums, All
- Repeat
- Battery Charging
- Map Coverage: 48 Countries (Western and Eastern Europe)
- Menu Language: 29 Languages
- Voice Guidance Language: 29 Languages for Voice Guidance, 15 Languages for Text-to-Speech (TTS)
- Advanced Address Search
- Post Code Search
- Free Form Search
- Partial Name Search
- Advanced POI Functions
- Smart Routes: Smart Routes using historic traffic patterns
- Advanced Route Planning
- Eco Route Search
- 7 Alternative Route Recommendation
- Advanced TMC Mode
- Map Display Mode: 2D Heading Up, 2D North Up, 3D
- 3D City Mode: 3D Building/Icon Display
- Elevation Map Display: 3D maps with elevation mode
- 3D Motorway Junction View: Junction View with Sign Post
- Drive Lane Suggestion
- Tunnel Mode
- Highway Mode
- Voice Guidance Mixing
- Text-to-Speech
- Direct Phone Call from POI data
- 3 Positioning Sensors: GPS, Gyroscope, Vehicle Speed Pulse
- USB Connection: USB Extension Cable Included
- Video and Music Playback: FLAC/MP3/WMA/AAC/AVI/MP4/MKV Playback
- File / Folder Name Search
- Tag Info Search
- Folder Up / Down
- M.I.X. Random Play
- Repeat
- Bass Engine SQ
- Bass Engine™ Pro
- Subwoofer Level Adjustment
- Subwoofer Phase Select
- 4V High Voltage PreOut
- Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
- Dual HD EQ (9-band Parametric Equalizer front/rear)
- 6 Channel Digital Time Correction
- Digital Crossover Setting
- Customized Sound Setting by Car Type
- MediaXpander HD
- Application Volume Level Setting
- Sound Setting Data Download
- Easy, Step-by-Step Sound Customization
- Alpine TuneIt App ready
- Power Output: 4 x 50 W High Power Amplifier
- Advanced Power IC
- Display: 7′′ Capacitive WVGA High Resolution Display
- White LED Backlighting System
- 50/50 Split Screen: Left / Right Position Changeable
- Control Type: Touch, Drag, Flick
- My Favorites Function
- Automatic Setting Change for 2 Users
- High Grade Audiophile Design
- PreOut: 3 PreOuts (4V, Front / Rear / Subwoofer)
- AUX-In: 1 A/V AUX Input
- Steering Wheel Remote Control Function
- Remote Control Included
- Navigation Guidance Mix
- Camera Connection & Built-in Controls for Multi-View Cameras
- Camera Guide Line Adjustment
- Rearview Camera Display Automatic Boot-up
- Simple Mode & Info Mode Display Selection
- Visual EQ
- Live Contrast Adjustment
- Menu Language: 24 Languages (for AV / Bluetooth), 29 Languages (Navigation Menu and Voice Guidance)
- Clock
- Auto Dimmer
- Anti-theft security code
- Firmware Updatable
- Power Antenna Lead
- Remote Turn-On
- HDMI Input (Alpine Special HDMI connector required)
- Engine Start-Stop unaffected
- CAN Connection Interface Included with quadlock and 17 way round pin harness adapter
- For cars with Harman Kardon sound system, an additional 3rd party interface adapter is required.

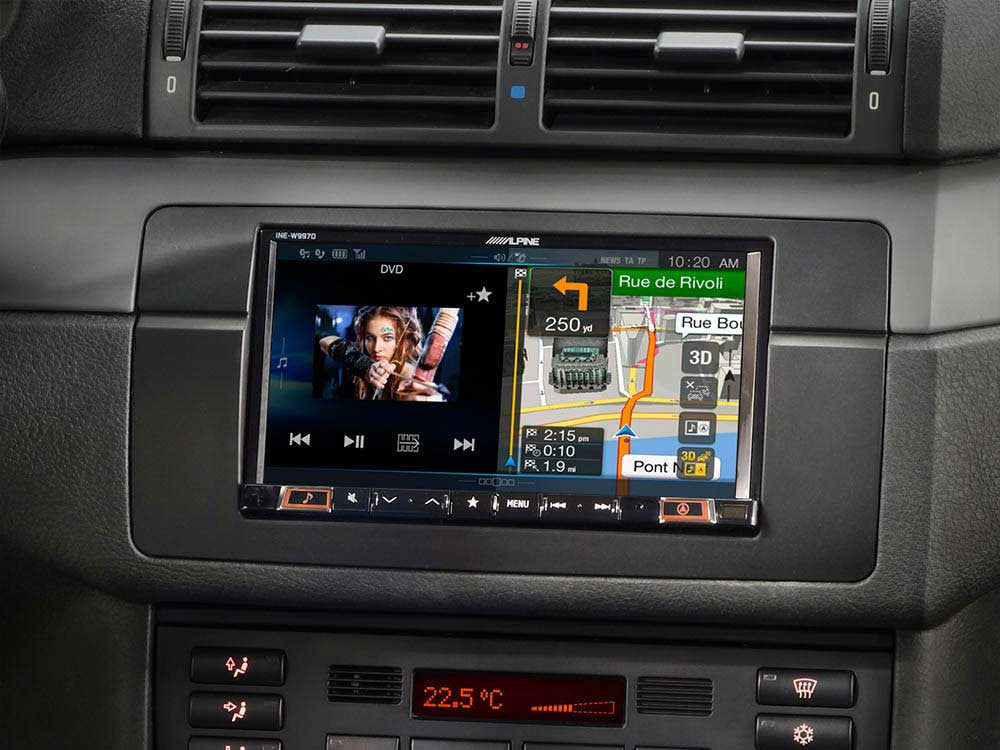

- Ready for optional DVD Player DVE-5300
- HDMI splitter I/F (KCX-630HD) ready
- Multi camera I/F (KCX-C250MC) ready
- Online Map Update

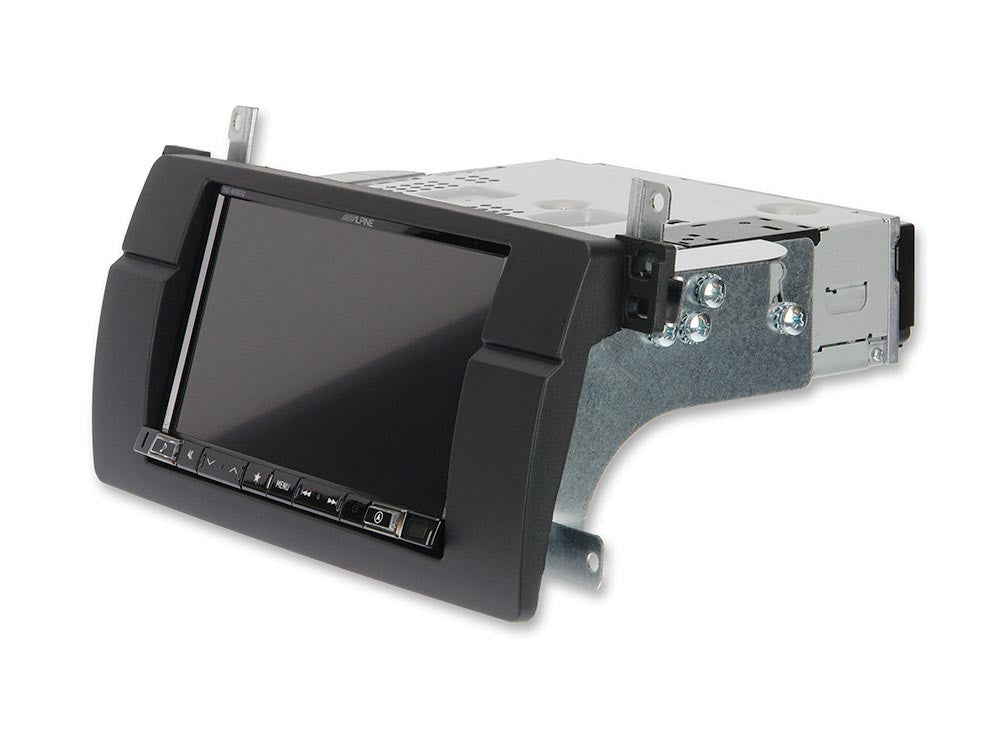

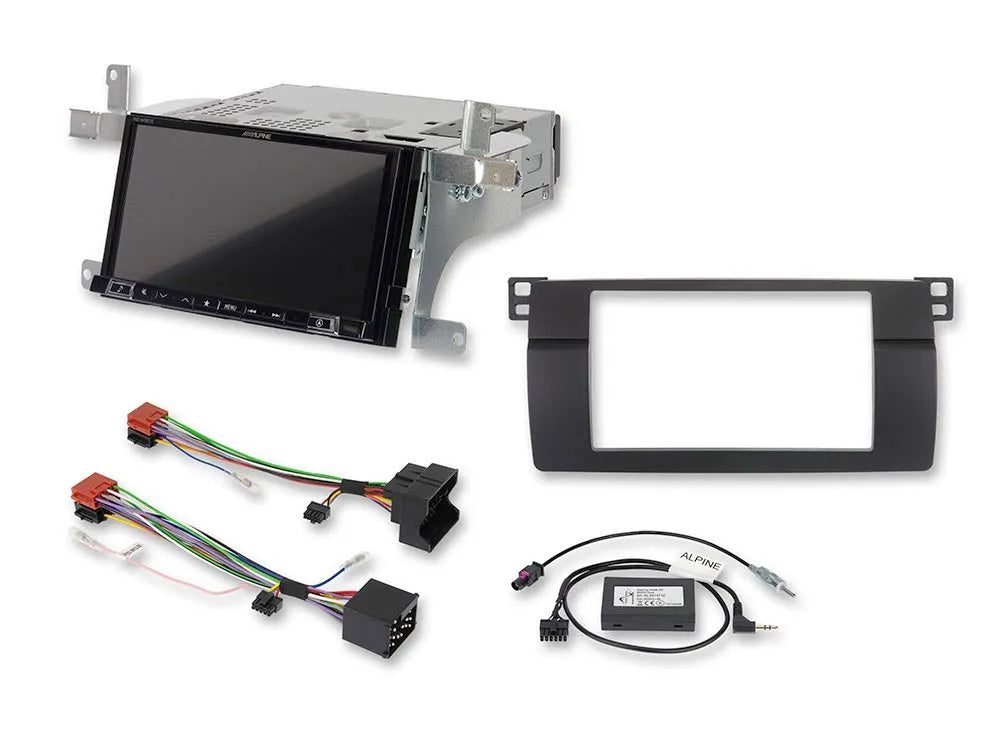

- Includes installation brackets, wiring harness and CAN bus interface for complete installation.
- Screen Size: 7-inch Capacitive WVGA
- LCD Type: Transparent Type TN LCD
- Operation System: TFT Active Matrix
- Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
- Illumination System: White LED Backlighting
- Effective Number of Picture Elements: 99.99%
- Colour System: NTSC, PAL
- Max Power Output: 4 x 50 W
- Tuning Range: 87.5 - 108.0 MHz
- Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
- 50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
- Alternate Channel Selectivity: 80 dB
- Signal-to-Noise Ratio: 65 dB
- Stereo Separation: 35 dB
- Capture Ratio: 2 dB
- Tuning Range: 531 - 1,602 kHz
- Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf
- Tuning Range: 153 - 281 kHz
- Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf
- USB Requirements: USB 2.0
- Max. Power Consumption: 1,500 mA (CDP Support)
- USB Class: Mass Storage Class, Play From Device
- File System: FAT 16/32
- MP3 Decoding: MPEG-1/2 AUDIO Layer-3
- WMA Decoding: Windows Media™ Audio
- AAC Decoding: ACC-LC format ′′.m4a′′ file
- Flac Decoding
- Number of Channels: 2-Channel (Stereo)
- Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
- Total Harmonic Distortion (at 1kHz): 0.008%
- DynamicRange(at 1kHz): 95 dB
- Signal-to-Noise Ratio: 100 dB
- Channel Separation (at 1kHz): 85 dB
- USB Video playback (AVI/MP4/MKV file with H.264 Video and MP3/AAC Audio)
- GPS Antenna Type: Micro-strip Planar Aerial
- Reception Frequency: 1575.42 ±1 MHz
- Reception Sensitivity: -130 dB Maximum
- Reception Method: Parallel 12 Channels
- BLUETOOTH® Version: Bluetooth V2.1+EDR
- Output Power: +4 dBm Max. (Power class 2)
- HFP: HFP (Hands Free Profile)
- OPP (Object Push Profile)
- PBAP (Phone Book Access Profile)
- HSP (Head Set Profile)
- A2DP: A2DP (Advanced Audio Distribution Profile)
- AVRCP: AVRCP (Audio/Video Remote Control Profile)
- SPP (Serial Port Profile)
- Subwoofer Level Adjustment: 0 to +15
- Subwoofer Phase Setting: 0° or 180°
- BASS ENGINE SQ: 5Mode, Level 0 to +6
- HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
- HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
- HighPassFilter (Gain): -12 to 0 dB
- LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
- LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
- LowPassFilter (Gain): -12 to 0 dB
- Time Correction: 0.0 - 9.9ms (0.1ms step)
- Dual HD EQ Front + Rear
- Parametric Equalizer (Band 1): 20 - 100 Hz
- Parametric Equalizer (Band 2): 63 - 315 Hz
- Parametric Equalizer (Band 3): 125 - 500 Hz
- Parametric Equalizer (Band 4): 250 - 1k Hz
- Parametric Equalizer (Band 5): 500 - 2k Hz
- Parametric Equalizer (Band 6): 1k - 4k Hz
- Parametric Equalizer (Band 7): 2k - 7.2k Hz
- Parametric Equalizer (Band 8): 5.8k - 12k Hz
- Parametric Equalizer (Band 9): 9k - 20k Hz
- Parametric Equalizer (Gain): -14 to +14
- Application Volume Level Setting: -14 to +14
- Input Format 720p/480p/VGA
- Output Format 480p
- Power Requirement: 14.4 V. DC (11-16V allowable)
- Pre Output Voltage (Before Clipping): 4 V / 10k ohms
- Maximum Mounting Angle: 30°
- INE-W997E46: Fits for BMW 3-series E46
- Din Size: 1DIN chassis and 7” Capacitive Touch Screen
- Chassis Size (W x H x D) mm: 178 x 50 x 164 mm
Compatible Cars
Maker Model Model year
- BMW 3-series E46 1998 - 2007
