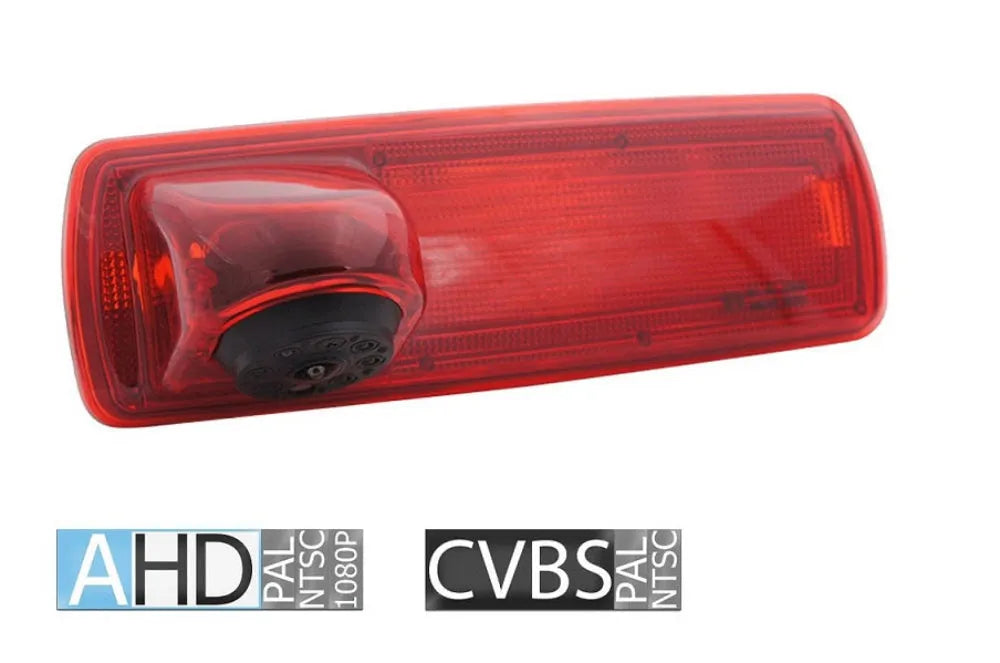

NAVLINKZ VAN-REN04-X, galinio vaizdo kamera, AHD 1080p, Renault, Opel, Fiat, Nissan

INFORMACIJA

NAVLINKZ VAN-REN04-X - automobiliui pritaikyta 3-io stabdžio žibinto kamera su AHD1080p/CVBS ir PAL/NTSC perjungimu - profesionalus galinio vaizdo sprendimas, montuojamas vietoje originalaus stabdžio žibinto stiklo. Integruota kamera leidžia pasirinkti AHD 1080p arba CVBS signalą bei PAL arba NTSC formatą, todėl suderinama su įvairiomis multimedijos sistemomis.

Jutiklis: CMOS 1/4”
Raiška: AHD 1080p / CVBS 480p (perjungiamas)
Kadrų dažnis: 25fps (PAL) / 30fps (NTSC)
Šviesos jautrumas: 0.02 LUX
Matymo kampas: 160° (H) / 90° (V) / 185° (D)

Suderinamumas:
Fiat Talento (2016–2021)
Nissan NV300 (2016–2021)
Nissan Primastar (2021–)
Opel Vivaro B (2014–2019)
Renault Trafic III (2014–)
Tinka transporto priemonėms su galinėmis durimis arba pakeliamu dangčiu.
Netinka aukšto stogo versijoms.

APRAŠYMAS

Vehicle-specific 3rd brake light with switchable AHD1080p/CVBS and PAL/NTSC rear-view camera. Fits Renault Trafic3 und Opel Vivaro B 2014-, Fiat Talento und Nissan NV300/Primastar 2016-. Vehicles with tailgate or double door and without H2 high roof.

Vehicle-specific third brake light with integrated switchable AHD1080p/CVBS and PAL/NTSC rear-view camera. Easy assembly by replacing the factory third brake light glass.
Professional system harness with sufficient length and automotive connectors. Easy to lay cable due to a small cable and connector diameter. With IR-lighting for better visibility in the dark.

Product features

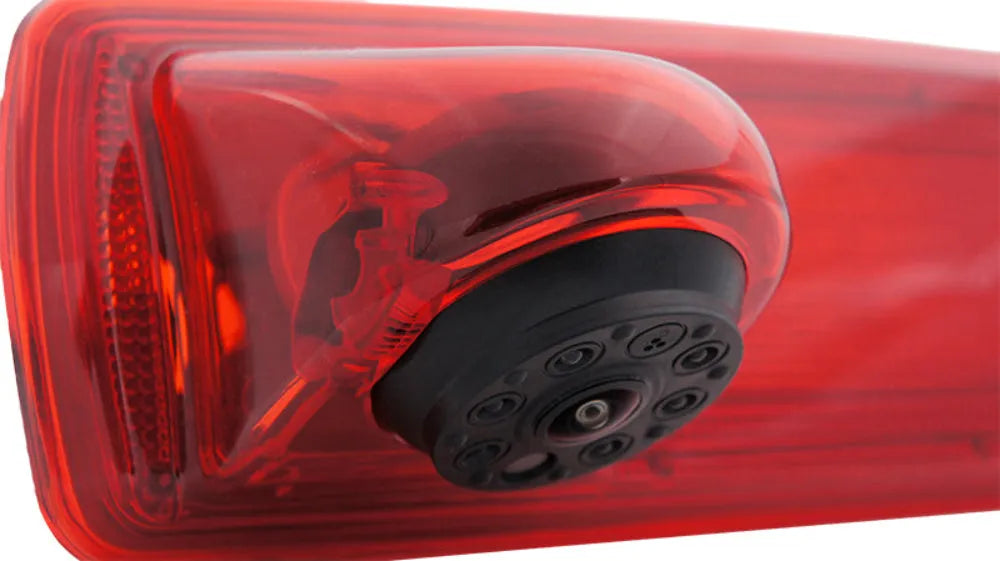

Camera in vehicle-specific 3rd brake light glass

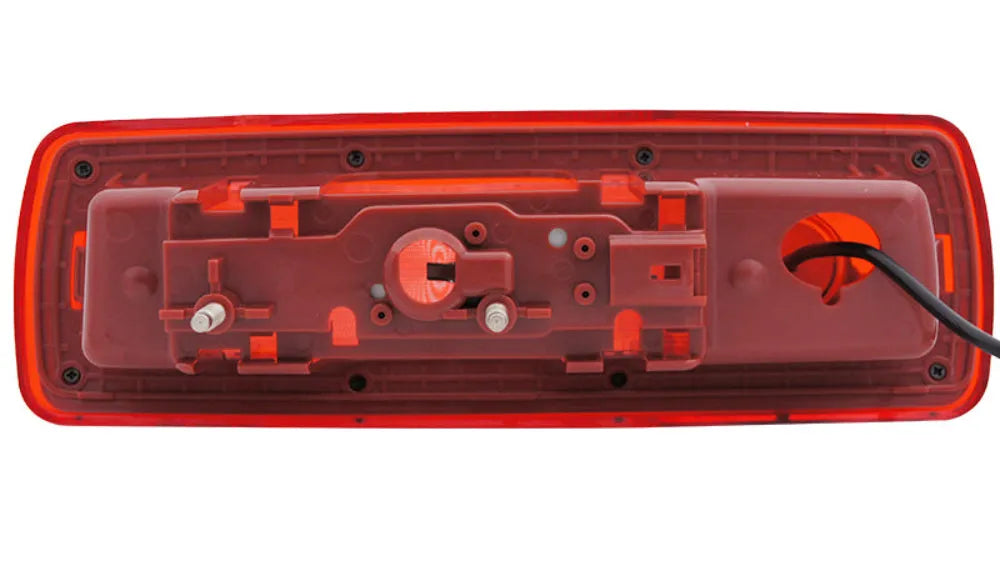

Mounted by exchanging the factory 3rd brake light glass
Camera position adjustable in 3 steps vertically
Sensor-type CMOS 1/4 inch
Resolution AHD(1080p) / CVBS(480p) switchable
Frame rate 25fps(PAL) / 30fps(NTSC) switchable
Possible video output formats: AHD 1080p NTSC, AHD 1080p PAL, CVBS NTSC or CVBS PAL
Aperture F1.36
Light sensitivity 0.02 LUX

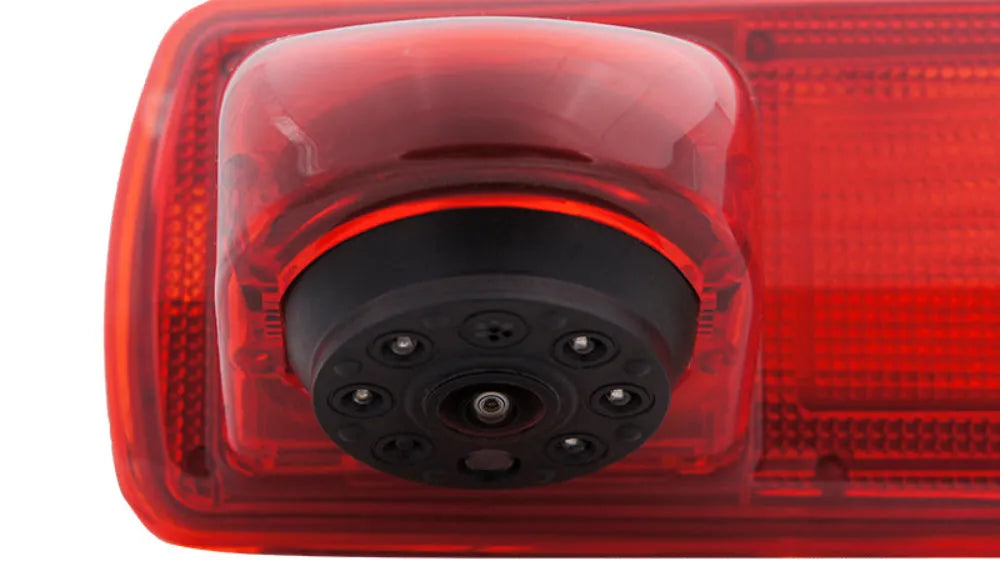

Infrared night vision LED
Angle horizontal 160°, vertical 90°, diagonal 185°
Mirrored picture (fixed)
Guidelines can be switched off
Protection class IP69
Mini 4pin-BM system harness, integrated throughput wire (blue) for rear-view signal

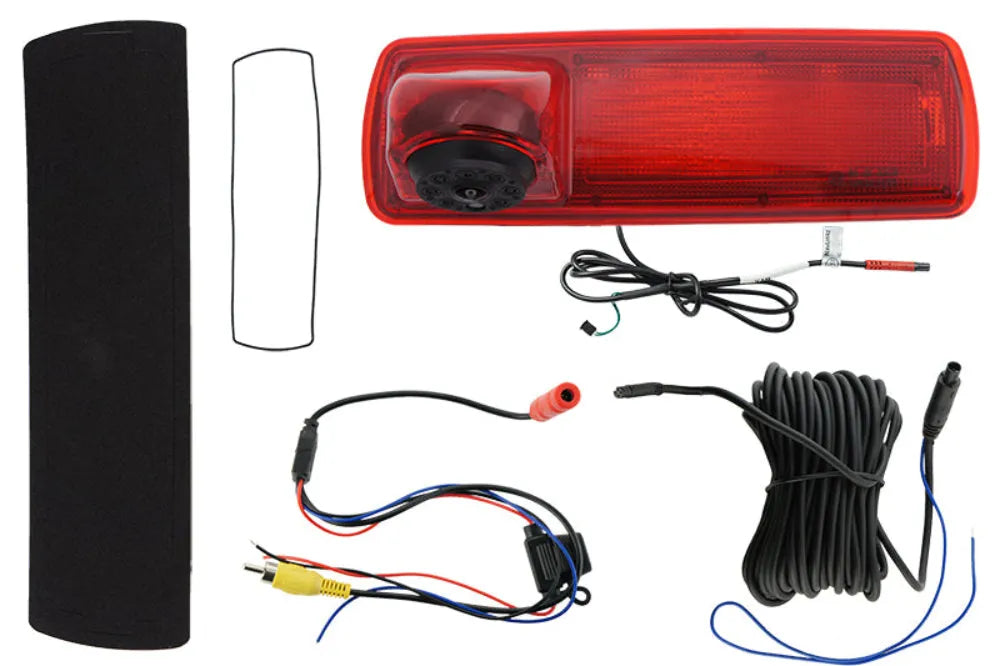

11.80m total system cable length, consists of:
- 1.40m cable fixed on camera to female 4pin-BM (⌀ 5mm)
- 10.00m extension cable male 4pin-BM to female 4pin-BM
- 0.40m adapter male 4pin-BM to male RCA and power wires

Compatibility
Brand    Model
Fiat    Talento from 03/2016 til model year 2021
Vehicles with tailgate or double doors
ONLY vehicles WITHOUT high roof Due to the curve of the tail gate, it is not possible to see the bumper and towing bar.
Nissan    NV300 from 11/2016 til 09/2021
Vehicles with tailgate or double doors
ONLY vehicles WITHOUT high roof Due to the curve of the tail gate, it is not possible to see the bumper and towing bar.
Primastar from 05/2021 up
Vehicles with tailgate or double doors
ONLY vehicles WITHOUT high roof Due to the curve of the tail gate, it is not possible to see the bumper and towing bar.
Opel    Vivaro B from 08/2014 til 03/2019
Vehicles with tailgate or double doors
ONLY vehicles WITHOUT high roof Due to the curve of the tail gate, it is not possible to see the bumper and towing bar.
Renault    Trafic III from model year 2014 up
Vehicles with tailgate or double door
ONLY vehicles WITHOUT high roof Due to the curve of the tail gate, it is not possible to see the bumper and towing bar.

TECHNINIAI DUOMENYS

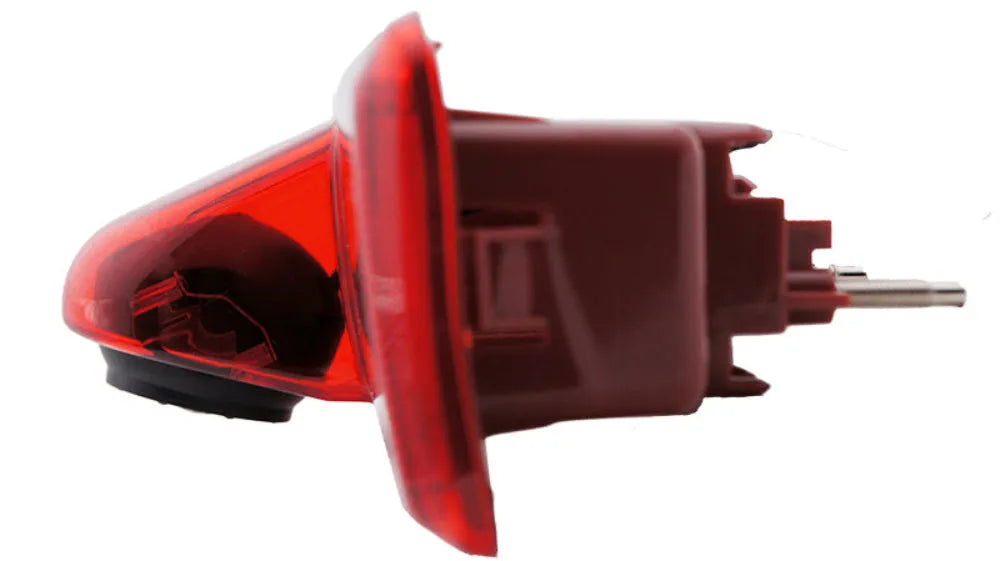

Dimensions
Overall with camera    approx. 232 x 78 x 151mm (W x H x D)
Overhang camera    approx. 58mm
Installation opening    approx. 201 x 47mm (W x H)
Installation opening depth    approx. 63mm

NOTICE: Please make sure to check whether the size of the brake light glass fits to the vehicle!

Operating voltage    +12V DC
Current consumption    max. 190mA
Suitable for permanent power (ACC)    No
Operating temperature range    -30°C to +75°C
Storage temperature range    -40°C to +80°C
