Onkyo TX-NR696, AV Resyveris-Stiprintuvas
Onkyo TX-NR696, AV Resyveris-Stiprintuvas yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.
Siuntimas ir pristatymas
Siuntimas ir pristatymas
Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.
TX-NR696 - harmoningas technologijų ir tradicijų derinys, kuris prisitaiko prie pramogų gyvenimo ir atranda emocijas kiekviename garso šaltinyje - nuo 3D filmų partitūrų iki vinilinių plokštelių.
- Galia: 7 x 210W
- THX® Certified Select funkcionalumas.
- DOLBY ATMOS® ir DTS:X® funkcionalumas.
- "DOLBY ATMOS® Height Virtualizer palaikymas.
APRAŠYMAS
TECHNINIAI DUOMENYS
SPECFIKACIJOS
AMPLIFIER
# Channels | 7.2 |
Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) | 100 Watts, 0.08% THD |
Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven) | 210 Watts, 10% THD |
Dynamic Audio Amplification | ✓ (for Clear and Realistic Sound) |
H.C.P.S. (High Current Power Supply) | ✓ |
Non-Phase Shift Amplifier | ✓ |
THX Certified | ✓ |
Continuous 6 Ohms Rated | ✓ |
Certified 4 Ohms Performance | ✓ |
Discrete Output Stage Circuitry | ✓ |
Amplifier Design | Linear Class A/B |
Bi-amp CapabIndependent Block Construction (Amp/Preprocessor)ility For Front | - |
Bi-amp Capability For Front | ✓ |
NETWORK
SMART AV Receiver | Wireless multi-room audio platforms, streaming service integration, and remote app control |
Works with Sonos certified for the Sonos Home Sound System | ✓ |
Chromecast built-in and voice control with the Google Assistant | ✓ |
AirPlay 2 multi-room audio and voice control with Siri | ✓ |
DTS Play-Fi® | Multi-room audio via Onkyo Music Control App |
FlareConnect™ | Multi-zone audio with compatible components |
Quad-core SoC processing evolves network functions and supports high-speed 802.11ac (2x2 MIMO) Wi-Fi specification | ✓ |
Hi-Res Audio playback via network | DSD 11.2 MHz/5.6 MHz/ 2.8 MHz; FLAC, WAV [RIFF], AIFF, and ALAC to 192 kHz/24-bit |
PROCESSING
Dolby Atmos | ✓ (5.2.2) |
Dolby Atmos Height Virtualizer | ✓ (Enabled with a future firmware update) |
32-Bit Digital Signal Processing Engine | ✓ |
Dolby Decoder | Dolby Atmos, Dolby True HD |
DTS:X | ✓ (5.2.2) |
DTS Virtual:X | ✓ (Enabled with a future firmware update) |
DTS Decoder | DTS: X, DTS: Neural: X, DTS-HD Master Audio |
ONKYO GAME Surround Modes | ✓ (Rock, Sports, Action, RPG) |
VLSC for Noiseless Audio Processing | ✓ (Front L/R Channels) |
THX Processing Mode | ✓ |
CinemaFILTER | - |
AccuEQ Room Calibration | ✓(w/ AccuReflex) |
Phase-Matching Bass Boost | - |
Direct/Pure Mode | ✓/- |
Pure Direct Analog Path Mode | - |
Advanced Music Optimizer | ✓ |
192K/24 Bit DACs | - |

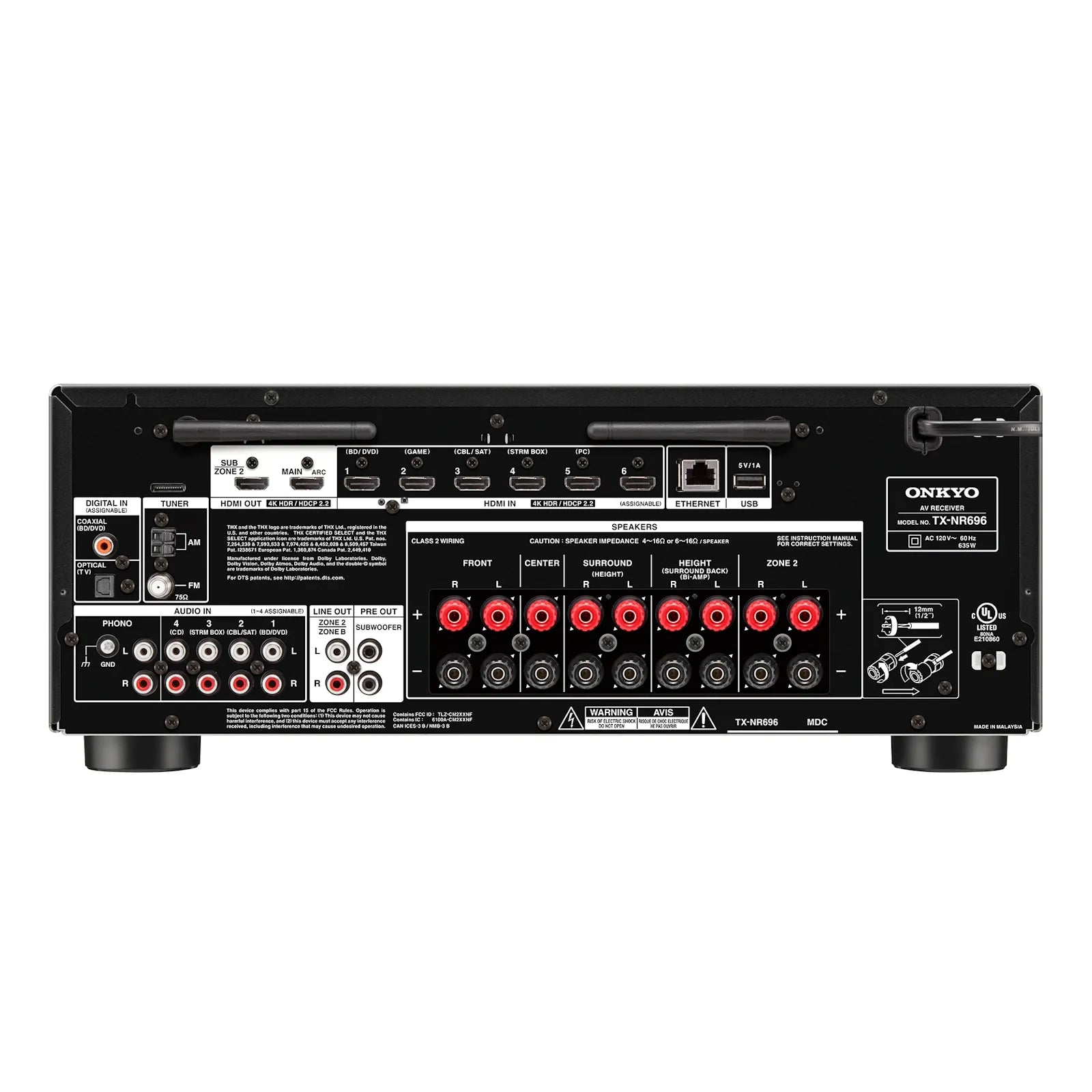

CONNECTIVITY
Analog Audio IN | 4 |
Phono Input | ✓ |
Digital Audio IN (OPT/COAX) | 1 / 1 |
Composite Video I/O | - |
Component Video I/O | - |
Front Panel HDMI | ✓ |
Front-Panel A/V | 1 (Analog) |
USB Input | ✓ (Rear) |
HDMI I/O | 7(1 front)/ 2 (Main, Sub/Zone 2) |
HDMI 4K/60 Hz- Capable HDMI Terminals | ✓ |
HDCP 2.3 Copy-Protection Compatibility | ✓ |
HDMI Support for High Dynamic Range | ✓(HDR10 and Dolby Vision) |
HDMI Support for Deep Color, x.v.Color, LipSync | ✓ |
HDMI Support for 3D, Audio Return Channel and CEC | ✓ |
HDMI Support for DVD-Audio, SACD, Multichannel PCM | ✓ |
Analog To HDMI Upconversion | - |
BT.2020 Support | ✓ |
1080p to 4K Upscaling | ✓ |
4K Passthrough | ✓ |
Analog Pre-Outs | Subwoofer (x2) |
Speaker A/+B | - |
Powered Zone 2 | ✓ |
Powered Zone 3 | - |
Zone 2/ Zone B Line Out | ✓ |
Zone 2 Video Out | - |
Zone 2 Digital to Analog Audio Conversion | ✓ (Net/SPDIF/Bluetooth, HDMI Inputs 1-3) |
Zone 3 Line Out | - |
Whole House Mode | - |
FlareConnect Multi-room Audio | ✓ |
Airplay & Airplay 2 | ✓ |
Chromecast built-in | ✓ |
Works with Google Assistant | ✓ |
Supports Onkyo Remote App | ✓ |
Internet Radio Capable | ✓ |
Spotify Connect Support | ✓ |
Tidal | ✓ |
Amazon Music | ✓ |
Streaming Audio From PC / Network | ✓ |
Hi-Res Streaming Audio Formats | ✓ (DSD 11.2 MHz/5.6 MHz/2.8 MHz*, 192 kHz/24-bit FLAC, WAV, AIFF, and ALAC) *Converted to PCM |
Streaming Audio From USB memory | ✓ |
Wireless Network | 5GHz(11ac/a/n), 2.4GHz(11b/g/n) |
Bluetooth | ✓ (Version 4.2, Profile: A2DP 1.2, AVRCP 1.3) |
INTEGRATION ACCESS
RS-232 | - |
IR Input | - |
IR Output | - |
Ethernet | ✓ |
ONKYO-RI System Control | - |
RIHD (Remote Interactive Over HDMI) | - |
12V Trigger | - |
MISCELLANEOUS
Pre-Programmed Remote | - |
Hybrid Standby Function | ✓ |
Smart Grid-Ready | ✓ |
Auto Speaker Calibration W/Mic. | AccuEQ w/ AccuReflex |
OSD Out | ✓ |
Solid Aluminum Front | - |
Transparent High-Grade Speaker Terminals | - |
Detachable AC Cord | - |
Warranty | 2 YEARS |
Specs
AMPLIFIER SECTION
All Channels | 100 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven, FTC) 210 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven) |
Dynamic Power | 240 W (3 Ohms, Front) 210 W (4 Ohms, Front) 120 W (8 Ohms, Front) |
THD+N (Total Harmonic Distortion + Noise) | 0.08% (20 Hz–20 kHz, Half Power) |
Input Sensitivity and Impedance | 200 mV / 47k Ohms (Line/Unbalanced) 3.5 mV/47k Ohms (Phono/MM) |
Rated RCA Output Level and Impedance | 200 mV / 2.3k Ohms (Zone B/ Zone 2 Line Out) 1 V / 470 Ohms (Subwoofer Pre Out) |
Phono Overload | 70 mV (MM, 1 kHz, 0.5%) |
Frequency Response | 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode) |
Tone Control | ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
Signal-to-Noise Ratio | 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A) |
Speaker Impedance | 4 Ohms–16 Ohms |
VIDEO SECTION
Video | 1.0 Vp–p/75 Ohms (Component Y) 0.7 Vp–p/75 Ohms (Component PB/CB, PR/CR) 1.0 Vp–p/75 Ohms (Composite) |
Component Video Frequency Response | +0 dB, -3 dB |
TUNER SECTION
FM | 87.5 MHz–107.9 MHz |
AM | 530 kHz–1,710 kHz |
FM/AM Preset Memory | 40 stations |
GENERAL
Power Supply | AC 120 V~, 60 Hz |
Power Consumption | 635W |
No-Sound Power Consumption | 65W |
Standby Power Consumption | 0.15 W |
Dimensions (W x H x D) | 17 1/8" x 6 13/16" x 14 15/16" (435 x 173.5 x 379.5 mm) |
Weight | 22 lbs (10 kg) |
CARTON
Dimensions (W x H x D) | 21" x 10 7/16" x 18 7/16" (534 x 265 x 468 mm) |
Weight | 27.6 lbs (12.5 kg) |
UPC CODE
(B) | 889951001720 |
