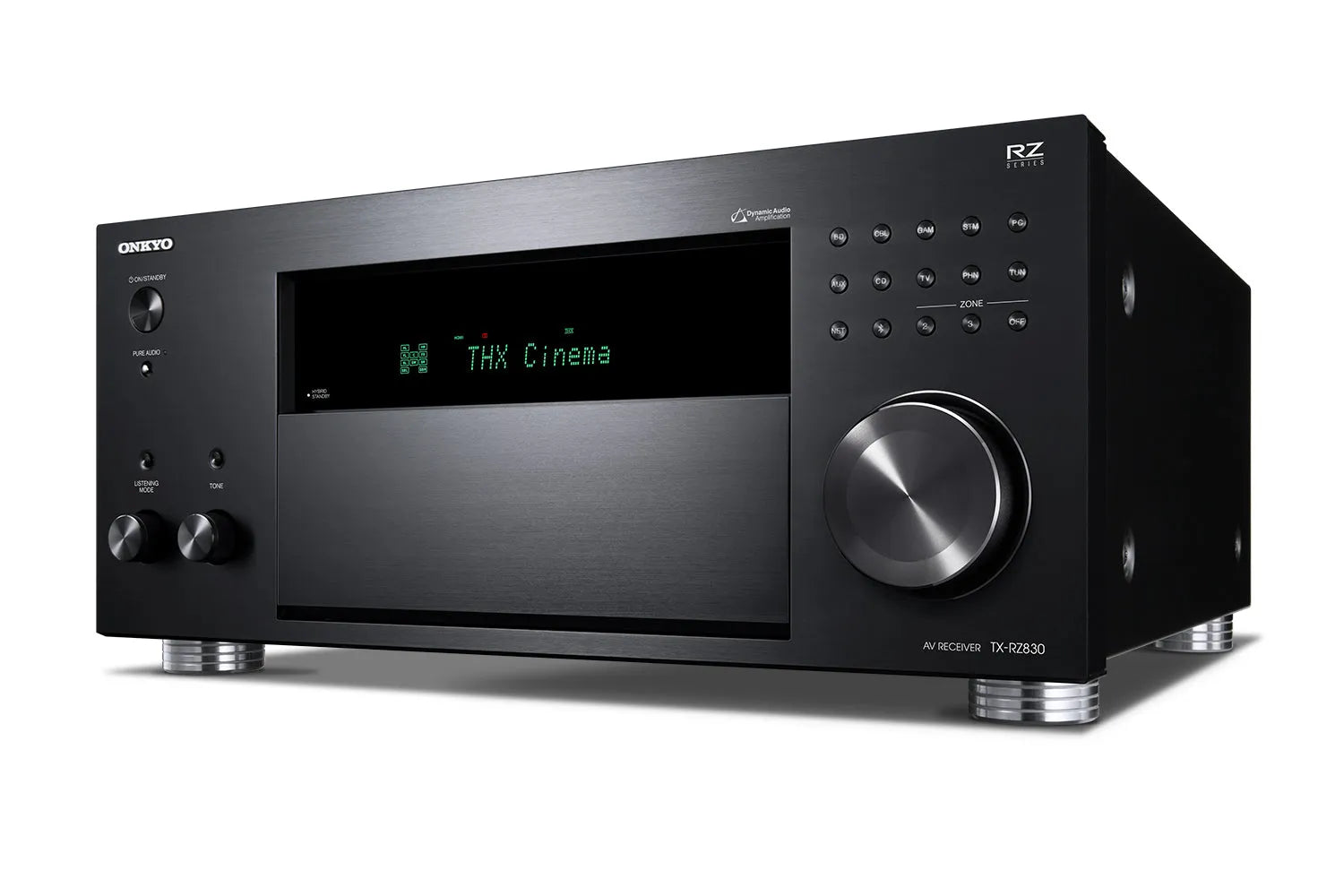

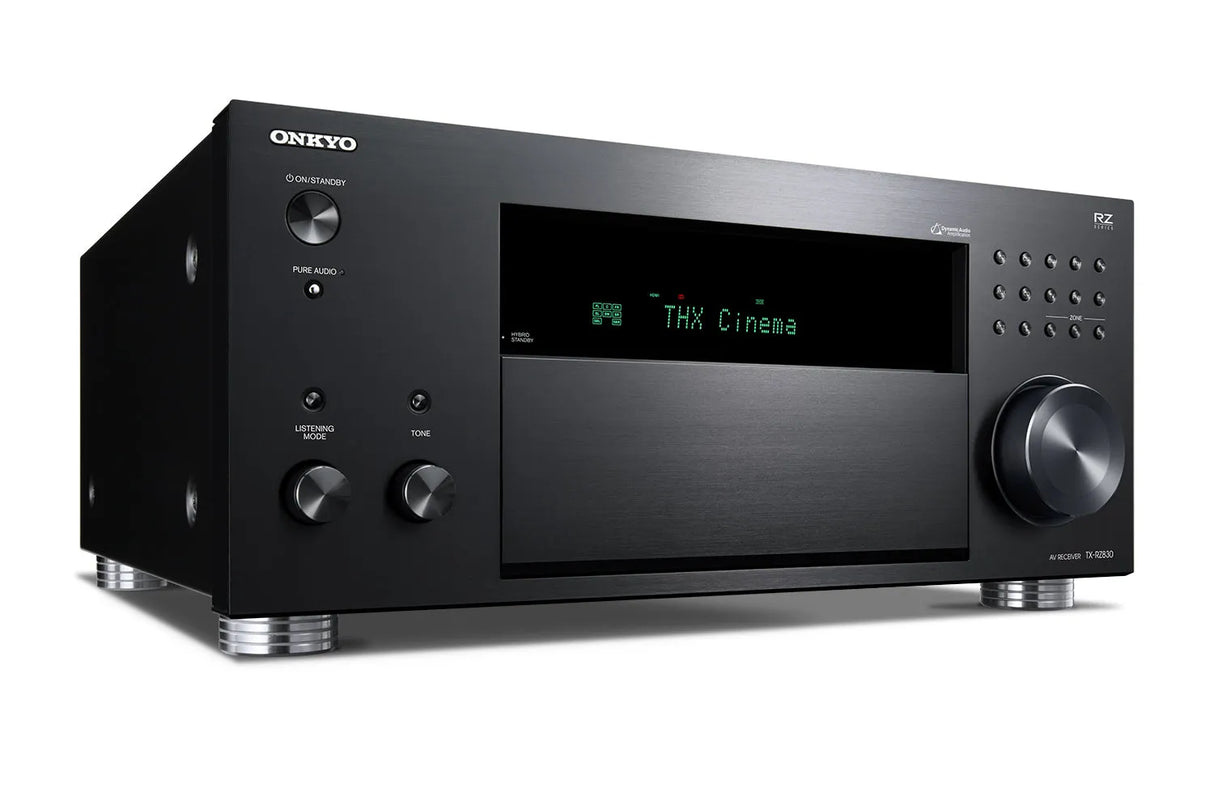

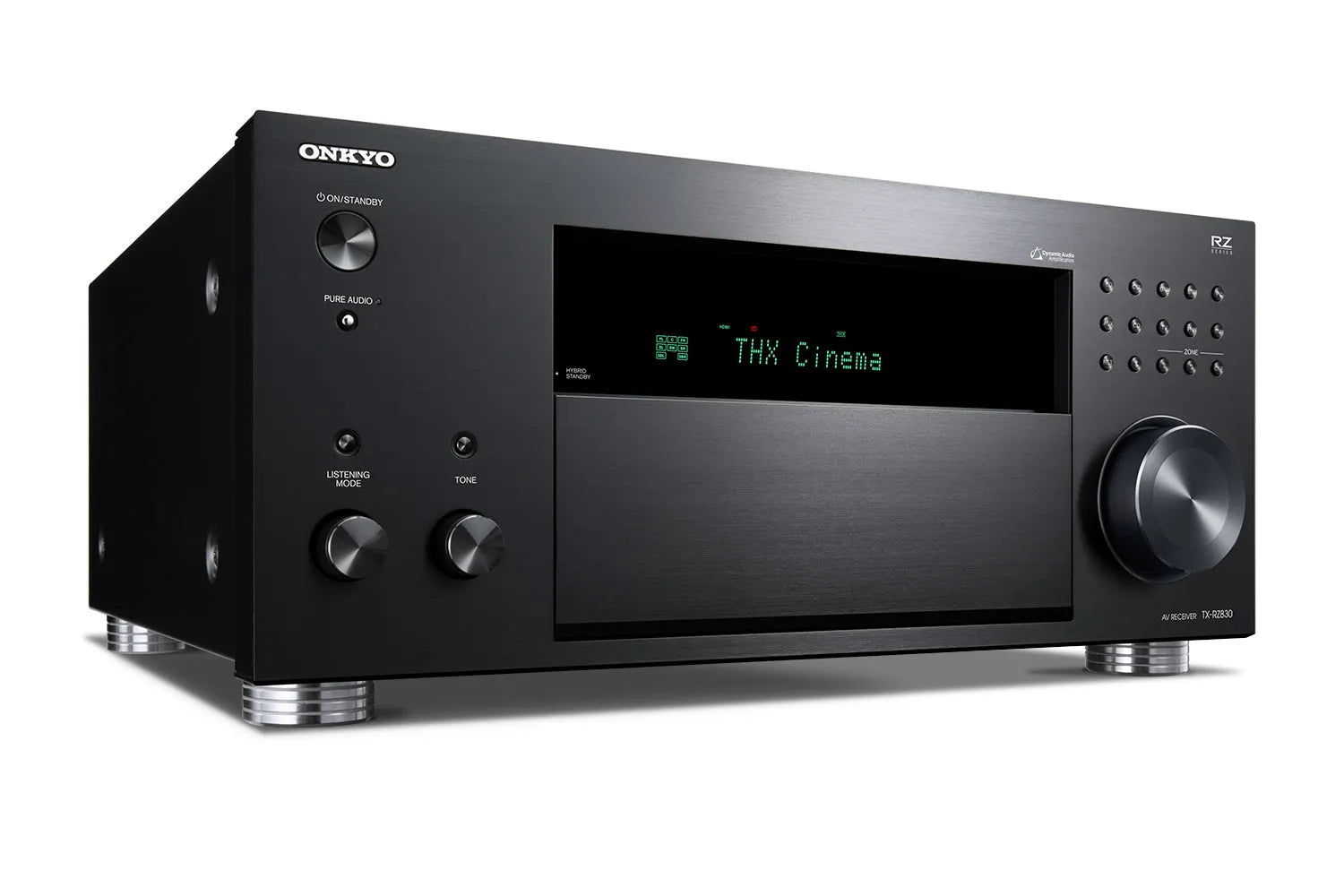

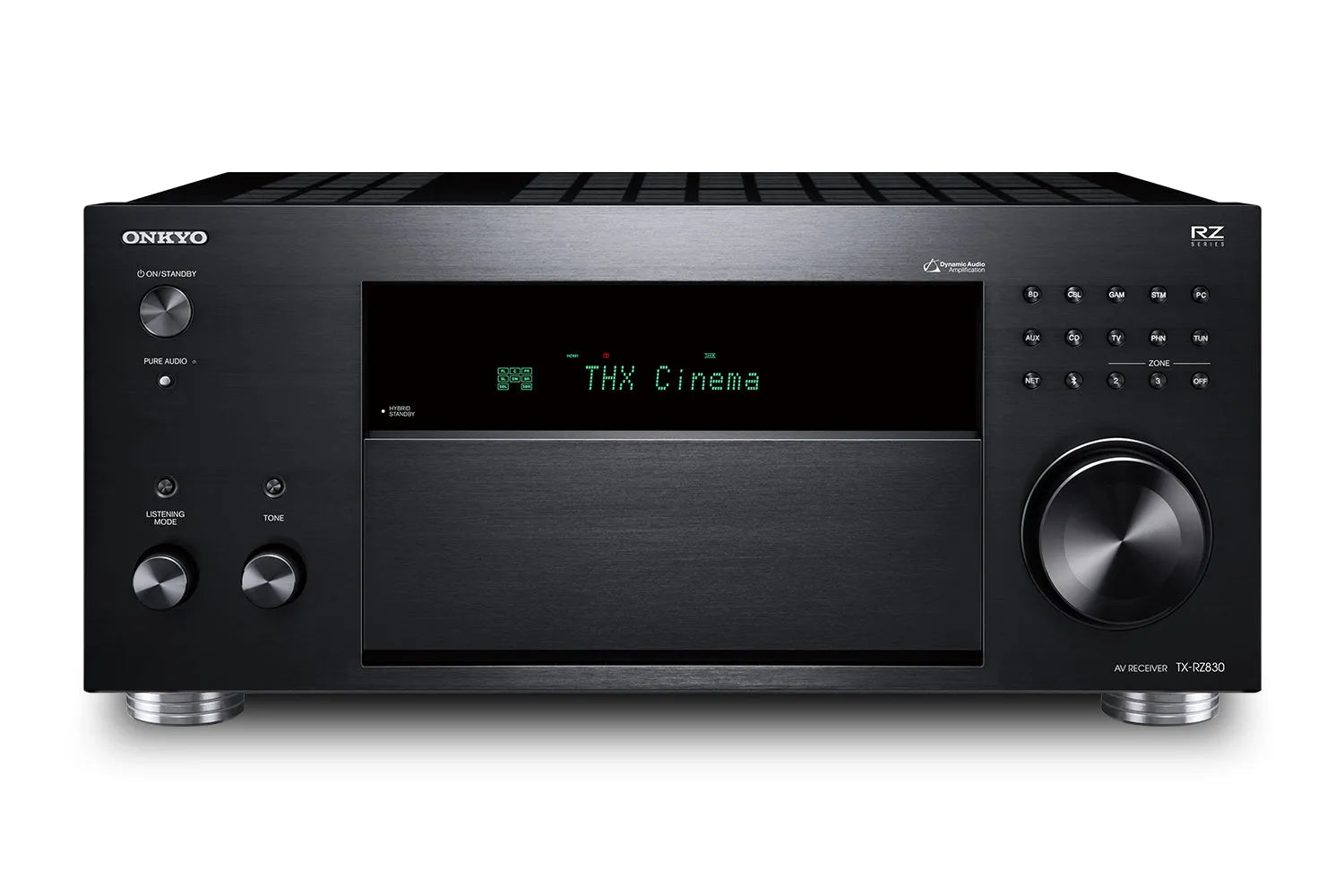

Onkyo TX-RZ830 9.2 kanalo A/V Resyveris

€1,199.00 EUR

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Onkyo TX-RZ830 9.2 kanalo A/V Resyveris THX® Certified Select™ Native DTS:X™ 120 W/Ch (8 Omai), 250 W/Ch (6 omai)

9.2 kanalų namų kino stiprintuvas su tinklo grotuvu ir radijo imtuvu. THX® Select2™ Plus sertifikatas už garso kokybę. Dolby® Atmos, Dolby® TrueHD, DTS:X™, DTS-HD Master Audio™, Dolby® Digital Plus, DTS-HD High-Resolution Audio™ dekodavimas, HDMI® Support for 3D, Audio Return Channel, 4K Passthrough. 1 USB įėjimas išorinėms laikmenoms prijungti. AirPlay. MHL įėjimas vaizdo ir garso įrašams bei nuotraukoms leisti iš išmaniųjų telefonų / įrenginių. Internetinis radijas, Spotify, Deezer, Tidal ir Google Cast servisai, galimybė atkurti audio failus vietiniame tinkle (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple Lossless, DSD 5.6 MHz, LPCM and Dolby® TrueHD). AccuEQ® kambario akustikos korekcijos sistema. AK4458 384 kHz/32-bit D/A keitiklis. Aukštos kokybės detalės puikiai garso kokybei. "Pure Direct Analog Path Mode" režimas maksimaliai grynam analoginiam garsui atkurti. 180W/kanalui, esant 6 Ω apkrovai, 1 kHz, 1%. 1 koaksialiniai ir 2  optiniai skaitmeniniai garso įėjimai. 7 analoginiai įėjimai, įskaitant įėjimą vinilinių plokštelių grotuvui. 8  4k/60Hz HDMI HDCP 2.2 įėjimai, 2 išėjimai. WiFi ir Bluetooth sąsajos. 40 FM/AM radijo stočių atminčių. Nepriklausoma aktyvi 2-a zona ir 3-ios zonos išėjimai (reikalingas stiprintuvas). Valdomas Onkyo programėle Apple ir Android išmaniesiems įrenginiams.

 Onkyo TX-RZ830 9.2 kanalo A/V Resyveris

9.2-Channel Network A/V Receiver
Entertainment like you’ve never felt it before

Feed your speakers the sound they deserve with the TX-RZ830, Onkyo’s premier mid-class A/V receiver, and unlock complete 7.2.4-ch object-based audio coverage (outboard stereo amp required), universal 4K HDR pass-through, and custom Dynamic Audio Amplification housed in a robust aluminum-fronted chassis. Sound is fluid, expressive, and dynamically faithful to the source, details resolving with astonishing transparency, ideal for high-resolution music including Direct DSD 11.2 MHz, LPs via phono pre-amp, SACD from Blu-ray™ player, or music streamed over AirPlay. Compatibility with popular wireless audio platforms allows the TX-RZ830 to fit in seamlessly with other compatible components for easy multi-room audio. Mobile apps synchronize the content you want in different spaces with Chromecast built-in, DTS Play-Fi® technology, or FlareConnect™. TIDAL, Amazon Music, Spotify, Deezer, and TuneIn are built in for easy navigation. Do your favorites a favor: order the TX-RZ830 and bring what you love to life.

Onkyo TX-RZ830 9.2 kanalo A/V Resyveris

The Premium Onkyo Experience

The TX-RZ830 brings a higOnkyo TX-RZ830 9.2 kanalo A/V Resyverish-end approach to build and sound to the middle of our A/V receiver range. Our top-of-the-line high-current digital architecture is deployed with spectacular results: fluency, frequency range, transient response, and detail resolution are unassailable at the price. With sheer high-current power needed for edge-of-the-seat movie thrills and joyful stereo listening, the TX-RZ830 presents as a high-fidelity reference component loaded with connections needed for a custom install lasting well into the future.

Works with Sonos

With Sonos Connect, the awesome home theater you’ve built around your Onkyo receiver can now be part of your existing Sonos Home Sound System, or the start of a new one. Instantly upgrade the music streaming capability of your home theater with Sonos Connect and a free firmware update. After a simple set up, your Onkyo A/V receiver will seamlessly tie into Sonos, instantly waking, changing inputs and playing at the volume you command through the familiar Sonos app.

THX® Certified Select™ theater-reference audio

THX Certified Select guarantees theater-reference soun in your home. To gain certification, amplifiers must pass severe bench-tests covering every aspect of performance. THX Certified Select components suit rooms where screen-to-seat distance is about 10 ft. (3 m) and volume 2,000 cubic feet (57 m3).

 Dolby Atmos® and DTS:X™ at up to 7.2.4 channels

Hear Dolby Atmos and DTS:X soundtracks through 7.2.2 or 5.2.4 channels. Connect an outboard power amp via 11.2-multichannel pre-outs for even more expansive 7.2.4-ch playback. Enjoy seamless top-to-bottom, side-to-side, and front-back coverage with in-ceiling speakers and floorstanding speakers. Individual sounds aren't tied to channels and move around your audience.

Dolby® and DTS® solutions for 3D upmixing

DTS Neural:X™ technology and Dolby Surround find cues in legacy soundtracks and upmix for playback through systems with height channels. Cross-compatible with Dolby® and DTS® formats, enjoy spatially realistic and natural sound from your existing DVD and Blu-ray Disc™ library or streaming service.

Chromecast built-in works with the Google Assistant

 Stream any music from your smartphone, laptop, or PC to the receiver with ease. Control playback with Chromecast-enabled apps from your iPhone, iPad, Android™ phone or tablet, Mac or Windows laptop, or Chromebook™. If you have a device with the Google Assistant built-in, you can control music on the TX-RZ830 by voice.

Ready for DTS Play-Fi® multi-room audio technology

DTS Play-Fi technology allows you to enjoy quality music from online services, media server, and mobile device to any number of compatible products using Onkyo Music Control App. DTS Play-Fi technology can synchronize music in every room.

Supports 4K HDR, BT.2020, 4K/60 Hz, and HDCP 2.2

Welcome film-like 4K video bursting with bright and vibrant colors enabled by High Dynamic Range (HDR) to your supported TV display or projector. The receiver's HDMI® inputs, Main Out, and Sub/Zone 2 Out pass HDR10, HLG, and Dolby Vision™ formats through to compatible displays. These terminals support the BT.2020 4K video standard, 4K/60 Hz playback, and HDCP 2.2.

AccuEQ Advance for Accurate Calibration

AccuEQ sets speaker distance, SP level, and crossover. In addition, AccuEQ Advance employs multi-point measurement to remove standing waves from your listening space, which compromise audio quality and bass response. The technology also detects and compensates for background noise, such as the hum from an HVAC, to ensure accurate equalization.

AccuReflex

AccuReflex technology aligns the phase of up-firing "height" speakers with the sound coming directly from your other speakers. Any delay is resolved so that everything arrives at your ears at the same time. The result is cohesive reproduction of object-based soundtracks.

Powered sound in three zones

With a 5.2-ch theater layout in Zone 1 (Main), the remaining four channels can drive speakers in Zone 2 and Zone 3. As well as analog distribution, dedicated DACs enable digital sources* to be synced across rooms simultaneously, or a unique source to be played in every zone at once. Zone 2 and Zone 3 pre-/line outputs are ideal for sharing sources to existing hi-fi systems.

Manage Music with Onkyo Controller app

Onkyo Controller app collects streaming services and network-attached audio into one interface. Select sources, control playback, and distribute audio.



Wi-Fi® and Bluetooth® wireless connectivity

Built-in 5 GHz/2.4 GHz Wi-Fi provides network stability for streaming, Onkyo Controller app, and multi-room audio. Bluetooth wireless technology is also on board for easy mobile or laptop connection.

AirPlay, streaming services, and internet radio built in

Find and stream music from iPad, iPhone, Mac, and PC over the Apple AirPlay wireless audio platform. Further, Amazon Music, Spotify, TIDAL, Deezer, Pandora®, and TuneIn are all baked into the system GUI, making selection easy using Onkyo Controller or Onkyo Music Control App.

FlareConnect™ Wireless Multi-Room Audio

FlareConnect™ shares audio from network and external audio input sources between compatible components. Enjoy effortless multi-room playback of LP records, CDs, network music services, and more with supported components and speaker systems. Music selection, speaker grouping, and playback management across the home are built into the Onkyo Controller app.

Dynamic Audio Amplification (DAA)

The DAA philosophy places less emphasis on lab measurements and more on how the sound actually feels in real life. High-current drive and expert tuning deliver natural transient response, the key to involving sound. A deep power reserve arrives instantly when action explodes on screen, adding adrenaline to the film experience. Accuracy and control is maintained with custom transformer and custom block capacitors, aluminum heat sink, non-phase-shift amp circuitry, and discrete output transistors. With VLSC™ noise filtering (Front L/R) for improved fidelity, DAA is built for compelling sound.

Onkyo's dynamic audio amplification delivers massive power at 250 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven)/ 120 W/Ch (8 Ohms, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven).

Smooth Analog Signal

Onkyo developed Vector Linear Shaping Circuitry (VLSC) to reassemble the audio signal to its original form following processing. Unlike conventional filters, VLSC removes pulse noise generated in D/A conversion, allowing the sound wave to be reproduced with extremely high fidelity for a smooth analog signal.

Limitless Performance. Installation Friendly.

The Onkyo RZ Series was designed for home theater integration and performance above and beyond your expectations. From multi-zone audio and video options to dedicated RZ Series phone support and a three-year product warranty, the Onkyo RZ Series delivers superior audio performance in the configurations you want with the support you should expect from the leader in home audio.

HIGHLIGHTS

  • 180 W per channel
  • THX® Certified Select™ cinema-reference sound quality
  • Dynamic Audio Amplification with 5 Hz–100 kHz reproduction
  • 5.2.4-ch Dolby Atmos® and DTS:X® (7.2.4-ch with external amp)
  • HDMI® 7 In (1 Front*1), Main Out, and Sub/Zone 2 Out*2 supporting 4K/60 Hz, HDR10, HLG, Dolby Vision™, BT.2020, and HDCP 2.2 pass-through
  • Chromecast built-in
  • Works with the Google Assistant
  • 5 GHz/2.4 GHz Wi-Fi®, DTS Play-Fi® technology, FlareConnect™, AirPlay, Amazon Music, Spotify, TIDAL, Deezer, TuneIn*3
ADVANCED FEATURES

  • THX Certified Select cinema-reference volume and sound quality
  • HDMI supports HDR10, HLG, Dolby Vision, BT.2020, and 4K/60 Hz pass-through and HDCP 2.2
  • Dolby Atmos and DTS:X playback through 5.2.4 or 7.2.2 channels
  • 11.2 multichannel pre-outs and processing for 7.2.4-ch playback with an external stereo power amp
  • Powered ZONE 2 and powered ZONE 3 speaker outputs, Zone 2 and Zone 3 pre-/line-level outputs with DACs for digital*4 and analog audio playback
  • Cross-compatible upmixing for Dolby® and DTS® soundtracks with Dolby Surround and DTS Neural:X™ solutions
  • AccuEQ Advance room-acoustic calibration with standing wave correction and AccuReflex™ phase-alignment for Dolby Atmos-enabled speakers
  • Stable 5 GHz/2.4 GHz Wi-Fi connectivity
  • Easy multi-room management with Onkyo Controller app*5
  • Audio streaming with Chromecast built-in and voice control through devices with the Google Assistant built-in
  • DTS Play-Fi multi-room audio distribution technology via Onkyo Music Control App*5
  • FlareConnect multi-room audio distribution to compatible components
  • Supports audio streaming from iPad, iPhone, Mac, and iTunes via AirPlay
  • Amazon Music, Spotify, TIDAL, and Deezer music streaming services and TuneIn internet radio
  • Hi-Res Audio playback including DSD 11.2/5.6/2.8 MHz*6, 192 kHz/24-bit FLAC*7, WAV (RIFF)*7, AIFF, ALAC*7, and Dolby® TrueHD*8
  • Bluetooth® wireless audio technology for mobile, laptop, and PC (Version 4.1 + LE, Profile: A2DP v1.2, AVRCP v1.3)
  • Advanced Music Optimizer improves compressed digital audio quality (Bluetooth audio included)
  • Built-in low-noise phono pre-amp for Moving Magnet (MM) cartridges
  • Supports Front L/R bi-amping
  • 480i de-interlacing (480i to 480p) via HDMI for legacy video formats
AMPLIFICATION FEATURES

  • 180 W/Ch (6 Ω, 1 kHz, 1% THD, 1 channel driven, IEC)
  • Onkyo high-current digital Dynamic Audio Amplification system
  • 5 Hz–100 kHz reproduction and high power to drive 4-ohm speakers
  • H.C.P.S. (High Current Power Supply) customized transformer
  • Extra-large customized block capacitors for instant power
  • VLSC (Vector Linear Shaping Circuitry) high-frequency noise removal technology (Front L/R channels)
  • Non-phase-shift amp circuitry for a clear and cohesive audio image
  • Discrete output stage circuitry for low distortion
PROCESSING FEATURES

  • Dolby Atmos and DTS:X reproduction through 5.2.4-ch or 7.2.2-ch (7.2.4-ch with external stereo power amp)
  • HDMI support for 4K/60 Hz, HDR10, HLG, Dolby Vision, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD® Master Audio™, DSD, DVD-Audio, Super Audio CD (SACD), multichannel PCM, and CEC
  • Precision AKM (AK4458) 384 kHz/32-bit multichannel DAC
  • PLL (Phase Locked Loop) jitter-cleaning technology for S/PDIF audio
  • 32-bit Digital Signal Processing (DSP)
  • Pristine reproduction of audio-only sources in Pure Audio Mode
  • Listening modes for gaming (Rock, Sports, Action, and RPG)
  • Theater-Dimensional virtual surround-sound function
  • Direct Mode for audio reproduction close to original source quality
  • Independent tone controls (bass/treble) for all channels

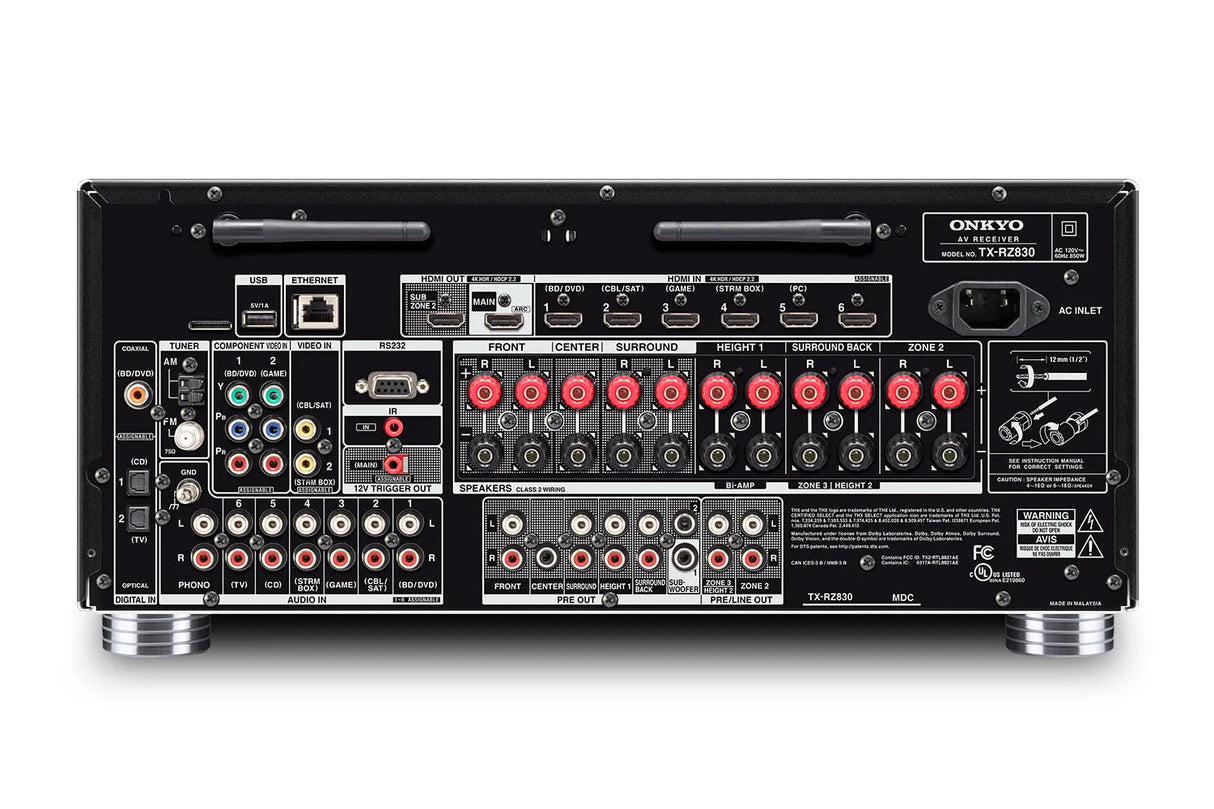

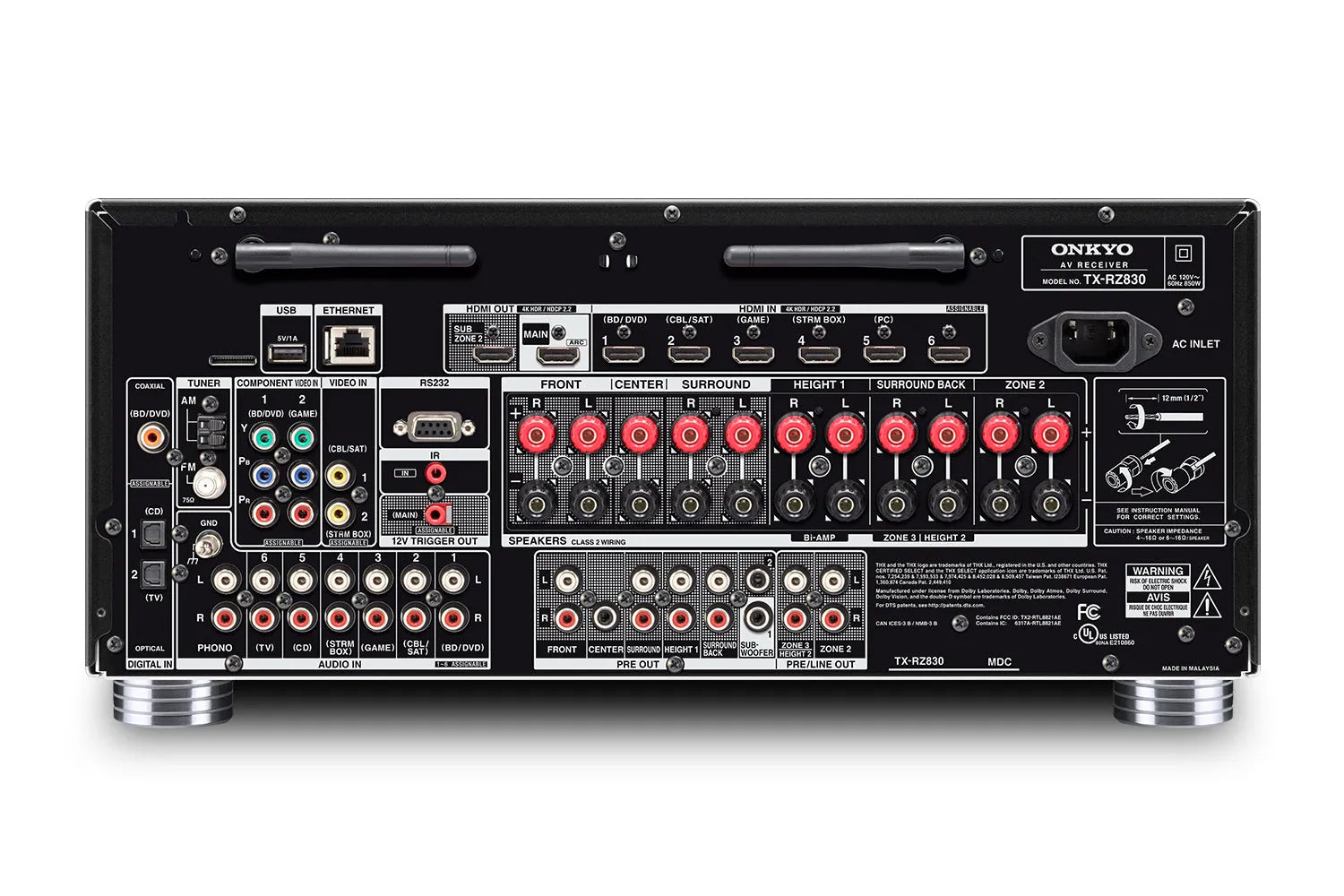

CONNECTION FEATURES

  • 7 HDMI inputs (1 Front), Main Out, and Sub/Zone 2 Out
  • Powered USB terminal (5 V, 1 A) for audio playback (rear)
  • 2 composite video inputs and 2 component video inputs
  • 3 digital audio inputs (2 optical and 1 coaxial)
  • 6 analog audio inputs, 1 stereo 3.5 mm analog input (front)
  • Phono input (MM) and equalizer for turntable connection
  • 11.2 multichannel pre-outs
  • 2 subwoofer pre-outs
  • 6.35 mm headphone jack (front)
  • Speaker setup mic input (front)
  • 12 V trigger output, IR input, IP control, and RS232 support
  • Detachable power cable
OTHER FEATURES

  • Aluminum front panel, flap door, and volume control
  • Crossover adjustment for each channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
  • A/V Sync Control (up to 500 ms in 5 ms steps at 48 kHz)
  • Graphical User Interface with overlaid On-Screen Display via HDMI
  • Quick Setup Guide via GUI
  • Economical HDMI pass-through and Network Standby functions
  • 3-mode display dimmer (Normal/Dim/Dimmer)
  • 40 FM/AM random presets
  • Simple remote control
  • Rack-mounting kit (optional IRK-180-4C)

Stiprintuvas

  • Power Output
  • All Channels 120 W/Ch (8 Ohms, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven, FTC)
  • 250 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven)
  • Dynamic Power 250 W (3 Ohms, Front)
  • 220 W (4 Ohms, Front)
  • 130 W (8 Ohms, Front)
  • THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz-20 kHz, half power)
  • Input Sensitivity and Impedance 200 mV/82 k-ohms (Line)
  • 3.5 mV/47 k-ohms (Phono MM)
  • Rated RCA Output Level and Impedance 1 V/470 Ohms (Sub pre-out)
  • 1 V/2.3 k-Ohms (Zone Pre Out)
  • 1 V/200 mV/470 ohms (Zone pre/line out)
  • Frequency response 5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
  • Phono Overload 70 mV (MM, 1 kHz, 0.5%)
  • Tone Control ±10 dB, 20 Hz (Bass)
  • ±10 dB, 20 kHz (Treble)
  • Signal-to-Noise Ratio 106 dB (Line, IHF-A)
  • 80 dB (Phono, IHF-A)
  • Speaker Impedance 4 ohms–16 ohms

Vaizdas

  • Input Sensitivity/Output Level and Impedance -
  • Video 1.0 Vp–p/75 Ohms (Component Y)
  • 0.7 Vp–p/75 Ohms (Component PB/CB, PR/CR)
  • 1.0 Vp–p/75 Ohms (Composite)

Tuneris

  • Tuning Frequency Range
  • FM 87.5 MHz–1070.9 MHz
  • AM 530 kHz–1,710 kHz
  • FM/AM Preset Memory 40 stations

Pagrindinis

  • Power Supply AC 120 V~, 60 Hz
  • Power Consumption 870 W
  • No-Sound Power Consumption 70 W
  • Standby Power Consumption 0.15 W
  • Dimensions (W x H x D) 17 1/8" x 7 15/16" x 15 11/16" (435 x 201.5 x 398 mm)
  • Weight 30.9 lbs (14.0 kg)

Carton

  • Dimensions (W x H x D) 22 5/8" x 13 3/16" x 19 5/16"
  • (574 x 335 x 490 mm)
  • Weight 37.5 lbs (17.0 kg)
