Pandora CAMPER V3, apsaugos sistema kemperiams

INFORMACIJA

Pandora CAMPER V3 - tai trečios kartos pažangi apsaugos sistema, sukurta kemperiams ir mikroautobusų pagrindu sukurtiems poilsiniams automobiliams. Sistema užtikrina aukščiausio lygio saugumą, patogų valdymą ir pilną transporto priemonės kontrolę realiu laiku. Integruotas GPS/GLONASS modulis leidžia bet kada nustatyti transporto priemonės buvimo vietą, o 4G ryšys suteikia galimybę valdyti sistemą ir gauti pranešimus iš bet kurios vietos. Specialus „Stay Home“ režimas leidžia saugiai būti kemperio viduje nakties metu, galite laisvai judėti viduje, o išorinis perimetras išlieka pilnai apsaugotas. Valdymas per Pandora Connect programėlę, internetinę platformą arba Bluetooth ryšiu. Sistema siunčia išsamius pranešimus apie durų, langų, liukų ar kitų zonų būseną.

Ryšys: 4G / Bluetooth 5.0
GPS: integruotas GPS/GLONASS modulis
Valdymas: mobilioji programėlė (iOS / Android), internetinė platforma
Apsaugos funkcijos: smūgio, judesio, posvyrio kontrolė
Papildomi jutikliai: palaikomi (dujų, CO2, judesio ir kt.)
Specialus režimas: „Stay Home“ (apsauga būnant viduje)

APRAŠYMAS

The third generation of the popular security-telemetric system Pandora Camper. It is a perfect solution both for traditional campers and recreation vehicles based on a van platform. Based on the most modern technological platform, the new base unit in combination with a new remote control provide outstanding level of reliability, safety and convenience. Pandora Camper system contains a wide range of security, service and anti-hi-jacking functions. The system provides full control of the vehicle by reading statuses from the CAN-bus. It allows to reduce connection points, to simplify the installation process and to implement control of the OEM systems, like interior heaters. An integrated GPS receiver will allow you to locate your car at any time.  4G connection expands a zone where you can control the system and receive alarm and service notifications to the cellular network coverage area.

STAY HOME

Pandora Camper is made to keep your safe 24/7 even when you are sleeping inside your recreation vehicle. For a nighttime it has a special “Stay Home” mode, which allows you to move free inside, while outside perimeter is reliably protected. Special inputs and outputs allow to enlarge security level by adding some camper-specific sensors, like detectors of Propane, CO2 or sleeping gas. Silent arming will not disturb your neighbors.

INTERNET SERVICE AND MOBILE APPLICATIONS

The special internet-service pandora-on.com, mobile application Pandora Connect for smartphones (Apple, Android) and smartwatches (Apple watch, Android Wear, Samsung Gear S2/S3) allow you to combine your vehicle and your gadgets into one platform. You can configure and control all of your vehicles with the multifunctional Pandora application and Internet-service pandora-on.com. Depending of the triggered alarm zone, Pandora Connect will show you different warning messages for doors, windows, hatches, trunks, bicycles, gas sensors, etc.

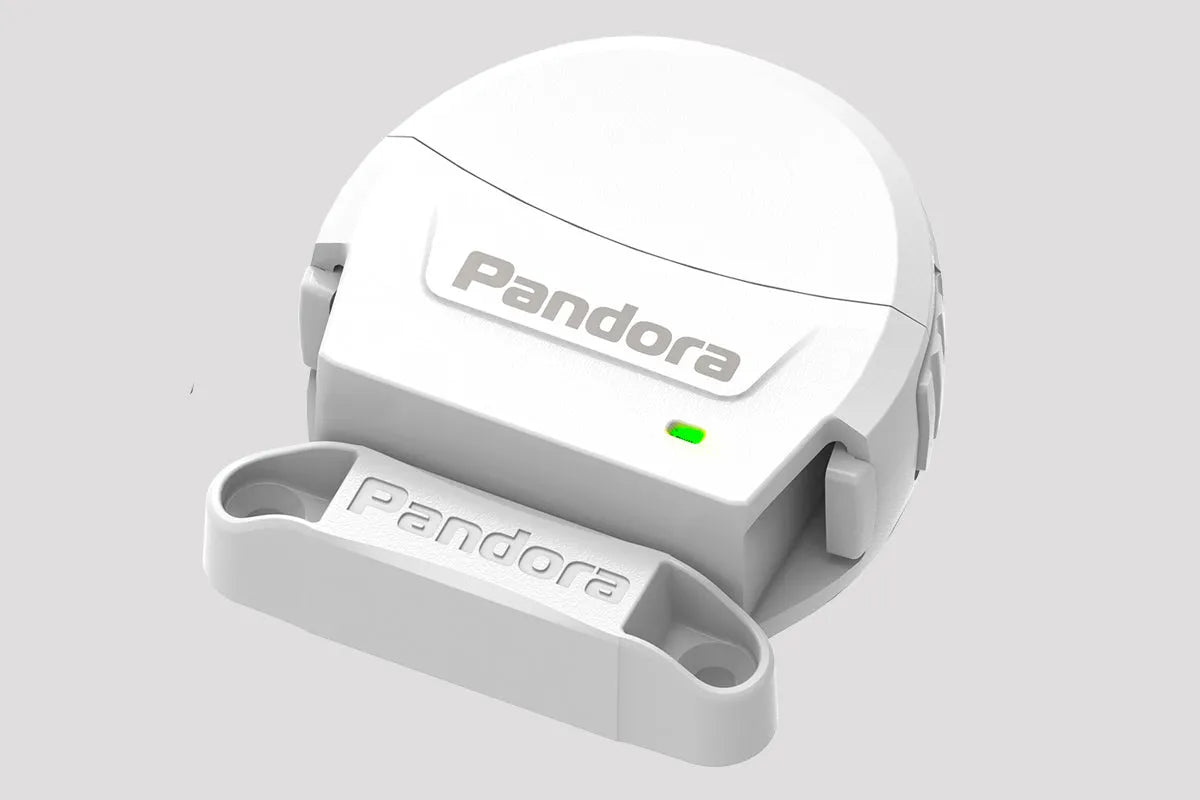

DMS-101BT

Wireless sensor Pandora DMS-101BT is designed for the detection of shock, motion, rotation, temperature determination at the opening elements which are located at a considerable distance from the base unit. Sensors operation is based on using of 3-coordinate accelerometer and a hall sensor for reliable detection of door/window/hatch opening/closing even left opened for airing.

BUILT-IN 4G INTERFACE

4G connection expands a zone where you can control the system and receive alarm and service notifications to the cellular network coverage area. You can control your vehicle from anywhere.

INTEGRATED BLUETOOTH INTERFACE

BLUETOOTH 5.0 protocol supports a mobile phone and all our additional Bluetooth devices.

INTEGRATED GPS/GLONASS RECEIVER

A built-in receiver has low power consumption, high sensitivity and minimum response time after ‘cold’ and ‘warm’ start. It ensures reliable tracking under conditions of low GPS/GLONAS signal level and urban areas.

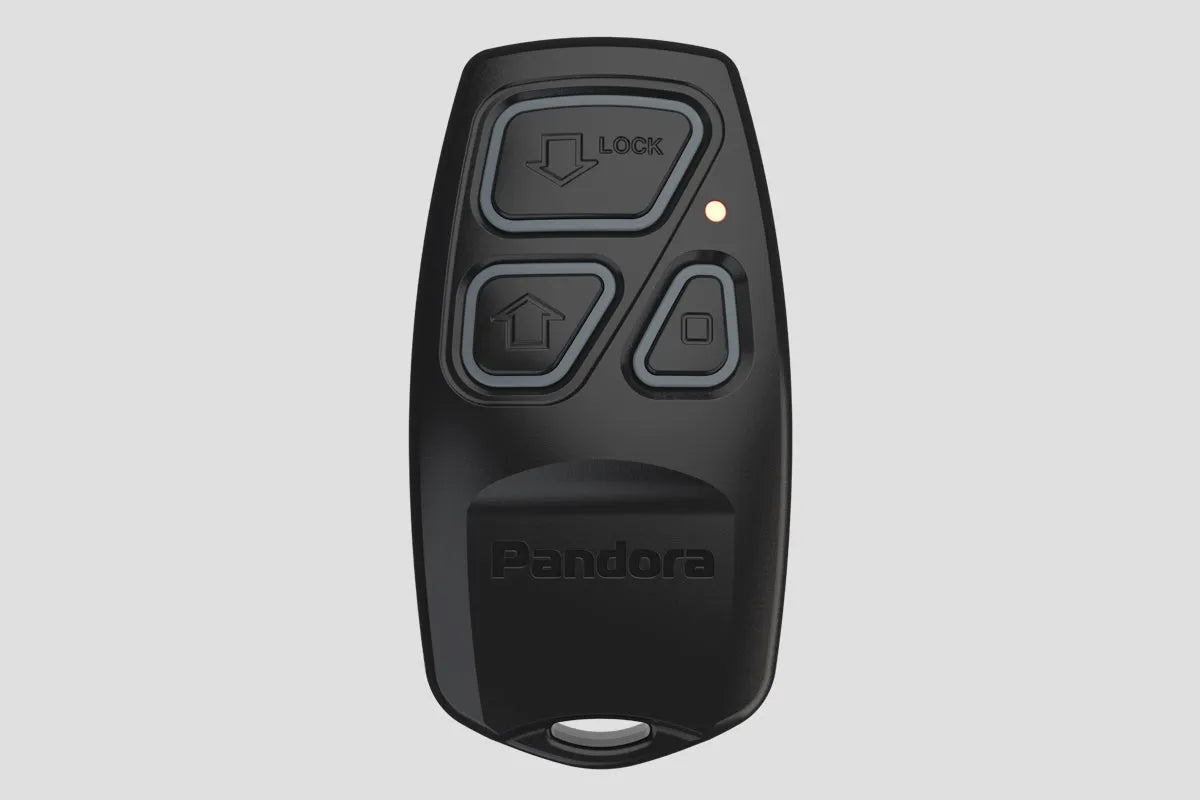

REMOTE CONTROL

Ergonomic remote control with status LED, beeper and and large control buttons provides convenient control of the system and the vehicle on the distance of the Bluetooth connection. Optimized power consumption algorithms ensure long life of astandardCR2032 battery.

BLUETOOTH TAG

Miniature Bluetooth tag is included in the system set. The tag has a button for arming/disarming. Bluetooth interface allows to implement a reliable HandsFree function with adjustable operating distance

CONTROL OF THE PRE-HEATERS

The system provides the most flexible and convenient algorithms to control original or additional engine and interior heaters.

INTEGRATED ACCELEROMETER

An integrated 3D accelerometer and elaborate algorithms allows the system to control the vehicle shock/tilt/motion security zones and perform engine blocking on movement starting. New high-sensitive and reliable accelerometer provides smart protection and prevents false alarms.

ENERGY EFICIENCY

Due to the most modern algorithmic solutions, the latest electronic components, the system works correctly on all current car models and meets the requirements of car manufacturers.

TECHNINIAI DUOMENYS

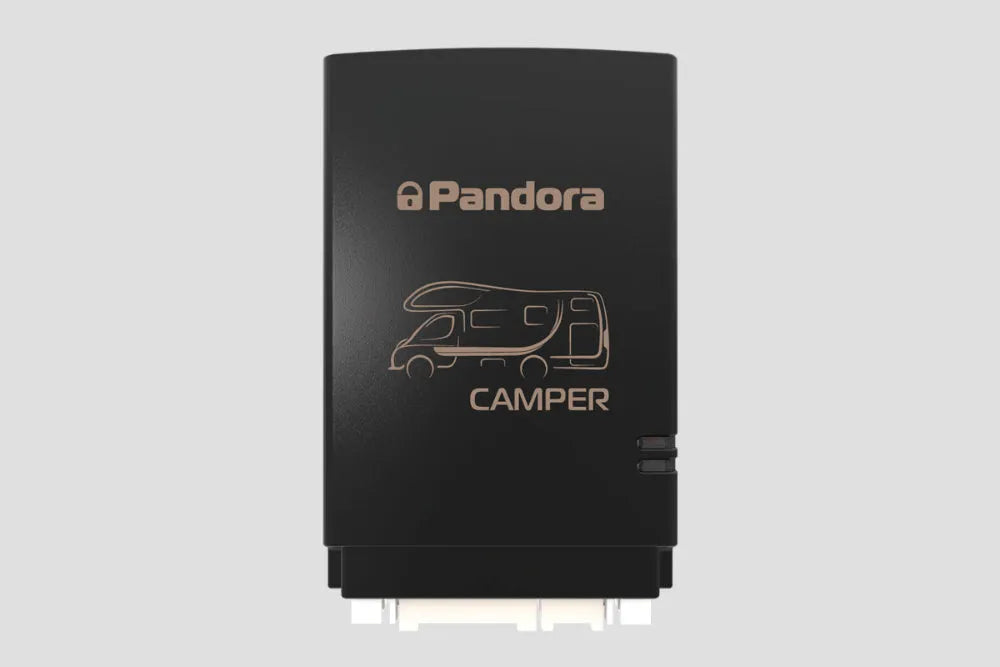

Base unit DXL 5300L v3 with master-PIN card – 1
Immobilizer tag BT775 – 1
Bluetooth remote control (R-500BT) – 1
Wireless sensor DMS-101BT(White) – 2
Siren Pandora PS-330 – 1
Blocking relay – 1
Fastening kit DeLuxe – 1
System wires
Beeper – 1
Cable with LED/VALET button – 1
Temperature sensor – 1
Manual and wiring diagram- 1
Packaging – 1

DOKUMENTAI

Vartotojo vadovas (EN)

Montavimo instrukcija (EN)
