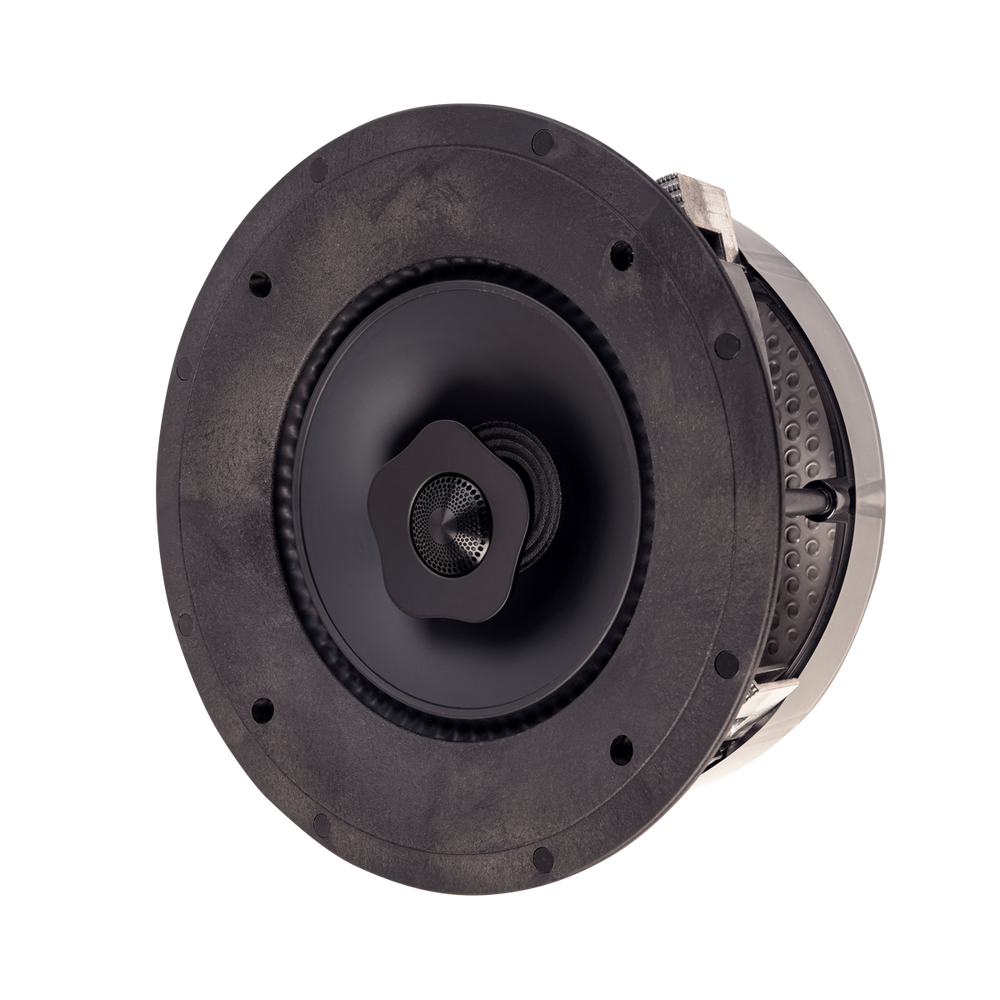

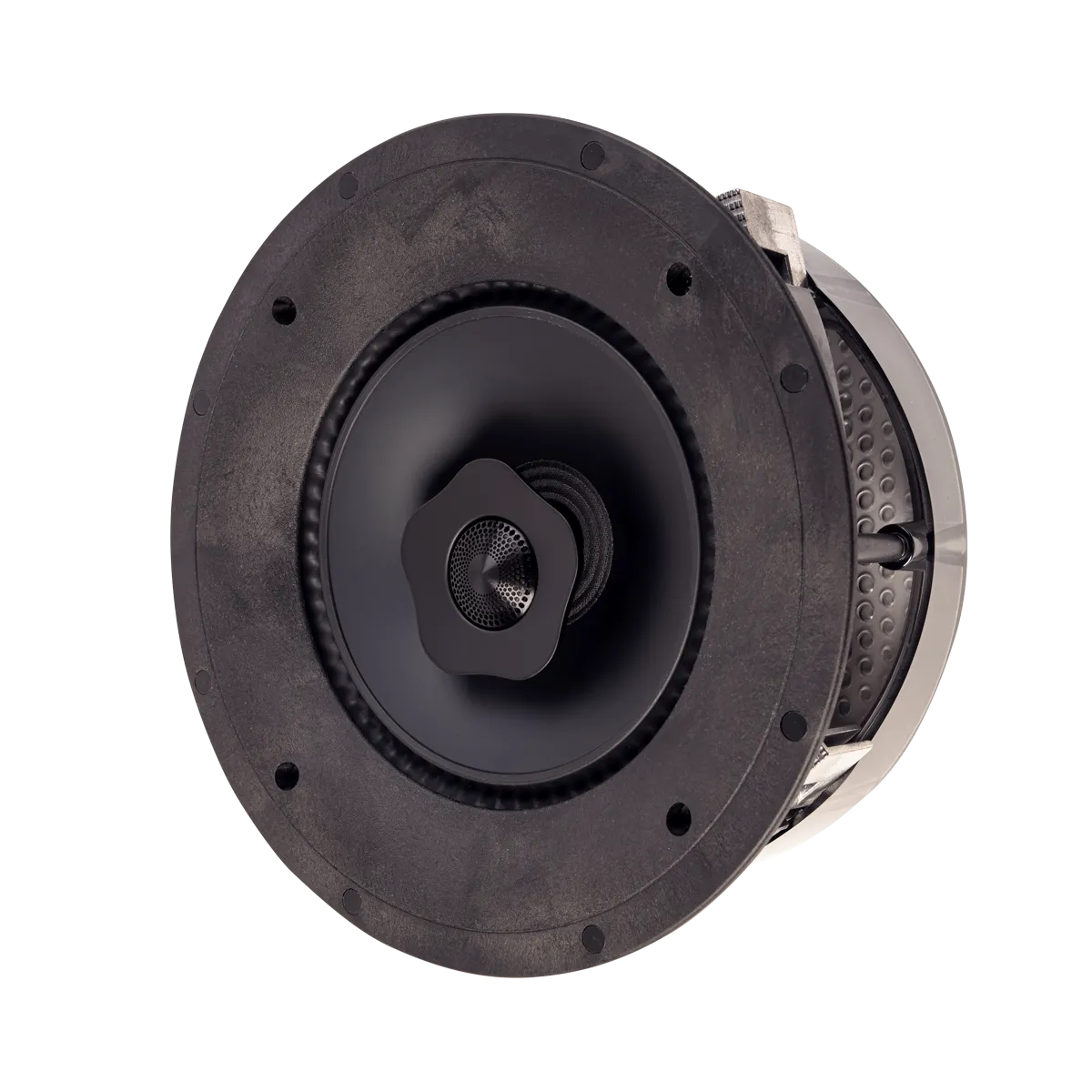

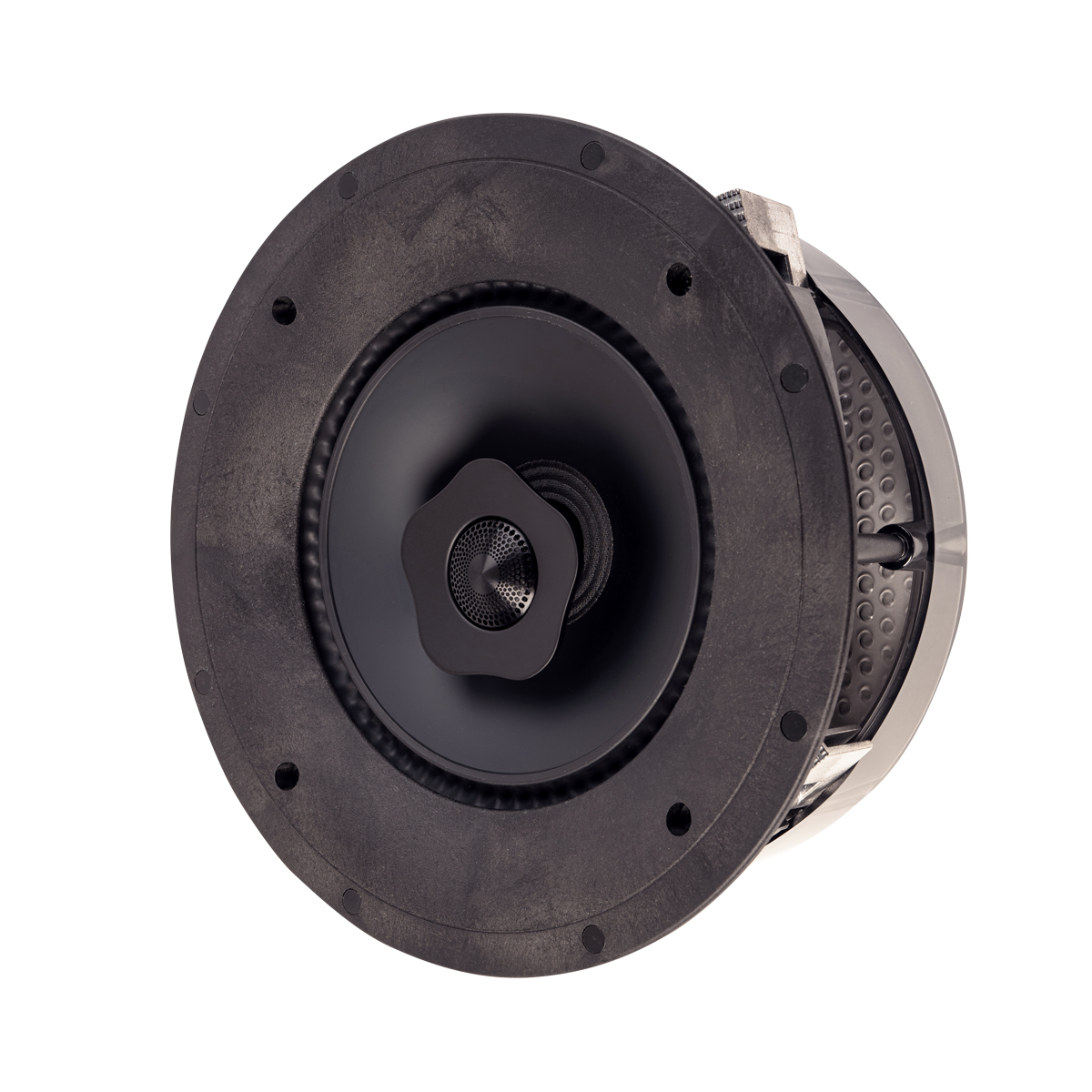

Paradigm CI Elite E80-R v2, lubinis garsiakalbis (Montavimo gylis: 9.8cm).

719.00 €

Paradigm CI Elite E80-R v2, lubinis garsiakalbis (Montavimo gylis: 9.8cm). yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

 "CI Elite" serija yra pagaminta Kanadoje ir turi visus mūsų "CI PRO" serijos technologinius privalumus.

  • Rekomend. stiprintuvo galia: 15-160 W.
  • Dažnių juosta: 60 Hz - 18 kHz.
  • Jautrumas: 93 dB.
  • Montavimo gylis: 9.8cm.






The Custom Installer’s Performance-Oriented Solution

The CI Elite series is Made in Canada and has all the technology advantages of our CI PRO Series, but we didn’t stop there. It’s packed full of features that make a difference, and it doesn’t get much sweeter than this when looking for the ultimate sound performance.

Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

AL-MAC™ is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.



Aluminum Magnesium
(AL-MAG™) Cones

Similar to the goals we had in mind when developing the AL-MAC™ tweeter, AL-MAG™ was conceived to bring the same elevated level of performance to the area where our ears are the most sensitive. In addition, AL-MAG™ combines a high stiffness-to-mass ratio with superior internal damping for greater accuracy.

Advanced
Shock-Mount™ System

mechanically decouples the die-cast aluminum baskets from the specially formulate CARBON-X™ ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.



Oversized, 1.5” High-Power Handling Voice Coil

motor structure dramatically increases maximum output level and reduces power compression.

Patented† Active Ridge Technology (ART™) surrounds

made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.


Advanced Features for a Solid and Secure Installation


FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.

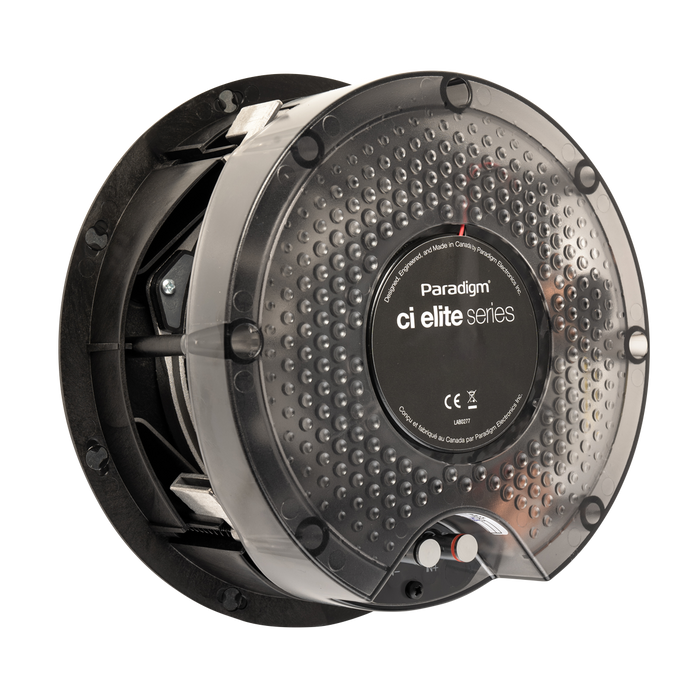

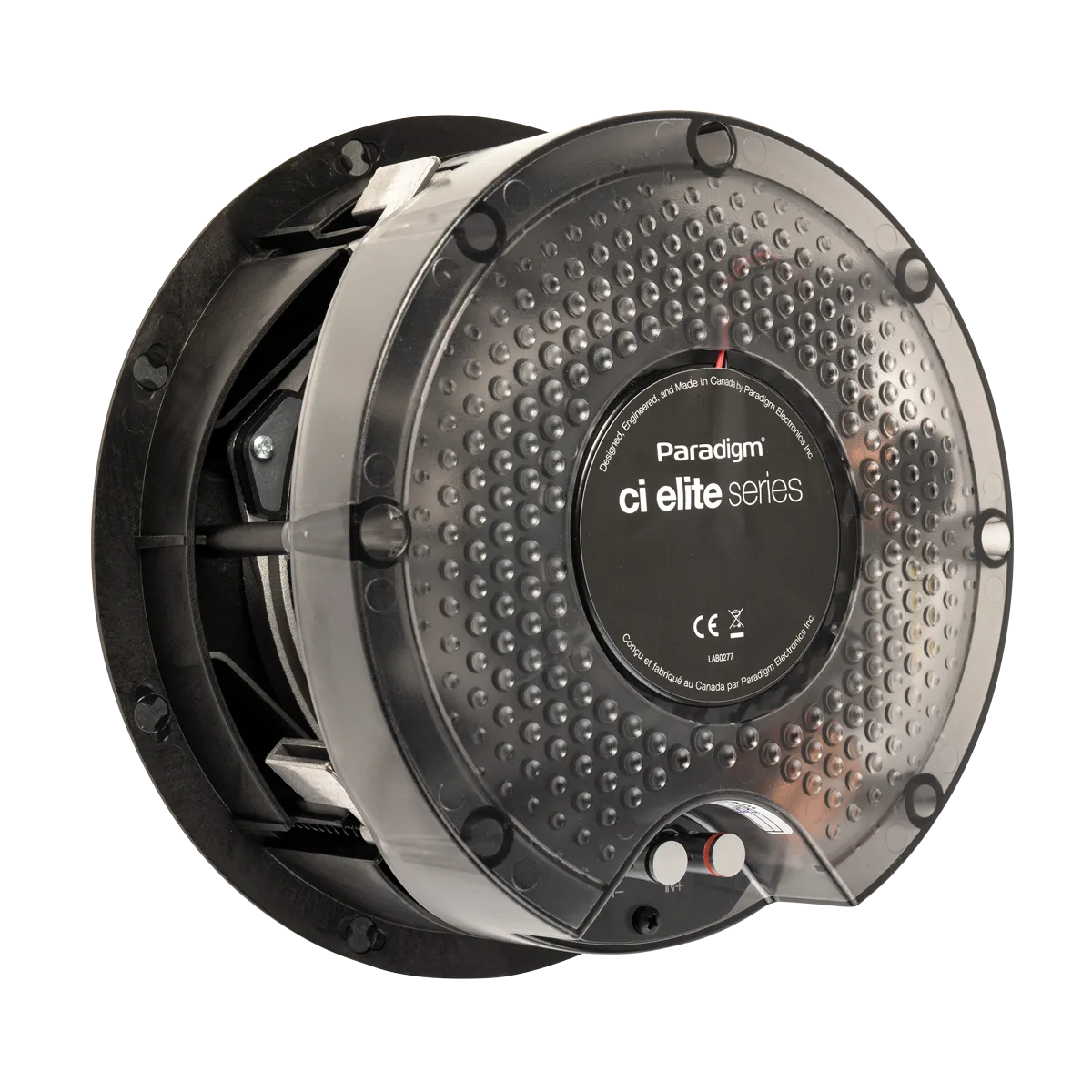

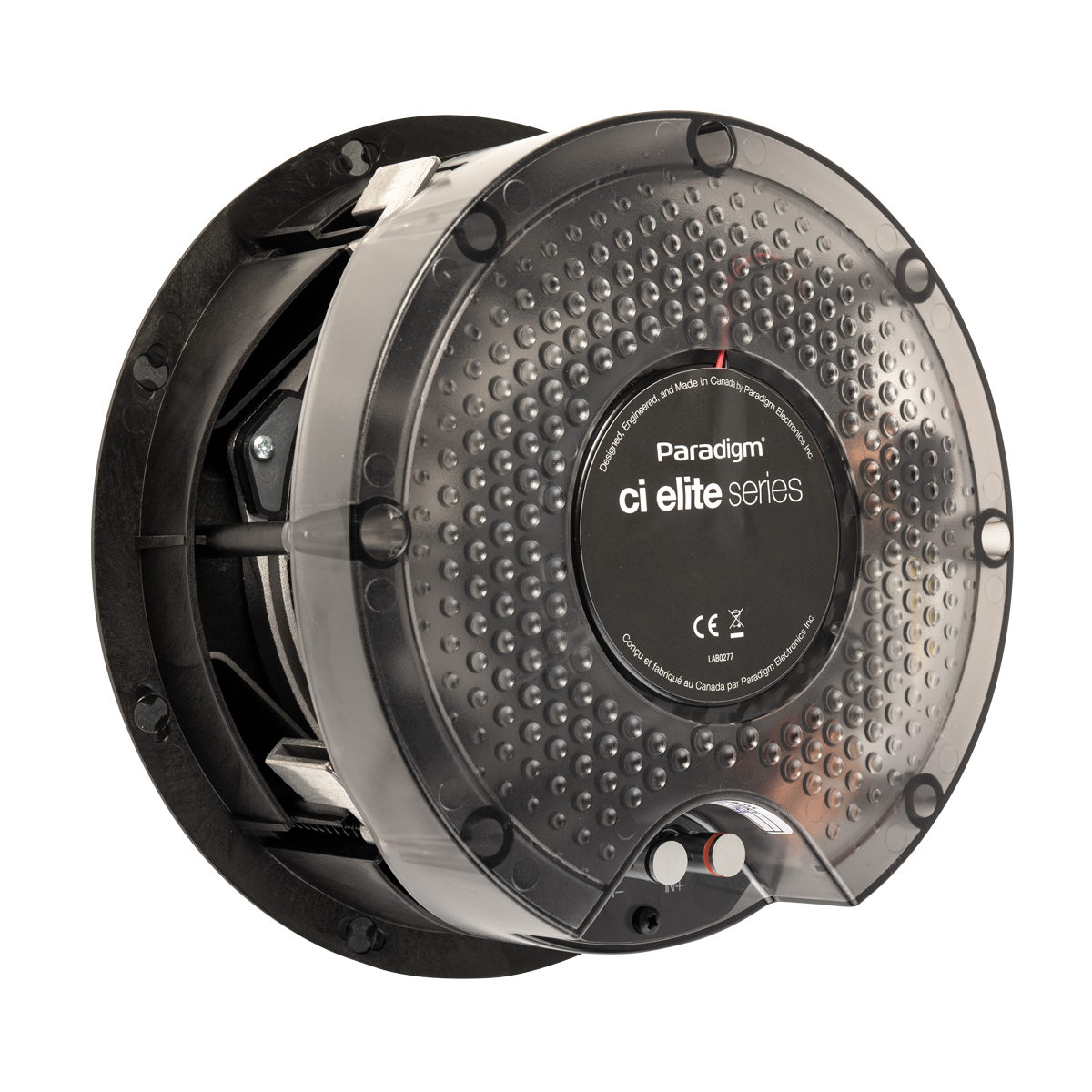

Rear Component Shielding protects internal parts from debris. The polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping. (CI Pro/Elite Models Only)


Screen Compensation Mode ensures true acoustic transparency when placed behind micro-perforated projection screens. (CI Elite LCR models only)


Pocketed screw holes help to hold the drill steady, making installation a snap.


Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.


Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.

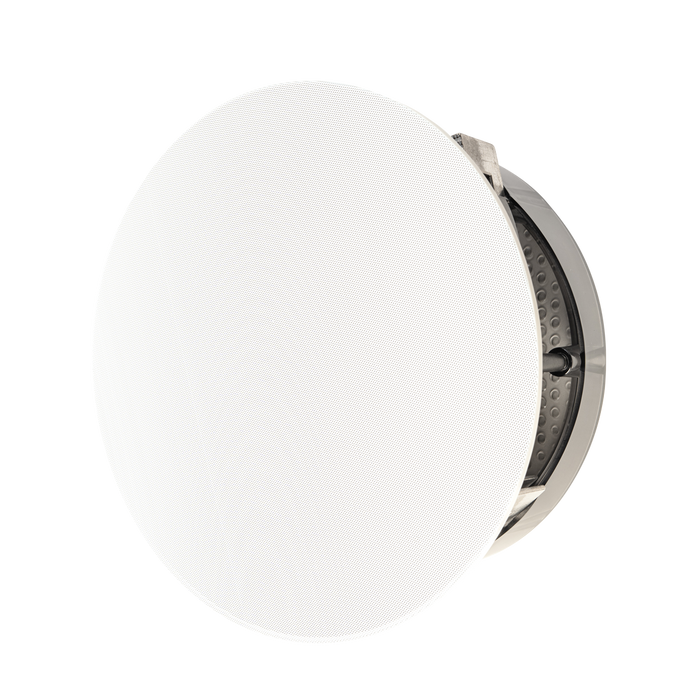

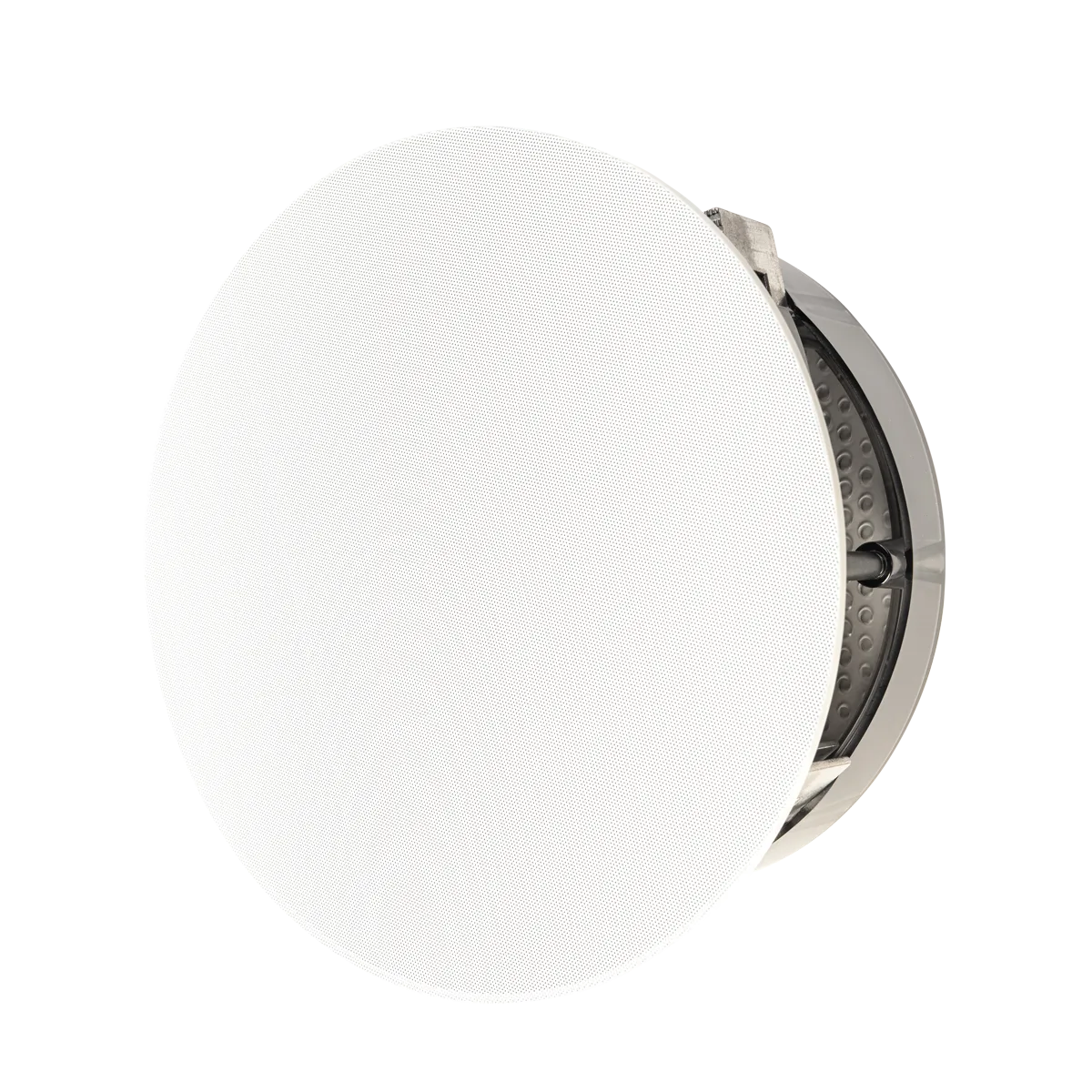

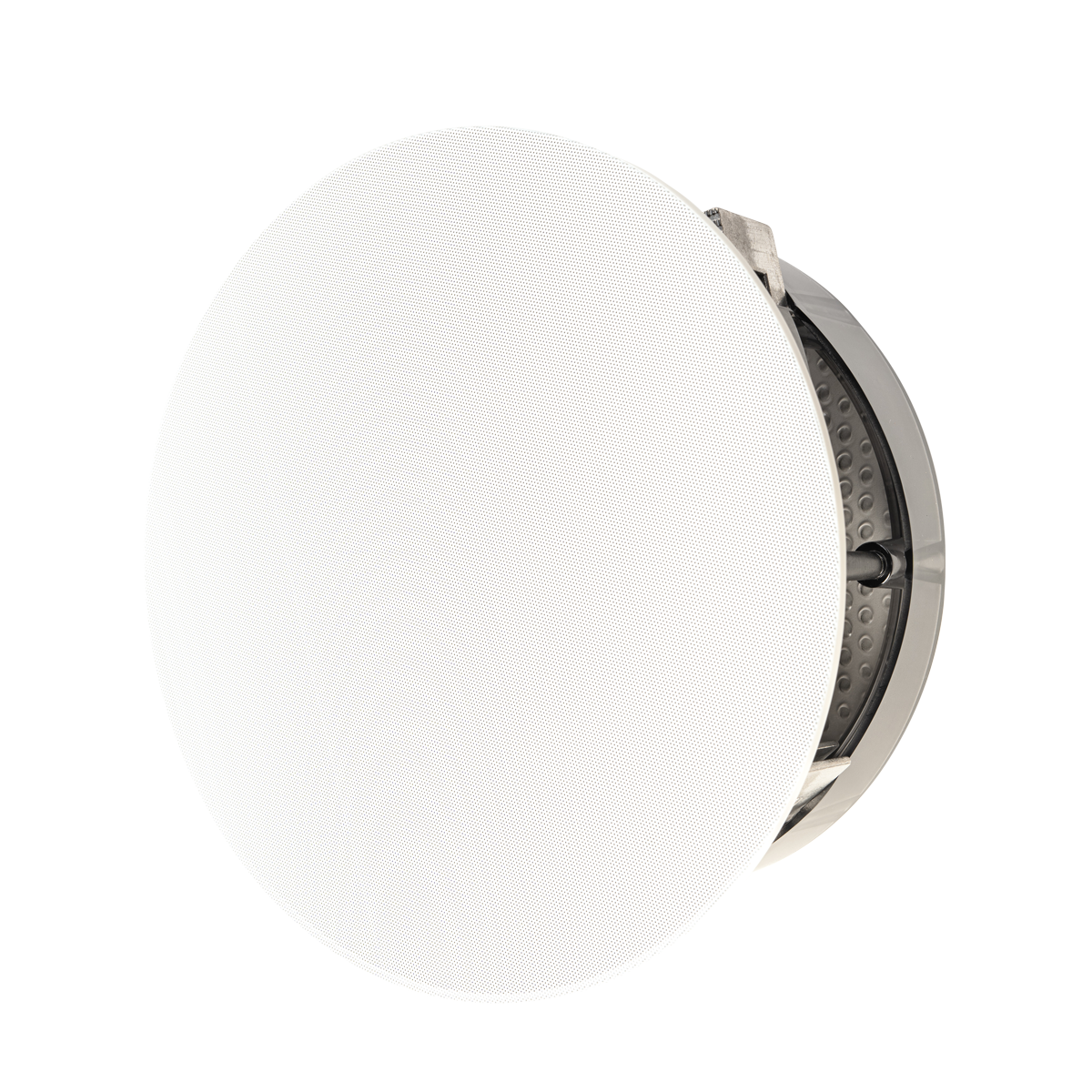

Bezel-Free Micro-Perf Grilles offer a clean aestetic from room-to-room.


Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

Partnered with the NRC

Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.

SPECIFIKACIJOS

DESIGN 2-driver, 2-way in-ceiling, Advanced SHOCK-MOUNT™ System, Ultra-Rigid CARBON-X™ Baffle
CROSSOVER 3rd-order electro- acoustic at 2.0 kHz
FREQUENCY RESPONSE ON-AXIS ±3 dB from 60 Hz - 22 kHz
HIGH FREQUENCY DRIVER 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology
MID/BASS FREQUENCY DRIVER 8” (20.3cm) Aluminum Magnesium (AL-MAG™) Coneswith overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, 1.5” high-temp voicecoil, FEA-Optimized Ultra Rigid Cast- Aluminium Baskets
LOW FREQUENCY EXTENSION 37 Hz
SENSITIVITY ROOM / ANECHOIC 93 dB / 89 dB
FREQUENCY RESPONSE 30° OFF-AXIS ±3 dB from 60 Hz - 18 kHz
SUITABLE AMPLIFIER POWER RANGE 15-160 W
MAXIMUM INPUT POWER 100 W
IMPEDANCE Compatible with 8 ohms
WEIGHT 6.4 lbs (2.9 kg)
FINISHES White, paintable grille, black speaker
CUT-OUT DIMENSIONS 9-3/16” (23.4cm) dia.
MINIMUM MOUNTING DEPTH
(DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.)
3-7/8” (9.8cm)
DIMENSIONS HXWXD (INCLUDES GRILLE). 10-1/4” (diameter) x 4-1/2” (depth) (26.1cm x 11.4cm)
r) x 4-1/4” (depth) (22.6cm x 10.7cm)



INSTRUKCIJOS

User Manual (EN.)
