Paradigm

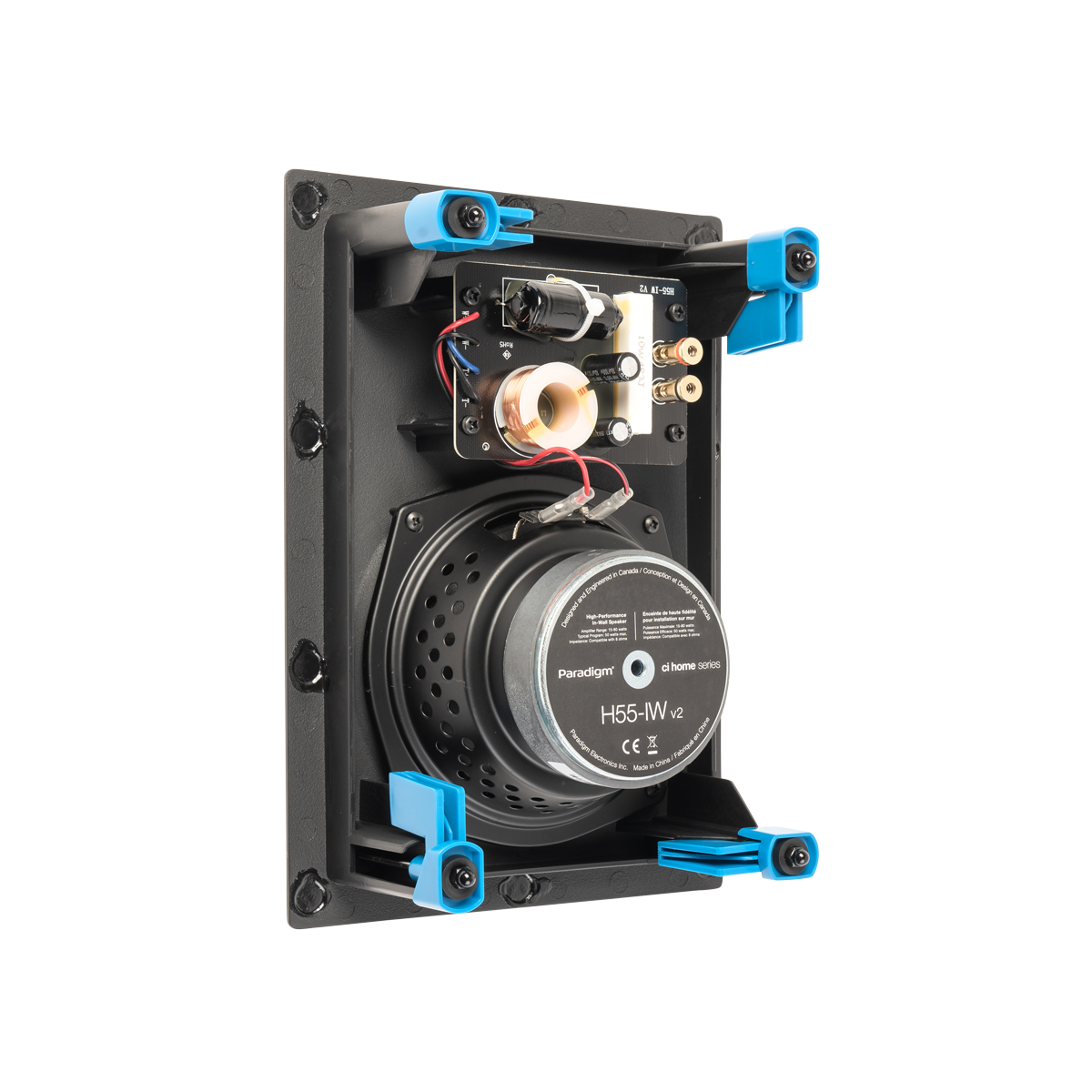

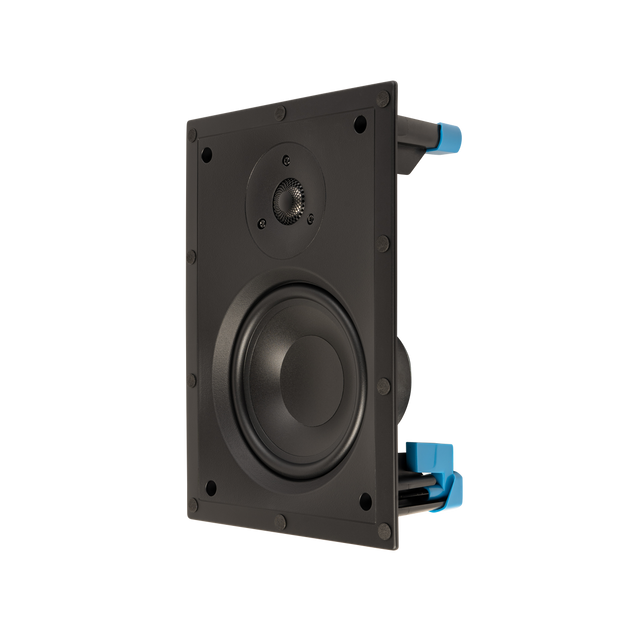

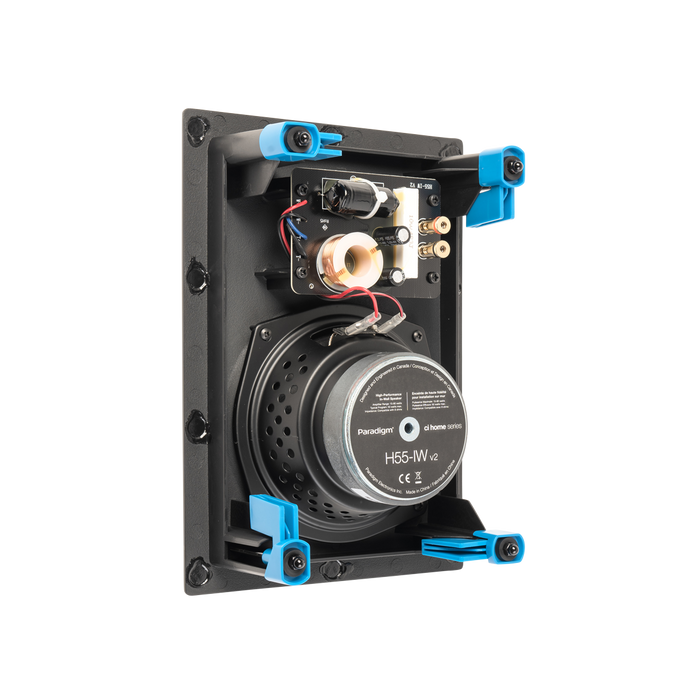

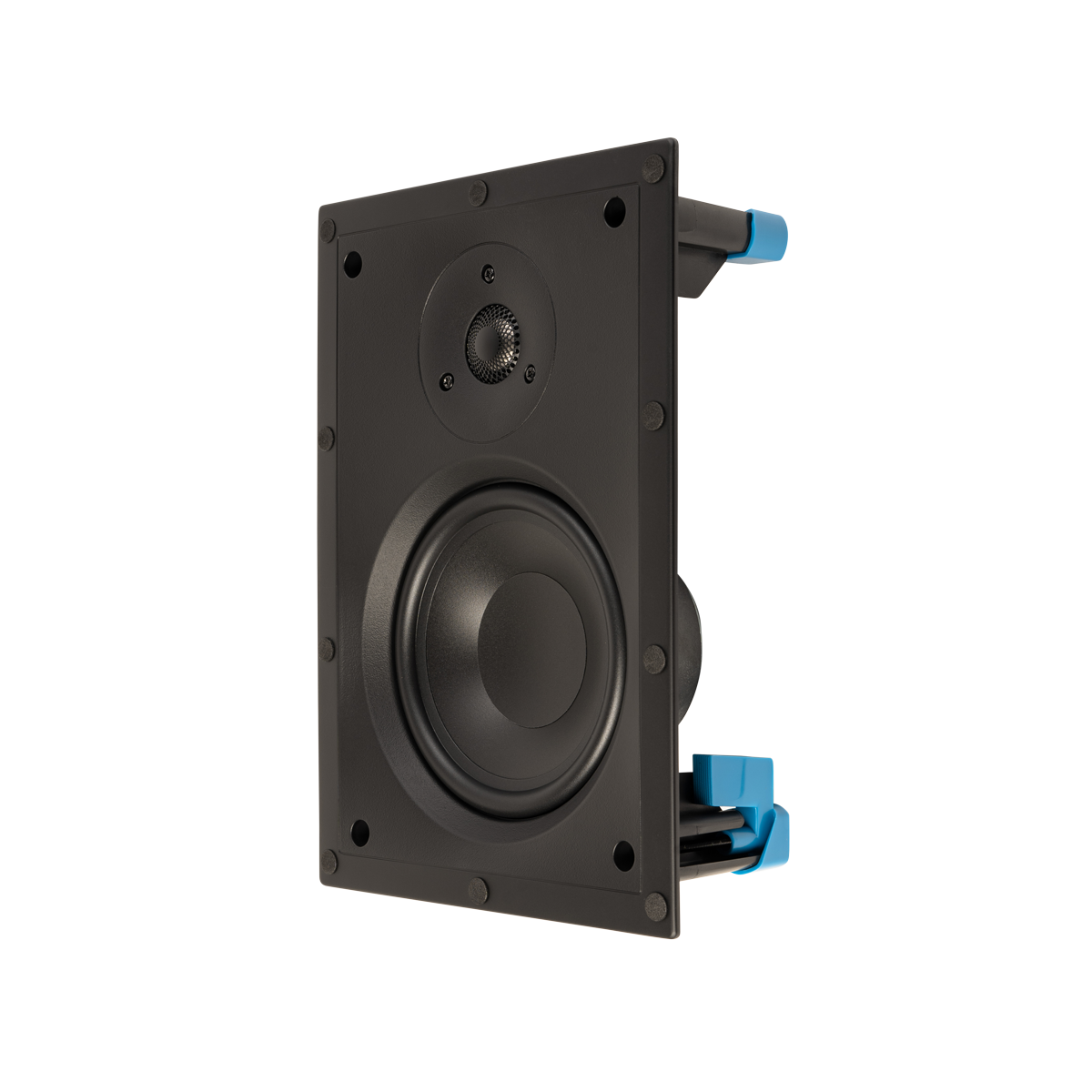

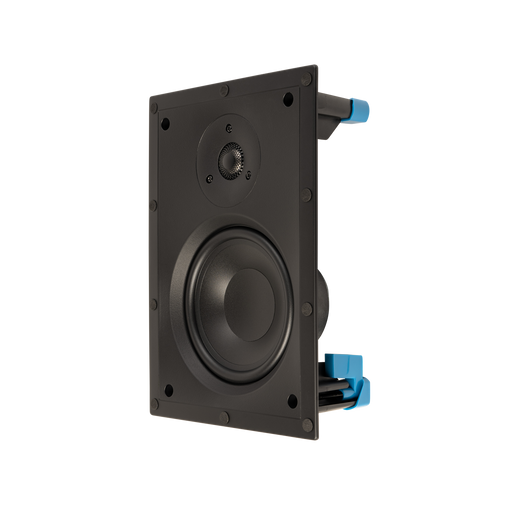

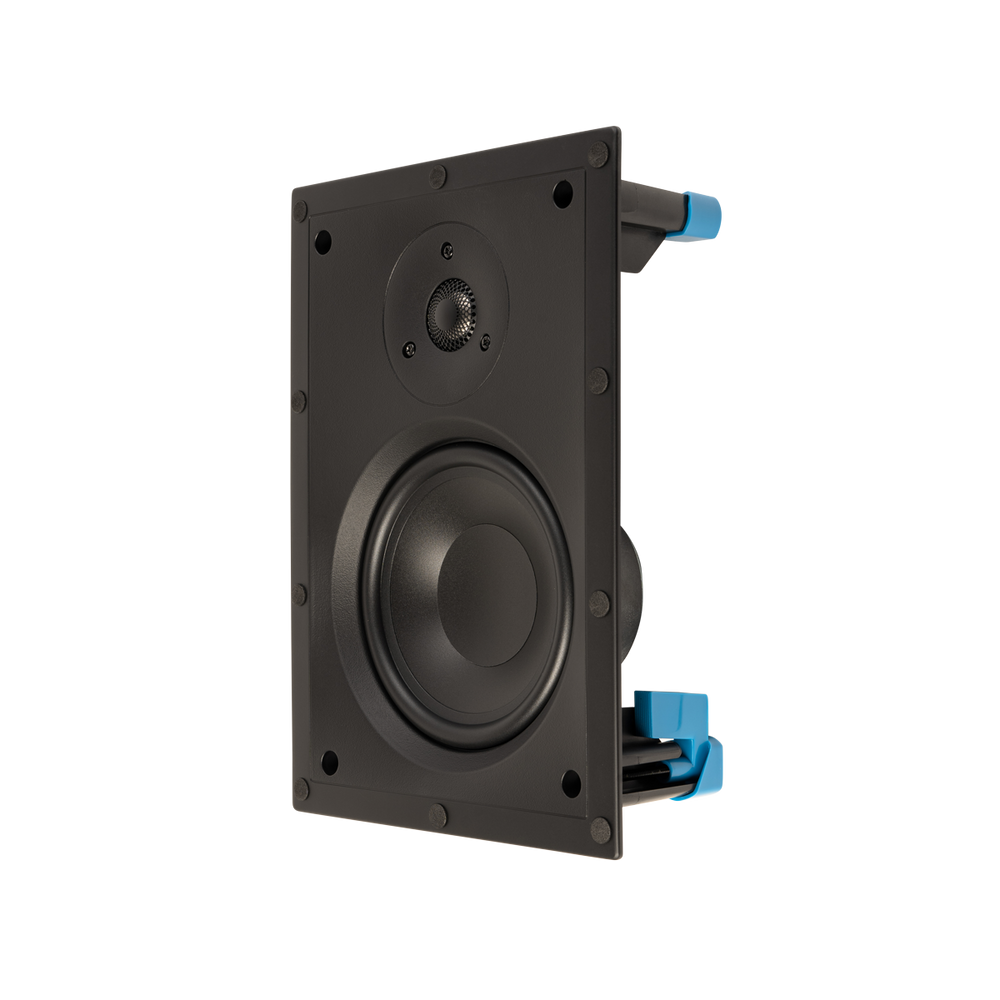

Paradigm CI Home H55-IW v2, į sieną montuojama garso kolonėlė (montavimo gylis: 7 cm.)

€239.00 EUR

Paradigm CI Home H55-IW v2, į sieną montuojama garso kolonėlė (montavimo gylis: 7 cm.) - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

"Paradigm" džiaugiasi galėdama pristatyti jums naujausią mūsų nebrangių ir į našumą orientuotų pasirinktinio montavimo gaminių asortimentą.

  • Rekomend. stiprintuvo galia: 15-80W.
  • Jautrumas: 88 dB.
  • Dažnių juosta: 70 Hz - 18 kHz.
  • Išpjovos matmenys: 23.3cm x 15.6cm.
  • Minimalus montavimo gylis:  7cm.
  • Dažomas paviršius.





Paradigm’s Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

protects the delicate tweeter dome. PPA™ technology acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output. Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.

Dual Directional Soundfield™

30°-Angled Guided Soundfield™

Dual-Directional Soundfield™ & 30°-Angled Guided Soundfield™ Models

Our Stereo/Mono (SM) systems offer rich pure-fidelity dual-channel L/R sound from a single speaker. The Dual Directional Soundfield™ provides wider-than-normal dispersion making the systems ideal in small rooms that are less suited to a stereo pair, or where a single speaker is preferred.

Drivers in our 30°-Angled Guided Soundfield™ sit at a 30° angle from the ceiling, enabling you to adjust the direction of the sound, without compromising the curial sound dispersion pattern between drivers and baffle, thereby preserving sonic integrity. 30°-Angled Guided Soundfield™ systems are ideal as front speakers and as surround and/or rear speakers in a home theatre system.

Other Features:
Pocketed screw holes help to hold the drill steady, making installation a snap. In addition, exclusive TORX-guided clamps protect against screw cam out and stripping.
Rigid ABS clamps simplify and reduce installation time. ABS sandwiches and strengthens the area around the mounting hole, removing unwanted resonance and vibrations.
Available pre-construction brackets and square grille accessories provide the utmost installation flexibility.
Superior Mineral-filled Polypropylene Bass/ Midrange Cones: Oversized computer optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass.

Easy-access binding posts: High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.

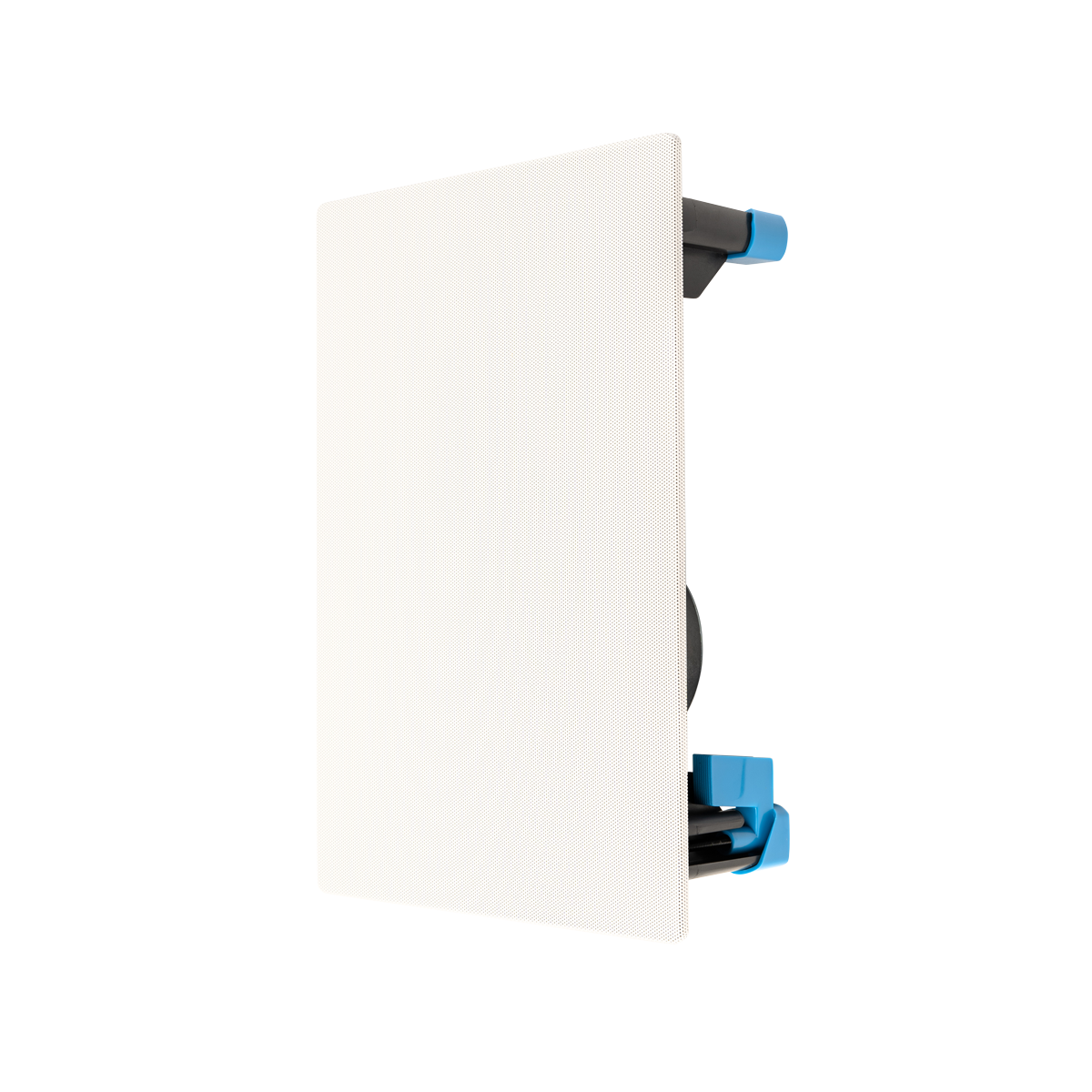

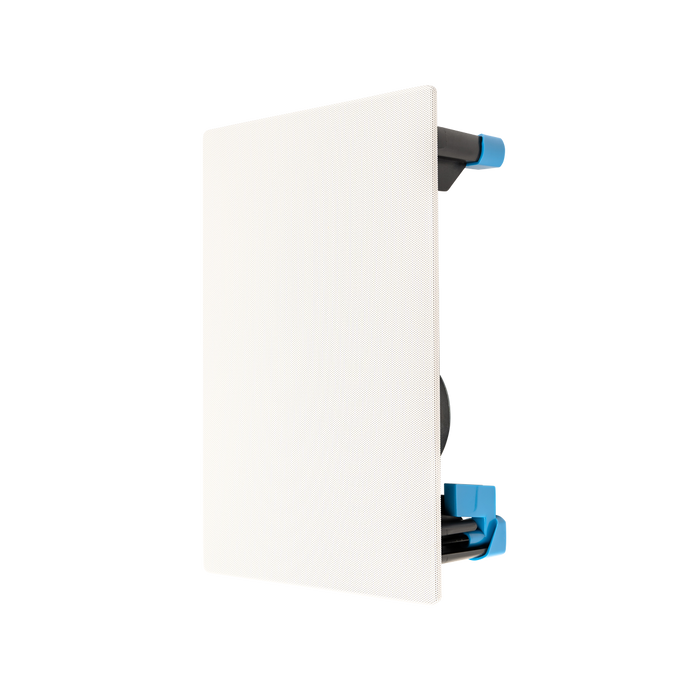

Magnetically attached grilles: neodymium magnets hold grilles firmly in place. Bezel-Free, Micro-Perf Grilles allow you to mix and match CI Home, CI Pro and CI Elite Series for a seamless aesthetic from room-to-room!

Partnered with the NRC

Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.

SPECIFIKACIJOS


DESIGN 2-driver, 2-way in-wall,ABS chassis & mounting clamps
CROSSOVER 2nd-order electro- acoustic at 2.5 kHz
FREQUENCY RESPONSE ON-AXIS ±2 dB from 75 Hz - 20 kHz
HIGH FREQUENCY DRIVER 3/4” (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
MID/BASS FREQUENCY DRIVER 5.5” (13.9cm) Mineral-filled Polypropylene Cone
LOW FREQUENCY EXTENSION 60 Hz
SENSITIVITY ROOM / ANECHOIC 88 dB / 84 dB
FREQUENCY RESPONSE 30° OFF-AXIS ±2 dB from 75 Hz - 18 kHz
SUITABLE AMPLIFIER POWER RANGE 15-80 W
MAXIMUM INPUT POWER 50 W
IMPEDANCE Compatible with 8 ohms
WEIGHT 2.5 lbs (1.2 kg)
FINISHES White, paintable grille, black speaker
ACCESSORIES (INCLUDED) PB-6X9N
CUT-OUT DIMENSIONS 9-3/16” x 6-1/8” (23.3cm x 15.6cm)
MINIMUM MOUNTING DEPTH
(DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) 		2-3/4” (7cm)
DIMENSIONS HXWXD (INCLUDES GRILLE). 10-1/4” x 7-1/8” x 3-3/8” (25.9cm x 18.2cm x 8.7cm)





INSTRUKCIJOS

User Manual (EN).
