Paradigm

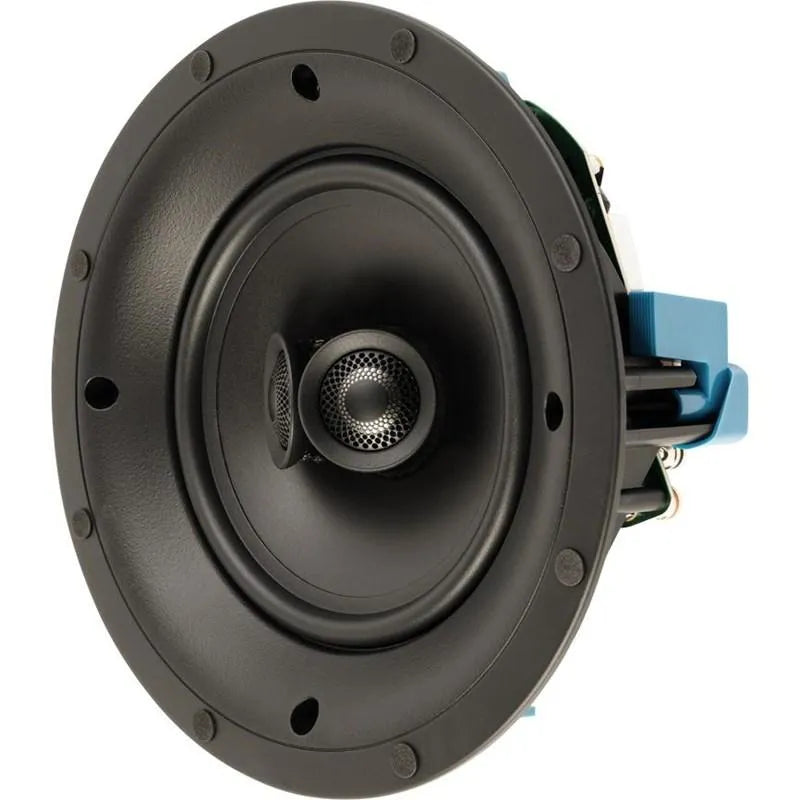

Paradigm CI Home H65-SM V2, lubinis garsiakalbis (Montavimo gylis: 7.6cm)

"CI HOME" serijos garsiakalbiuose atsižvelgiama į svarbiausius aspektus renkantis pagal užsakymą montuojamus garsiakalbius: tikrai puikų garsą, "trickle-down" technologijas, paprastą montavimą ir neįtikėtinai diskretišką estetiką užtikrinančias mikroperforacines groteles be rėmelio.
€299.00 EUR

Paradigm CI Home H65-SM V2, lubinis garsiakalbis (Montavimo gylis: 7.6cm) - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Pristatymas

Lietuvoje siuntas pristatome iki durų DPD kurjeriu per 1-2 darbo dienas, už 4.99€. Užsisakius virš 100€ - pristatymas nemokamas.

Siuntų pristatymas už Lietuvos ribų per 4-10 darbo dienų. Pristatymo kainos nuo 15.00€.

Prekių atsiėmimas parduotuvėje

Užsakytas prekes internetu galite atsiimti mūsų parduotuvėje adresu Armatūrininkų g. 1, Kaunas. Turėkite su savimi užsakymo nr.

Prieš atvykstant rekomenduojame pasiskambinti +370 683 90000

Darbo laikas: I-V 9:00-18:00

INFORMACIJA

"CI HOME" serijos garsiakalbiuose atsižvelgiama į svarbiausius aspektus renkantis pagal užsakymą montuojamus garsiakalbius: tikrai puikų garsą, "trickle-down" technologijas, paprastą montavimą ir neįtikėtinai diskretišką estetiką užtikrinančias mikroperforacines groteles be rėmelio.

  • Rekomend. stiprintuvo galia: 15-80 W.
  • Dažnių juosta: 70 Hz - 15 kHz.
  • Jautrumas: 89 dB.
  • Montavimo gylis: 7.6cm.






APRAŠYMAS

Your “Go-To” Custom Install Speaker. The CI HOME series address the important considerations when selecting custom installation speakers: truly superior sound, trickle-down technologies, easy installation, and a bezel-free micro-perf grille with an incredibly discreet aesthetic.

Paradigm’s Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

protects the delicate tweeter dome. PPA™ technology acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output. Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.


Dual Directional Soundfield™


30°-Angled Guided Soundfield™

Dual-Directional Soundfield™ & 30°-Angled Guided Soundfield™ Models

Our Stereo/Mono (SM) systems offer rich pure-fidelity dual-channel L/R sound from a single speaker. The Dual Directional Soundfield™ provides wider-than-normal dispersion making the systems ideal in small rooms that are less suited to a stereo pair, or where a single speaker is preferred.

Drivers in our 30°-Angled Guided Soundfield™ sit at a 30° angle from the ceiling, enabling you to adjust the direction of the sound, without compromising the curial sound dispersion pattern between drivers and baffle, thereby preserving sonic integrity. 30°-Angled Guided Soundfield™ systems are ideal as front speakers and as surround and/or rear speakers in a home theatre system.

Other Features:
Pocketed screw holes help to hold the drill steady, making installation a snap. In addition, exclusive TORX-guided clamps protect against screw cam out and stripping.
Rigid ABS clamps simplify and reduce installation time. ABS sandwiches and strengthens the area around the mounting hole, removing unwanted resonance and vibrations.
Available pre-construction brackets and square grille accessories provide the utmost installation flexibility.


Superior Mineral-filled Polypropylene Bass/ Midrange Cones: Oversized computer optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass.

Easy-access binding posts: High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.



Magnetically attached grilles: neodymium magnets hold grilles firmly in place.
Bezel-Free, Micro-Perf Grilles allow you to mix and match CI Home, CI Pro and CI Elite Series for a seamless aesthetic from room-to-room!

Partnered with the NRC

Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.


TECHNINIAI DUOMENYS

SPECIFIKACIJOS

Design

3-driver, 2 x 2-way in-ceiling, switchable stereo/mono, ABS chassis & mounting clamps

Crossover

Two 2nd-order electro-acoustic at 3.0 kHz

Frequency Response   On-Axis

±2 dB from 70 Hz - 20 kHz

Frequency Response   30° Off-Axis

±2 dB from 70 Hz - 15 kHz

High Frequency Driver

Two 3/4" (1.9cm) PTD™ domes

Mid/Bass Frequency Driver

6.5" (16.5cm) mineral-filled polypropylene cone, dual voice-coil

Low Frequency Extension

52 Hz

Sensitivity   Room / Anechoic

89 dB / 85 dB

Impedance

Compatible with 8 ohms

Suitable Amplifier Power Range

15-80W Mono / 15-40 W/Channel Stereo

Maximum Input Power

100 W Mono / 50 W Stereo

Finishes

White, paintable grille

Weight

4 lbs. (1.8 kg)

Overall Dimensions

8.75" (22.2cm) Diameter
3.625" (9.2cm) Depth

Cut-Out Dimensions

7.75" (19.7cm) Diameter

Minimum Mounting Depth
Depth required is the distance
between 1/2" drywall, or similar material.

3" (7.6cm)





DOKUMETNAI

INSTRUKCIJOS

User Manual (EN.)
