Paradigm

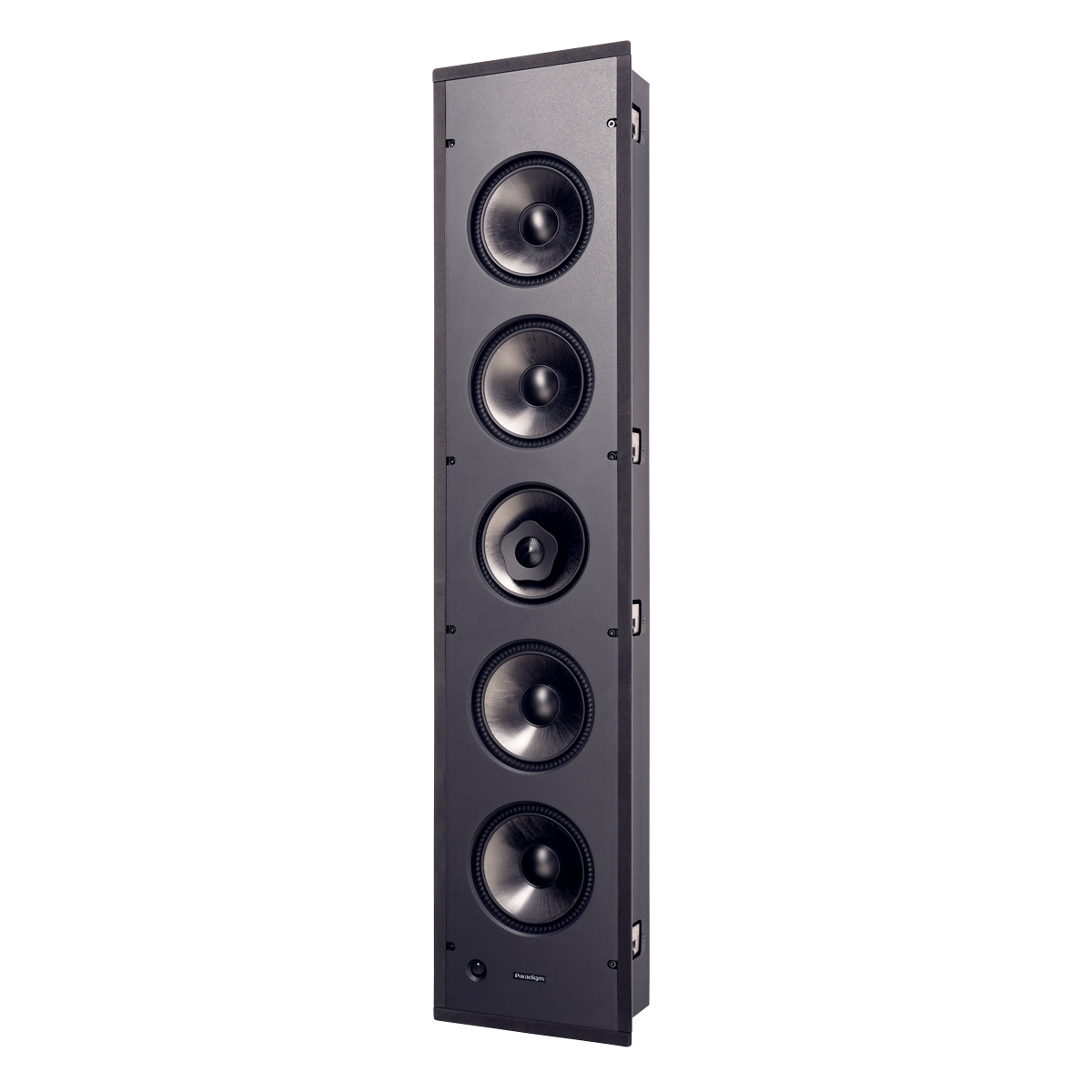

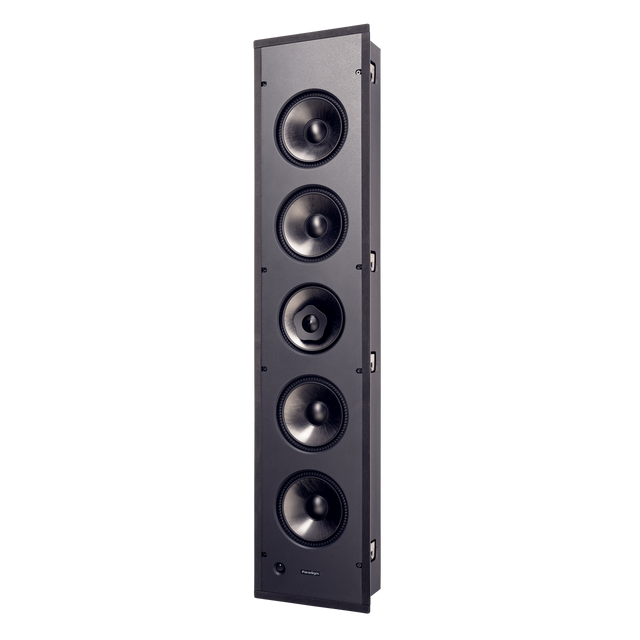

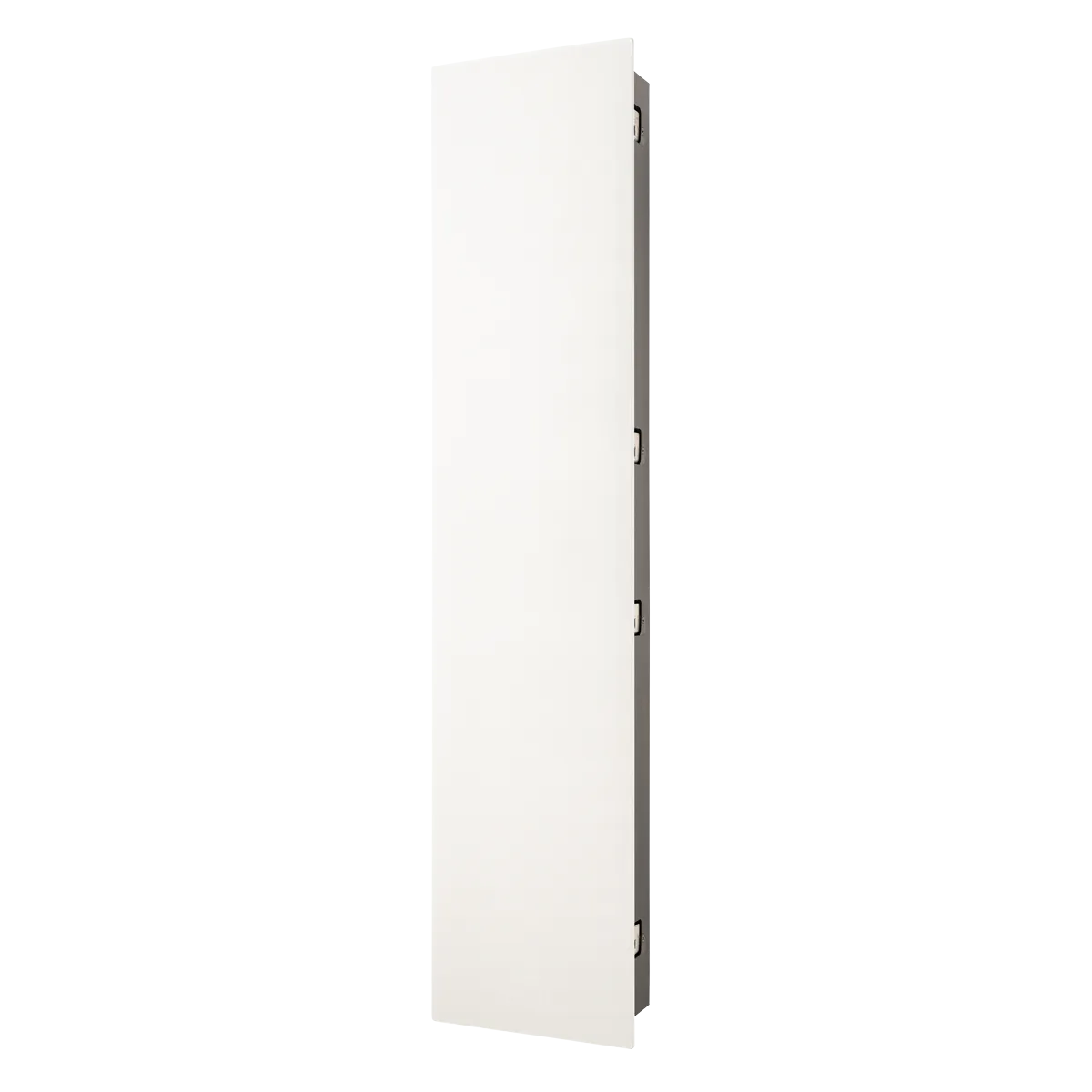

Paradigm CI Pro P5 LCR v2, į sieną montuojama garso kolonėlė (montavimo gylis: 9.8 cm.)

Kanadoje gaminami CI PRO serijos garsiakalbiai pakyla į aukštesnį lygį dėl patentuotos technologijos, patobulintų komponentų ir išskirtinės "Paradigm" garso kokybės.
€3,200.00 EUR

Paradigm CI Pro P5 LCR v2, į sieną montuojama garso kolonėlė (montavimo gylis: 9.8 cm.) - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

▪️ Turite klausimų dėl šios prekės❓Galime pakonsultuoti telefonu +370 683 90000, arba mūsų salone Armatūrininkų g. 1, Kaunas.
📩 Taip pat galite siųsti mums užklausą į kurią atsakysime per 24 val.

Pristatymas

Lietuvoje siuntas pristatome iki durų DPD kurjeriu per 1-2 darbo dienas, už 4.99€. Užsisakius virš 100€ - pristatymas nemokamas.

Siuntų pristatymas už Lietuvos ribų per 4-10 darbo dienų. Pristatymo kainos nuo 15.00€.

Prekių atsiėmimas parduotuvėje

Užsakytas prekes internetu galite atsiimti mūsų parduotuvėje adresu Armatūrininkų g. 1, Kaunas. Turėkite su savimi užsakymo nr.

Prieš atvykstant rekomenduojame pasiskambinti +370 683 90000

Darbo laikas: I-V 9:00-18:00

INFORMACIJA

Kanadoje gaminami CI PRO serijos garsiakalbiai pakyla į aukštesnį lygį dėl patentuotos technologijos, patobulintų komponentų ir išskirtinės "Paradigm" garso kokybės.

  • Rekomend. stiprintuvo galia: 15-200W.
  • Jautrumas: 94 dB.
  • Dažnių juosta: 84 Hz - 19 kHz.
  • Išpjovos matmenys: 106.6cm x 21.6cm.
  • Minimalus montavimo gylis:  9.8cm.
  • Dažomas paviršius.





APRAŠYMAS


Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

AL-MAC™ is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.



CARBON-X™ Cones

Paradigm’s exclusive CARBON-X™ Cone combines lightweight stiffness with high consistency for a greater degree of accuracy and smooth, uncolored frequency response. Drivers feature long excursion voice coil motors for greater power handling and reduced power compression.

Advanced
Shock-Mount™ System

(baffle/basket isolation) Like the CI Elite Series, we’ve added the same great Advanced Shock-Mount™ System to mechanically decouple the basket from the chassis. This significantly reduces performance-robbing vibrations and resonances between the acoustic platform and the rest of the speaker. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.



Patented† Active Ridge Technology (ART™) surrounds

Made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.

Reduced Edge Diffraction (RED™) Technology

significantly reduces the adverse effects of diffraction while improving frequency response.


Advanced Features for a Solid and Secure Installation


FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.


Integrated Acoustic Back-box Enclosure safeguards internal parts from debris while preventing added sound ‘spillage’ to adjacent rooms. It also ensures consistent and reliable performance from application to application. (CI Elite LCR models only)


Screen Compensation Mode ensures true acoustic transparency when placed behind micro-perforated projection screens. (CI Elite LCR models only)


Pocketed screw holes help to hold the drill steady, making installation a snap.


Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.


Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.

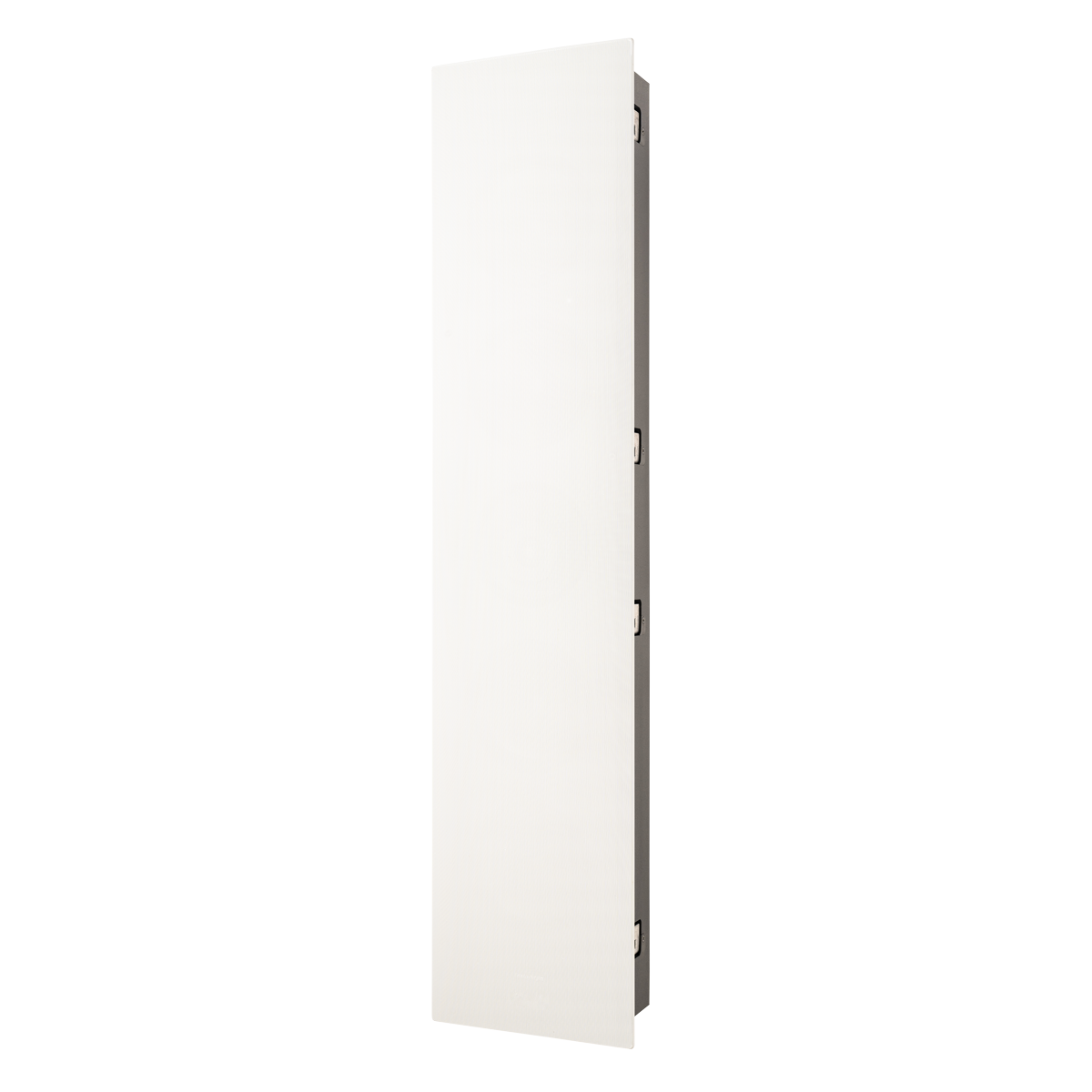

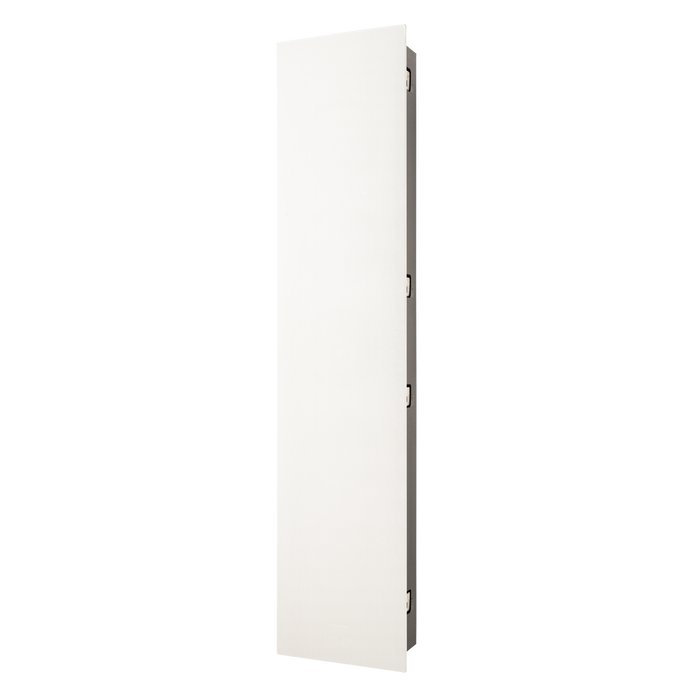

Bezel-Free Micro-Perf Grilles offer a clean aestetic from room-to-room.


Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

Partnered with the NRC

Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.




TECHNINIAI DUOMENYS

SPECIFIKACIJOS



DESIGN 4-driver, dual passive radiators, 3-way, shallow enclosure in-wall design, Advanced SHOCK-MOUNT™ System
CROSSOVER 3rd-order electro-acoustic at 2.8 kHz, 2nd-order electro-acoustic @ 500 Hz
FREQUENCY RESPONSE ON-AXIS ±3 dB from 84 Hz - 22 kHz
HIGH FREQUENCY DRIVER 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology
BASS FREQUENCY DRIVER  Two 6.5” (16.5cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced SHOCK-MOUNT™ System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets
MIDRANGE FREQUENCY DRIVER 6.5” (16.5cm) Coaxial AL-MAG™ Cone with SHOCK-MOUNT™ Isolation Mounting System, a 1” high-temp multi-layered voice coil with Apical™ former
LOW FREQUENCY EXTENSION 65 Hz
SENSITIVITY ROOM / ANECHOIC 94 dB / 91 dB
FREQUENCY RESPONSE 30° OFF-AXIS ±3 dB from 84 Hz - 19 kHz
SUITABLE AMPLIFIER POWER RANGE 15- 200 W
MAXIMUM INPUT POWER 130 W
IMPEDANCE Compatible with 8 ohms
WEIGHT 29.0 lbs (13.2 kg)
FINISHES White, paintable grille, black speaker
PASSIVE RADIATORS Two 6.5” (16.5cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced SHOCK-MOUNT™ System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets
CUT-OUT DIMENSIONS 42” x 8-1/2” (106.6cm x 21.6cm)
MINIMUM MOUNTING DEPTH
(DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) 		3-7/8” (9.8cm)





DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).
