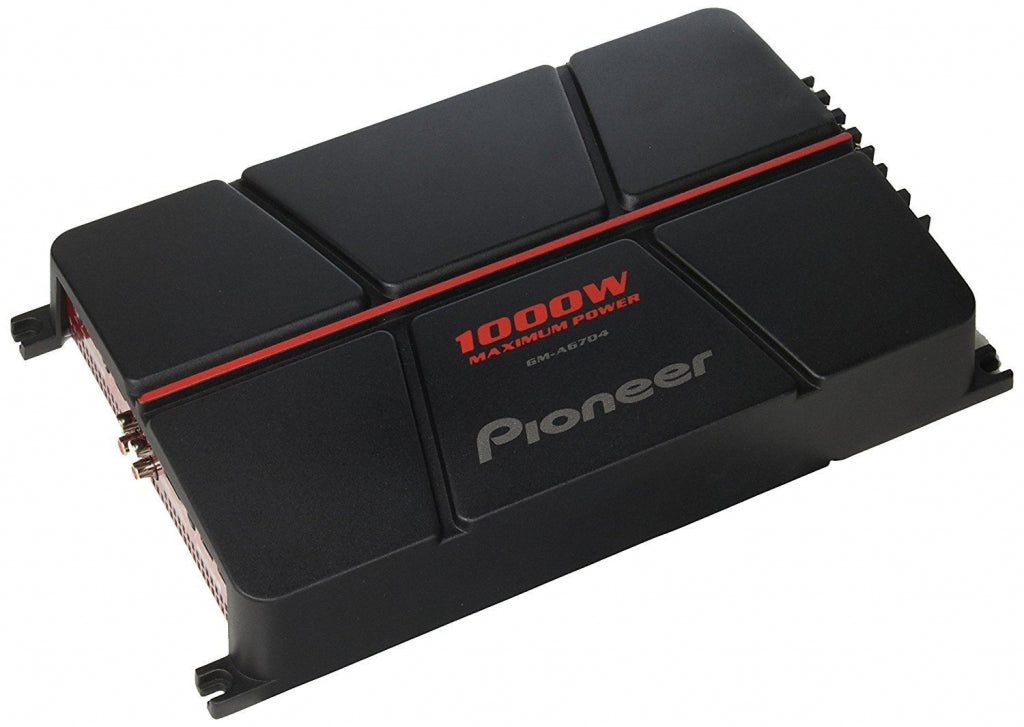

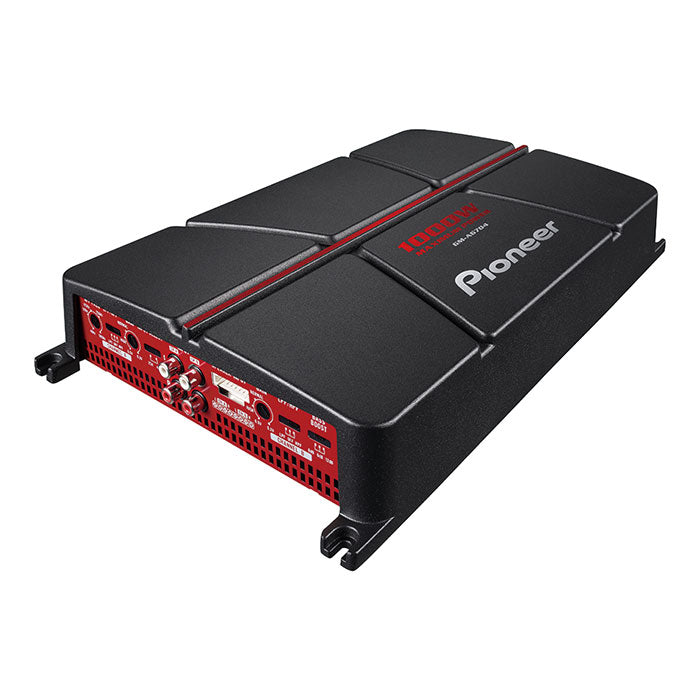

Pioneer Pioneer GM-A6704, garso stiprintuvas automobiliui

279.00 €

Pioneer Pioneer GM-A6704, garso stiprintuvas automobiliui yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.


Siuntimas ir pristatymas

Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.

Susiprinkite savo automobilines audio patirtis su Pioneer GM-A6704 tiltiniu stiprintuvu! Šis stiprintuvas įtiks net išrankiausiems!

  • Galia: 4 x 170W.
  • B klasės garso stiprintuvas.
  • Dažnių juosta: 10Hz ~ 70kHz (+0dB , -3dB).
  • HPF 40-500Hz (-12 dB/oct).

Technology of the GM Series

From dramatic distinction to dramatic design, Pioneer's new GM-Series amplifiers are thrillers in every sense, pushing the limits of flexibility and functionality.


Variable HPF

Variable HPF (High Pass Filter) allows for adjustable frequency between 40 Hz to 500 Hz* and greater car audio system flexibility according to subwoofer characteristics and personal listening preference.


Bass Boost

Bass Boost featured in the GM-A6704 and GM-A5702 can be set to levels variably from 0 to 12 dB for optimal bass. This precise control can enhance the overall balance and impact of all sounds according to listening preference and music style. The GM-A5702 allows adjustment in three steps: 0 dB, 6 dB or 12 dB.


Growing Power, Shrinking Size

New Pioneer amps brilliantly integrate high-power performance superior to that of previous models in space-efficient sizes for flexibility of installation in various car cabins.


Automatic Signal Sensing and Turn-On

Pioneer amplifiers automatically select the proper input signal mode, either RCA or speaker level. When the receiver is turned on, the amplifier automatically turns on. When connected to an OEM receiver or a receiver without RCA output and utilizing speaker level output, the amp automatically senses the input mode and powers up in sync with the receiver.

When connected to an OEM receiver or a receiver without RCA output using speaker wire the amplifier is turned on at the same time as the receiver. Pioneer's amplifiers automatically detect the input signal and select RCA level or speaker level.


Kas komplekte?

  • 4-Channel amplifier
  • Two 25A ATO fuses (installed)
  • Speaker-level input harness with eight 4" wires
  • 4 Self-tapping screws (3/4" length)
  • Owner's Manual (Eng / Fren)
  • 1 Year Warranty sheet

SPECIFIKACIJOS

STANDARDS
  • Yes
PERFORMANCE
  • 4 Ohm - 14A (2Ch) / 4 Ohm - 8.5A (4Ch)
  • 50 Hz - Frequency
  • LPF - A/B Ch - 80 Hz / HPF - A Ch - 40 Hz to 500Hz / HPF - B Ch - 80Hz
  • -12db/oct (A/B Ch)
  • 10Hz to 70kHz (+0dB,-3dB) A/B Ch
  • 25 A x 2
  • 0.3 V to 6.5 V - RCA / 3.0 V to 26 V - Speaker
  • 2 ohm to 8 ohm allowable
  • 2 Ohm - 250W x 4 / 4 Ohm - 170W x 4 / 4 Ohm Bridged - 1000 W
  • 2 Ohm - 95W x 4 / 4 Ohm - 60W x 4 / 4 Ohm Bridged - 190W x 2
  • 4-Channel
  • 95 dBA (Reference: 1 W into 4 ohm)
AMPLIFIER FEATURES
  • Yes
  • A/B
  • Negative
  • 14.4V (10.8 V to 15.1 V allowable)
  • Yes
  • Screw
  • 4.9 lbs



DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).

Pioneer Pioneer GM-A6704, garso stiprintuvas automobiliui
Pioneer

Pioneer Pioneer GM-A6704, garso stiprintuvas automobiliui

279.00 €

Susiprinkite savo automobilines audio patirtis su Pioneer GM-A6704 tiltiniu stiprintuvu! Šis stiprintuvas įtiks net išrankiausiems!

APRAŠYMAS

Technology of the GM Series

From dramatic distinction to dramatic design, Pioneer's new GM-Series amplifiers are thrillers in every sense, pushing the limits of flexibility and functionality.


Variable HPF

Variable HPF (High Pass Filter) allows for adjustable frequency between 40 Hz to 500 Hz* and greater car audio system flexibility according to subwoofer characteristics and personal listening preference.


Bass Boost

Bass Boost featured in the GM-A6704 and GM-A5702 can be set to levels variably from 0 to 12 dB for optimal bass. This precise control can enhance the overall balance and impact of all sounds according to listening preference and music style. The GM-A5702 allows adjustment in three steps: 0 dB, 6 dB or 12 dB.


Growing Power, Shrinking Size

New Pioneer amps brilliantly integrate high-power performance superior to that of previous models in space-efficient sizes for flexibility of installation in various car cabins.


Automatic Signal Sensing and Turn-On

Pioneer amplifiers automatically select the proper input signal mode, either RCA or speaker level. When the receiver is turned on, the amplifier automatically turns on. When connected to an OEM receiver or a receiver without RCA output and utilizing speaker level output, the amp automatically senses the input mode and powers up in sync with the receiver.

When connected to an OEM receiver or a receiver without RCA output using speaker wire the amplifier is turned on at the same time as the receiver. Pioneer's amplifiers automatically detect the input signal and select RCA level or speaker level.


Kas komplekte?

  • 4-Channel amplifier
  • Two 25A ATO fuses (installed)
  • Speaker-level input harness with eight 4" wires
  • 4 Self-tapping screws (3/4" length)
  • Owner's Manual (Eng / Fren)
  • 1 Year Warranty sheet

TECHNINIAI DUOMENYS

SPECIFIKACIJOS

STANDARDS
  • Yes
PERFORMANCE
  • 4 Ohm - 14A (2Ch) / 4 Ohm - 8.5A (4Ch)
  • 50 Hz - Frequency
  • LPF - A/B Ch - 80 Hz / HPF - A Ch - 40 Hz to 500Hz / HPF - B Ch - 80Hz
  • -12db/oct (A/B Ch)
  • 10Hz to 70kHz (+0dB,-3dB) A/B Ch
  • 25 A x 2
  • 0.3 V to 6.5 V - RCA / 3.0 V to 26 V - Speaker
  • 2 ohm to 8 ohm allowable
  • 2 Ohm - 250W x 4 / 4 Ohm - 170W x 4 / 4 Ohm Bridged - 1000 W
  • 2 Ohm - 95W x 4 / 4 Ohm - 60W x 4 / 4 Ohm Bridged - 190W x 2
  • 4-Channel
  • 95 dBA (Reference: 1 W into 4 ohm)
AMPLIFIER FEATURES
  • Yes
  • A/B
  • Negative
  • 14.4V (10.8 V to 15.1 V allowable)
  • Yes
  • Screw
  • 4.9 lbs



DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).

Žiūrėti produktą

Susiprinkite savo automobilines audio patirtis su Pioneer GM-A6704 tiltiniu stiprintuvu! Šis stiprintuvas įtiks net išrankiausiems!

  • Galia: 4 x 170W.
  • B klasės garso stiprintuvas.
  • Dažnių juosta: 10Hz ~ 70kHz (+0dB , -3dB).
  • HPF 40-500Hz (-12 dB/oct).

Technology of the GM Series

From dramatic distinction to dramatic design, Pioneer's new GM-Series amplifiers are thrillers in every sense, pushing the limits of flexibility and functionality.


Variable HPF

Variable HPF (High Pass Filter) allows for adjustable frequency between 40 Hz to 500 Hz* and greater car audio system flexibility according to subwoofer characteristics and personal listening preference.


Bass Boost

Bass Boost featured in the GM-A6704 and GM-A5702 can be set to levels variably from 0 to 12 dB for optimal bass. This precise control can enhance the overall balance and impact of all sounds according to listening preference and music style. The GM-A5702 allows adjustment in three steps: 0 dB, 6 dB or 12 dB.


Growing Power, Shrinking Size

New Pioneer amps brilliantly integrate high-power performance superior to that of previous models in space-efficient sizes for flexibility of installation in various car cabins.


Automatic Signal Sensing and Turn-On

Pioneer amplifiers automatically select the proper input signal mode, either RCA or speaker level. When the receiver is turned on, the amplifier automatically turns on. When connected to an OEM receiver or a receiver without RCA output and utilizing speaker level output, the amp automatically senses the input mode and powers up in sync with the receiver.

When connected to an OEM receiver or a receiver without RCA output using speaker wire the amplifier is turned on at the same time as the receiver. Pioneer's amplifiers automatically detect the input signal and select RCA level or speaker level.


Kas komplekte?

  • 4-Channel amplifier
  • Two 25A ATO fuses (installed)
  • Speaker-level input harness with eight 4" wires
  • 4 Self-tapping screws (3/4" length)
  • Owner's Manual (Eng / Fren)
  • 1 Year Warranty sheet

SPECIFIKACIJOS

STANDARDS
  • Yes
PERFORMANCE
  • 4 Ohm - 14A (2Ch) / 4 Ohm - 8.5A (4Ch)
  • 50 Hz - Frequency
  • LPF - A/B Ch - 80 Hz / HPF - A Ch - 40 Hz to 500Hz / HPF - B Ch - 80Hz
  • -12db/oct (A/B Ch)
  • 10Hz to 70kHz (+0dB,-3dB) A/B Ch
  • 25 A x 2
  • 0.3 V to 6.5 V - RCA / 3.0 V to 26 V - Speaker
  • 2 ohm to 8 ohm allowable
  • 2 Ohm - 250W x 4 / 4 Ohm - 170W x 4 / 4 Ohm Bridged - 1000 W
  • 2 Ohm - 95W x 4 / 4 Ohm - 60W x 4 / 4 Ohm Bridged - 190W x 2
  • 4-Channel
  • 95 dBA (Reference: 1 W into 4 ohm)
AMPLIFIER FEATURES
  • Yes
  • A/B
  • Negative
  • 14.4V (10.8 V to 15.1 V allowable)
  • Yes
  • Screw
  • 4.9 lbs



DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).
