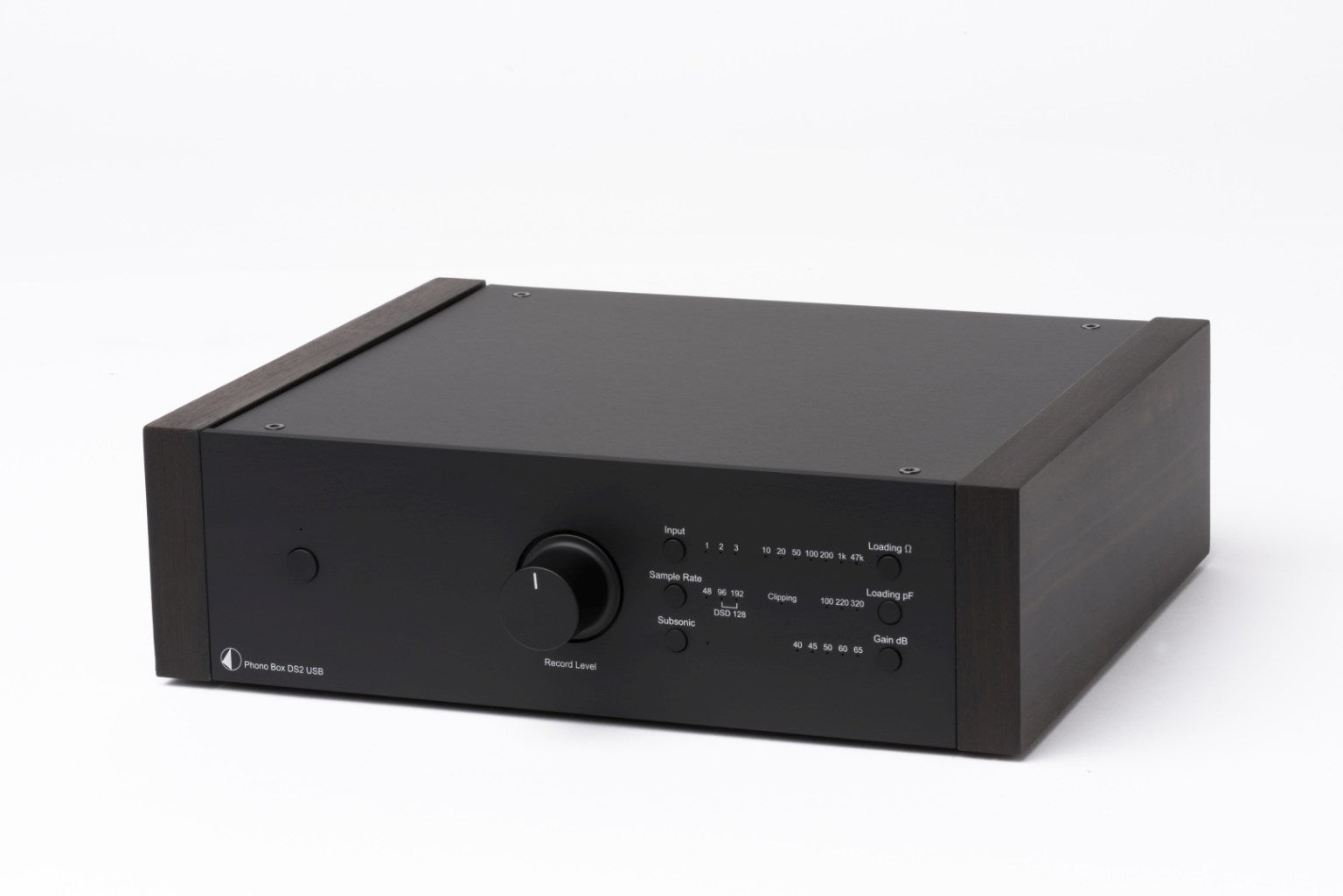

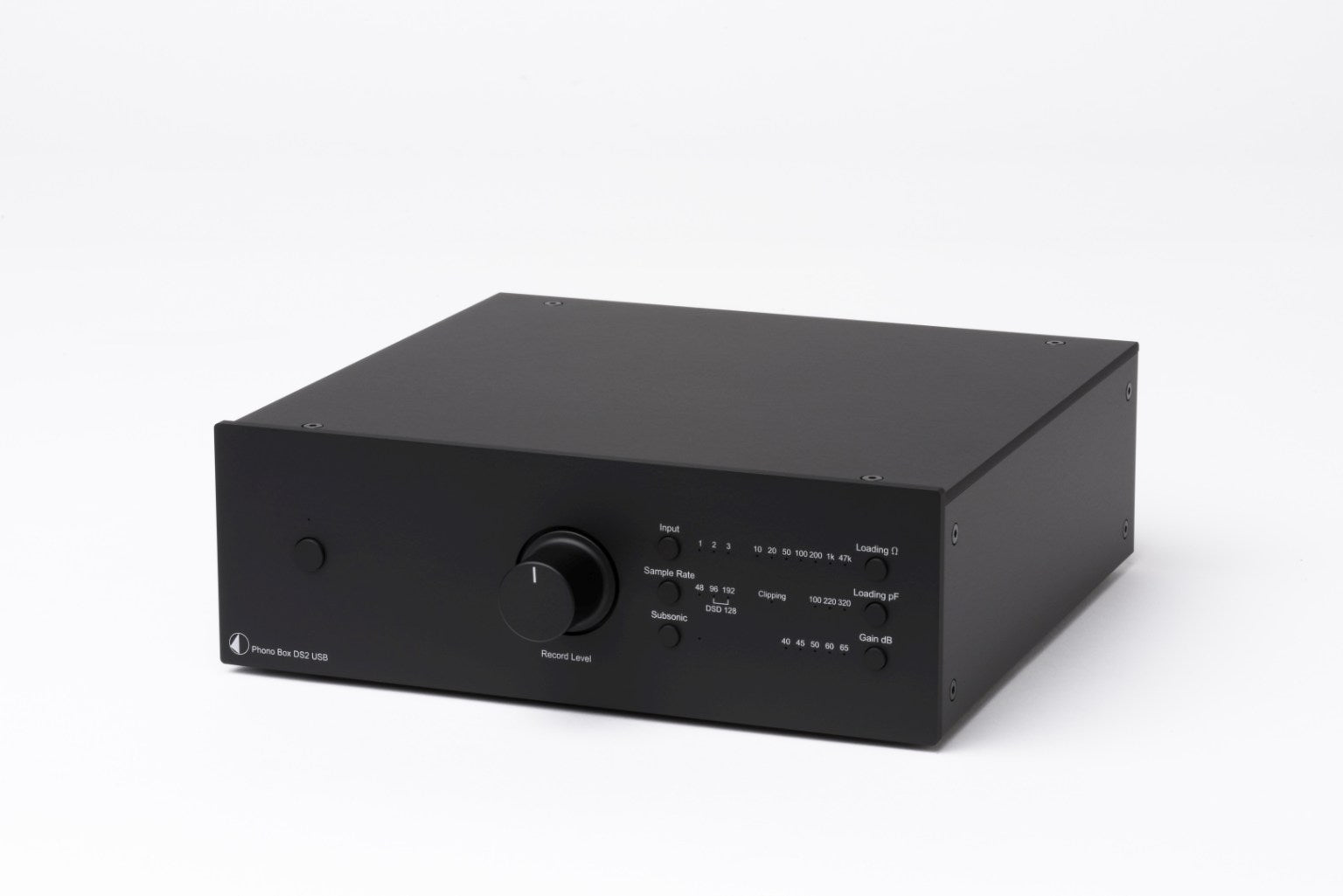

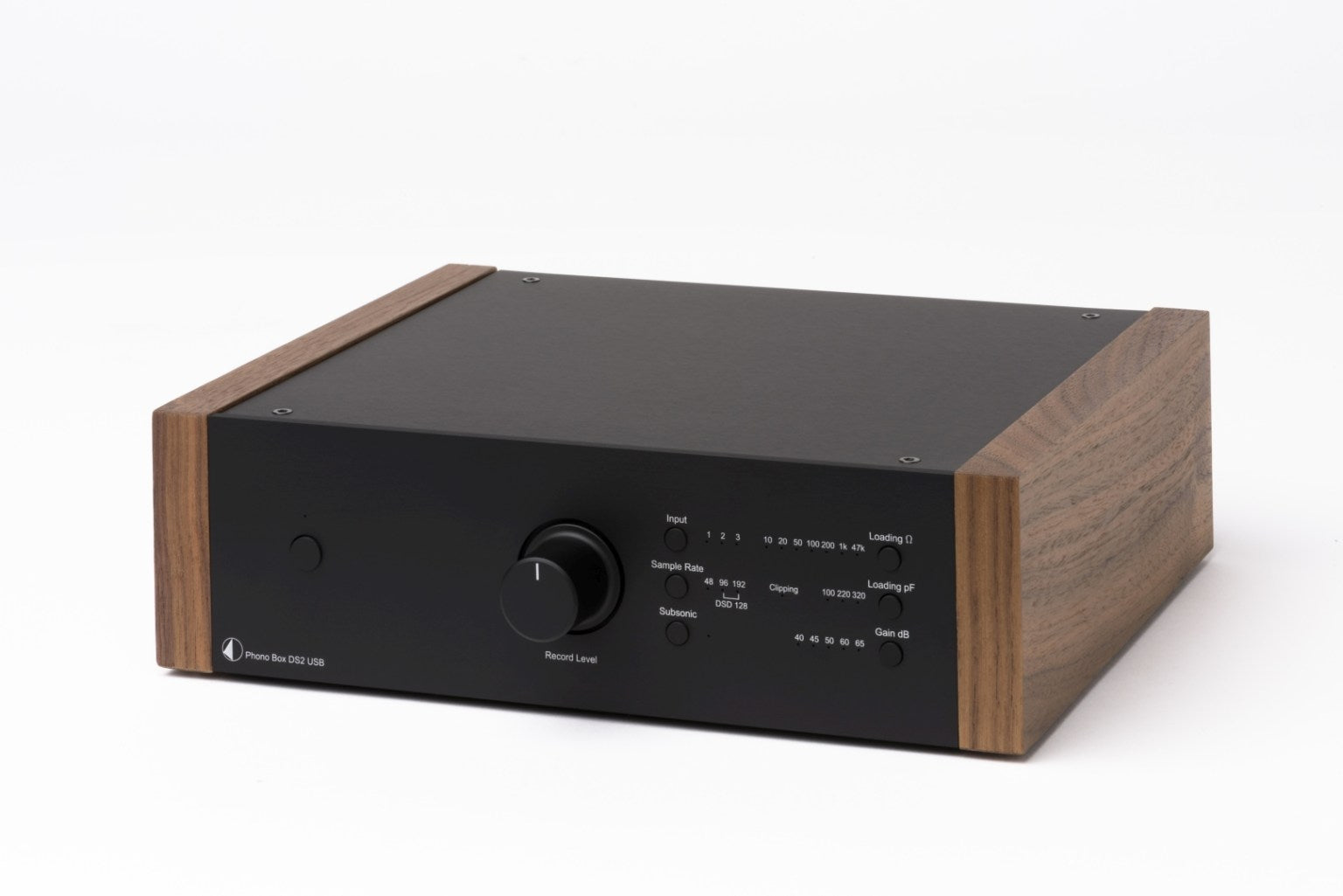

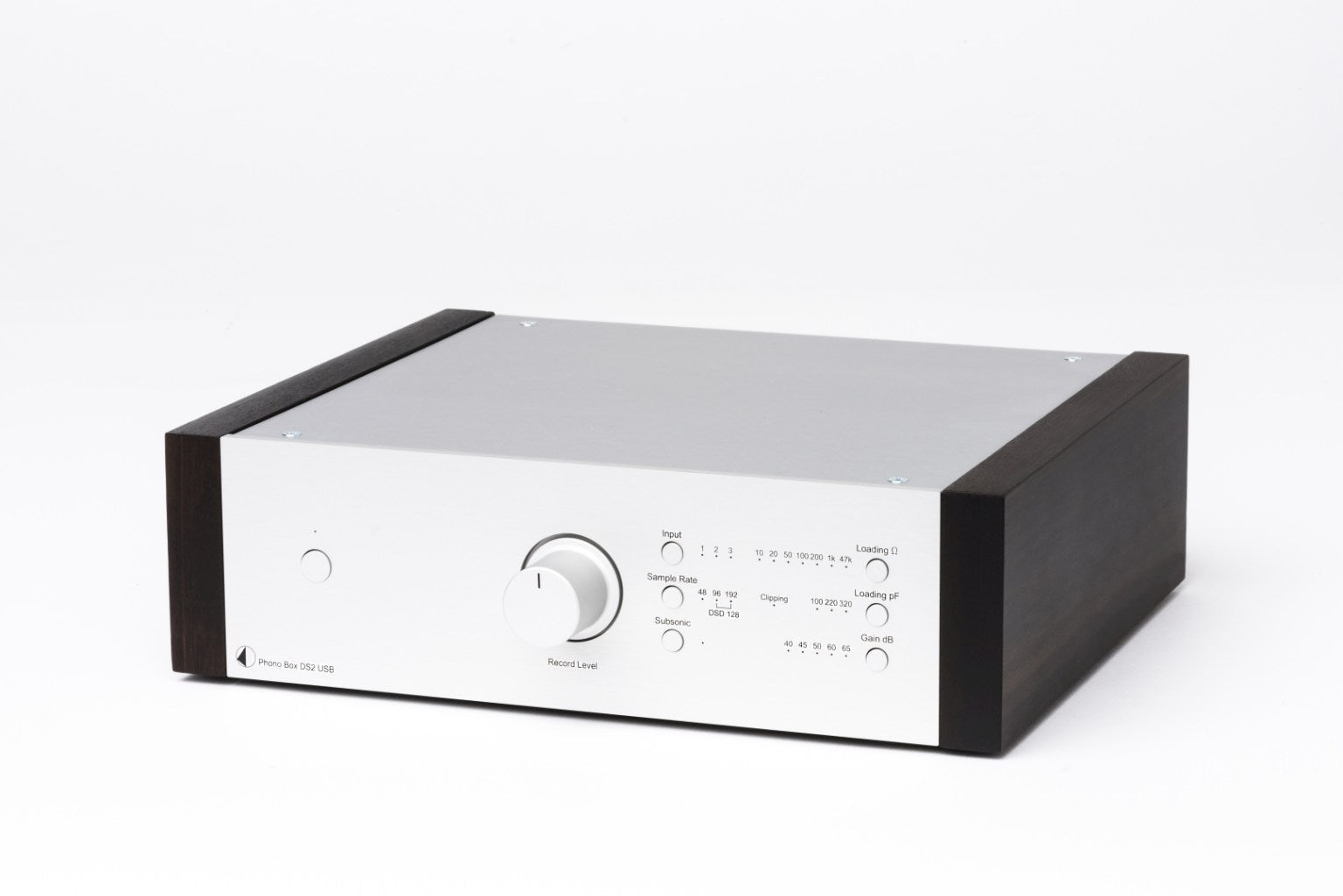

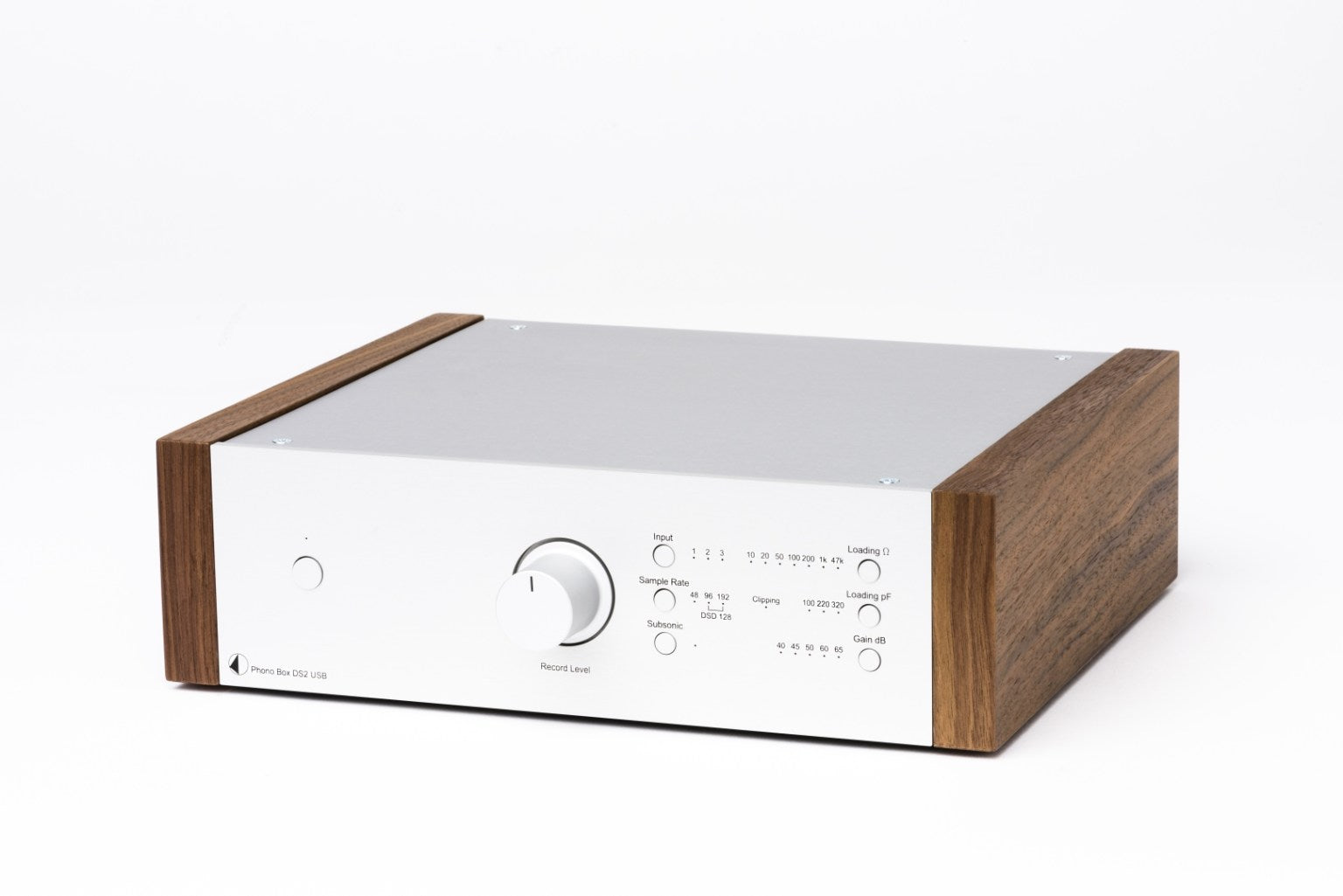

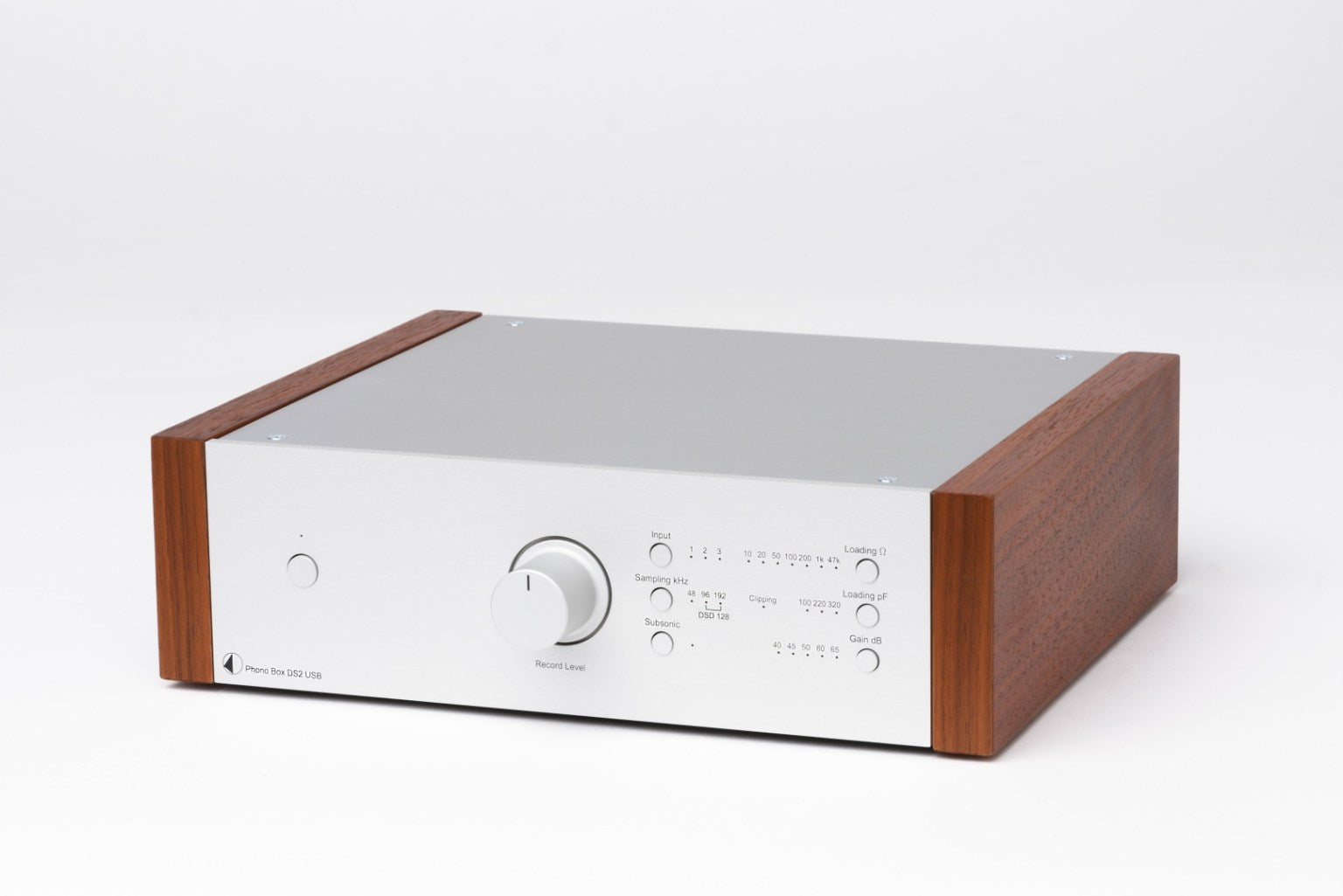

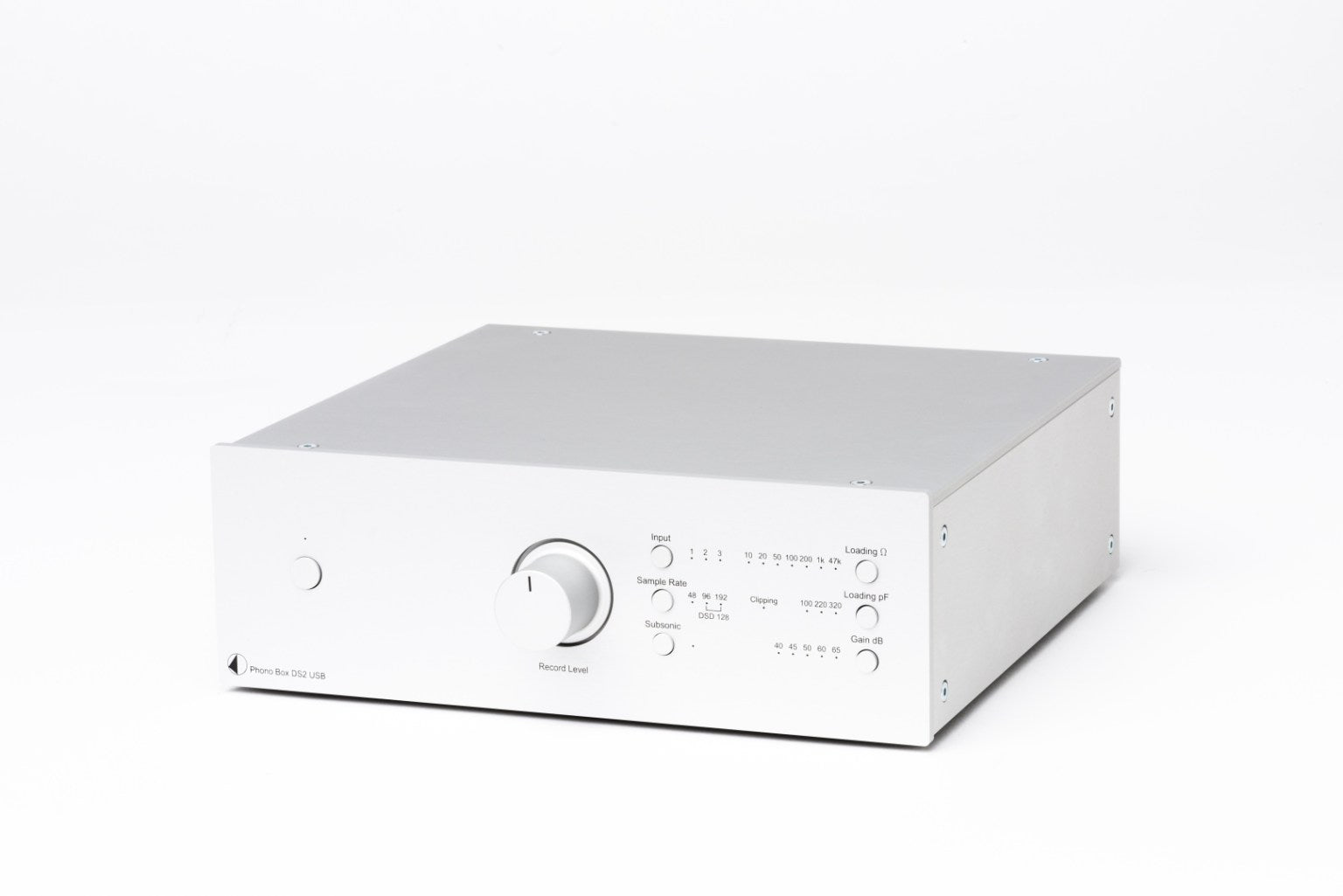

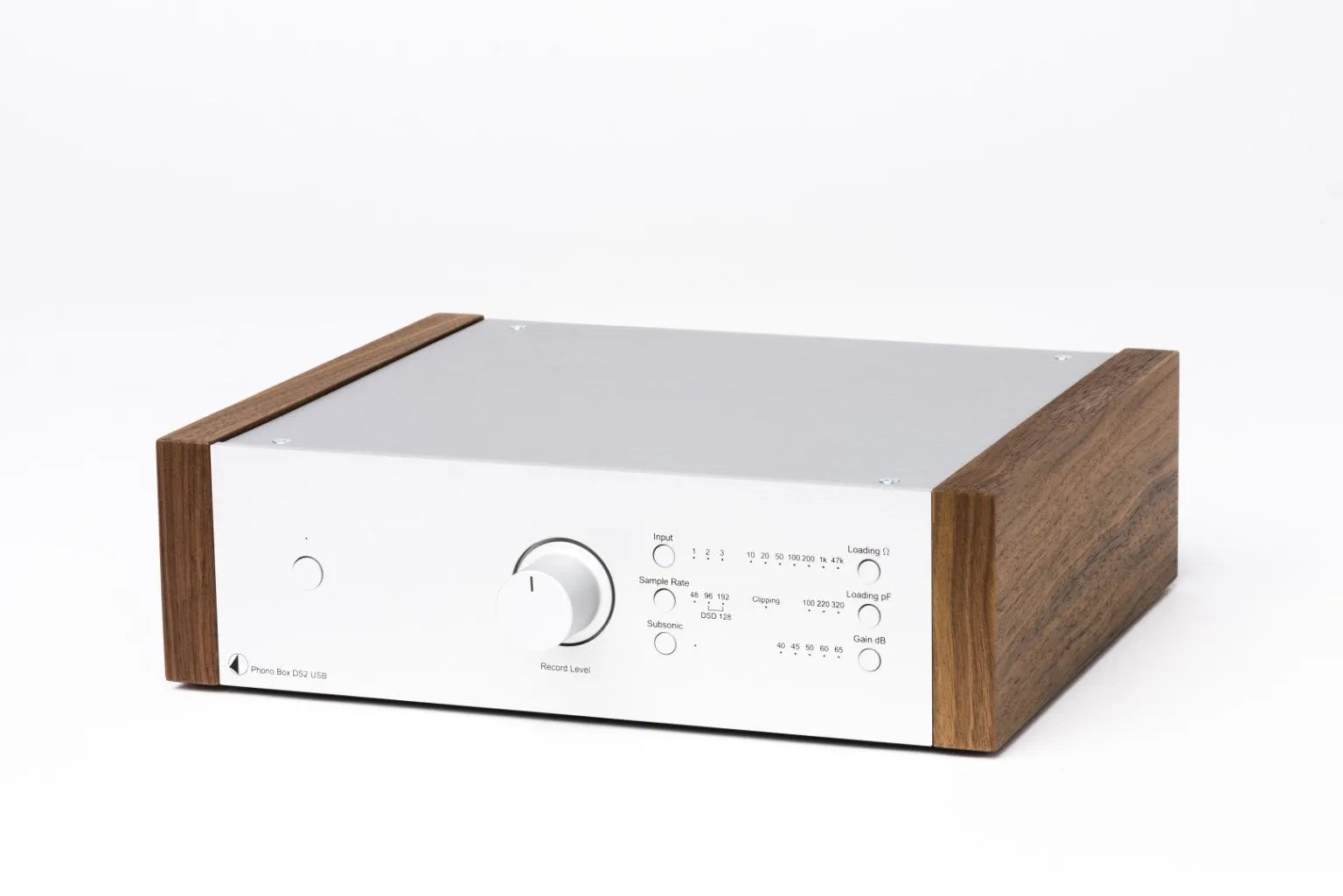

Pro-Ject Phono Box DS2 USB, pradinis stiprintuvas su Hi-Res USB sąsaja (įvairių spalvų)
Pro-Ject Phono Box DS2 USB, pradinis stiprintuvas su Hi-Res USB sąsaja (įvairių spalvų) - Balta is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Highlight title
Text to highlight a key feature of your product
Description
Description
Phono Box DS2 USB yra pradinis Phono stiprintuvas su Hi-Res USB sąsaja, kuris itin gerai sureguliuojamas ir pritaikomas visiems MM ir MC tipo kartridžams.
- Itin tiksli RIAA ekvalizacija.
- Įėjimo varža: 10-47 kOhm.
- Auksu dengti RCA įėjimai ir išėjimai.
APRAŠYMAS
Phono preamplifier with HiRes digital USB output
Phono preamplifier for MM/MC cartridges with analogue, digital optical and USB output!
A lot of people already have or plan to buy a very high quality turntable, driven by the fascination of the analogue sound. Many of them also want to record their vinyl in a simple, yet high-end way. The Phono Box DS2 USB is the perfect solution. It is a sophisticated phono stage, based on a high-end passive/active ultra linear phono equalisation. MM and MC capability as well as extensive variable impedance and capacitance settings allow to match any cartridge, even of highest class for optimum performance. Two individual phono inputs allow you to use two different turntables or tonearm / cartridge combinations with different sound characteristics to perfectly match your preferred type of music.
A very low noise and jitter free A/D converter transfers the analogue signal into high resolution digital format (PCM up to 192kHz or DSD 128). Via its USB output you can record your vinyl on any computer. There is also an analogue line input to digitalize other analogue audio sources. A standard line output to connect the unit to your hifi system isn’t missed. The Phono Box DS2 USB is manufactured in a beautiful chassis made out of aluminium and metal, which gives an elegant functional look and avoids the influence of mechanical or electromagnetical interference.
Magnetic real wood side panels in walnut, rosenut & eucalyptus are available separately & not included in the scope of delivery.
Features
- Suitable for MM and MC cartridges
- Analogue RCA, USB and optical out on back
- 3 Inputs (2 Phono, 1 Line)
- Precise RIAA equalisation
- Dual mono circuitry for optimized channel separation
- Selectable input impedance on front
- Selectable input capacitance on front
- Digital output sampling frequency adjustable
- Low noise circuitry
- Gold-plated RCA in & outputs
- Sandwich alu/metal casing protects from vibrations and electromagnetic interference
- Magnetic side panels in eucalyptus, rosenut and walnut available separately
TECHNINIAI DUOMENYS
SPECIFIKACIJOS
| Phono input impedance | 10-47 kOhm |
| Phono capacitance | 100/220/320 pF |
| Gain phono | 40/45/50/60/65 dB |
| Inputs | 2 x Phono (RCA) |
| 1 x Line (RCA) | |
| Outputs | 1 x Line Out (RCA) |
| 1 x USB B | |
| 1 x Optisch | |
| Digital output samplingfrequencies | 48/96/192 kHz, DSD128 (USB) |
| Noise floor | 80 dB A (40 dB gain) |
| THD | < 0.02% |
| RIAA equalisation curve accuracy | within 0.3dB/20Hz - 20kHz |
| Trigger in/out | 12V, 2.5 mm jack |
| Power supply | 18V/500mA DC; 220 - 240V, 50Hz |
| Power consumption | 100 mA DC, < 1 watt standby |
| Dimensions W x H x D | 206 x 71 x 226 mm (Alu) |
| 240 x 72 x 227 mm (Wood) | |
| Weight | 1340 g (Alu) without power supply |
| 1780 g (Wood) without power supply |
DOKUMENTAI
INSTRUKCIJOS
