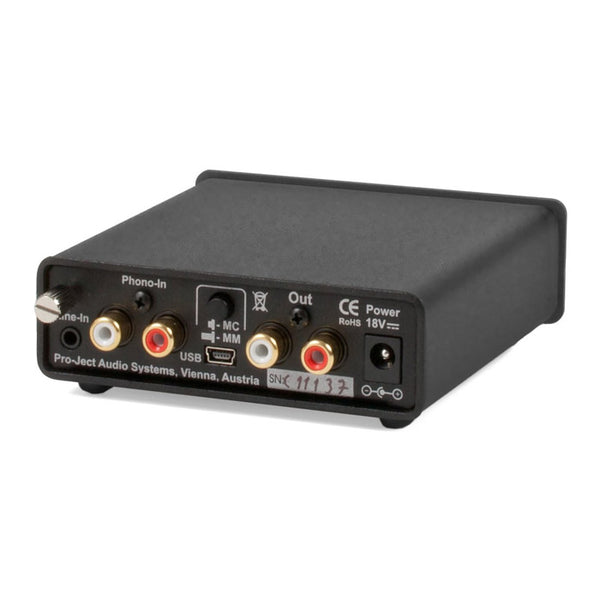

Pro-Ject PHONO BOX USB V, Pradinis Stiprintuvas (įvairių spalvų)

PHONO BOX USB V yra pradinis Phono stiprintuvas, kuris itin gerai sureguliuojamas ir pritaikomas visiems MM ir MC tipo kartridžams.

check_circle_outline highlight_off
Yra prekyboje Išparduota
Translation missing: lt.product.general.sku_html
Nuolaida: 159.00 €
Kaina: 159.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Pro-Ject PHONO BOX USB V, Pradinis Stiprintuvas (įvairių spalvų)

PHONO BOX USB V yra pradinis Phono stiprintuvas, kuris itin gerai sureguliuojamas ir pritaikomas visiems MM ir MC tipo kartridžams.

  • Tiksli RIAA ekvalizacija.
  • Įėjimo varža: 10-47 kOhm.
  • Suderinama su Windows®, MacOS® ir Linux.


Phono Box USB V: Top specialist for recording vinyl & line level sources and listening pleasure!

Phono Box USB V is an ideal phono preamplifier for both your hifi system and vinyl or line-level recording to PC or Mac. MM and MC cartridges will be welcome. Input volume can be set to avoid override. The analogue output of Phono Box USB V can easily be connected to a line-input (AUX,…) of your hifi and digitally via USB to your computer. Both outputs can be used simultaneously. Any professional recording software will give best results on Windows and Mac computer systems.

Savybės

  • Preamplifier for MM or MC with switch on rear panel
  • Precise RIAA equalisation
  • Phono/line selector on front
  • Record level adjustment
  • High quality A/D conversion with USB out to PC/Mac
  • Compatible with Windows®, MacOS® & Linux
  • SMD technology for shortest signal paths
  • Output stage with ultra-low impedance
  • DC power supply (< 1 watt standby power)
  • Faceplate available in black and silver



    SPECIFIKACIJOS

    Load capacitance / impedance MM: 47K ohms / 120pF MC: 100 ohms / 120pF
    Gain, MM 40 dB
    Output voltage typically 300 mV / 1 kHz @ 3 mV / 1 kHz (MM input)
    Gain, MC 60 dB
    Gain, line level input 11 dB
    Max. output 9.5 Vrms (1kHz)
    Noise floor, MM 94 dB (94 dB - A weighted)
    Noise floor, MC 75 dB (75 dB - A weighted)
    THD, MM/ MC 0.01% / 0.05%
    RIAA-equalisation curve accuracy 20 Hz - 20 kHz / max. 0.5 dB
    Phono Input / line output 1 pair RCA phono sockets
    Line input 3.5mm jack
    Output voltage 0.775 Veff
    A/D converter 16-Bit Delta Sigma
    Sampling rate 32, 44, 1 and 48 kHz
    USB output digital serial data protocol USB 1.1
    Operating systems Windows®, MacOS® & Linux
    Standby power consumption < 1 Watt
    Dimensions W x H x D 103 x 36 x 104 (115 mm with sockets)
    Weight 580 g

    INSTRUKCIJOS

    User Manual (EN).
