Radical R-C11AD2 Android multimedija Audi A4 ir Seat Exeo automobiliams

399.00 €

Radical R-C11AD2 Android multimedija Audi A4 ir Seat Exeo automobiliams - prieš pirkdami pasiteiraukite ar šią prekę turime sandėlyje, jei neturime ji gali būti užsakyta ir atvykti per 2-21 dieną.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Android automobilinė multimedija skirta Audi A4 ir Seat Exeo modeliams pagamintiems nuo 2004 > 2013 metų (tikslus sąrašas skiltyje APRAŠYMAS). Multimediją apjungia populiariausių servisų palaiykmą, naujausias technologijas bei viską sudeda po elegantišku dizainu.

  • 8" / 20.3 cm lietimui jautrus ekranas.
  • Android 9.0 OS versija.
  • Radical GPS navigation (jau įdiegtas).
  • EasyConnection funkcija skirta mobiliesiems telefonams susieti.
  • Įmontuota laisvų rankų įranga bei mikrofonas.
  • Bluetooth, WLAN, Wi-Fi ryšio palaikymas.
  • USB 2.0 , RCA, HDMI bei  AUX jungtys.



Information + entertainment in your AUDI A4

You want to stream songs and movies from the web, surf in the internet via WiFi, listen to internet radio or use Spotify while you're on the road? That’s no problem with the R-C11AD2, RADICAL's multimedia system for the Audi A4. You can easily connect your mobile phone to the media center and make the most of your smartphone in your car. You can even install your favorite apps directly on the Audi car radio since the R-C101AD2 is designed as an Android system. The RADICAL offers you a large 8" / 20.8 cm capacitive touchscreen and is also equipped with two USB ports, a DAB+ and an FM tuner, and a Bluetooth system.

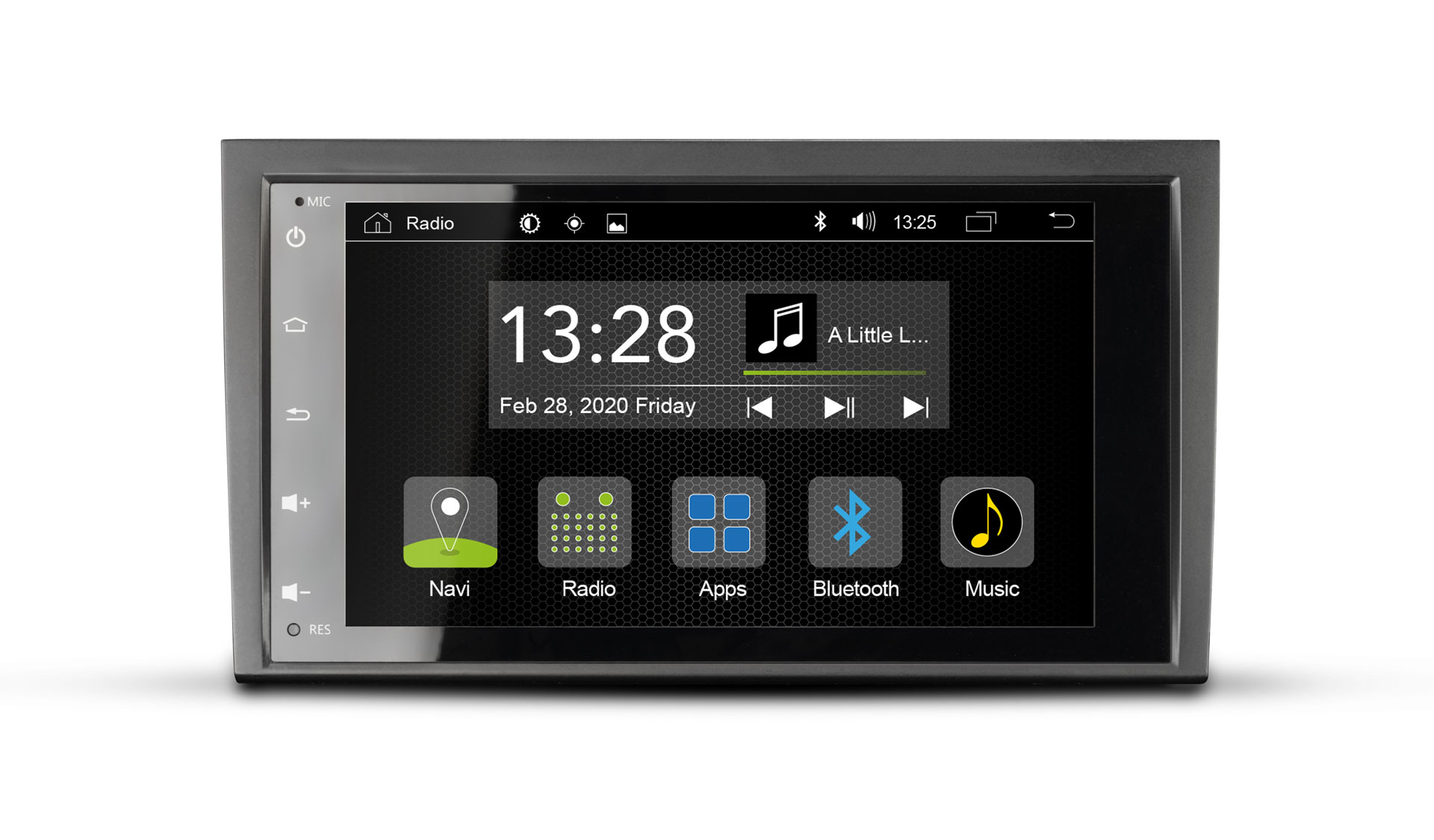

Car radio R-C11AD2 Audi A4 front view stars sky night interior side view cockpit

Apps in your car – with RADICAL's Android car radio for AUDI A4

Thanks to the Android 9.0 based operating system used by the media receiver, all certified Android apps can be installed directly on the multimedia system – including all your navigation apps. The internal 16 GB flash memory offers enough space for your apps. All applications and background processes are extremely stable and smooth, as the R-C11AD2 has a powerful 1.3 GB Octa-Core processor with 2 GB RAM.

Car radio R-C11AD2 Audi A4 stars radical image photo

#Follow your stars

Where have you always wanted to be?
Leave everyday life behind you and start your journey today.


Multimedia and infotainment functions – the highlights

android 9.0 Android OS operating system Enables offline installation of Android smartphone apps directly on the R-C11AD2 directions_car DAB+ – digital radio already integrated With the built-in digital radio tuner you have stable and clear radio reception near_me Upgrade to a sat nav With the R-MAPC10 navigation package, available as an accessory, your R-C11AD2 can be easily upgraded to a permanently installed navigation system bluetooth_audio Bluetooth – phone calls & music streaming Integrated Bluetooth system for freehands and wireless A2DP audio streaming from the smartphone wifi WLAN – mobile internet access The integrated WLAN module gives you mobile web access, i.e. to services such as YouTube, online navigation, internet radio, Spotify smartphone EasyConnection – mirror your apps Apple iPhones and Android smartphones can transfer their screen contents to the display of the Audi car radio with EasyConnection
Car radio R-C11AD2 Audi A4 navigation navigation app

Navigation system for Audi A4

Built as an Android system, you can install and use Android navigation apps directly on the media center R-C11AD2. And if you want a permanently installed navigation system – with a separately available license code you can easily unlock the offline navigation R-MAPC10 already pre-installed on the Audi infotainer. Offline navigation R-MAPC10 unlock easily here.

Radio = cinema in your head: FM and DAB+ radio

The integrated DAB+ tuner ensures clear digital radio reception and offers numerous functions such as MOT slideshow, station list or DLS text. The built-in FM RDS tuner takes care of the reception of non-digital, analog radio stations.

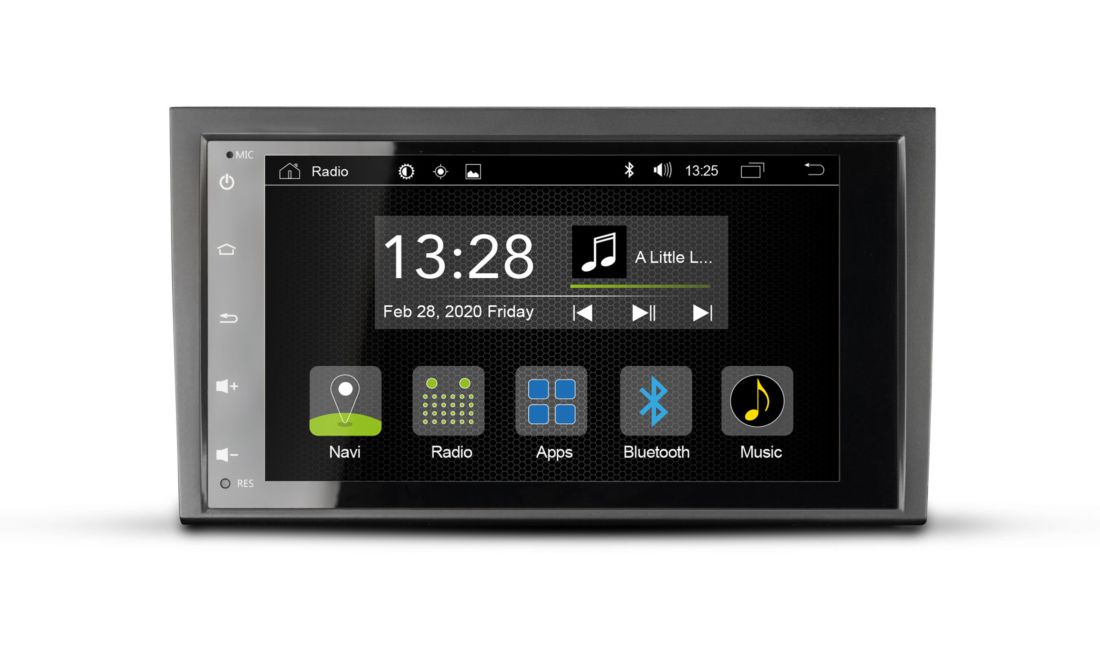

Car radio R-C11AD2 Audi A4 digital radio front view
Car radio R-C11AD2 Audi A4 connection smartphone easy connection

EasyConnection – mirroring for Smartphones

With the EasyConnection function, you can mirror your apps, for example YouTube, via WLAN or USB from your Android smartphone to the R-C11AD2 multimedia system and operate these apps via touchscreen. Of course, you can also use EasyConnection with your Apple iPhone, but you will have to operate the mirrored apps via the iPhone screen.

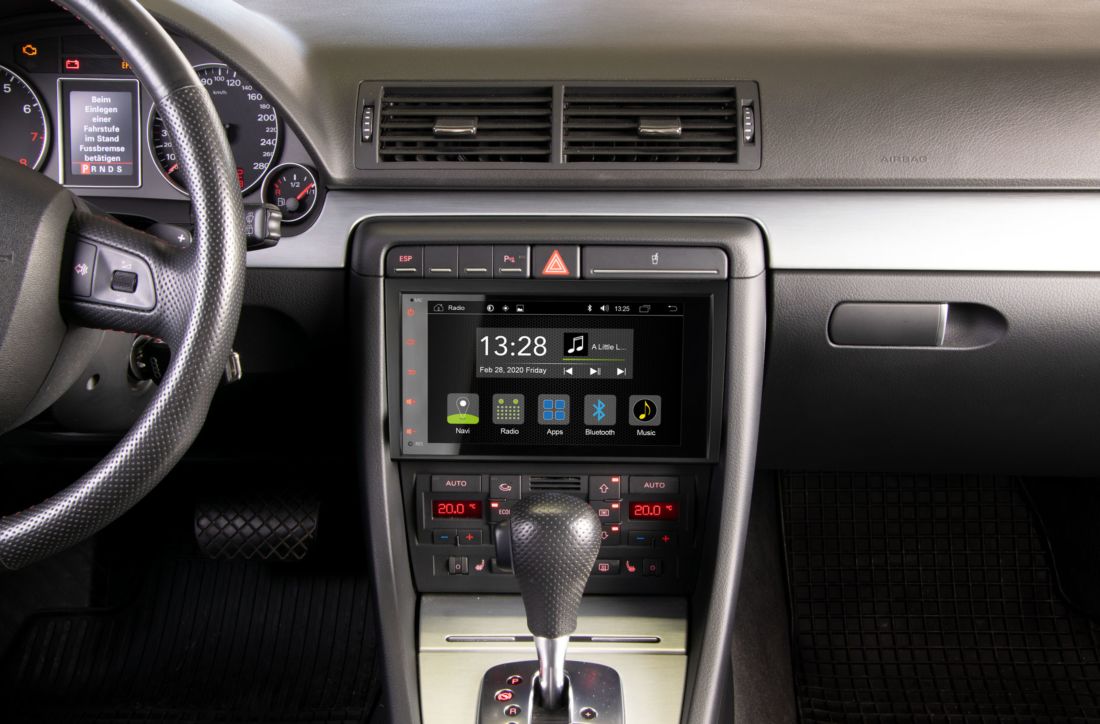

Fits perfectly into the Audi A4

The RADICAL multimedia system integrates optically and technically into the Audi A4 Sedan, A4 Avant and A4 Convertible as well as the SEAT Exeo and Exeo ST. A CAN Bus interface provides the connection to the steering wheel remote control, multifunctional display, reversing control, handbrake control, vehicle illumination status and is included in the scope of delivery of the media center.

COMPATIBILITY RESTRICTIONS:

Dynaudio active sound systems are supported. CAN data based vehicle integration: Download CAN Bus Integration





BRAND/TYPE/MODEL/YEAR
  • AUDI A4 Sedan B7 2004 > 2007
  • AUDI A4 Avant B7 2004 > 2007
  • AUDI A4 Convertible B7 2006 > 2009
  • SEAT Exeo 3R 2008 > 2013
  • SEAT Exeo ST 3R 2009 > 2011

SPECIFIKACIJOS

MAIN FEATURES
  • Car specific infotainer for Audi A4 8E
  • Allwinner T8 CPU with 2 GB RAM and 16 GB Flash memory
  • Radical GPS navigation package pre-installed (without license)*1
  • Open Android 9.0 OS, offline installation of Android apps*2
  • Capacitive, touch sensitive 8” / 20.3 cm display with 1024 x 600 pixels resolution
  • OSD menu in various EU languages (German, English, Italian, French, Spanish, etc.)
  • DAB+ tuner with MOT slideshow, station list and DLS-text
  • FM RDS radio with 36 pre-set stations on FM1/FM2 station bands
  • Bluetooth 4.2 hands-free module and A2DP BT music streaming
  • Two USB 2.0 ports for A/V-file playback*3 and connection of Android and iOS smartphones*4
  • Control of one camera system with auto switching function
  • EasyConnection for screen mirroring and the integration of Android and iOS smartphone apps
  • RGB multicolour soft key illumination
  • Integrated 4 x 45 watts amplifier
  • Integrated WiFi module (WLAN IEEE 802.11 b/g/n)
BLUETOOTH
  • Bluetooth 4.2 hands-free module
  • Synchronization of 1,000 phone book contacts and 3 numbers each
  • Search function for phone book contacts
  • A2DP BT music streaming with iD3-tag and AVRCP 1.3
  • Internal Bluetooth microphone, additional cockpit microphone input*5
MULTIMEDIA + AUDIO
  • DAB+ receiver with single-tuner
  • FM RDS radio with 36 pre-set stations
  • Internet access via browser
  • Two USB 2.0 ports for A/V-file playback*3, 4
  • EasyConnection for Android OS and Apple iOS smartphones
  • 12-bands graphical equalizer with 8 predefined sound-profiles
  • Balance, Fader, Loudness, Subwoofer audio adjustments
  • A2DP BT music streaming with AVRCP 1.3
  • HDMI input for compatible accessories and mobile devices
  • 4 x 45 watts amplifier
VEHICLE INTEGRATION FEATURES
  • CAN data based vehicle function integration to: Steering wheel remote control, multifunctional display, reversing control, handbrake control, vehicle illumination status

CONNECTIONS
  • 4.2 RCA line pre-outs (3 V)
  • 1 x RCA A/V input for camera video signal (CVBS)
  • 1 x DIN FM antenna input
  • 1 x DAB antenna input with 12 V power supply
  • 1 x SMA WiFi antenna input
  • 2 x RCA video output (CVBS, NTSC)
  • 1 x RCA AUX A/V input with NTSC/PAL auto switching (CVBS)
  • 2 x USB 2.0 port with 1000 mA smartphone charging current
  • 1 x HDMI input
  • 1 x input for Bluetooth cockpit microphone
  • 1 x SMA input for GPS receiver

*1 RADICAL R-MAPC10 GPS navigation software installed on device ex-works, use license available separately. The system allows the installation of other Android GPS navigation apps.
*2 Google Play Store access is not supported due to licensing restrictions
*3 Supported A/V file formats: MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
*4 1000 mA charging current for each connected smartphone
*5 The additional, freely installable cockpit Bluetooth microphone, is contained in the set

Main Device Type
  • See compatibility information given under each R-C11 device variant

Mainboard Core Hardware + OS

  • Allwinner T8, 1.6 GHz ARM Cortex A7 OctaCore
  • RAM Hynix or Micron DDR3, 2 GB
  • Flash Memory Samsung, 16 GB
  • Operation System Android 9.0



GPS Hardware
  • GPS Receiver Front End Ublox G7020-KT/M8130-KT
  • GPS Antenna Voltage  3.3 V Display Screen + TFT LCD Panel
  • TFT Type Capacitive TFT-LCD screen with 1024 x 600 pixels resolution and 7", 8", 9" or 10.1" dimension depending on model Capacitive Touch Screen
  • Yes, with multigesture capable for navigation software (if supported by selected app)
  • Display Brightness Adjustment Yes


Bluetooth
  • Bluetooth Module Type iVT i8008
  • Built-in Microphone in the Control Panel Yes
  • Hands Free Function Support
  • Bluetooth 4.2 profile A2DP BT Audio Streaming Yes, with AVRCP 1.3
  • Built-in Microphone Yes
  • Phonebook Import Function Yes
  • Phonebook Contact Search Yes
  • Connect Code 1234 - Name: RADICAL
  • Bluetooth Contact Sharing Yes
  • External Microphone Support Yes, second input for cockpit microphone (contained in set)


FM Tuner

Hardware NXP Lithio TEF6686 FM Frequency Range 87.5 MHz > 108.0 MHz Radio Stations 36 FM station presets (2 bands with 18 stations each) Built-in RDS Radio Receiver Function Yes Radio Frequency Region Europe Input Impedance 50 ohms
DAB+ Tuner
  • Hardware Ekong
  • DAB+ Tuner Type 1CH Tuner
  • FM Frequency Range 174 MHz - 240 MHz
  • Station Handling Ensemble list showing DAB stations sorted alphanumerically
  • Subtype Data Decoding MOT Slideshow, DLS-text
  • Sensitivity Band III 96 dB ~ 101 dB
  • Signal-To-Noise @72 dBm Typically 50 ~ 60 dB
  • Channel Separation @72 dBm Typically 50 ~ 55 dB
  • Input Impedance 50 ohms


WiFi Module
  • Hardware Realtek BL-8188-EU1 Module
  • Protocol IEEE 802.11 b/g/n
  • Transmission Frequency 2.400 GHz > 2.484 GHz
  • RF Power 15 dBm


OBD-II Interface
  • Support of ELM327 Chipset Protocol
  • Yes, via Bluetooth and WiFi

General Audio + Multimedia

  • Internal 4CH Amplifier IC St Microelectronics TDA7388
  • Max. Power Output Internal 4CH amp with 4 x 45 W
  • Supported Digital Audio/Video Formats (USB) MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
  • Supported Video Output Formats MPEG-1/2, MPEG4, M4V (H.264), MKV 1080p
  • Supported Digital Picture Formats JPEG, BMP, PNG, TIFF
  • USB Memory Addressing USB memory of up to 64 GB of memory (USB HDD function cannot be guaranteed)


Audio DSP Functions
  • Equalizer 12 bands EQ with 8 selectable sound-profiles: "Jazz", "Pop", Classic", "Rock", "News", "Urban", "Techno", ("Normal")
  • Audio Adjustments Balance, Fader, Loudness and Subwoofer audio settings


Inputs & Outputs
  • 4.2CH Line Out RCA line-outs with 3 V signal level
  • USB 2.0 Ports Two USB inputs with 1000 mA charging current each
  • AUX Audio/Video Input Stereo audio via RCA, video CVBS signal (NTSC) 1V p-p, 75 ohms via RCA
  • Audio Output 5CH >stereo front and rear + subwoofer via RCA, 3 V signal level
  • Video Output Video1 and Video2 via RCA, 1 V p-p
  • Rear View Camera Input Camera system with PAL/NTSC auto-switching
  • FM Antenna Input ISO connector, 50 ohms
  • DAB Antenna Input SMB, 50 ohms with 12 V phantom power
  • GPS Antenna Input SMA, 3.3 V


HDMI
  • Supported Video-Stream Resolution
  • Up to 1080p with signal auto recognition


Camera System
  • Type + Control
  • Connection and control for one rear view camera system, video input triggered via reverse signal
  • Video Signal Input CVBS signal via RCA, 1 V p-p

Miscellaneous
  • Firmware / Software Update Via USB port
  • Boot Logo RADICAL logo
  • Multicolor Sensor / Hardkey Illumination
  • RGB LED, free selection of key illumination color, 256 color shades
  • Wallpaper User selectable / customizable
  • Built-in System Clock Display Yes
  • Menu Languages 85 Android system languages, incl. English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Norwegian/etc.
  • Smartphone Headunit Interface
  • EasyConnection app, screen mirroring for iOS smartphones, Dual protocol with app control via TS for Android smartphones
  • Auto Memory Function Yes
  • Standyby Current < 3 mA
  • Power Supply DC 12V, negative ground
  • Min. / Max. Operating Current 1.5 to 15 A

    Kas pakuotėje?

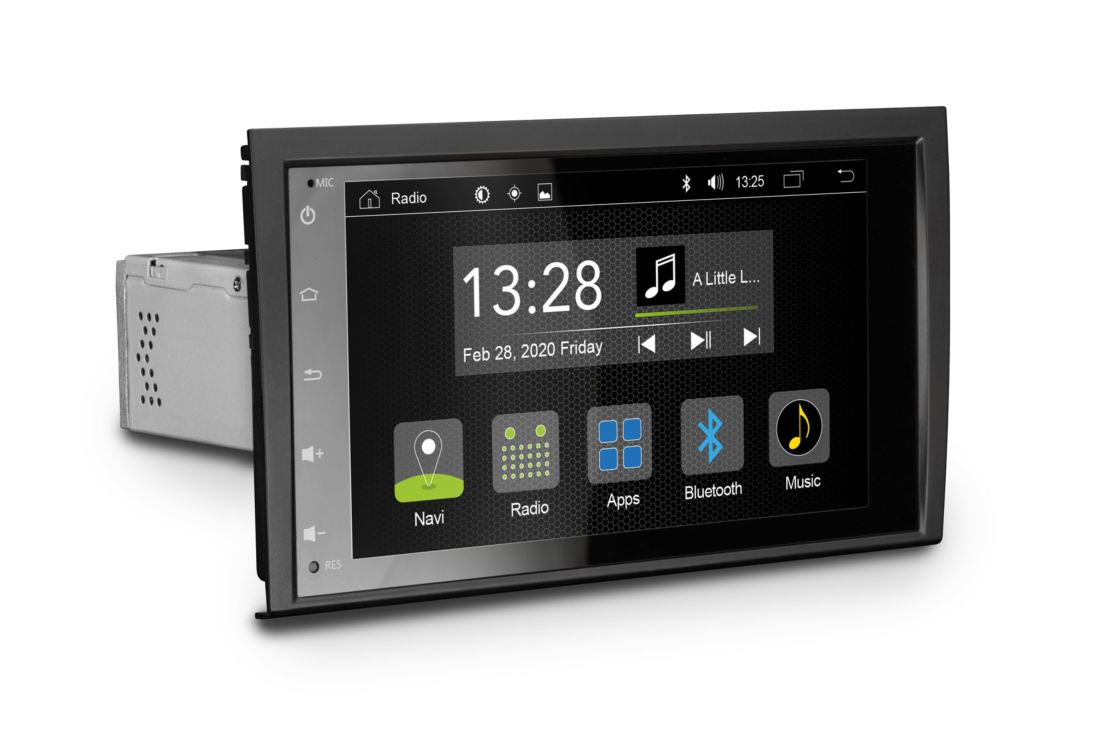

    Infotainer R-C11AD2

    Car radio R-C11AD2 Audi A4 scope of delivery

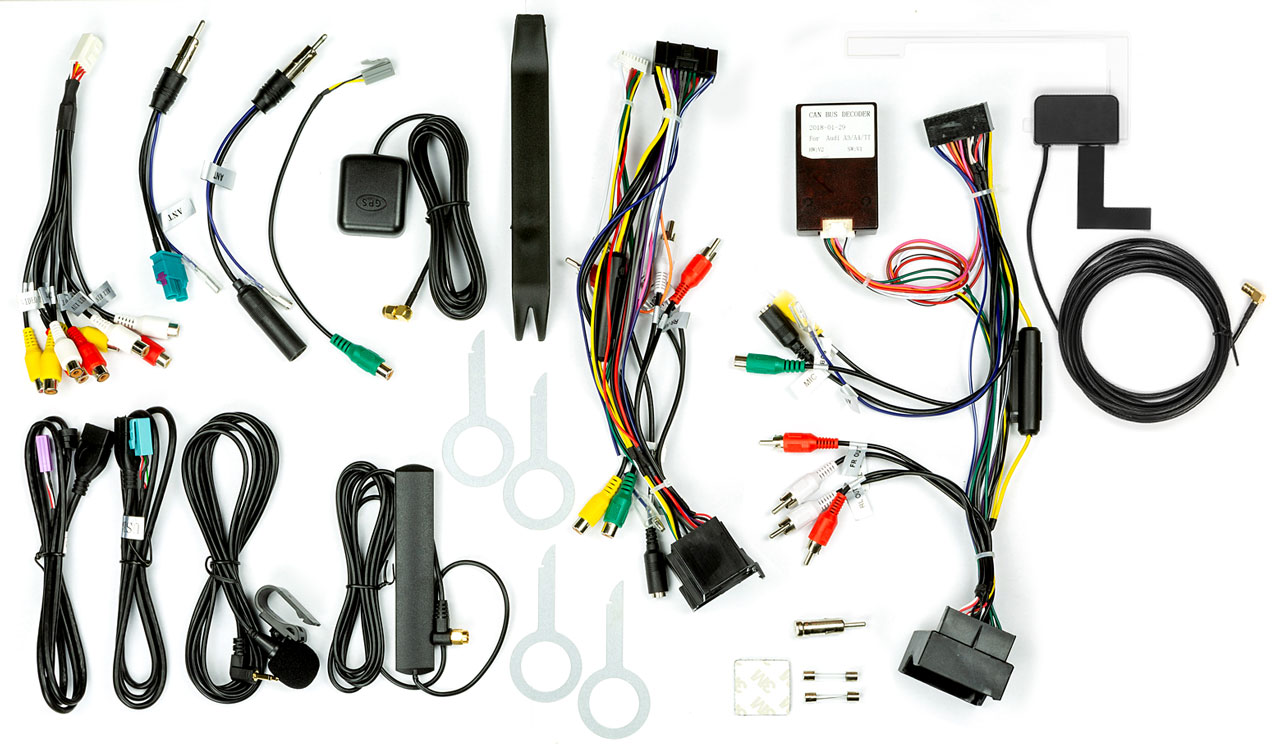

    Connection accessories

    Car radio R-C11AD2 Audi A4 connection accessoires



    INSTRUKCIJOS

    User Manual.
