Radical R-C11MB2, Android multimedija Mercedes E-Class (W211, C219) automobiliams

Android automobilinė multimedija skirta Mercedes E-Class W211, C219 modeliams pagamintiems nuo 2003 > 2009 metų (tikslus sąrašas skiltyje APRAŠYMAS). Multimediją apjungia populiariausių servisų palaiykmą, naujausias technologijas bei viską sudeda po elegantišku dizainu.

Padidinti nuotrauką
Bakstelėkite arba sugnybkite jei norite priartinti

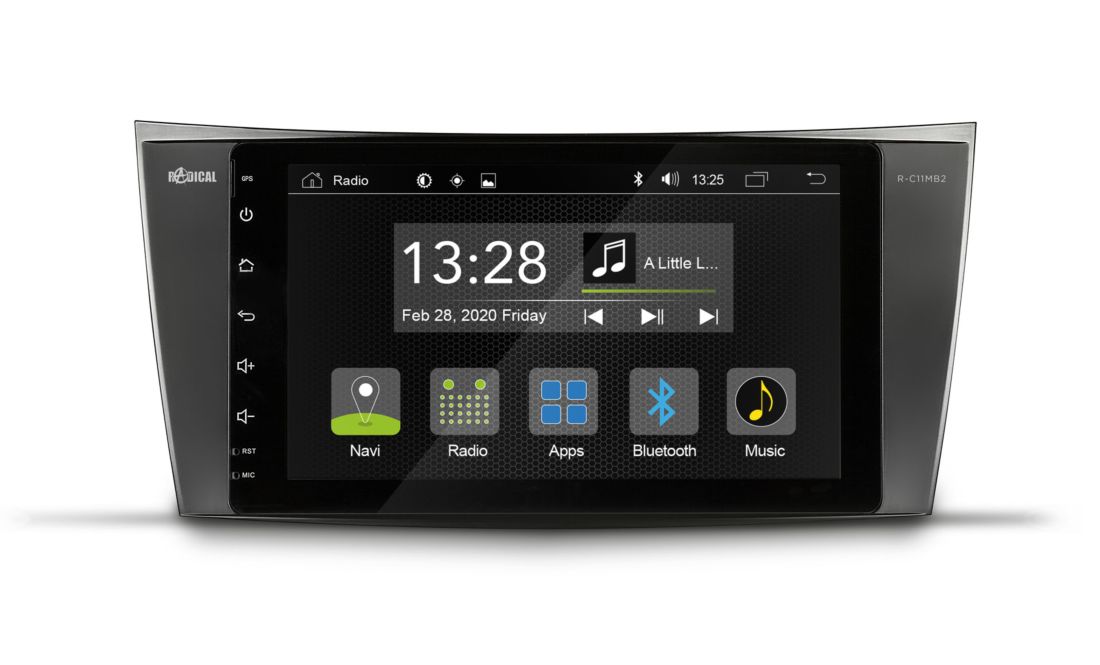

Radical R-C11MB2, Android multimedija Mercedes E-Class (W211, C219) automobiliams - priekis
Radical R-C11MB2, Android multimedija Mercedes E-Class (W211, C219) automobiliams - priekis
Padidinti nuotrauką
Bakstelėkite arba sugnybkite jei norite priartinti

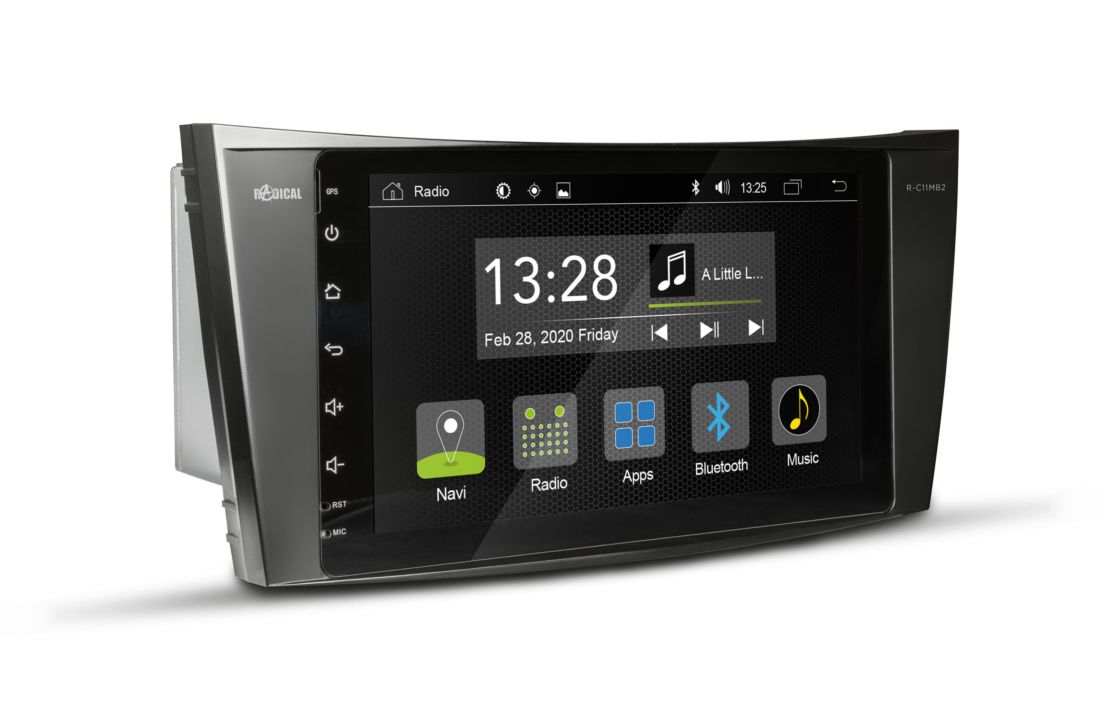

Radical R-C11MB2, Android multimedija Mercedes E-Class (W211, C219) automobiliams - šonas
Radical R-C11MB2, Android multimedija Mercedes E-Class (W211, C219) automobiliams - šonas
Radical R-C11MB2, Android multimedija Mercedes E-Class (W211, C219) automobiliams - priekis
check_circle_outline
Užsakoma prekė
Translation missing: lt.product.general.sku_html
Nuolaida: 419.00 €
Kaina: 419.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Radical R-C11MB2, Android multimedija Mercedes E-Class (W211, C219) automobiliams

Android automobilinė multimedija skirta Mercedes E-Class W211, C219 modeliams pagamintiems nuo 2003 > 2009 metų (tikslus sąrašas skiltyje APRAŠYMAS). Multimediją apjungia populiariausių servisų palaiykmą, naujausias technologijas bei viską sudeda po elegantišku dizainu.

  • 8" / 20.3 cm lietimui jautrus ekranas.
  • Android 9.0 OS versija.
  • Radical GPS navigation (jau įdiegtas).
  • EasyConnection funkcija skirta mobiliesiems telefonams susieti.
  • Įmontuota laisvų rankų įranga bei mikrofonas.
  • Bluetooth, WLAN, Wi-Fi ryšio palaikymas.
  • USB 2.0 , RCA, HDMI bei  AUX jungtys.



Multimedia and more for the Mercedes E-Class

RADICAL's Android car radio for the Mercedes E-Class is a real all-rounder: Listen to the radio, play music and movies on the road, make comfortable phone calls or stream music via Bluetooth – the media center is perfectly designed for your mobile infotainment. The integrated WiFi module allows you to access the internet on the move, stream songs from the web, use apps such as Spotify or listen to internet radio. Built as an Android system, your Android apps can also be installed directly on the R-C11MB2 – you decide which functions you want to use in your Mercedes E-Class in the future. car radio Mercedes E-Klasse R-C11MB2 interior side view sunny day

Use your apps – with RADICAL's media receiver

The R-C11MB2 uses an Android 9.0 operating system, so that a direct installation of Android apps on the multimedia system is possible. All apps that you want to use in your Mercedes, for example your navigation apps, can be easily transferred to the infotainer via the APK installer and then operated via touchscreen. The RADICAL media receiver has a very powerful 1.3 GHz Octa Core CPU with 2 GB RAM and 16 GB flash memory, so that apps and background processes run smoothly and you have enough capacity to install your apps.

 RADICAL highlights
– infotainment android 9.0 Android operating system The system allows to install Android smartphone apps directly on the Mercedes car radio directions_car Enjoy DAB+ digital radio With the RADICAL DAB+ tuner you have stable, noise-free digital radio reception near_me Retrofit to navigation With the separately available navigation package R-MAPC10 you can easily upgrade the R-C11MB2 to a sat nav
 bluetooth_audio Integrated Bluetooth system Via Bluetooth you can comfortably make phone calls in your car and stream music wirelessly from your mobile wifi WiFi – using the web in the Mercedes Spotify, internet radio, YouTube – with WiFi and via Smartphone hotspot you can easily connect to the internet smartphone Mirroring with EasyConnection The display contents / apps of Android mobile phones or Apple iPhones can be mirrored to the media center with EasyConnection car radio Mercedes E-Klasse R-C11MB2 navigation system navigation app

Navigation system for Mercedes E-Class

You have several ways to navigate with the R-C11MB2: You can mirror a navigation app to the media receiver or install your Android navi apps directly via APK installer. You can also expand the media center to a sat nav: The Open Street Map navigation R-MAPC10 is already pre-installed on the device – just activate it with an optional license code.

Crystal clear reception on the move: FM and DAB+ radio

With the built-in FM tuner with RDS you can receive analog radio stations crystal clear. Also integrated is a powerful DAB+ tuner with additional functions such as a MOT slideshow, station list and DLS text for convenient operation and noise-free reception of digital radio programs. car radio Mercedes E-Klasse R-C11MB2 digital radio front view side view car radio Mercedes E-Klasse R-C11MB2 connection smartphone easy connection

Mirroring for mobile phones: EasyConnection

With EasyConnection you can mirror the display contents of your Android phone, including apps like YouTube, via WiFi or USB to the multimedia system for Mercedes and operate the apps via touchscreen. iOS-based phones are also supported, but the apps are then operated from the iPhone.

Fits perfectly in the Mercedes E-Class

The RADICAL Android car radio integrates optically and technically into the Mercedes E-Class Sedan (W211), the CLS (C219) and the Station Wagon T-Model (W211). The CAN bus interface, which is included in the scope of delivery, handles the networking with the steering wheel remote control,multifunctional display, electromagnetic park sensors (EPS), reversing control, handbrake control, and vehicle illumination status.


COMPATIBILITY RESTRICTIONS:

Dynaudio active sound systems are supported. CAN data based vehicle integration: Download CAN Bus Integration

BRAND/TYPE/MODEL/YEAR
  • Mercedes-Benz E-Class Sedan W211 2003 > 2009
  • Mercedes-Benz E-Class Station Wagon T-Model W211 2004 > 2009
  • Mercedes-Benz E-Class CLS C219 2005 > 2006

SPECIFIKACIJOS

MAIN FEATURES
  • Car specific infotainer for Mercedes-Benz E-Class W211, C219
  • Allwinner T8 CPU with 2 GB RAM and 16 GB Flash memory
  • Radical GPS navigation package pre-installed (without license)* 1
  • Open Android 9.0 OS, for offline installation of Android apps* 2
  • Capacitive, touch sensitive 8” / 20.3 cm display with 1024 x 600 pixels resolution
  • OSD menu in various EU languages (German, English, Italian, French, Spanish, etc.)
  • DAB+ tuner with MOT slideshow, station list and DLS-text
  • FM RDS radio with 36 pre-set stations on FM1/FM2 station bands
  • Bluetooth 4.2 hands-free module and A2DP BT music streaming
  • Two USB 2.0 ports for A/V-file playback* 3 and connection of Android and iOS smartphones* 4
  • Control of one camera system with auto switching function
  • EasyConnection for screen mirroring and the integration of Android and iOS smartphone apps
  • RGB multicolour soft key illumination
  • Integrated 4 x 45 watts amplifier
  • Integrated WiFi module (WLAN IEEE 802.11 b/g/n)
BLUETOOTH
  • Bluetooth 4.2 hands-free module
  • Synchronization of 1,000 phone book contacts and 3 numbers each
  • Search function for phone book contacts
  • A2DP BT music streaming with iD3-tag and AVRCP 1.3
  • Internal Bluetooth microphone, additional cockpit microphone input* 5
MULTIMEDIA + AUDIO
  • DAB+ receiver with single-tuner
  • FM RDS radio with 36 pre-set stations
  • Internet access via browser
  • Two USB 2.0 ports for A/V-file playback* 3, 4
  • EasyConnection for Android OS and Apple iOS smartphones
  • 12-bands graphical equalizer with 8 predefined sound-profiles
  • Balance, Fader, Loudness, Subwoofer audio adjustments
  • A2DP BT music streaming with AVRCP 1.3
  • HDMI input for compatible accessories and mobile devices
  • 4 x 45 watts amplifier
VEHICLE INTEGRATION FEATURES
  • CAN data based vehicle function integration to: Steering wheel remote control, multifunctional display, electromagnetic park sensors (EPS), reversing control, handbrake control, vehicle illumination status
CONNECTIONS
  • 4.2 RCA line pre-outs (3 V)
  • 1 x RCA A/V input for camera video signal (CVBS)
  • 1 x DIN FM antenna input
  • 1 x DAB antenna input with 12 V power supply
  • 1 x SMA WiFi antenna input
  • 2 x RCA video output (CVBS, NTSC)
  • 1 x RCA AUX A/V input with NTSC/PAL auto switching (CVBS)
  • 2 x USB 2.0 port with 1000 mA smartphone charging current
  • 1 x HDMI input
  • 1 x input for Bluetooth cockpit microphone
  • 1 x SMA input for GPS receiver

*1 RADICAL R-MAPC10 GPS navigation software installed on device ex-works, use license available separately. The system allows the installation of other Android GPS navigation apps.
*2 Google Play Store access is not supported due to licensing restrictions
*3 Supported A/V file formats: MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
*4 1000 mA charging current for each connected smartphone
*5 The additional, freely installable cockpit Bluetooth microphone, is contained in the set

Main Device Type
  • See compatibility information given under each R-C11 device variant

Mainboard Core Hardware + OS

  • Allwinner T8, 1.6 GHz ARM Cortex A7 OctaCore
  • RAM Hynix or Micron DDR3, 2 GB
  • Flash Memory Samsung, 16 GB
  • Operation System Android 9.0



GPS Hardware
  • GPS Receiver Front End Ublox G7020-KT/M8130-KT
  • GPS Antenna Voltage  3.3 V Display Screen + TFT LCD Panel
  • TFT Type Capacitive TFT-LCD screen with 1024 x 600 pixels resolution and 7", 8", 9" or 10.1" dimension depending on model Capacitive Touch Screen
  • Yes, with multigesture capable for navigation software (if supported by selected app)
  • Display Brightness Adjustment Yes

Bluetooth
  • Bluetooth Module Type iVT i8008
  • Built-in Microphone in the Control Panel Yes
  • Hands Free Function Support
  • Bluetooth 4.2 profile A2DP BT Audio Streaming Yes, with AVRCP 1.3
  • Built-in Microphone Yes
  • Phonebook Import Function Yes
  • Phonebook Contact Search Yes
  • Connect Code 1234 - Name: RADICAL
  • Bluetooth Contact Sharing Yes
  • External Microphone Support Yes, second input for cockpit microphone (contained in set)

FM Tuner

Hardware NXP Lithio TEF6686 FM Frequency Range 87.5 MHz > 108.0 MHz Radio Stations 36 FM station presets (2 bands with 18 stations each) Built-in RDS Radio Receiver Function Yes Radio Frequency Region Europe Input Impedance 50 ohms
DAB+ Tuner
  • Hardware Ekong
  • DAB+ Tuner Type 1CH Tuner
  • FM Frequency Range 174 MHz - 240 MHz
  • Station Handling Ensemble list showing DAB stations sorted alphanumerically
  • Subtype Data Decoding MOT Slideshow, DLS-text
  • Sensitivity Band III 96 dB ~ 101 dB
  • Signal-To-Noise @72 dBm Typically 50 ~ 60 dB
  • Channel Separation @72 dBm Typically 50 ~ 55 dB
  • Input Impedance 50 ohms

WiFi Module
  • Hardware Realtek BL-8188-EU1 Module
  • Protocol IEEE 802.11 b/g/n
  • Transmission Frequency 2.400 GHz > 2.484 GHz
  • RF Power 15 dBm

OBD-II Interface
  • Support of ELM327 Chipset Protocol
  • Yes, via Bluetooth and WiFi
General Audio + Multimedia

  • Internal 4CH Amplifier IC St Microelectronics TDA7388
  • Max. Power Output Internal 4CH amp with 4 x 45 W
  • Supported Digital Audio/Video Formats (USB) MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
  • Supported Video Output Formats MPEG-1/2, MPEG4, M4V (H.264), MKV 1080p
  • Supported Digital Picture Formats JPEG, BMP, PNG, TIFF
  • USB Memory Addressing USB memory of up to 64 GB of memory (USB HDD function cannot be guaranteed)

Audio DSP Functions
  • Equalizer 12 bands EQ with 8 selectable sound-profiles: "Jazz", "Pop", Classic", "Rock", "News", "Urban", "Techno", ("Normal")
  • Audio Adjustments Balance, Fader, Loudness and Subwoofer audio settings

Inputs & Outputs
  • 4.2CH Line Out RCA line-outs with 3 V signal level
  • USB 2.0 Ports Two USB inputs with 1000 mA charging current each
  • AUX Audio/Video Input Stereo audio via RCA, video CVBS signal (NTSC) 1V p-p, 75 ohms via RCA
  • Audio Output 5CH >stereo front and rear + subwoofer via RCA, 3 V signal level
  • Video Output Video1 and Video2 via RCA, 1 V p-p
  • Rear View Camera Input Camera system with PAL/NTSC auto-switching
  • FM Antenna Input ISO connector, 50 ohms
  • DAB Antenna Input SMB, 50 ohms with 12 V phantom power
  • GPS Antenna Input SMA, 3.3 V

HDMI
  • Supported Video-Stream Resolution
  • Up to 1080p with signal auto recognition

Camera System
  • Type + Control
  • Connection and control for one rear view camera system, video input triggered via reverse signal
  • Video Signal Input CVBS signal via RCA, 1 V p-p
Miscellaneous
  • Firmware / Software Update Via USB port
  • Boot Logo RADICAL logo
  • Multicolor Sensor / Hardkey Illumination
  • RGB LED, free selection of key illumination color, 256 color shades
  • Wallpaper User selectable / customizable
  • Built-in System Clock Display Yes
  • Menu Languages 85 Android system languages, incl. English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Norwegian/etc.
  • Smartphone Headunit Interface
  • EasyConnection app, screen mirroring for iOS smartphones, Dual protocol with app control via TS for Android smartphones
  • Auto Memory Function Yes
  • Standyby Current < 3 mA
  • Power Supply DC 12V, negative ground
  • Min. / Max. Operating Current 1.5 to 15 A

    Kas pakuotėje?

    Infotainer R-C11MB2

    car radio Mercedes E-Klasse R-C11MB2 scope of delivery

    Anschlusszubehör

    car radio Mercedes E-Klasse R-C11MB2 connection accessoires


    INSTRUKCIJOS

    User Manual.
