Radical R-C11SK1, Android multimedija Skoda Octavia III automobiliui

429.00 €

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Android automobilinė multimedija skirta Skoda Octavia III modeliams pagamintiems nuo 2013 > 2016 metų (tikslus sąrašas skiltyje APRAŠYMAS). Multimediją apjungia populiariausių servisų palaiykmą, naujausias technologijas bei viską sudeda po elegantišku dizainu.

  • 8" / 25.6 cm lietimui jautrus ekranas.
  • Android 9.0 OS versija.
  • Radical GPS navigation (jau įdiegtas).
  • EasyConnection funkcija skirta mobiliesiems telefonams susieti.
  • Įmontuota laisvų rankų įranga bei mikrofonas.
  • Bluetooth, WLAN, Wi-Fi ryšio palaikymas.
  • USB 2.0 , RCA, HDMI bei  AUX jungtys.



Multimedia and infotainment for your Skoda Octavia III

You want to experience a new kind of entertainment in your vehicle? You can, with the R-C11SK1 Android car radio for Skoda. Thanks to the integrated WiFi module, you can use this Android media center to access the internet, stream music and videos directly from the web, use Spotify or listen to internet radio. Is that all you need? No. You can also install the Android apps of your choice directly on this infotainer for unlimited use. The R-C11SK1 features a large 10.1 inch / 25.6 cm capacitive touchscreen, two USB ports, powerful FM and DAB+ tuners, an advanced Bluetooth system and much more.

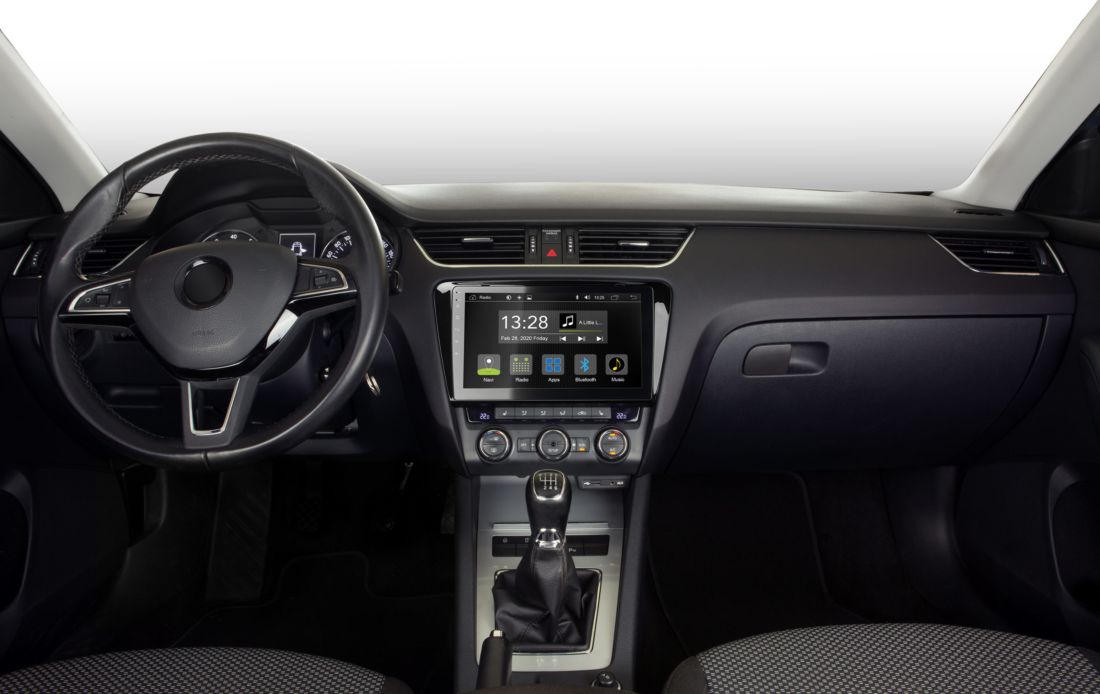

Car radio R-C11SK1Skoda Octavia III front view interior New York City cockpit

Your app world in your Skoda Octavia III

To enable installation of Android apps directly on the media receiver, this media center uses an operating system based on Android 9.0. With this, you can extend the functions of the device as you like. The R-C11SK1 has a powerful 1.3 GHz Octa Core processor with 2 GB of RAM memory for smooth, stable performance and fast boot-up. The 16 GB of internal flash memory provide enough space for apps of your choice – including your apps for navigation.

big city oscillation

Become a part of the city with the RADICAL R-C11SK1 and its great connectivity

Simply connect your smartphone to the RADICAL infotainer and get access to all the apps from your smartphone directly in your vehicle.

Car radio R-C11SK1Skoda Octavia III New York Couple Radical Image Photo

Multimedia and infotainment for your Skoda Octavia III

android 9.0 Android OS operating system The system enables a direct offline installation of Android smartphone apps on the car radio directions_car Integrated digital radio With the RADICAL DAB+ tuner you have stable, noise-free digital radio reception near_me Retrofit to navigation Easy to expand to a sat nav with the R-MAPC10 navigation package available as an accessory bluetooth_audio Bluetooth – make phone calls & stream music Built-in Bluetooth hands-free kit for telephony and wireless A2DP audio streaming wifi WLAN – surf the web on the go Integrated WiFi module for mobile internet access, easy use of Spotify, YouTube, internet radio, navigation functions smartphone EasyConnection mirroring EasyConnection mirrors the screen contents of Android mobile phones or Apple iPhones to the RADICAL's display
Car radio R-C11SK1Skoda Octavia III  navigation navigation app

Navigation system for Skoda Octavia III

Of course you can also use the media receiver R-C11SK1 for navigation – the Android system allows you to install any Android navigation app. And for those who don't want to navigate via app only: the Skoda car radio comes with the Open Street Map navigation R-MAPC10 pre-installed and that can be activated easily with a license code.

Stable reception: FM and DAB+ radio

The FM radio receiver of the R-C11SK1 is RDS-capable and has 36 station presetss. Also integrated is a powerful DAB+ tuner with many comfort functions such as a MOT slideshow, station list and DLS text for convenient operation and noise-free reception of digital radio programs.

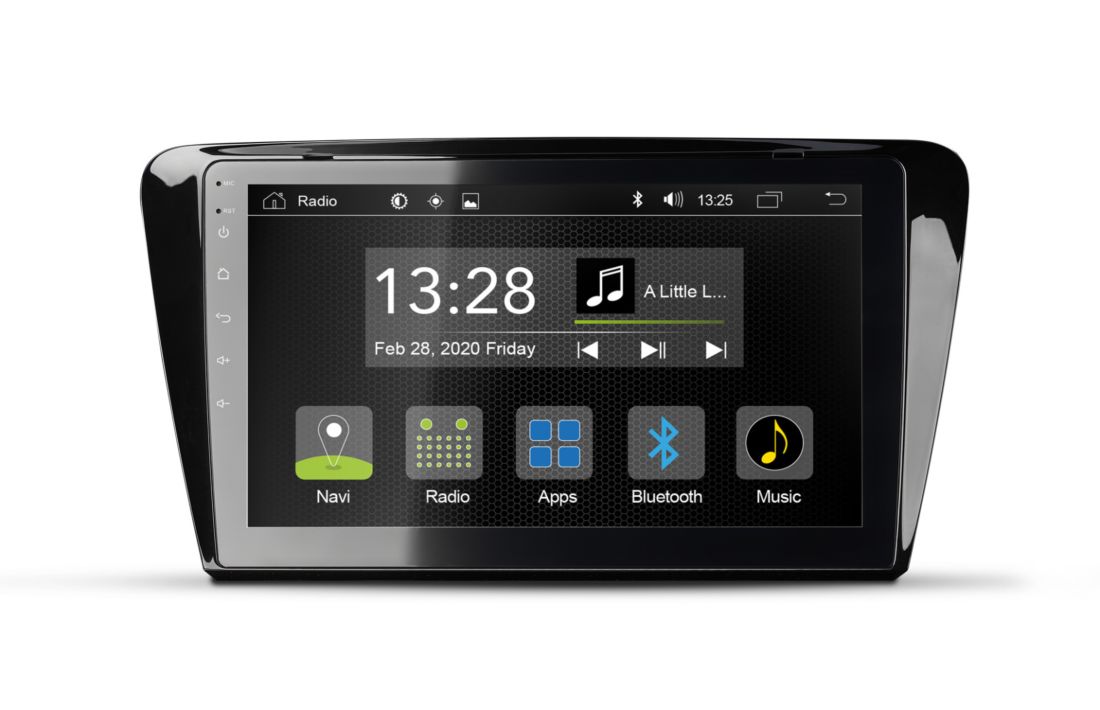

Car radio R-C11SK1Skoda Octavia III digital radio front view
Car radio R-C11SK1Skoda Octavia III  connection smartphone easy connection

EasyConnection – mirroring for mobile phones

EasyConnection allows you to mirror the display contents and apps of your smartphone to the R-C11SK1. The mirrored contents can then be operated directly via touchscreen. This feature is useful for apps that you only want to use temporarily. EasyConnection also works with Apple iPhones, but the apps must be operated from the iPhone.

Fits perfectly in the Skoda Octavia III

The RADICAL Android car radio for SKODA Octavia III is developed for the 5E Sedan, Facelift 5E Sedan, E5 Station Wagon and Facelift 5E Station Wagon and integrates perfectly into these vehicles. This also includes networking with the vehicle CAN, for example connection to the steering wheel remote control, multifunctional display, electromagnetic parking sensors (EPS), optical parking system (OPS), reversing control, handbrake control, vehicle illumination status, A/C control + status, board computer, car menu, or the integration of active sound s


COMPATIBILITY RESTRICTIONS:

Dynaudio active sound systems are supported. CAN data based vehicle integration: Download CAN Bus Integration


BRAND/TYPE/MODEL/YEAR
  • ŠKODA Octavia III, Sedan 5E 2013 > 2016
  • ŠKODA Octavia III, Sedan Facelift 5E 2016 >
  • ŠKODA Octavia III Station Wagon 5E 2013 > 2016
  • ŠKODA Octavia III Station Wagon Facelift 5E 2016 >

SPECIFIKACIJOS

MAIN FEATURES
  • Car specific infotainer for Skoda Octavia Mk3 5E
  • Allwinner T8 CPU with 2 GB RAM and 16 GB Flash memory
  • Radical GPS navigation package pre-installed (without license)*1
  • Open Android 9.0 OS, for offline installation of Android apps*2
  • Capacitive, touch sensitive 10.1” / 25.6 cm display with 1024 x 600 pixels resolution
  • OSD menu in various EU languages (German, English, Italian, French, Spanish, etc.)
  • DAB+ tuner with MOT slideshow, station list and DLS-text
  • FM RDS radio with 36 pre-set stations on FM1/FM2 station bands
  • Bluetooth 4.2 hands-free module and A2DP BT music streaming
  • Two USB 2.0 ports for A/V-file playback*3 and connection of Android and iOS smartphones*4
  • Control of one camera system with auto switching function
  • EasyConnection for screen mirroring and the integration of Android and iOS smartphone apps
  • RGB multicolour soft key illumination
  • Integrated 4 x 45 watts amplifier
  • Integrated WiFi module (WLAN IEEE 802.11 b/g/n)
BLUETOOTH
  • Bluetooth 4.2 hands-free module
  • Synchronization of 1,000 phone book contacts and 3 numbers each
  • Search function for phone book contacts
  • A2DP BT music streaming with iD3-tag and AVRCP 1.3
  • Internal Bluetooth microphone, additional cockpit microphone input*5
MULTIMEDIA + AUDIO
  • DAB+ receiver with single-tuner
  • FM RDS radio with 36 pre-set stations
  • Internet access via browser
  • Two USB 2.0 ports for A/V-file playback*3, 4
  • EasyConnection for Android OS and Apple iOS smartphones
  • 12-bands graphical equalizer with 8 predefined sound-profiles
  • Balance, Fader, Loudness, Subwoofer audio adjustments
  • A2DP BT music streaming with AVRCP 1.3
  • HDMI input for compatible accessories and mobile devices
  • 4 x 45 watts amplifier
VEHICLE INTEGRATION FEATURES
  • CAN data based vehicle function integration to: Steering wheel remote control, multifunctional display, electromagnetic parking sensors (EPS) optical parking system, reversing control, handbrake control, vehicle illumination status, A/C control + status, board computer, car menu, active sound system integration
CONNECTIONS
  • 4.2 RCA line pre-outs (3 V)
  • 1 x RCA A/V input for camera video signal (CVBS)
  • 1 x DIN FM antenna input
  • 1 x DAB antenna input with 12 V power supply
  • 1 x SMA WiFi antenna input
  • 2 x RCA video output (CVBS, NTSC)
  • 1 x RCA AUX A/V input with NTSC/PAL auto switching (CVBS)
  • 2 x USB 2.0 port with 1000 mA smartphone charging current
  • 1 x HDMI input
  • 1 x input for Bluetooth cockpit microphone
  • 1 x SMA input for GPS receiver

*1 RADICAL R-MAPC10 GPS navigation software installed on device ex-works, use license available separately. The system allows the installation of other Android GPS navigation apps.
*2 Google Play Store access is not supported due to licensing restrictions
*3 Supported A/V file formats: MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
*4 1000 mA charging current for each connected smartphone
*5 The additional, freely installable cockpit Bluetooth microphone, is contained in the set

Main Device Type
  • See compatibility information given under each R-C11 device variant

Mainboard Core Hardware + OS

  • Allwinner T8, 1.6 GHz ARM Cortex A7 OctaCore
  • RAM Hynix or Micron DDR3, 2 GB
  • Flash Memory Samsung, 16 GB
  • Operation System Android 9.0



GPS Hardware
  • GPS Receiver Front End Ublox G7020-KT/M8130-KT
  • GPS Antenna Voltage  3.3 V Display Screen + TFT LCD Panel
  • TFT Type Capacitive TFT-LCD screen with 1024 x 600 pixels resolution and 7", 8", 9" or 10.1" dimension depending on model Capacitive Touch Screen
  • Yes, with multigesture capable for navigation software (if supported by selected app)
  • Display Brightness Adjustment Yes


Bluetooth
  • Bluetooth Module Type iVT i8008
  • Built-in Microphone in the Control Panel Yes
  • Hands Free Function Support
  • Bluetooth 4.2 profile A2DP BT Audio Streaming Yes, with AVRCP 1.3
  • Built-in Microphone Yes
  • Phonebook Import Function Yes
  • Phonebook Contact Search Yes
  • Connect Code 1234 - Name: RADICAL
  • Bluetooth Contact Sharing Yes
  • External Microphone Support Yes, second input for cockpit microphone (contained in set)


FM Tuner

Hardware NXP Lithio TEF6686 FM Frequency Range 87.5 MHz > 108.0 MHz Radio Stations 36 FM station presets (2 bands with 18 stations each) Built-in RDS Radio Receiver Function Yes Radio Frequency Region Europe Input Impedance 50 ohms
DAB+ Tuner
  • Hardware Ekong
  • DAB+ Tuner Type 1CH Tuner
  • FM Frequency Range 174 MHz - 240 MHz
  • Station Handling Ensemble list showing DAB stations sorted alphanumerically
  • Subtype Data Decoding MOT Slideshow, DLS-text
  • Sensitivity Band III 96 dB ~ 101 dB
  • Signal-To-Noise @72 dBm Typically 50 ~ 60 dB
  • Channel Separation @72 dBm Typically 50 ~ 55 dB
  • Input Impedance 50 ohms


WiFi Module
  • Hardware Realtek BL-8188-EU1 Module
  • Protocol IEEE 802.11 b/g/n
  • Transmission Frequency 2.400 GHz > 2.484 GHz
  • RF Power 15 dBm


OBD-II Interface
  • Support of ELM327 Chipset Protocol
  • Yes, via Bluetooth and WiFi

General Audio + Multimedia

  • Internal 4CH Amplifier IC St Microelectronics TDA7388
  • Max. Power Output Internal 4CH amp with 4 x 45 W
  • Supported Digital Audio/Video Formats (USB) MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
  • Supported Video Output Formats MPEG-1/2, MPEG4, M4V (H.264), MKV 1080p
  • Supported Digital Picture Formats JPEG, BMP, PNG, TIFF
  • USB Memory Addressing USB memory of up to 64 GB of memory (USB HDD function cannot be guaranteed)


Audio DSP Functions
  • Equalizer 12 bands EQ with 8 selectable sound-profiles: "Jazz", "Pop", Classic", "Rock", "News", "Urban", "Techno", ("Normal")
  • Audio Adjustments Balance, Fader, Loudness and Subwoofer audio settings


Inputs & Outputs
  • 4.2CH Line Out RCA line-outs with 3 V signal level
  • USB 2.0 Ports Two USB inputs with 1000 mA charging current each
  • AUX Audio/Video Input Stereo audio via RCA, video CVBS signal (NTSC) 1V p-p, 75 ohms via RCA
  • Audio Output 5CH >stereo front and rear + subwoofer via RCA, 3 V signal level
  • Video Output Video1 and Video2 via RCA, 1 V p-p
  • Rear View Camera Input Camera system with PAL/NTSC auto-switching
  • FM Antenna Input ISO connector, 50 ohms
  • DAB Antenna Input SMB, 50 ohms with 12 V phantom power
  • GPS Antenna Input SMA, 3.3 V


HDMI
  • Supported Video-Stream Resolution
  • Up to 1080p with signal auto recognition


Camera System
  • Type + Control
  • Connection and control for one rear view camera system, video input triggered via reverse signal
  • Video Signal Input CVBS signal via RCA, 1 V p-p

Miscellaneous
  • Firmware / Software Update Via USB port
  • Boot Logo RADICAL logo
  • Multicolor Sensor / Hardkey Illumination
  • RGB LED, free selection of key illumination color, 256 color shades
  • Wallpaper User selectable / customizable
  • Built-in System Clock Display Yes
  • Menu Languages 85 Android system languages, incl. English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Norwegian/etc.
  • Smartphone Headunit Interface
  • EasyConnection app, screen mirroring for iOS smartphones, Dual protocol with app control via TS for Android smartphones
  • Auto Memory Function Yes
  • Standyby Current < 3 mA
  • Power Supply DC 12V, negative ground
  • Min. / Max. Operating Current 1.5 to 15 A

    Kas pakuotėje?

    Infotainer R-C11SK1

    Car radio R-C11SK1Skoda Octavia III scope of delivery

    Connection accessories

    Car radio R-C11SK1Skoda Octavia III connection accessoires








    INSTRUKCIJOS

    User Manual.

    Radical R-C11SK1, Android multimedija Skoda Octavia III automobiliui - priekis
    Radical

    Radical R-C11SK1, Android multimedija Skoda Octavia III automobiliui

    429.00 €

    Android automobilinė multimedija skirta Skoda Octavia III modeliams pagamintiems nuo 2013 > 2016 metų (tikslus sąrašas skiltyje APRAŠYMAS). Multimediją apjungia populiariausių servisų palaiykmą, naujausias technologijas bei viską sudeda po elegantišku dizainu.



    APRAŠYMAS

    Multimedia and infotainment for your Skoda Octavia III

    You want to experience a new kind of entertainment in your vehicle? You can, with the R-C11SK1 Android car radio for Skoda. Thanks to the integrated WiFi module, you can use this Android media center to access the internet, stream music and videos directly from the web, use Spotify or listen to internet radio. Is that all you need? No. You can also install the Android apps of your choice directly on this infotainer for unlimited use. The R-C11SK1 features a large 10.1 inch / 25.6 cm capacitive touchscreen, two USB ports, powerful FM and DAB+ tuners, an advanced Bluetooth system and much more.
    Car radio R-C11SK1Skoda Octavia III front view interior New York City cockpit

    Your app world in your Skoda Octavia III

    To enable installation of Android apps directly on the media receiver, this media center uses an operating system based on Android 9.0. With this, you can extend the functions of the device as you like. The R-C11SK1 has a powerful 1.3 GHz Octa Core processor with 2 GB of RAM memory for smooth, stable performance and fast boot-up. The 16 GB of internal flash memory provide enough space for apps of your choice – including your apps for navigation.

    big city oscillation

    Become a part of the city with the RADICAL R-C11SK1 and its great connectivity

    Simply connect your smartphone to the RADICAL infotainer and get access to all the apps from your smartphone directly in your vehicle.

    Car radio R-C11SK1Skoda Octavia III New York Couple Radical Image Photo

    Multimedia and infotainment for your Skoda Octavia III

    android
    9.0 Android OS operating system
    The system enables a direct offline installation of Android smartphone apps on the car radio
    directions_car
    Integrated digital radio
    With the RADICAL DAB+ tuner you have stable, noise-free digital radio reception
    near_me
    Retrofit to navigation
    Easy to expand to a sat nav with the R-MAPC10 navigation package available as an accessory
    bluetooth_audio
    Bluetooth – make phone calls & stream music
    Built-in Bluetooth hands-free kit for telephony and wireless A2DP audio streaming
    wifi
    WLAN – surf the web on the go
    Integrated WiFi module for mobile internet access, easy use of Spotify, YouTube, internet radio, navigation functions
    smartphone
    EasyConnection mirroring
    EasyConnection mirrors the screen contents of Android mobile phones or Apple iPhones to the RADICAL's display
    Car radio R-C11SK1Skoda Octavia III  navigation navigation app

    Navigation system for Skoda Octavia III

    Of course you can also use the media receiver R-C11SK1 for navigation – the Android system allows you to install any Android navigation app. And for those who don't want to navigate via app only: the Skoda car radio comes with the Open Street Map navigation R-MAPC10 pre-installed and that can be activated easily with a license code.

    Stable reception: FM and DAB+ radio

    The FM radio receiver of the R-C11SK1 is RDS-capable and has 36 station presetss. Also integrated is a powerful DAB+ tuner with many comfort functions such as a MOT slideshow, station list and DLS text for convenient operation and noise-free reception of digital radio programs.
    Car radio R-C11SK1Skoda Octavia III digital radio front view
    Car radio R-C11SK1Skoda Octavia III  connection smartphone easy connection

    EasyConnection – mirroring for mobile phones

    EasyConnection allows you to mirror the display contents and apps of your smartphone to the R-C11SK1. The mirrored contents can then be operated directly via touchscreen. This feature is useful for apps that you only want to use temporarily. EasyConnection also works with Apple iPhones, but the apps must be operated from the iPhone.

    Fits perfectly in the Skoda Octavia III

    The RADICAL Android car radio for SKODA Octavia III is developed for the 5E Sedan, Facelift 5E Sedan, E5 Station Wagon and Facelift 5E Station Wagon and integrates perfectly into these vehicles. This also includes networking with the vehicle CAN, for example connection to the steering wheel remote control, multifunctional display, electromagnetic parking sensors (EPS), optical parking system (OPS), reversing control, handbrake control, vehicle illumination status, A/C control + status, board computer, car menu, or the integration of active sound s


    COMPATIBILITY RESTRICTIONS:

    Dynaudio active sound systems are supported. CAN data based vehicle integration: Download CAN Bus Integration


    BRAND/TYPE/MODEL/YEAR
    • ŠKODA Octavia III, Sedan 5E 2013 > 2016
    • ŠKODA Octavia III, Sedan Facelift 5E 2016 >
    • ŠKODA Octavia III Station Wagon 5E 2013 > 2016
    • ŠKODA Octavia III Station Wagon Facelift 5E 2016 >

    TECHNINIAI DUOMENYS

    SPECIFIKACIJOS

    MAIN FEATURES
    • Car specific infotainer for Skoda Octavia Mk3 5E
    • Allwinner T8 CPU with 2 GB RAM and 16 GB Flash memory
    • Radical GPS navigation package pre-installed (without license)*1
    • Open Android 9.0 OS, for offline installation of Android apps*2
    • Capacitive, touch sensitive 10.1” / 25.6 cm display with 1024 x 600 pixels resolution
    • OSD menu in various EU languages (German, English, Italian, French, Spanish, etc.)
    • DAB+ tuner with MOT slideshow, station list and DLS-text
    • FM RDS radio with 36 pre-set stations on FM1/FM2 station bands
    • Bluetooth 4.2 hands-free module and A2DP BT music streaming
    • Two USB 2.0 ports for A/V-file playback*3 and connection of Android and iOS smartphones*4
    • Control of one camera system with auto switching function
    • EasyConnection for screen mirroring and the integration of Android and iOS smartphone apps
    • RGB multicolour soft key illumination
    • Integrated 4 x 45 watts amplifier
    • Integrated WiFi module (WLAN IEEE 802.11 b/g/n)
    BLUETOOTH
    • Bluetooth 4.2 hands-free module
    • Synchronization of 1,000 phone book contacts and 3 numbers each
    • Search function for phone book contacts
    • A2DP BT music streaming with iD3-tag and AVRCP 1.3
    • Internal Bluetooth microphone, additional cockpit microphone input*5
    MULTIMEDIA + AUDIO
    • DAB+ receiver with single-tuner
    • FM RDS radio with 36 pre-set stations
    • Internet access via browser
    • Two USB 2.0 ports for A/V-file playback*3, 4
    • EasyConnection for Android OS and Apple iOS smartphones
    • 12-bands graphical equalizer with 8 predefined sound-profiles
    • Balance, Fader, Loudness, Subwoofer audio adjustments
    • A2DP BT music streaming with AVRCP 1.3
    • HDMI input for compatible accessories and mobile devices
    • 4 x 45 watts amplifier
    VEHICLE INTEGRATION FEATURES

    • CAN data based vehicle function integration to: Steering wheel remote control, multifunctional display, electromagnetic parking sensors (EPS) optical parking system, reversing control, handbrake control, vehicle illumination status, A/C control + status, board computer, car menu, active sound system integration
    CONNECTIONS
    • 4.2 RCA line pre-outs (3 V)
    • 1 x RCA A/V input for camera video signal (CVBS)
    • 1 x DIN FM antenna input
    • 1 x DAB antenna input with 12 V power supply
    • 1 x SMA WiFi antenna input
    • 2 x RCA video output (CVBS, NTSC)
    • 1 x RCA AUX A/V input with NTSC/PAL auto switching (CVBS)
    • 2 x USB 2.0 port with 1000 mA smartphone charging current
    • 1 x HDMI input
    • 1 x input for Bluetooth cockpit microphone
    • 1 x SMA input for GPS receiver

    *1 RADICAL R-MAPC10 GPS navigation software installed on device ex-works, use license available separately. The system allows the installation of other Android GPS navigation apps.
    *2 Google Play Store access is not supported due to licensing restrictions
    *3 Supported A/V file formats: MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
    *4 1000 mA charging current for each connected smartphone
    *5 The additional, freely installable cockpit Bluetooth microphone, is contained in the set

    Main Device Type

    • See compatibility information given under each R-C11 device variant

    Mainboard Core Hardware + OS

    • Allwinner T8, 1.6 GHz ARM Cortex A7 OctaCore
    • RAM Hynix or Micron DDR3, 2 GB
    • Flash Memory Samsung, 16 GB
    • Operation System Android 9.0



    GPS Hardware

    • GPS Receiver Front End Ublox G7020-KT/M8130-KT
    • GPS Antenna Voltage  3.3 V Display Screen + TFT LCD Panel
    • TFT Type Capacitive TFT-LCD screen with 1024 x 600 pixels resolution and 7", 8", 9" or 10.1" dimension depending on model Capacitive Touch Screen
    • Yes, with multigesture capable for navigation software (if supported by selected app)
    • Display Brightness Adjustment Yes


    Bluetooth

    • Bluetooth Module Type iVT i8008
    • Built-in Microphone in the Control Panel Yes
    • Hands Free Function Support
    • Bluetooth 4.2 profile A2DP BT Audio Streaming Yes, with AVRCP 1.3
    • Built-in Microphone Yes
    • Phonebook Import Function Yes
    • Phonebook Contact Search Yes
    • Connect Code 1234 - Name: RADICAL
    • Bluetooth Contact Sharing Yes
    • External Microphone Support Yes, second input for cockpit microphone (contained in set)


    FM Tuner


    Hardware
    NXP Lithio TEF6686
    FM Frequency Range
    87.5 MHz > 108.0 MHz
    Radio Stations
    36 FM station presets (2 bands with 18 stations each)
    Built-in RDS Radio Receiver Function
    Yes
    Radio Frequency Region
    Europe
    Input Impedance
    50 ohms

    DAB+ Tuner

    • Hardware Ekong
    • DAB+ Tuner Type 1CH Tuner
    • FM Frequency Range 174 MHz - 240 MHz
    • Station Handling Ensemble list showing DAB stations sorted alphanumerically
    • Subtype Data Decoding MOT Slideshow, DLS-text
    • Sensitivity Band III 96 dB ~ 101 dB
    • Signal-To-Noise @72 dBm Typically 50 ~ 60 dB
    • Channel Separation @72 dBm Typically 50 ~ 55 dB
    • Input Impedance 50 ohms


    WiFi Module

    • Hardware Realtek BL-8188-EU1 Module
    • Protocol IEEE 802.11 b/g/n
    • Transmission Frequency 2.400 GHz > 2.484 GHz
    • RF Power 15 dBm


    OBD-II Interface

    • Support of ELM327 Chipset Protocol
    • Yes, via Bluetooth and WiFi

    General Audio + Multimedia


    • Internal 4CH Amplifier IC St Microelectronics TDA7388
    • Max. Power Output Internal 4CH amp with 4 x 45 W
    • Supported Digital Audio/Video Formats (USB) MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
    • Supported Video Output Formats MPEG-1/2, MPEG4, M4V (H.264), MKV 1080p
    • Supported Digital Picture Formats JPEG, BMP, PNG, TIFF
    • USB Memory Addressing USB memory of up to 64 GB of memory (USB HDD function cannot be guaranteed)


    Audio DSP Functions

    • Equalizer 12 bands EQ with 8 selectable sound-profiles: "Jazz", "Pop", Classic", "Rock", "News", "Urban", "Techno", ("Normal")
    • Audio Adjustments Balance, Fader, Loudness and Subwoofer audio settings


    Inputs & Outputs

    • 4.2CH Line Out RCA line-outs with 3 V signal level
    • USB 2.0 Ports Two USB inputs with 1000 mA charging current each
    • AUX Audio/Video Input Stereo audio via RCA, video CVBS signal (NTSC) 1V p-p, 75 ohms via RCA
    • Audio Output 5CH >stereo front and rear + subwoofer via RCA, 3 V signal level
    • Video Output Video1 and Video2 via RCA, 1 V p-p
    • Rear View Camera Input Camera system with PAL/NTSC auto-switching
    • FM Antenna Input ISO connector, 50 ohms
    • DAB Antenna Input SMB, 50 ohms with 12 V phantom power
    • GPS Antenna Input SMA, 3.3 V


    HDMI

    • Supported Video-Stream Resolution
    • Up to 1080p with signal auto recognition


    Camera System

    • Type + Control
    • Connection and control for one rear view camera system, video input triggered via reverse signal
    • Video Signal Input CVBS signal via RCA, 1 V p-p

    Miscellaneous

    • Firmware / Software Update Via USB port
    • Boot Logo RADICAL logo
    • Multicolor Sensor / Hardkey Illumination
    • RGB LED, free selection of key illumination color, 256 color shades
    • Wallpaper User selectable / customizable
    • Built-in System Clock Display Yes
    • Menu Languages 85 Android system languages, incl. English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Norwegian/etc.
    • Smartphone Headunit Interface
    • EasyConnection app, screen mirroring for iOS smartphones, Dual protocol with app control via TS for Android smartphones
    • Auto Memory Function Yes
    • Standyby Current < 3 mA
    • Power Supply DC 12V, negative ground
    • Min. / Max. Operating Current 1.5 to 15 A

      Kas pakuotėje?

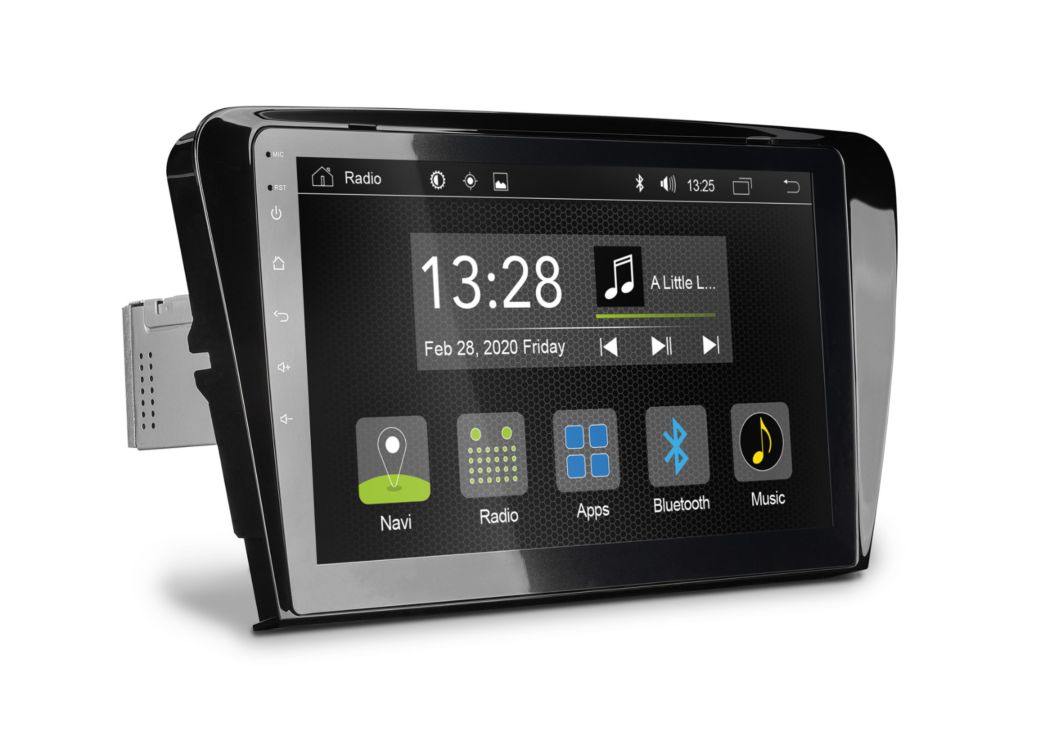

      Infotainer R-C11SK1

      Car radio R-C11SK1Skoda Octavia III scope of delivery

      Connection accessories

      Car radio R-C11SK1Skoda Octavia III connection accessoires








      DOKUMENTAI

      INSTRUKCIJOS

      User Manual.

      Žiūrėti produktą

      Android automobilinė multimedija skirta Skoda Octavia III modeliams pagamintiems nuo 2013 > 2016 metų (tikslus sąrašas skiltyje APRAŠYMAS). Multimediją apjungia populiariausių servisų palaiykmą, naujausias technologijas bei viską sudeda po elegantišku dizainu.

      • 8" / 25.6 cm lietimui jautrus ekranas.
      • Android 9.0 OS versija.
      • Radical GPS navigation (jau įdiegtas).
      • EasyConnection funkcija skirta mobiliesiems telefonams susieti.
      • Įmontuota laisvų rankų įranga bei mikrofonas.
      • Bluetooth, WLAN, Wi-Fi ryšio palaikymas.
      • USB 2.0 , RCA, HDMI bei  AUX jungtys.



      Multimedia and infotainment for your Skoda Octavia III

      You want to experience a new kind of entertainment in your vehicle? You can, with the R-C11SK1 Android car radio for Skoda. Thanks to the integrated WiFi module, you can use this Android media center to access the internet, stream music and videos directly from the web, use Spotify or listen to internet radio. Is that all you need? No. You can also install the Android apps of your choice directly on this infotainer for unlimited use. The R-C11SK1 features a large 10.1 inch / 25.6 cm capacitive touchscreen, two USB ports, powerful FM and DAB+ tuners, an advanced Bluetooth system and much more.
      Car radio R-C11SK1Skoda Octavia III front view interior New York City cockpit

      Your app world in your Skoda Octavia III

      To enable installation of Android apps directly on the media receiver, this media center uses an operating system based on Android 9.0. With this, you can extend the functions of the device as you like. The R-C11SK1 has a powerful 1.3 GHz Octa Core processor with 2 GB of RAM memory for smooth, stable performance and fast boot-up. The 16 GB of internal flash memory provide enough space for apps of your choice – including your apps for navigation.

      big city oscillation

      Become a part of the city with the RADICAL R-C11SK1 and its great connectivity

      Simply connect your smartphone to the RADICAL infotainer and get access to all the apps from your smartphone directly in your vehicle.

      Car radio R-C11SK1Skoda Octavia III New York Couple Radical Image Photo

      Multimedia and infotainment for your Skoda Octavia III

      android 9.0 Android OS operating system The system enables a direct offline installation of Android smartphone apps on the car radio directions_car Integrated digital radio With the RADICAL DAB+ tuner you have stable, noise-free digital radio reception near_me Retrofit to navigation Easy to expand to a sat nav with the R-MAPC10 navigation package available as an accessory bluetooth_audio Bluetooth – make phone calls & stream music Built-in Bluetooth hands-free kit for telephony and wireless A2DP audio streaming wifi WLAN – surf the web on the go Integrated WiFi module for mobile internet access, easy use of Spotify, YouTube, internet radio, navigation functions smartphone EasyConnection mirroring EasyConnection mirrors the screen contents of Android mobile phones or Apple iPhones to the RADICAL's display
      Car radio R-C11SK1Skoda Octavia III  navigation navigation app

      Navigation system for Skoda Octavia III

      Of course you can also use the media receiver R-C11SK1 for navigation – the Android system allows you to install any Android navigation app. And for those who don't want to navigate via app only: the Skoda car radio comes with the Open Street Map navigation R-MAPC10 pre-installed and that can be activated easily with a license code.

      Stable reception: FM and DAB+ radio

      The FM radio receiver of the R-C11SK1 is RDS-capable and has 36 station presetss. Also integrated is a powerful DAB+ tuner with many comfort functions such as a MOT slideshow, station list and DLS text for convenient operation and noise-free reception of digital radio programs.
      Car radio R-C11SK1Skoda Octavia III digital radio front view
      Car radio R-C11SK1Skoda Octavia III  connection smartphone easy connection

      EasyConnection – mirroring for mobile phones

      EasyConnection allows you to mirror the display contents and apps of your smartphone to the R-C11SK1. The mirrored contents can then be operated directly via touchscreen. This feature is useful for apps that you only want to use temporarily. EasyConnection also works with Apple iPhones, but the apps must be operated from the iPhone.

      Fits perfectly in the Skoda Octavia III

      The RADICAL Android car radio for SKODA Octavia III is developed for the 5E Sedan, Facelift 5E Sedan, E5 Station Wagon and Facelift 5E Station Wagon and integrates perfectly into these vehicles. This also includes networking with the vehicle CAN, for example connection to the steering wheel remote control, multifunctional display, electromagnetic parking sensors (EPS), optical parking system (OPS), reversing control, handbrake control, vehicle illumination status, A/C control + status, board computer, car menu, or the integration of active sound s


      COMPATIBILITY RESTRICTIONS:

      Dynaudio active sound systems are supported. CAN data based vehicle integration: Download CAN Bus Integration


      BRAND/TYPE/MODEL/YEAR
      • ŠKODA Octavia III, Sedan 5E 2013 > 2016
      • ŠKODA Octavia III, Sedan Facelift 5E 2016 >
      • ŠKODA Octavia III Station Wagon 5E 2013 > 2016
      • ŠKODA Octavia III Station Wagon Facelift 5E 2016 >

      SPECIFIKACIJOS

      MAIN FEATURES
      • Car specific infotainer for Skoda Octavia Mk3 5E
      • Allwinner T8 CPU with 2 GB RAM and 16 GB Flash memory
      • Radical GPS navigation package pre-installed (without license)*1
      • Open Android 9.0 OS, for offline installation of Android apps*2
      • Capacitive, touch sensitive 10.1” / 25.6 cm display with 1024 x 600 pixels resolution
      • OSD menu in various EU languages (German, English, Italian, French, Spanish, etc.)
      • DAB+ tuner with MOT slideshow, station list and DLS-text
      • FM RDS radio with 36 pre-set stations on FM1/FM2 station bands
      • Bluetooth 4.2 hands-free module and A2DP BT music streaming
      • Two USB 2.0 ports for A/V-file playback*3 and connection of Android and iOS smartphones*4
      • Control of one camera system with auto switching function
      • EasyConnection for screen mirroring and the integration of Android and iOS smartphone apps
      • RGB multicolour soft key illumination
      • Integrated 4 x 45 watts amplifier
      • Integrated WiFi module (WLAN IEEE 802.11 b/g/n)
      BLUETOOTH
      • Bluetooth 4.2 hands-free module
      • Synchronization of 1,000 phone book contacts and 3 numbers each
      • Search function for phone book contacts
      • A2DP BT music streaming with iD3-tag and AVRCP 1.3
      • Internal Bluetooth microphone, additional cockpit microphone input*5
      MULTIMEDIA + AUDIO
      • DAB+ receiver with single-tuner
      • FM RDS radio with 36 pre-set stations
      • Internet access via browser
      • Two USB 2.0 ports for A/V-file playback*3, 4
      • EasyConnection for Android OS and Apple iOS smartphones
      • 12-bands graphical equalizer with 8 predefined sound-profiles
      • Balance, Fader, Loudness, Subwoofer audio adjustments
      • A2DP BT music streaming with AVRCP 1.3
      • HDMI input for compatible accessories and mobile devices
      • 4 x 45 watts amplifier
      VEHICLE INTEGRATION FEATURES
      • CAN data based vehicle function integration to: Steering wheel remote control, multifunctional display, electromagnetic parking sensors (EPS) optical parking system, reversing control, handbrake control, vehicle illumination status, A/C control + status, board computer, car menu, active sound system integration
      CONNECTIONS
      • 4.2 RCA line pre-outs (3 V)
      • 1 x RCA A/V input for camera video signal (CVBS)
      • 1 x DIN FM antenna input
      • 1 x DAB antenna input with 12 V power supply
      • 1 x SMA WiFi antenna input
      • 2 x RCA video output (CVBS, NTSC)
      • 1 x RCA AUX A/V input with NTSC/PAL auto switching (CVBS)
      • 2 x USB 2.0 port with 1000 mA smartphone charging current
      • 1 x HDMI input
      • 1 x input for Bluetooth cockpit microphone
      • 1 x SMA input for GPS receiver

      *1 RADICAL R-MAPC10 GPS navigation software installed on device ex-works, use license available separately. The system allows the installation of other Android GPS navigation apps.
      *2 Google Play Store access is not supported due to licensing restrictions
      *3 Supported A/V file formats: MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
      *4 1000 mA charging current for each connected smartphone
      *5 The additional, freely installable cockpit Bluetooth microphone, is contained in the set

      Main Device Type
      • See compatibility information given under each R-C11 device variant

      Mainboard Core Hardware + OS

      • Allwinner T8, 1.6 GHz ARM Cortex A7 OctaCore
      • RAM Hynix or Micron DDR3, 2 GB
      • Flash Memory Samsung, 16 GB
      • Operation System Android 9.0



      GPS Hardware
      • GPS Receiver Front End Ublox G7020-KT/M8130-KT
      • GPS Antenna Voltage  3.3 V Display Screen + TFT LCD Panel
      • TFT Type Capacitive TFT-LCD screen with 1024 x 600 pixels resolution and 7", 8", 9" or 10.1" dimension depending on model Capacitive Touch Screen
      • Yes, with multigesture capable for navigation software (if supported by selected app)
      • Display Brightness Adjustment Yes


      Bluetooth
      • Bluetooth Module Type iVT i8008
      • Built-in Microphone in the Control Panel Yes
      • Hands Free Function Support
      • Bluetooth 4.2 profile A2DP BT Audio Streaming Yes, with AVRCP 1.3
      • Built-in Microphone Yes
      • Phonebook Import Function Yes
      • Phonebook Contact Search Yes
      • Connect Code 1234 - Name: RADICAL
      • Bluetooth Contact Sharing Yes
      • External Microphone Support Yes, second input for cockpit microphone (contained in set)


      FM Tuner

      Hardware NXP Lithio TEF6686 FM Frequency Range 87.5 MHz > 108.0 MHz Radio Stations 36 FM station presets (2 bands with 18 stations each) Built-in RDS Radio Receiver Function Yes Radio Frequency Region Europe Input Impedance 50 ohms
      DAB+ Tuner
      • Hardware Ekong
      • DAB+ Tuner Type 1CH Tuner
      • FM Frequency Range 174 MHz - 240 MHz
      • Station Handling Ensemble list showing DAB stations sorted alphanumerically
      • Subtype Data Decoding MOT Slideshow, DLS-text
      • Sensitivity Band III 96 dB ~ 101 dB
      • Signal-To-Noise @72 dBm Typically 50 ~ 60 dB
      • Channel Separation @72 dBm Typically 50 ~ 55 dB
      • Input Impedance 50 ohms


      WiFi Module
      • Hardware Realtek BL-8188-EU1 Module
      • Protocol IEEE 802.11 b/g/n
      • Transmission Frequency 2.400 GHz > 2.484 GHz
      • RF Power 15 dBm


      OBD-II Interface
      • Support of ELM327 Chipset Protocol
      • Yes, via Bluetooth and WiFi

      General Audio + Multimedia

      • Internal 4CH Amplifier IC St Microelectronics TDA7388
      • Max. Power Output Internal 4CH amp with 4 x 45 W
      • Supported Digital Audio/Video Formats (USB) MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
      • Supported Video Output Formats MPEG-1/2, MPEG4, M4V (H.264), MKV 1080p
      • Supported Digital Picture Formats JPEG, BMP, PNG, TIFF
      • USB Memory Addressing USB memory of up to 64 GB of memory (USB HDD function cannot be guaranteed)


      Audio DSP Functions
      • Equalizer 12 bands EQ with 8 selectable sound-profiles: "Jazz", "Pop", Classic", "Rock", "News", "Urban", "Techno", ("Normal")
      • Audio Adjustments Balance, Fader, Loudness and Subwoofer audio settings


      Inputs & Outputs
      • 4.2CH Line Out RCA line-outs with 3 V signal level
      • USB 2.0 Ports Two USB inputs with 1000 mA charging current each
      • AUX Audio/Video Input Stereo audio via RCA, video CVBS signal (NTSC) 1V p-p, 75 ohms via RCA
      • Audio Output 5CH >stereo front and rear + subwoofer via RCA, 3 V signal level
      • Video Output Video1 and Video2 via RCA, 1 V p-p
      • Rear View Camera Input Camera system with PAL/NTSC auto-switching
      • FM Antenna Input ISO connector, 50 ohms
      • DAB Antenna Input SMB, 50 ohms with 12 V phantom power
      • GPS Antenna Input SMA, 3.3 V


      HDMI
      • Supported Video-Stream Resolution
      • Up to 1080p with signal auto recognition


      Camera System
      • Type + Control
      • Connection and control for one rear view camera system, video input triggered via reverse signal
      • Video Signal Input CVBS signal via RCA, 1 V p-p

      Miscellaneous
      • Firmware / Software Update Via USB port
      • Boot Logo RADICAL logo
      • Multicolor Sensor / Hardkey Illumination
      • RGB LED, free selection of key illumination color, 256 color shades
      • Wallpaper User selectable / customizable
      • Built-in System Clock Display Yes
      • Menu Languages 85 Android system languages, incl. English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Norwegian/etc.
      • Smartphone Headunit Interface
      • EasyConnection app, screen mirroring for iOS smartphones, Dual protocol with app control via TS for Android smartphones
      • Auto Memory Function Yes
      • Standyby Current < 3 mA
      • Power Supply DC 12V, negative ground
      • Min. / Max. Operating Current 1.5 to 15 A

        Kas pakuotėje?

        Infotainer R-C11SK1

        Car radio R-C11SK1Skoda Octavia III scope of delivery

        Connection accessories

        Car radio R-C11SK1Skoda Octavia III connection accessoires








        INSTRUKCIJOS

        User Manual.
