Radical R-C11VW1 Android multimedija VW, Seat, Skoda automobiliams

Android automobilinė multimedija skirta VW. Seat Skoda modeliams pagamintiems nuo 2004 > 2014 metų (tikslus sąrašas skiltyje APRAŠYMAS). Multimediją apjungia populiariausių servisų palaiykmą, naujausias technologijas bei viską sudeda po elegantišku dizainu.

check_circle_outline highlight_off
Yra prekyboje Išparduota
Translation missing: lt.product.general.sku_html
Nuolaida: 429.00 €
Kaina: 429.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

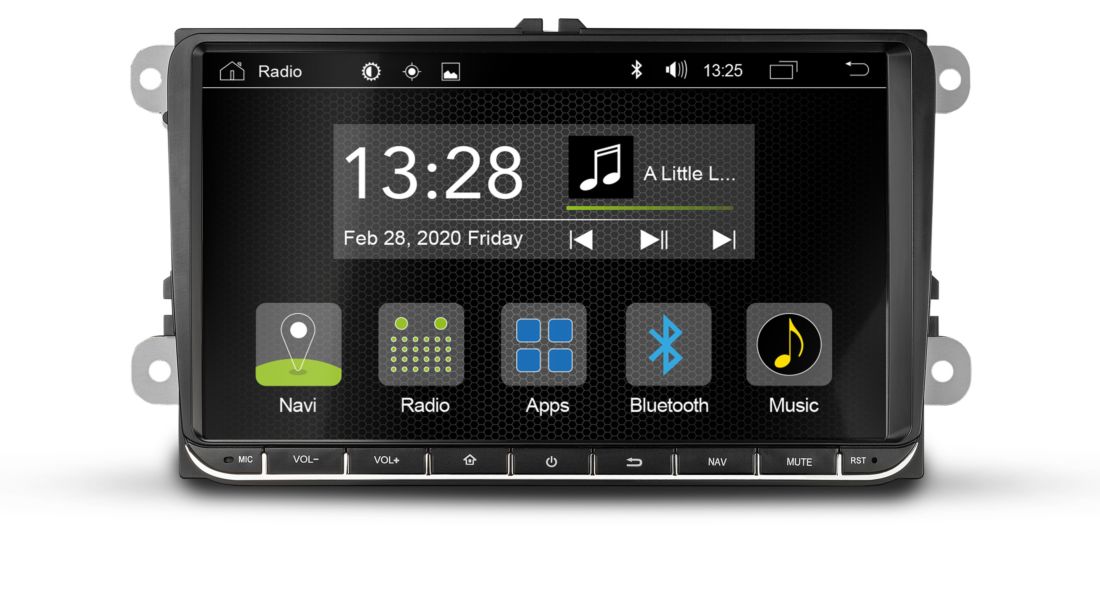

Radical R-C11VW1 Android multimedija VW, Seat, Skoda automobiliams

Android automobilinė multimedija skirta VW. Seat Skoda modeliams pagamintiems nuo 2004 > 2014 metų (tikslus sąrašas skiltyje APRAŠYMAS). Multimediją apjungia populiariausių servisų palaiykmą, naujausias technologijas bei viską sudeda po elegantišku dizainu.

  • 9" / 22.9 cm lietimui jautrus ekranas.
  • Android 9.0 OS versija.
  • Radical GPS navigation (jau įdiegtas).
  • EasyConnection funkcija skirta mobiliesiems telefonams susieti.
  • Įmontuota laisvų rankų įranga bei mikrofonas.
  • Bluetooth, WLAN, Wi-Fi ryšio palaikymas.
  • USB 2.0 , RCA, HDMI bei  AUX jungtys.



Multimedia and infotainment for your VW, Seat, Skoda

The R-C11VW1 is a car-specific media center with a capacitive 9 inch / 22.9 cm touchscreen display, DAB+ and FM tuners, two USB ports and Bluetooth module for hands-free calling and music streaming. Via WiFi or WLAN, you can use this Android car radio to access the internet, stream music and movies from the web, receive internet radio or use Spotify on the road. But that's not all: The R-C11VW1 is an Android system, so Android apps can be installed directly on the infotainer – you choose which features you want to use in your car!
car radio VW Seat Skoda R-C11VW1 night interior

Apps in your cockpit with RADICAL's Android car radio for VW, Seat, Skoda

The media receiver uses an operating system based on Android 9.0, so that you can install almost any Android app directly on the multimedia system. The internal 16 GB flash memory offers enough capacity for your apps – including your navigation apps. The R-C11VW1 has a very powerful 1.6 GHz octa core processor with 2 GB RAM memory – therefore all applications and background processes run stably and smoothly.

Multimedia and infotainment functions
– the highlights
android 9.0 Android  operating system Allows offline installation of Android smartphone apps directly on the R-C11VW1 wifi WiFi – mobile web access Integrated WiFi module for mobile internet access, for example for Spotify, internet radio, YouTube, navigation
smartphone
smartphone EasyConnection – mirror your apps Allows the screen contents of Android smartphones or Apple iPhones to be mirrored on the display of the RADICAL VW car radio bluetooth_audio Bluetooth – phone calls & music streaming Integrated Bluetooth device for hands-free calling and wireless A2DP music streaming from mobile phones directions_car Integrated digital radio The DAB+ tuner ensures clear digital radio reception near_me Retrofit to navigation With the navigation package R-MAPC10, available as an accessory, the R-C11VW1 can be easily expanded to a sat nav
car radio VW Seat Skoda R-C11VW1 navigation system navigation app

Navigation system for VW, Seat and Skoda

Built as an Android system, you can directly install and use Android navigation apps on the media center R-C11VW1. And if you want a built-in navigation system – you can easily activate the R-MAPC10 offline navigation pre-installed on the infotainer using a license code.

Noise-free on the go: FM and digital radio

The integrated DAB+ tuner ensures clear digital radio reception, offering you numerous functions such as MOT slideshow, station list or DLS text. A powerful FM RDS tuner complements the radio section.
car radio VW Seat Skoda R-C11VW1 digital radio front view
car radio VW Seat Skoda R-C11VW1 connection smartphone easy connection

EasyConnection for smartphones

Via the pre-installed EasyConnection function, you can mirror the screen contents of your Android smartphone to the R-C11VW1 infotainer via WiFi or USB and operate the mirrored contents via its touchscreen. Apple iPhones are also supported, the apps are then to be operated from the iPhone.

Fits perfectly in the Golf 5 and Golf 6 platforms

The RADICAL multimedia system for Volkswagen, Seat and Skoda integrates optically and technically into models of the Golf 5 and Golf 6 platforms. The scope of delivery includes a CAN bus interface that connects to the steering wheel remote control, multifunctional display, electromagnetic parking sensors (EPS), optical parking system, reversing control, handbrake control, vehicle illumination status, A/C control + status, board computer, car menu, and to active sound systems.
COMPATIBILITY RESTRICTIONS:

Dynaudio active sound systems are supported. CAN data based vehicle integration: Download CAN Bus Integration

BRAND/TYPE/MODEL/YEAR
  • VW Amarok 2H ab 2010
  • VW Beetle Convertible 5C 2011 – 2015
  • VW Beetle Coupé 5C 2011– 2015
  • VW Caddy 2K/2C 2003 – 2013
  • VW CC 35 2008 – 2014
  • VW EOS 1F 2006 – 2013
  • VW Golf V 1K 2003 – 2008
  • VW Golf V Variant 1K 2007 – 2009
  • VW Golf VI 5K 2008 – 2012
  • VW Golf VI Variant AJ 2009 – 2013
  • VW Golf Convertible 51 2011 – 2013
  • VW Golf Plus 5M/52 2005 – 2013
  • VW Jetta VI 16 2005 – 2015
  • VW Jetta V / Bora 1K2 2005 – 2010
  • VW Passat 3C/36 2005 – 2014
  • VW Passat Alltrack 36 2012 – 2014
  • VW Passat CC 35 2008 – 2012
  • VW Passat Variant 3C/36 2005 – 2014
  • VW Polo 6R 2010 – 2014
  • VW Scirocco III 13 2008 – 2014
  • VW Sharan 7N 2010 – 2013
  • VW Tiguan 5N 2007 – 2013
  • VW Touran 1T 2003 – 2013
  • VW T5 7E/7J 2010 – 2015
  • SEAT Alhambra 71 2010 – 2013
  • SEAT Altea 5P 2004 – 2014
  • SEAT Altea Freetrack 5P 2007 – 2009
  • SEAT Altea XL 5P 2004 – 2014
  • SEAT Leon 1P 2005 – 2012
  • SEAT Toledo 5P 2004 – 2009
  • SEAT Toledo KG 2012 – 2013
  • ŠKODA Octavia II  1Z 2009 – 2013
  • ŠKODA Octavia II Combi 1Z 2009 – 2013
  • ŠKODA Octavia II Scout 1Z 2009 – 2013
  • ŠKODA Rapid NH 2013 – 2015
  • ŠKODA Rapid Spaceback NH 2013 – 2015
  • ŠKODA Superb II 3T 2008 – 2014
  • ŠKODA Superb II Combi 3T 2008 – 2014
  • ŠKODA Yeti 5L 2009 – 2014

SPECIFIKACIJOS

MAIN FEATURES
  • Car specific infotainer for Volkswagen, all Golf V and Golf VI platform variants
  • Allwinner T8 CPU with 2 GB RAM and 16 GB Flash memory
  • Radical GPS navigation package pre-installed (without license)*1
  • Open Android 9.0 OS, for offline installation of Android apps*2
  • Capacitive, touch sensitive 9” / 22.9 cm display with 1024 x 600 pixels resolution
  • OSD menu in various EU languages (German, English, Italian, French, Spanish, etc.)
  • DAB+ tuner with MOT slideshow, station list and DLS-text
  • FM RDS radio with 36 pre-set stations on FM1/FM2 station bands
  • Bluetooth 4.2 hands-free module and A2DP BT music streaming
  • Two USB 2.0 ports for A/V-file playback*3 and connection of Android and iOS smartphones*4
  • Control of one camera system with auto switching function
  • EasyConnection for screen mirroring and the integration of Android and iOS smartphone apps
  • RGB multicolour soft key illumination
  • Integrated 4 x 45 watts amplifier
  • Integrated WiFi module (WLAN IEEE 802.11 b/g/n)
BLUETOOTH
  • Bluetooth 4.2 hands-free module
  • Synchronization of 1,000 phone book contacts and 3 numbers each
  • Search function for phone book contacts
  • A2DP BT music streaming with iD3-tag and AVRCP 1.3
  • Internal Bluetooth microphone, additional cockpit microphone input*5
MULTIMEDIA + AUDIO
  • DAB+ receiver with single-tuner
  • FM RDS radio with 36 pre-set stations
  • Internet access via browser
  • Two USB 2.0 ports for A/V-file playback*3, 4
  • EasyConnection for Android OS and Apple iOS smartphones
  • 12-bands graphical equalizer with 8 predefined sound-profiles
  • Balance, Fader, Loudness, Subwoofer audio adjustments
  • A2DP BT music streaming with AVRCP 1.3
  • HDMI input for compatible accessories and mobile devices
  • 4 x 45 watts amplifier
VEHICLE INTEGRATION FEATURES
  • CAN data based vehicle function integration to: Steering wheel remote control, multifunctional display, electromagnetic parking sensors (EPS), optical parking system, reversing control, handbrake control, vehicle illumination status, A/C control + status, board computer, car menu, active sound system integration

CONNECTIONS
  • 4.2 RCA line pre-outs (3 V)
  • 1 x RCA A/V input for camera video signal (CVBS)
  • 1 x DIN FM antenna input
  • 1 x DAB antenna input with 12 V power supply
  • 1 x SMA WiFi antenna input
  • 2 x RCA video output (CVBS, NTSC)
  • 1 x RCA AUX A/V input with NTSC/PAL auto switching (CVBS)
  • 2 x USB 2.0 port with 1000 mA smartphone charging current
  • 1 x HDMI input
  • 1 x input for Bluetooth cockpit microphone
  • 1 x SMA input for GPS receiver

*1 RADICAL R-MAPC10 GPS navigation software installed on device ex-works, use license available separately. The system allows the installation of other Android GPS navigation apps.
*2 Google Play Store access is not supported due to licensing restrictions
*3 Supported A/V file formats: MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
*4 1000 mA charging current for each connected smartphone
*5 The additional, freely installable cockpit Bluetooth microphone, is contained in the set

Main Device Type
  • See compatibility information given under each R-C11 device variant

Mainboard Core Hardware + OS

  • Allwinner T8, 1.6 GHz ARM Cortex A7 OctaCore
  • RAM Hynix or Micron DDR3, 2 GB
  • Flash Memory Samsung, 16 GB
  • Operation System Android 9.0



GPS Hardware
  • GPS Receiver Front End Ublox G7020-KT/M8130-KT
  • GPS Antenna Voltage  3.3 V Display Screen + TFT LCD Panel
  • TFT Type Capacitive TFT-LCD screen with 1024 x 600 pixels resolution and 7", 8", 9" or 10.1" dimension depending on model Capacitive Touch Screen
  • Yes, with multigesture capable for navigation software (if supported by selected app)
  • Display Brightness Adjustment Yes


Bluetooth
  • Bluetooth Module Type iVT i8008
  • Built-in Microphone in the Control Panel Yes
  • Hands Free Function Support
  • Bluetooth 4.2 profile A2DP BT Audio Streaming Yes, with AVRCP 1.3
  • Built-in Microphone Yes
  • Phonebook Import Function Yes
  • Phonebook Contact Search Yes
  • Connect Code 1234 - Name: RADICAL
  • Bluetooth Contact Sharing Yes
  • External Microphone Support Yes, second input for cockpit microphone (contained in set)


FM Tuner

Hardware NXP Lithio TEF6686 FM Frequency Range 87.5 MHz > 108.0 MHz Radio Stations 36 FM station presets (2 bands with 18 stations each) Built-in RDS Radio Receiver Function Yes Radio Frequency Region Europe Input Impedance 50 ohms
DAB+ Tuner
  • Hardware Ekong
  • DAB+ Tuner Type 1CH Tuner
  • FM Frequency Range 174 MHz - 240 MHz
  • Station Handling Ensemble list showing DAB stations sorted alphanumerically
  • Subtype Data Decoding MOT Slideshow, DLS-text
  • Sensitivity Band III 96 dB ~ 101 dB
  • Signal-To-Noise @72 dBm Typically 50 ~ 60 dB
  • Channel Separation @72 dBm Typically 50 ~ 55 dB
  • Input Impedance 50 ohms


WiFi Module
  • Hardware Realtek BL-8188-EU1 Module
  • Protocol IEEE 802.11 b/g/n
  • Transmission Frequency 2.400 GHz > 2.484 GHz
  • RF Power 15 dBm


OBD-II Interface
  • Support of ELM327 Chipset Protocol
  • Yes, via Bluetooth and WiFi

General Audio + Multimedia

  • Internal 4CH Amplifier IC St Microelectronics TDA7388
  • Max. Power Output Internal 4CH amp with 4 x 45 W
  • Supported Digital Audio/Video Formats (USB) MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
  • Supported Video Output Formats MPEG-1/2, MPEG4, M4V (H.264), MKV 1080p
  • Supported Digital Picture Formats JPEG, BMP, PNG, TIFF
  • USB Memory Addressing USB memory of up to 64 GB of memory (USB HDD function cannot be guaranteed)


Audio DSP Functions
  • Equalizer 12 bands EQ with 8 selectable sound-profiles: "Jazz", "Pop", Classic", "Rock", "News", "Urban", "Techno", ("Normal")
  • Audio Adjustments Balance, Fader, Loudness and Subwoofer audio settings


Inputs & Outputs
  • 4.2CH Line Out RCA line-outs with 3 V signal level
  • USB 2.0 Ports Two USB inputs with 1000 mA charging current each
  • AUX Audio/Video Input Stereo audio via RCA, video CVBS signal (NTSC) 1V p-p, 75 ohms via RCA
  • Audio Output 5CH >stereo front and rear + subwoofer via RCA, 3 V signal level
  • Video Output Video1 and Video2 via RCA, 1 V p-p
  • Rear View Camera Input Camera system with PAL/NTSC auto-switching
  • FM Antenna Input ISO connector, 50 ohms
  • DAB Antenna Input SMB, 50 ohms with 12 V phantom power
  • GPS Antenna Input SMA, 3.3 V


HDMI
  • Supported Video-Stream Resolution
  • Up to 1080p with signal auto recognition


Camera System
  • Type + Control
  • Connection and control for one rear view camera system, video input triggered via reverse signal
  • Video Signal Input CVBS signal via RCA, 1 V p-p

Miscellaneous
  • Firmware / Software Update Via USB port
  • Boot Logo RADICAL logo
  • Multicolor Sensor / Hardkey Illumination
  • RGB LED, free selection of key illumination color, 256 color shades
  • Wallpaper User selectable / customizable
  • Built-in System Clock Display Yes
  • Menu Languages 85 Android system languages, incl. English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Norwegian/etc.
  • Smartphone Headunit Interface
  • EasyConnection app, screen mirroring for iOS smartphones, Dual protocol with app control via TS for Android smartphones
  • Auto Memory Function Yes
  • Standyby Current < 3 mA
  • Power Supply DC 12V, negative ground
  • Min. / Max. Operating Current 1.5 to 15 A

     Kas pakuotėje?

    Infotainer R-C11VW1

    car radio VW Seat Skoda R-C11VW1 scope of delivery

    Connection accessories

    car radio VW Seat Skoda R-C11VW1 connections accessoires



    INSTRUKCIJOS

    User Manual.
