Radical R-C11VW2 Android multimedija VW Golf 7 automobiliui

Android automobilinė multimedija skirta VW GOLF 7 modeliams pagamintiems nuo 2012 > 2017 metų. Multimediją apjungią populiariausių servisų palaiykmą, naujausias technologijas bei viską sudeda po elegantišku dizainu.

check_circle_outline
Užsakoma prekė
Translation missing: lt.product.general.sku_html
Nuolaida: 449.00 €
Kaina: 449.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Radical R-C11VW2 Android multimedija VW Golf 7 automobiliui

Android automobilinė multimedija skirta VW GOLF 7 modeliams pagamintiems nuo 2012 > 2017 metų. Multimediją apjungią populiariausių servisų palaiykmą, naujausias technologijas bei viską sudeda po elegantišku dizainu.

  • 10.1" / 25.7 cm lietimui jautrus ekranas.
  • Android 9.0 OS versija.
  • Radical GPS navigation (jau įdiegtas).
  • EasyConnection funkcija skirta mobiliesiems telefonams susieti.
  • Įmontuota laisvų rankų įranga bei mikrofonas.
  • Bluetooth, WLAN, Wi-Fi ryšio palaikymas.
  • USB 2.0 , RCA, HDMI bei  AUX jungtys.



Multimedia and infotainment for your VW Golf 7

The R-C11VW2 is a car-specific multimedia system with a capacitive 10.1 inch /25.7 cm touchscreen monitor, DAB+ and FM radio, two USB ports and an integrated Bluetooth unit for hands-free calling and music streaming. This Golf 7 Android car stereo gives you internet connection, the ability to stream movies and music from the web, use Spotify or receive internet radio via WiFi. But that's not all. Designed as an Android OS system, you can install the Android apps of your choice directly on the R-C11VW2 – you decide which mobile phone tools you want to use in your car.

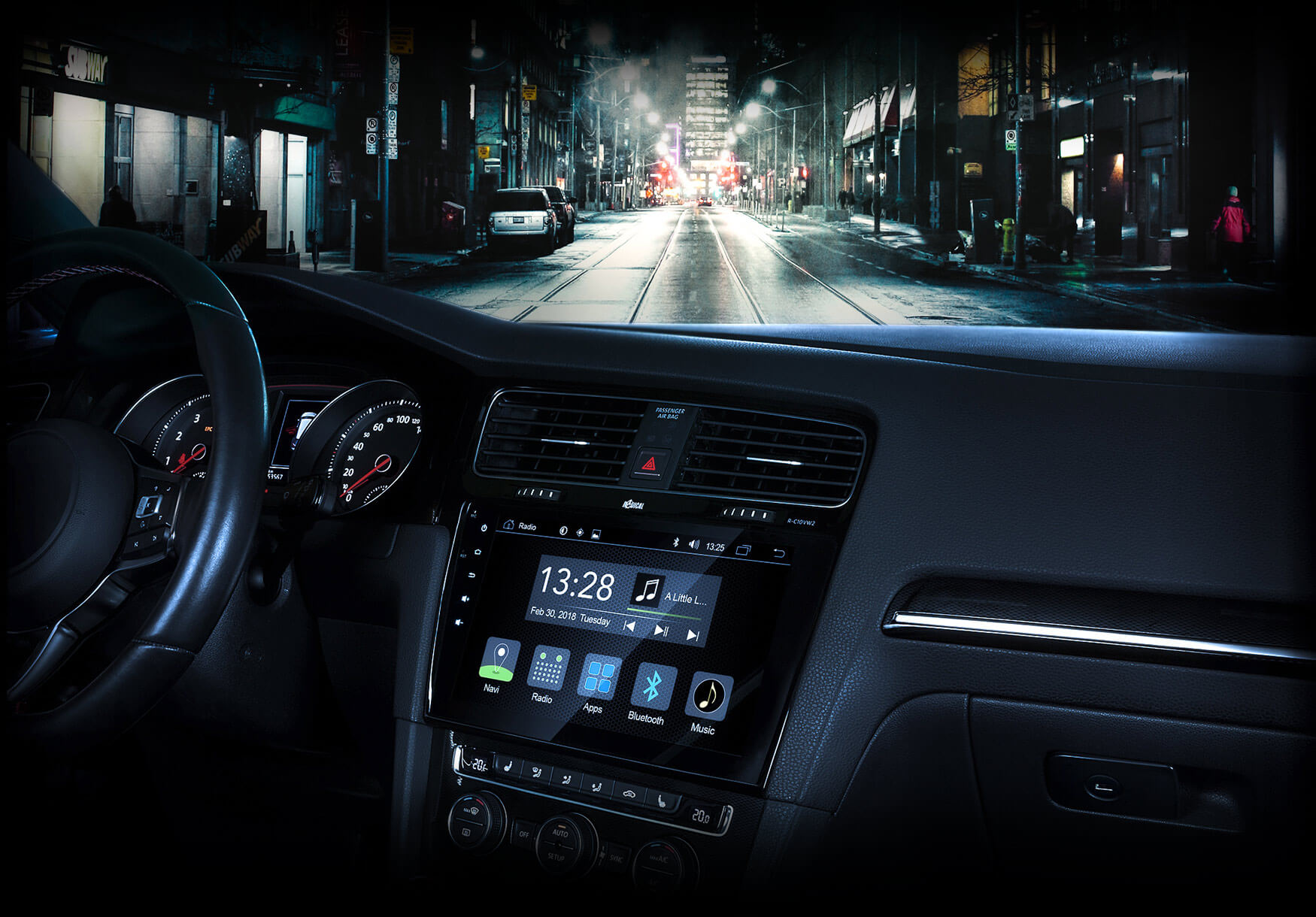

Car radio R-C11VW2 Golf 7 city night interior

Your world of apps – with RADICAL's Android car radio for VW Golf 7

This media receiver uses an operating system based on Android 9.0. Therefore you can easily transfer all Android apps you want to use, including navigation apps, to the R-C11VW2 with the pre-installed APK installer and then operate them via touchscreen. The functional range of the RADICAL can thus be extended almost infinitely and optimally adjusted to your wishes. The 16 GB flash memory offers enough storage space for your apps. Thanks to its 1.3 GHz Octa Core processor with 2 GB RAM, the moniceiver convinces with its smooth performance.

be
radical
radical image photo
Pure infotainment – your most important functions android 9.0 Android OS Allows Android smartphone apps to be installed directly on the R-C11VW2 and used offline wifi Web access via WLAN / WiFi Spotify, internet radio, YouTube, navigation – the integrated WiFi module enables mobile internet access smartphone Smartphone mirroring via EasyConnection EasyConnection mirrors the screen contents of Android mobile phones or Apple iPhones to the RADICAL's display
bluetooth_audio Bluetooth – handsfree & audio streaming Make phone calls and stream music wirelessly from your mobile phone via A2DP – with the integrated Bluetooth system directions_car DAB+ digital radio integrated With the built-in DAB+ tuner you have top digital radio reception near_me Upgrade to navigation The R-MAPC10 navigation package, available as an accessory, expands the R-C11VW2 to a permanently installed sat nav
Car radio R-C11VW2 Golf 7 navigation system navigation app

Navigation system for VW Golf 7

Built as an Android system, you can install and use an Android navigation app directly on the media center R-C11VW2. An offline OSM navigation with maps for Europe is also already installed on the multimedia system and can be activated with an optional license code – this way you can turn your multimedia system into a vehicle-specific navigation system for your Golf 7.

Noise-free on the go: FM and digital radio

The integrated DAB+ tuner ensures clear digital radio reception and offers numerous functions such as MOT slideshow, station list or DLS text. A powerful FM RDS tuner complements the radio section.
Car radio R-C11VW2 Golf 7 digital radio front view
Car radio R-C11VW2 Golf 7 connection smartphone easy connection

Best connection for your smartphone

EasyConnection allows you to mirror thescreen content of an Android smartphone to the R-C11VW2 and then operate all apps via the touchscreen of the infotainer: An important feature for apps where you manage and store the data on your phone. Apple iPhones are also supported by EasyConnection – with the restriction that you have to operate the mirrored apps from your iPhone.

Fits perfectly into the Golf 7

The RADICAL multimedia system for VW integrates visually and technically into the Volkswagen Golf 7 MkI. Included in the scope of delivery: A CAN bus interface, which provides the connection to the steering wheel remote control, multifunctional display, electromagnetic parking sensors (EPS), optical parking system (OPS), reversing control, handbrake control, vehicle illumination status, A/C control + status, board computer, car menu and to active sound systems.



SPECIFIKACIJOS

MAIN FEATURES
  • Car specific infotainer for Volkswagen Golf VII MkI
  • Allwinner T8 CPU with 2 GB RAM and 16 GB Flash memory
  • Radical GPS navigation package pre-installed (without license)*1
  • Android 9.0 OS, for offline installation of Android apps*2
  • Capacitive, touch sensitive 10.1” / 25.6 cm display with 1024 x 600 pixels resolution
  • OSD menu in various EU languages (German, English, Italian, French, Spanish, etc.)
  • DAB+ tuner with MOT slideshow, station list and DLS-text
  • FM RDS radio with 36 pre-set stations on FM1/FM2 station bands
  • Bluetooth 4.2 hands-free module and A2DP BT music streaming
  • Two USB 2.0 ports for A/V-file playback*3 and connection of Android and iOS smartphones*4
  • Control of one camera system with auto switching function
  • EasyConnection for screen mirroring and the integration of Android and iOS smartphone apps
  • RGB multicolour soft key illumination
  • Integrated 4 x 45 watts amplifier
  • Integrated WiFi module (WLAN IEEE 802.11 b/g/n)
BLUETOOTH
  • Bluetooth 4.2 hands-free module
  • Synchronization of 1,000 phone book contacts and 3 numbers each
  • Search function for phone book contacts
  • A2DP BT music streaming with iD3-tag and AVRCP 1.3
  • Internal Bluetooth microphone, additional cockpit microphone input*5
MULTIMEDIA + AUDIO
  • DAB+ receiver with single-tuner
  • FM RDS radio with 36 pre-set stations
  • Internet access via browser
  • Two USB 2.0 ports for A/V-file playback*3, 4
  • EasyConnection for Android OS and Apple iOS smartphones
  • 12-bands graphical equalizer with 8 predefined sound-profiles
  • Balance, Fader, Loudness, Subwoofer audio adjustments
  • A2DP BT music streaming with AVRCP 1.3
  • HDMI input for compatible accessories and mobile devices
  • 4 x 45 watts amplifier
VEHICLE INTEGRATION FEATURES
  • CAN data based vehicle function integration to: Steering wheel remote control, multifunctional display, electromagnetic parking sensors (EPS), optical parking system, reversing control, handbrake control, vehicle illumination status, A/C control + status, board computer, car menu, active sound system integration
CONNECTIONS
  • 4.2 RCA line pre-outs (3 V)
  • 1 x RCA A/V input for camera video signal (CVBS)
  • 1 x DIN FM antenna input
  • 1 x DAB antenna input with 12 V power supply
  • 1 x SMA WiFi antenna input
  • 2 x RCA video output (CVBS, NTSC)
  • 1 x RCA AUX A/V input with NTSC/PAL auto switching (CVBS)
  • 2 x USB 2.0 port with 1000 mA smartphone charging current
  • 1 x HDMI input
  • 1 x input for Bluetooth cockpit microphone
  • 1 x SMA input for GPS receiver

*1 RADICAL R-MAPC10 GPS navigation software installed on device ex-works, use license available separately. The system allows the installation of other Android GPS navigation apps.
*2 Google Play Store access is not supported due to licensing restrictions
*3 Supported A/V file formats: MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
*4 1000 mA charging current for each connected smartphone
*5 The additional, freely installable cockpit Bluetooth microphone, is contained in the set

Main Device Type
  • See compatibility information given under each R-C11 device variant

Mainboard Core Hardware + OS

  • Allwinner T8, 1.6 GHz ARM Cortex A7 OctaCore
  • RAM Hynix or Micron DDR3, 2 GB
  • Flash Memory Samsung, 16 GB
  • Operation System Android 9.0



GPS Hardware
  • GPS Receiver Front End Ublox G7020-KT/M8130-KT
  • GPS Antenna Voltage  3.3 V Display Screen + TFT LCD Panel
  • TFT Type Capacitive TFT-LCD screen with 1024 x 600 pixels resolution and 7", 8", 9" or 10.1" dimension depending on model Capacitive Touch Screen
  • Yes, with multigesture capable for navigation software (if supported by selected app)
  • Display Brightness Adjustment Yes


Bluetooth
  • Bluetooth Module Type iVT i8008
  • Built-in Microphone in the Control Panel Yes
  • Hands Free Function Support
  • Bluetooth 4.2 profile A2DP BT Audio Streaming Yes, with AVRCP 1.3
  • Built-in Microphone Yes
  • Phonebook Import Function Yes
  • Phonebook Contact Search Yes
  • Connect Code 1234 - Name: RADICAL
  • Bluetooth Contact Sharing Yes
  • External Microphone Support Yes, second input for cockpit microphone (contained in set)


FM Tuner

Hardware NXP Lithio TEF6686 FM Frequency Range 87.5 MHz > 108.0 MHz Radio Stations 36 FM station presets (2 bands with 18 stations each) Built-in RDS Radio Receiver Function Yes Radio Frequency Region Europe Input Impedance 50 ohms
DAB+ Tuner
  • Hardware Ekong
  • DAB+ Tuner Type 1CH Tuner
  • FM Frequency Range 174 MHz - 240 MHz
  • Station Handling Ensemble list showing DAB stations sorted alphanumerically
  • Subtype Data Decoding MOT Slideshow, DLS-text
  • Sensitivity Band III 96 dB ~ 101 dB
  • Signal-To-Noise @72 dBm Typically 50 ~ 60 dB
  • Channel Separation @72 dBm Typically 50 ~ 55 dB
  • Input Impedance 50 ohms


WiFi Module
  • Hardware Realtek BL-8188-EU1 Module
  • Protocol IEEE 802.11 b/g/n
  • Transmission Frequency 2.400 GHz > 2.484 GHz
  • RF Power 15 dBm


OBD-II Interface
  • Support of ELM327 Chipset Protocol
  • Yes, via Bluetooth and WiFi

General Audio + Multimedia

  • Internal 4CH Amplifier IC St Microelectronics TDA7388
  • Max. Power Output Internal 4CH amp with 4 x 45 W
  • Supported Digital Audio/Video Formats (USB) MP3, FLAC, AAC, AVI, MPEG-1/2, MPEG4 (XviD), M4V (H.264), MKV 1080p
  • Supported Video Output Formats MPEG-1/2, MPEG4, M4V (H.264), MKV 1080p
  • Supported Digital Picture Formats JPEG, BMP, PNG, TIFF
  • USB Memory Addressing USB memory of up to 64 GB of memory (USB HDD function cannot be guaranteed)


Audio DSP Functions
  • Equalizer 12 bands EQ with 8 selectable sound-profiles: "Jazz", "Pop", Classic", "Rock", "News", "Urban", "Techno", ("Normal")
  • Audio Adjustments Balance, Fader, Loudness and Subwoofer audio settings


Inputs & Outputs
  • 4.2CH Line Out RCA line-outs with 3 V signal level
  • USB 2.0 Ports Two USB inputs with 1000 mA charging current each
  • AUX Audio/Video Input Stereo audio via RCA, video CVBS signal (NTSC) 1V p-p, 75 ohms via RCA
  • Audio Output 5CH >stereo front and rear + subwoofer via RCA, 3 V signal level
  • Video Output Video1 and Video2 via RCA, 1 V p-p
  • Rear View Camera Input Camera system with PAL/NTSC auto-switching
  • FM Antenna Input ISO connector, 50 ohms
  • DAB Antenna Input SMB, 50 ohms with 12 V phantom power
  • GPS Antenna Input SMA, 3.3 V


HDMI
  • Supported Video-Stream Resolution
  • Up to 1080p with signal auto recognition


Camera System
  • Type + Control
  • Connection and control for one rear view camera system, video input triggered via reverse signal
  • Video Signal Input CVBS signal via RCA, 1 V p-p

Miscellaneous
  • Firmware / Software Update Via USB port
  • Boot Logo RADICAL logo
  • Multicolor Sensor / Hardkey Illumination
  • RGB LED, free selection of key illumination color, 256 color shades
  • Wallpaper User selectable / customizable
  • Built-in System Clock Display Yes
  • Menu Languages 85 Android system languages, incl. English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Norwegian/etc.
  • Smartphone Headunit Interface
  • EasyConnection app, screen mirroring for iOS smartphones, Dual protocol with app control via TS for Android smartphones
  • Auto Memory Function Yes
  • Standyby Current < 3 mA
  • Power Supply DC 12V, negative ground
  • Min. / Max. Operating Current 1.5 to 15 A

     Kas pakuotėje?

    Infotainer R-C11VW2

    Car radio R-C11VW2 Golf 7 scope of delivery

    Connection accessories

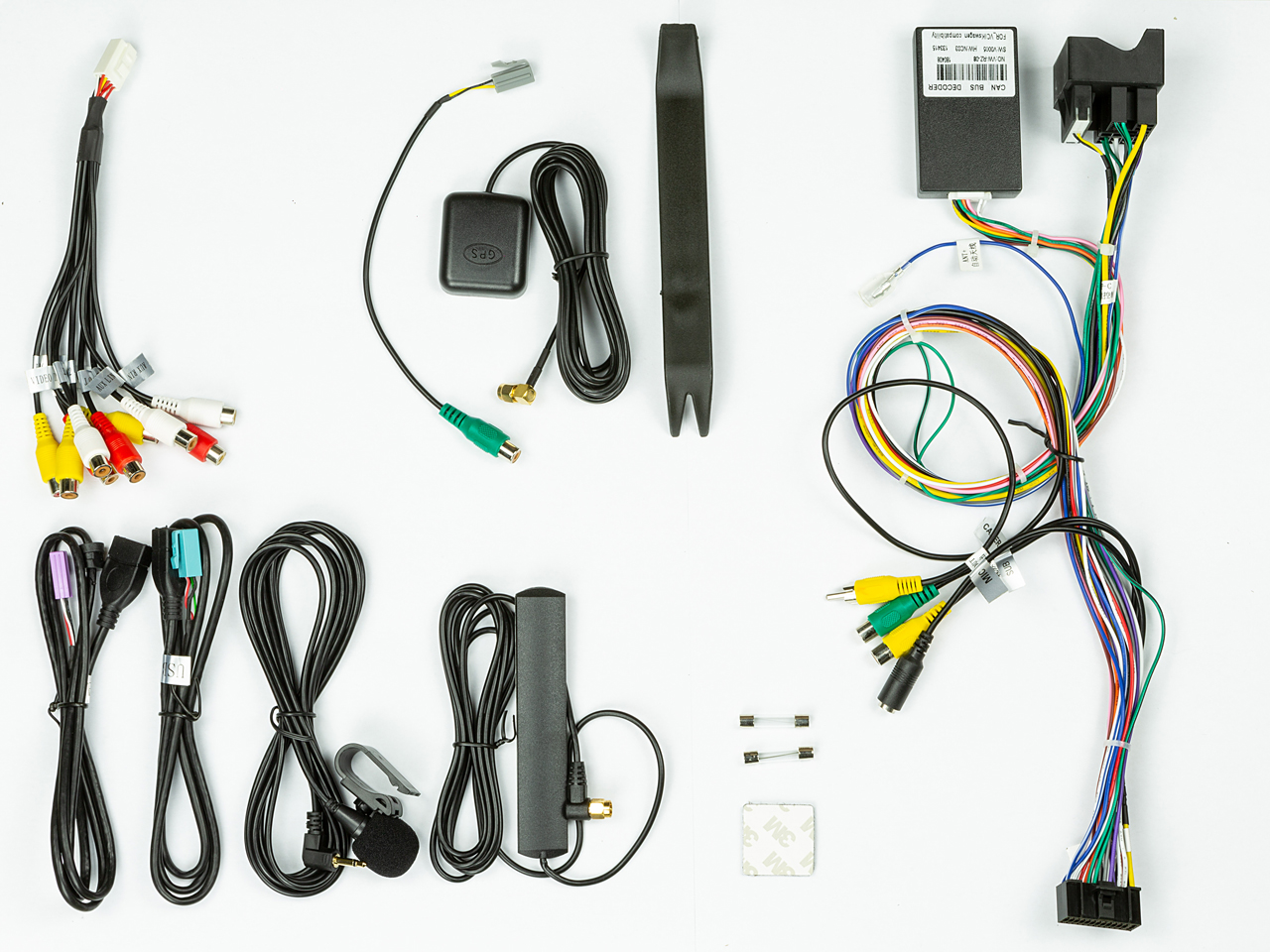

    Car radio R-C11VW2 Golf 7 connection accessories



    INSTRUKCIJOS

    User Manual.
