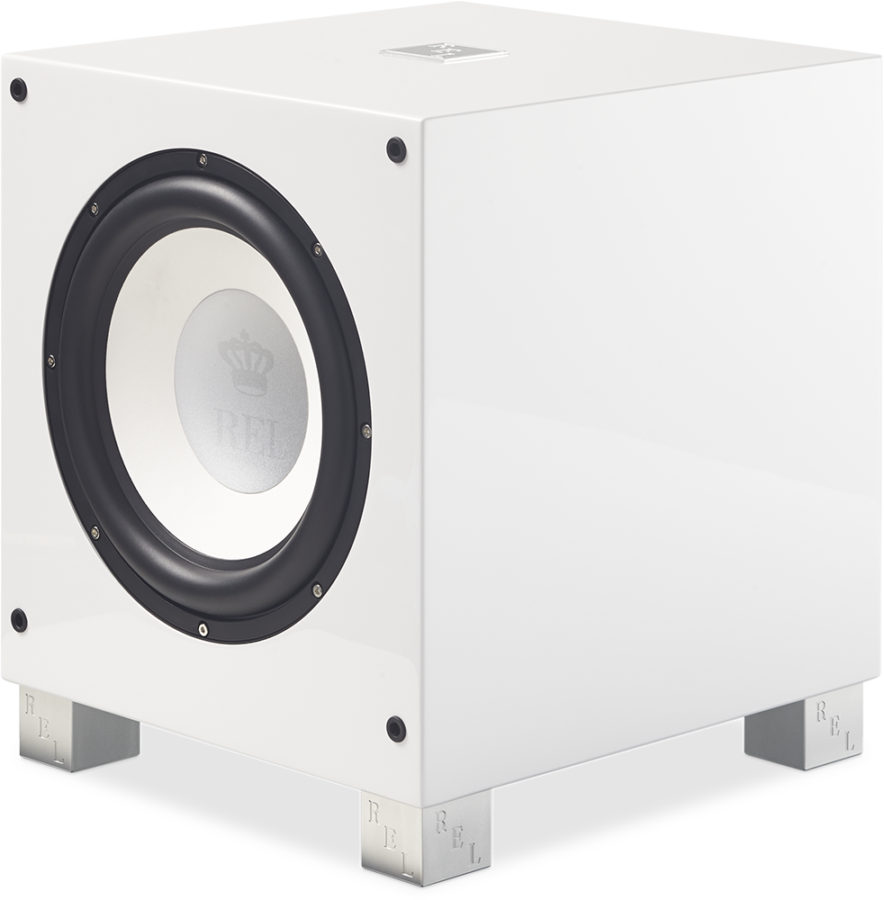

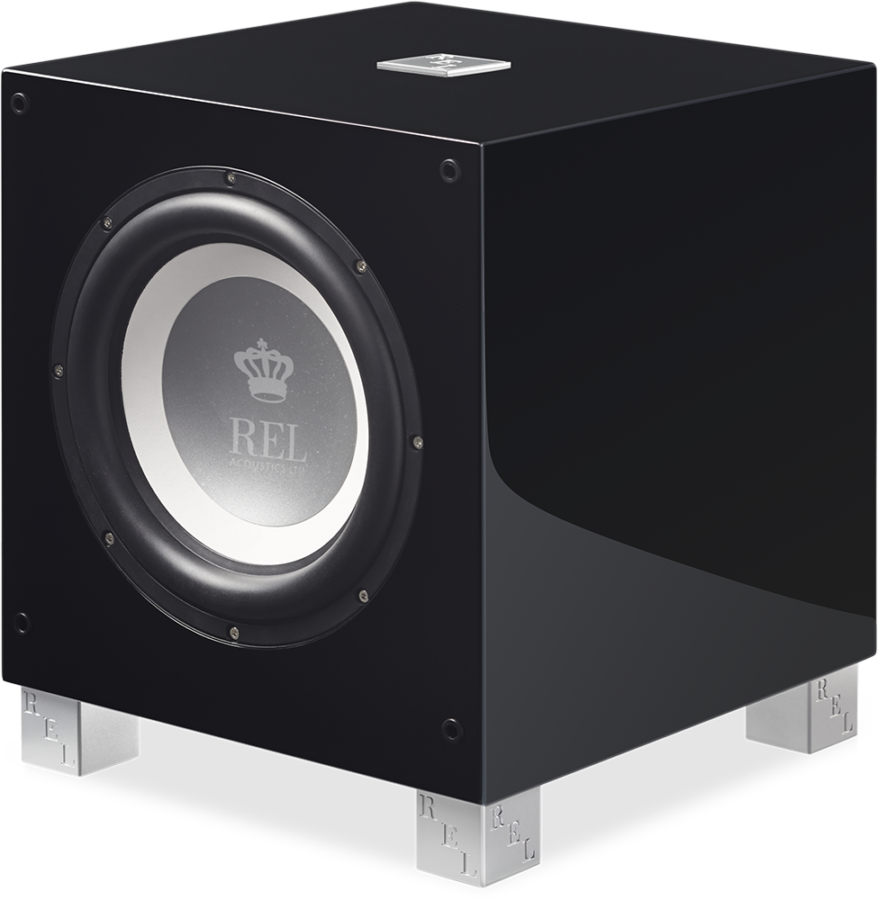

REL T/9i, žemų dažnių garso kolonėlė

The Most T/i Available

Reimagined, Then Reengineered

A COMPLETELY REDESIGNED FLAGSHIP

T/9i delivers more than just raw output. We started with our driver upgrades and built outward. The lovely cabinets grew by 4 lbs. (1.8 kg) over its predecessor due to thicker cabinet walls and improved bracing. Why? Because the additional speed and impact of the new drivers requires greater control or the benefits can be lost before they get to the listener.

Outsized Performance

INNOVATIVE ALLOY/FIBRE BASS ENGINES

The new composite alloy/fibre engine in T/9i blends precisely the correct dimension of stiffening alloy with a fibre material chosen for its sonic neutrality and light weight. The combination is brilliant; exceeding the performance of competitors’ drivers that are many times more expensive. The forward-firing 10” active couples with a 10” down-firing passive, again with carefully chosen balances of alloy to fibre and the result is seamless, effortlessly deep bass that blends perfectly with the main speakers.

Great Subs, Great Amps

THE BRAINS BEHIND THE BRAWN

Our acclaimed input filters and robust amplifiers result in some of the best sounding, most reliable designs ever produced. High current power supplies, huge toroidal transformers, and what many critics call the best filters in the world produce the famous REL Effect—where in not simply the bass region but ALL music and movie sound is uplifted and improved.

Standby Mode switch not included on 110V units.

Zero Compression Wireless

INTRODUCING ARROW™

Following on the heels of the acclaimed LongBow™ Wireless, Arrow delivers much of the promise and connectivity of hardwired RELs with the placement flexibility and pure cool factor of great wireless for all of T/i. For a reasonable sum, Arrow gives you the ability to place subs in distant corners, along glass walls, or on hardwood floors where a cable would otherwise destroy the effect.

SPECIFIKACIJOS

• Type: Passive Radiator, front-firing active woofer, down-firing
• passive radiator
• Active Drive Unit: 10in., 254 mm long-throw, inverted dust cap, steel
• chassis
• Passive Radiator: 10in., 254 mm
• Lower Frequency Response: 28 Hz at -6 dB in room

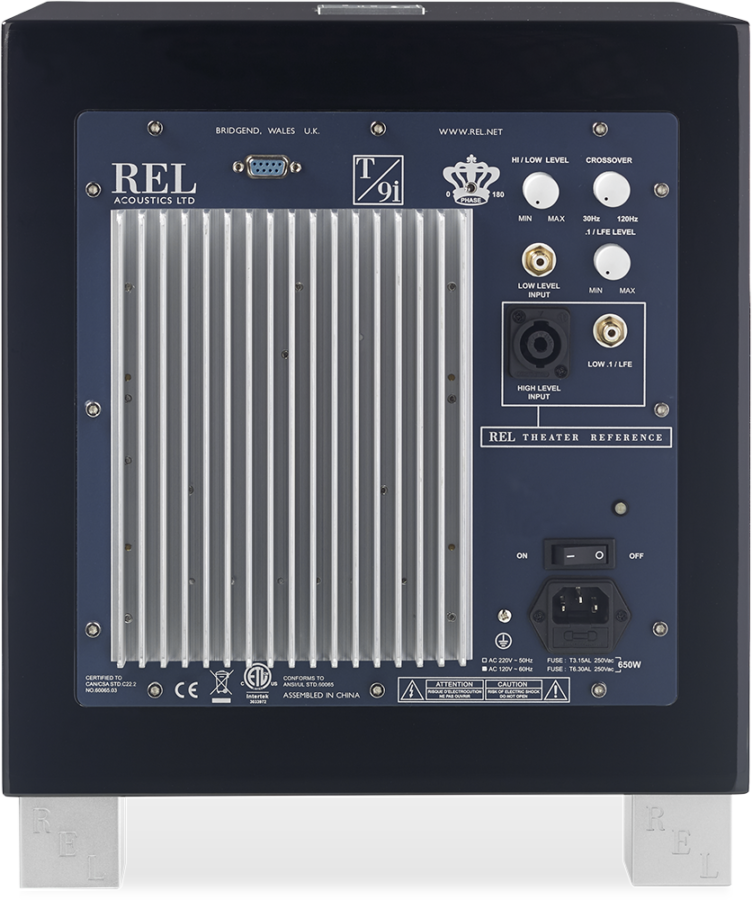

• Input Connectors: Hi Level Neutrik Speakon, Lo Level single phono, LFE
• phono
• Input Impedance: High Level: 150k, Low Level: 10k, .1/LFE: 10k
• ohms
• Gain Control Range: 80 dB
• Power Output: 300 Watts (RMS)
• Phase Switch: Yes, 0 or 180 degrees
• Amplifier Type: Class AB
• Protection System
• Fully Electronic SET-SAFE: Yes
• D.C. Fault: Yes
• Output Short: Yes
• Mains Input Voltage: 220-240 volts, 110-120 volts for certain markets
• Fuses: 3.15 Amp semi delay 230 volts operation, 6.3 Amp
• semi delay 115 volts operation
• Dimensions (WHD): 13 x 15.2 x 16 in., (330 x 387 x 407 mm) Including
• Feet and Rear Panel Controls
• Add 1.75 in (44.5 mm) in depth when using Hi
• Level connector
• Net Weight: 41.3 lbs. (18.7 kg)
• Finish: Gloss Piano Black or White Lacquer
• Supplied Accessories
• Mains Lead: Yes
• Neutrik Speakon Interconnect: Yes (10 Meters Nominal)
• Users Manual: Yes
