Rotel DT-6000, CD grotuvas su DAC (įvairių spalvų)

2,419.00 €

Rotel DT-6000, CD grotuvas su DAC (įvairių spalvų) - Juodas yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

Rotel DT-6000  švenčia 60-ies metų našumo jubiliejų, kuris tapatinamas su japonišku kokybės ir užtikrintumo paveldu.

  • ESS premium 32-bit 8-kanalų DAC.
  • Varža: 470Ω.
  • Tonų valdymas: ±10dB - 100Hz / 10kHz.



Rotel’s Diamond Series DT-6000 DAC Transport celebrates 60-Years of performance, passion, and value synonymous with the brands Japanese heritage.

An 8-channel ESS Sabre ES9028PRO DAC dedicates 4 channels each to stereo outputs rendering unprecedented details with an ultra-low noise floor and immersive sound stage.

Dedicated power supplies feed critical circuits utilizing an in-house manufactured toroidal transformer with isolation techniques lowering residual noise and distortion.

The PC-USB input supports up to 32-bit/384kHz including MQA (24-bit/384kHz) and DSD (4X).  Optical and Coaxial inputs are also included supporting 24-bit/192kHz streams.

The tray loading CD utilizes Rotel’s 30-years of multi-award winning CD player design experience extracting every nuance and detail from CD collections both large and small.

Front panel controls, a back-lit IR remote and 2-line display ensure intuitive operation of the unit.

RS232, 12V trigger and external remote input ensure integration with control systems.

The DT-6000 is available in silver and black colors.

SPECIFIKACIJOS

  DIMENSIONS (W × H × D) 431 × 104 × 320mm
17" × 4" × 12.6"
  FRONT PANEL HEIGHT 2U / 88.1mm (3.5")   POWER REQUIREMENTS 230V, 50Hz   POWER CONSUMPTION 25W   STANDBY POWER CONSUMPTION <0.5W   NET WEIGHT 8.11kg (17.88lbs.)

Components

  TOTAL HARMONIC DISTORTION (THD) Optical/Coaxical Input: < 0.0007% CD/PC-USB Input: < 0.0012%   FREQUENCY RESPONSE
20Hz - 20kHz, +0, -0.15dB 10 Hz - 70kHz, +0, -3dB   S/N RATIO ("A" Weighted)
>115dB   DYNAMIC RANGE
>99dB   DIGITAL TO ANALOG CONVERTERS ESS 32-Bit/768kHz DAC   CHANNEL BALANCE ± 0.5dB   CHANNEL SEPARATION >115dB @ 10kHz
INTERMODULATION DISTORTION  <0.0012%   ANALOG OUTPUT LEVEL Unbalanced (RCA): 2.1V Balanced (XLR): 4.3V ANALOG OUTPUT IMPEDANCE
Unbalanced (RCA): 10Ω Balanced (XLR): 20Ω
INPUT SENSITIVITY 0dBfs / 75 Ohms
COAX/OPTICAL DIGITAL INPUT SIGNALS LPCM (Up to 24-bit/192kHz)   PC-USB USB Audio Class 2.0 (up to 32-bit/384kHz)* *Driver installation required Support native DSD (up to 11.2M) and DoP Support MQA and MQA Studio (up to 24-bit/384kHz ) Roon Tested

INSTRUKCIJOS

User Manual (EN).

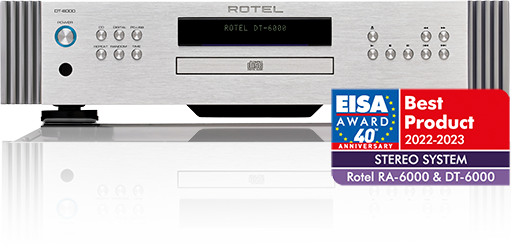

Rotel DT-6000, CD grotuvas su DAC (įvairių spalvų)- EISA
Rotel

Rotel DT-6000, CD grotuvas su DAC (įvairių spalvų)

2,419.00 €

Rotel DT-6000  švenčia 60-ies metų našumo jubiliejų, kuris tapatinamas su japonišku kokybės ir užtikrintumo paveldu.



APRAŠYMAS

Rotel’s Diamond Series DT-6000 DAC Transport celebrates 60-Years of performance, passion, and value synonymous with the brands Japanese heritage.

An 8-channel ESS Sabre ES9028PRO DAC dedicates 4 channels each to stereo outputs rendering unprecedented details with an ultra-low noise floor and immersive sound stage.

Dedicated power supplies feed critical circuits utilizing an in-house manufactured toroidal transformer with isolation techniques lowering residual noise and distortion.

The PC-USB input supports up to 32-bit/384kHz including MQA (24-bit/384kHz) and DSD (4X).  Optical and Coaxial inputs are also included supporting 24-bit/192kHz streams.

The tray loading CD utilizes Rotel’s 30-years of multi-award winning CD player design experience extracting every nuance and detail from CD collections both large and small.

Front panel controls, a back-lit IR remote and 2-line display ensure intuitive operation of the unit.

RS232, 12V trigger and external remote input ensure integration with control systems.

The DT-6000 is available in silver and black colors.

TECHNINIAI DUOMENYS

SPECIFIKACIJOS


DIMENSIONS (W × H × D)
431 × 104 × 320mm
17" × 4" × 12.6"

FRONT PANEL HEIGHT
2U / 88.1mm (3.5")

POWER REQUIREMENTS
230V, 50Hz

POWER CONSUMPTION
25W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
8.11kg (17.88lbs.)

Components


TOTAL HARMONIC DISTORTION (THD)
Optical/Coaxical Input: < 0.0007%
CD/PC-USB Input: < 0.0012%

FREQUENCY RESPONSE
20Hz - 20kHz, +0, -0.15dB
10 Hz - 70kHz, +0, -3dB

S/N RATIO ("A" Weighted)
>115dB

DYNAMIC RANGE
>99dB

DIGITAL TO ANALOG CONVERTERS
ESS 32-Bit/768kHz DAC

CHANNEL BALANCE
± 0.5dB

CHANNEL SEPARATION
>115dB @ 10kHz
INTERMODULATION DISTORTION
<0.0012%

ANALOG OUTPUT LEVEL
Unbalanced (RCA): 2.1V
Balanced (XLR): 4.3V
ANALOG OUTPUT IMPEDANCE
Unbalanced (RCA): 10Ω
Balanced (XLR): 20Ω

INPUT SENSITIVITY
0dBfs / 75 Ohms
COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 2.0 (up to 32-bit/384kHz)*
*Driver installation required
Support native DSD (up to 11.2M) and DoP
Support MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested

DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).
