Rotel RA-6000, integruotas stiprintuvas (įvairių spalvų)

4,703.00 €

Rotel RA-6000, integruotas stiprintuvas (įvairių spalvų) - Juodas yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.

Pristatymas į namus nuo 4.99 €

Venipak kurjeriu per 1-2 darbo dienas.

Atsiimkite parduotuvėje 0 €

Armatūrininkų g. 1, Kaunas
Darbo laikas: I-V 9:00-18:00

"Diamond" serijos RA-6000 integruotasis stiprintuvas pažymi Rotel 60-ies metų veiklos jubliejų ir yra išties dėmesio vertas produktams kiekvienam audiofilui.

  • Galia: 350W.
  • AB klasės stiprintuvas.
  • Palaiko MQA ir MQA Studio.
  • Texas Instruments premium 32-bit/384kHz DAC.
  • Wireless aptX™ HD ir AAC Bluetooth palaikymas.
  • Varža: 4Ω.



The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.

Digital inputs support 24-bit/192kHz audio streams. The asynchronous PC-USB input supports up to 32-bit/384kHz audio, decodes and renders MQA, and is fully certified Roon Tested.  A Moving Magnet Phono stage is also included for vinyl fans.

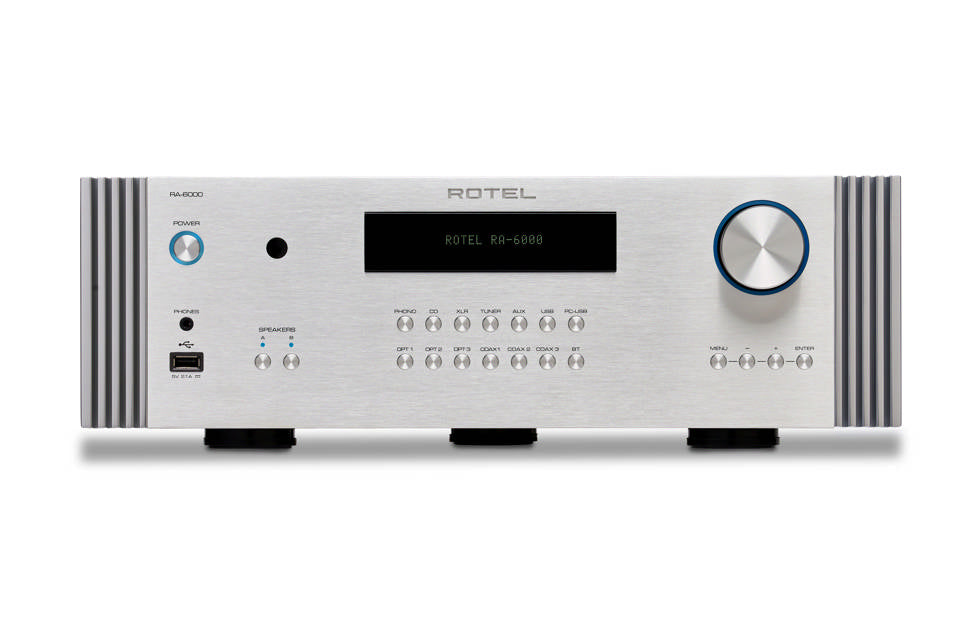

Front panel controls, back-lit IR remote and 2-line display ensure intuitive operation.

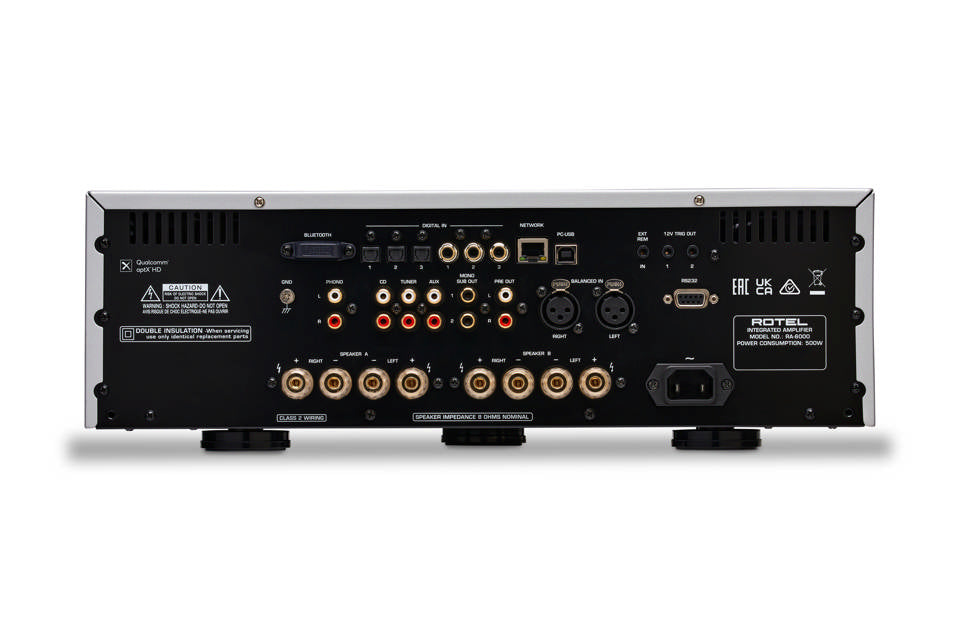

Ethernet, RS232,12V trigger and external remote input simplify integration with control systems.

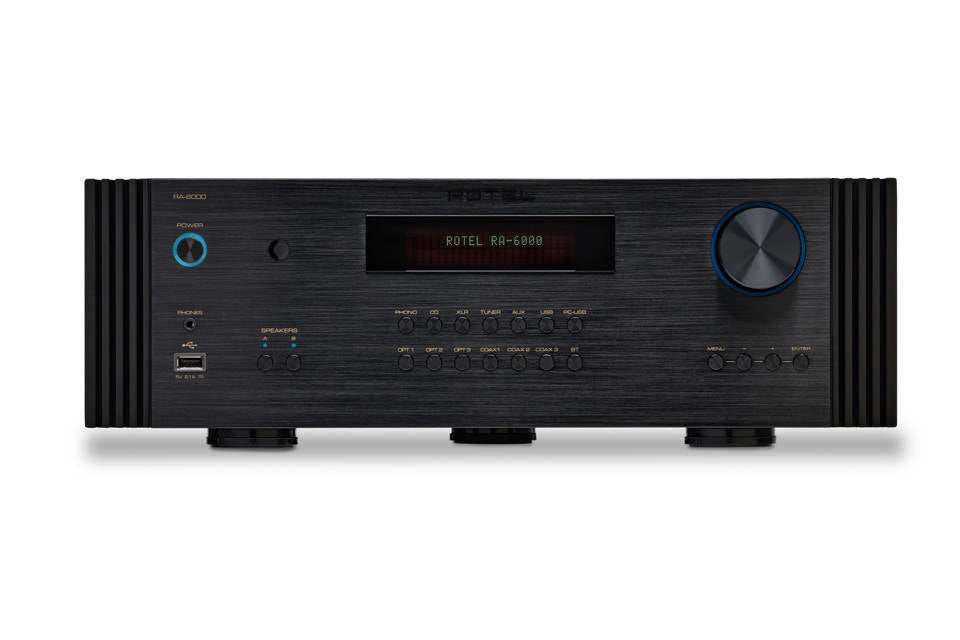

The RA-6000 is available in both black and silver colors.

SPECIFIKACIJOS

  DIMENSIONS (W × H × D) 431 × 144 × 425mm
17" × 5.7" × 16"
  FRONT PANEL HEIGHT 3U / 132.6mm (5.25")   POWER REQUIREMENTS 230V, 50Hz   POWER CONSUMPTION 500W   STANDBY POWER CONSUMPTION <0.5W   NET WEIGHT 18.81kg (41.47lbs.)   BTU (4 ohms, 1/8th power) 1239 BTU/h

Components

  MAXIMUM POWER OUTPUT 350W/Ch (4Ω)   CONTINUOUS POWER OUTPUT 200W/Ch (8Ω)   TOTAL HARMONIC DISTORTION  (THD) <0.0075%   FREQUENCY RESPONSE
Line Level Inputs: 10Hz - 100kHz, ±0.5dB Digital Inputs: 10Hz - 90kHz, ±2dB Phono Input: 20Hz - 20kHz, ±0.5dB   S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 103dB Digital Inputs: 102dB Phono Input: 80dB INTERMODULATION DISTORTION  (60Hz:7kHz, 4:1) <0.03%   DAMPING FACTOR 600   INPUT SENSITIVITY Line Level Inputs (RCA): 340mV Line Level Inputs (XLR): 540mV Digital Inputs: 0 dBfs Phono Input (MM): 5.2mV INPUT IMPEDANCE Line Level Inputs (RCA): 5.6kΩ Line Level Inputs (XLR): 100kΩ Digital Inputs: 75Ω Phono Input (MM): 47kΩ   INPUT OVERLOAD Line Level Inputs (RCA): 3.5V Line Level Inputs (XLR): 4.5V Phono Input: 52mV   PREOUT LEVEL 1.9V OUTPUT IMPEDANCE 100Ω   COAX/OPTICAL DIGITAL INPUT SIGNALS LPCM (Up to 24-bit/192kHz)   PC-USB USB Audio Class 2.0 (up to 32-bit/384kHz)* *Driver installation required MQA and MQA Studio (up to 24-bit/384kHz ) Roon Tested

INSTRUKCIJOS

User Manual (EN).

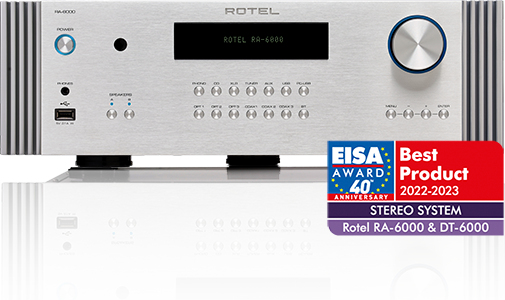

Rotel RA-6000, integruotas stiprintuvas (įvairių spalvų)- EISA
Rotel

Rotel RA-6000, integruotas stiprintuvas (įvairių spalvų)

4,703.00 €

"Diamond" serijos RA-6000 integruotasis stiprintuvas pažymi Rotel 60-ies metų veiklos jubliejų ir yra išties dėmesio vertas produktams kiekvienam audiofilui.

APRAŠYMAS



The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.

Digital inputs support 24-bit/192kHz audio streams. The asynchronous PC-USB input supports up to 32-bit/384kHz audio, decodes and renders MQA, and is fully certified Roon Tested.  A Moving Magnet Phono stage is also included for vinyl fans.

Front panel controls, back-lit IR remote and 2-line display ensure intuitive operation.

Ethernet, RS232,12V trigger and external remote input simplify integration with control systems.

The RA-6000 is available in both black and silver colors.

TECHNINIAI DUOMENYS

SPECIFIKACIJOS


DIMENSIONS (W × H × D)
431 × 144 × 425mm
17" × 5.7" × 16"

FRONT PANEL HEIGHT
3U / 132.6mm (5.25")

POWER REQUIREMENTS
230V, 50Hz

POWER CONSUMPTION
500W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
18.81kg (41.47lbs.)

BTU (4 ohms, 1/8th power)
1239 BTU/h

Components


MAXIMUM POWER OUTPUT
350W/Ch (4Ω)

CONTINUOUS POWER OUTPUT
200W/Ch (8Ω)

TOTAL HARMONIC DISTORTION
 (THD)
<0.0075%

FREQUENCY RESPONSE
Line Level Inputs:
10Hz - 100kHz, ±0.5dB
Digital Inputs:
10Hz - 90kHz, ±2dB
Phono Input:
20Hz - 20kHz, ±0.5dB

S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 103dB
Digital Inputs: 102dB
Phono Input: 80dB
INTERMODULATION DISTORTION
(60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
600

INPUT SENSITIVITY
Line Level Inputs (RCA): 340mV
Line Level Inputs (XLR): 540mV
Digital Inputs: 0 dBfs
Phono Input (MM): 5.2mV
INPUT IMPEDANCE
Line Level Inputs (RCA): 5.6kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ

INPUT OVERLOAD
Line Level Inputs (RCA): 3.5V
Line Level Inputs (XLR): 4.5V
Phono Input: 52mV

PREOUT LEVEL
1.9V
OUTPUT IMPEDANCE
100Ω

COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 2.0 (up to 32-bit/384kHz)*
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested
