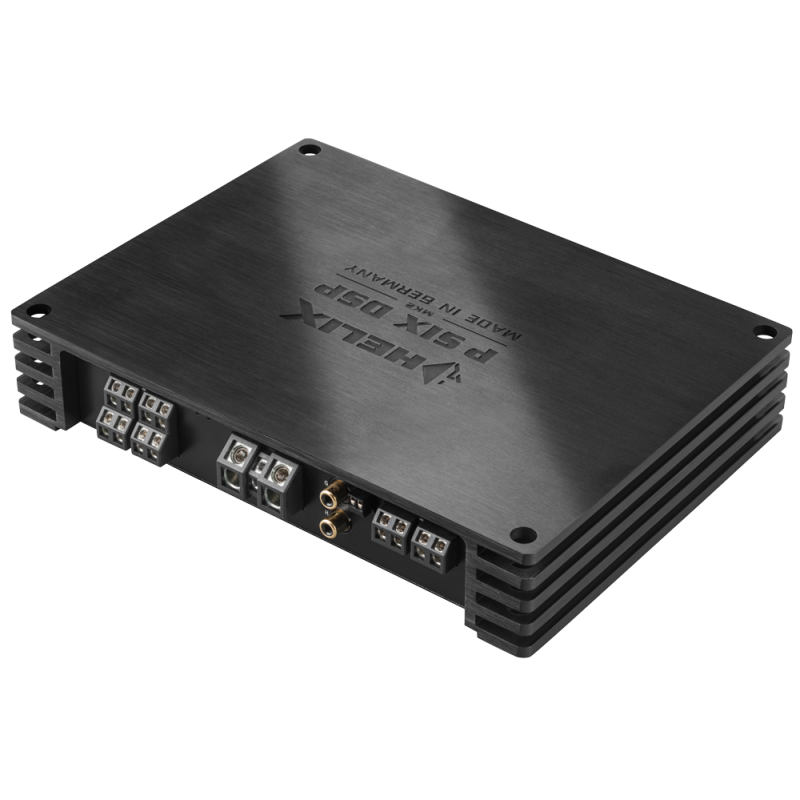

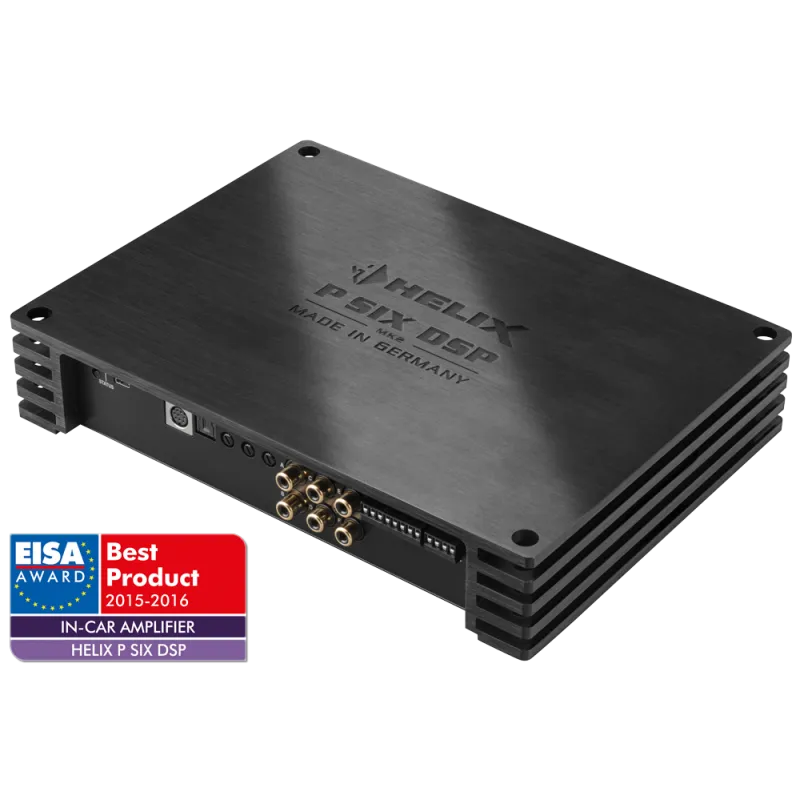

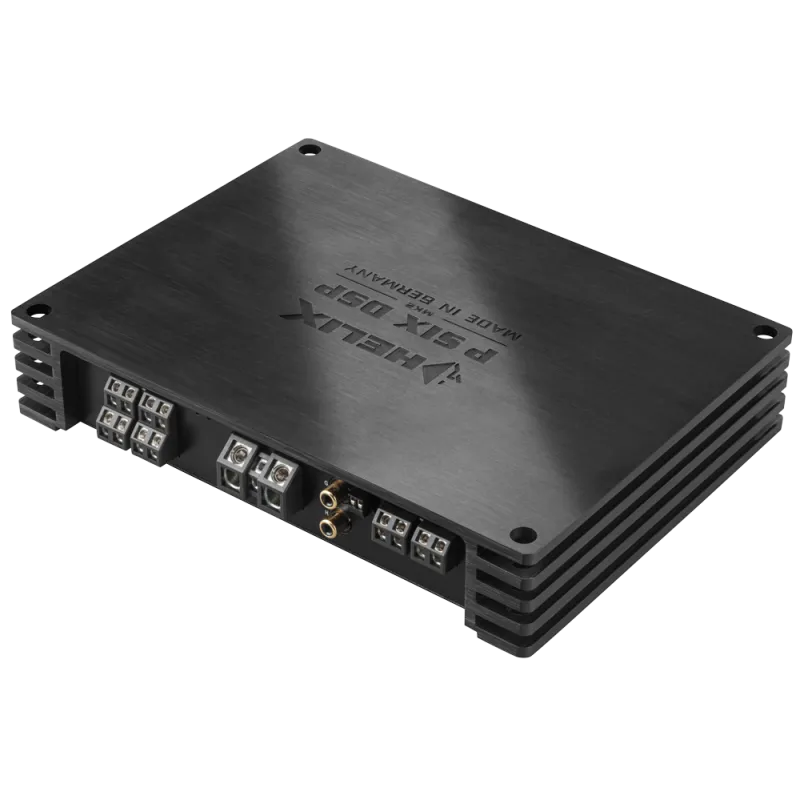

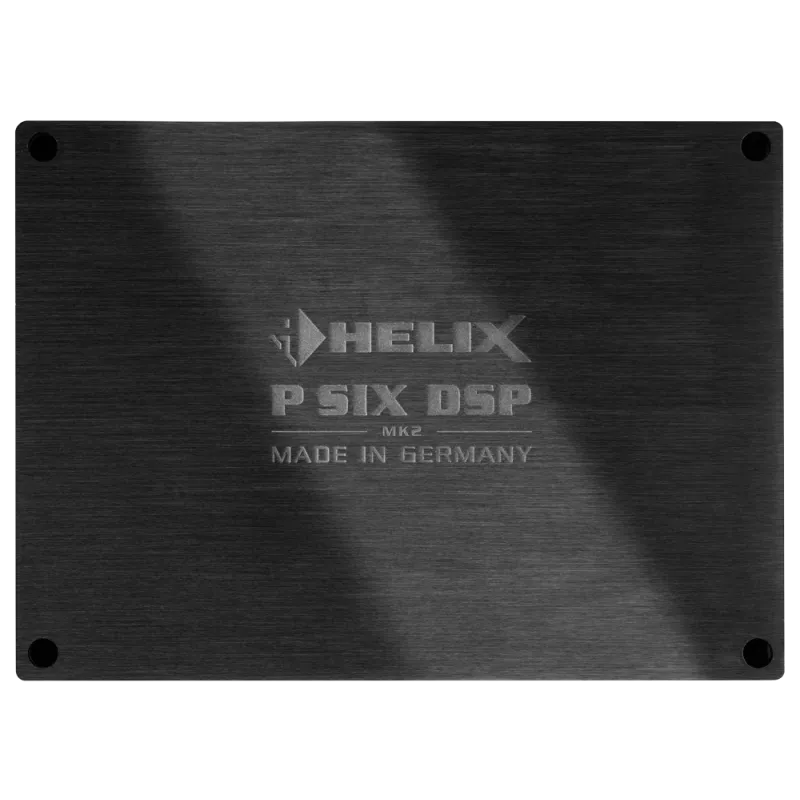

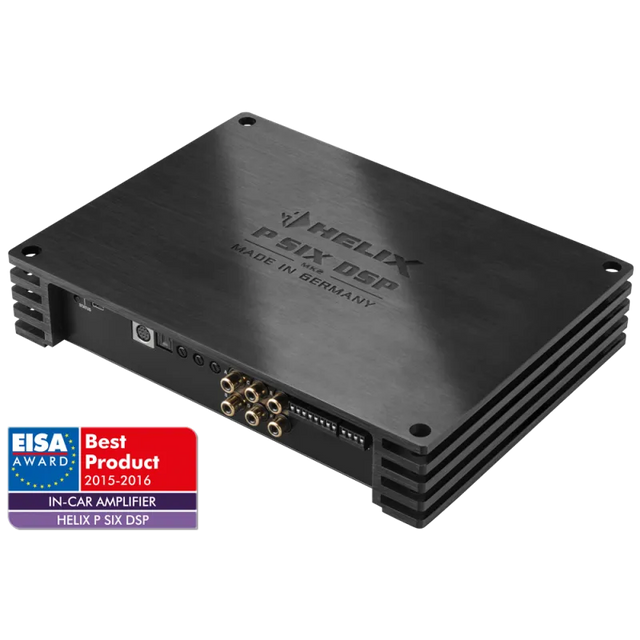

Skaitmeninis stiprintuvas su procesorium Helix P SIX DSP MK2

Skaitmeninis stiprintuvas su procesorium Helix P SIX DSP MK2

6 kanalų stiprintuvas su integruotu skaitmeniniu 8 kanalų signalo procesorium.

• Galia RMS:
  Kanalas A - F @ 4 omai / 120W per kanalą (≤ 1% THD+N)
  Kanalas C - F @ 2 omai / 230W per kanalą (≤ 1% THD+N)
• Dažnių diapazonas: 20 Hz - 44,000 Hz
• DSP raiška: 64 Bit
• Damping faktorius: > 100
• Įėjimo varža RCA / Cinch: 64 kOhms
• DSP galia: 295 MHz
• Matmenys: 50 x 250 x 190 mm

The new HELIX P SIX DSP MK2 6-channel amplifier not solely delivers loads of clean power and incorporates a cutting-edge 8-channel DSP with outstanding processing power but also sets new standards with its “Ultra HD Class D” amplifier technology.

Thanks to 96 kHz sampling rate and an extended audio bandwidth of more than 40 kHz this technological highlight raises the bar in terms of sound quality.

Besides that versatility was another major approach during the development. The HELIX Extension Card (HEC) slot allows to upgrade the P SIX DSP MK2 with additional interfaces like e.g. Bluetooth® Audio Streaming or AUX input. Two fully-processed RCA outputs provide connectivity for daisy-chaining further amplifiers.

The configuration of the internal 64 Bit DSP could hardly be easier thanks to the professional and user-friendly DSP PC-Tool software that offers almost unlimited sound tuning features.

Despite this impressive bundle of engineering know-how the P SIX DSP MK2 shows up with the HELIX-like clean design that has remained very compact for fastest and easiest integration.

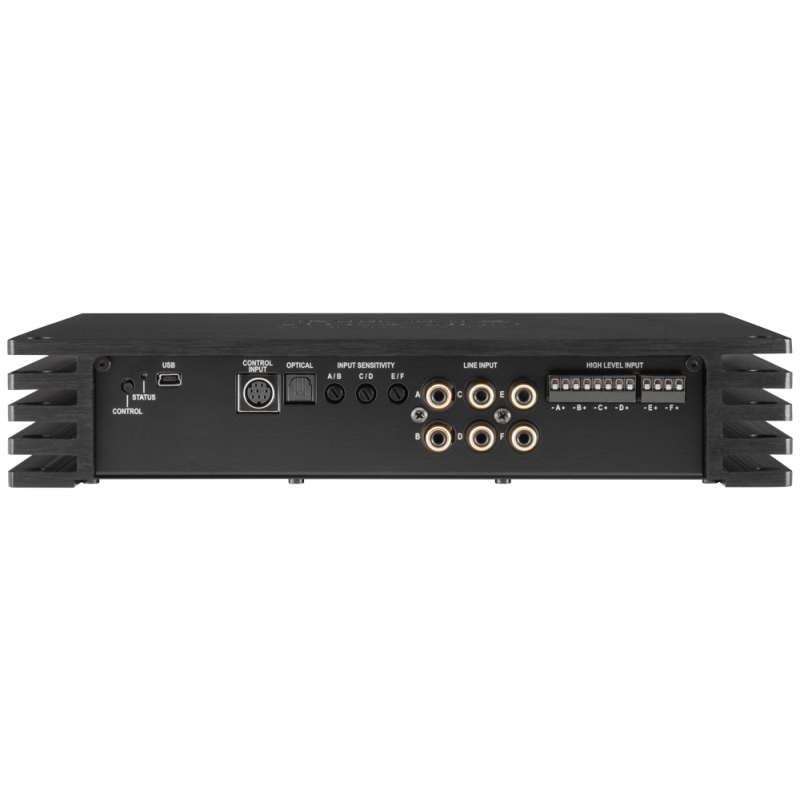

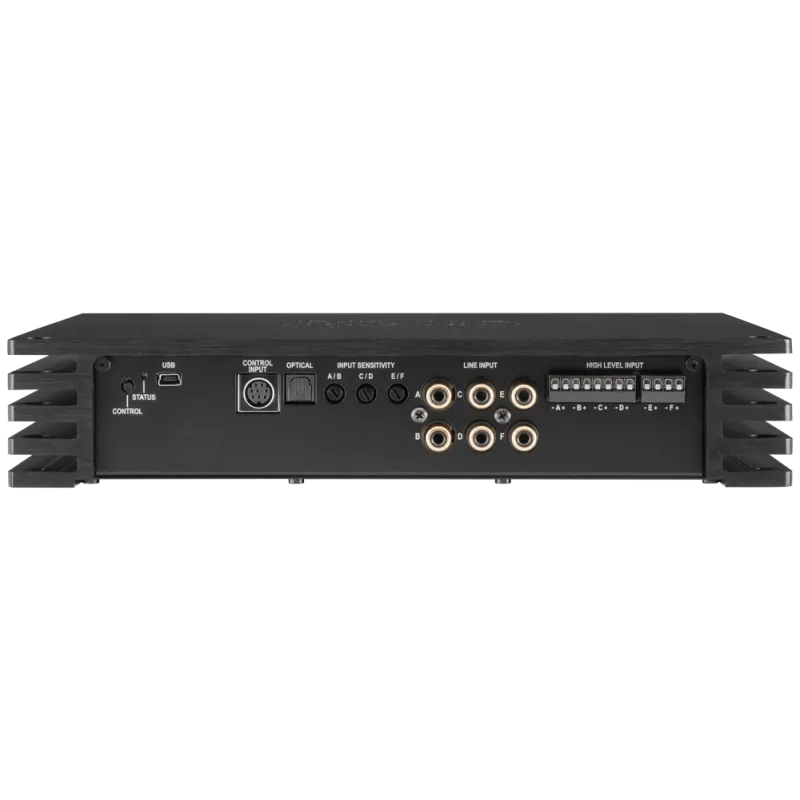

• Inputs: 6 x RCA / Cinch ; 6 x Highlevel speaker input ; 1 x Optical SPDIF (12 - 96 kHz) ; 1 x Remote In
• Input sensitivity:
  RCA / Cinch 2 - 4 Volts or 4 - 8 Volts
  Highlevel 5 - 10 Volts or 10 - 20 Volts

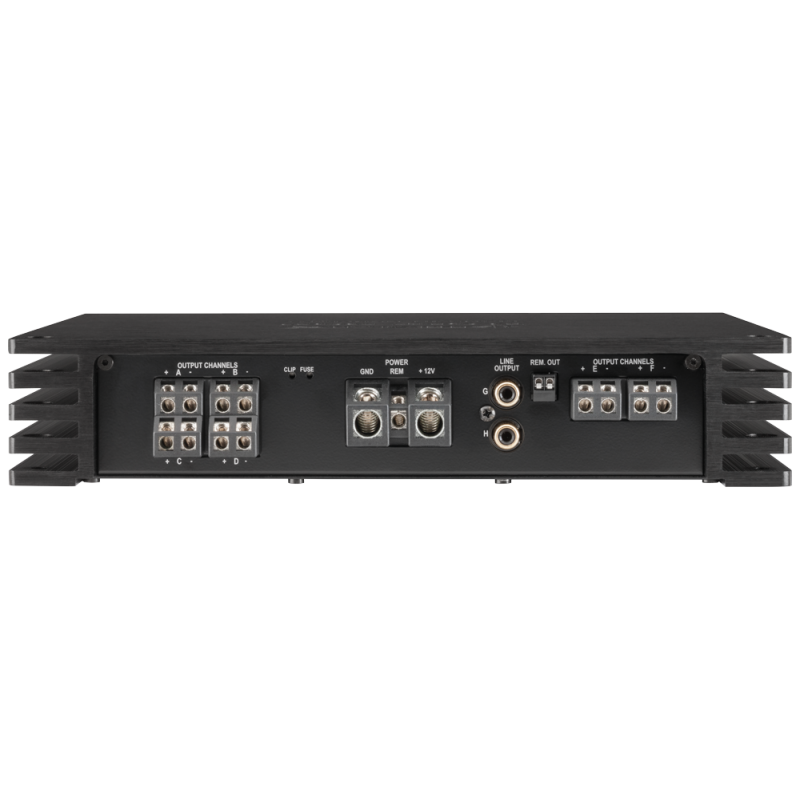

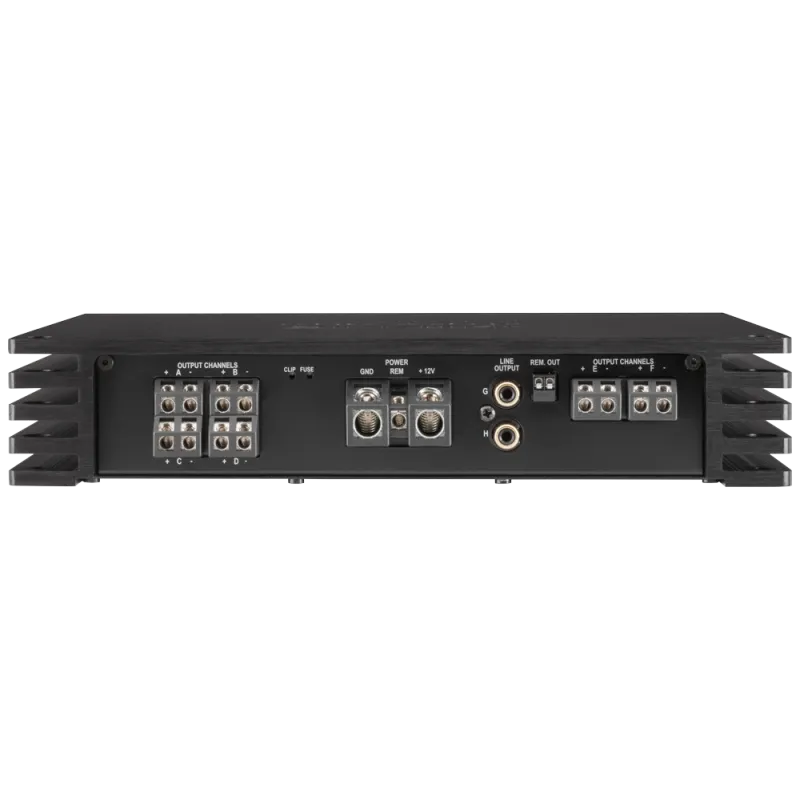

• Outputs: 6 x Speaker ; 2 x RCA / Cinch ; 2 x Remote Out
• Output voltage RCA: 3 Volts RMS
• Sampling rate: 96 kHz
• Signal converters:
  A/D: BurrBrown
  D/A: BurrBrown
• Signal-to-noise ratio (A-weighted):
  105 dB (digital input)
  100 dB (analog input)
• Distortion (THD): < 0.008 %
• Input impedance highlevel: 13 Ohms or 64 kOhms
• Operating voltage: 10.5 - 32 Volts (max. 5 sec. down to 6 Volts)
• Additional features: Control Input, USB, HEC slot, Automatic Remote switch

• New “Ultra HD Class D” concept which combines the high-end sound quality of class AB technology with the benefits of class D amplifiers
• Full audio bandwidth up to more than 40 kHz thanks to 96 kHz sampling rate
• Cutting-edge, extremely powerful “fixed point” Audio DSP with 64 Bit resolution and 1.2 billion MAC operations per second
• 24 Volts compatible without the need to make any changes to the unit
• Six speaker outputs with up to 230 Watts RMS into 2 Ohms
• Two processed RCA outputs
• Inputs: 6 x RCA, 6 x Highlevel with up to 20V RMS input sensitivity, optical SPDIF input
• Smart highlevel input with ADEP circuit
• HELIX Extension Card slot (HEC) for additional input / output modules like Bluetooth® Audio Streaming
• Compact design with low heat dissipation thanks to ­extraordinary efficiency
• Automatic Remote switch

Vartotojo vadovas

DSP PC-Tool software

Ultra HD Class D amplifier technology with 96 kHz sampling rate

The HELIX P SIX DSP MK2 is the first Class D amplifier with integrated DSP on the market that runs at 96 kHz sampling rate. Therefore the audio bandwidth is no longer limited to 22 kHz, but allows an extended frequency response to more than 40 kHz. The higher sampling rate has only been possible by implementing the latest DSP and amplifier chip sets.

The result: a Class D-amplifier with an unprecedented sound quality.

Ready for 24 V

It is possible to operate the P SIX DSP MK2 with a supply voltage of 12 Volts or 24 Volts (e.g. as usual in trucks) without the need to make any changes to the unit. In both operating modes the amplifier will have equal performance characteristics. This guarantees maximum flexibility for numerous applications.

Smart highlevel input

The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If an usual amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) are often the result - but not with the P SIX DSP MK2.

The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.

Power Save Mode

The Power Save Mode is incorporated in the basic setup. It allows to significantly reduce the power consumption of the P SIX DSP MK2 and connected amplifiers once there’s no input signal present for more than 60 seconds. Please note that in many up-to-date cars with “CAN” or any other internal bus structures it may happen that the radio remains “invisibly” turned on for up to 45 min. even after leaving the car! Once the “Power Save Mode“ is active the remote output (Rem Out) and the internal amplifier stages will be turned off. The HELIX P SIX DSP MK2 will reactivate the remote output and the internal amplifier stages within a second if a music signal is applied. It is possible to either modify the turn-off time of 60 sec. or completely deactivate the “Power Save Mode” via the DSP PC-Tool software.

Start-Stop capability

The switched power supply of the HELIX P SIX DSP MK2 assures a constant internal supply voltage even if the battery’s voltage drops to 6 Volts during engine crank.

Automatic Digital Signal Detection

Switching from analog input to the digital input is done automatically as soon as a signal is detected on the Optical Input. This feature can be deactivated in the DSP PC-Tool software. Alternatively you can use an optional remote control for manual switching between analog and digital inputs.
