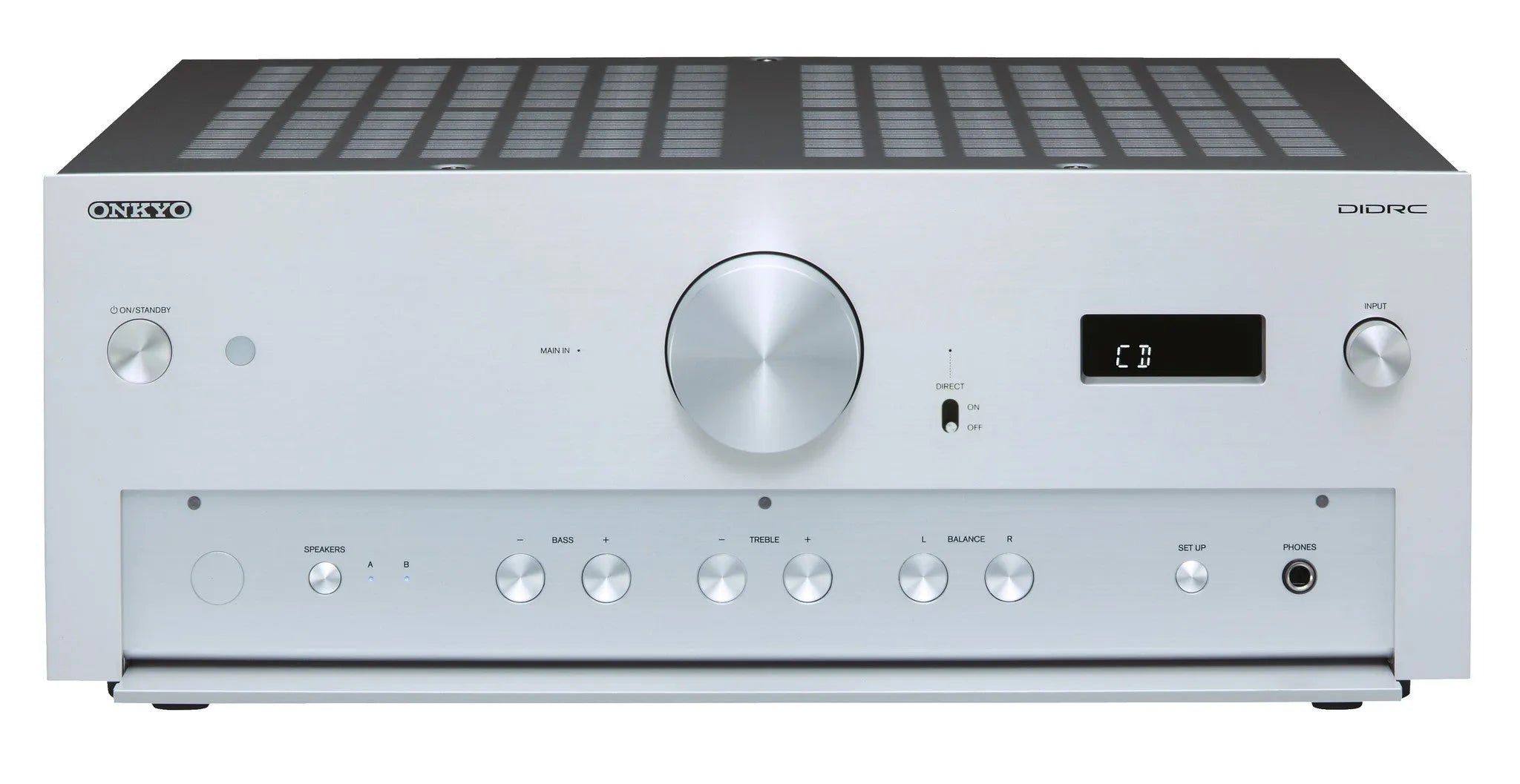

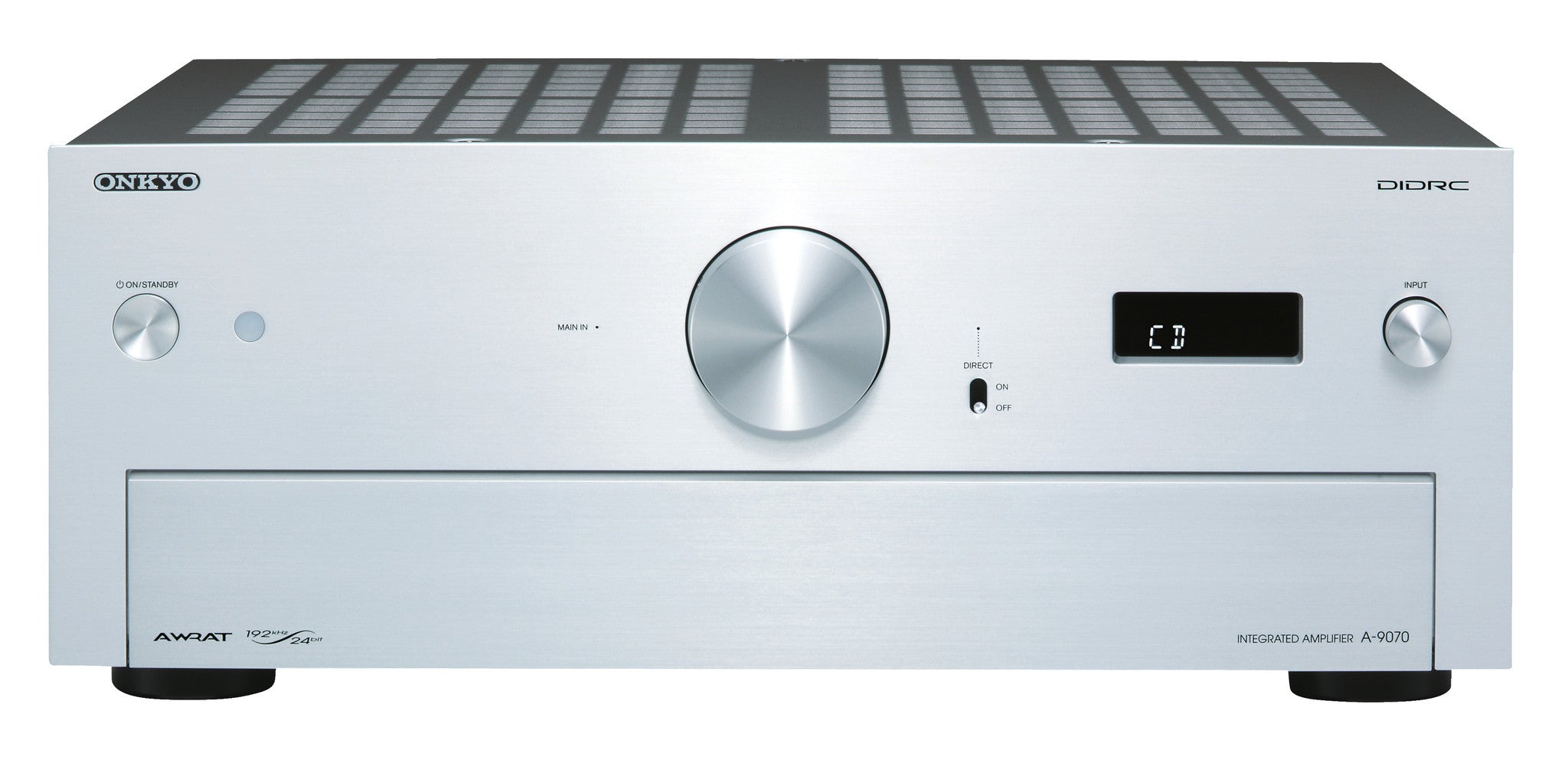

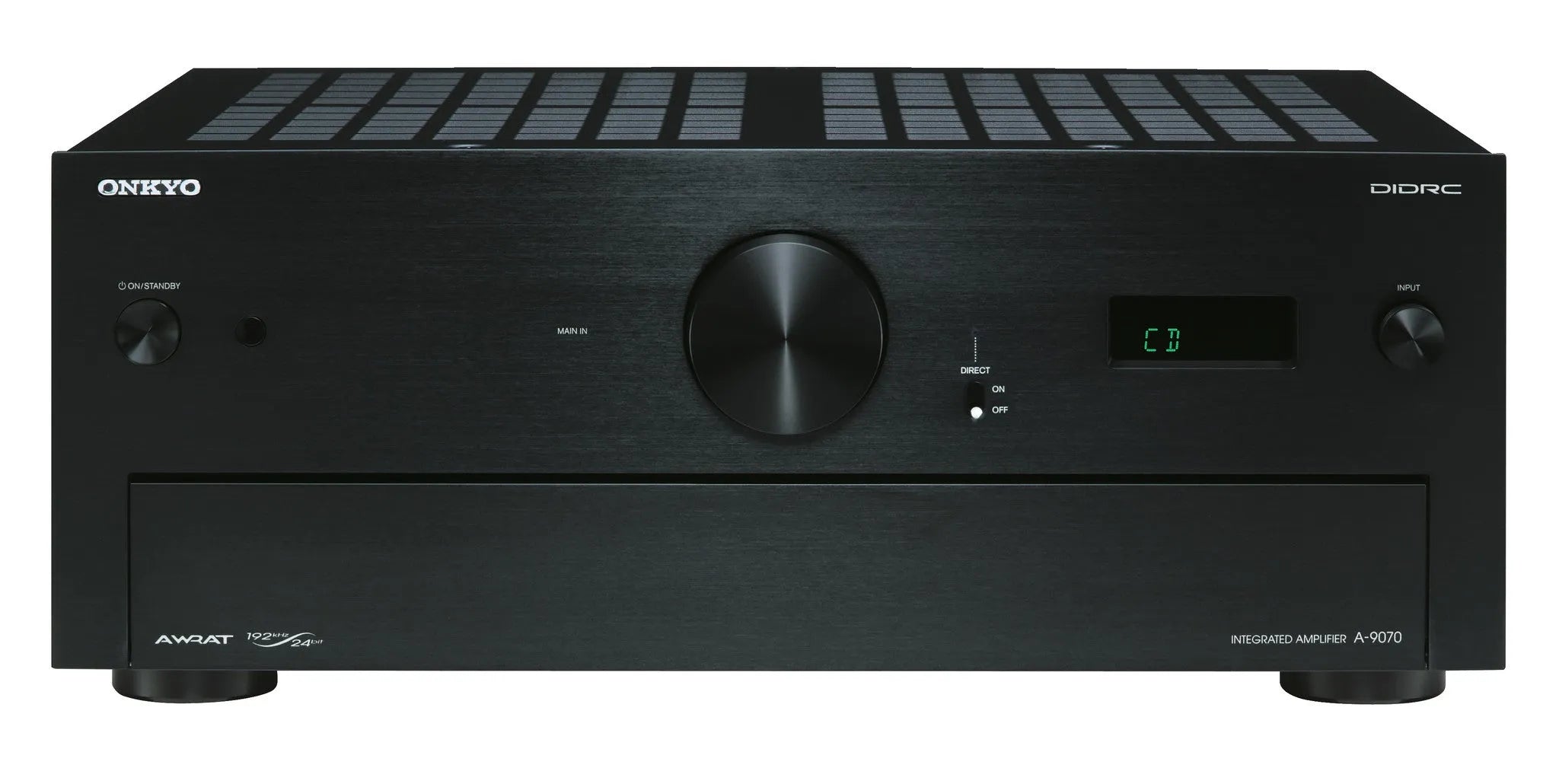

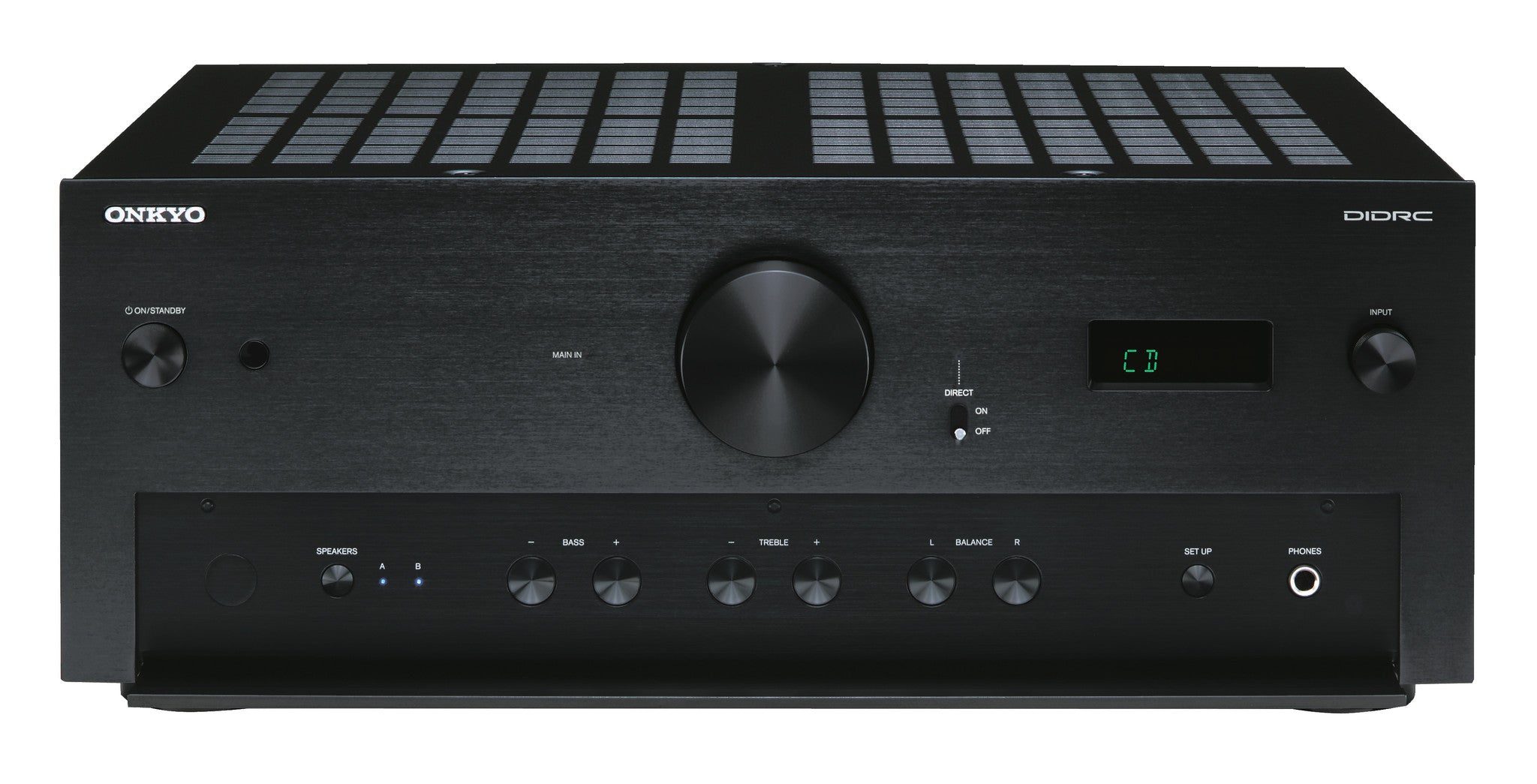

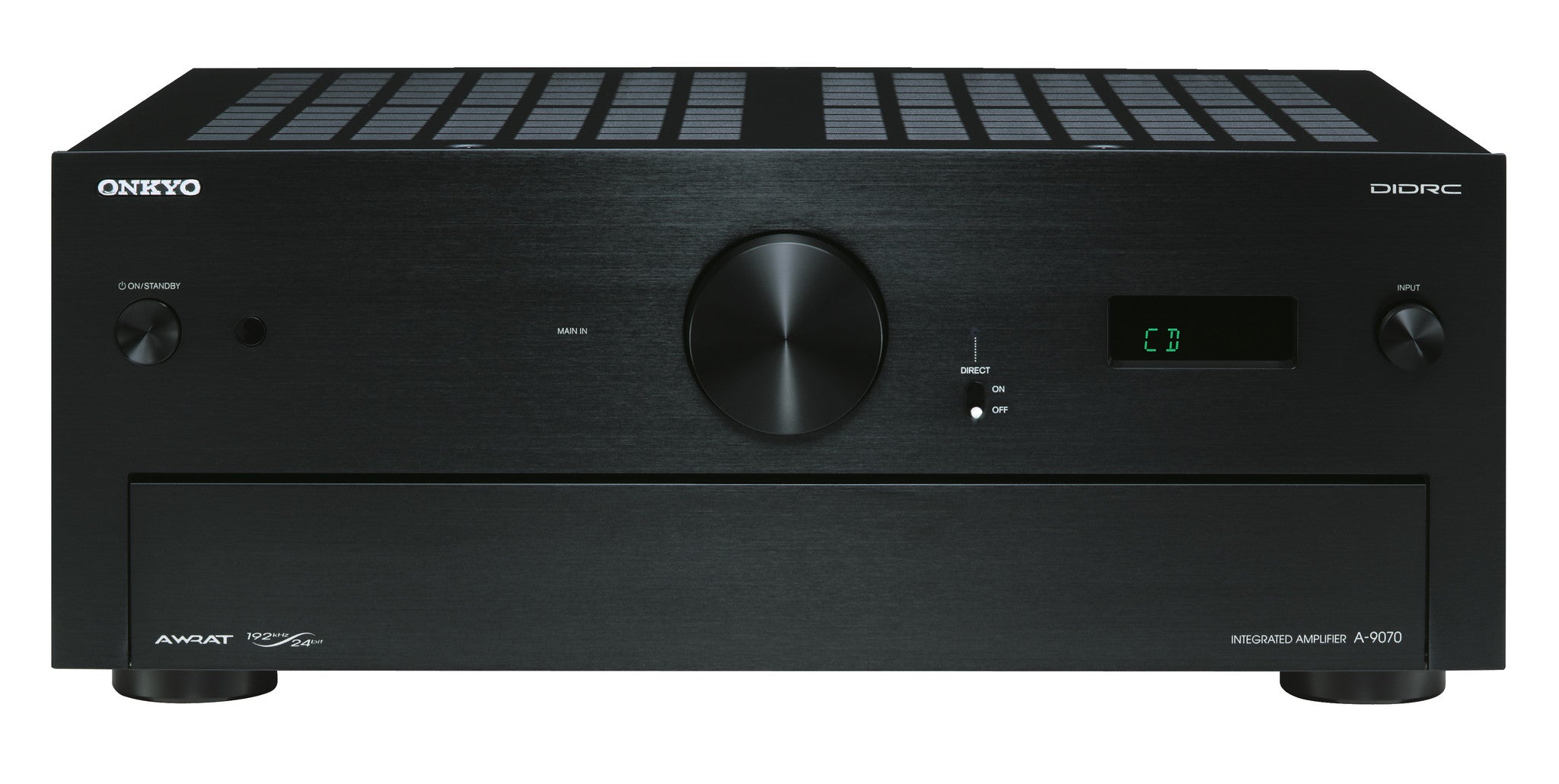

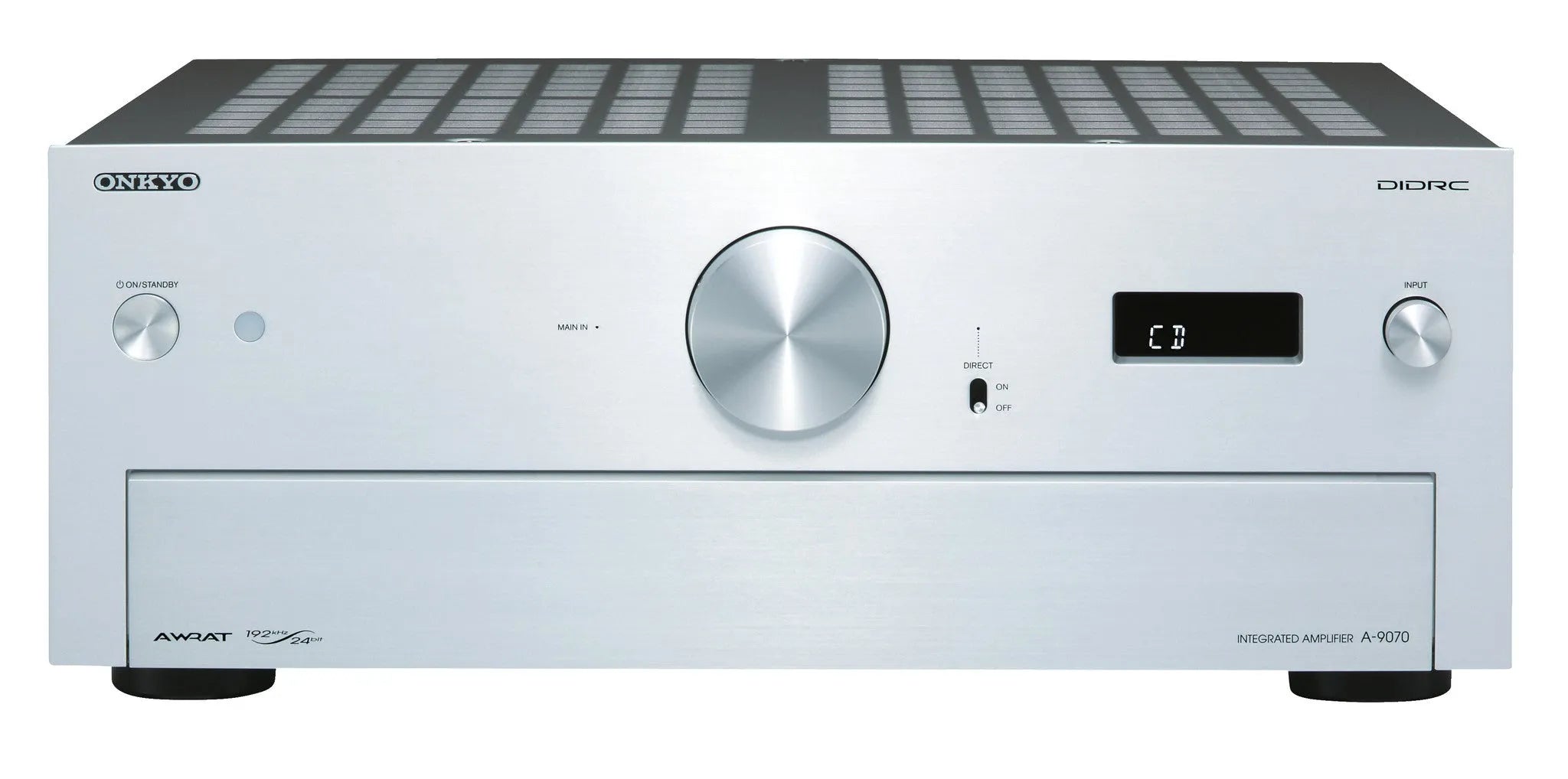

Stereo integruotas resyveris Onkyo A-9070 2.1, 2x140W

Onkyo has declared war on distortion. The success of its campaign against noise is evident the moment you switch on the A-9070 Integrated Stereo Amplifier. New DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry) dampens super high frequency distortion. Closed ground-loop circuits, HICC (High Instantaneous-Current Capability), and vibration-damping construction combine to produce a startlingly pure sound across a wide dynamic range.The unit’s four 15,000 µF capacitors keep plenty of power at the ready. Efficient parallel push-pull amplification paired with three-stage inverted Darlington circuitry works at reducing distortion to almost nil. Separate Wolfson® 192 kHz/24-bit DACs for both left and right channels improve performance. The unit is also equipped with 192 kHz/24-bit HD audio playback to handle modern formats. Four discrete amplifier modes—integrated amp, power amp, pre-amp, and split pre-amp/power amp—offer flexibility when integrating other hi-fi components. Details like an independent headphone amplifier, a phonograph equalizer, three digital audio inputs, four analog inputs, and gold-plated audio terminals/speaker posts speak of the highest build quality. The superb craftsmanship, technological refinement, and attention to detail invested in the A-9070 make it worthy of serious consideration for those in the market for top-shelf hi-fi gear.

• 140 W/Ch at 4 Ω, 20 Hz–20 kHz, 0.05%, 2 Channels Driven, IEC
• AWRAT (Advanced Wide Range Amplifier Technology)
• DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry)
• Parallel Push-Pull Amplification Design with Three-Stage Inverted Darlington Circuitry
• 192 kHz/24-Bit HD Audio Playback via Coaxial Inputs
• New Circuit Board Construction with Internal Struts to Reduce Vibration
• Symmetrical Layout of L/R Channels
• Separate Wolfson® 192 kHz/24-Bit DACs (WM8742 x 2) for L/R Channels
• Four Large 15,000 µF Capacitors
• 1.2 mm-Thick Copper Bus Plate for Perfect Grounding
• Four Amplifier Modes (Integrated Amp, Power Amp, Pre-Amp, Split Pre-Amp/Power Amp)

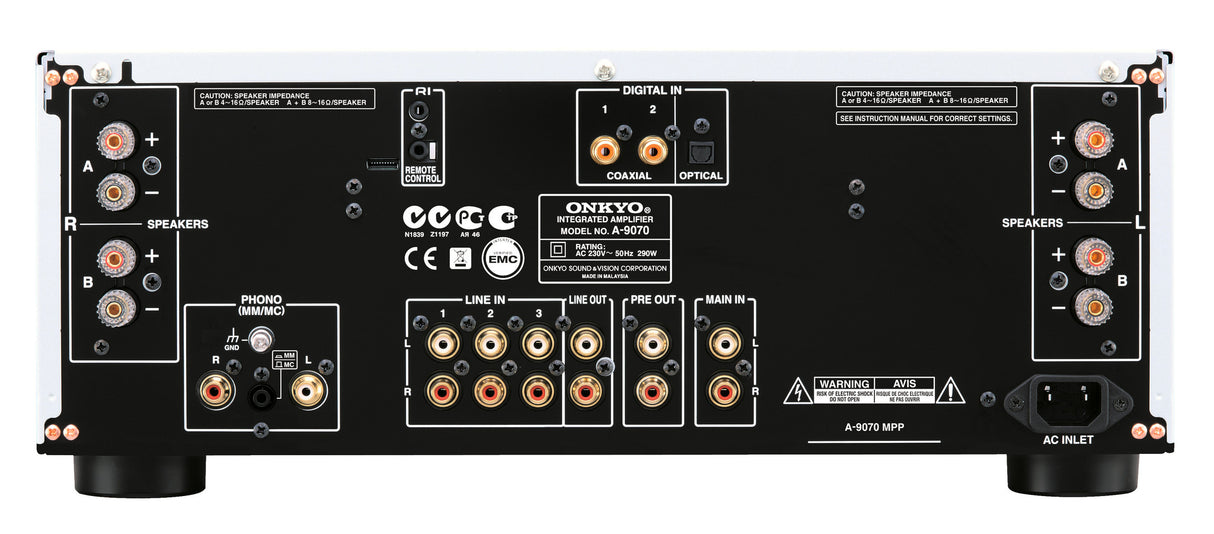

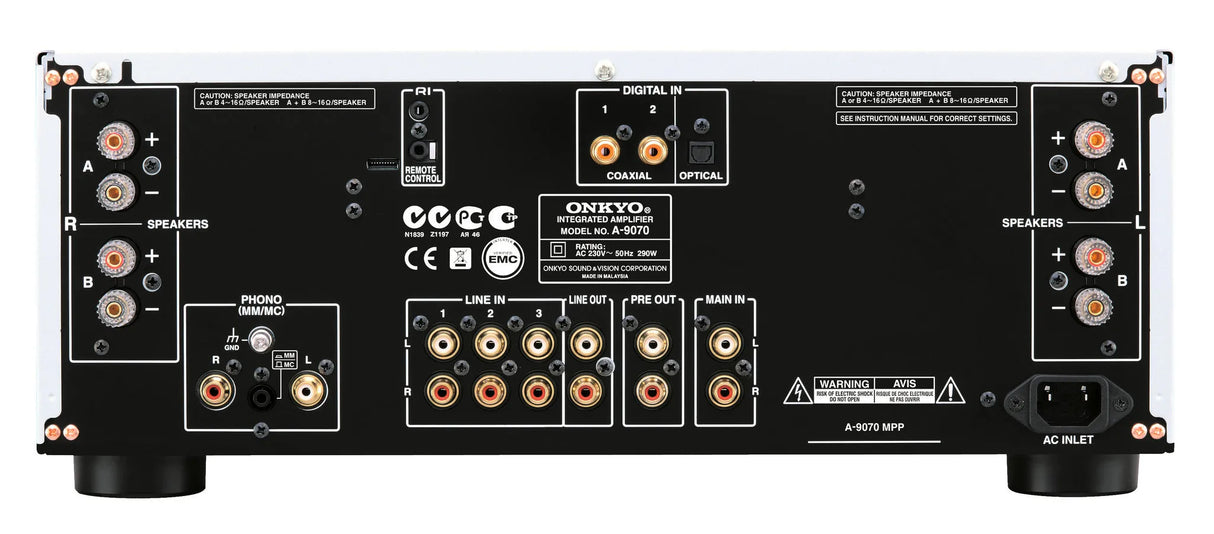

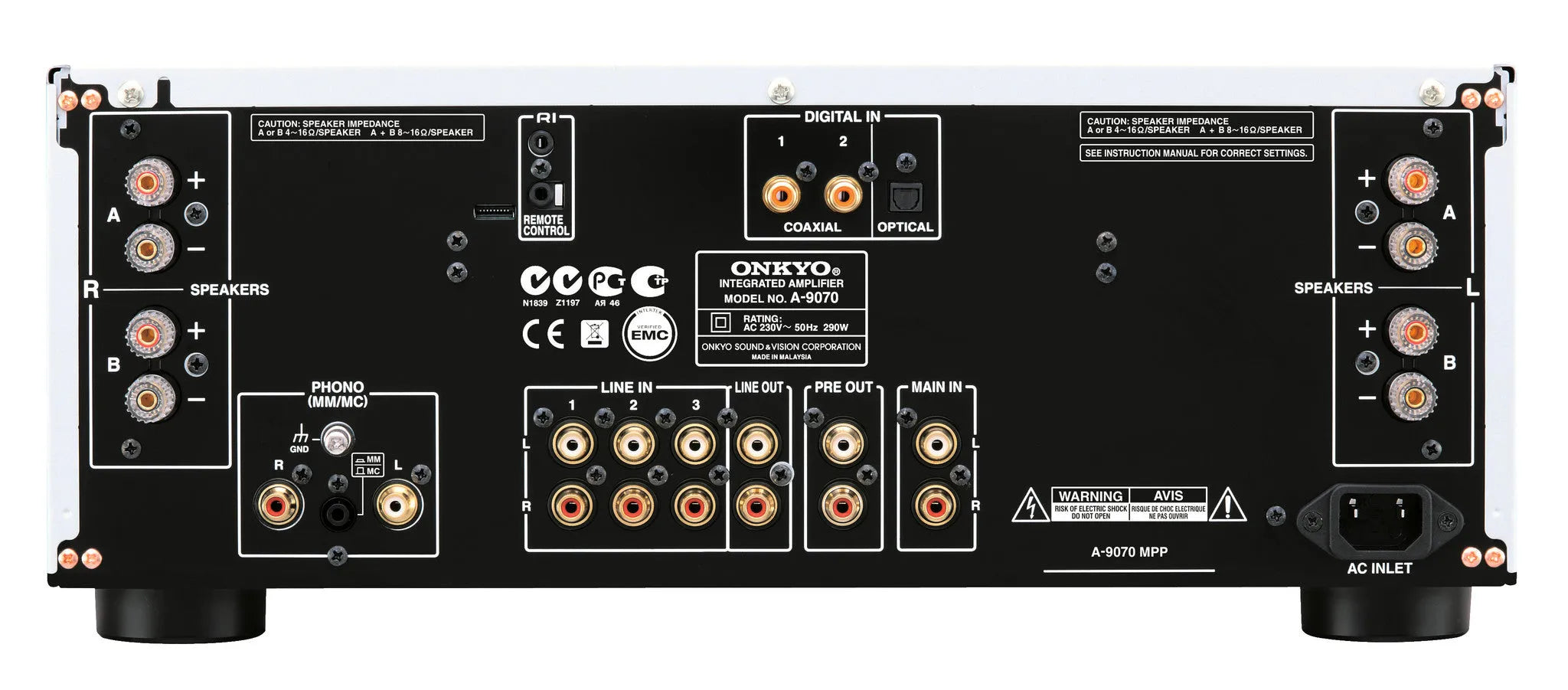

• 3 Digital Audio Inputs (1 Optical and 2 Coaxial)
• 3 Analog Audio Inputs and 1 Output
• Main-In Terminal
• Independent Headphone Amplifier
• Discrete Phono Equalizer (MM/MC)
• Speaker A/B Drive
• Audio L/R Pre-Out
• Customized, Gold-Plated, Banana Plug-Compatible Speaker Posts
• Machined, Gold-Plated RCA and Phono Terminals
• Auto Standby Function

• Power Output:
  140 W/Ch (4 Ω, 20 Hz–20 kHz, 0.05%, 2 channels driven, IEC)
  75 W/Ch (8 Ω, 20 Hz–20 kHz, 0.05%, 2 channels driven, IEC)
• Dynamic Power:
  450 W (1 Ω), 310 W (2 Ω), 230 W (3 Ω)
  180 W (4 Ω), 100 W (8 Ω)
• THD+N (Total Harmonic Distortion + Noise):
  0.006% (Half power)
  0.03% (1 kHz, 1 W Output)
  0.008% (20 Hz–20 kHz, Half power)
  0.03% (20 Hz–20 kHz, 1 W Output)
• Damping Factor 130 (1 kHz, 8 Ω)
• Input Sensitivity and Impedance:
  150 mV/47 kΩ (Line)
  2.25 mV/47 kΩ (Phono MM)
  0.18 mV/100 Ω (Phono MC)
• Rated RCA Output Level and Impedance 1 V/300 Ω (Pre out)
• Maximum RCA Output Level and Impedance 5 V/300 Ω (Pre out)
• Phono Overload 70 mV (MM, 1 kHz, 0.5%) 5.2 mV (MC, 1 kHz, 0.5%)
• Frequency Response:
  10 Hz–100 kHz/+0 dB, -1 dB (1 W, Line)
  1 Hz−250 kHz/+0 dB, -3 dB (1 W, 8 Ω)
• Tone Control:
  ±10 dB, 80 Hz (Bass)
  ±10 dB, 10 kHz (Treble)
• Signal-to-Noise Ratio :
  107 dB (Line, IHF-A)
  60 dB (Phono MM, IHF-A)
  70 dB (Phono MC, IHF-A)
• Speaker Impedance 4 Ω–16 Ω (A or B), 8 Ω–16 Ω (A + B)

• Power Supply AC 230 V~, 50 Hz
• Power Consumption 290 W
• Standby Power Consumption 0.2 W
• Dimensions (W x H x D) 435 x 174.5 x 431 mm
• Weight 18.1 kg
