Stereo resyveris Onkyo TX-8020 2.1, 2x90W

If you’re looking to get the best possible two-channel audio performance on a limited budget—and something versatile enough to power audio from your TV, Blu-ray player, personal computer, and CD player via digital or analog inputs—then the TX-8020 Stereo Receiver is for you. Onkyo’s WRAT serves up more than enough pure analog power to drive most compact bookshelf and floorstanding speakers, with discrete output stage circuitry and a high current, low-impedance drive effortlessly handling the most demanding loads. The sound quality is characteristic of the veteran hi-fi brand, with lively dynamics, a sweet and natural mid-range, and accurate timing for all kinds of music. And just like the cool vintage receivers in its genealogy, the TX-8020 has bass, treble, and balance controls as well as speaker A/B posts for multi-room setups. Connect your media players and TV—perhaps including the DS-A5 RI dock with AirPlay for wireless audio and video streaming—and be treated to the kind of full-scale, broad-spectrum performance a soundbar couldn’t hope to match.

• 90 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC)
• WRAT (Wide Range Amplifier Technology)
• Discrete Amplifier Output Stage Circuitry
• Massive EI Transformer
• High-Current, Low-Impedance Drive
• Compatible with the DS-A5 AirPlay RI Dock for iPod/iPhone/iPad*
• Direct Mode
• 3 Digital Audio Inputs (1 Optical, 2 Coaxial)
• 5 Analog Audio Inputs and 1 Output
• Phono Input for Turntable Connection
• Independent Bass, Treble, and Balance Controls
• Subwoofer Pre-Out
• Speaker A/B Terminals
• Banana Plug-Compatible Speaker Posts
• Remote Interactive (RI) Input for Integrated Control of Compatible Onkyo Components
• Headphone Jack

TUNER FEATURES

• 40 FM/AM Random Presets
• RDS (PS/PTY/RT/TP) (EU Only)
• Preset Station Naming (Up to 8 Characters)

OTHER FEATURES

• 3-Mode Display Dimmer (Normal/Dim/Dimmer)
• Sleep Timer (via Remote)
• Battery-Free Memory Back-up

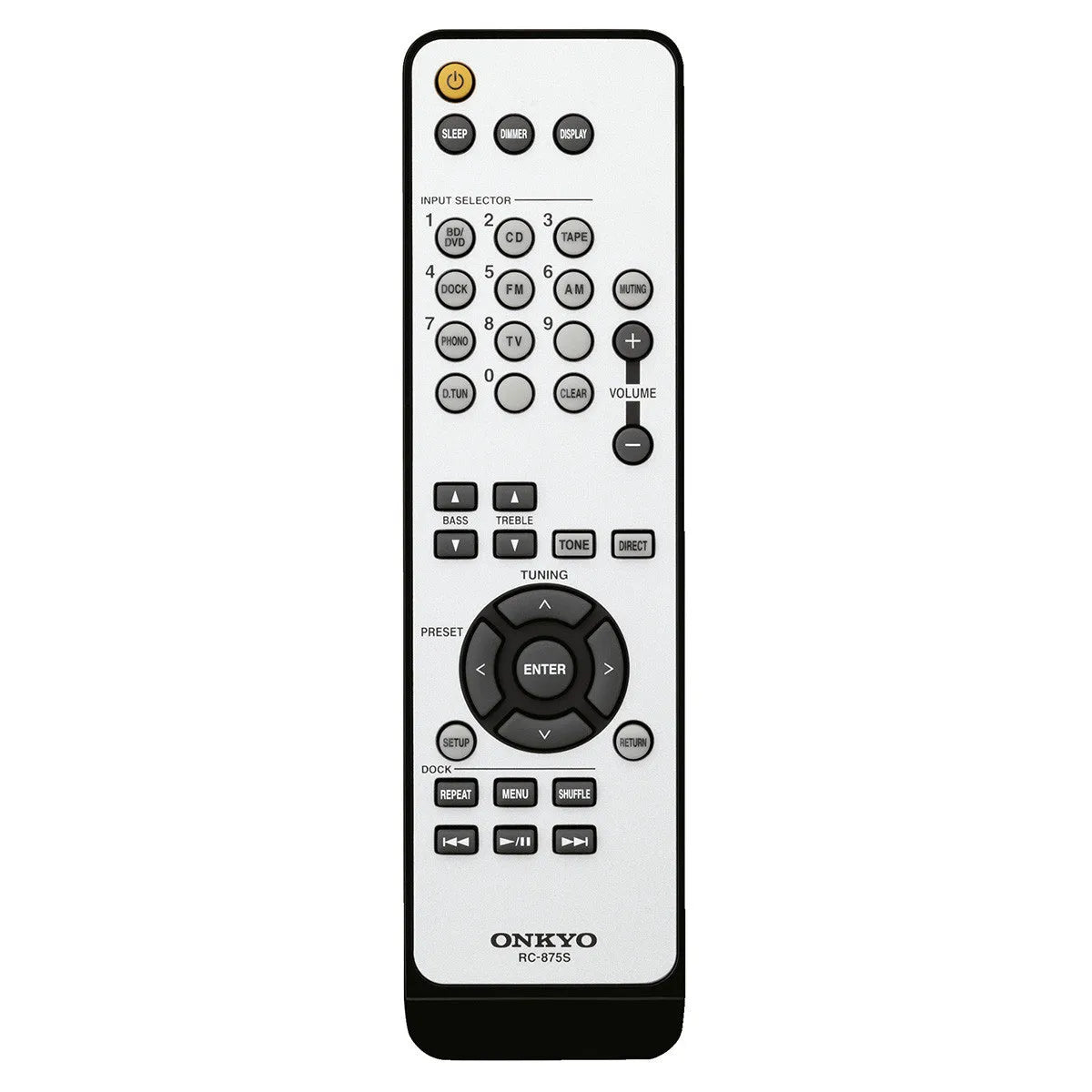

• Full-Sized, Full-Function RI Remote Control

• Power Output 90 W + 90 W (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC)
• Dynamic Power:
  180 W + 180 W (3 Ω)
  160 W + 160 W (4 Ω)
  100 W + 100 W (8 Ω)
• THD+N (Total Harmonic Distortion + Noise) 0.03% (20 Hz–20 kHz, Half Power)
• Damping Factor 60 (1 kHz, 8 Ω)
• Input Sensitivity and Impedance:
  Line 200 mV/47 kΩ
  Phono MM 2.5 mV/47 kΩ
• Rated RCA Output Level and Impedance:
  200 mV/2.2 kΩ (Rec Out)
• Maximum RCA Output Level and Impedance: 2 V/2.2 kΩ (Rec Out)
• Phono Overload 70 mV (MM, 1 kHz, 0.5%)
• Frequency Response 10 Hz–100 kHz (+1 dB, -3 dB)
• Tone Control:
  ±11 dB, 100 Hz (Bass)
  ±11 dB, 10 kHz (Treble)
• Signal-to-Noise Ratio:
  Line 100 dB (CD, IHF-A)
  Phono MM 80 dB (IHF-A)
• Speaker Impedance 4 Ω –16 Ω (A or B), 8 Ω –16 Ω (A + B)

• Tuning Frequency Range:
  FM 87.5 MHz–108 MHz
  AM 522 kHz–1,611 kHz
  530 kHz–1,710 kHz
• FM/AM Preset Memory 40 Stations

• Power Supply AC 230 V~, 50 Hz
• Power Consumption 170 W
• Dimensions (W x H x D) 435 x 150 x 328.5 mm
• Weight 7.3 kg
