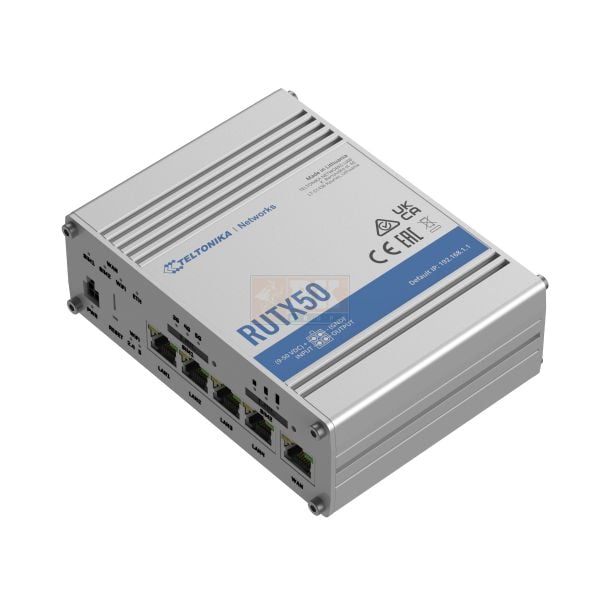

Teltonika LTE RUTX50, pramoninis 5G maršrutizatorius

699.00 € 790.00 €

Teltonika LTE RUTX50, pramoninis 5G maršrutizatorius yra užsakytas ir bus išsiųstas, kai tik bus sandėlyje.


Siuntimas ir pristatymas

Prekes visoje Lietuvoje (išskyrus Kuršių Neriją) pristato skubių siuntų tarnyba "Venipak" per 1-2 darbo dienas, tiesiai į namus ar darbovietę. Pristatymas yra nemokamas, jeigu prekių suma viršija 100€, kitu atveju taikomas 4,99€ pristatymo mokestis. Kurjeris pieš atveždamas prekes su Jumis susisieks Jūsų nurodytu telefono numeriu ir suderins pristatymo laiką.

Teltonika LTE RUTX50, pramoninis 5G maršrutizatorius puikus sprendimas Jūsų verslo patalpoms.I

  • Aliuminis korpusas.
  • Mobiliojo ryšio greitis iki 3.3Gbps.
  • Dviejų juostų duomenų pralaidumas iki 150 klientų vienu metu.
  • Atgalinis suderinamas su 4G (LTE CAT 20) ir 3G tinklo technologijomis.
  • GNSS, Geofencing.
  • 2 Sim.

SPECIFIKACIJOS

  • Mobilus ryšys
  • Mobilus modulis5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
  • StatusasSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID.
  • SMS/CallSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities
  • USSDSupports sending and reading Unstructured Supplementary Service Data messages
  • Juodasis/baltasis sąrašasOperator black/white list
  • Grupės valdymasBand lock, Used band status display
  • APNAuto APN
  • Tilto režimasDirect connection (bridge) between mobile ISP and device on LAN
  • PassthroughGateway assigns its mobile WAN IP address to another device on LAN
  • Multiple PDNPossibility to use different PDNs for multiple network access and services
  • Bevielis ryšys
  • Belaidžio ryšio režimas802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates of up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
  • Wifi apsaugaWPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
  • ESSIDESSID stealth mode
  • WiFi naudojotaiUp to 150 simultaneous connections
  • Belaidžio ryšio prieeigaCaptive portal (Hotspot), internal/external Radius server, built-in customizable landing page
  • Belaidis mesh/roamingWireless mesh (802.11s), fast roaming (802.11r)
  • Tinklas
  • WAN1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
  • LAN4 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
  • Internetas
  • Interneto protokolaiTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)
  • MaršrutasStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
  • Ryšio stebėjimasPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
  • UgniasienėPort forwards, traffic rules, custom rules
  • DHCPStatic and dynamic IP allocation
  • DDNSSupported >25 service providers, others can be configured manually
  • SSHFSPossibility to mount remote file system via SSH protocol
  • Saugumas
  • AutentifikavimasPre-shared key, digital certificates, X.509 certificates
  • UgniasienėPre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
  • Įsilaužimo prevencijaDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
  • VLANPort and tag-based VLAN separation
  • Mobiliųjų kvotų kontrolėSet up custom data limits for SIM >kortelė
  • WEB filterBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
  • Prieigos kontrolėFlexible access control of TCP, UDP, ICMP packets, MAC address filter
  • VPN
  • OpenVPNMultiple clients and a server can run simultaneously, 12 encryption methods
  • OpenVPN EncryptionDES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
  • GRE tunnelGRE Tunnel
  • IPsecIKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
  • SSTPSSTP client instance support
  • STUNNELProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
  • DMVPNMethod of building scalable IPsec VPNs
  • PPTP, L2TPClient/Server services can run simultaneously, L2TPv3 support
  • WireGuardWireGuard VPN client and server support
  • ZeroTierZeroTier VPN
  • Modbus TCP Slave
  • ID filtravimasRespond to one ID in range [1;255] or any
  • Nuotolinės prieigos leidimasAllow access through WAN
  • Pasirinktiniai registraiMODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality
  • Modbus TCP master
  • Palaikomos funcijos01, 02, 03, 04, 05, 06, 15, 16
  • Palaikomi duomenų formatai8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
  • MQTT gateway
  • GatewayAllows sending commands and receiving data from MODBUS Master through the MQTT broker
  • DNP3
  • Palaikomi režimaiTCP Master, DNP3 Outstation
  • Data iki serverio
  • ProtokolaiHTTP(S), MQTT, Azure MQTT, Kinesis
  • IoTPlatformos
  • Clouds of thingsAllows monitoring of: Device data, Mobile data, Network info, Availability
  • ThingWorxAllows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
  • CumulocityAllows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
  • Azure IoT HubCan send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server
  • Stebėjimas ir valdymas
  • WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
  • FOTAFirmware update from server, automatic notification
  • SSHSSH (v1, v2)
  • SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET
  • CALLReboot, Status, Mobile data on/off, Output on/off
  • TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
  • MQTTMQTT Broker, MQTT publisher
  • SNMPSNMP (v1, v2, v3), SNMP trap
  • JSON-RPCManagement API over HTTP/HTTPS
  • MODBUSMODBUS TCP status/control
  • RMSTeltonika Remote Management System (RMS)
  • Sistemos Characteristikos
  • CPUQuad-core ARM Cortex A7, 717 MHz
  • RAM256 MB (100 MB available for userspace)
  • FLASH saugykla256 MB (80 MB available for userspace)
  • Nustatymai
  • WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup
  • FOTAUpdate FW
  • RMSUpdate FW/configuration for multiple devices at once
  • Nustatymų įsiminimasUpdate FW without losing current configuration
  • Įrangos tinkinimas
  • Operacinė sistemaRutOS (OpenWrt based Linux OS)
  • KalbosBusybox shell, Lua, C, C++
  • Kūrėjo įrankiaiSDK package with build environment provided
  • Vietos sekimas
  • GNSSGPS, GLONASS, BeiDou, Galileo and QZSS
  • KoordinatėsGNSS coordinates via WebUI, SMS, TAVL, RMS
  • NMEANMEA 0183
  • Serverio programinė įrangaSupports server software: TAVL, RMS
  • GeotvorosMultiple configurable geofence zones
  • USB
  • Duomenų perdavimasUSB 2.0
  • NadojimasSamba share, USB-to-serial, Modbus gateway
  • Išoriniai įrenginiaiPossibility to connect external HDD, flash drive, additional modem, printer
  • Vidinės atminties formatasFAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
  • Išėjimai/įėjimai
  • Įvestis1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
  • Išvestis1 x Digital Output, Open collector output, max output 30 V, 300 mA
  • ĮvykiaiSMS, Email, RMS
  • I/O jugglerAllows setting certain I/O conditions to initiate event
  • Sistemos parametrai
  • Jungtys4-pin industrial DC power socket
  • Įeinančios įtampos diapazonas9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
  • PoE jungtis (pasyvi)Mode B, LAN1 Port, 9 - 50 VDC
  • Energijos sunaudojimasIdle: <4 W, Max: <18 W
  • Fizinės sąsajos
  • (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
  • Tinklas5 x RJ45 ports, 10/100/1000 Mbps
  • I/Os1 x Digital Input, 1 x Digital Output on 4-pin power connector
  • LED indikatoriai3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs
  • SIM2 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
  • Sistemos parametrai1 x 4-pin DC power connector
  • Antenos4 x SMA for Mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
  • USB1 x USB A port for external devices
  • PerkrovimasReboot/User default reset/Factory reset button
  • Kita1 x Grounding screw
  • Fizinės specifikacijos
  • KorpusasAluminum housing
  • Dydis132 x 44.2 x 95.1 mm
  • Svoris533 g
  • Montavimas
  • DIN rail (can be mounted on two sides), flat surface placement
  • Darbinė aplinka
  • Darbinė temperatūra-40 °C to 75 °C
  • Drėgmė10 % to 90 % non-condensing
  • IP reitingasIP30
