There’s a path to immersive surround-sound that won’t result in a messy living space, and it’s called the TX-L50. Slim, smart, and ready to fit into your existing furniture, the receiver cleans up cable clutter by integrating your players into the TV via one HDMI®, and by letting you cast music wirelessly from smartphone apps in seconds. Lush, cohesive sound transforms daily entertainment, from TV shows to LP records, thanks to responsive six-channel amplification. With the addition of a compact speaker set, cinema magic is on tap with simple playback control to help to melt stress away.

FireConnect™ Multi-Room Technologija

AccuEQ akustinis kambario kalibravimas

• Dažninė: 10 Hz–40 kHz/+1 dB, -3 dB
• 4 HDMI® Įėjimai / 1 išėjimas (4K/60p, HDCP 2.2)
• AccuEQ akustinis kambario kalibravimas
• FM/RDS Tuneris su 40 stočių
• CIRRUS 32 bitų skaitmeninis signalo procesorius
• Onkyo valdymo apps'as (programėlė) skirta iPhone/iPod touch ir Android įrenginiams
• HDMI palaiko 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD, Dolby® Digital Plus, Dolby® ProLogic™ II, Dolby® Surround, DTS-HD Master Audio™, DTS High Resolution, DTS 96/24, DTS-HD Express, DVD-Audio, Super Audio CD, Multichannel PCM, ir CEC/CEC Multilink
• Palaikomi garso formatai: FLAC 192/24, 192/24 WAV, ALAC 96/24, AAC, WMA, MP3 HD DSD (DSF / DSDIFF)
• CinemaFILTER™ garso rėžimas

• 80 W/Ch of Digital Amplification Power
• Google Cast™*1, AirPlay®, Wi-Fi®, and Bluetooth®
• Spotify®, TIDAL*1, Deezer*1, TuneIn, and Pandora®*2
• 4 HDMI® Inputs / 1 Output (4K/60p, HDCP 2.2)
• AccuEQ Room Acoustic Calibration
• FireConnect™ Wireless Multiroom Audio

• 80 W/Ch (4 Ω, 1 kHz, 1%, 1 Channel Driven, IEC)
• Google Cast™*1, Wi-Fi®, AirPlay®, Spotify®, TIDAL*1, Deezer*1, TuneIn, and Pandora®*2
• Bluetooth® Wireless Technology (Version 4.1+LE, Compatibility Profile A2DP 1.2/AVRCP 1.4)
• HDMI® Supports HDCP 2.2, 4K/60p UltraHD, 4:4:4 Color Space, HDR (High Dynamic Range), BT.2020 Color, Audio Return Channel, and CEC/CEC Multilink Control for Compatible Components
• Onkyo Controller App for iPhone®/iPod touch®*3 and Android™ Devices*4
• AccuEQ Room Acoustic Calibration Adjusts Speaker Response for Balanced and Cohesive Surround Sound (Setup Mic Included)
• FireConnect™ Wireless Multi-room Capability with Optional Speakers*5
• 1080p Video Upscaling to 4K Resolution
• FM/RDS Tuner with 40 Station Presets
• *1 Service enabled via firmware update TBA. *2 Pandora® available in Australia and New Zealand only. Some services may require a subscription. Service availability may vary depending on region. *3 Requires iOS 8.0 or later. *4 Requires Android 4.0.3 or later. *5 FireConnect™ technology is enabled via firmware update. Details TBA. FireConnect™-compatible speakers required. Speakers are scheduled for release. Details TBA.

• Efficient Six-Channel Digital Amplification System with Independent Power Supply and Discrete Output Stages for Clear and Dynamic Performance
• Supports 192/24 and DSD Decoding for
• Hi-Res Audio Playback

• HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD, Dolby® Digital Plus, Dolby® ProLogic™ II, Dolby® Surround, DTS-HD Master Audio™, DTS High Resolution, DTS 96/24, DTS-HD Express, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC/CEC Multilink
• DSD Decoding (2.1-Channel/5.6 MHz, Multichannel 2.8 MHz) via Network, HDMI, and USB
• SACD Playback via HDMI (2.1-Channel/5.6 MHz, Multichannel 2.8 MHz)
• CIRRUS 32-bit Digital Signal Processor
• Listening Enhancement Modes Including Direct Mode, Late Night Mode, and Loudness Management
• Custom DSP Audio Modes for Movies, Music, and Games
• CinemaFILTER™ Audio Mode
• Double Bass Mode

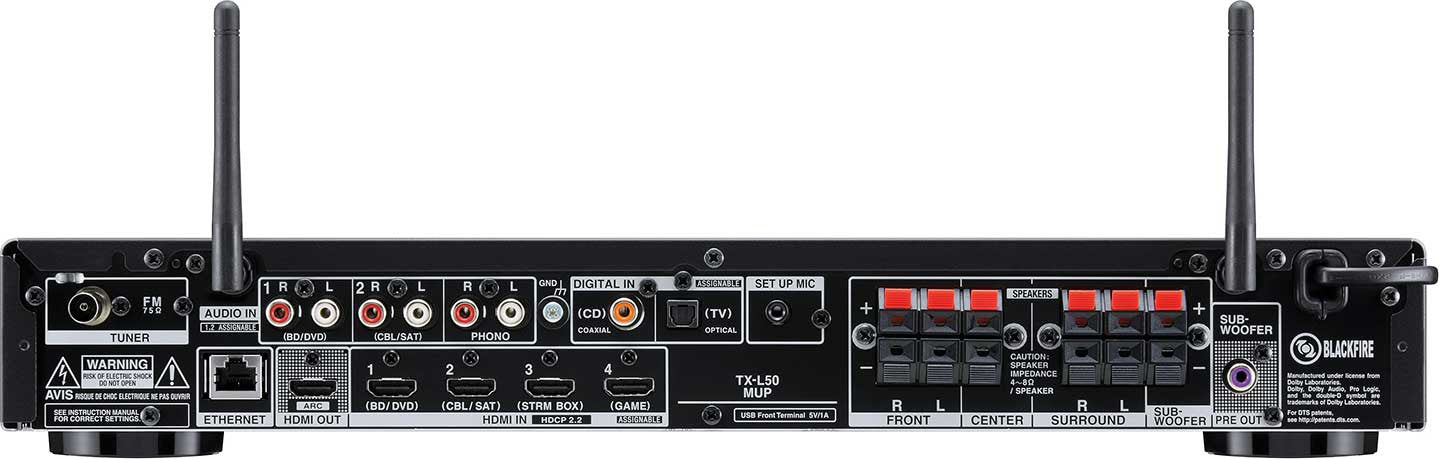

• 4 HDMI Inputs / 1 Output
• 2 Analog Audio Inputs (Rear)
• 2 Digital Audio Inputs (Optical/Coaxial)
• Subwoofer Pre-out
• USB Type-A Input (Front) for Audio Playback via Compatible USB Memory Devices
• MM Phono Input and Equalizer for Turntable Connection (Rear)
• Direct Clip-type Speaker Terminals
• 3.5 mm Headphone Output (Front)

• Graphical User Interface and Simple Remote Controller
• Tone Control (Bass/Treble) ±10 dB for Front L/R Channels
• A/V Sync Function (500 ms at 48 kHz in 5 ms Steps)
• Sleep Timer and Auto Power Off
• Single-line Dimmable FL Display
