Tinklinis AV resyveris Onkyo TX-NR474 5.1, 5x135W

Tinklinis AV resyveris Onkyo TX-NR474 5.1, 5x135W

Šis namų kino stiprintuvas Onkyo TX-NR474 išpildys visus Jūsų pageidavimus, nesvarbu ar esate sporto fanas ar muzikos mylėtojas, o gal negalite be kino teatro efektų TX-NR474 apjungia techniką ir galimybes taip, kad abejingų tikrai nelieka. HDMI įėjimai palaiko 4K / 60p vaizdą su 4K HDR ir BT.2020. Integruotas Dolby Atmos ir DTS X™ dekoderis leis mėgautis tikrovišku garsu, o aukštos raiškos Hi-res garso atkūrimas DSD ir 192/24 formatu nepaliks abejingais stereo muzikos entuziastų.

• Galia: 135W per kanalą (6 Ω, 1 kHz, 1% THD)
• Palaiko programas: AirPlay, Spotify, Tidal, Deezer, TuneIn, Pandora
• HDMI 4 įvestys / 1 išvestis (4K/60 Hz / HDR10 / Dolby Vision™ / HDCP 2.2)
• Dinaminis stiprinimas - pilnas 4 Ω garsiakalbių palaikymas
• 384 kHz/32-bit DAC ir VLSC™ super aukštos raiškos DAC
• Paruoštas Chromecast built-in ir DTS Play-Fi
• FireConnect Multi-room funkcija
• Valdomas su Onkyo app programėle iš Apple ir Android išmaniųjų įrenginių
• Matmenys: 435 x 160 x 328 mm  /  Svoris: 8.6 kg

Built on a high-current amp system that effortlessly drives four-ohm speakers, the TX-NR474 has muscle to boost enjoyment of sound, whether it’s music, a movie soundtrack, or the Sunday football. Experience the magic of Dolby Atmos®* and DTS:X® enhancing 4K movies encoded with HDR10 or Dolby Vision™ via compatible Ultra HD Blu-ray Disc™ players thanks to the receiver’s 4K HDR pass-through function. You can share your music to supported wireless speakers over FlareConnect™*, while dual-band Wi-Fi® provides stability for Chromecast built-in*, DTS Play-Fi®*, AirPlay, and streaming services such as Spotify®. With a slick GUI and Onkyo Controller app, operation is simple. So sit back, relax, and let the sound of happiness wash over you.

• Supports 3.1.2-Channel Dolby Atmos®*1 and DTS:X®
• 135 W per Channel
• HDMI® 4 In / 1 Out (4K/60 Hz / HDR10 / Dolby Vision™ / HDCP 2.2)
• 4 Ω Speaker Driving Capability
• 5 GHz/2.4 GHz Wi-Fi®, Chromecast built-in*1, DTS Play-Fi®*1, and AirPlay
• FlareConnect™*1 Wireless Multi-room Distribution

• HDMI® Terminals Supporting HDR10, Dolby Vision, BT.2020, 4K/60 Hz, and HDCP 2.2
• Supports 3.1.2-Channel Dolby Atmos*1 Playback and Dolby Surround Upmixing
• Surround Enhancer*1 Mode Replicates 5.1.2-Channel Dolby Atmos Playback with Virtual Surround-field Creation
• DTS:X Object-based Audio Reproduction and DTS Neural:X™ 3D Upmixing
• Stable Dual-band 5 GHz/2.4 GHz Wi-Fi® Connectivity
• Features Chromecast built-in*1 Wireless Audio Casting Technology
• FlareConnect Multi-room Audio Distribution to Compatible Components and Speakers
• Ready for Onkyo Controller*2 App Integrated Multi-room Intuitive Operation
• Supports DTS Play-Fi Multi-room Audio
• AirPlay Audio Streaming from iTunes and iPad, iPhone, iPod touch
• Bluetooth® Wireless Technology for Mobiles, Laptops, and PCs (Version 4.1 + LE, Profile: A2DP AVRCP)
• Spotify®, TIDAL, TuneIn, and Deezer*3
• AccuEQ Room Acoustic Calibration with AccuReflex Phase Alignment Technology for Dolby-enabled Speakers
• Advanced Music Optimizer to Improve Compressed Digital Audio Quality, Including Bluetooth Audio
• 480i De-interlacing (480i to 480p) via HDMI
• *1 Requires firmware update. *2 For iOS and Android™ devices. Check App Store or Google Play for OS and device requirements. *3 Availability of services may vary with region. Please confirm before purchase. Subscription may also be required.

• 135 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC)
• High Current Amplification System for Thrilling Stereo and Multichannel Performance
• H.C.P.S. (High Current Power Supply) Transformer
• Discrete Output Stage Circuitry for Low Distortion
• Non-Phase-Shift Amplification Circuitry for Clarity and Detail
• High Current Power to Drive Larger Speakers with 4 Ω Resistance
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio

• Decodes Dolby Atmos* (3.1.2 Channels) and DTS:X Formats
• HDMI Support for 4K/60 Hz, HDR10, Dolby Vision, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos*, Dolby® TrueHD, DTS:X, DTS-HD Master Audio™, DSD, DVD-Audio, Super Audio CD (SACD), Multichannel PCM, and CEC
• Dolby TrueHD and DTS-HD Master Audio Decoding
• AKM (AK4438) 384 kHz/32-bit Multichannel DAC
• 32-bit Digital Signal Processing
• DSP Modes for Gaming: Rock, Sports, Action, and RPG
• Theater-Dimensional Virtual Surround Function
• Pure Audio Mode with Easy Front Panel Button
• Front Panel Tone Controls (Bass/Treble) for Front L/R Channels
• * Requires firmware update.

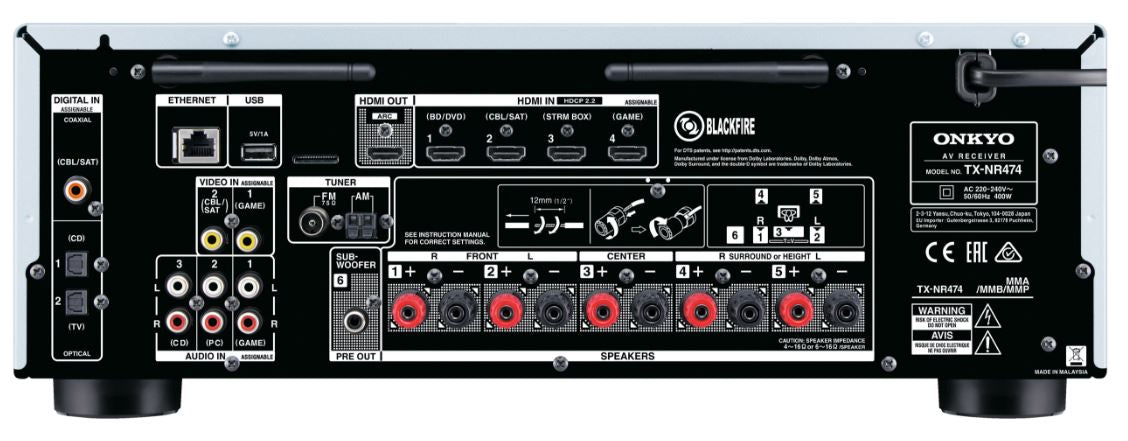

• 4 HDMI Inputs and 1 Output
• Powered Rear USB Port (5 V, 1 A)
• 2 Composite Video Inputs
• 3 Digital Audio Inputs (2 Optical and 1 Coaxial)
• 3 Analog Audio Inputs, 1 Stereo Analog Input (3.5 mm, Front)
• Subwoofer Pre-Out
• Headphone Jack (6.35 mm, Front)
• Speaker Posts with Screw Knobs
• Speaker Setup Mic Input (Front)

• Playback of USB Audio
• Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
• A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
• Graphical User Interface with Overlaid On-Screen Display (OSD) via HDMI
• Quick Setup Guide via GUI and Easy Connection Diagram on Rear Panel
• Large Input Buttons and Easy Sound Program Selection via Front Panel
• HDMI Pass-through and Network Standby Functions
• IP Control via LAN for Home Automation Systems
• 3-Mode Display Dimmer (Normal/Dim/Dimmer)
• 40 FM/AM Random Presets

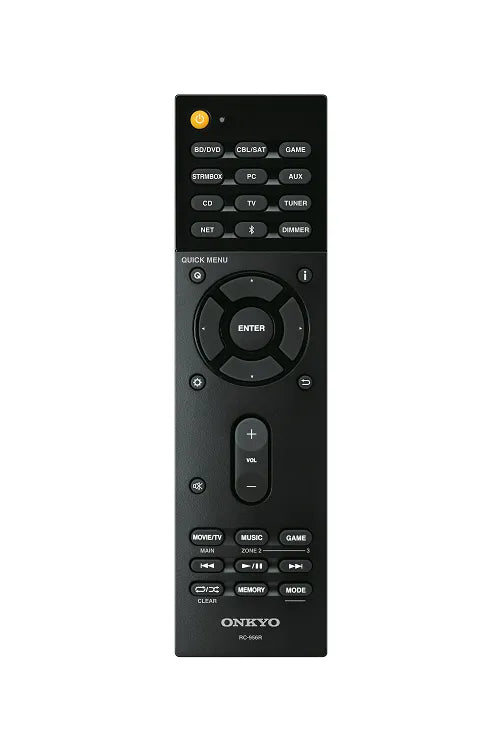

• Full-sized Simple Remote Control

• All Channels 135 W/Ch (6 Ω, 1 kHz, 1% THD,1 Channel Driven, IEC)
• Dynamic Power:
  160 W (3 Ω, Front)
  125 W (4 Ω, Front)
  85 W (8 Ω, Front)
• THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz–20 kHz, Half Power)
• Damping Factor Over 49 (Front, 1 kHz, 8 Ω)
• Input Sensitivity and Impedance 200 mV/47 kΩ (Line)
• Rated RCA Output Level and Impedance 1 V/470 Ω (Subwoofer Pre Out)
• Frequency Response:
  10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
• Tone Control ±10 dB, 90 Hz (Bass) ±10 dB, 7.5 kHz (Treble)
• Signal-to-Noise Ratio 106 dB (Line, IHF-A)
• Speaker Impedance 4 Ω–16 Ω

• Input Sensitivity/Output Level and Impedance
• Video 1.0 Vp–p/75 Ω (Composite)

• Tuning Frequency Range:
• FM 87.5 MHz–108 MHz
• AM 522 kHz–1,611 kHz
• 530 kHz–1,710 kHz
• FM/AM Preset Memory 40 Stations

• Power Supply AC 220–240 V~, 50/60 Hz
• Power Consumption 400 W
• No-Sound Power Consumption 40 W
• Standby Power Consumption 0.15 W
• Dimensions (W x H x D) 435 x 160 x 328 mm
• Weight 8.6 kg
