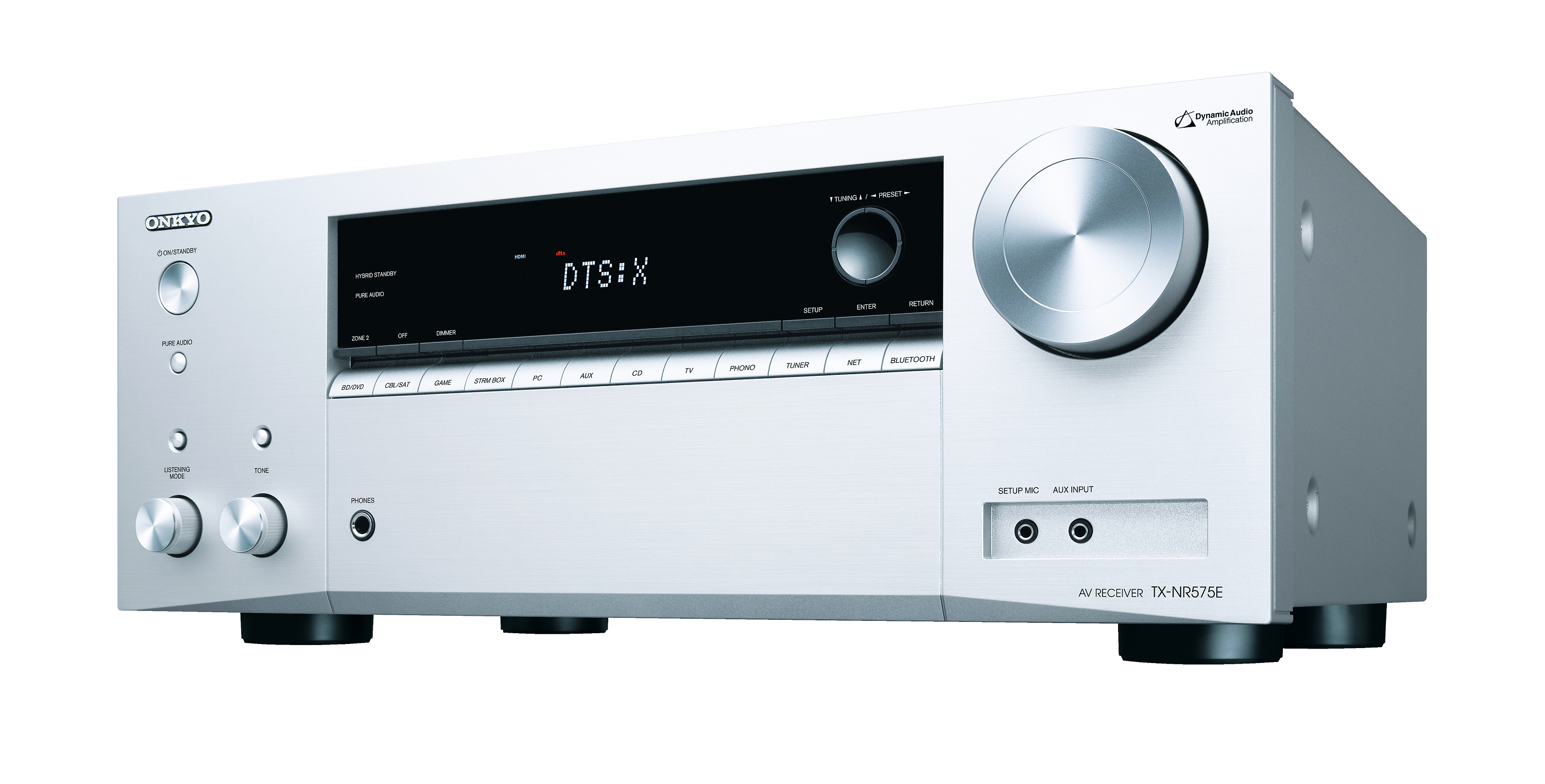

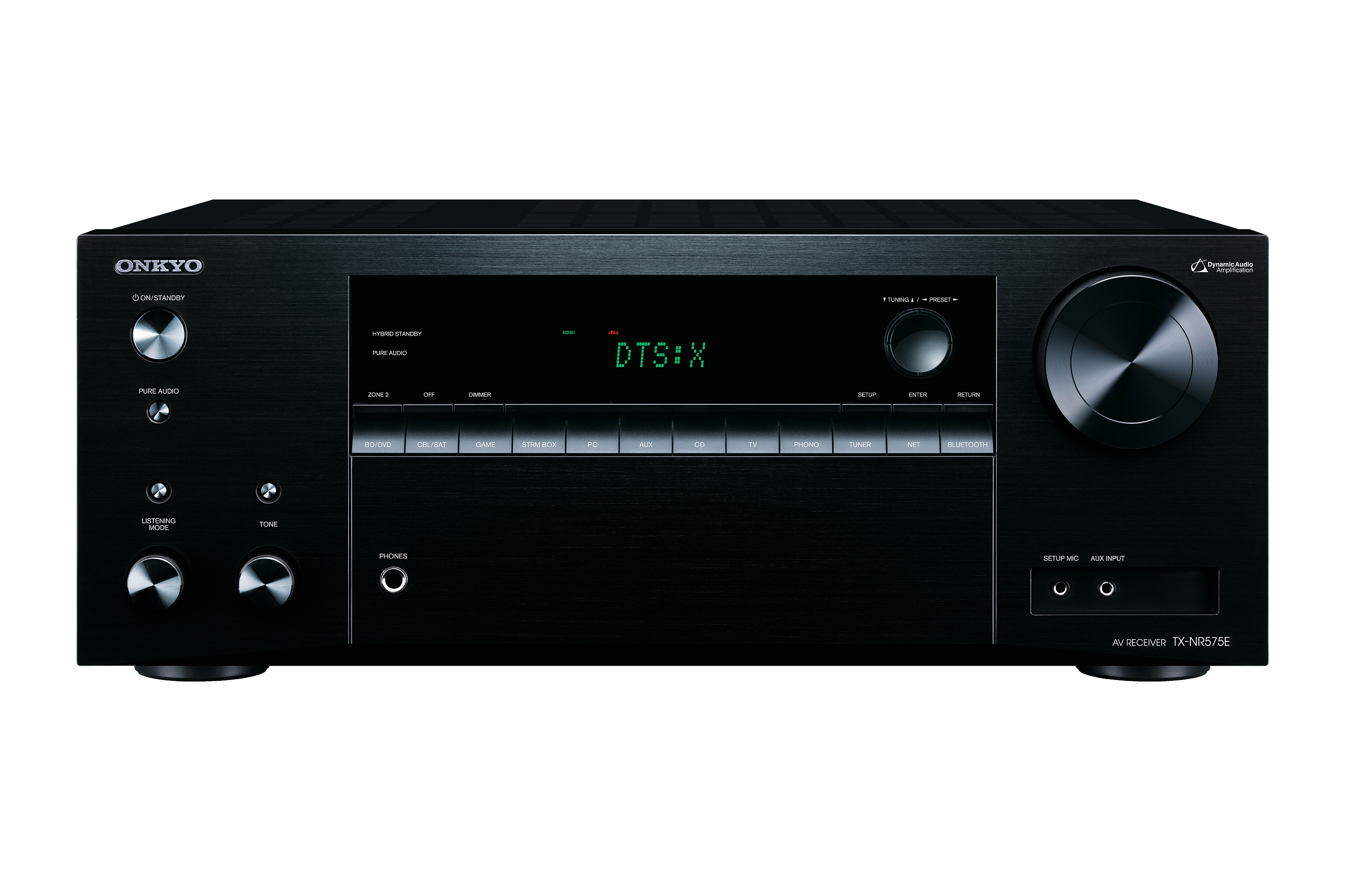

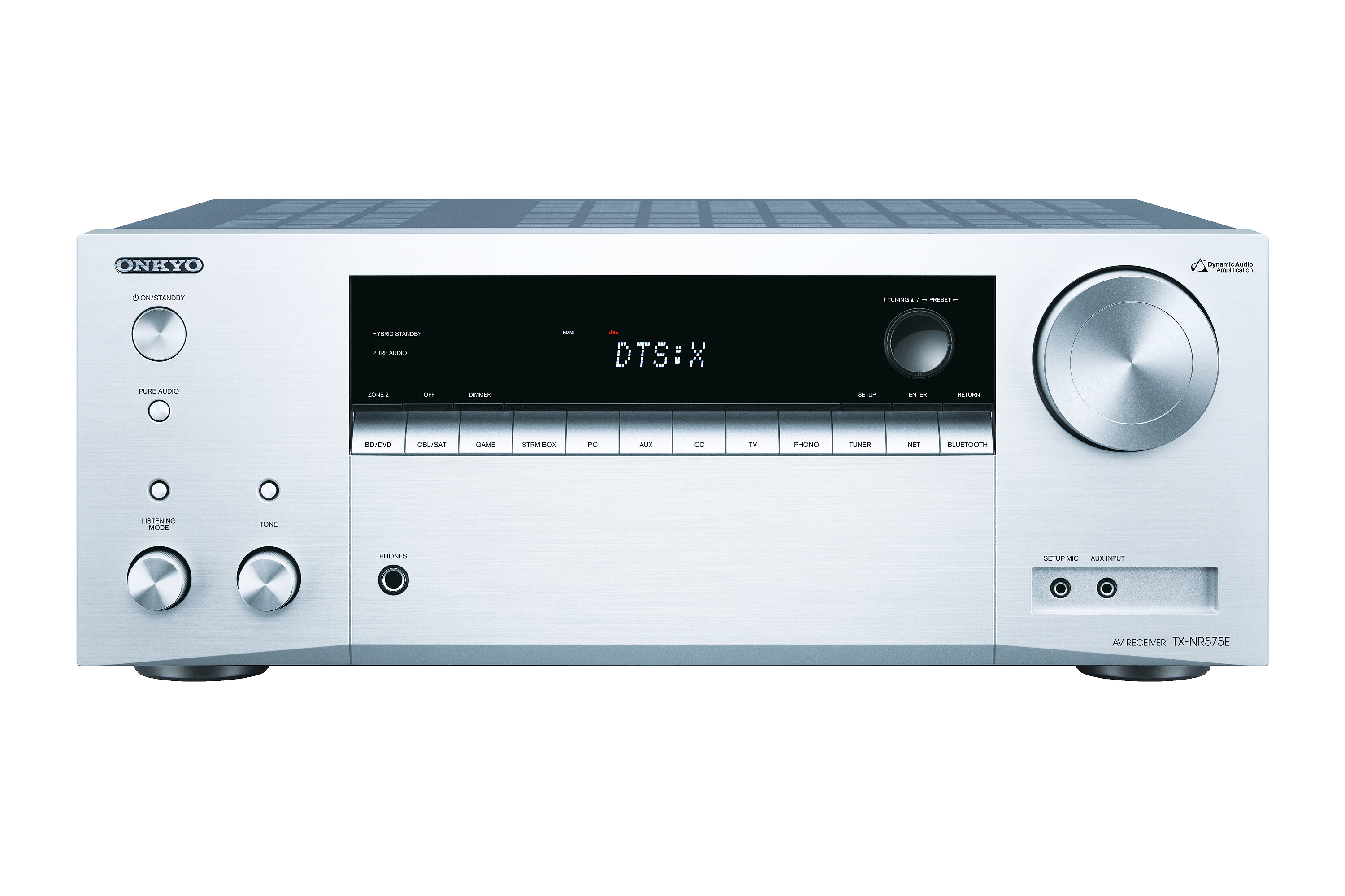

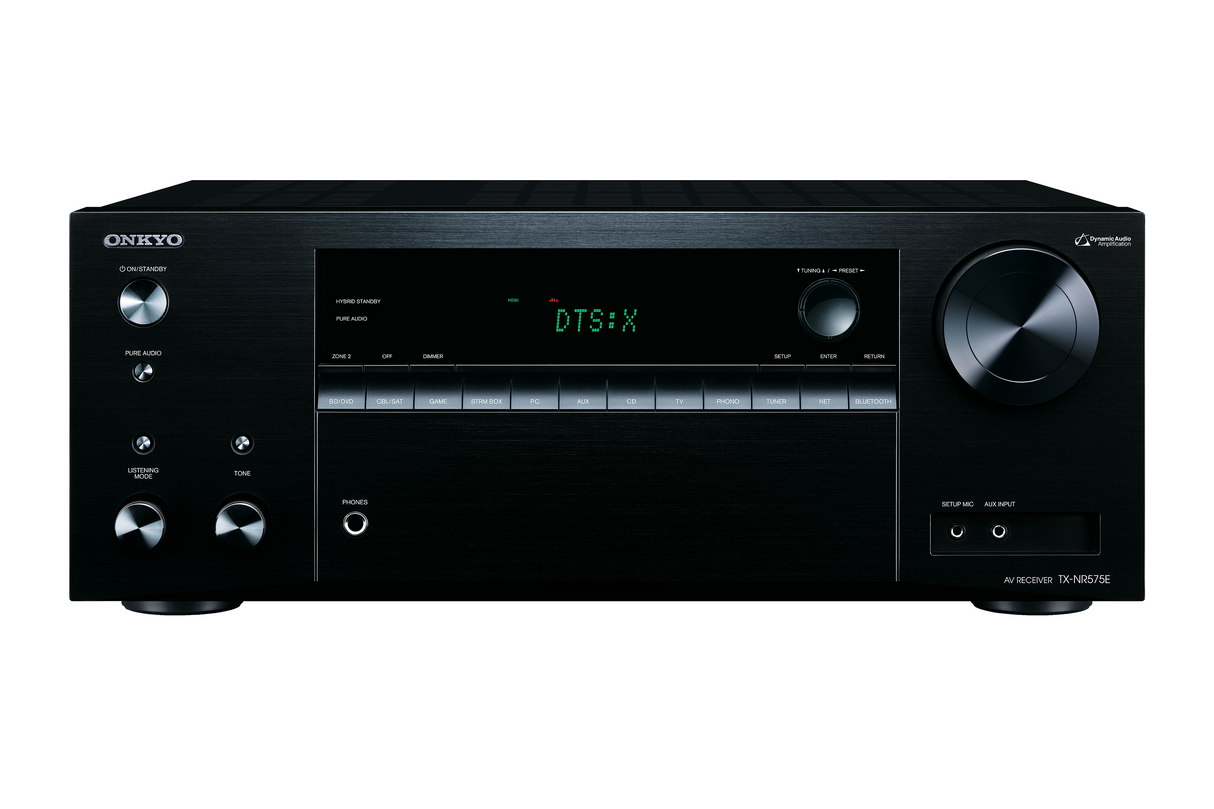

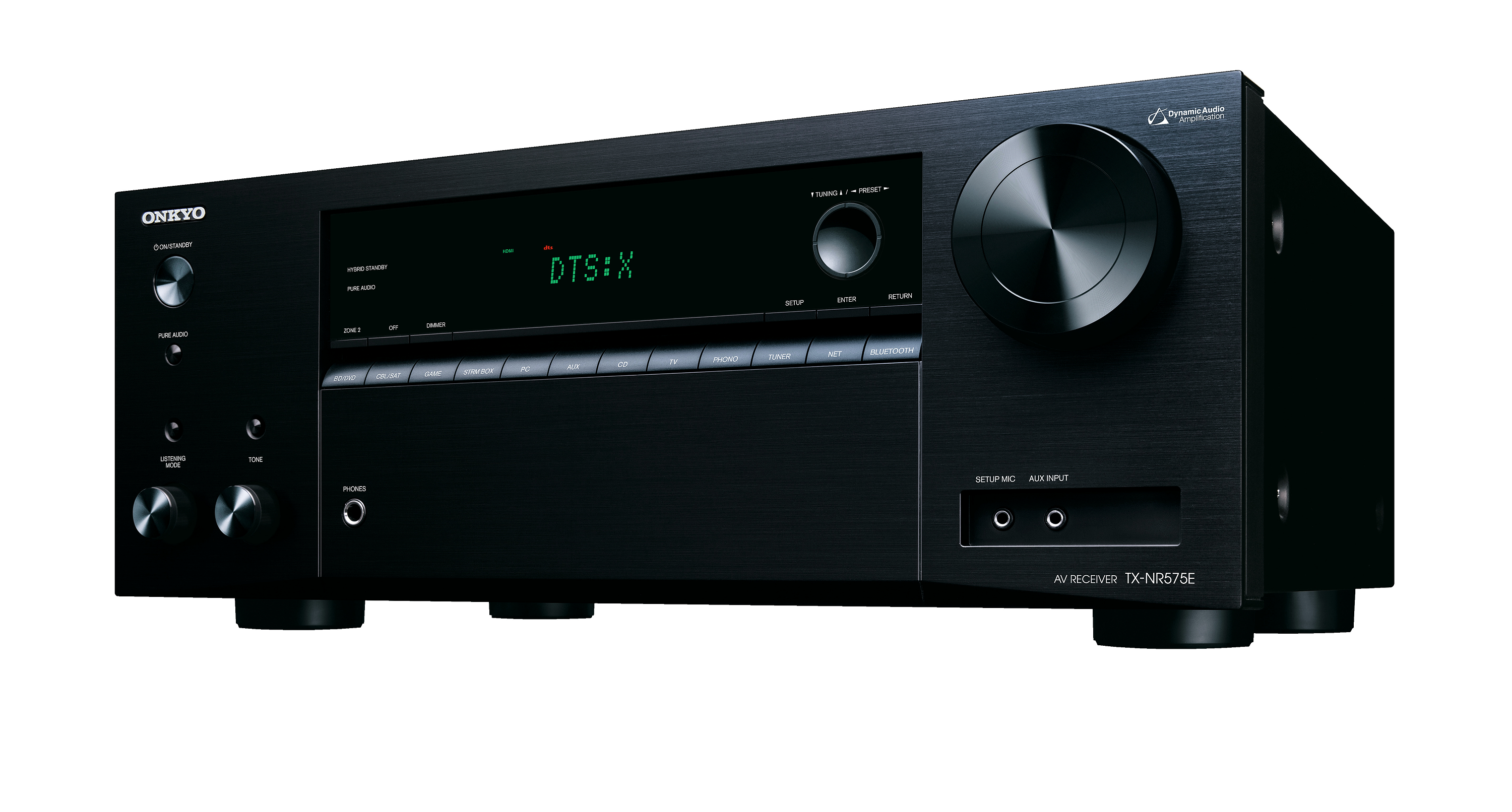

Tinklinis AV resyveris Onkyo TX-NR575E 7.2, 7x135W

Tinklinis AV resyveris Onkyo TX-NR575E 7.2, 7x135W

TX-NR575E - resyveris kuris išpildys visus Jūsų pageidavimus, nesvarbu ar esate sporto fanas, ar muzikos mylėtojas, o gal negalite be kino teatro efektų – TX-NR575 apjungia techniką ir galimybes taip, kad abejingų tikrai nelieka. HDMI® įvestys palaiko 4K / 60p vaizdą su 4K HDR ir BT.2020 Integruotas Dolby Atmos® ir DTS X ™ dekoderis leis mėgautis tikrovišku įvykių garsu, o aukštos raiškos Hi-res garso atkūrimas DSD ir 192/24 formatu nepaliks abejingais stereo muzikos entuziastų.

• Galia: 135W per kanalą (6 Ω, 1 kHz, 1% THD)
• Palaiko programas: AirPlay, Spotify, Tidal, Deezer, TuneIn
• Varža: 4 - 16 omų
• Dolby Atmos® ir DTS:X™ atkūrimas
• Integruotos FireConnect (multi-room) bei Chromecast technologijos
• Wi-Fi ir Bluetooth sąsajos
• Valdomas su Onkyo app programėle iš Apple ir Android išmaniųjų įrenginių
• Dviejų zonų kontrolė
• Matmenys: 435 x 173.5 x 328.5 mm   /  Svoris: 9 kg

An object-audio-enabled amp that fits you like a glove, whether you’re a sports fan, music streaming subscriber, or film buff, the TX-NR575E has the front-end tech and high-octane power to thrill. HDMI® inputs pass 4K/60p video with 4K HDR and BT.2020 to your display with onboard decoding for Dolby Atmos® and DTS:X™ sound, while Hi-Res Audio playback in DSD and 192/24 formats is available for stereo purists. You can also share network and analog sources to compatible wireless speakers over FireConnect™* powered by Blackfire. Network audio controlled by Android™ and iOS devices includes AirPlay, Spotify®, and music streaming over dual-band Wi-Fi®, and the receiver comes with Chromecast built-in* and DTS Play-Fi®*. Built on Dynamic Audio Amplification, the TX-NR575E is waiting to transform your entertainment lifestyle.  * Future firmware update required.

• Supports 5.2.2-Channel Dolby Atmos and DTS:X Playback
• 135 W per Channel
• HDMI 4 In / 1 Out (4K/60 Hz / HDR10 / Dolby Vision™ / HDCP 2.2)
• Dynamic Audio Amplification with 4 Ω Speaker-driving Capability
• 384 kHz/32-bit DAC and VLSC™ Filtering for Superior Clarity
• Ready for Chromecast built-in* and DTS Play-Fi*
• 5 GHz/2.4 GHz Wi-Fi®, AirPlay, Spotify, TIDAL, Deezer, Pandora®, TuneIn*5
• FireConnect™*1 Wireless Multi-room Audio
• * Requires a future firmware update.

• HDMI Terminals Supporting HDR10, Dolby Vision, BT.2020, 4K/60 Hz, and HDCP 2.2
• Supports 5.2.2-Channel Dolby Atmos Playback and Dolby Surround Upmixing
• DTS:X Object-based Audio Reproduction and DTS Neural:X™ 3D Upmixing
• AccuEQ Room Acoustic Calibration with AccuReflex Phase Alignment for Dolby Atmos-enabled Speakers
• Ready for Onkyo Controller App Integrated Multi-room Intuitive Operation*2
• Stable Dual-band 5 GHz/2.4 GHz Wi-Fi® Connectivity
• Features Chromecast built-in* Wireless Audio Streaming Technology
• DTS Play-Fi* Shares Music from Apps to Receiver and Wireless Speakers
• AirPlay Audio Streaming from iTunes and iPad, iPhone, and iPod touch
• Supports Hi-Res Audio Including DSD 5.6 MHz/2.8 MHz*3, 192 kHz/24-bit FLAC, WAV, AIFF, and ALAC, and Dolby® TrueHD*4
• Supports Spotify, TIDAL, TuneIn, Pandora, and Deezer Services*5
• FireConnect™ Multi-room Distribution of Network and Analog Audio Sources*6 to Compatible Wireless Speakers
• Powered Zone 2 Speaker Outputs and Zone 2 Line Output with Dedicated DAC Supporting Network and Analog Audio Playback
• Bluetooth® Wireless Technology for Mobiles, Laptops, and PCs (Version 4.1 + LE, Profile: A2DP v1.2, AVRCP v1.3)
• Advanced Music Optimizer Improves Compressed Digital Audio Quality, Including Bluetooth Audio
• 480i De-interlacing (480i to 480p) via HDMI
• *1 Enabled with a firmware update. FireConnect™ is a technology based on Blackfire provided by Blackfire Research Corp., USA. Sampling rates of 44.1 kHz and 48 kHz are supported.
• *2 For iOS and Android devices. Please check App Store or Google Play™ for device and OS requirements.
• *3 DSD playback not supported over wireless LAN.
• *4 Dolby TrueHD playback via USB input only.
• *5 Availability of services may vary with region. Please confirm availability before purchase. Subscription may also be required. Pandora is available in Australia and New Zealand only.
• *6 Sharing audio from external analog inputs depends on the model and is enabled with a future firmware update.

• 135 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC)
• Dynamic Audio Amplification System Delivers Thrilling Stereo and Multichannel Performance
• Discrete Output Stage Circuitry for Low Distortion
• High Current Power to Drive Larger Speakers with 4 Ω Resistance
• H.C.P.S. (High Current Power Supply) Transformer
• Non-Phase-Shift Amplification Circuitry for Clarity and Detail
• VLSC (Vector Linear Shaping Circuitry) High-frequency Noise Removal (Front L/R Channels)
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio

• Dolby Atmos and DTS:X Reproduction (5.2.2 Channels)
• HDMI Support for 4K/60 Hz, HDR10, Dolby Vision, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio™, DSD, DVD-Audio, Super Audio CD (SACD), Multichannel PCM, and CEC
• AKM (AK4438) 384 kHz/32-bit Multichannel DAC
• 32-bit Digital Signal Processing
• DSP Modes for Gaming: Rock, Sports, Action, and RPG
• Theater-Dimensional Virtual Surround Function
• Enjoy Pristine Reproduction of Audio-only Sources in Pure Audio Mode
• Direct Mode for Audio Reproduction Close to Original Source Quality
• Tone Controls (Bass/Treble) for Front L/R Channels

• 4 HDMI Inputs and 1 Output
• Powered USB Port (5 V, 1 A) for Audio Playback
• 2 Composite Video Inputs
• 3 Digital Audio Inputs (2 Optical and 1 Coaxial)
• 4 Analog Audio Inputs, 1 Stereo Analog Input (3.5 mm, Front)
• Phono Input (MM) and Equalizer for Turntable
• 2 Subwoofer Pre-Outs
• Headphone Jack (6.35 mm, Front)
• Speaker Posts with Screw Knobs
• Speaker Setup Mic Input and Microphone (Front)

• Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
• A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
• Graphical User Interface with Overlaid On-Screen Display (OSD) via HDMI
• Quick Setup Guide via GUI and Easy Connection Diagram on Rear Panel
• Large Input Selector Buttons
• Economical HDMI Pass-through and Network Standby Functions
• IP Control via LAN for Home Automation Systems
• 3-Mode Display Dimmer (Normal/Dim/Dimmer)
• 40 FM/AM Random Presets

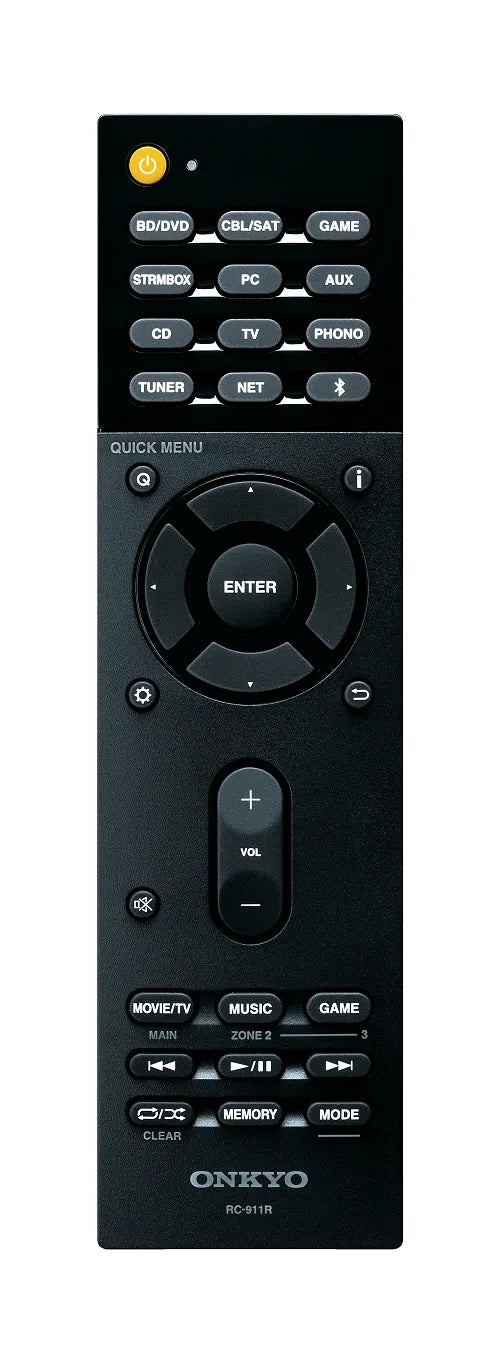

• Full-sized Simple Remote Control

• Power Output All Channels 135 W/Ch (6 Ω, 1 kHz, 1% THD,1 Channel Driven, IEC)
• Dynamic Power:
  160 W (3 Ω, Front)
  125 W (4 Ω, Front)
  85 W (8 Ω, Front)
• THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz–20 kHz, Half Power)
• Damping Factor Over 49 (Front, 1 kHz, 8 Ω)
• Input Sensitivity and Impedance 200 mV/47 kΩ (Line) 3.5 mV/47 kΩ (Phono)
• Rated RCA Output Level and Impedance1 V/470 Ω (Subwoofer Pre Out) 200 mV/2.3 kΩ (Zone Line Out)
• Frequency Response 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
• Tone Control ±10 dB, 90 Hz (Bass) ±10 dB, 7.5 kHz (Treble)
• Signal-to-Noise Ratio 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
• Speaker Impedance 4 Ω–16 Ω

• Composite Video 1.0 Vp–p/75 Ω

• FM 87.5 MHz–108 MHz
• AM 522 kHz–1,611 kHz
• 530 kHz–1,710 kHz
• FM/AM Preset Memory 40 Stations

• Power Supply AC 220–240 V~, 50/60 Hz
• Power Consumption 480 W
• No-Sound Power Consumption45 W
• Standby Power Consumption0.15 W
• Dimensions (W x H x D) 435 x 173.5 x 328.5 mm
• Weight 9.0 kg
