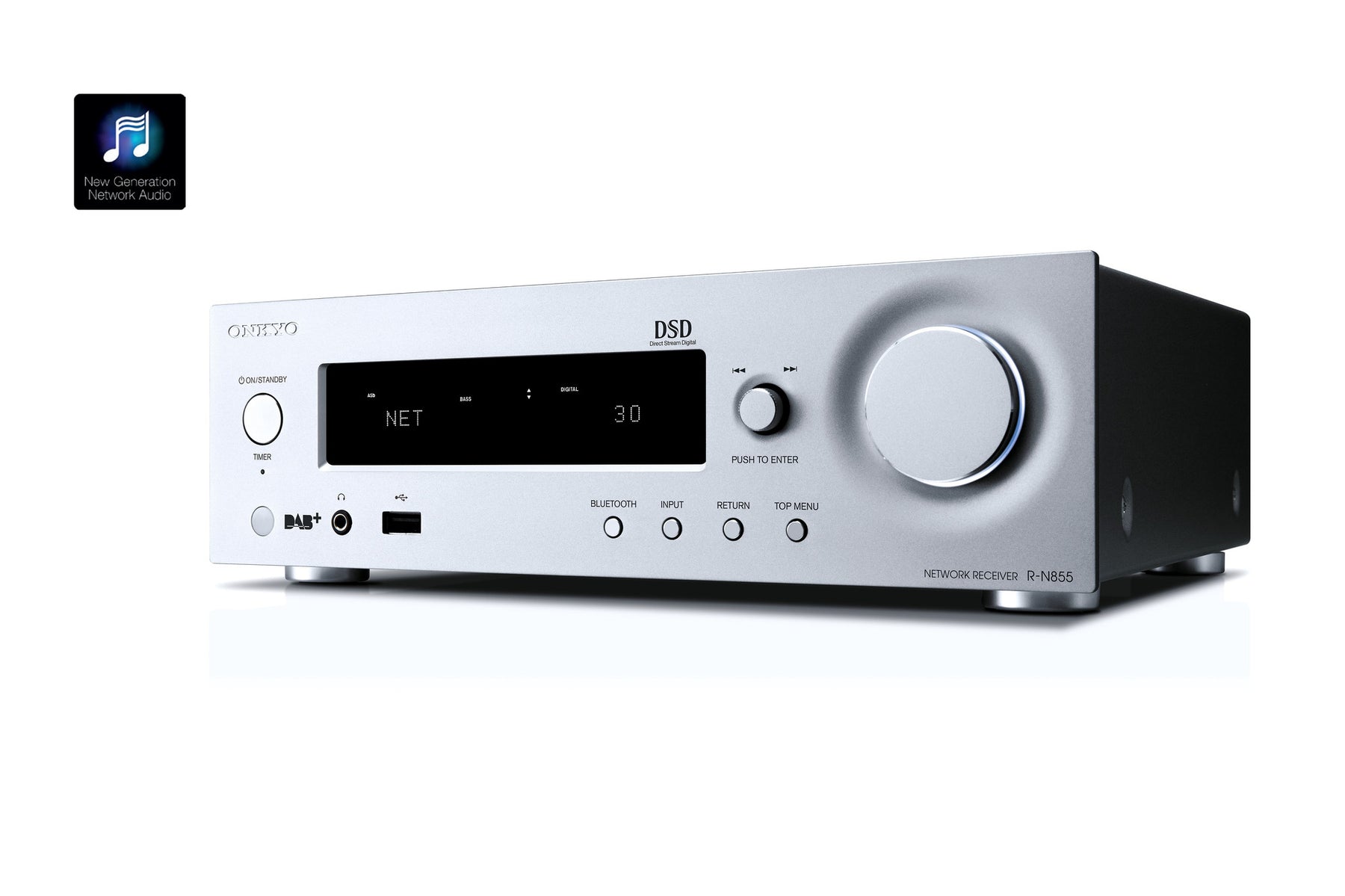

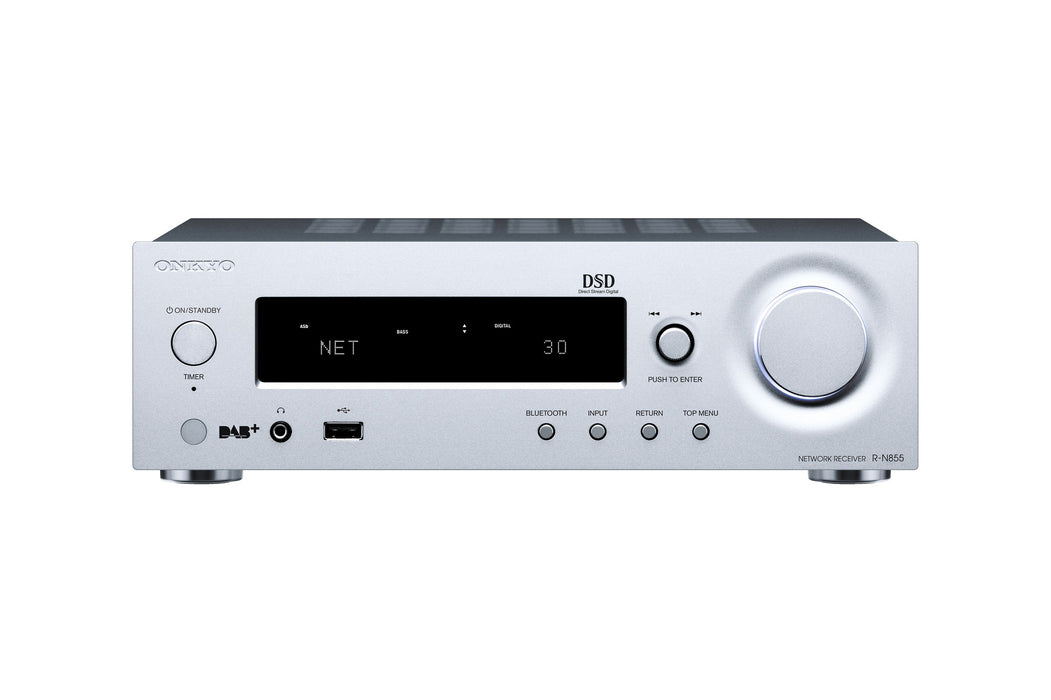

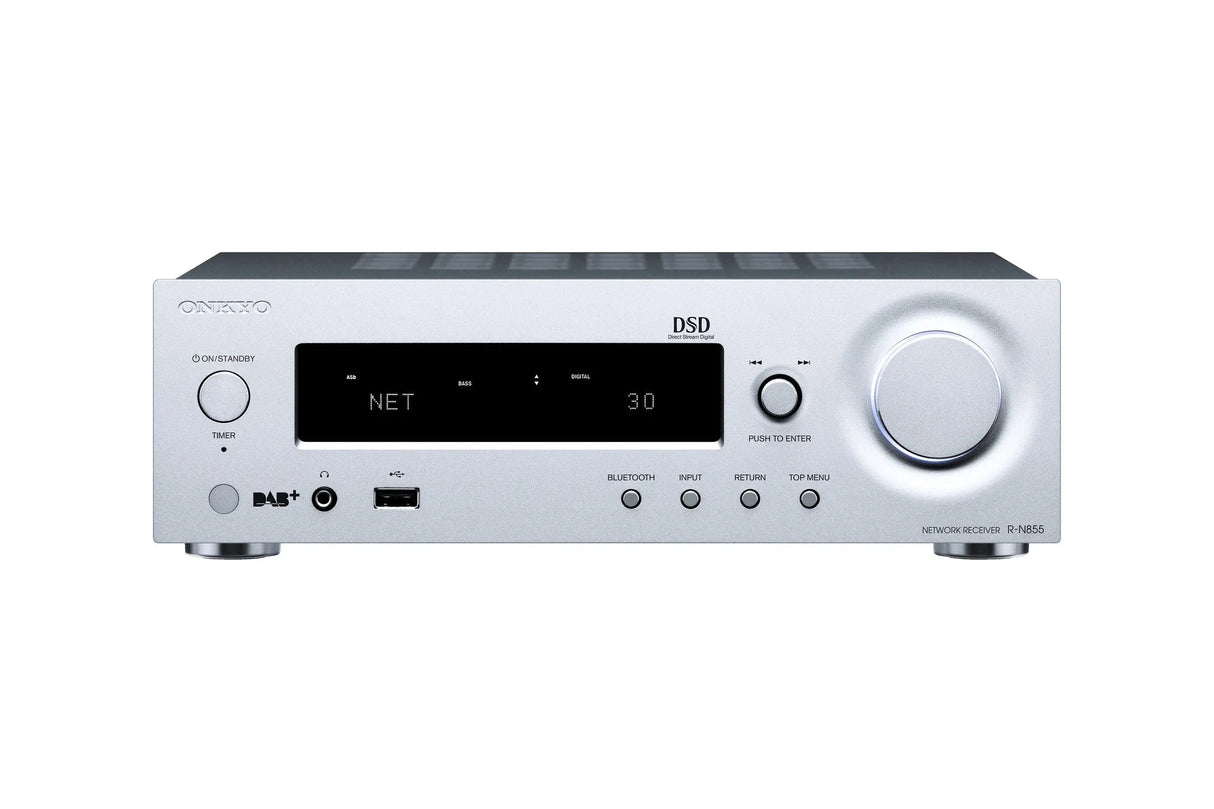

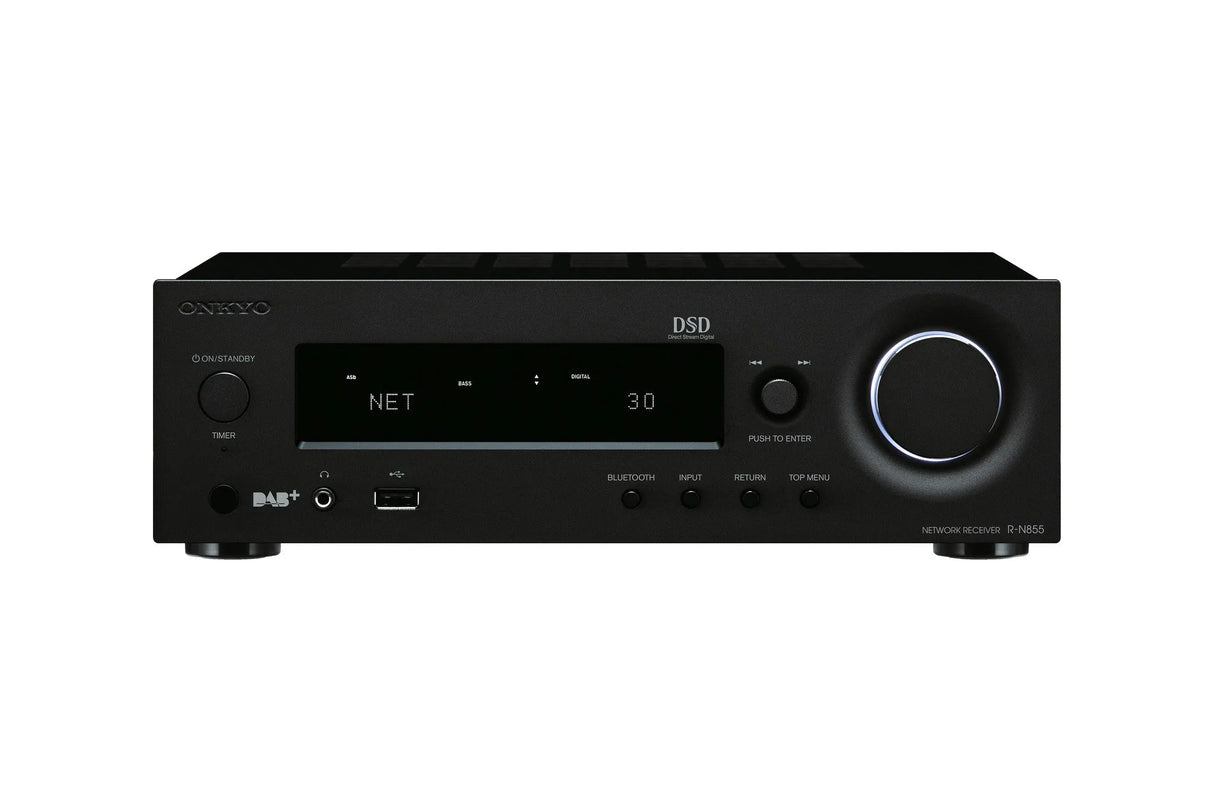

Tinklinis stereo resyveris Onkyo R-N855 2.1, 2x70W, Bluetooth, AirPlay

INFORMACIJA

APRAŠYMAS

Fathomless power, lushness of detail, and ultimate convenience in a space-saving design: that’s the R-N855 in a nutshell. Serving music from connected HDDs and wirelessly from almost any audio app via Google Cast™, AirPlay®, and Bluetooth®, the receiver also features an FM/DAB+ tuner, internet radio, and inputs for turntable and CD. Peek under the hood and you’ll find a fully customized EI transformer powering Onkyo-original Switching Amplifier technology. High-grade audio circuit boards are packed with proper top-quality audio components including two huge capacitors that deliver loads of oomph and deep, powerful bass. Housed in a super-rigid full-flat metal chassis reinforced by a solid aluminum faceplate, this amp is built heavy for seriously good full-scale sound.

FEATURES

• Onkyo-original 70 W x 70 W Switching Amplifier Technology
• Google Cast™*1, AirPlay®, Wi-Fi®, and Bluetooth®
• Plug-and-Play USB-HDD Audio Playback Functionality*
• Spotify®, TIDAL, TuneIn, and Deezer
• FireConnect™ Wireless Multi-room Audio
• * HDD must be formatted to FAT32.

• 70 W x 70 W (4 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC)
• Google Cast™*1, Wi-Fi®, AirPlay®, Spotify®, TIDAL, TuneIn, and Deezer
• Bluetooth® Wireless Audio Streaming Technology*2
• USB-HDD Playback Capability with Song Selection via Onkyo Controller App
• Onkyo Controller App for iPhone/iPod touch*3 and Android™ Devices*4
• Supports 11.2 MHz DSD and 192/24 PCM Hi-Res Audio via Network and USB
• FireConnect™ Wireless Multi-room Capability with Optional Speakers*5
• DAB/DAB+ Tuner
• Solid Aluminum Front Panel and Aluminum Volume Control
• High Rigidity 1.6 mm-thick Full-Flat Anti-Resonant Metal Chassis

• Onkyo-original Switching Amplifier Technology with Discrete Modulation Circuitry
• Custom High-Output EI Transformer and Customized Audio-grade Capacitors
• Flagship 768 kHz/32-bit AK4490 DAC from AKM
• VLSC™ Signal Processing Removes Digital Pulse Noise
• Optimum Gain Volume Circuitry Adjusts Frequency Response to Suit Volume
• PLL (Phase-Locked Loop) Jitter-Cleaning Technology
• Phase-Matching Bass Boost Technology for Cohesive Full-scale Sound

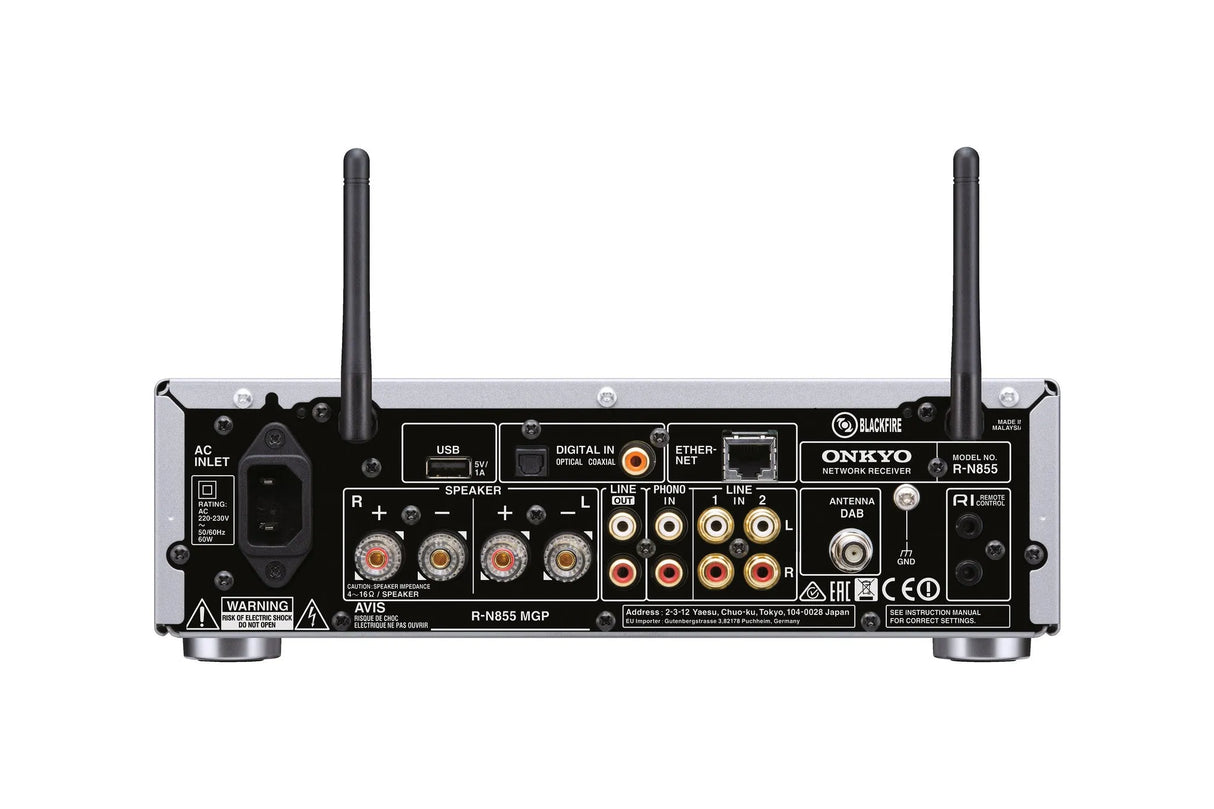

• 2 x USB Type-A Inputs (Front/Rear)
• 2 Analog Audio Inputs and 1 Output (Gold Plated)
• 1 Gold-plated Coaxial Digital Input and 1 Optical Digital Input
• MM Phono Input and Equalizer for Turntable Connection
• Gold-plated Banana-plug-compatible Speaker Posts

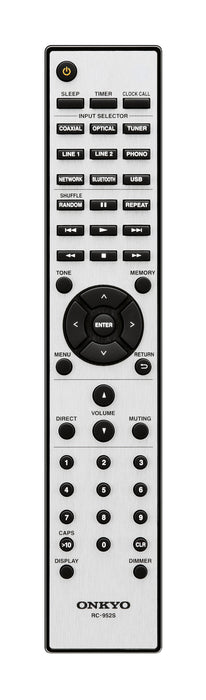

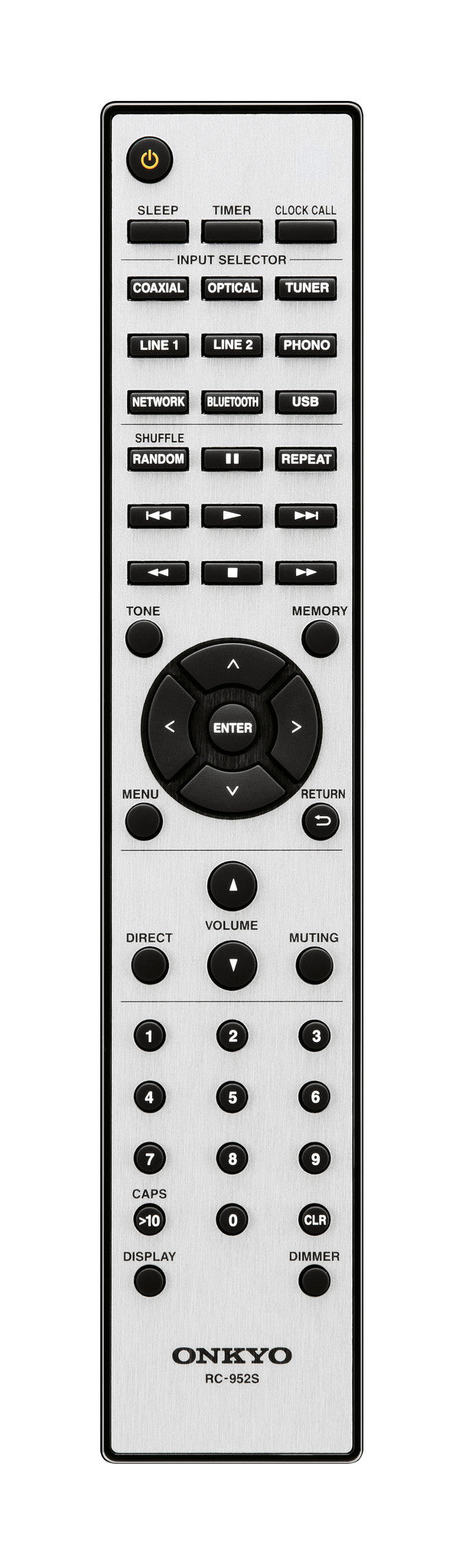

• RI (Remote Interactive) Input/Output for Integrated Control of System Components with Included RI Remote
• AC Inlet with Detachable Cable

• Tone Controls (Bass/Treble, ±6 dB)
• DAB+ and FM/RDS Tuners with 40 Station Presets
• Auto Power-off Timer
• Display Dimmer (Bright/Dim/Dimmer)
• 3.5 mm Headphone Output

TECHNINIAI DUOMENYS

• Power Output 70 W/Ch (4 Ω, 1 kHz, 1% THD, 2 Channels Driven, IEC)
• THD+N (Total Harmonic Distortion + Noise) 0.08% (1 kHz, 8 Ω, 1 W)
• Input Sensitivity and Impedance:
  200 mV/47 kΩ (Line)
  3.5 mV/47 kΩ (Phono MM)
• Rated RCA Output Level and Impedance200 mV/2.2 kΩ (Line Out)
• Phono Overload 70 mV (MM, 1 kHz, 0.5%)
• Frequency Response 5 Hz–60 kHz +1 dB/-3 dB (Direct)
• Tone Control:
  ±6 dB, 100 Hz (Bass)
  ±6 dB, 10 kHz (Treble)
• Signal-to-Noise Ratio:
  106 dB (Line, IHF-A)
  80 dB (Phono MM, IHF-A)
• Speaker Impedance 4 Ω–16 Ω

• Tuning Frequency Range
• FM FM 87.5 MHz–108 MHz
• FM Preset Memory 40 Stations

• Power Supply AC 220–230 V~, 50/60 Hz
• Power Consumption 60 W
• Standby Power Consumption 0.2 W
• Dimensions (W x H x D) 275 x 87.7 x 283.2 mm
• Weight 6.1 kg
