Tinklinis stereo resyveris Onkyo TX-8130 2.1, 2x110W

Tinklinis stereo resyveris Onkyo TX-8130 2.1, 2x110W

Resyveris TX-8130 su integruotu tinklo grotuvu, internetiniu ir AM/FM radijo imtuvu. Palaiko Spotify, TuneIn, Deezer programas. AK4452 384 kHz/32-bit D/A keitiklis. Galia 110W/kanalui, prie 6 Ω, 1 kHz, 1% THD. Kintamas išėjimas aktyviai žemadažnei kolonėlei. Lengvas valdymas su Onkyo aplikacija išmaniems įrenginiams.

• Galia: 110W/kanalui, esant 6 Ω apkrovai, 1 kHz, 1%
• Palaiko garso formatus: MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple Lossless
• Palaiko programas: Spotify, TuneIn, Deezer
• Varža: 4 - 16 omų
• Dažnių diapazonas: 10 Hz–100 kHz
• Valdomas Onkyo programėle Apple ir Android išmaniesiems įrenginiams
• Matmenys: 14.9 x 43.5 x 32.8 cm  /  Svoris: 7.9 kg

Delivering 110 W/Ch of high-current power from a fully discrete low-impedance amplification system, the TX-8130 plays your audio sources with dynamic energy and pure musicality. Custom-spec components are used throughout, from high-current EI transformer, twin 8,200 μF capacitors, and rigid oval chassis to the 384 kHz/32-bit DAC that decodes Hi-Res 192/24 and 5.6 MHz DSD files streamed over the network. Whether enjoying Spotify, Deezer, or TuneIn Radio (with song selection handled via remote app) or kicking back with a stack of LPs, listeners are rewarded with lush, detailed, and deeply satisfying sound that few amps at this price can equal. Other details such as BGM presets for one-touch playback of AM/FM/Internet Radio stations, generous analog/digital connectivity, and rock-solid build will confirm your impression of quality, value, and versatility.

HIGHLIGHTS

• 110 W per Channel
• Internet Radio and Music Streaming including Spotify Connect
• Phono Input
• Hi-Current Amp Design
• 384 kHz/32-bit Hi-Grade DAC
• 4 Quick-Access BGM Presets

AMPLIFIER AND CONNECTION FEATURES

• 110 W/Ch (6 Ω, 1 kHz, 1%, 1 Channel Driven, IEC); 115 W/Ch (6 Ω, 1 kHz, 2 Channels Driven, JEITA)
• Non-Phase-Shift Amp Design for Realistic Sound Imaging
• Discrete Amplifier Design with Massive EI Transformer
• Two Custom-Made 8,200 μF Hi-Current Capacitors
• AKM AK4452 384 kHz/32-bit Hi-Grade DAC
• Plays Music from Mass-Storage-Class USB Memory Devices
• Supports Onkyo Remote App for Control of Receiver via iPod touch/iPhone and Android™ Devices*1
• Plays Compressed, Lossless, and Hi-Res Audio via Local Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple Lossless, DSD 5.6 MHz, and LPCM)
• Internet Radio and Music Streaming Subscription Services Included (TuneIn Radio, Spotify, and Deezer)*2
• Certified with Windows® 8 and DLNA Version 1.5
• Direct Mode
• 2 Digital Audio Inputs (1 Optical and 1 Coaxial)
• 6 Analog Audio Inputs (Excluding Phono Input) and 1 Output
• MM Phono Input
• Subwoofer Pre Out
• Speaker A/B Drive
• Headphone Jack
• *1 Compatible models: iPod touch 3rd generation or later, iPhone 3GS or later running iOS 4.2 or later; Android 2.1 or later. *2 Availability of services depends on region.

TUNER FEATURES

• AM/FM Tuner with 40 Station Presets
• Preset Station Naming (Up to 10 Characters)

OTHER FEATURES

• Anti-Vibration Oval Chassis
• Banana Plug-Compatible Speaker Posts
• Front USB Port Supports WAV 96 kHz, DSD 2.8 MHz, and MP3 Playback
• Auto Power On via Optical When Signal is Detected
• Independent Bass, Treble, and Balance Controls
• Network Standby Capability
• 3-Mode Display Dimmer (Normal/Dim/Dimmer)
• Sleep Timer
• Battery-free Memory Back-up
• Compatible with RI (Remote Interactive) Dock for iPod/iPhone

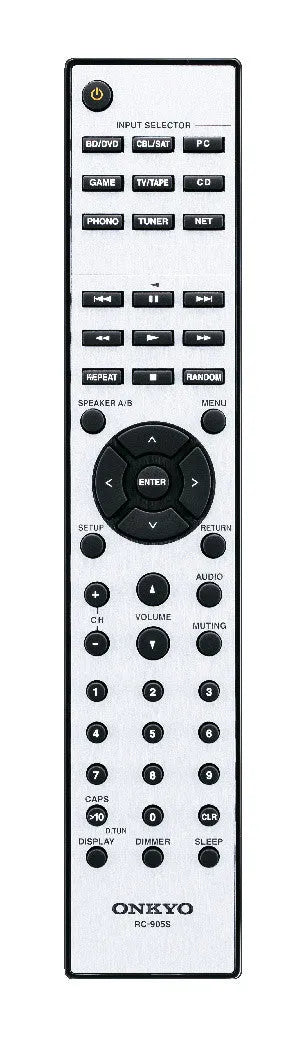

• Full-Function RI Remote Control

• Bendraašis COAX ir optinis TOSLINK skaitmeniniai įėjimai.
• 7 analoginiai įėjimai, įskaitant MM tipo įėjimą vinilinių plokštelių grotuvui.
• Išėjimas bosinei kolonėlei prijungti
• Power Output:
  110 W/Ch (6 Ω, 1 kHz, (6 Ω, 1 kHz, 1%, 1 Channel Driven, IEC)
  115 W/Ch (6 Ω, 1 kHz, 2 Channels Driven, JEITA)
• Dynamic Power:
  170 W (3 Ω)
  150 W (4 Ω)
  90 W (8 Ω)
• THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz–20 kHz, Half Power)
• Input Sensitivity and Impedance:
  200 mV/47 kΩ (Line)
  3.5 mV/47 kΩ (Phono MM)
• Rated RCA Output Level and Impedance: 1 V/680 Ω (Subwoofer Pre Out)
• Phono Overload 70 mV (MM, 1 kHz, 0.5%)
• Frequency Response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
• Tone Control:
  ±10 dB, 100 Hz (Bass)
  ±10 dB, 10 kHz (Treble)
• Signal-to-Noise Ratio:
  106 dB (IHF-A, Line In, Speaker Out)
  80 dB (IHF-A, Phono In, Speaker Out)
• Speaker Impedance 4 Ω–16 Ω
• Headphone Output Impedance 390 Ω
• Headphone Rated Output 200 mW (32 Ω, 1 kHz, 10%)
