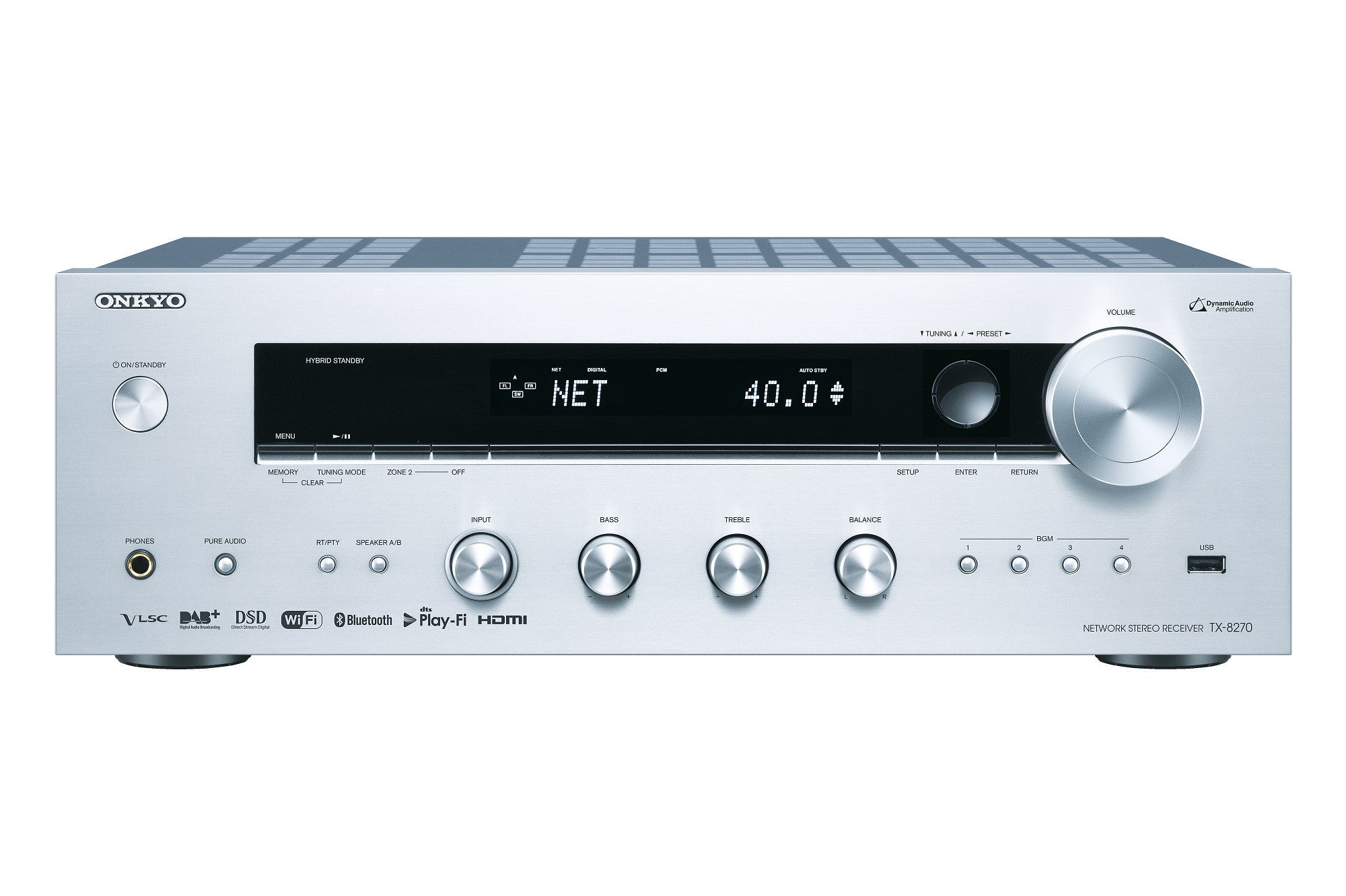

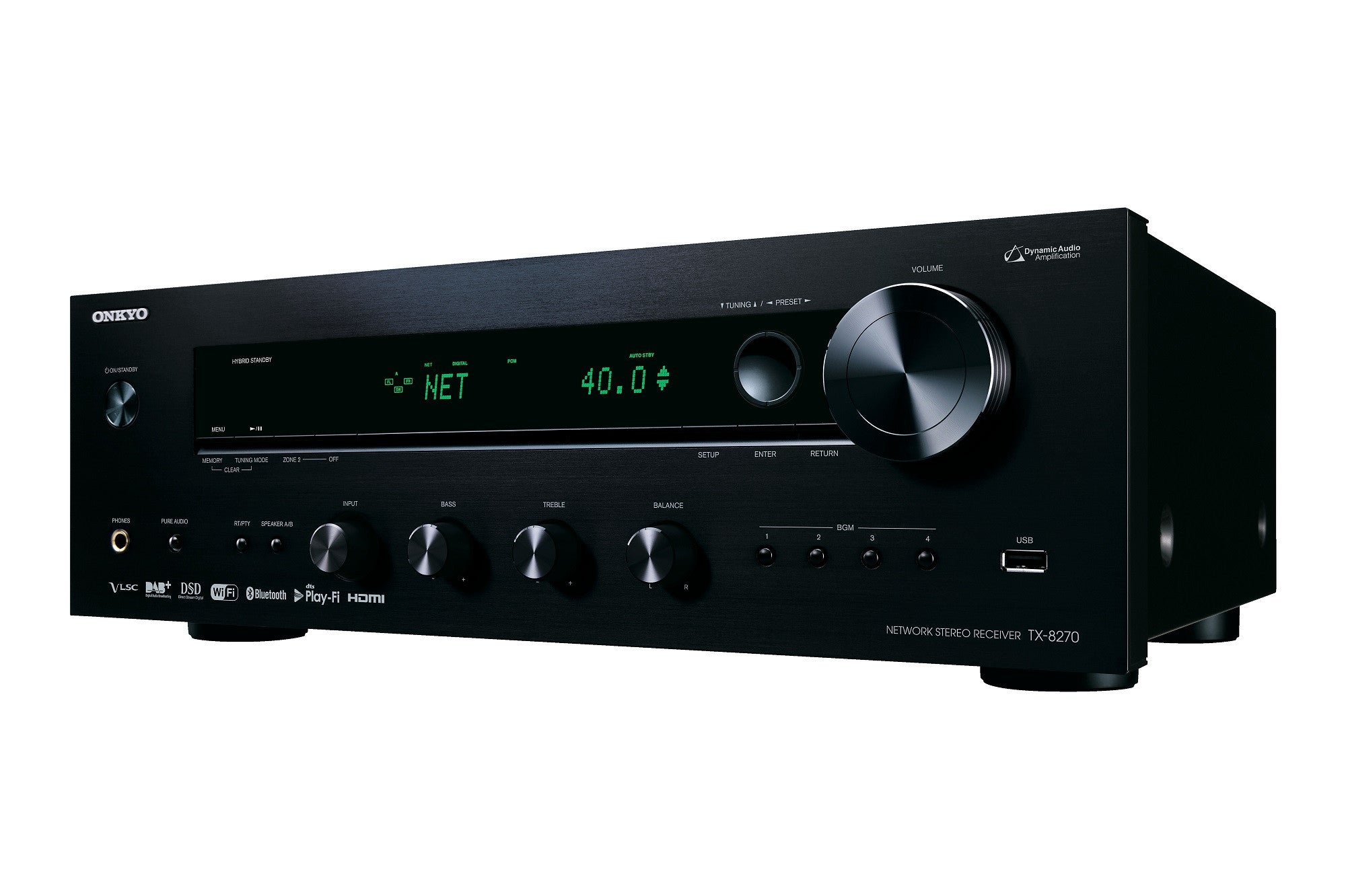

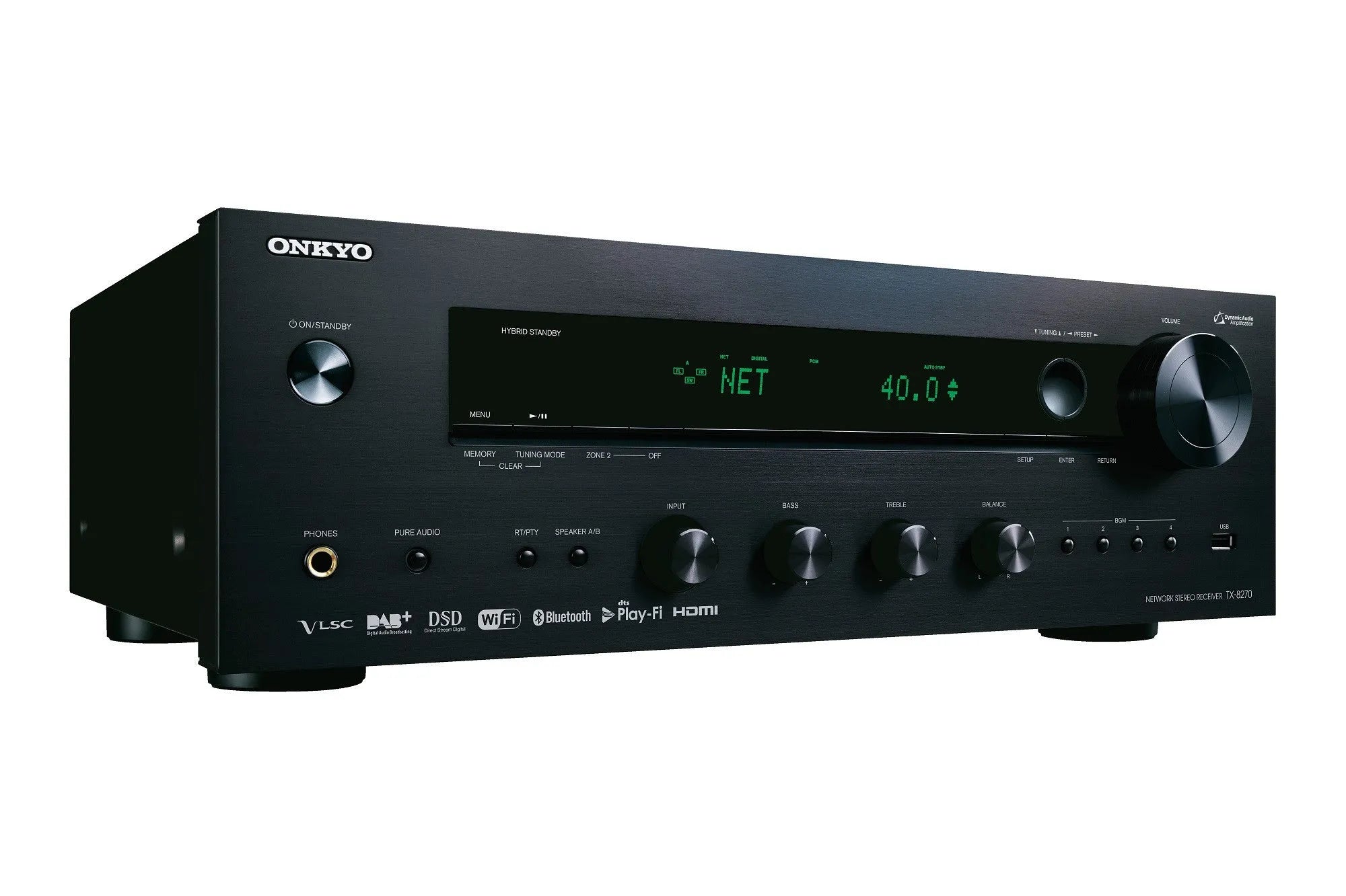

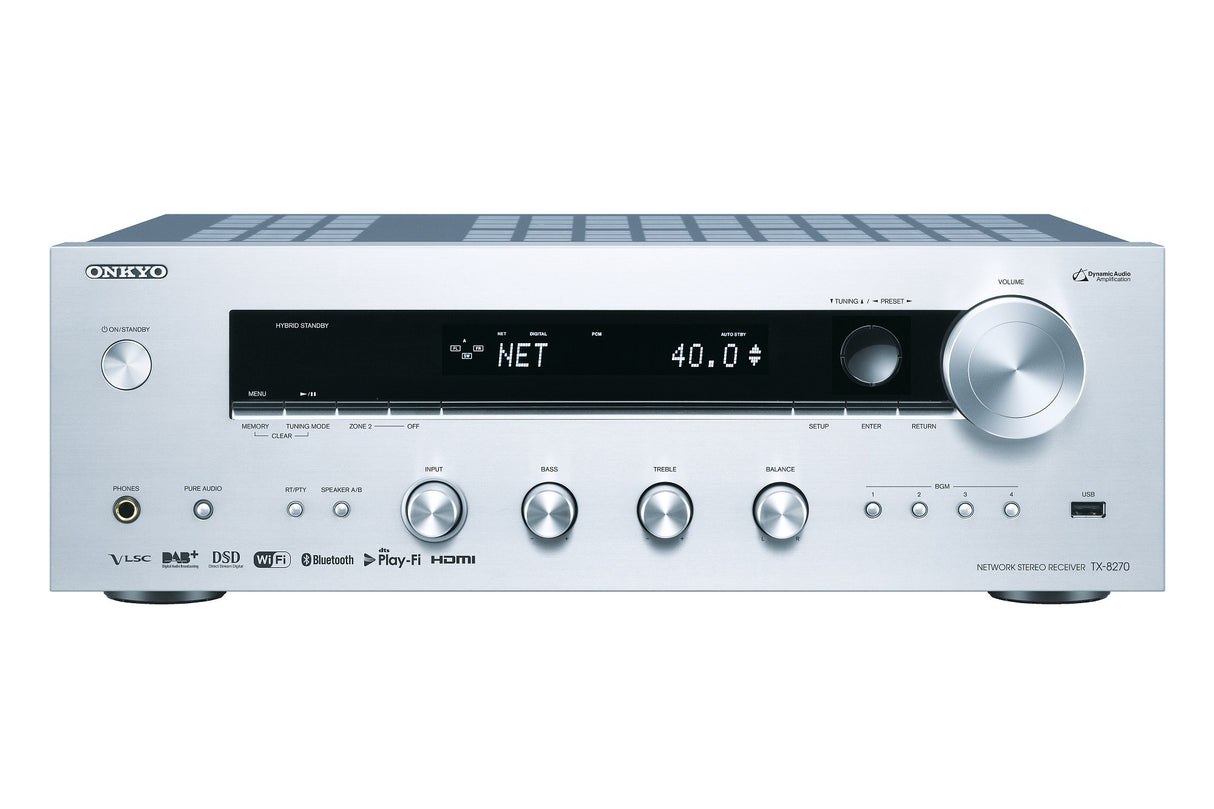

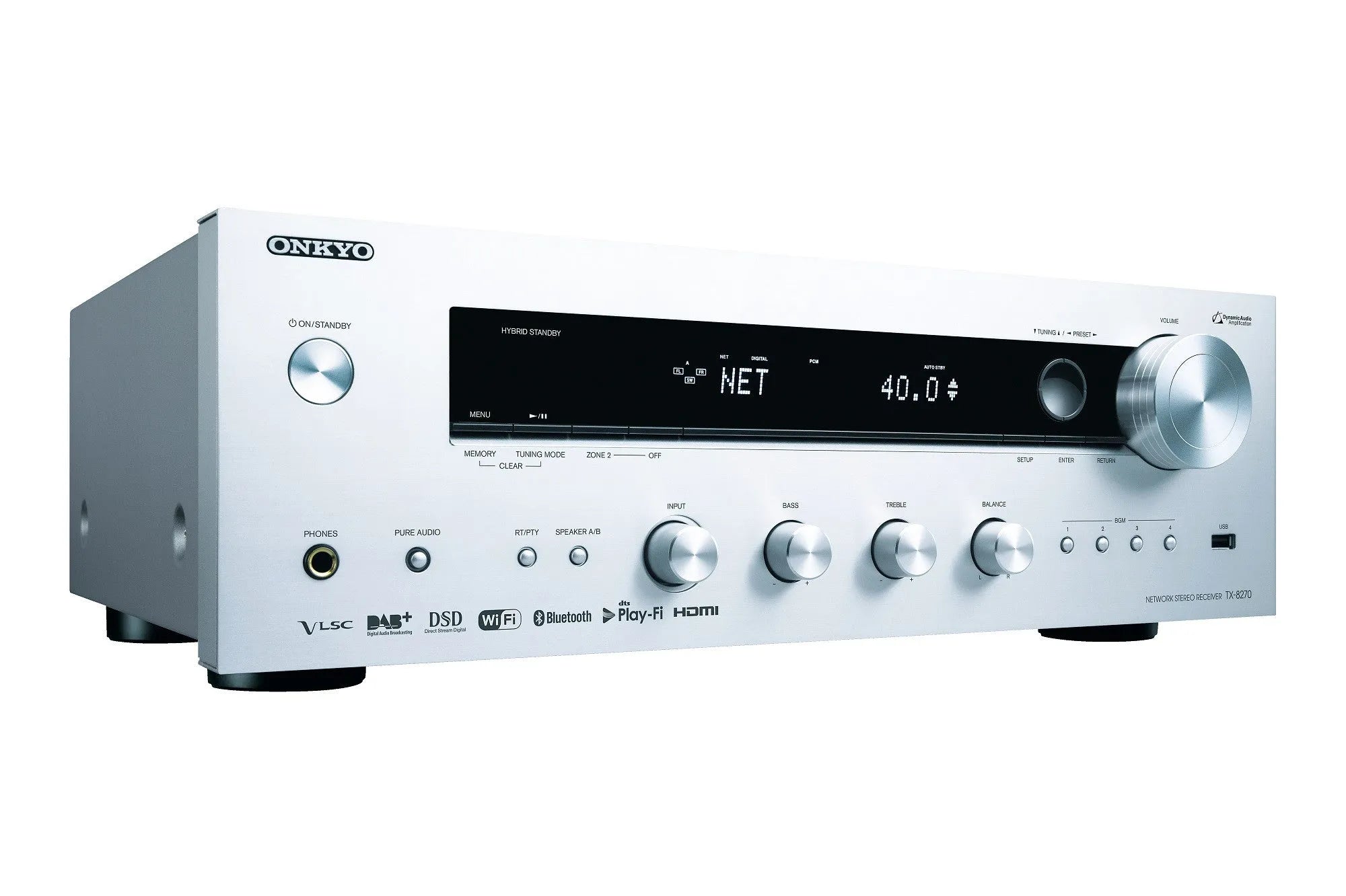

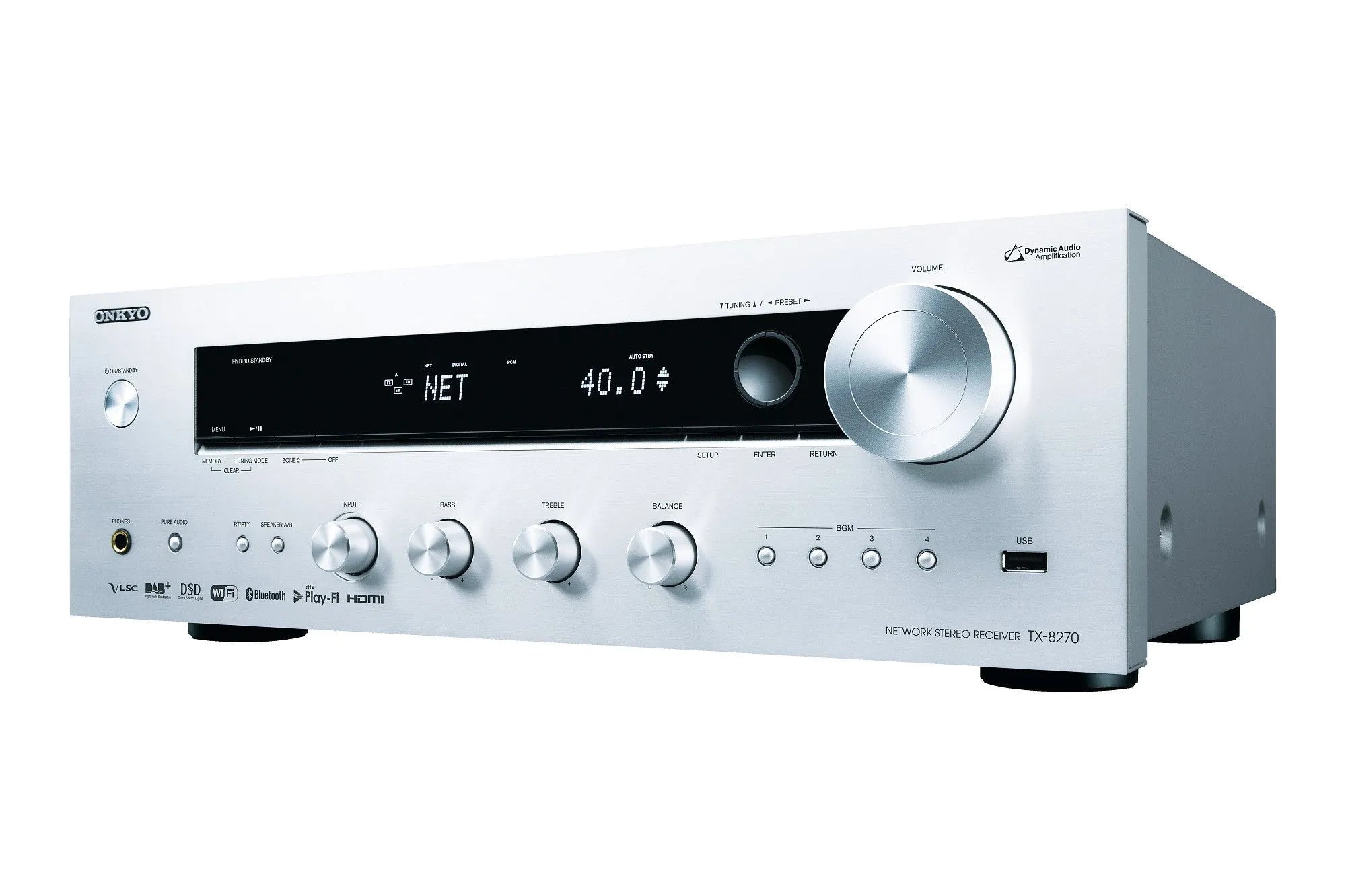

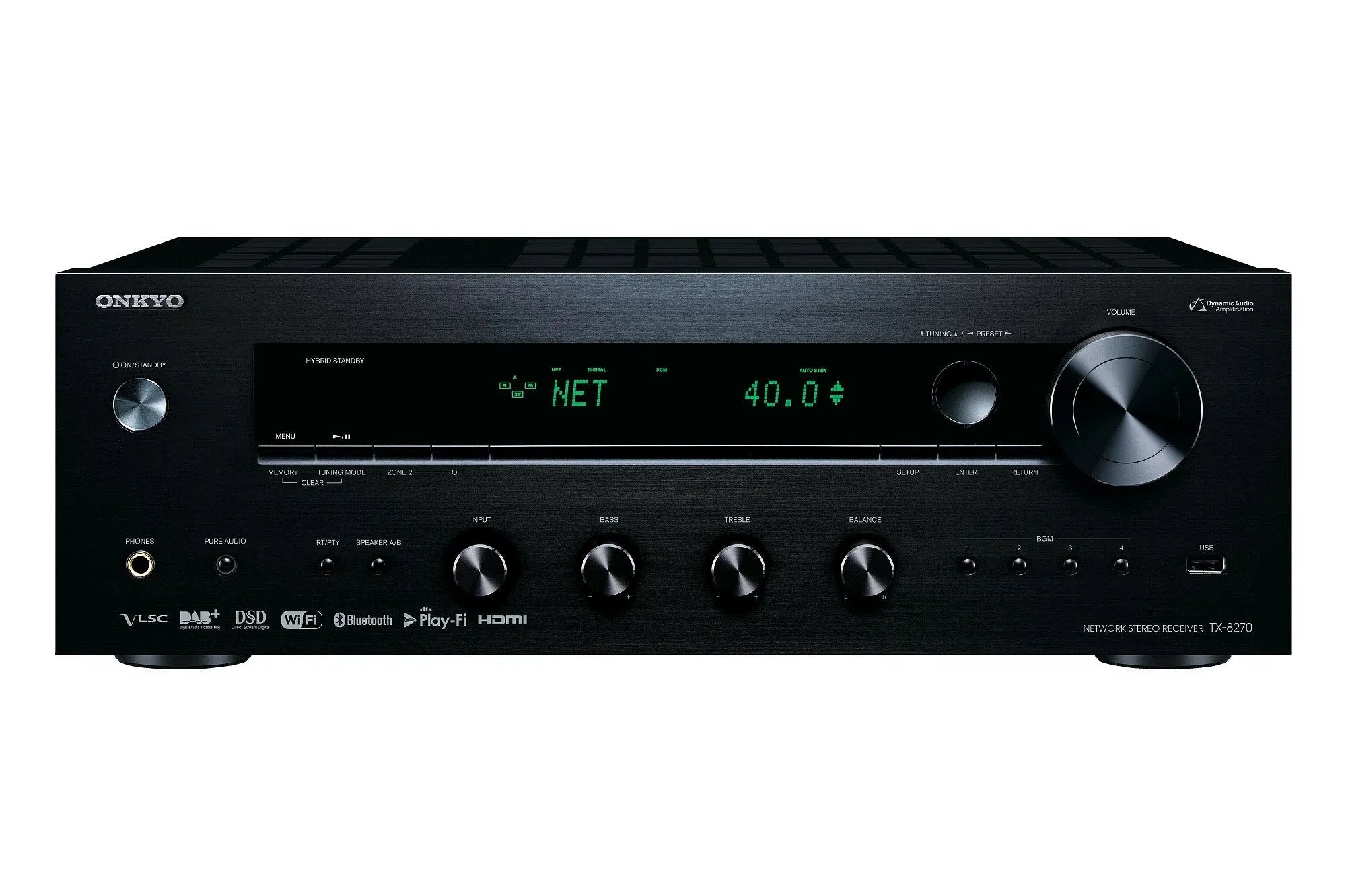

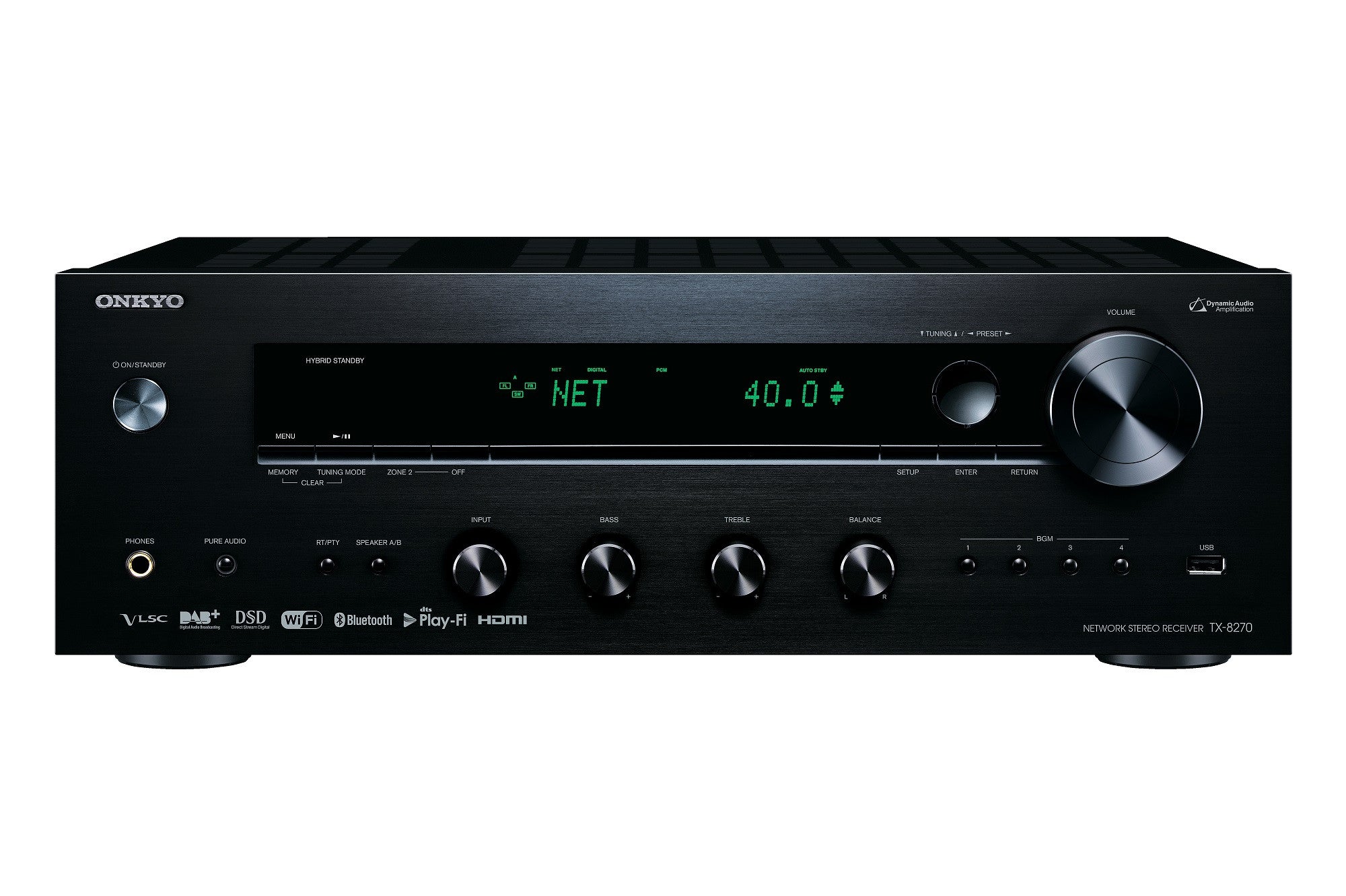

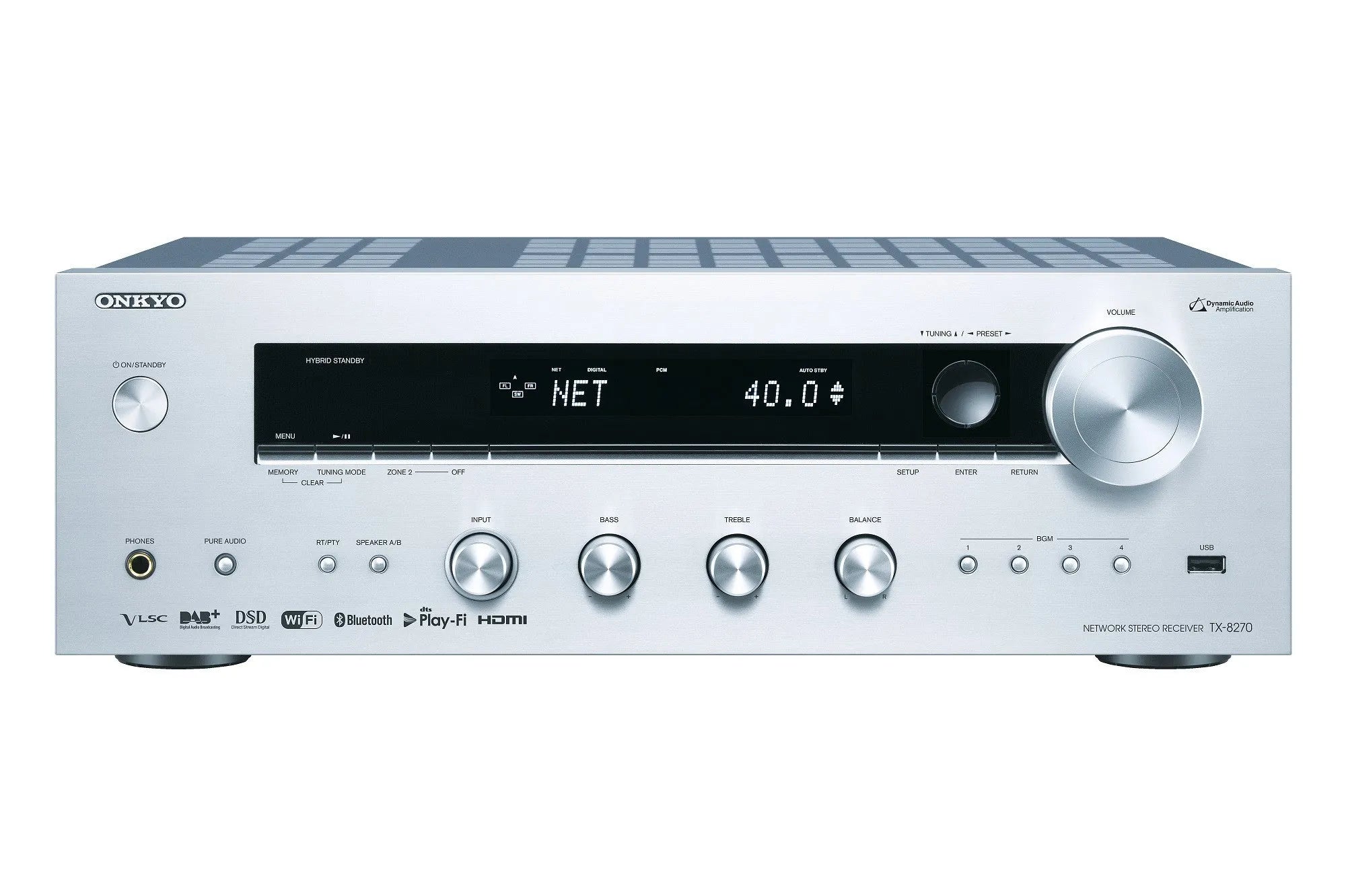

Tinklinis stereo resyveris Onkyo TX-8270 2.1, 2x240W HDMI komutacija
Galingas išmanus stereo resyveris TX-8270 su HDMI komutacija (bendravimas su TV) integruotu Wi-Fi, Bluetooth, tinklo grotuvu. Palaiko Spotify, AirPlay, TuneIn ir Deezer programas. AKM 384 kHz/32-bit keitiklis. 2xUSB .Galia 160W/kanalui, prie 6 Ω, 1 kHz, 1% THD. Kintamas išėjimas žemadažnei kolonėlei. Lengvas valdymas su Onkyo app programėle.
- Galia 240W per kanalą (3 Ω)
- Palaiko Audio formatus: FLAC, WAV, ALAC, DSD*4, AIFF, WMA Lossless, MP3, ir AAC
- Varža: 4 - 16 omų
- Dviejų zonų grojimas
- Dažnių diapazonas: 10 Hz - 100 kHz/+1 dB, -3 dB
- FireConnect multi-room technologija
- Integruota: Wi-Fi, Bluetooth
- Internetinis Radijas, Transliavimo programos, FM/RDS bei DAB/DAB+
- Onkyo programelė iOS ir Android telefonams bei planšetėms
- Matmenys: 435 x 149.5 x 329 mm / Svoris: 8.7 kg
Put the focus on musicality with the TX-8270, a beautifully engineered stereo amp that’s ready to play anything you throw at it. Together with line and phono inputs, there’s coaxial and optical digital, four HDMI® inputs, USB, and dual-band Wi-Fi® to support wireless audio technologies. These include DTS Play-Fi®*, Chromecast built-in*, AirPlay, Spotify®, network-attached audio, and streaming services. Built around a massive transformer, audio-grade capacitors, and discrete non-phase-shift circuitry locked into a robust chassis, this amp has high-current power to illuminate your favorite music. Enjoy versatility with easy enhancement of everyday TV entertainment, DAB+ and FM/RDS radio, and more. Paired with speakers of appropriate quality, the TX-8270 will bring a smile to your face every performance.
Driving Big Speakers with Strength and Dynamism
This amp system generates high current with a massive transformer and audio-grade capacitors. Circuitry features discrete output transistors for low distortion and effortless driving power. High current assures accurate control, restoring energy and vitality to your music. Non-phase-shift circuitry, meanwhile, focuses the audio image and reproduces a
wide frequency bandwidth to maximize Hi-Res Audio and vinyl playback.
Rated at 100W/Ch (8 Ohms, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven, FTC), the TX-8270 is our best stereo receiver for driving speakers.
Smooth Analog Signal
Onkyo developed Vector Linear Shaping Circuitry (VLSC) to reassemble the audio signal to its original form following processing. Unlike conventional filters, VLSC removes pulse noise generated in D/A conversion, allowing the sound wave to be reproduced with extremely high fidelity for a smooth analog signal.
An dedicated DAC for NET/USB Audio Distribution and Zone 2 pre-outs send any audio (even streamed audio) to a second room equipped with a power amp and a pair of speakers, perhaps on the deck or in the garage. Play the same source in both rooms or a different source in Zone 2.
Music Made Easy with Chromecast built-in*
Stream any music from your smartphone, laptop, or PC to the TX-8270 with ease. Control playback with Chromecast enabled apps you know and love from your iPhone, iPad, Android™ phone or tablet, Mac® or Windows® laptop, or Chromebook™.
Stream Anything with DTS Play-Fi®*
DTS Play-Fi is a wireless protocol that works with any audio app on mobiles and PC. Flick whatever’s playing to the receiver, even different sources to different components at the same time.
A Stereo Receiver that Connects Everything
A beautiful stereo receiver crafted for hi-fi enthusiasts, the TX-8270 is also exclusively equipped with connections allowing it to serve as an up-to-date amp for TV entertainment. Joining analog, digital, phono, and USB inputs are HDMI® terminals (connect an Apple TV or similar) together with a Next Generation Network Audio platform. Cast music from familiar apps quickly and easily.
Supports 4K HDR and BT.2020 Video Pass-through
Connect up to four media players to the receiver’s HDCP 2.2-compliant HDMI® inputs. The terminals support pass-through of 4K/60 Hz video, 4K HDR in HDR10 or Dolby Vision™ formats, as well as BT.2020 4K video standard. Enjoy premium 4K Ultra HD content untouched from source to screen.
Dual-band Wi-Fi®, AirPlay, Spotify® Connect
A selectable 5 GHz Wi-Fi® channel assures stable connectivity in areas with traffic congestion on the 2.4 GHz band. Enjoy smooth streaming over AirPlay, the Spotify Connect app, and other network audio services.
Internet Radio, Streaming Services, and FM/AM Radio
TIDAL, Deezer, TuneIn, and Pandora® are baked into the GUI, making it easy to select from a massive range of music and radio programs. FM/AM radio tuners are also included with 40 station presets. Get instant access to four of your favorite stations via memory preset buttons on the front panel.
Premium Digital-to-Analog Processing
An AK4438 384 kHz/32-bit digital-to-analog converter from AKM features unique low-distortion technologies ideally suited to DSD 5.6 MHz*1 and PCM signals up to 192 kHz/24-bit*2. Together with unique VLSC™ filtering circuitry, which eliminates ultra-high-frequency pulse noise, playback is crystal clear.
- Playback after PCM conversion.
- 192/24 PCM not supported over wireless LAN or USB.
FireConnect™ Wireless Multi-room Audio
FireConnect™ powered by Blackfire mirrors network audio sources and any external analog source playing through the receiver—from streaming audio to vinyl—on optional wireless speakers, such as the Onkyo NCP-302. Playback control across the home is via Onkyo Controller.
Note: Sharing audio from external inputs is model-dependent and is enabled with a future firmware update. Sampling rates up to 48 kHz are supported. FireConnect™ is powered by Blackfire Research Corp., USA.
- 160 W/Ch Hi-Current Dynamic Audio Amplification System
- 384 kHz/32-bit (AK4438) DAC for Hi-Res Audio
- HDMI® 4 In / 1 Out for Media Player and TV Connection
- 5 GHz/2.4 GHz Wi-Fi® and Bluetooth® Technology
- Chromecast built-in*1, DTS Play-Fi®*1, AirPlay, Spotify®
- TIDAL, TuneIn, and Deezer Streaming via Onkyo Controller App
- FM/RDS and DAB/DAB+ Radio with Quick Recall Memory Presets
- FireConnect™ Multi-room Audio Distribution*1
- 160 W/Ch Stereo Power (6 Ω, 1 kHz, 1%, 1 Channel Driven, IEC); 170 W/Ch (6 Ω, 1 kHz, 10%, 1 Channel Driven, JEITA)
- Massive Hi-Current EI Transformer
- Non-Phase-Shift Amp Circuitry with Discrete Power Output Stages
- Optimum Gain Volume Circuitry
- AKM 384 kHz/32-bit (AK4438) DAC
- VLSC™ (Vector Linear Shaping Circuitry) Noise Filtering Technology
- Dual-band 5 GHz/2.4 GHz Wi-Fi® for Stable Connectivity
- Includes Chromecast built-in*1, DTS Play-Fi*1, AirPlay, Spotify, TIDAL, TuneIn, and Deezer*2
- FireConnect™ Multi-room Network/Analog Audio Distribution to Optional Wireless Speakers*1
- Receiver, Network Audio, and Multi-room Audio Control via free Onkyo Controller Application for Android™ and iOS*3
- Bluetooth Wireless Technology for Mobiles, Laptops, and PCs (Version 4.1 + LE, Profile: A2DP v1.2, AVRCP v1.3)
- Zone 2 Line Outs with Dedicated DAC for NET/USB Audio Distribution
- FM/RDS and DAB/DAB+ Tuners with 40 Station Presets
- HDMI 2.0a Supports HDCP 2.2, 4K/60 Hz, HDR, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, DSD*4, DVD-Audio, Super Audio CD (SACD), and CEC
- Supports Dolby Vision™ Signal Pass-through
- Supports Hi-Res Audio via Network (DSD 5.6 MHz*4 and 192/24 PCM*5)
- Decodes FLAC, WAV, ALAC, DSD*4, AIFF, WMA Lossless, MP3, and AAC Formats Over Network and USB
- Aluminum Front Panel and Volume Control Knob
- *1 Requires a firmware update or updates TBA.
- *2 Availability of services may vary with region. Please confirm before purchase. Subscription may also be required.
- *3 For iOS and Android devices. Check App Store or Google Play™ for OS and device requirements.
- *4 After PCM conversion.
- *5 Not supported over wireless LAN or USB.

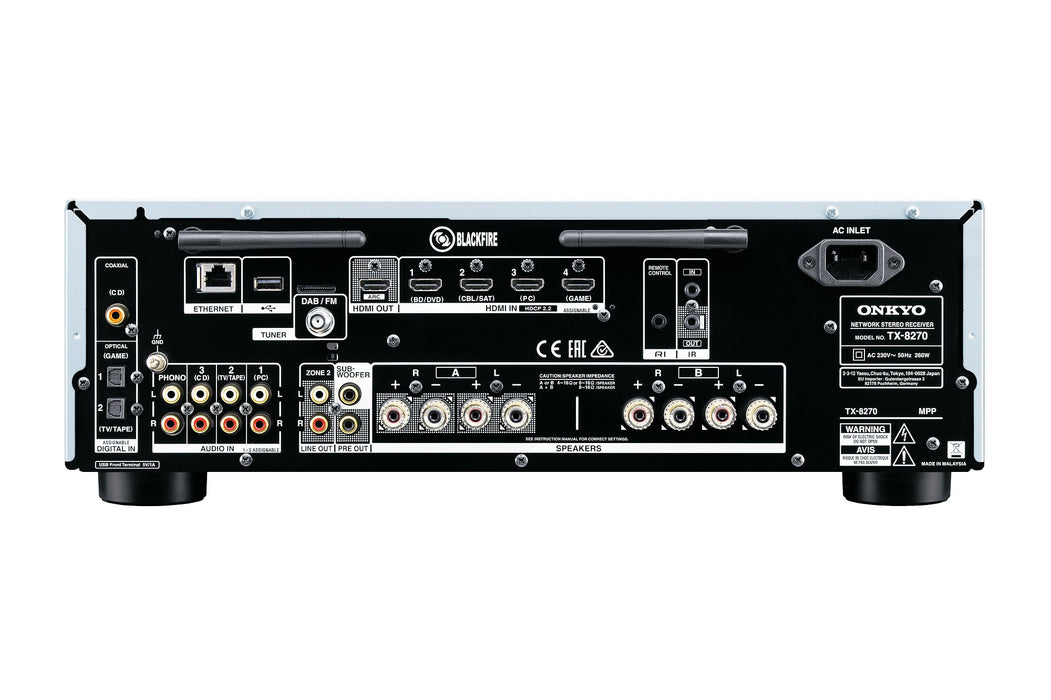

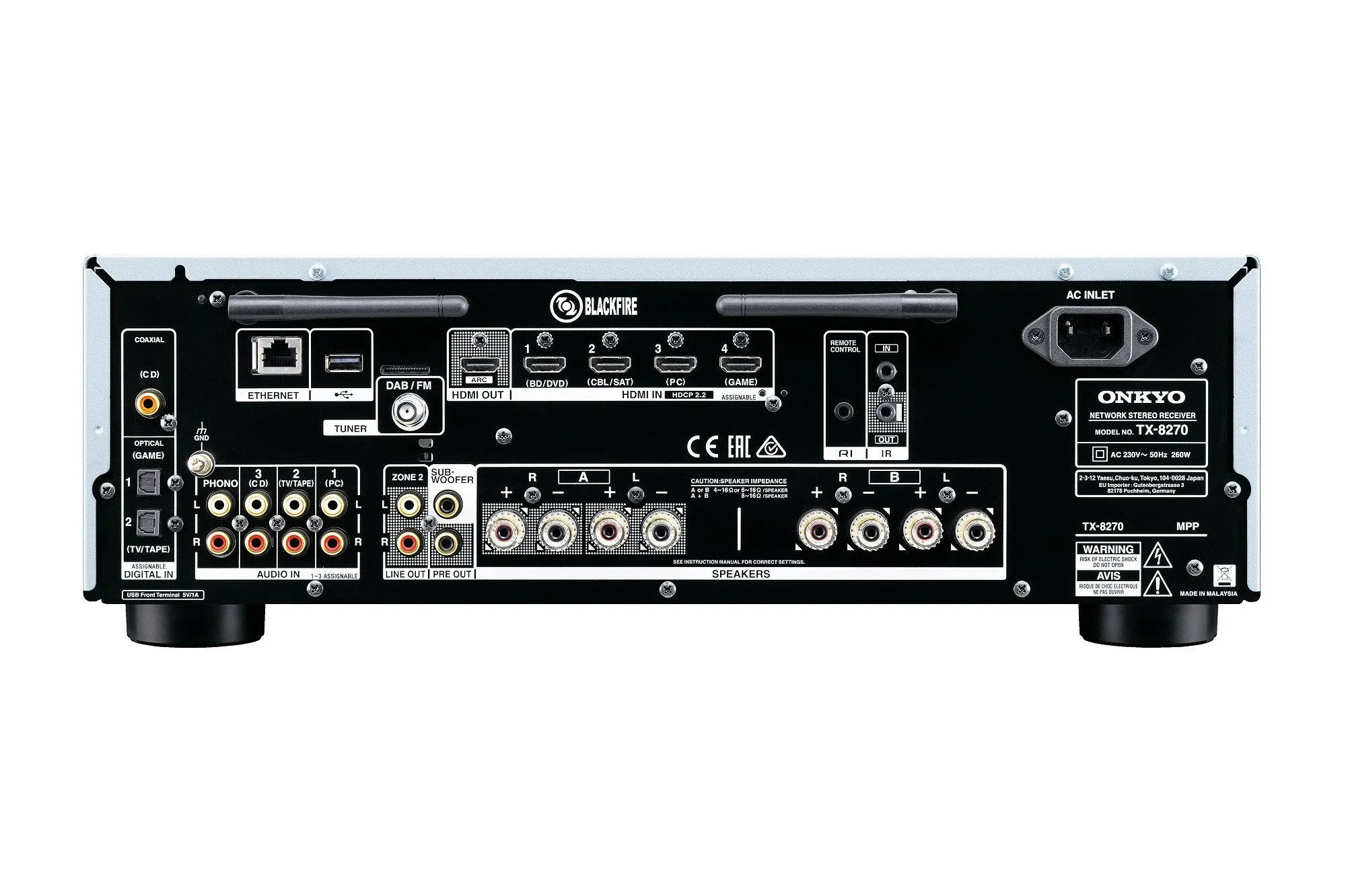

- 4 HDMI Inputs / 1 Output (4K/60 Hz / HDCP 2.2)
- 3 Digital Audio Inputs (2 Optical and 1 Coaxial)
- 3 Gold-plated Analog Audio Inputs
- Gold-plated MM Phono Input with Phono Equalizer
- Gold-plated Zone 2 Line Outs
- Gold-plated Subwoofer Pre Out
- Two Pairs of Speaker Post with Screw Knobs for A/B Drive
- 5 V / 1 A USB Port for Audio Playback via USB Storage Devices (Front)
- 5 V / 500 mA USB Terminal for HDMI Media Player Power Supply (Rear)
- IR Input and Output
- LAN Input with IP Control Capability for Home Automation Systems
- Thick, Detachable AC Power Cable
- Gold-Plated 6.35 mm Headphone Jack (Front)
- Graphical User Interface with Overlaid On-Screen Display (OSD) via HDMI
- Quick Recall Preset Buttons on Front Panel
- Input Selector Knob and Physical Tone/Balance Controls
- Advanced Music Optimizer Improves Compressed Digital Audio Quality, Including Bluetooth Audio
- Direct Mode and Double Bass Mode
- Crossover Adjustment (40/50/60/70/80/90/100/120/150/180/200 Hz)
- A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
- Front-panel Speaker A or B Drive Selector Button
- 3-Mode Display Dimmer (Normal/Dim/Dimmer)
- Sleep Timer and Battery-free Memory Back-up

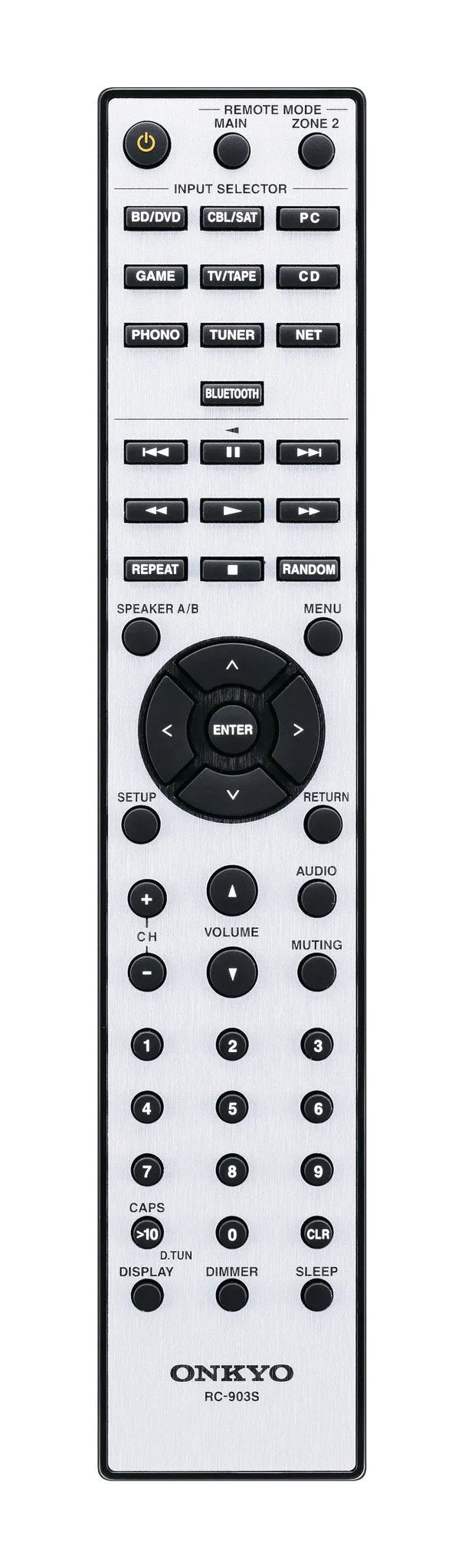

- Full-sized RI Remote Controller
- Network Standby Mode, HDMI Passthrough, and Auto Standby
- Power Output:
160 W/Ch (6 Ω, 1 kHz, 1%, 1 Channel Driven, IEC)
170 W/Ch (6 Ω, 1 kHz, 10%, 1 Channel Driven, JEITA)
- Dynamic Power:
240 W (3 Ω, Front)
210 W (4 Ω, Front)
120 W (8 Ω, Front)
- Damping Factor Less than 54 (Front, 1 kHz, 8 Ω)
- THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz–20 kHz, Half Power)
- Input Sensitivity and Impedance 200 mV/47 kΩ (Line)
- Rated RCA Output Level and Impedance 1 V/470 Ω (Subwoofer Pre Out)
- Phono Overload 70 mV (MM, 1 kHz, 0.5%)
- Frequency Response 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
- Tone Control ±10 dB, 90 Hz (Bass) ±10 dB, 7.5 kHz (Treble)
- Signal-to-Noise Ratio 106 dB (IHF-A, Line In, Speaker Out) 80 dB (IHF-A, Phono In, Speaker Out)
- Speaker Impedance 4 Ω–16 Ω
- Headphone Output Impedance 330 Ω
- Headphone Rated Output 80 mW (32 Ω, 1 kHz, 10%)
- Tuning Frequency Range
- FM/RDS 87.5 MHz–108 MHz
- FM/DAB+ Preset Memory 40 Stations
- Power Supply AC 230 V~, 50 Hz
- Standby Power Consumption 0.15 W
- No-Sound Power Consumption 35 W
- Network Standby Power Consumption 2.8 W
- Dimensions (W x H x D) 435 x 149.5 x 329 mm
- Weight 8.7 kg
