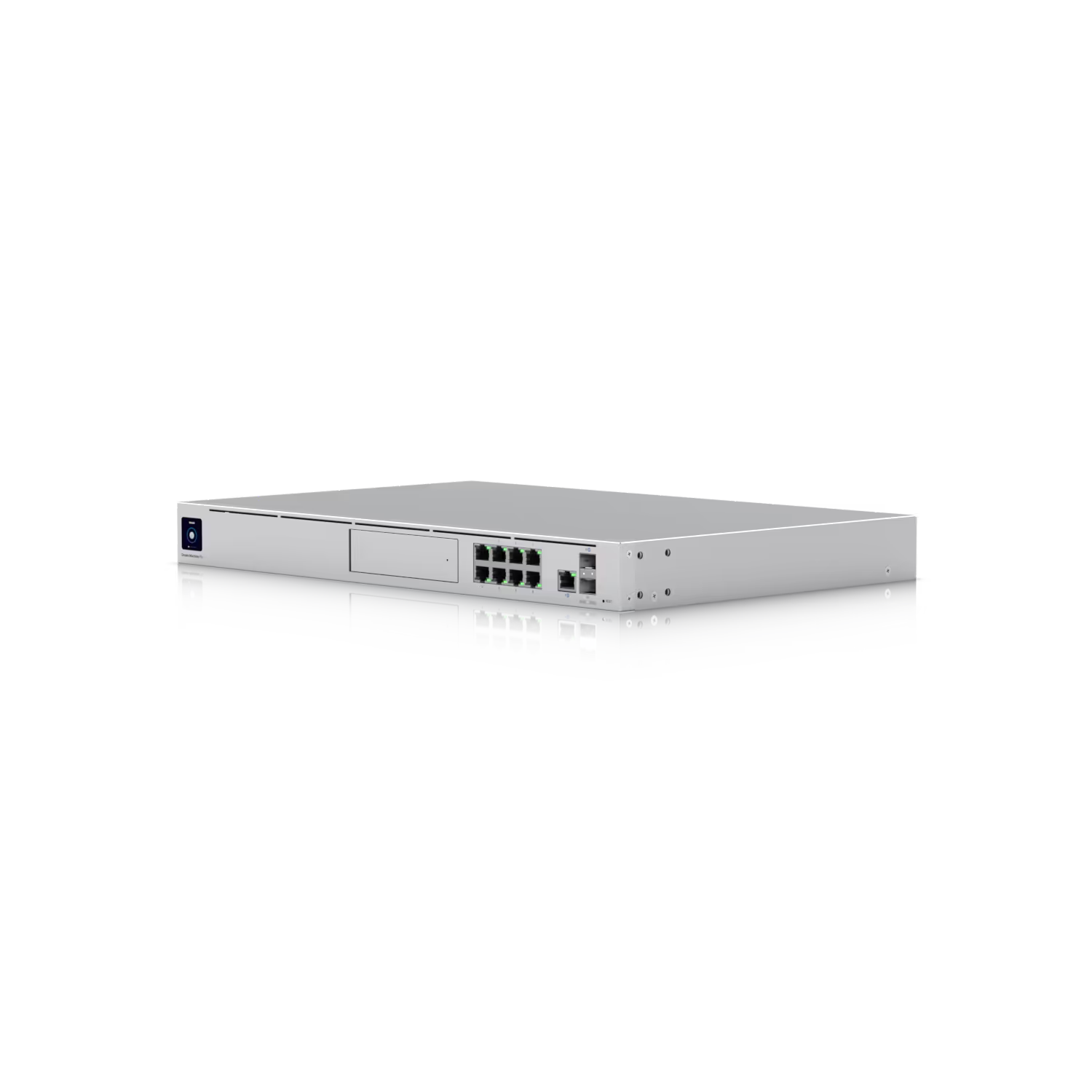

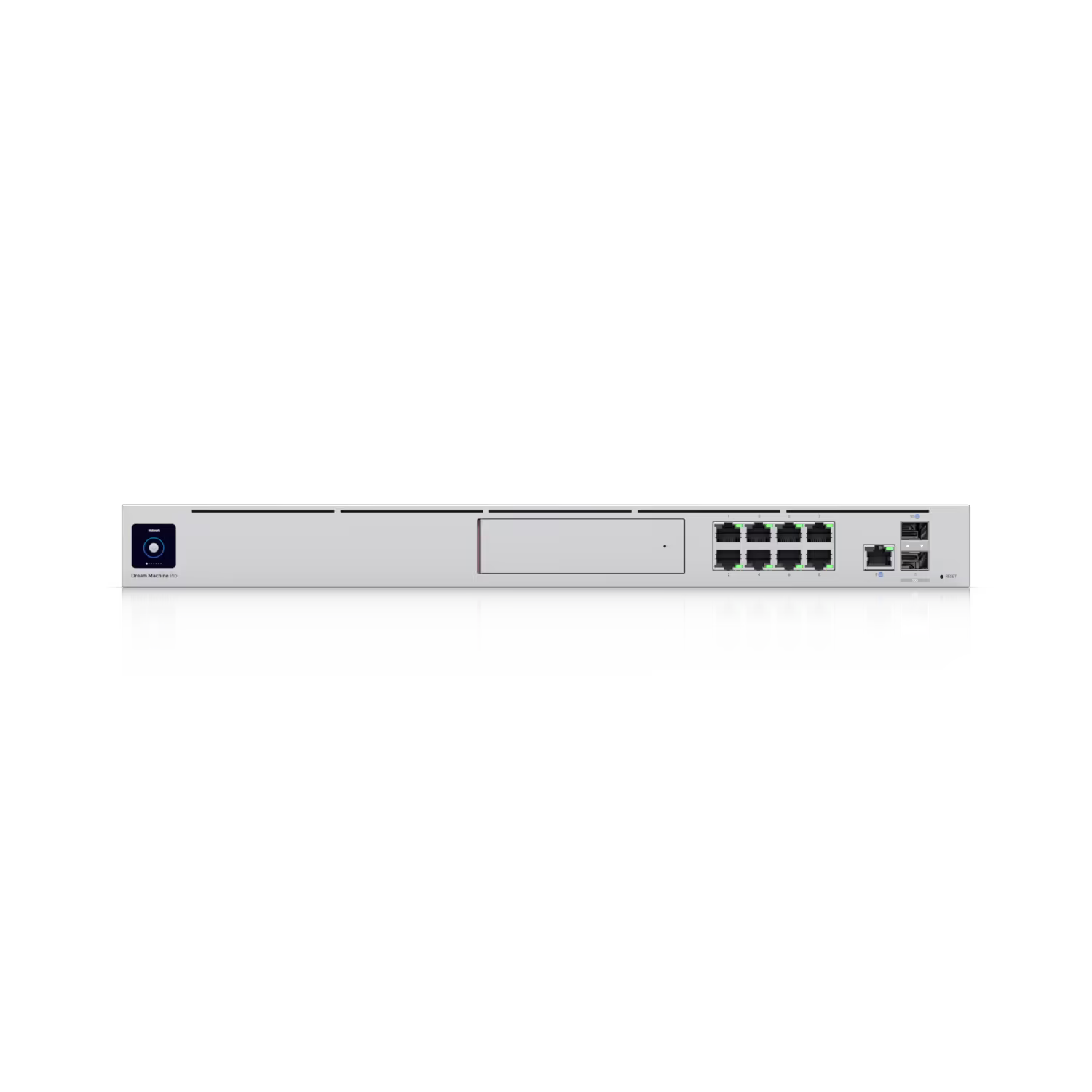

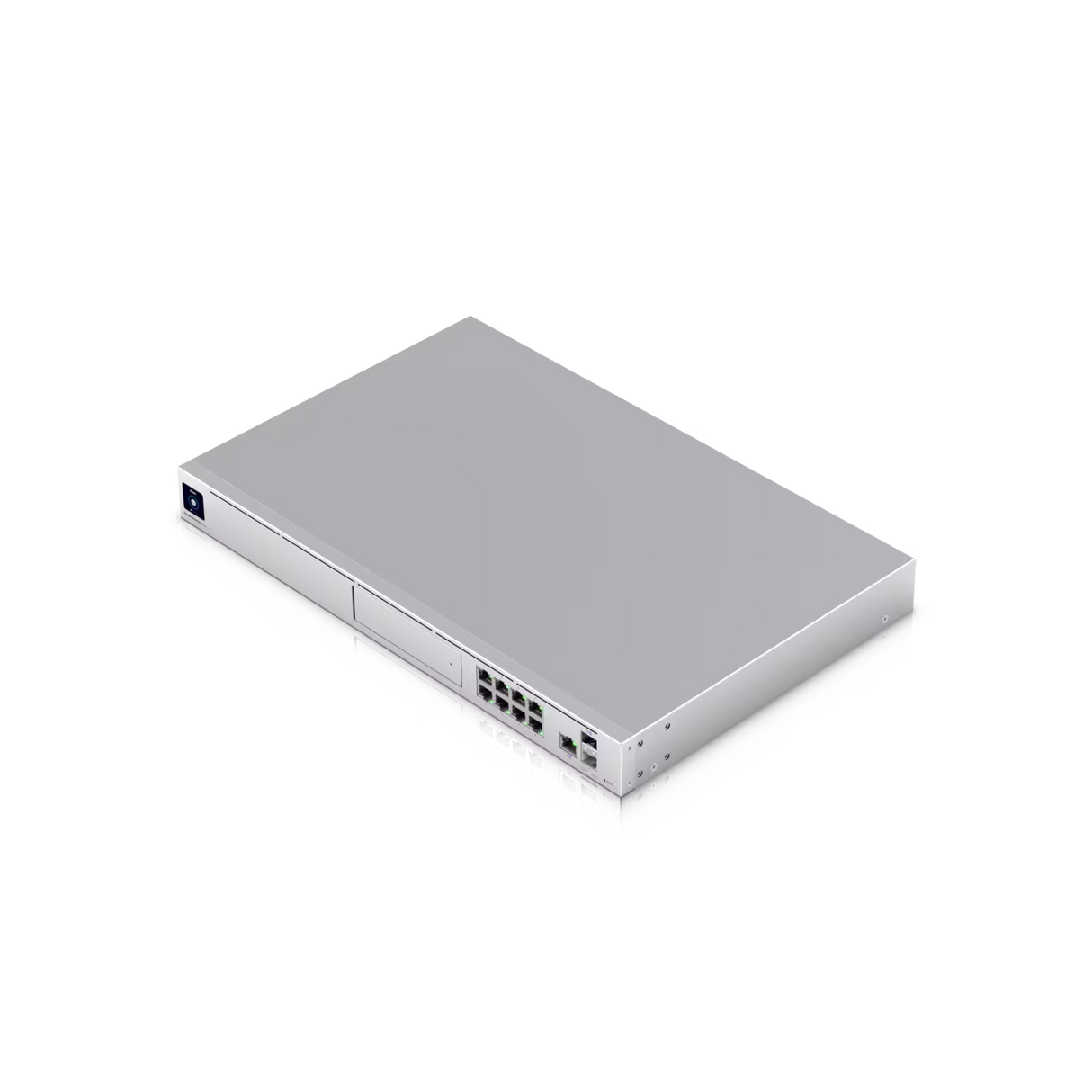

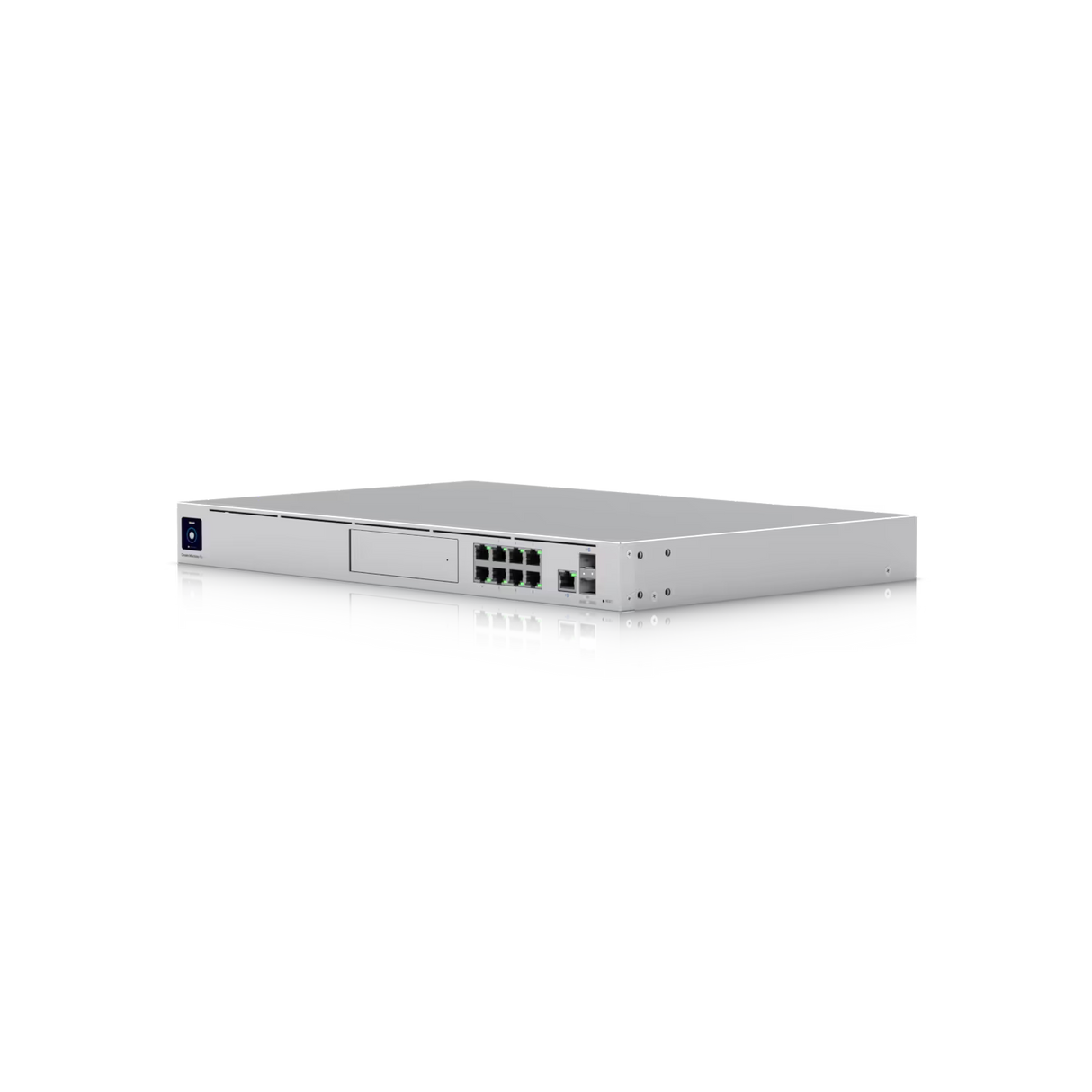

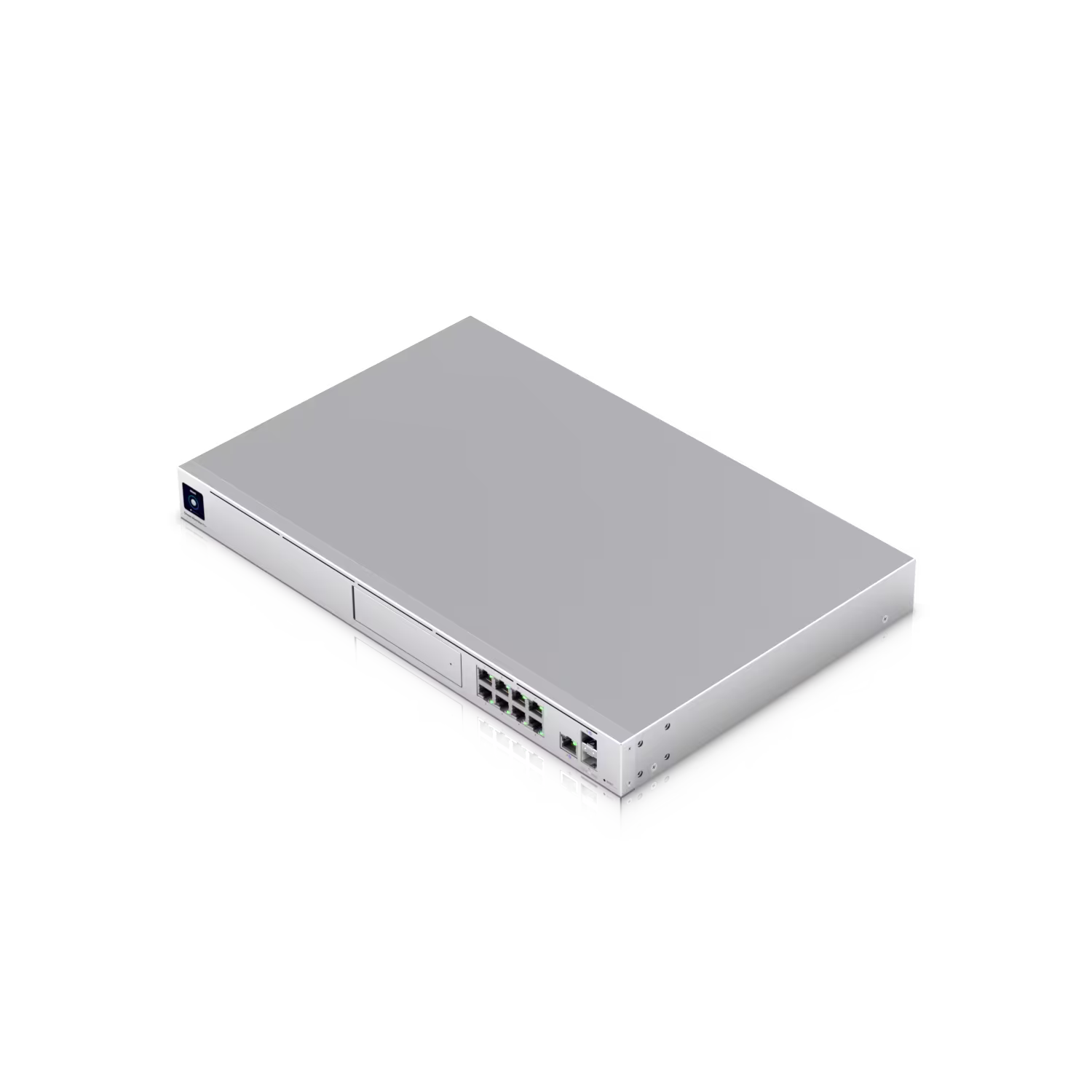

Ubiquiti UniFI Dream Machine Pro UDM-Pro, išmanusis tinklo valdymo centras

INFORMACIJA

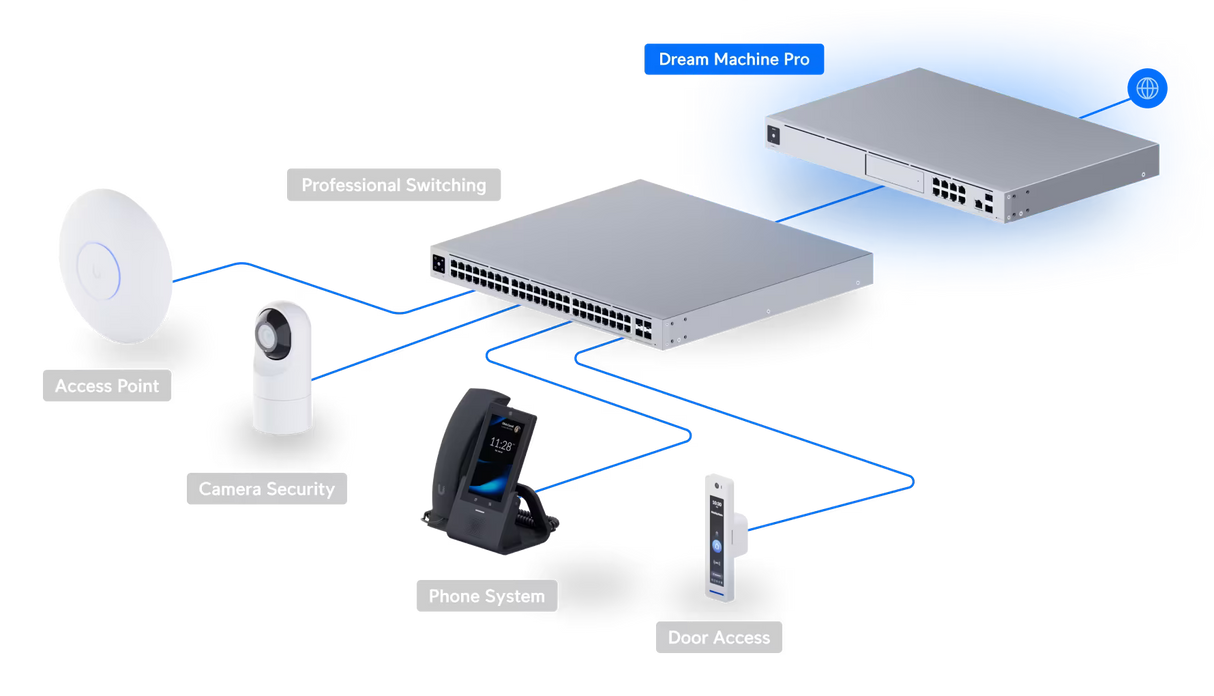

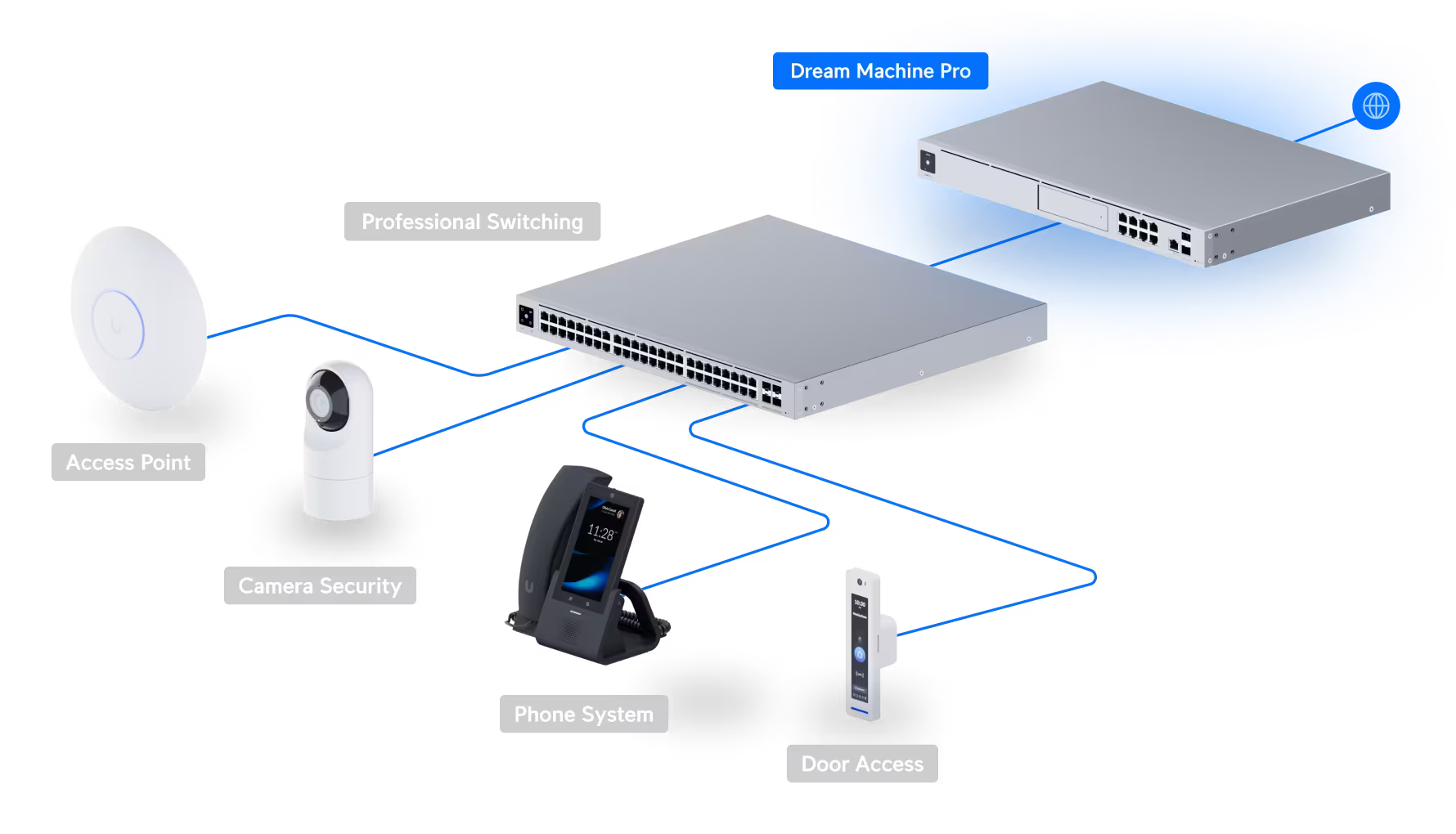

Ubiquiti UniFI Dream Machine Pro UDM-Pro - tai galingas tinklo valdymo sprendimas, skirtas verslui ir reikliems naudotojams, užtikrinantis sklandų tinklo, stebėjimo kamerų, prieigos kontrolės, VoIP ir kitų „UniFi“ ekosistemos paslaugų valdymą viename įrenginyje. Įrenginys palaiko daugiau nei 100 „UniFi“ įrenginių valdymą, iki 24 HD kamerų, užtikrina daugiau nei 1 000 vienu metu prisijungusių naudotojų aptarnavimą, turi pažangias saugumo funkcijas su daugiau nei 55 000 IDS/IPS parašų, integruotą VPN, SD-WAN, turinio filtravimą ir reklamos blokavimą.

Procesorius: 4 branduolių ARM Cortex-A57 1,7 GHz, 4 GB RAM
Pralaidumas: IDS/IPS iki 3,5 Gbps, palaiko 1 000+ vienu metu prisijungusių naudotojų
Tinklo jungtys: 1 x 10G SFP+, 1 x 1G RJ45 WAN, 8 WAN prievadai, VRRP aukštas prieinamumas
Matmenys: 442.4 x 43.7 x 285.6 mm, svoris 3,9 kg.

TECHNINIAI DUOMENYS

Overview

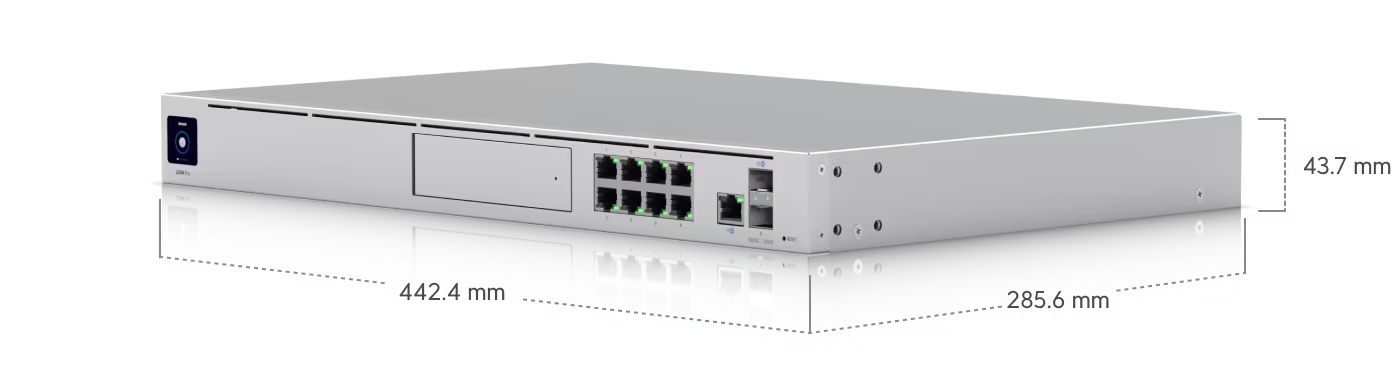

Dimensions
442.4 x 43.7 x 285.6 mm
(17.4 x 1.7 x 11.2")
UniFi Application Suite
Network
✓
Protect
✓
Access
✓
Talk
✓
Connect
✓
Managed UniFi Devices
100+
Managed Cameras
(24) HD
(14) 2K
(8) 4K
Simultaneous Users Connected
1,000+
Max. WAN Port Count
8
Default WAN Ports
(1) 10G SFP+
(1) GbE RJ45

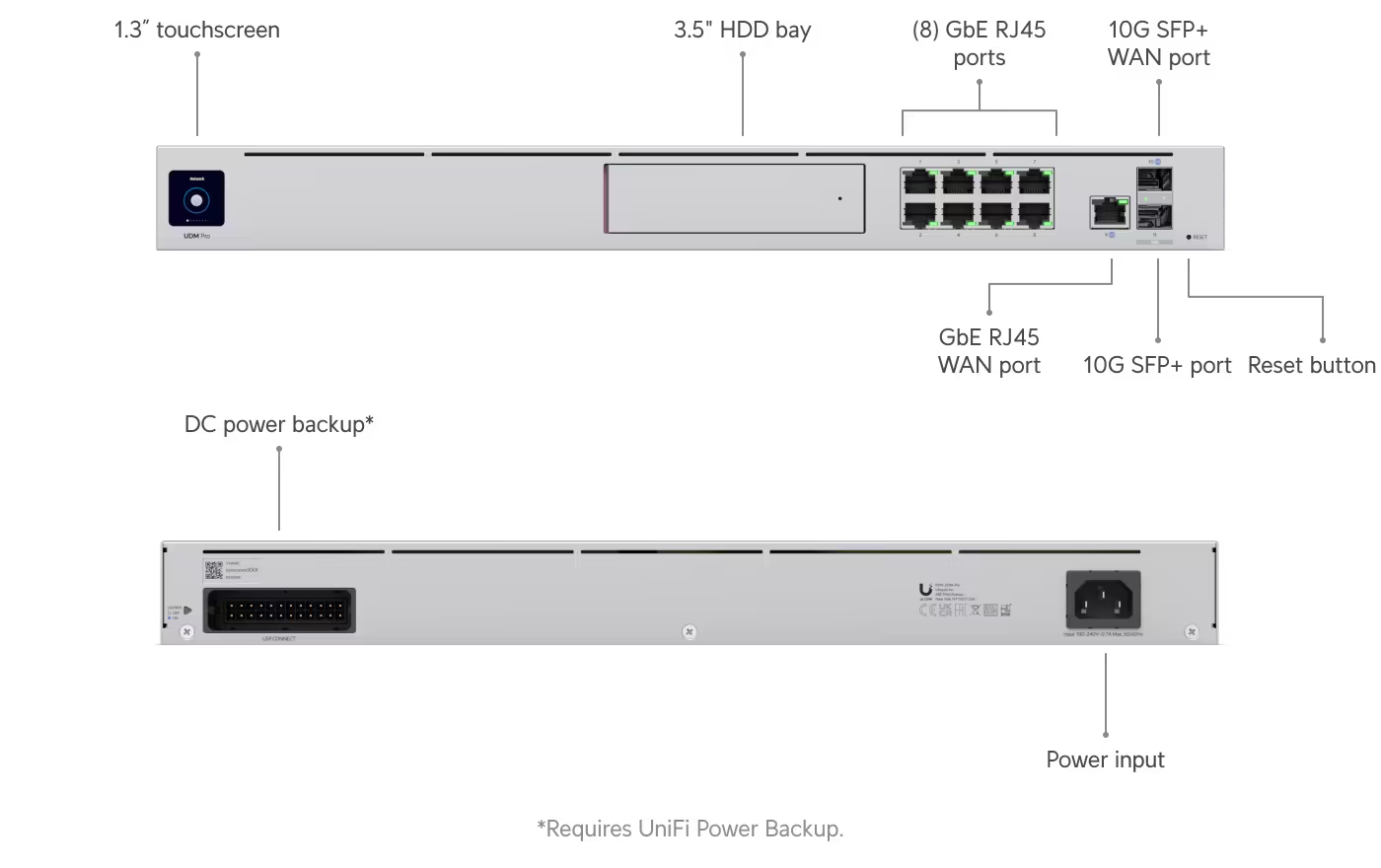

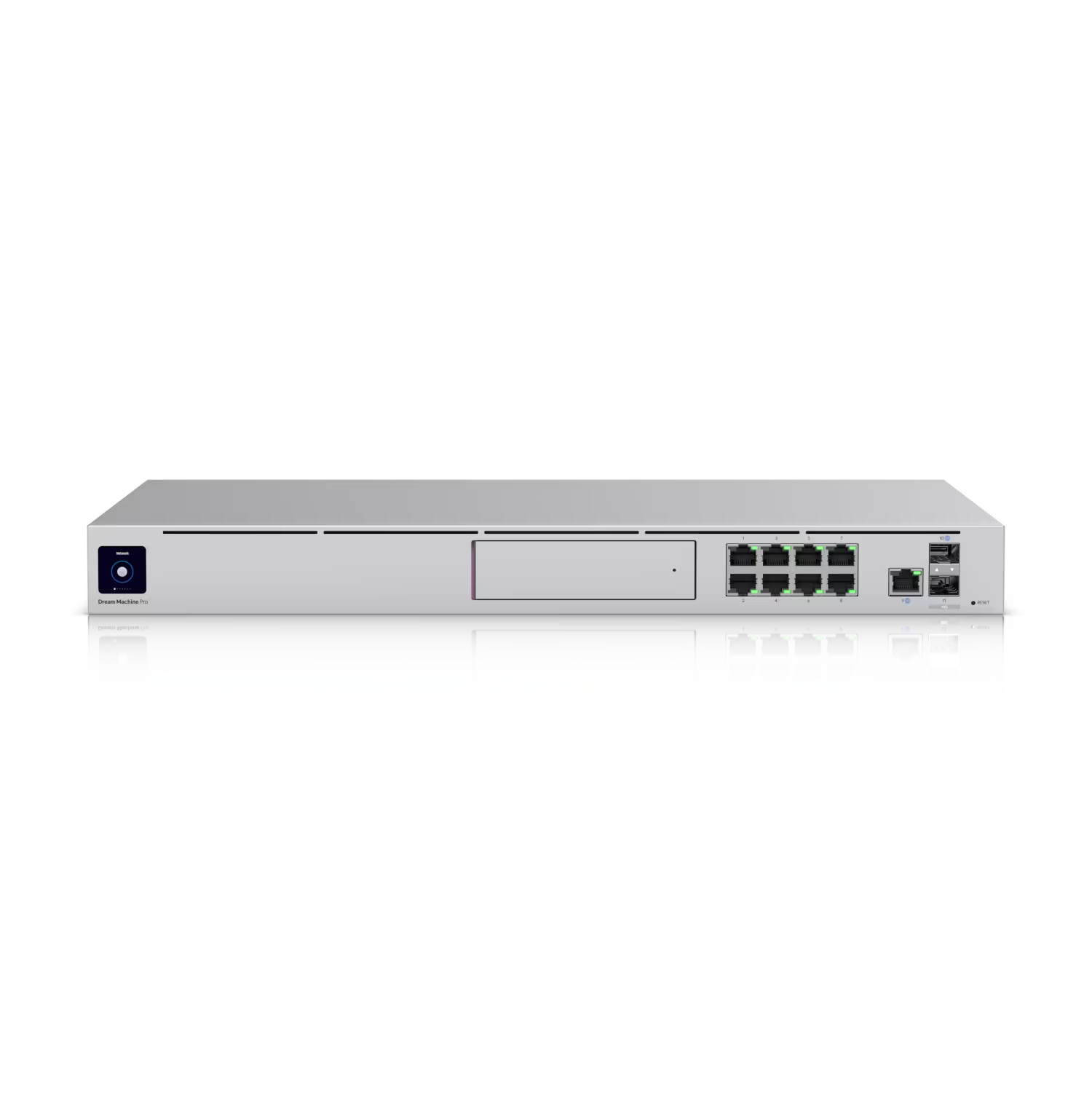

Port Layout
1 GbE RJ45
9
(1G/100M/10M)
10G SFP+
2
(10G/1G)
IDS/IPS Throughput
3.5 Gbps
Form Factor
Rack mount (1U)
Redundancy
Shadow Mode (VRRP) Gateway Failover
DC Power Backup

Security
Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
55,000+
with CyberSecure
VLAN/Subnet-based Traffic Segmentation
✓

VPN & SD-WAN
License-Free SD-WAN
✓
Site-to-Site VPN
Site Magic
✓
IPsec
✓
OpenVPN
✓
VPN Server
Identity Endpoint One-Click VPN
✓
Teleport Zero-Configuration VPN
✓
WireGuard
✓
OpenVPN
✓
L2TP
✓
VPN Client
OpenVPN
✓
WireGuard
✓

Networking
Multi-WAN Load Balancing
✓
Shadow Mode (VRRP) High Availability
✓
Dynamic Routing
OSPF
✓
BGP
✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
MAC Address Table Size
4,000
Policy-based WAN and VPN Routing
✓
Customizable DHCP Server
✓
IPv6 ISP Support
✓
IGMP Proxy
✓

Hardware
NVR Storage
(1) 3.5" NVR HDD bay
Max. Power Consumption
33W

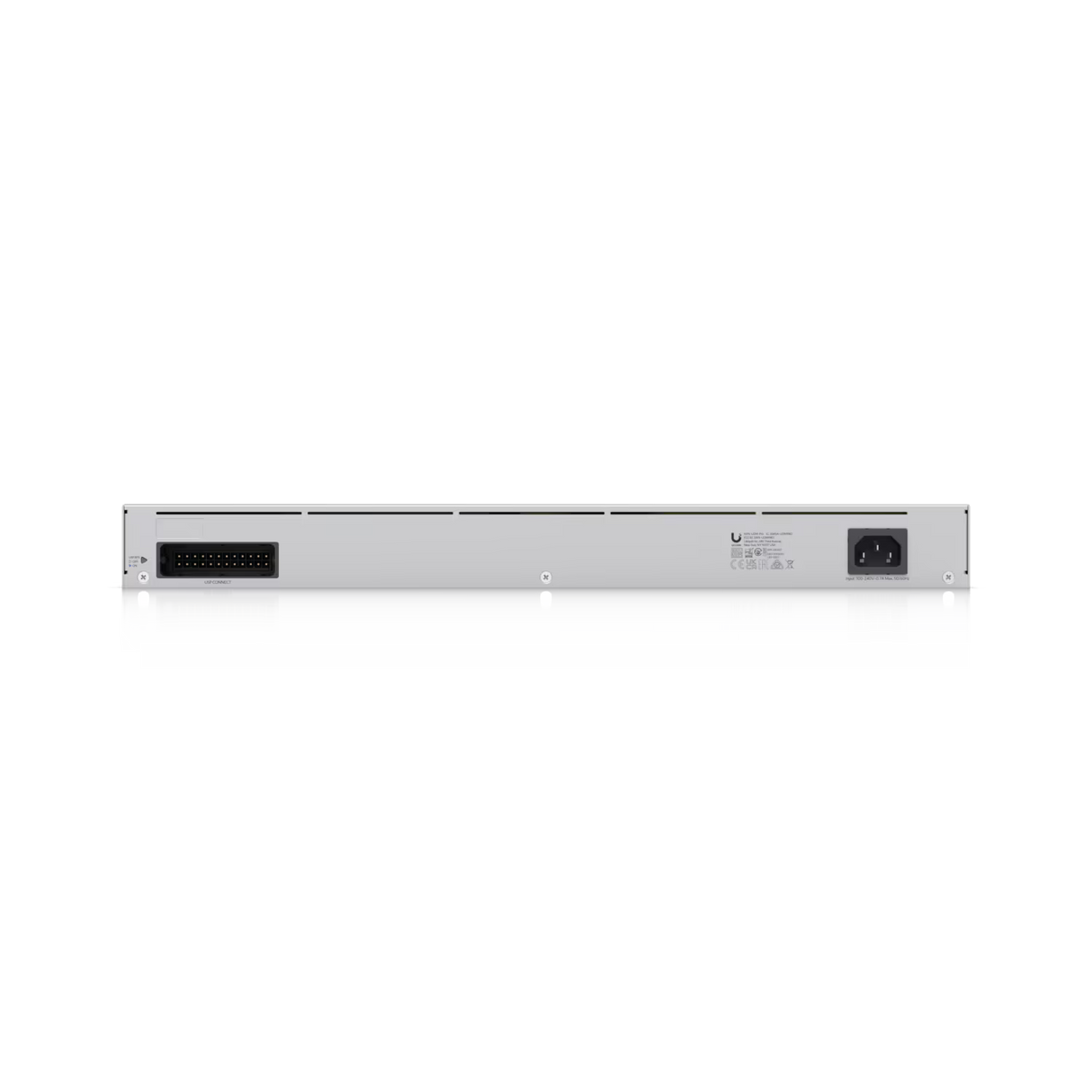

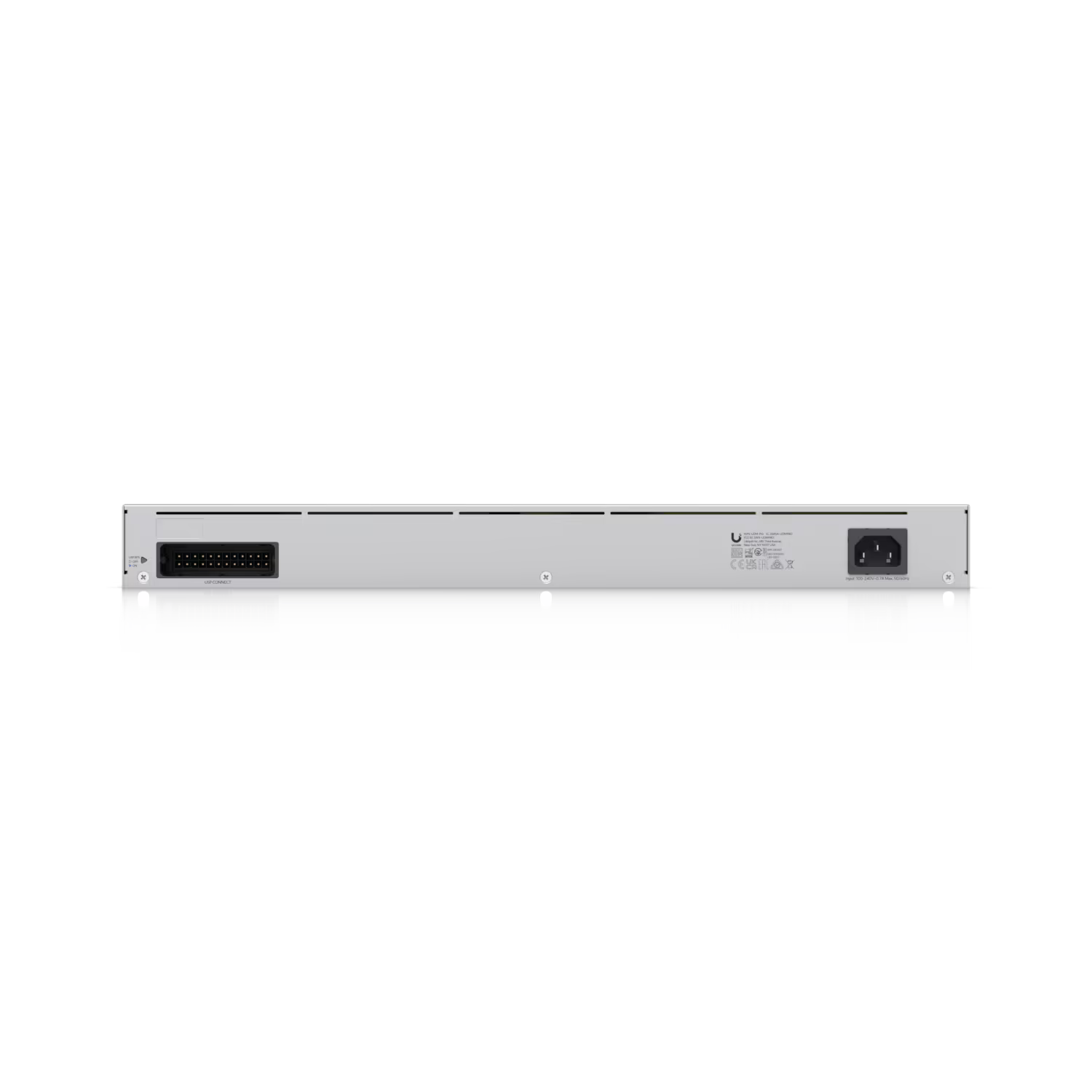

Power Method
(1) Universal AC input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power Supply
AC/DC, internal, 50W
Supported Voltage Range
100—240V AC
Processor
Quad-core ARM® Cortex®-A57 at 1.7 GHz
System Memory
4 GB
On-board Storage
16 GB
Weight
3.9 kg (8.6 lb)
Enclosure Material
Aluminium CNC, SGCC steel
Mount Material
SGCC steel
LCM Display
1.3" touchscreen
Management
Ethernet
Bluetooth
LEDs
Ethernet
✓
SFP+
✓
RPS
✓
PSU
✓
HDD
✓
Button
(1) Factory-reset
ESD/EMP Protection
Air: ± 15kV, contact: ± 8kV
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel, SRRC
